AUTOOL SDT100 Smoke Tester for Vacuum Leaks
$69.00

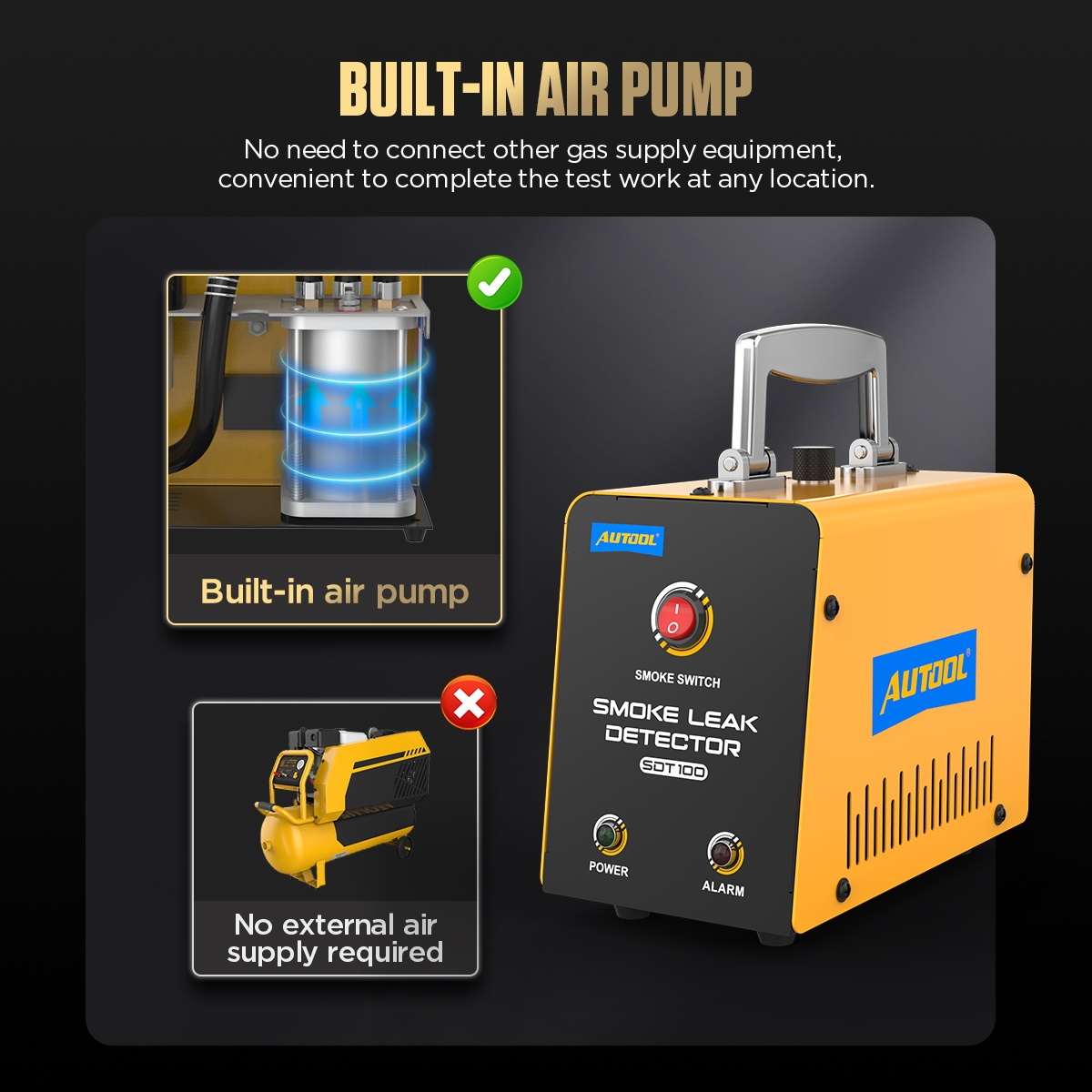

- Built-in Air Pump: No extra pump needed, safe and reliable.
- EVAP Detection: For US cars 1996+, port usually in engine bay.
- Easy Operation: Add 10–20ml baby oil, smoke appears in 10 seconds.
- Smart Protection: Overheat and freeze protection.
For wholesale prices and more discounts click here.
The AUTOOL SDT100 smoke tester is a professional tool for quickly detecting vacuum, gas, and oil leaks. Compact and lightweight with a built-in air pump, it is compatible with all cars, motorcycles, ATVs, snowmobiles, off-road vehicles, light trucks, and even speedboats. Ideal for both professional technicians and automotive enthusiasts, it delivers reliable diagnostics for faster, easier maintenance.
🗣️You may want to know.
⚠️Important Usage Instructions for Car Smoke Leak Detector
Power Supply: The automotive smoke tester must be connected to a 12V battery to operate.
Test oil: Kindly note that, due to logistics restrictions, we are unable to include testing oil in the package. You can easily buy liquid paraffin or baby oil locally for use as the testing fluid.
First-Time Use: Each time you use the smoke tester car, please fill it with 10–15ml of testing oil. Do not exceed this range, as there will be no space left for smoke generation.
Testing Oil Refill Tips: Only refill when the smoke becomes thin. Do not add more than 15ml at a time. Always drain the remaining test oil before adding fresh test oil.
Safety Precautions
- Do not operate the smoke leak detector continuously for more than 8 minutes; allow it to rest between uses.

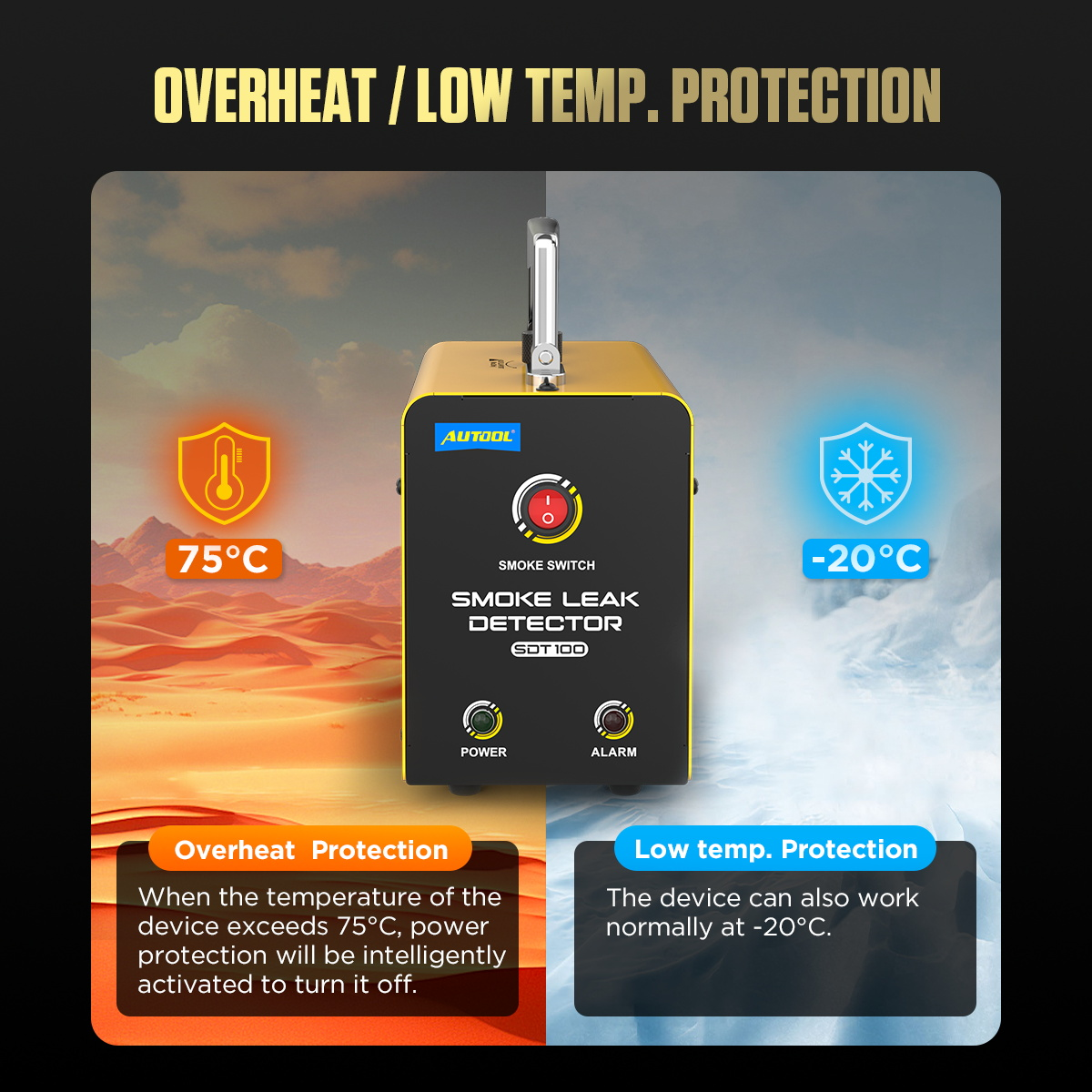

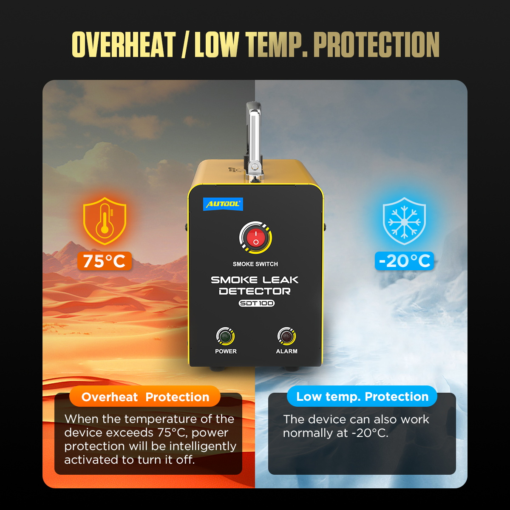

- The smoke test machine features an intelligent protection system that automatically shuts off if the internal temperature exceeds 75°C. Please wait for it to cool down before restarting.
- The metal round section of the smoke tester car can become hot during operation—avoid direct contact to prevent burns.
What is the Difference Between the AUTOOL Smoke Machine For Vacuum Leaks?
AUTOOL Automotive Automotive Vacuum Leak Tester Quick Search
-14%
HOT
Original price was: $499.00.$429.00Current price is: $429.00.
-21%
HOT
$269.00 – $299.00
AUTOOL SDT100 Smoke Machine Leak Detector Features
- Built-in Air Pump: No extra pump required. High-quality, tested components save time and money.
- EVAP Detection: Compatible with American cars (1996+). Quickly access EVAP service ports and introduce smoke to detect leaks.
- Easy Operation: Simply add 10–20ml of testing oil (not included), connect the intake pipe and a 12V battery, and start detecting smoke for leak points.
- Wide Testing Range: Supports EVAP, intake, cooling/EGR/exhaust, crankcase, engine airtightness, vacuum, and low-pressure turbo systems. Suitable for cars, motorcycles, ATVs, snowmobiles, off-road vehicles, light trucks, and speedboats.
- Smart Protection: Overheat and freeze protection automatically stops operation when needed. Cool with the built-in air pump; do not refill oil while running.
- Warranty & Support: 3-year free parts replacement (non-human damage) and responsive customer service within 24 hours.
How To Use The AUTOOL SDT101 Smoke Machine Leak Detector?
- Step 1: Fill 10-15ml baby oil into the detector for the first time. Open the engine cover, and hang the detector in the cover.
- Step 2: Disconnect the pipe that needs to be connected to the detector.
- Step 3: Connect the detector with the DC 12V battery, turn on the power switch, and the detector starts to work.

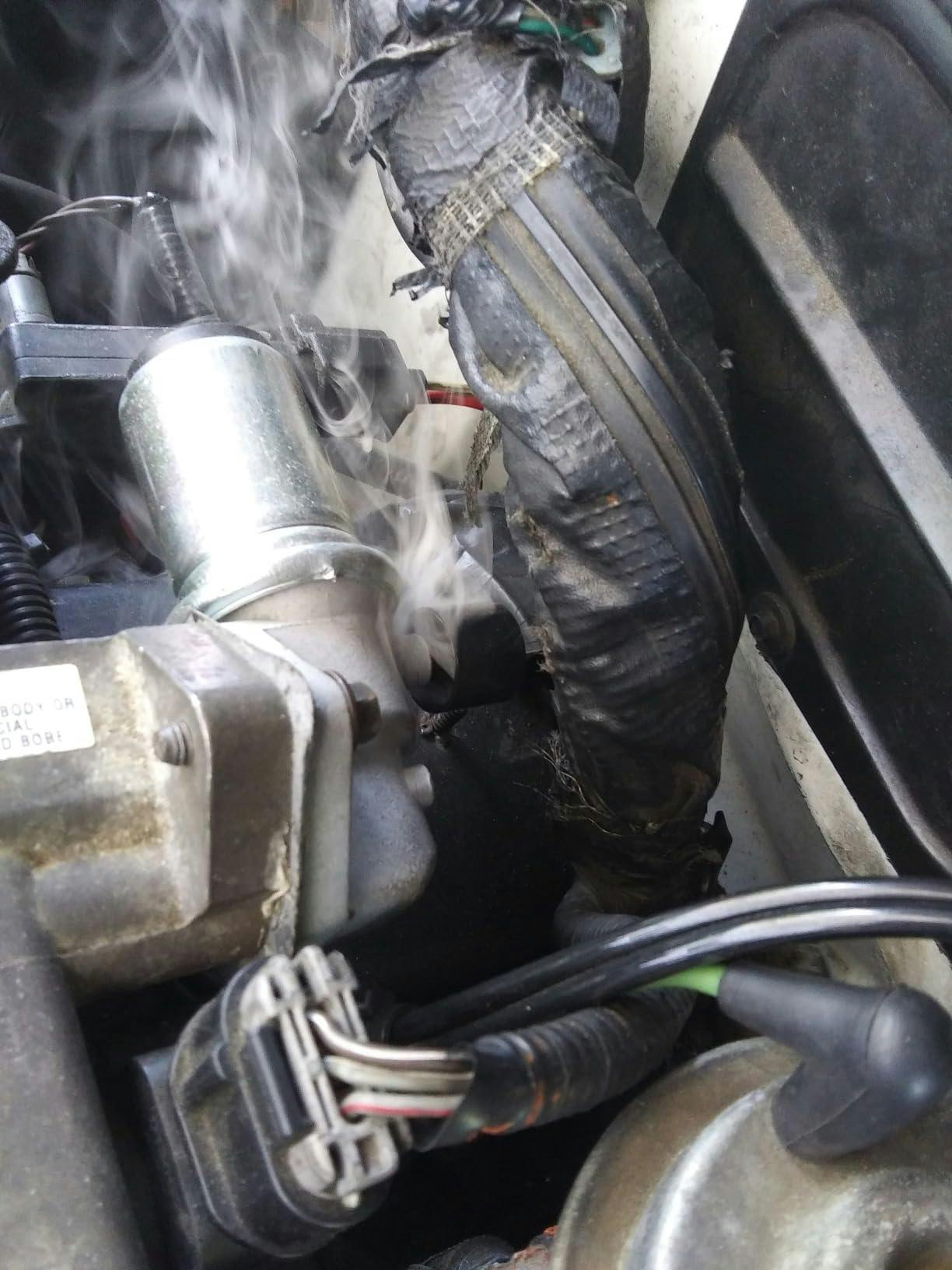

- Step 4: In about 30 seconds, the pipe will be filled with smoke. Check the leak points. Please use a headlamp if necessary.

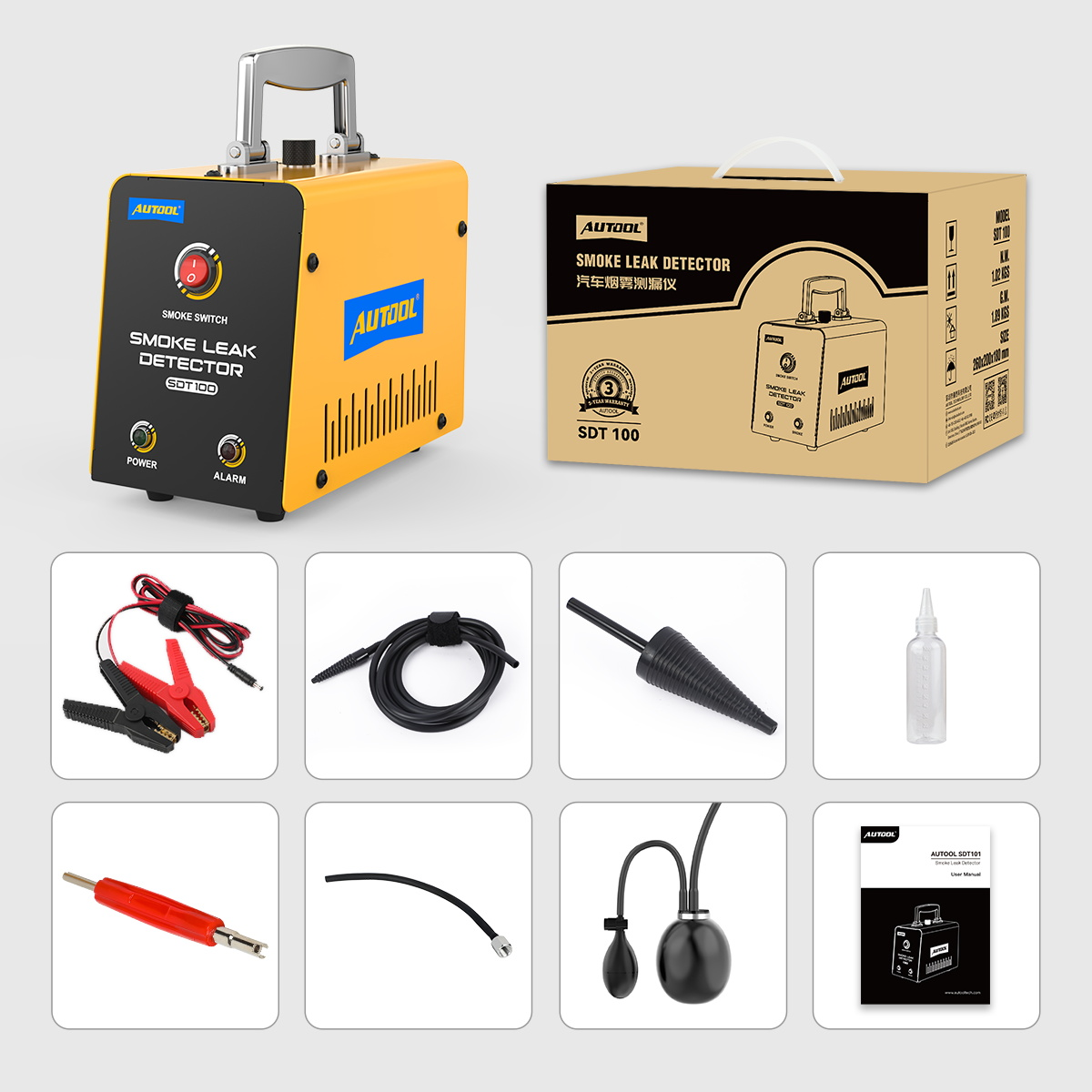

Packing List
FQA
What testing oil should be added into AUTOOL smoke machine for evap leaks?
If you can’t find a professional test oil, you can buy liquid paraffin or baby oil at your local store as test oil.
How much testing oil should be added into the auto smoke test machine?
It’s suggested to add 10-20ml testing oil for the first trial. Please drain some testing oil out if you add too much accidentally. You can reuse the extra next time.
Can smoke leak detectors detect auto A/C system?
The auto A/C system operates at 1.7-3.0Mpa output pressure, while our smoke leak detectors generate only 0.1Mpa. So the smoke leak detector cannot directly test the auto A/C system for leaks. You can use our machine to perform segment-assisted testing for air-conditioning pipelines.
How to use a smoke leak detector to perform a segmental auxiliary test on the air conditioning pipeline?
First, pressurize the air-conditioning pipeline, then spray smoke and observe if the airflow blows it. If there is, it means that the location is a leak point, you can repair later.
Can smoke tester car detect EVAP system?
AUTOOL smoke leak detectors can test leaks in the EVAP system. We have equipped professional fuel EVAP testing tools in the package, you can choose proper tools to test.
What’s the difference among various models of smoke leak detectors ?

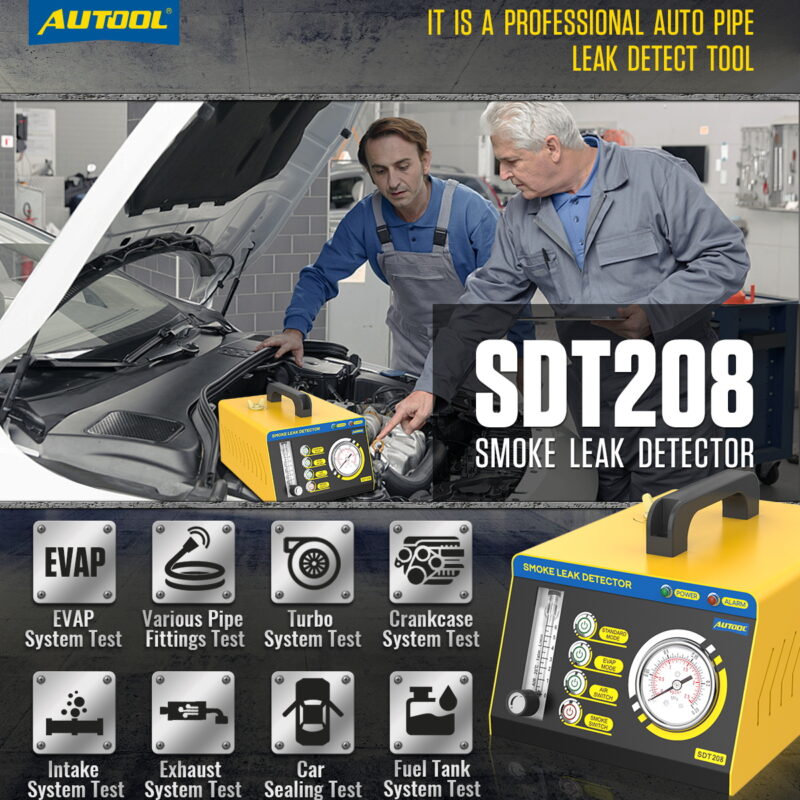

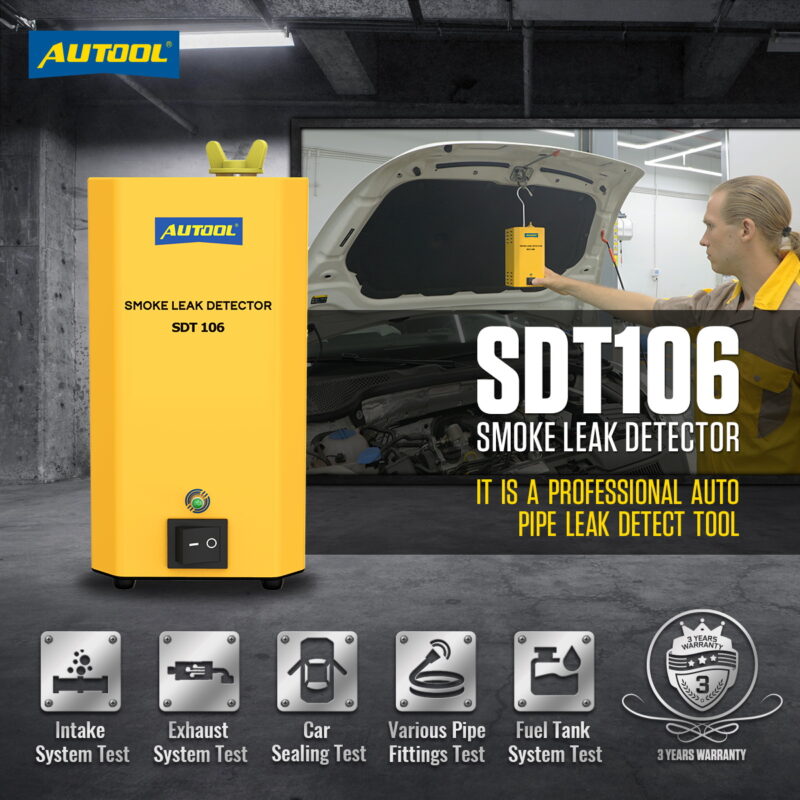

The AUTOOL smoke leak detector series includes SDT101 and SDT103 for EVAP systems (3.2Kpa), SDT106 and SDT202 for beginners (12 psi), and SDT203, SDT205, SDT205S, SDT206, and SDTMASTER as standard and high-end models (15 psi).SDT208 supports up to 35Psi.
We use different materials and functions in our products, resulting in varying prices. Visit our official websites for details if you’re interested.
What’s the voltage of automotive smoke leak detector?
All AUTOOL smoke leak detectors adopt 12V car battery power, which is safe to operate and easy to get power. You can use our device safely without worrying about security issues.
Can the pressure of the smoke machine for vacuum leaks be set?
Most AUTOOL smoke leak detectors have fixed pressure, except for the SDT MASTER, which allows adjustment.
To protect automobile pipelines, our technicians set a safe pressure of 0.1MPA before shipping, ensuring it meets common maintenance and testing needs.
What accessories does smoke tester car have?
Different models of AUTOOL smoke leak detectors have different accessories. Our package typically includes 6-75mm hard rubber kits, cone and airbag adapters, EVAP testing tools, smoke hose, power cable, test oil bottle, user manual, warranty, and certificate of qualification.
How long is the warranty for smoke machine for vacuum leaks?
We promise up to three years warranty after your purchase. Today we sell 200,000+ machines online and offline in 160+ countries and regions. You can rest assured to purchase our smoke leak detectors since we have stable quality and reliable after-sales service.
Related blogs
Customer Reviews
Based on 1 review
100%
(1)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
S

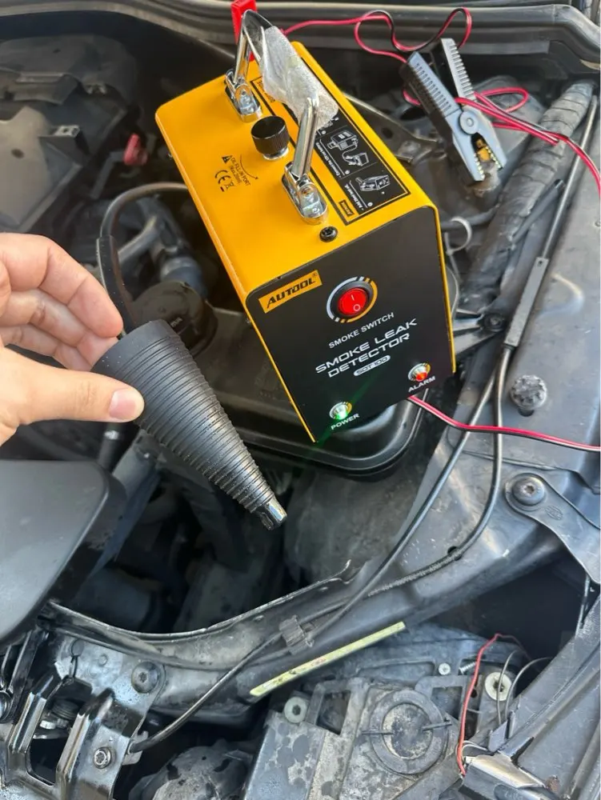

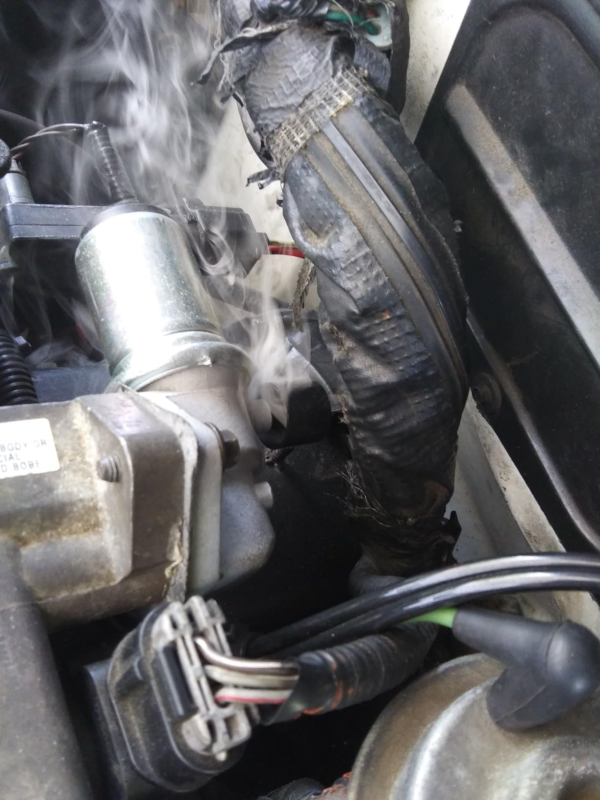

This is great! Easy to use! I used a small amount of baby oil. It makes a very good amount of smoke. It connects with clamps to your positive and negative battery cable so it's totally portable to use outside if you're not able to work on your car at home. This has helped me find vacuum leaks with ease.
