HOT

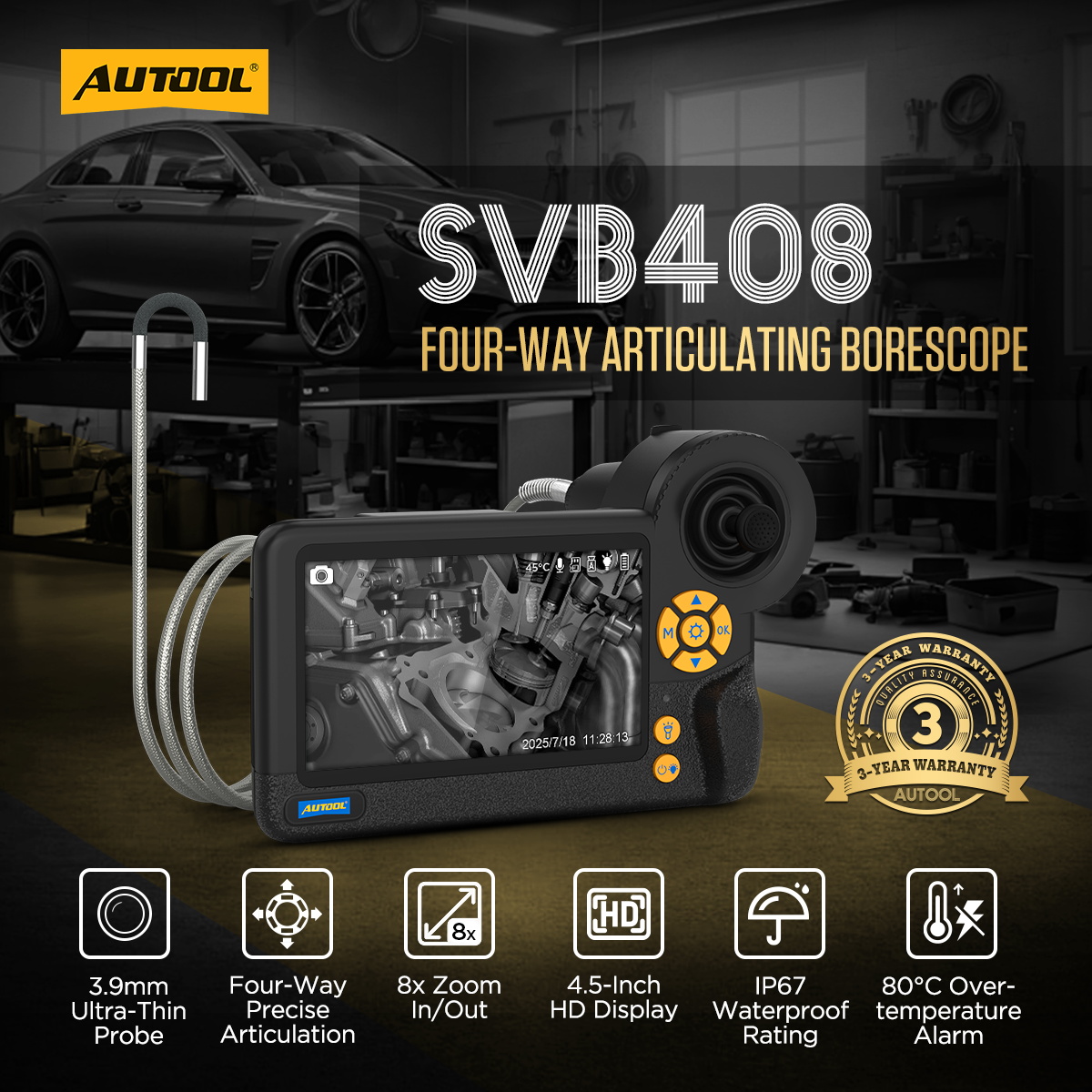

AUTOOL SVB408 Automotive Engine Borescope Camera
$289.00
- Ultra-Thin 3.9 mm Inspection Camera with 8× Zoom: Easily reach tight spaces like transmission valve bodies and fuel injection pipelines.
- 4-Way 360° Snake Camera: Flexible observation from four directions (front, back, left, right)
- 4.5″ HD Screen: 1MP resolution for clear, detailed images.
- 6 Adjustable LEDs: Three brightness levels for any lighting condition.
- IP67 Waterproof: Providing water and oil resistance for use in wet pipes.
- Overheat Protection: 80°C overheat warning ensures safe operation.
AUTOOL SVB408 — Automotive Endoscope Camera
AUTOOL SVB408 is a high-performance engine endoscope camera for the global automotive aftermarket. It inspects hard-to-reach, narrow, and curved spaces, making it perfect for checking key components such as automotive evaporators, combustion chambers, and catalytic sensors.
This snake camera is equipped with a 360° full-range rotation function in four directions, offering flexible and comprehensive inspection views. The unique high-temperature alarm system ensures safe and reliable operation. Its slim probe easily navigates complex spaces and supports up to 8x digital zoom, allowing for precise detail capture. The 4.5-inch IPS HD screen displays real-time, clear images, helping users complete various inspection tasks quickly and accurately.
AUTOOL SVB408 endoscope camera is an essential tool for every automotive repair professional. It not only meets diverse maintenance needs but also greatly enhances work efficiency and quality.
⚠️Snake Camera Warm Tips
- The automotive inspection camera lens isn’t resistant to high temperatures, so it’s recommended to use it below 75°C. Please check it under cold conditions to avoid damaging the lens.
- To protect the endoscope, please avoid using it when the car has just stopped or the engine is hot. When the engine has just stopped, its temperature usually reaches 80°C to 100°C or even higher. High temperatures can damage the camera
- It is recommended to use the endoscope after the engine has completely cooled down. Usually, it takes about 1 to 2 hours for the engine to cool down to a safe temperature. Do not place the hose in an environment above 75℃. High temperature can damage the camera, we consider this to be abnormal damage. If the camera is damaged by high temperature, free warranty will not be provided.
- Keep the articulating borescope clean, avoid prolonged exposure to sunlight, and protect it from direct contact with water, oil, and corrosive liquids.
✅Why Choose AUTOOL SVB408 Automotive Inspection Camera
- Nondestructive testing: The best endoscope camera allows for inspection without the need to disassemble automotive parts, preventing potential damage and additional costs associated with the disassembly process.
- Efficient diagnosis: It quickly provides detailed images of hard-to-reach areas such as the engine, transmission, and exhaust system, significantly improving the speed and accuracy of fault diagnosis.
- Visual image detection: The real-time image and video functions enable technicians to clearly identify internal issues, leading to more precise assessments.
- Save time and cost: By minimizing the need for disassembly, the endoscope reduces maintenance time and labor costs, while preventing unnecessary part replacements.
What Is The Difference Between AUTOOL Articulating Borescope?
FAQS
Comparison: AUTOOL SVB403 vs SVB405 vs SVB408 Automotive Engine Borescope Camera
1、Steering Angle
First, the SVB403 offers 210° two-way rotation, while both the SVB405 and SVB408 provide 360° four-way rotation, allowing more flexible control.
2、Number of Cameras
In addition, the SVB403 comes with two cameras: one front camera and one side camera. However, the SVB405 and SVB408 each include only one camera.
3、Resolution
Moreover, the SVB405 features a 2-megapixel camera, while the SVB403 and SVB408 both use 1-megapixel cameras.
4、Display Screen
The SVB403 is equipped with a 4.3-inch screen, while the SVB405 and SVB408 both come with a slightly larger 4.5-inch screen.
5、Lens Diameter
The camera diameter of the SVB403 is 6.5 mm, while the SVB405 has a slightly smaller 6.45 mm diameter. The SVB408 has the smallest diameter, only 3.9 mm.
6、8× Digital Zoom
Furthermore, the SVB405 and SVB408 support 8x digital zoom, but the SVB403 does not include this feature.
7、Bending Radius
Finally, the SVB403 has a 35 mm bending radius, the SVB408 is slightly longer at 37 mm, and the SVB405 has the largest bending radius among the three models at 47 mm.
Comparison: AUTOOL SVB305 vs SVB308 Automotive Engine Borescope Camera
1、Steering Angle
The SVB305 has a 210-degree, two-way rotation, while the SVB308 has a 360-degree, four-way rotation.
2、Lens Diameter
The SVB305’s lens is 505mm, while the SVB308’s is 6.2mm.
3、Supported Languages
The SVB305 supports eight languages: English, German, French, Italian, Spanish, Chinese, Russian, and Japanese. The SVB308 also supports Traditional Chinese and Korean.
4、Battery Capacity
The SVB305 has a 2000mAh lithium battery, while the SVB308 has a 2600mAh lithium battery.
5、Magnetic and Detachable Design
This is a unique feature of the SVB308. The SVB308 has a magnet on the bottom that allows it to attach to magnetic surfaces. The screen and handle can be detached for easy storage.
Comparison: AUTOOL SVB302 vs SVB303 Automotive Engine Borescope Camera
1、Steering AngleThe SVB302 has a 210-degree dual-angle lens, while the SVB303 has a 20-100mm depth of field.2、Supported Languages
The SVB302 supports English, German, and 360-degree rotation, while the SVB303 offers 360-degree rotation.
The SVB302 supports English, German, and 360-degree rotation, while the SVB303 offers 360-degree rotation.
3、Lens Diameter
The SVB302’s lens diameter is 6.45mm, while the SVB303’s is slightly smaller at 6.2mm.
4、Depth of Field
The SVB302 has a depth of field of 30-100mm and supports seven languages: French, Italian, Spanish, Chinese, and Japanese. The SVB303 also supports Traditional Chinese, Russian, and Korean, for a total of ten languages.
5、Magnetic and Detachable Design
This is a unique feature of the SVB303. The SVB303 has a magnet on the bottom that allows it to attach to magnetic surfaces. The SVB308’s screen and handle can be detached for easy storage.
AUTOOL Automotive Inspection Camera Quick Search.
-36%
HOT
Original price was: $319.00.$205.00Current price is: $205.00.
$159.00
-25%
$229.00 – $249.00
AUTOOL SVB408 Borescope Camera Features

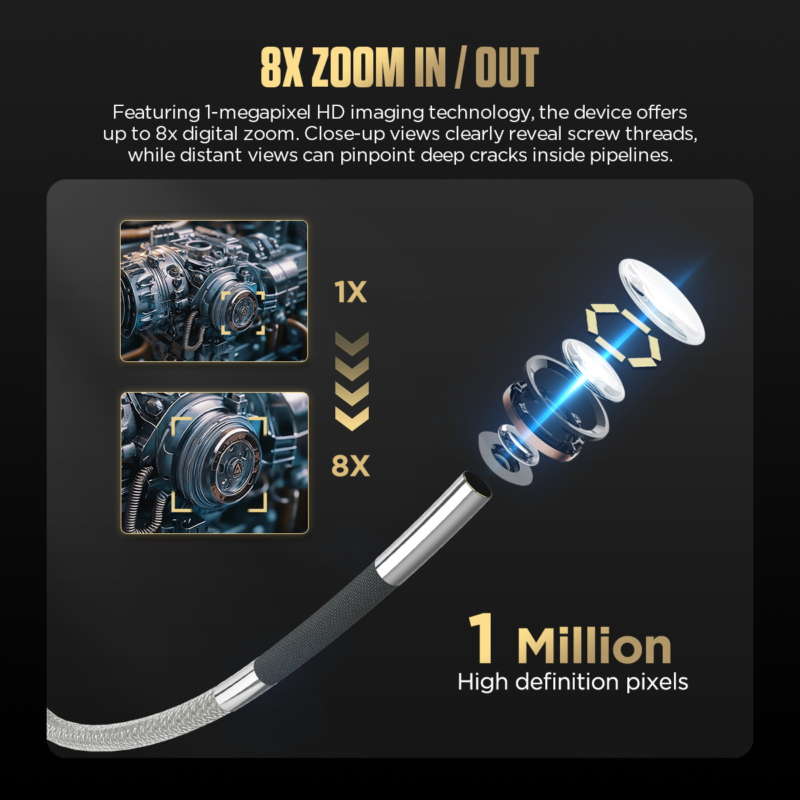

- 8× Digital Zoom : 1MP HD imaging gives very clear details, from close-up screw threads to deep cracks inside pipes.

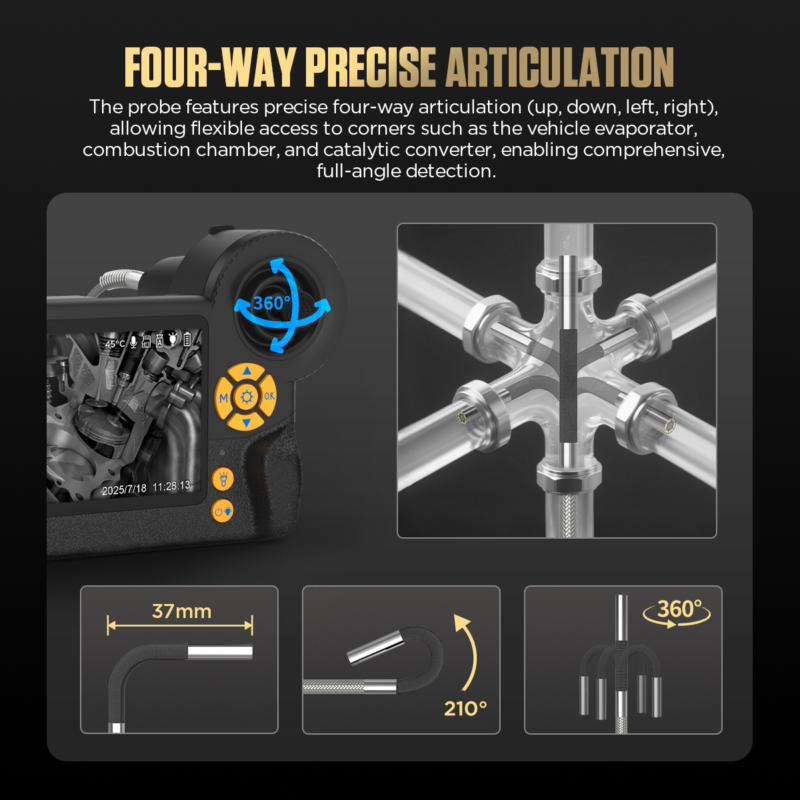

- 360° Four-Way Rotation: Supports full articulation with 210° bending, enabling comprehensive inspections and covering every corner.

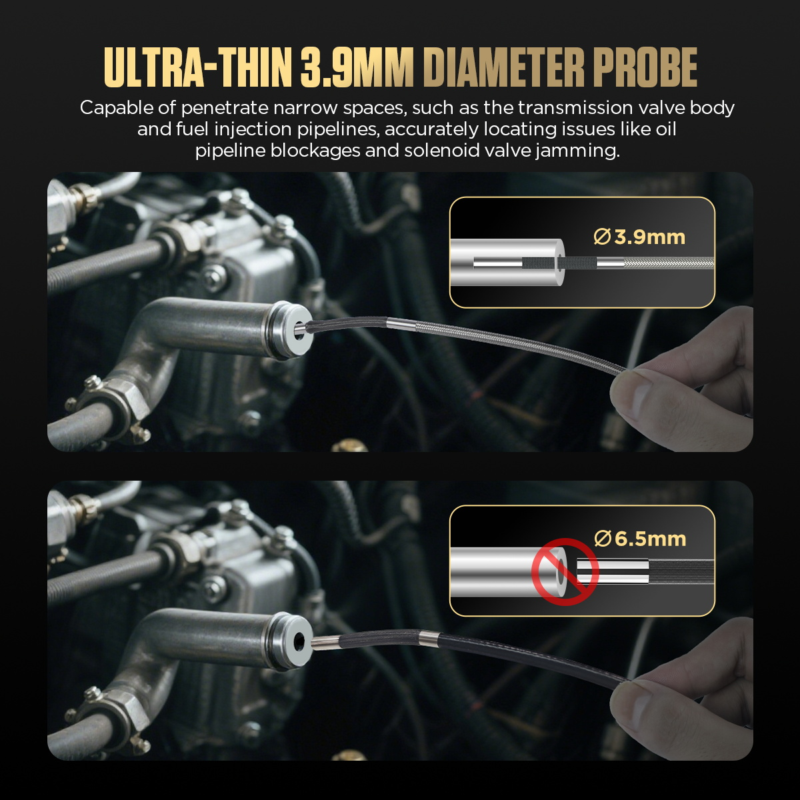

- 3.9mm Lens Diameter: Ultra-small lens design easily enters engine gaps, pipes, and other narrow spaces for flexible and convenient operation.

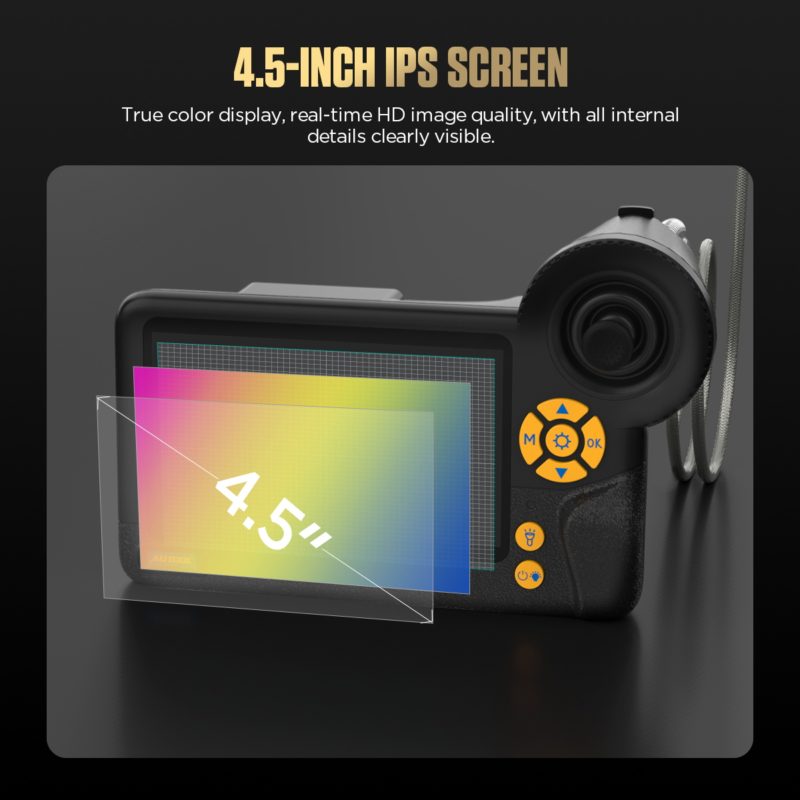

- 4.5-Inch IPS HD Screen: Equipped with a 1-megapixel camera and up to 8x digital zoom, it delivers crisp images and every detail.
- 25–100mm Depth of Field: Combined with a 70° field of view, it accurately captures both close-range and mid-range inspection details.

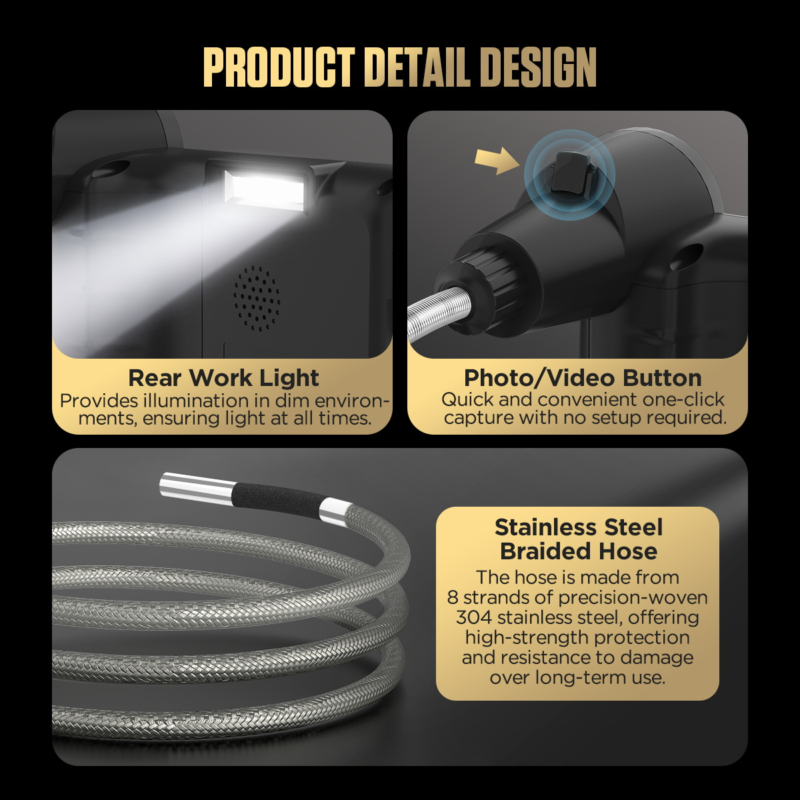

- IP67 Waterproof Rating: Built with a wear-resistant metal probe hose, waterproof and durable for use in humid or harsh environments.
- 1-Meter Flexible Hose: With a minimum turning radius of 37mm, it easily accesses curved pipes and complex spaces.

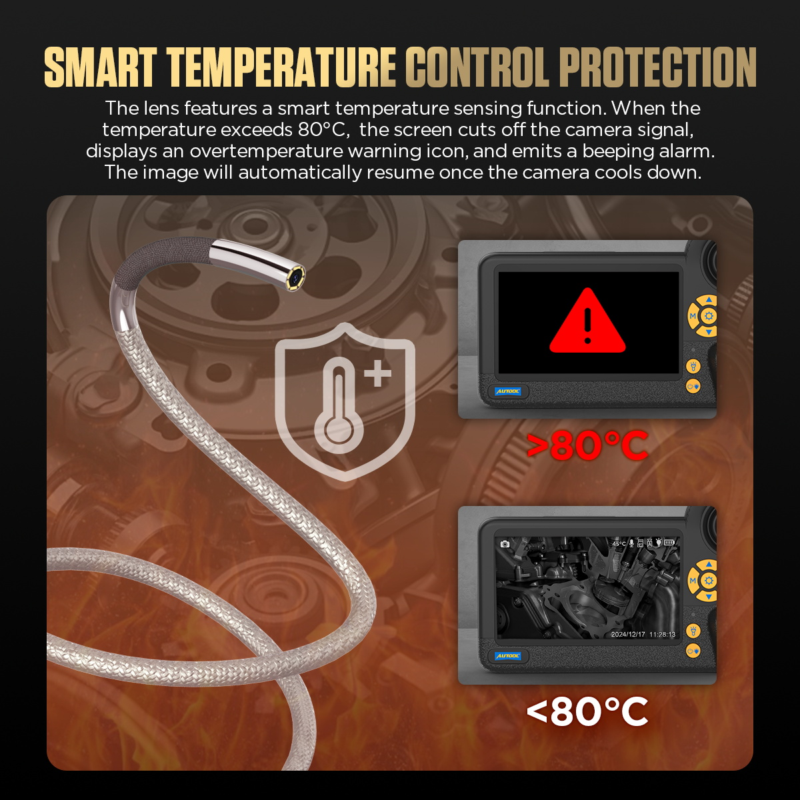

- Overheat Protection: Real-time temperature monitoring with 80°C over-temperature alarm ensures safe use and extends device lifespan.
- 6 High-Brightness Ceramic LEDs: Three adjustable brightness levels provide stable and uniform illumination in dark or confined spaces.

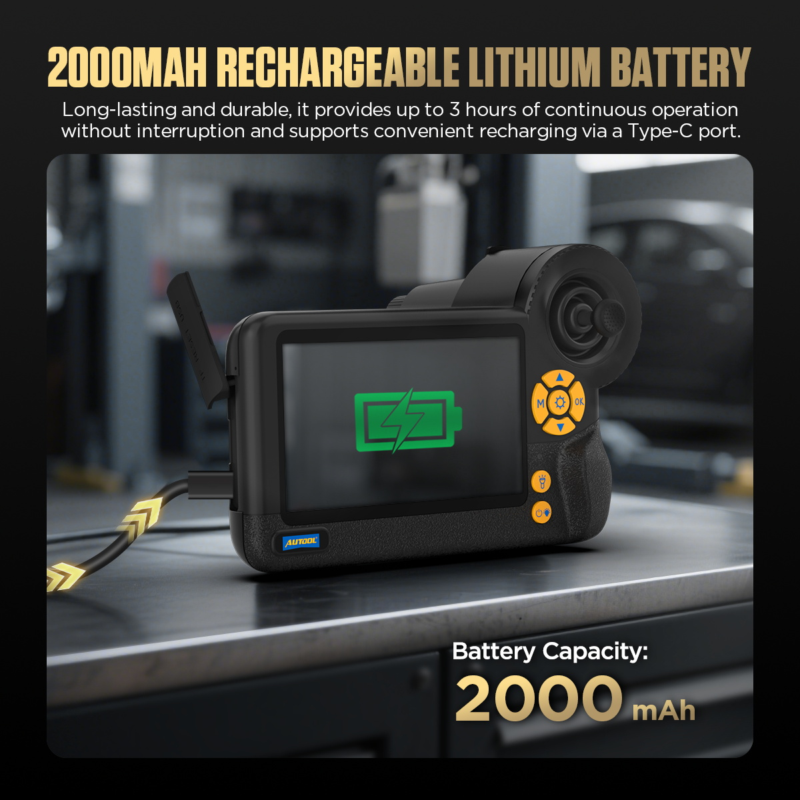

- 2000mAh High-Capacity Battery: Supports up to 180 minutes of continuous use, reducing frequent charging and ensuring long inspection sessions.

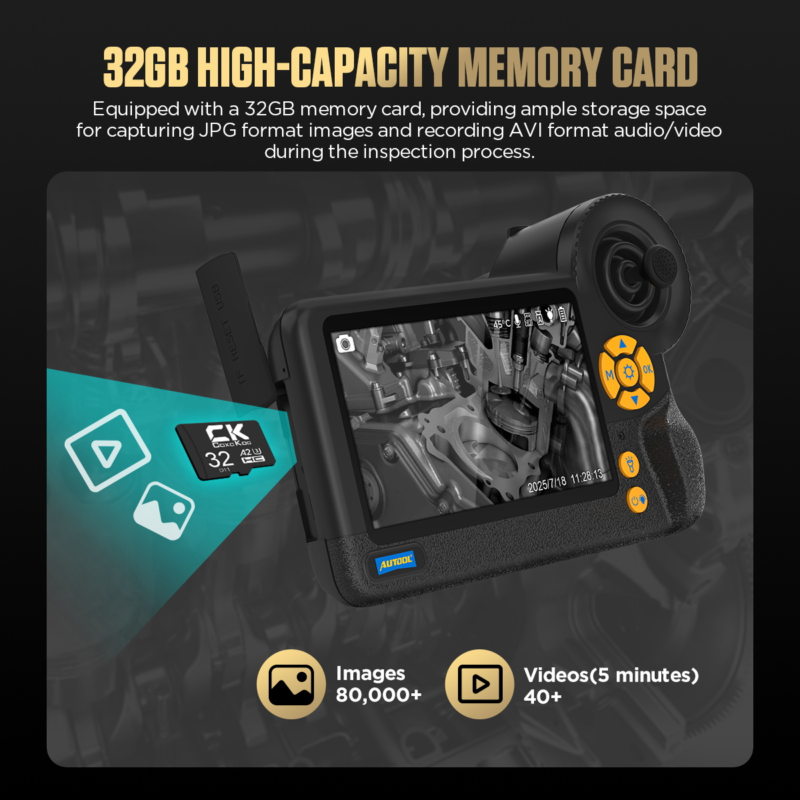

- Built-in 32GB High-Speed Memory Card: Stores over 80,000 images or 40 five-minute videos, meeting extensive data storage needs.
- Supports 8 Languages: English, Simplified Chinese, Japanese, Korean, Russian, French, German, Portuguese.
- 3-Year Warranty: Covers non-human damage with free parts replacement within 3 years.
AUTOOL SVB403 vs SVB408: Which Automotive Endoscope is Right for You?
- The SVB408 features an ultra-thin 3.9 mm inspection camera with 8× zoom, allowing easy access to tight spaces such as transmission valve bodies and fuel injection pipelines. In contrast, the SVB403 has a 6.5 mm camera and does not support 8× zoom.
- The SVB408 offers 360° four-way articulation, whereas the SVB403 provides 210° dual-direction articulation. However, the SVB403 includes an additional side-view camera, which the SVB408 lacks.

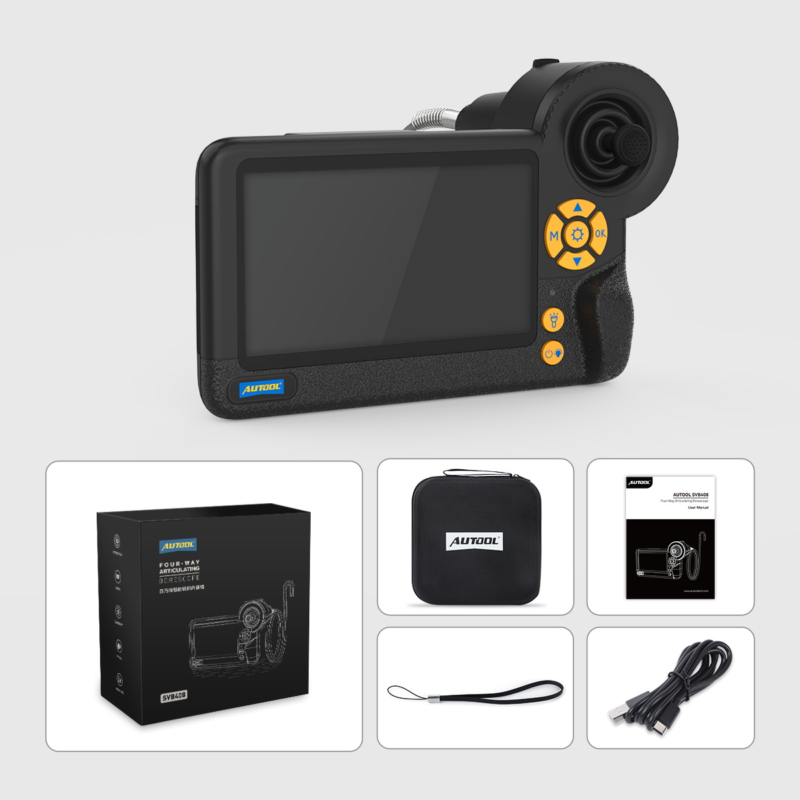

Packing List
