AUTOOL SDT106 Auto EVAP Leakage Smoke Test Machine
$129.00
- Built-in air pump: No need for a separate air supply!
- Quick smoke out: Large amount of smoke within 30s, greatly reducing the detection time.
- Wide Range of Applications: Widely used in a variety of automotive piping.
For more discount and online support please click here.

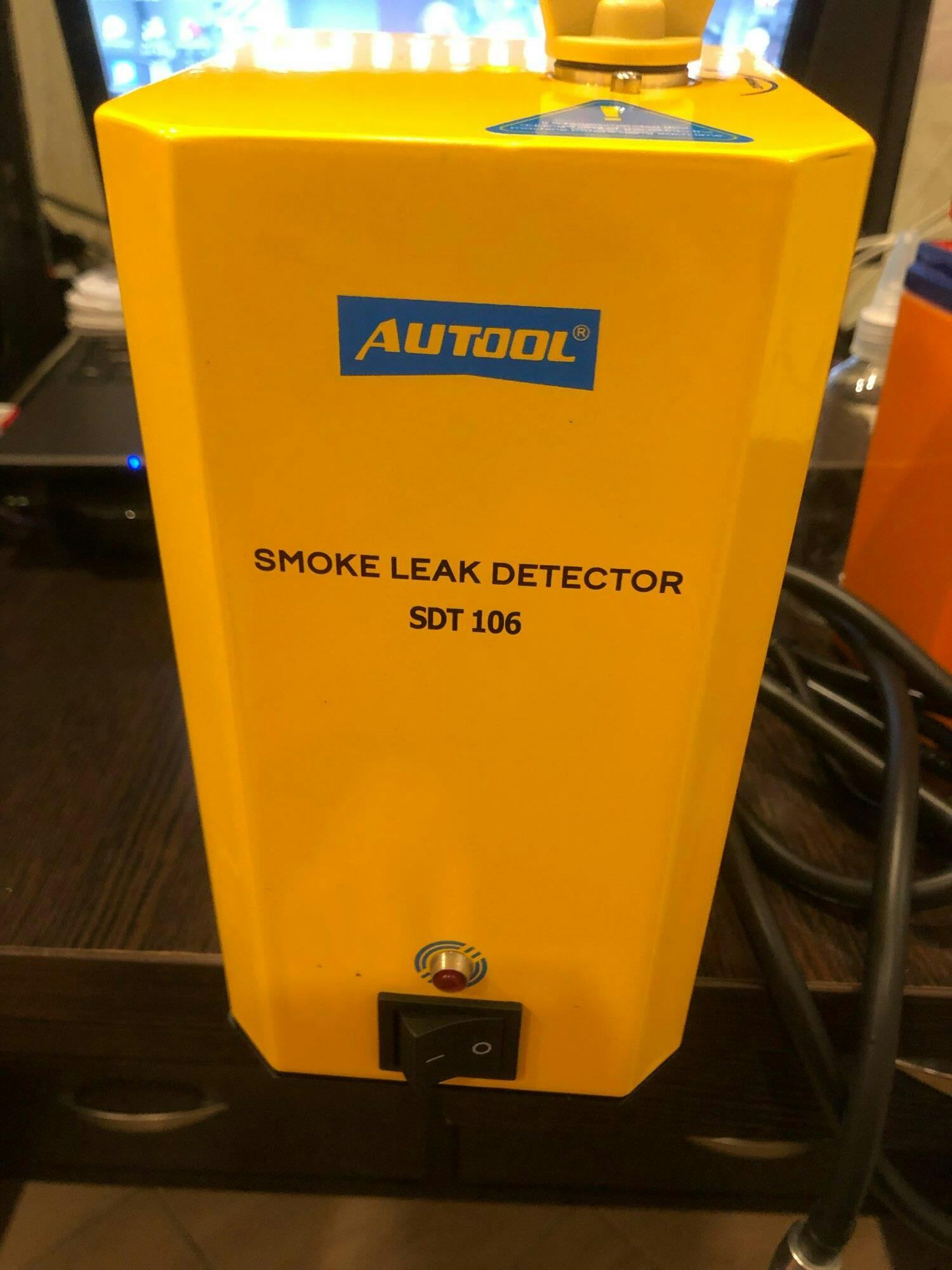

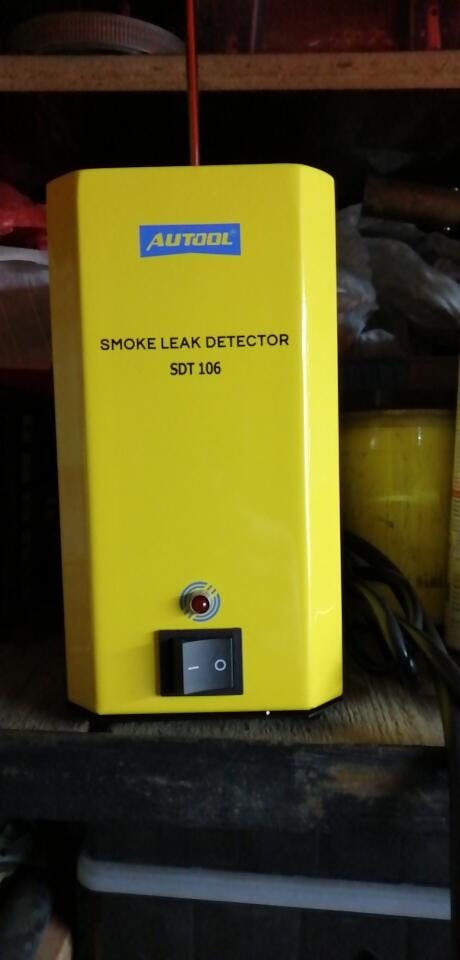

AUTOOL SDT106 smoke test machine is an entry-level automotive piping leak detection tool with a built-in air pump, which can accurately detect all kinds of leaks in the automotive piping system, and the hook-up design makes it easier and faster for you to find the problem and solve the problem on the job.
🗣️You may want to know.
⚠️Warm Tips
- Please note that the SDT series requires the connection of a 12V battery.
- When you use this AUTOOL SDT106 Car Smoke Test Machine for the first time, fill it with 10-15ml oil. Please be careful NOT to beyond this range.
- The testing liquid: both liquid paraffin and baby oil are OK.
- Only fill fresh oil when the smoke becomes thin, and limit each fill to no more than 15ml.
- Before filling fresh oil, please pour out the left oil in the detector & replace the detector oil regularly.
- During the process of leak detection, please keep away from smoke-sensitive parts.
- Do not run the detector for over 8 minutes continuously. It needs interval rest.
- The detector has an intelligent protector, if it exceeds the working limit, such as over 75 ℃, it will automatically turn off the power. In this case, please operate it later.
- The round part of this detector has temperature, please be careful to avoid burns.
What is the Difference Between the AUTOOL New Smoke Leaks Detectors?
AUTOOL Automotive smoke tester Quick Search
$139.00 – $179.00
-13%
HOT
-14%
AUTOOL SDT106 Smoke Detector Machine Features
- Fast smoke output: smoke output within ten seconds, greatly improving your efficiency in the test.
- Autool designed this smoke leak detector to be small, lightweight, and portable, making it easy to transport and store, unlike most smoke leak detectors on the market which are too large for convenient use. With a hook and loop design, a cone adapter, and an airbag adapter to fit most air inlets, this is an indispensable tool.

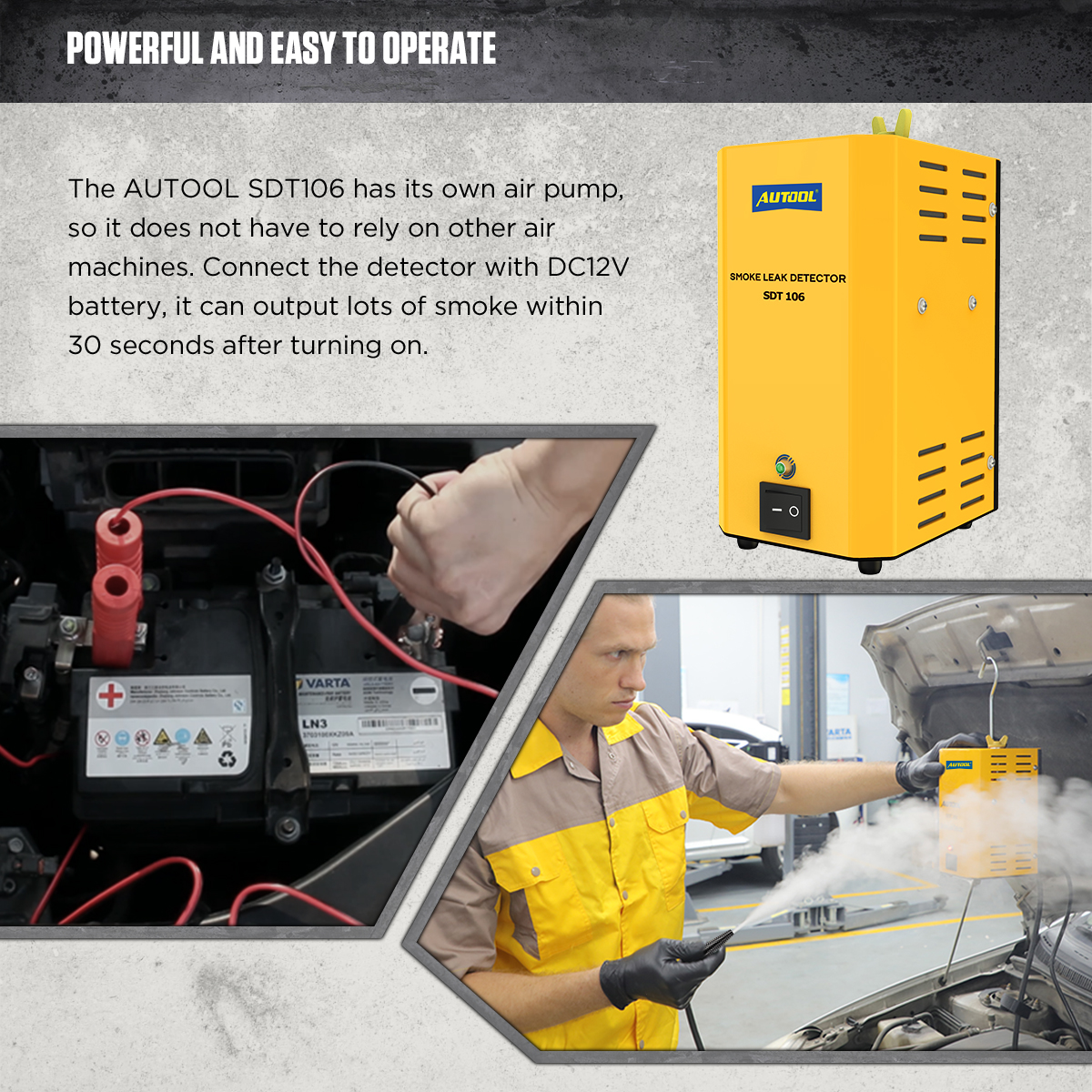

- Built-in Air Pump: Customers do not need to purchase additional air pumps, we use high-quality materials, after many tests, please rest assured to use. You can save more time and money

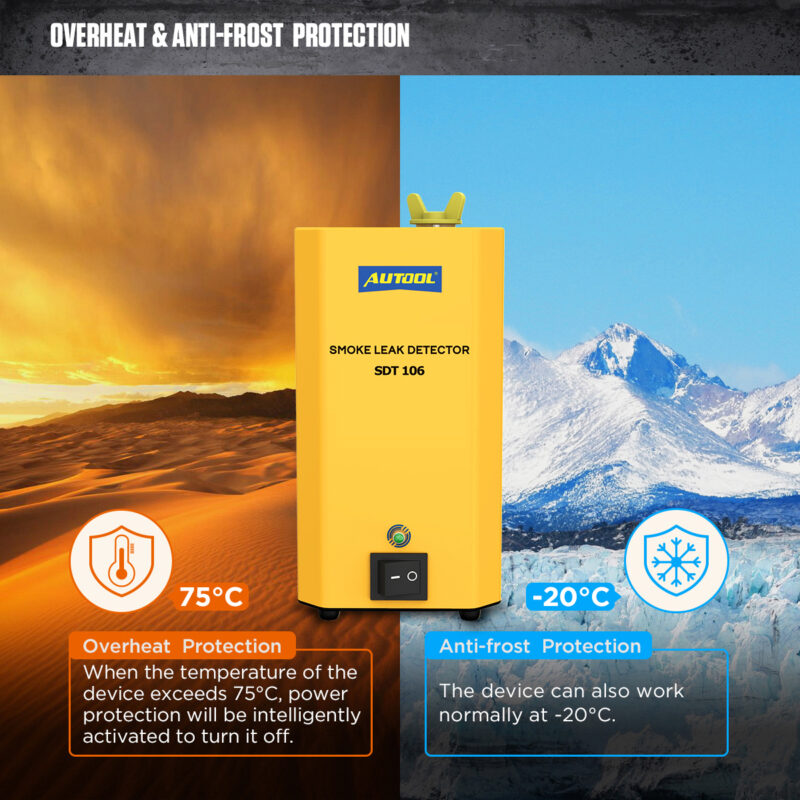

- The Autool SDT106 Smoke Detector Machine features the latest intelligent protection devices to prevent overheating and antifreeze issues. When the temperature exceeds 75℃ the protection device will only activate and shut down the power supply to protect the operator and the equipment. Not only is it protected against high temperatures, but it is also suitable for low-temperature operation.
- Wide Range of Applications: The AUTOOL SDT106 Smoke Leak Detector is suitable for detecting leaks in automobiles, motorcycles, snowmobiles, ATVs, ATVs, light trucks, and speed boats, suitable for all models(only for 12v DC).
- 3-Year Warranty: For damage caused by non-human factors, we promise to reissue parts free of charge within 3 years.

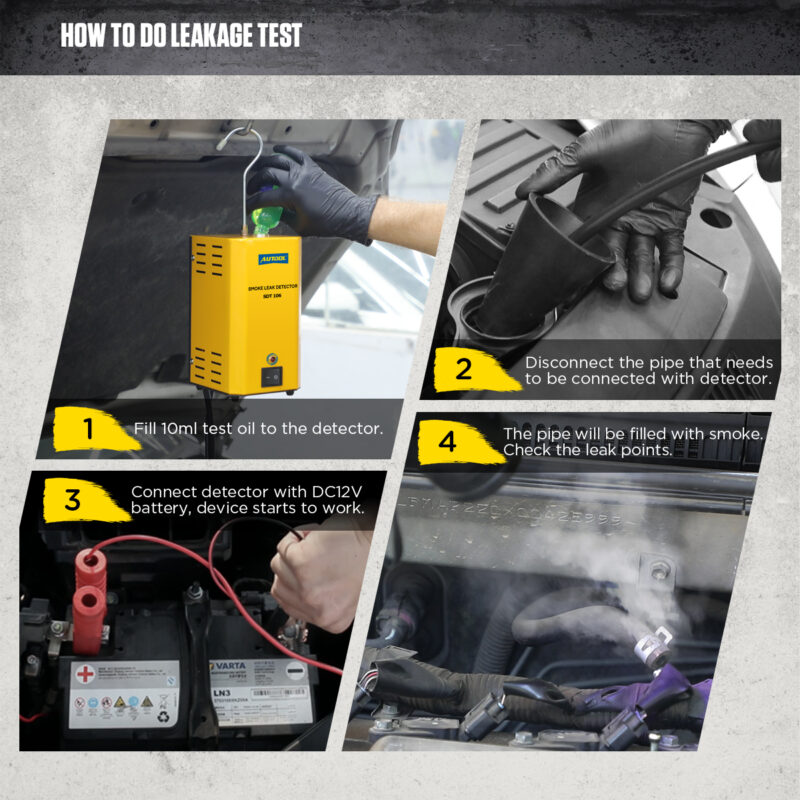

How To Use The AUTOOL SDT106 Smoke Detector Machine?

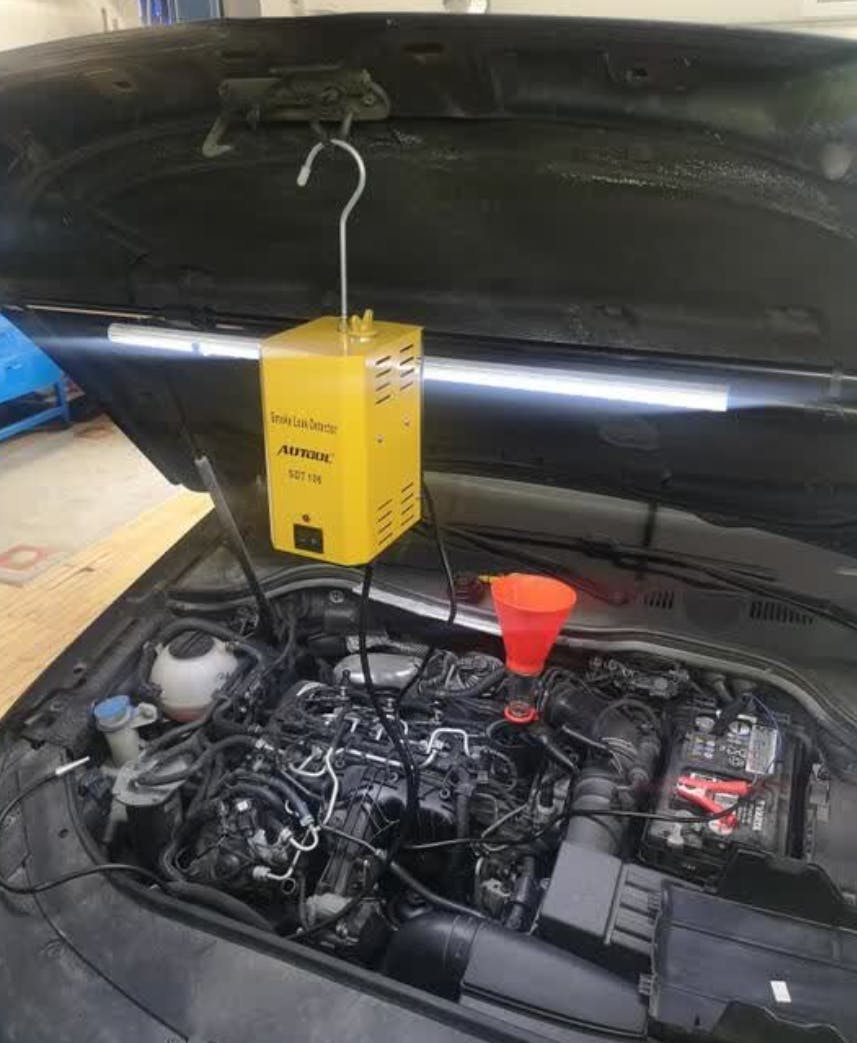

- Step 1: Fill 10-15ml baby oil into the detector for the first time. Open the engine cover, and hang the detector in the cover.
- Step 2: Disconnect the pipe that needs to be connected to the detector.
- Step 3: Connect the detector with the DC12V battery, turn on the power switch, and the detector starts to work.

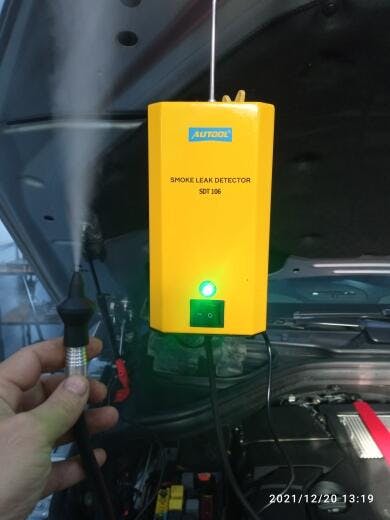

- Step 4: In about 30 seconds, the pipe will be filled with smoke. Check the leak points. Please use a headlamp if necessary.

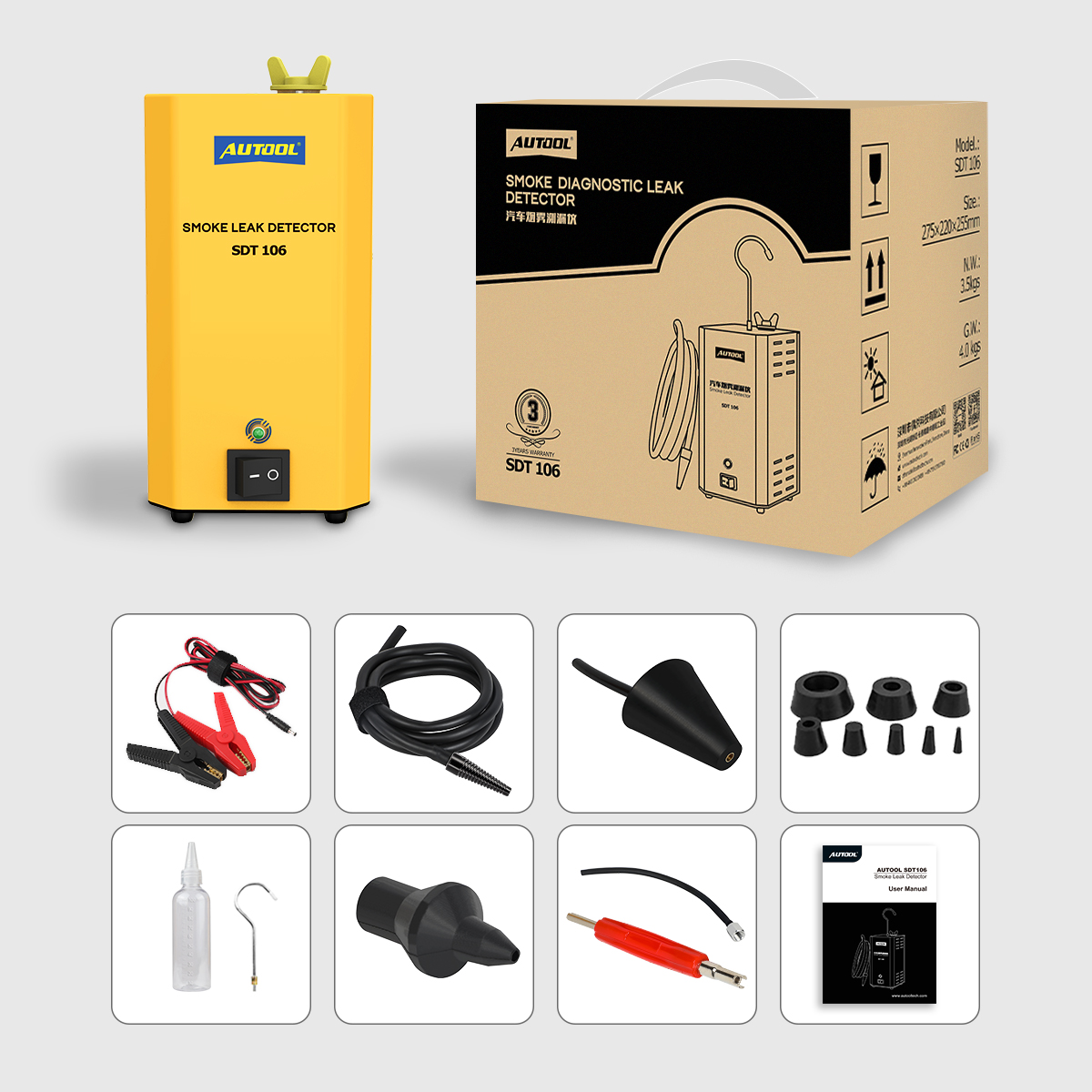

Packing List

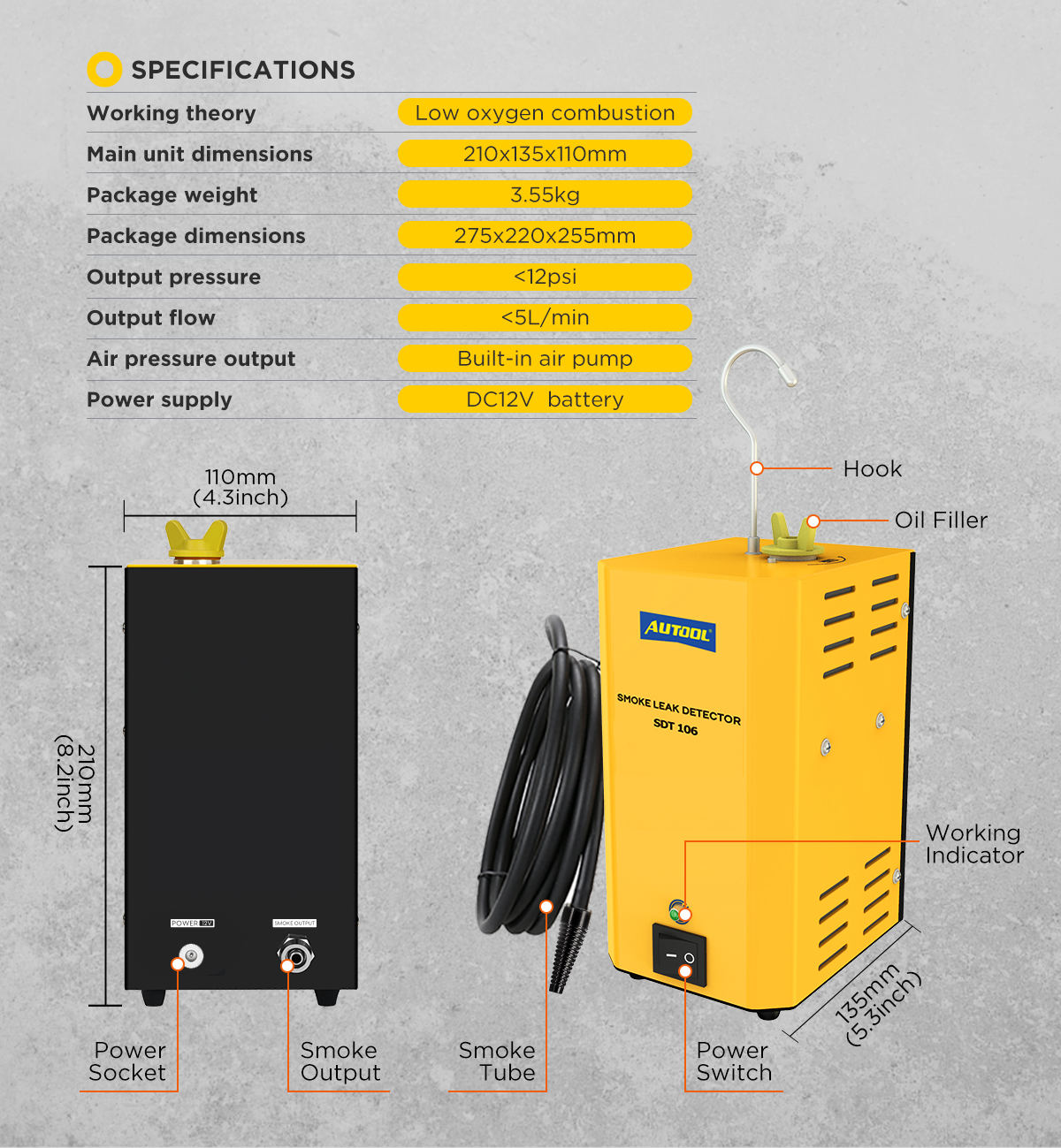

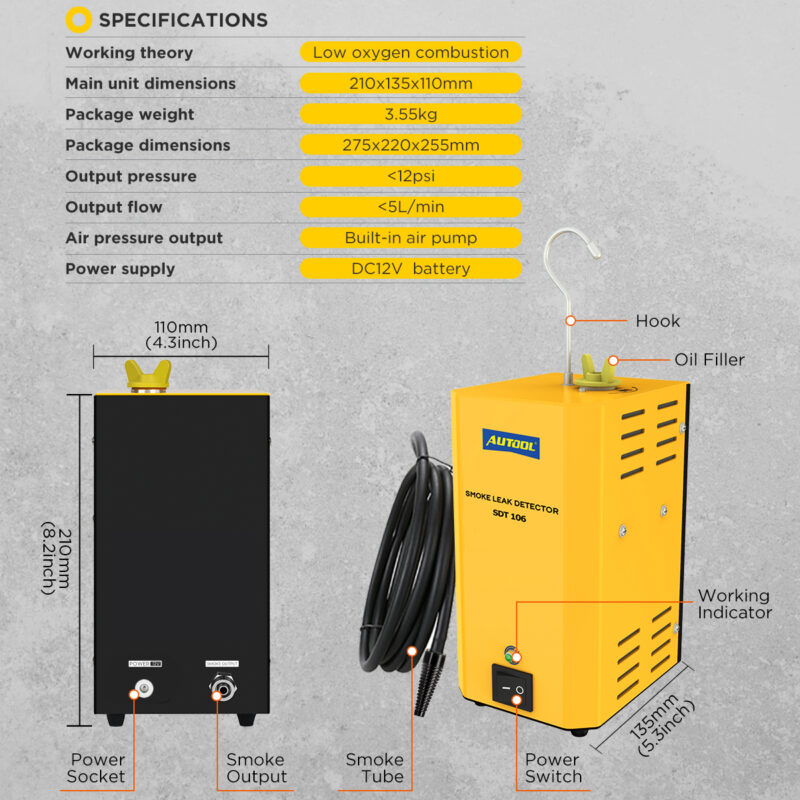

SPECIFICATIONS
- Brand Name: AUTOOL
- Origin: CN(Origin)
- Model: SDT106
- Item Type: Car Smoke Machines
- Function: EVAP Leakage detect
- Feature: Autos Pipe Systems Smoke Leakage Detector
- Usage: Car Oil Pipe Diagnostic Tool
- Type: Vehicle/motorcycle fuel pipe leakage detector
- Vehicle Type: Motorcycle, Passenger Vehicle
- Support for: Check the tightness of the pipeline or other objects

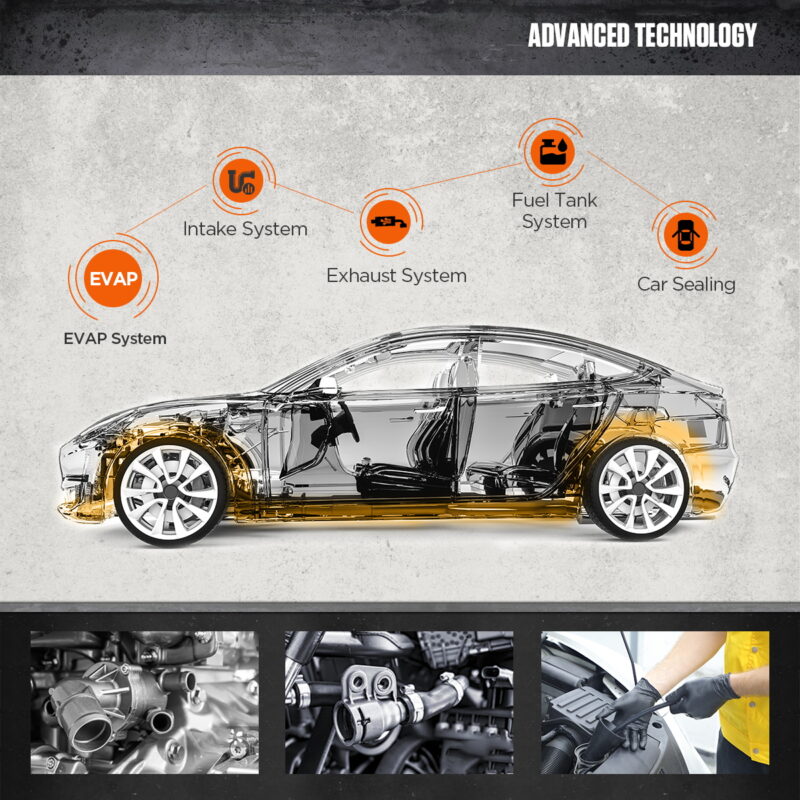

- Supported System: fuel pipe,air intake system and cooling tank
- OBD Interface: CAN, EOBD, OBD, OBDII
- Size: 27x22x26cm
- Weight: 3.6kg
- Warranty: 3 Year
- Power: 12V vehicle battery
- Smoke output value: 6l/min
- Test fluid: baby oil, olive oil or mineral oil
- Type1: Smoke Machine
- Type2: Car Leak Locator
- Type3: Auto Automotive Diagnostic Smokes Leak Detector
