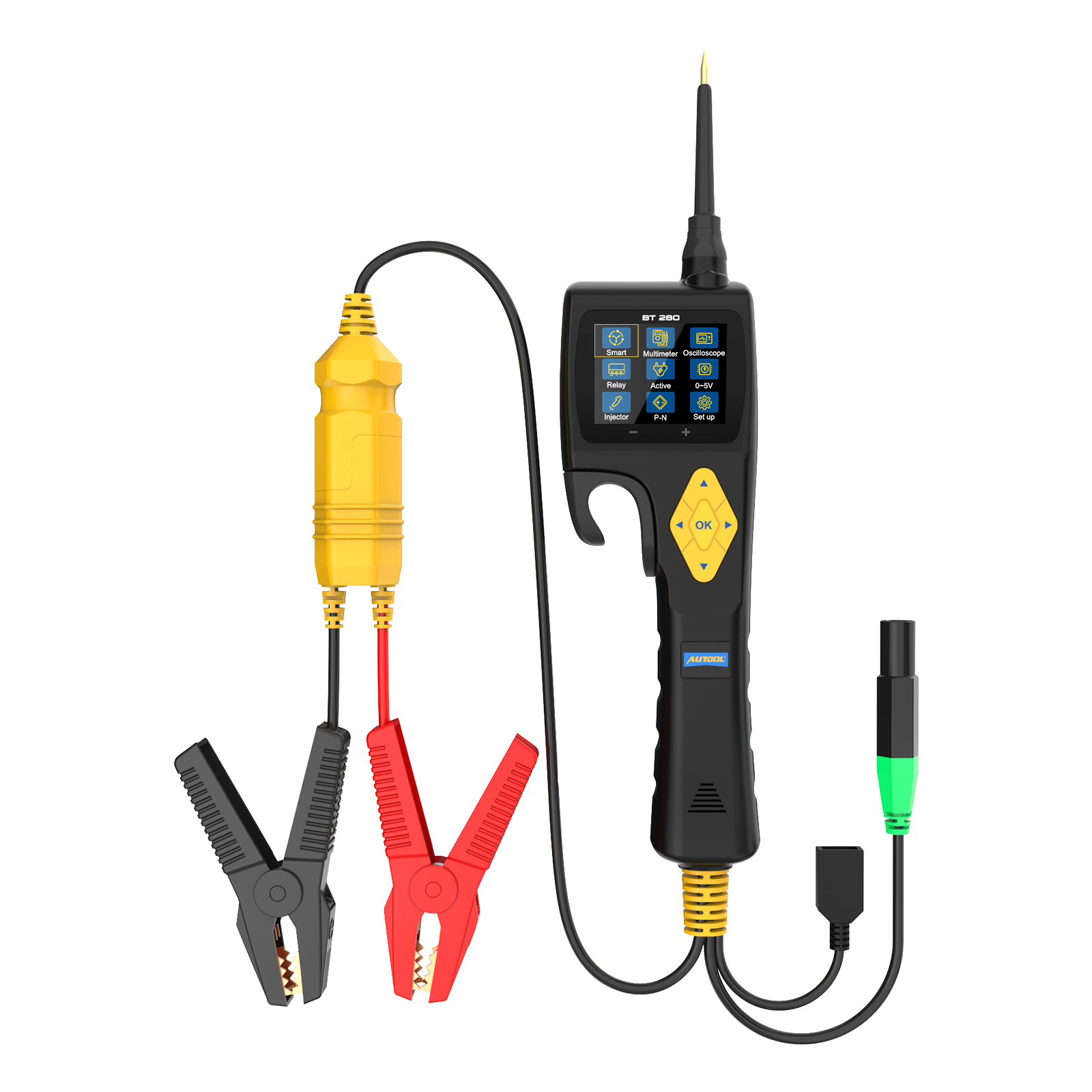

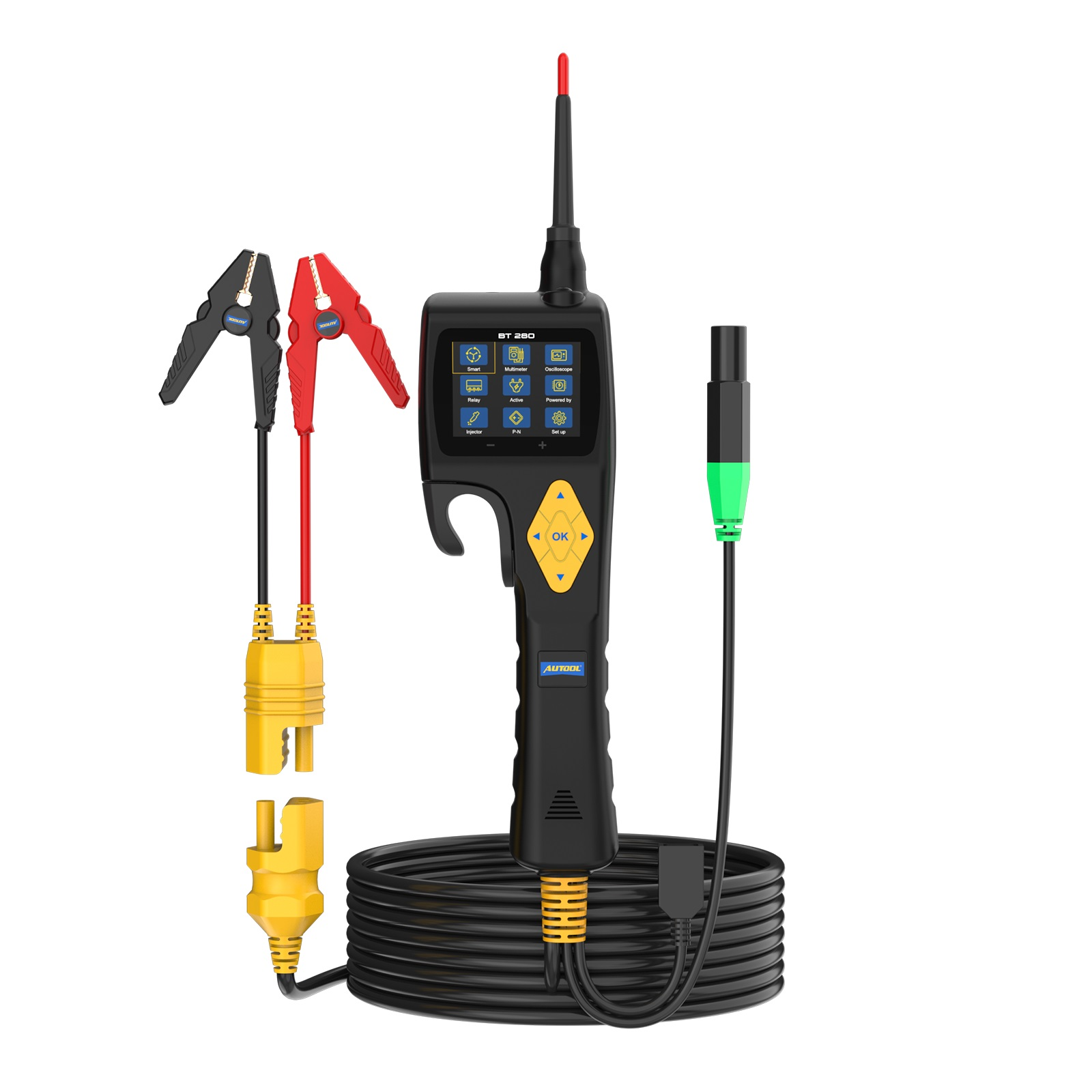

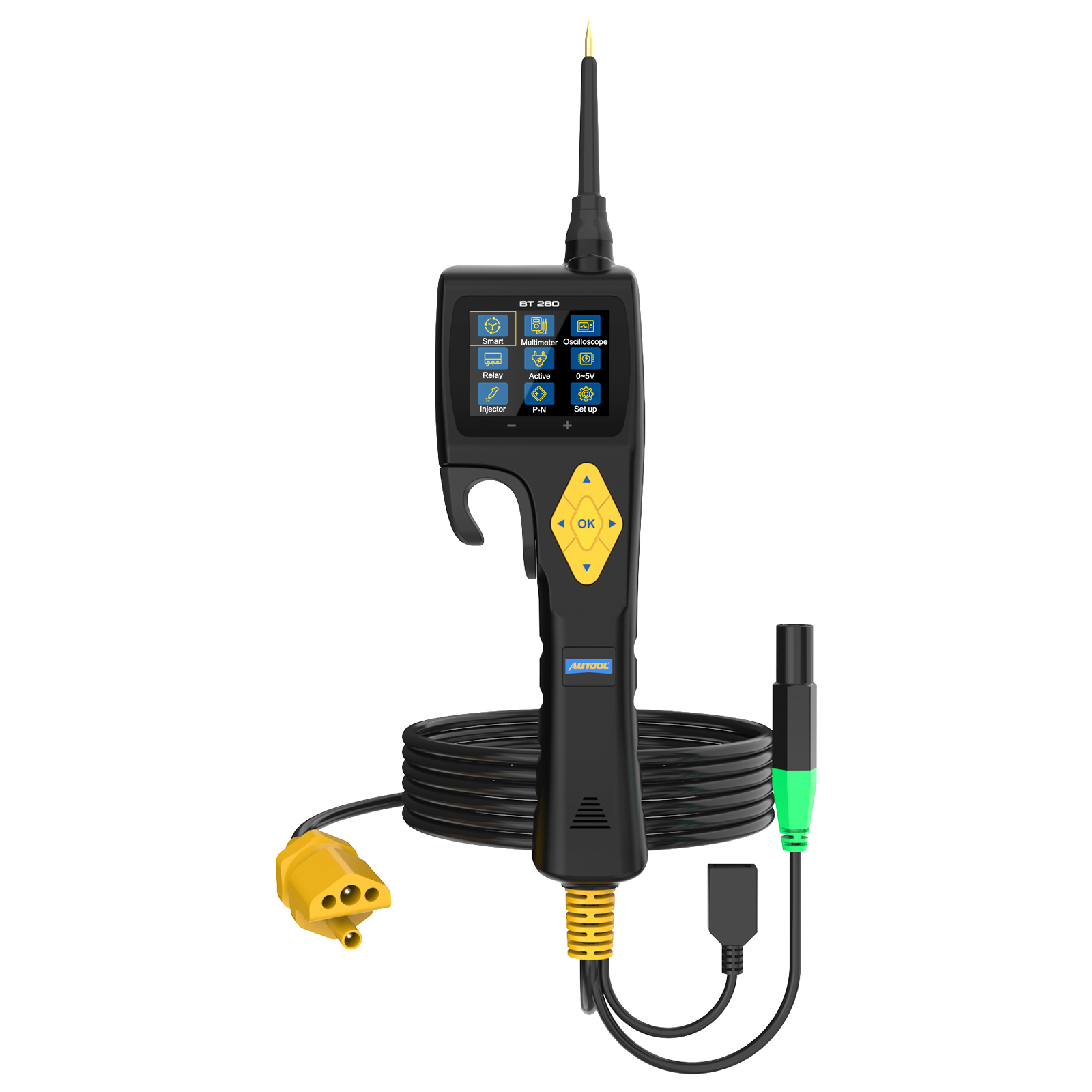

AUTOOL BT280 Electric System Tester Analyzer
AUTOOL BT280 Electric System Tester is the newest generation intelligent Electrical System Circuit Tester with a 2.4-inch large-size LCD screen display. It is dedicated to testing all 9V-30V vehicle electrical systems. BT280 is Convenient, Fast, and Intelligent!

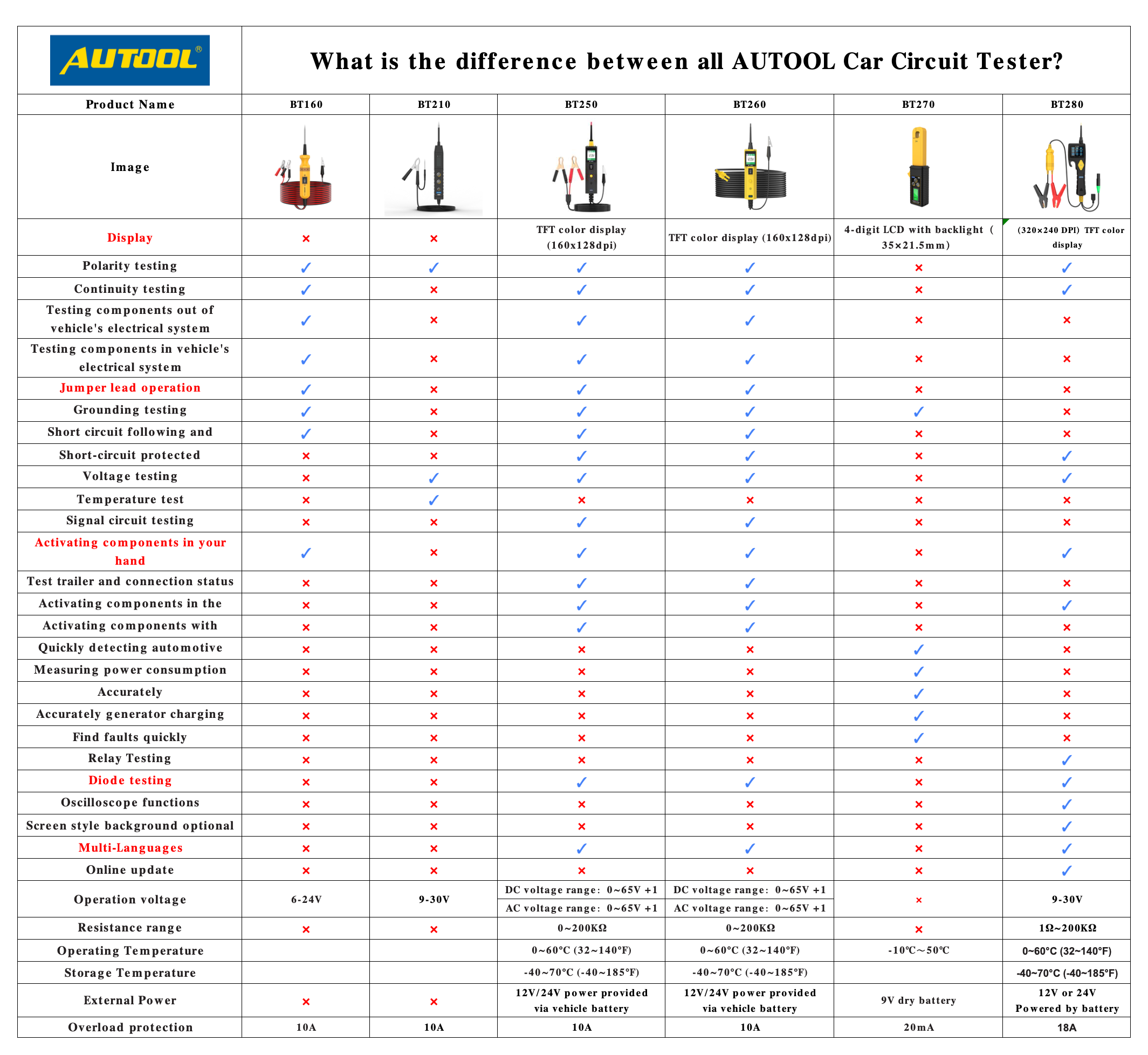

What Is The Difference Between AUTOOL Car Circuit Tester?
AUTOOL Car Electrical Circuit Tester Quick Search

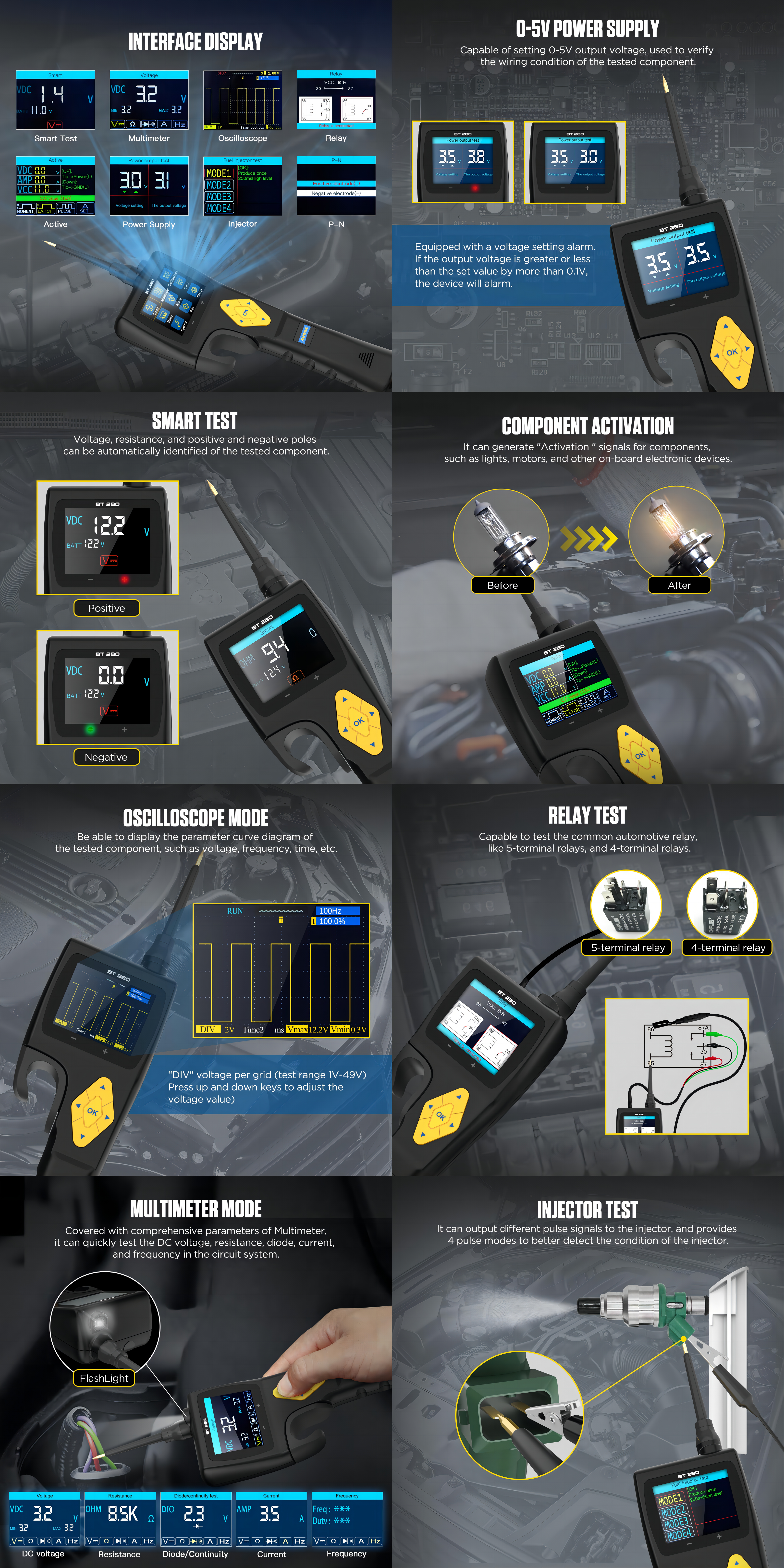

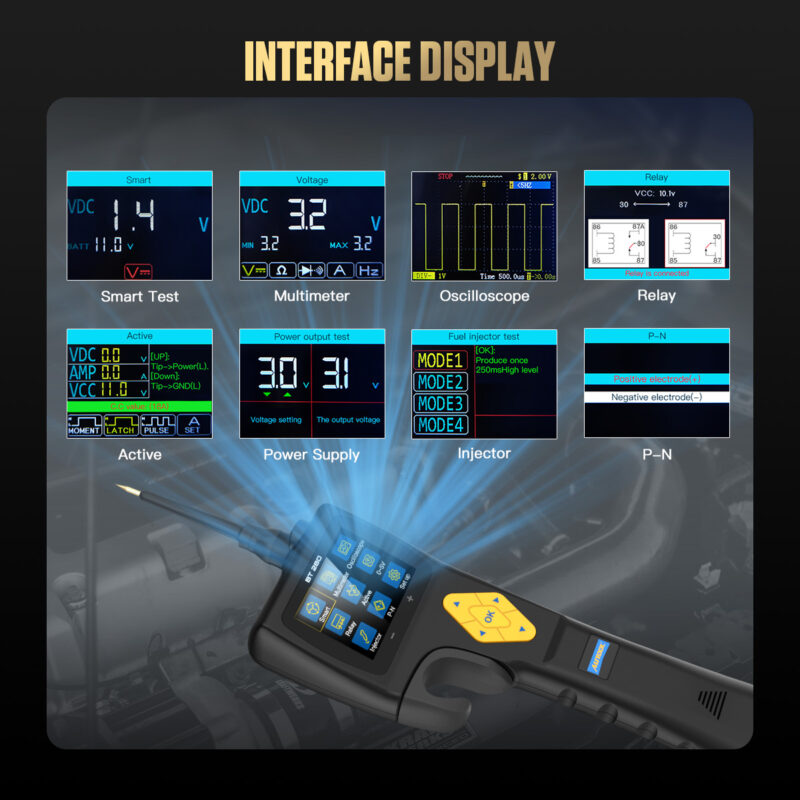

AUTOOL BT280 Car Electric Circuit Tester Features

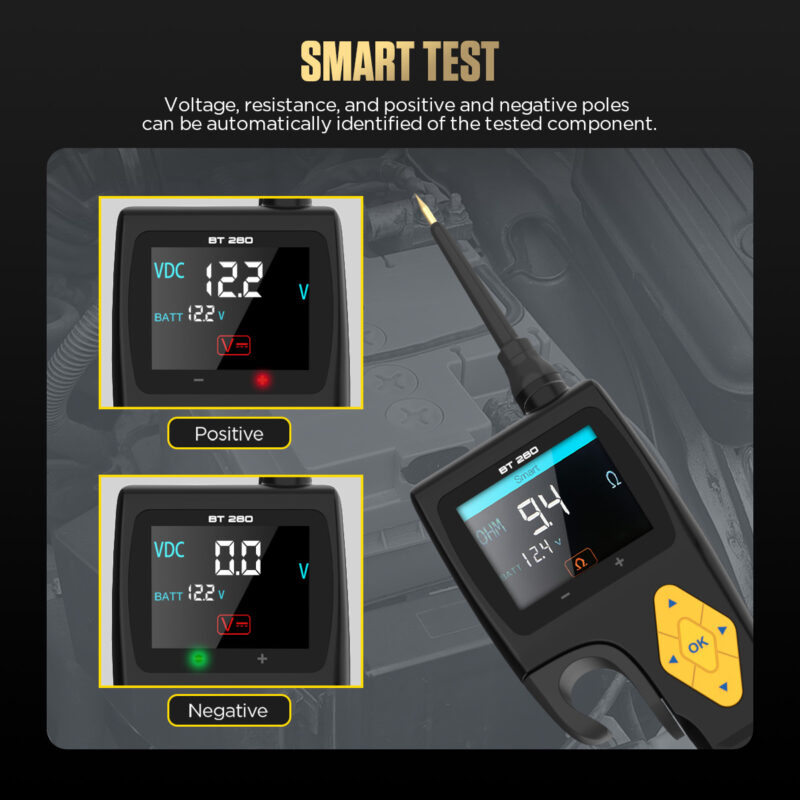

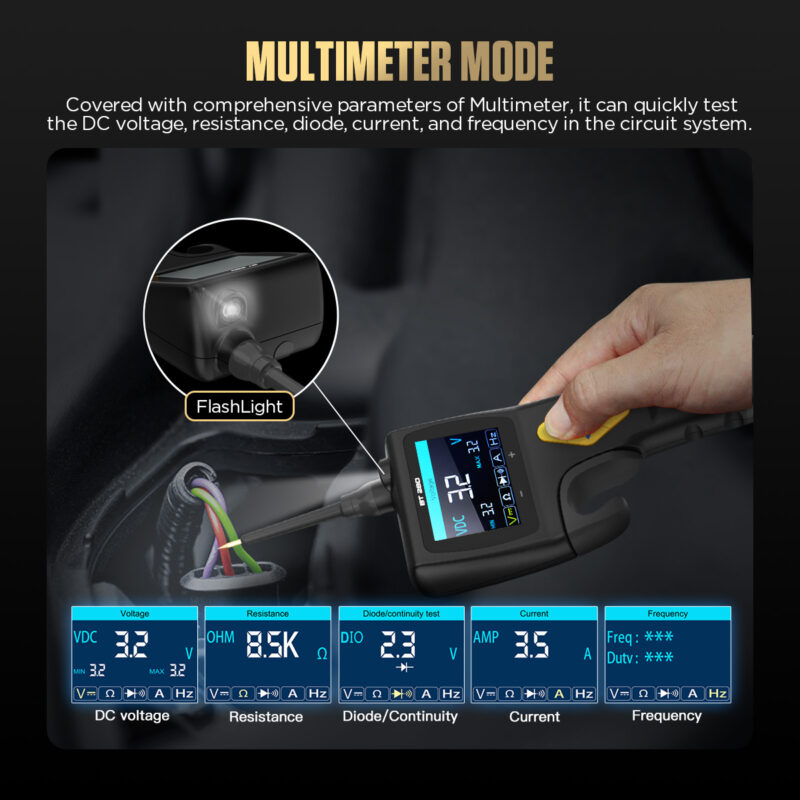

- Multimeter Mode&Smart Test: AUTOOL BT280 Electric System Tester provides comprehensive Multimeter functions. It quickly tests and identifies the voltage, resistance, and polarity of the tested component, offering great convenience to users.

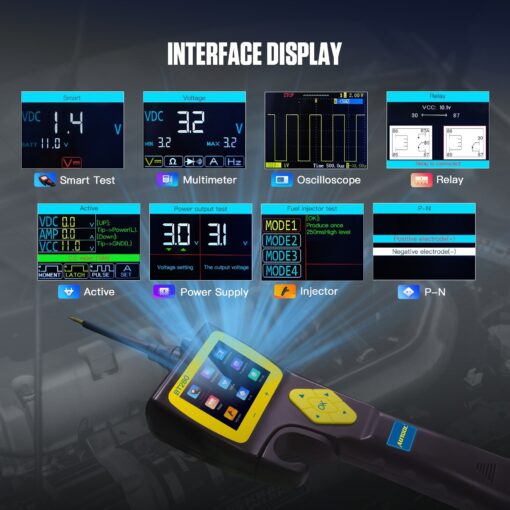

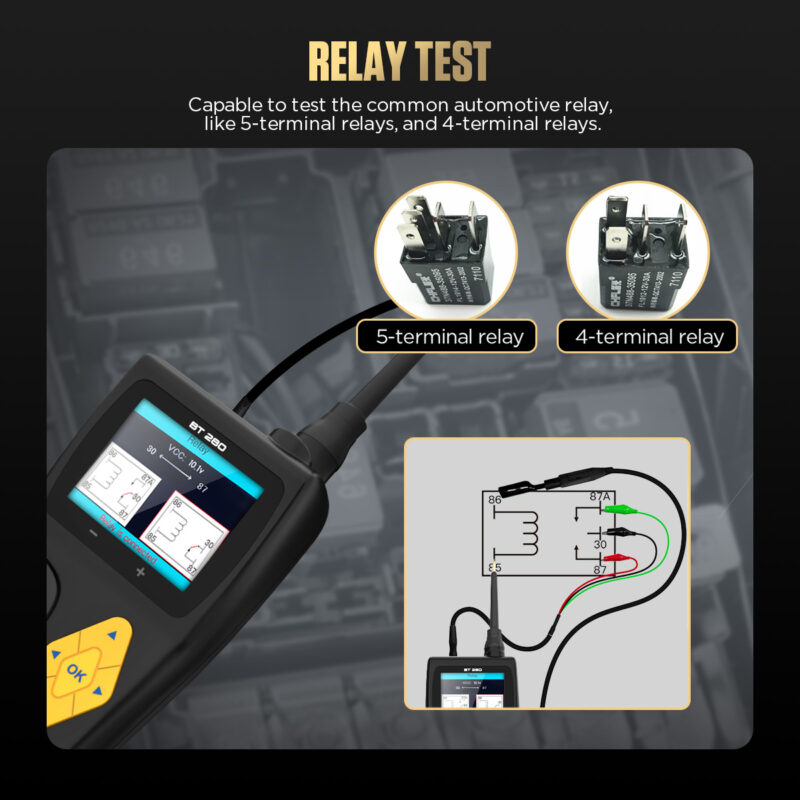

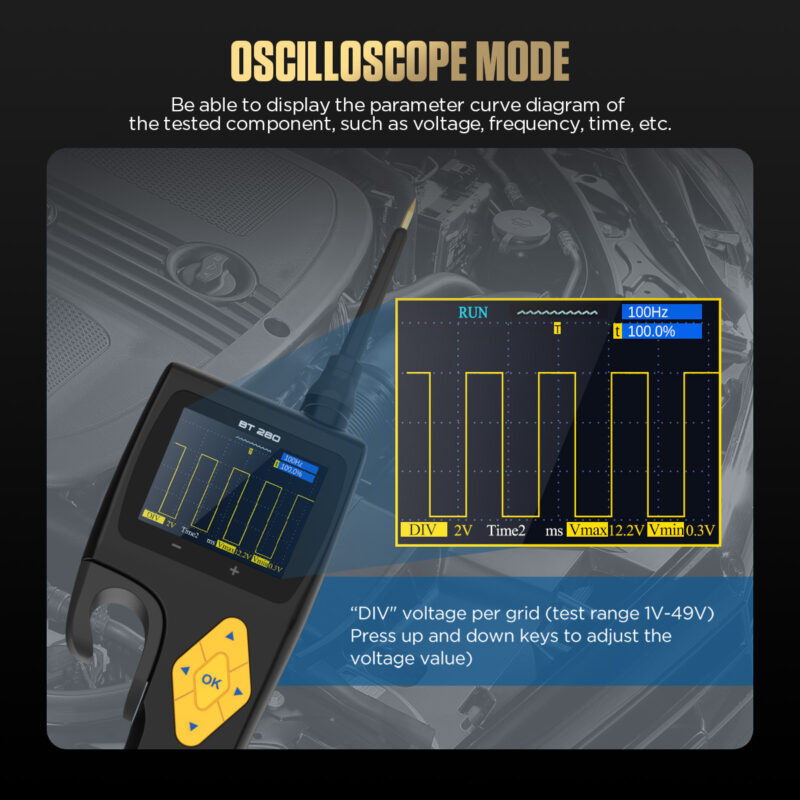

- Oscilloscope Mode&Relay Test: Displays parameter curves, including voltage, frequency, and time. It also tests 4-terminal and 5-terminal automotive relays.

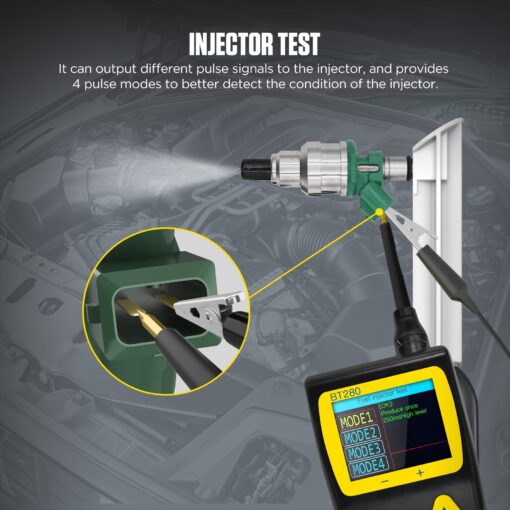

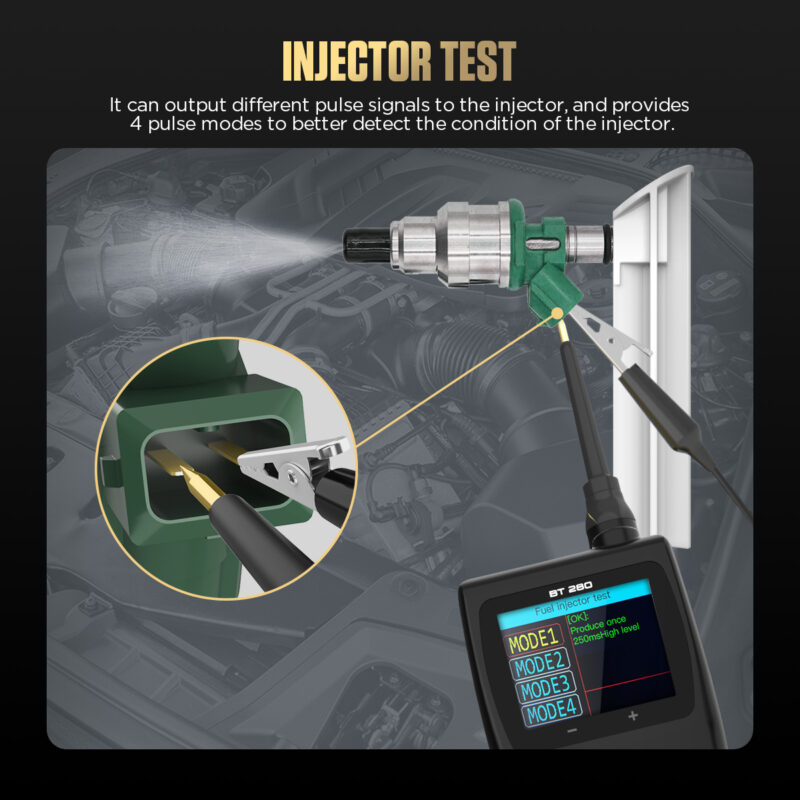

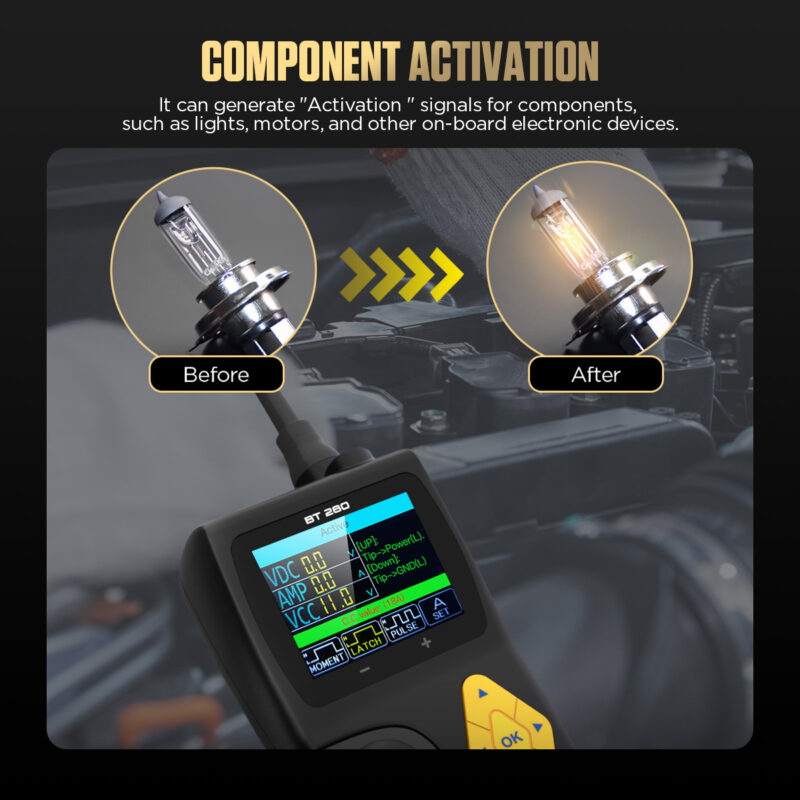

- Component Activation & Injector Mode: It can generate “Active” signals for components, such as lights, motors, and other onboard electronic devices. It outputs different pulse signals to injectors and offers 4 pulse modes, ensuring accurate detection of injector conditions.
- 0-5V Power Supply & Voltage Alarm: Capable of setting 0-5V output voltage, used to verify the wiring condition of the tested component. They are equipped with voltage-setting alarms. If a short circuit or fault causes the voltage to be greater than or less than the set value, the device will alarm.
- Multi-language Feature: 14 languages supported, English, Spanish, German, Russian, Italian, Polish, Portuguese, French, Vietnamese, Malaysian, Filipino, Indonesian, and Arabic.
- Three-Year Warranty, Lifetime Maintenance: For damage caused by non-human factors, AUTOOL promises to resend parts for free within 3 years. For any needs, you are warmly welcome to contact us and we will get back to you ASAP within 24 hours.

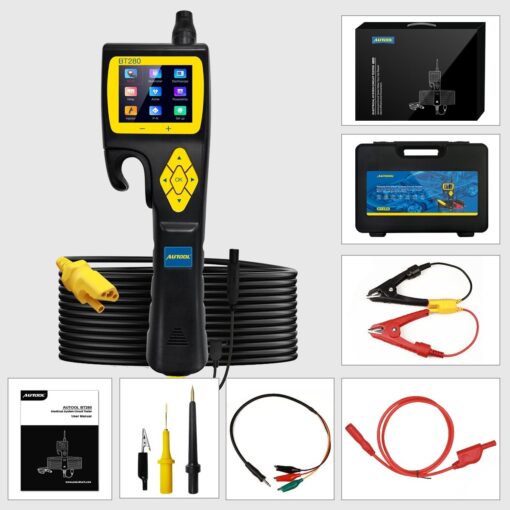

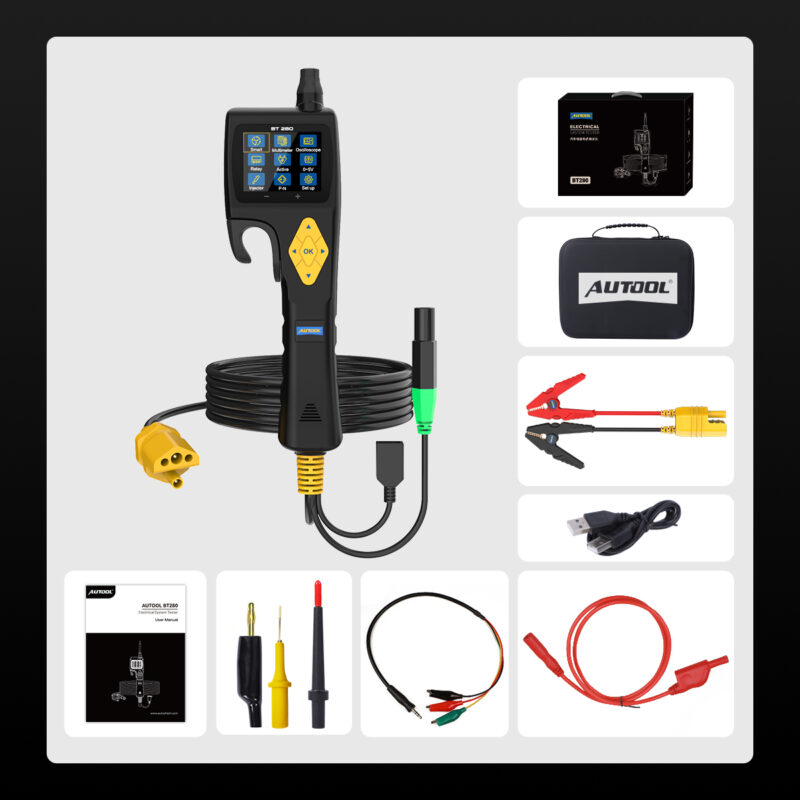

Packing List

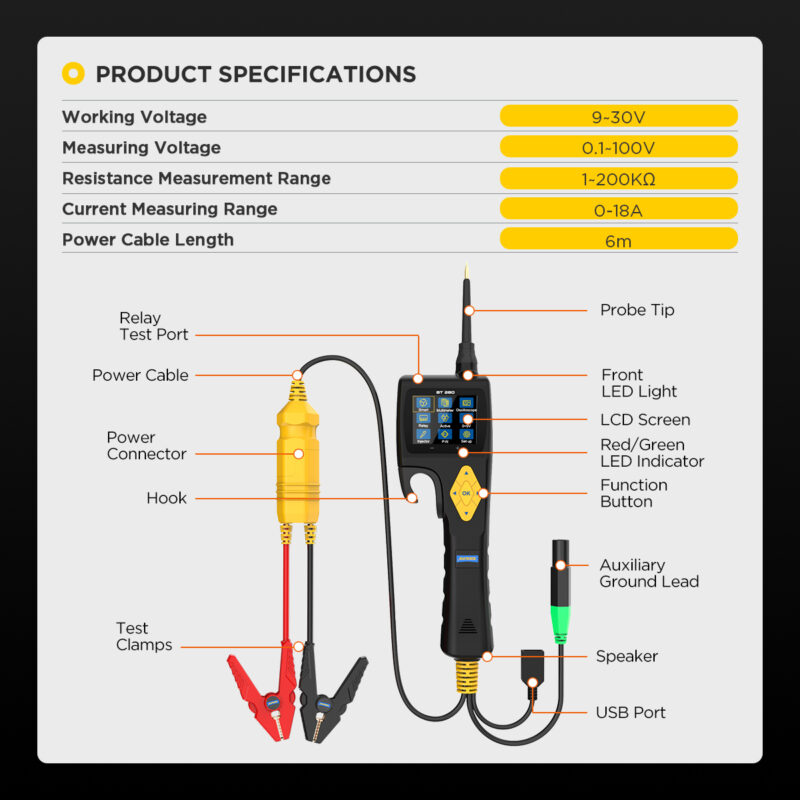

SPECIFICATIONS
- Brand Name: AUTOOL
- External Testing Certification: CE
- Origin: CN(Origin)
- Model Name: BT280
- Electronic: No
- Hardware Version: Newest
- Item Height: 27cm
- Item Length: 33cm
- Power: 8W
- Material Type: metal and plastic
- Item Type: Battery Testers
- Item Weight: 2.42kg
- Software Version: Newest
- Voltage: 12V
- Item Width: 12cm
- Function: Automotive Circuit Voltage Test
- LCD: (320*240 DPI) TFT color display
- Storage temperature: 40-70°C (-40-185 F°)
- External power supply: 12V or 24V Powered by battery
- Minimum working voltage: 9V
- Maximum working voltage: 30V
- Maximum measuring voltage: 150V
- Minimum measuring voltage: 0.1V
- Resistance measurement range: 1 ohm~200K ohm
- Current measuring range: 0~18A
- Maximum continuous current: 18A
- Working voltage: 9-30V
- Function 1: Test the Voltage, resistance, Positive and Negative poles of component

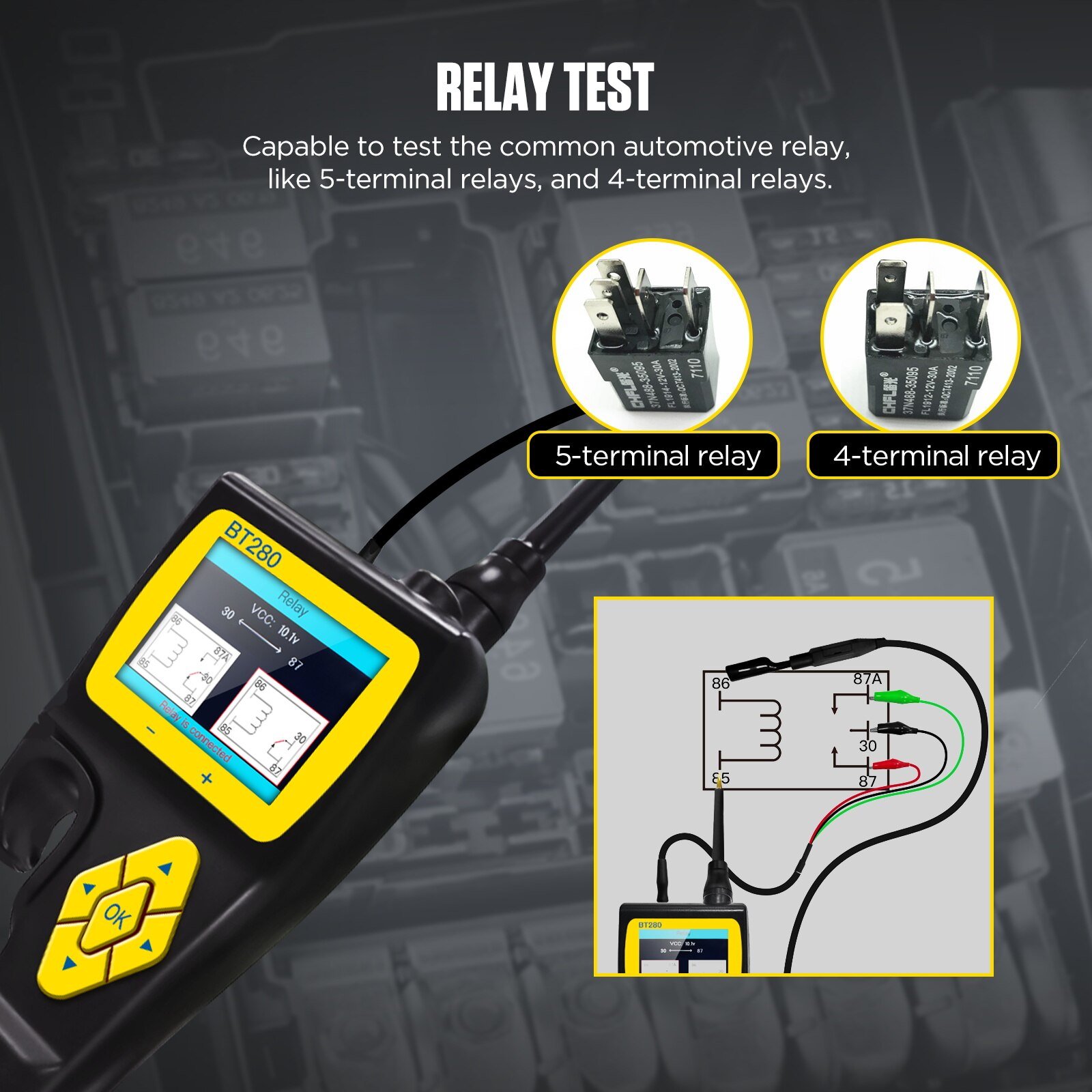

- Function 2: Test the common automotive relay, like 4 & 5-terminal relays
- Function 3: Display the parameter curve diagram of the tested component
- Function 4: Can detect car fuel injector circuit problems
- Function 5: English, Spanish, German, Russian, Italian, Polish, Portuguese,
- Function 6: French, Vietnamese, Malaysian, Filipino, Indonesian, Arabic, and Thai
33 reviews for AUTOOL BT280 Electrical Circuit Tester Power Probe Electric System Tester
| 5 star | 100% | |
| 4 star | 0% | |
| 3 star | 0% | |
| 2 star | 0% | |
| 1 star | 0% |

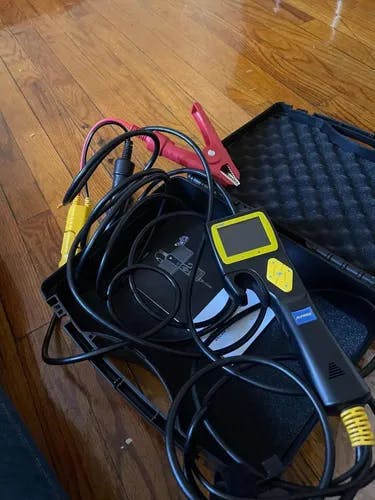

Customer Images
1-5 of 33 reviews
Add a review
AUTOOL BT280 Electrical Circuit Tester Power Probe Electric System Tester
Your review
* Review is required
Name
* Name is required
Email
* Email is required
Add photos or video to your review
[jgm-review-widget]
Home
Shopping Guide
Product
Wheel Aligner Machine
Smoke Leak Detector
Fuel Injector Tester
Brake Fluid Exchanger
Dry lce Blasting Machine
Walnut Sand De-Carbon Cleaner
Refrigerant Recovery Machine
Articulating Borescope
Transmission Fluid Exchanger
Spark Plug Tester
Battery System Tester
Engine Pressure Tester
Diagnostic Multimeter
Key Frequency Tester
Maintenance Environment Tester
Pneumatic Oil Drainer & Extractor
Oil Analysis Tester
Circuit Tester
OBD Diagnostic Tool
Digital Manifold Gauge
Inverter Programming Power Supply
EV Charging
Used Car Diagnostic Tester
Cooling System Tester and Filler
Workshop Tool Storage Series
EV Battery Pack Air Tightness Tester
Wheel Alignment Machines
ACCESSORIES&OTHER
News
Help Center
Custom Solutions (OEM & ODM)
Track My Order
Online Support

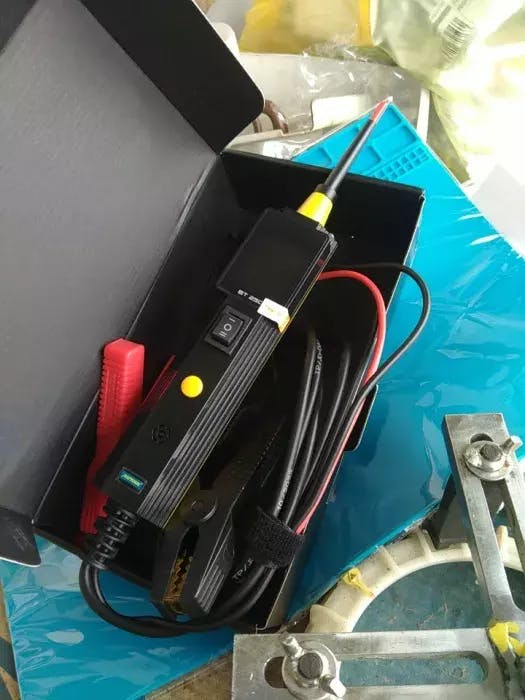

I’ve been using this AUTOOL BT280 Car Circuit Tester for a while now and I’m very satisfied with the overall experience. It’s very easy to operate, quick to start, and very practical, which saves me a lot of time in checking car circuit problems. The screen is clear, the data is clear at a glance, especially in the workshop lighting is not good, and it can also see clearly. The instrument is responsive and accurate during the test, and the quality is solid and feels durable.
