EV Battery Pack Air Tightness Tester
AUTOOL BT270 Clamp On Amp Meter DC Clamp Meter
$75.90
- Automatic AC/DC Recognition: The system automatically recognizes AC/DC, supporting measurements from 0mA to 60A with up to 1mA resolution, no manual mode switching needed.
- LCD Display: A high definition display with built-in backlighting makes data clearly visible.
- Data Lock and Storage: Lock data for immediate visitors and save data for future use.
For wholesale prices and more discounts click here.

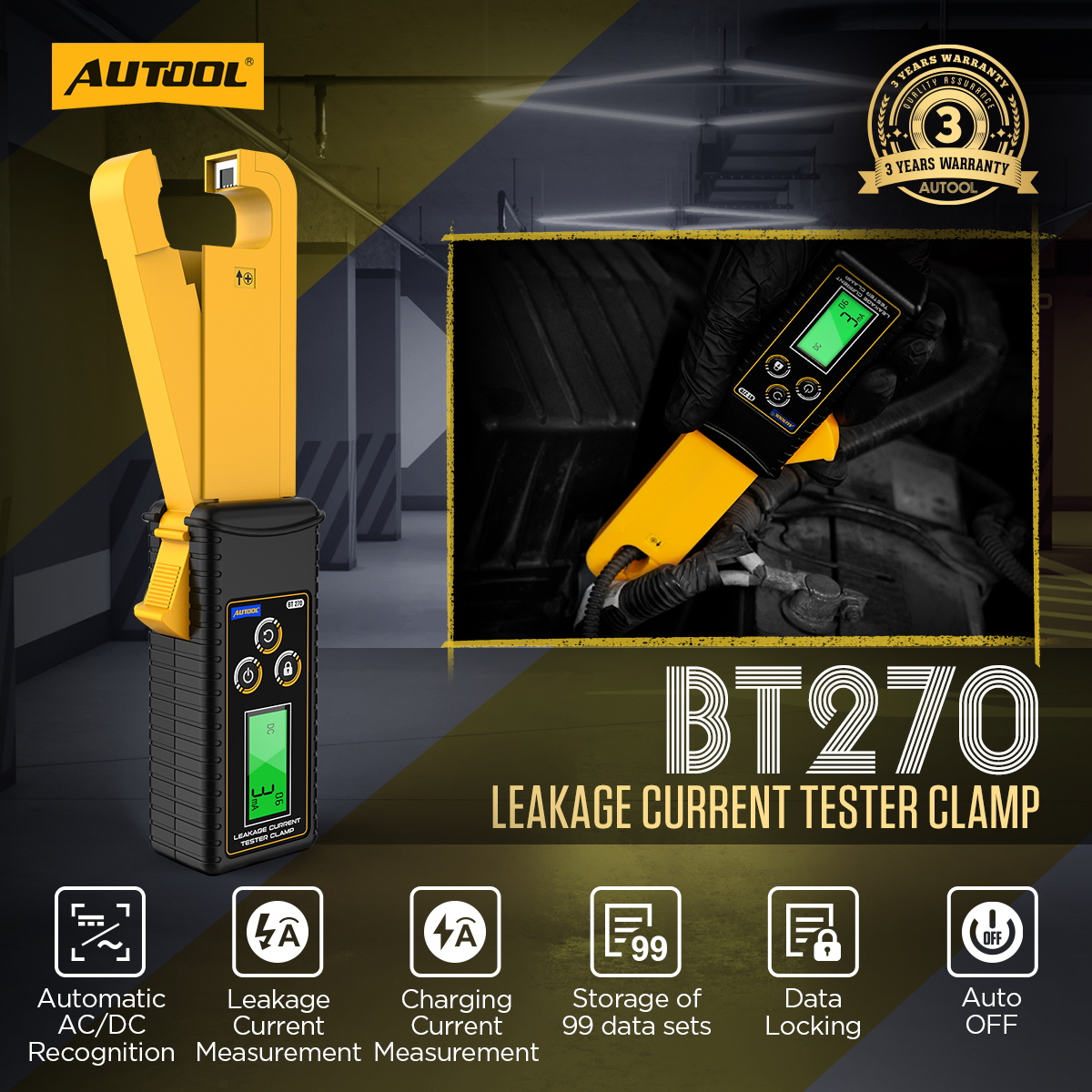

AUTOOL BT270 clamp on Amp Meter Dc clamp Meter
AUTOOL BT270 Clamp On Amp Meter the latest digital integration technology with unique features such as AC/DC automatic identification. no need to manually shift gears, and one-key zeroing. And can be non-contact measurement, small size and easy to carry, the results of high precision, strong anti-interference ability characteristics.
Warm Tips
- Be careful not to exceed the specified measurement range of the instrument.
- Please use with caution when the line voltage is greater than 60V DC or 30V AC.
- Before measuring, please click the zero/backlight key to perform automatic zero adjustment.
- Do not place or store the instrument in places with high temperature and humidity or under direct sunlight for a long time.
- The contact surface of the jaws must be kept clean. Although the instrument has strong resistance to contamination, serious contamination will affect the accuracy of the measurement.
- Avoid impact on the instrument, especially the jaw joint surface.
- Replace the battery promptly when the battery power is low, and the battery symbol is displayed. Remove the battery if the instrument will not be used for a long time.
- Professionals must perform the disassembly, calibration, and maintenance of the instrument.
What Is The Difference Between AUTOOL Car Circuit Tester?
AUTOOL Car Electrical Circuit Tester Quick Search

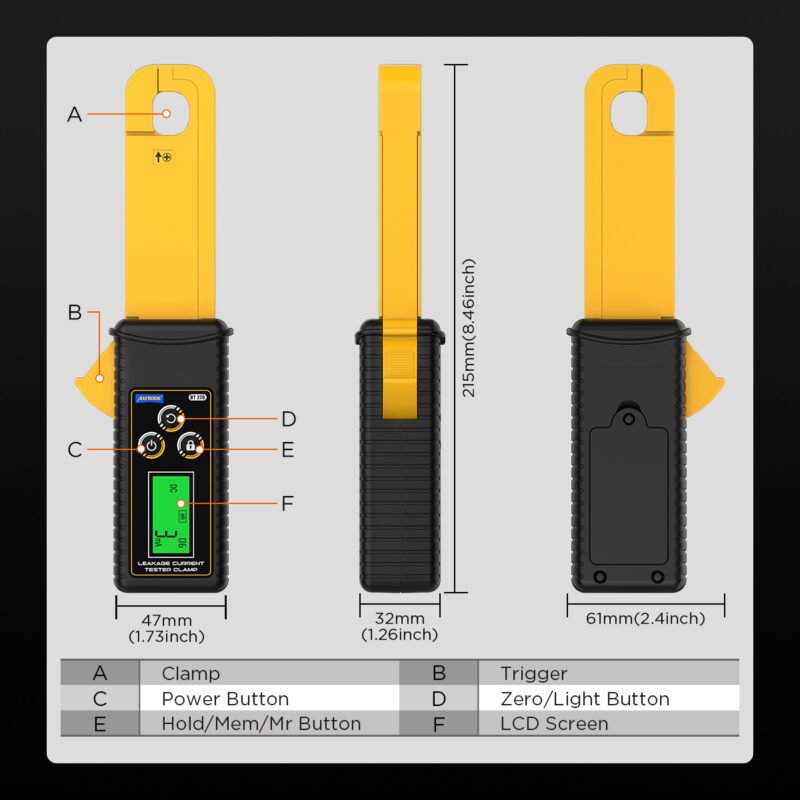

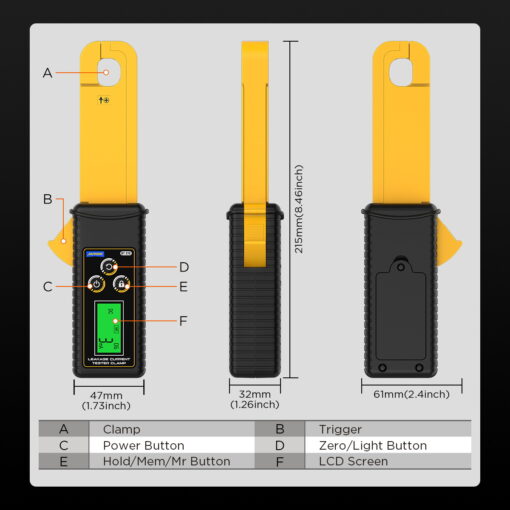

AUTOOL BT270 Clamp On Amp Meter Features

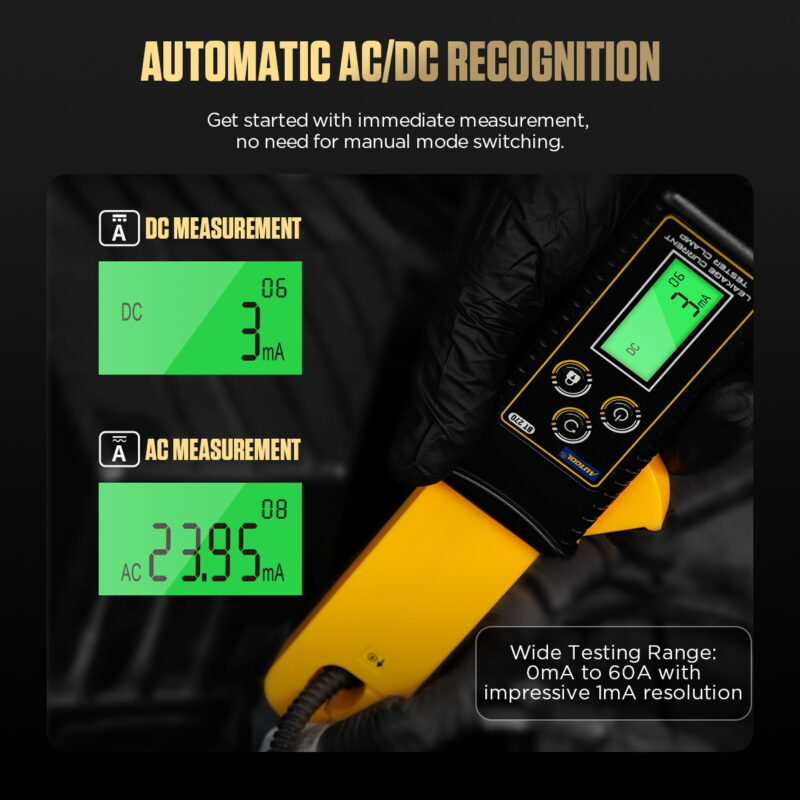

- Automatic AC/DC Recognition: The system automatically recognizes AC/DC, supporting measurements from 0mA to 60A with up to 1mA resolution, no manual mode switching needed.

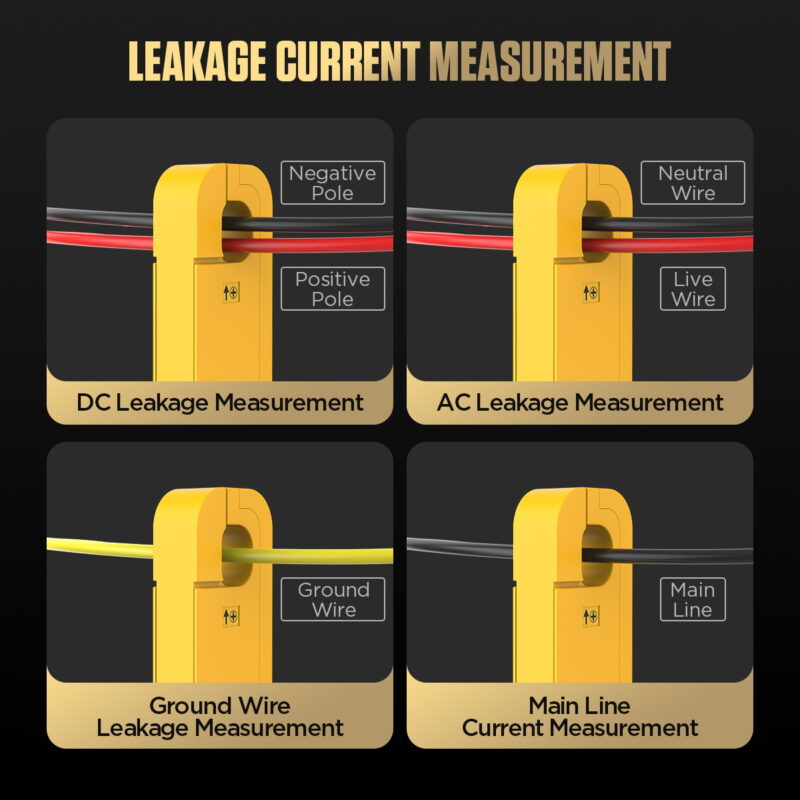

- Leakage Current Measurement: The system performs leakage current measurements, including DC leakage current, AC leakage current, ground leakage current, and main line current measurements.

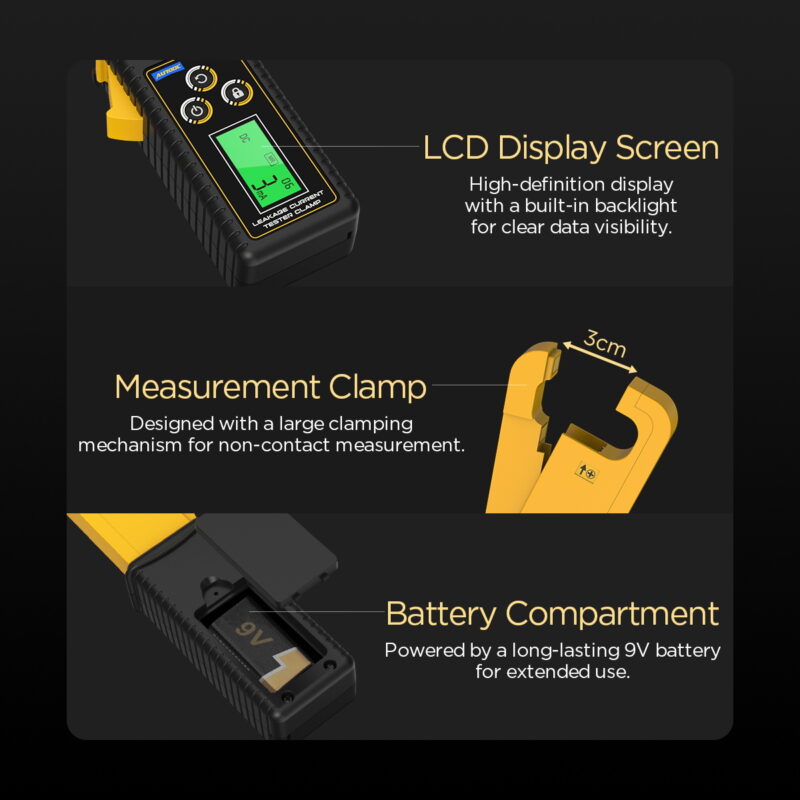

- LCD Display: A high definition display with built-in backlighting makes data clearly visible.
- Measuring Clamp: Designed with a large clamp for non-contact measurements.
- Battery Pack: Powered by a long-lasting 9V battery for extended use.

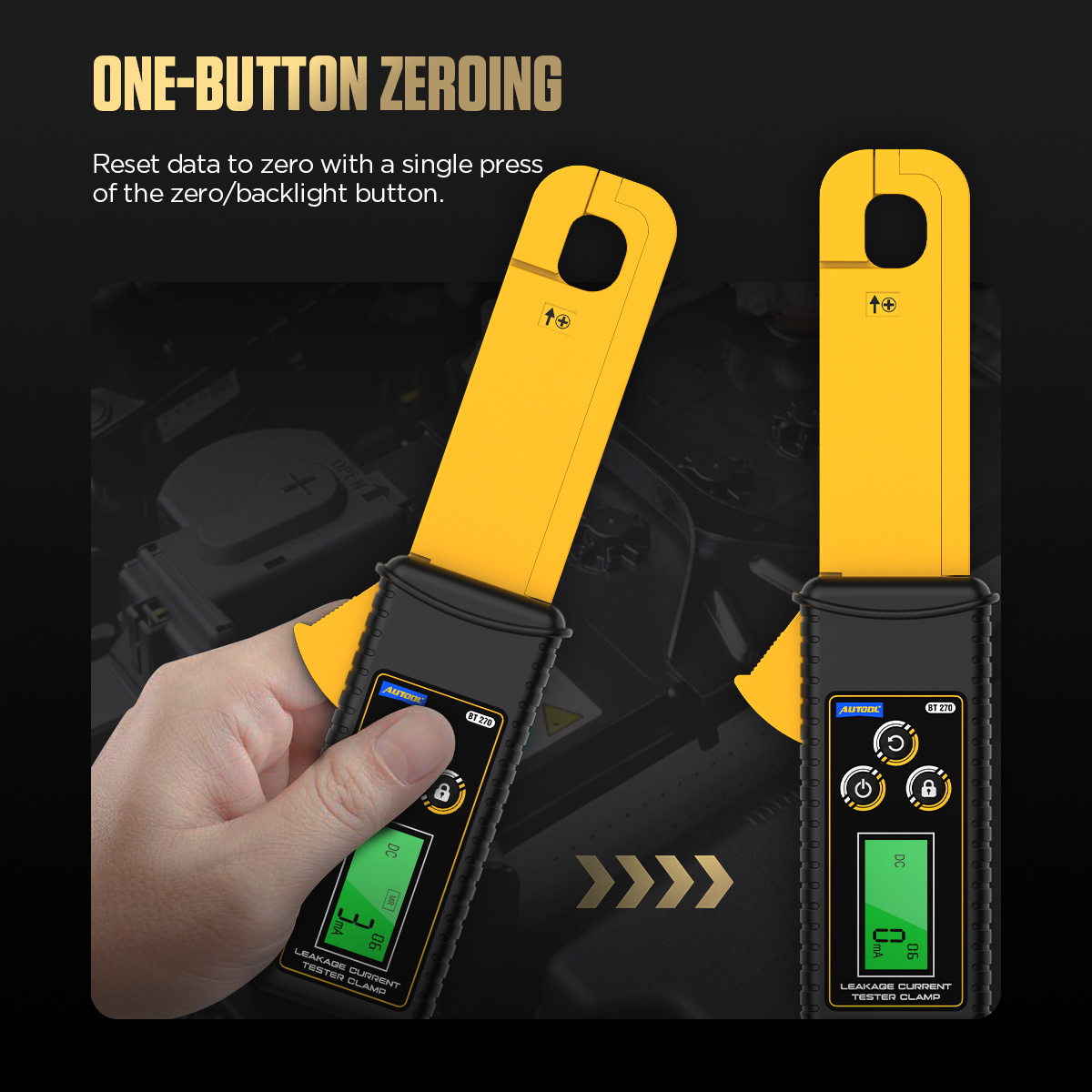

- One-Touch Zero: Simply press the Zero/Backlight button to zero the data.

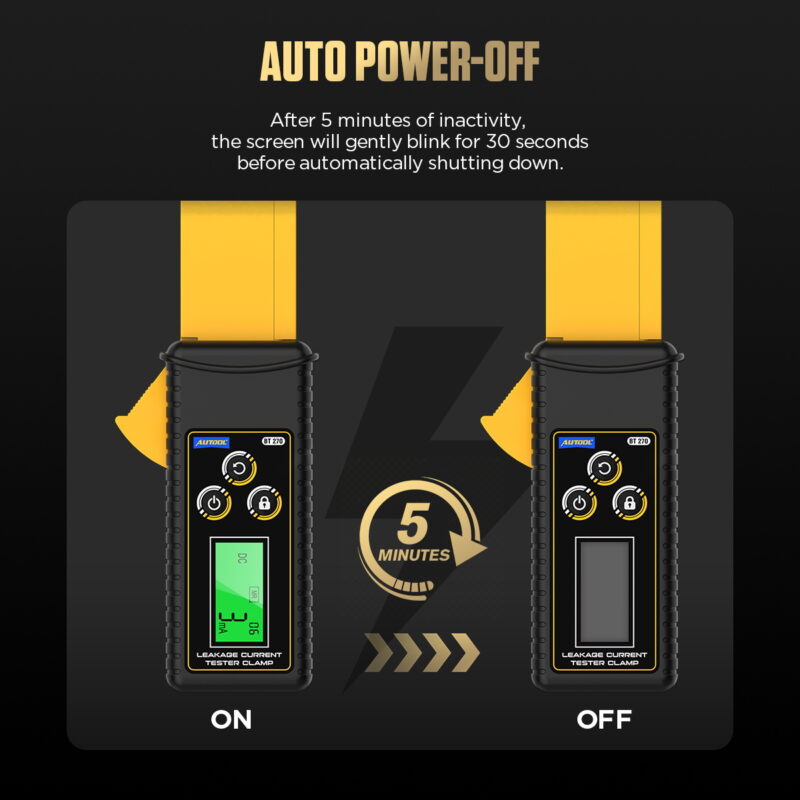

- Automatic Shutdown: After 5 minutes of standstill, the screen will gently flash for 30 seconds and then automatically shut down.

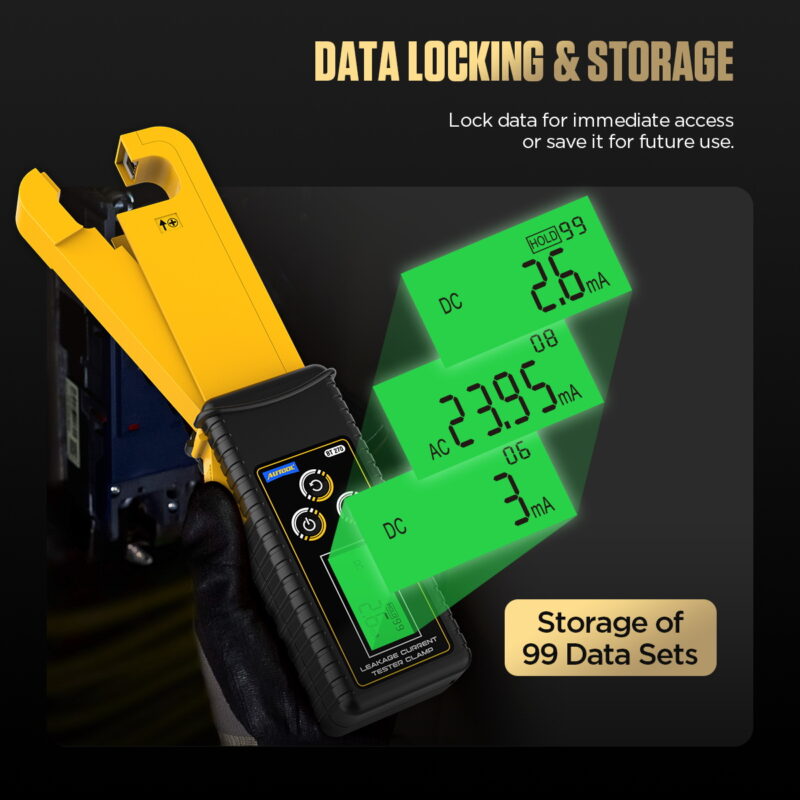

- Data Lock and Storage: Lock data for immediate visitors and save data for future use.
- 3-year Warranty: AUTOOL offers a 3-year warranty with free replacement parts for non-human-induced damages and lifetime maintenance. Contact us for assistance; we respond within 24 hours.

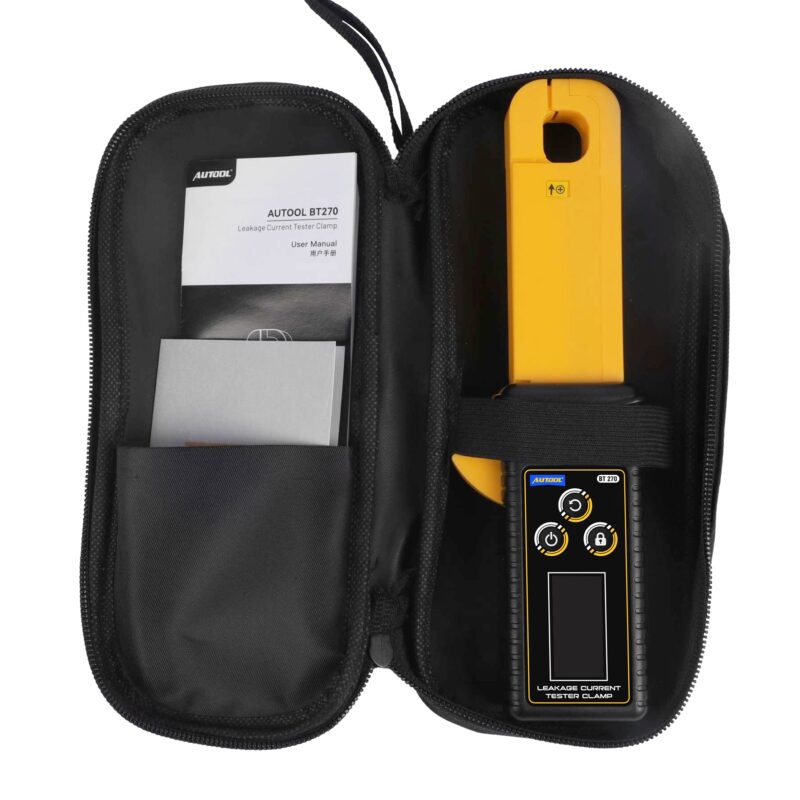

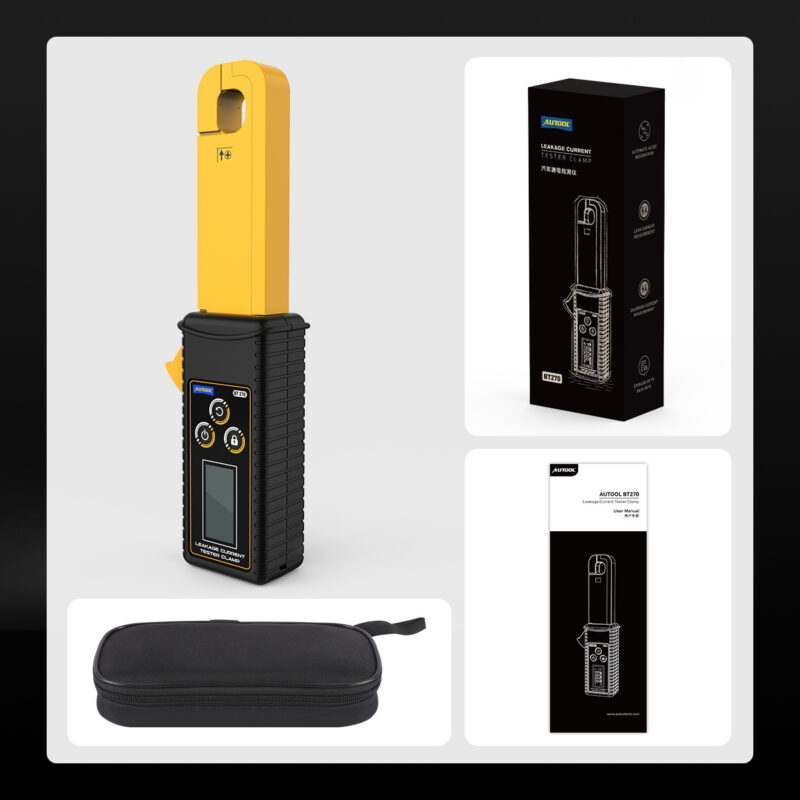

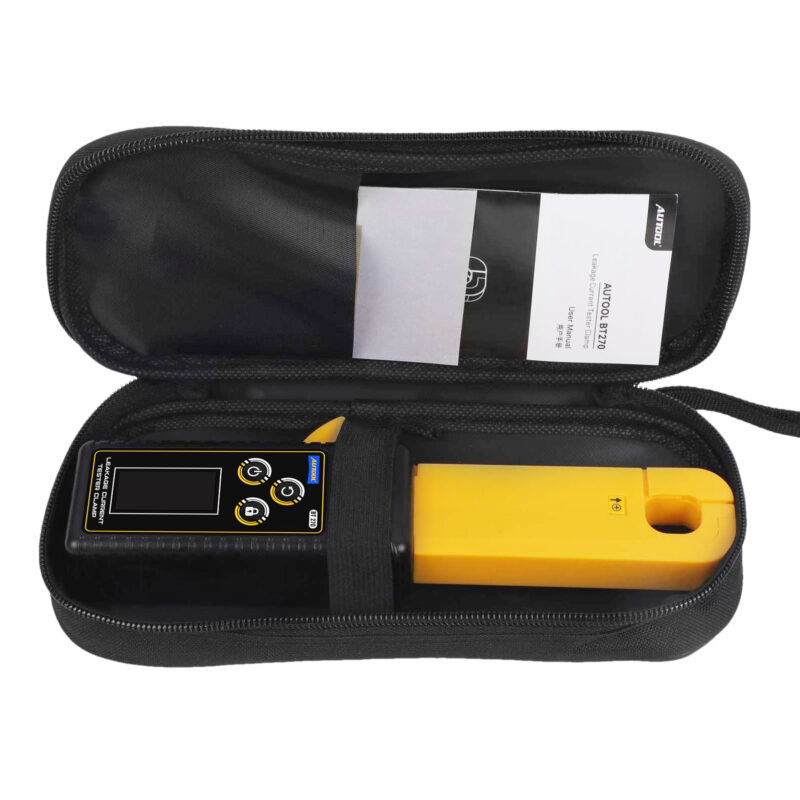

Packing List

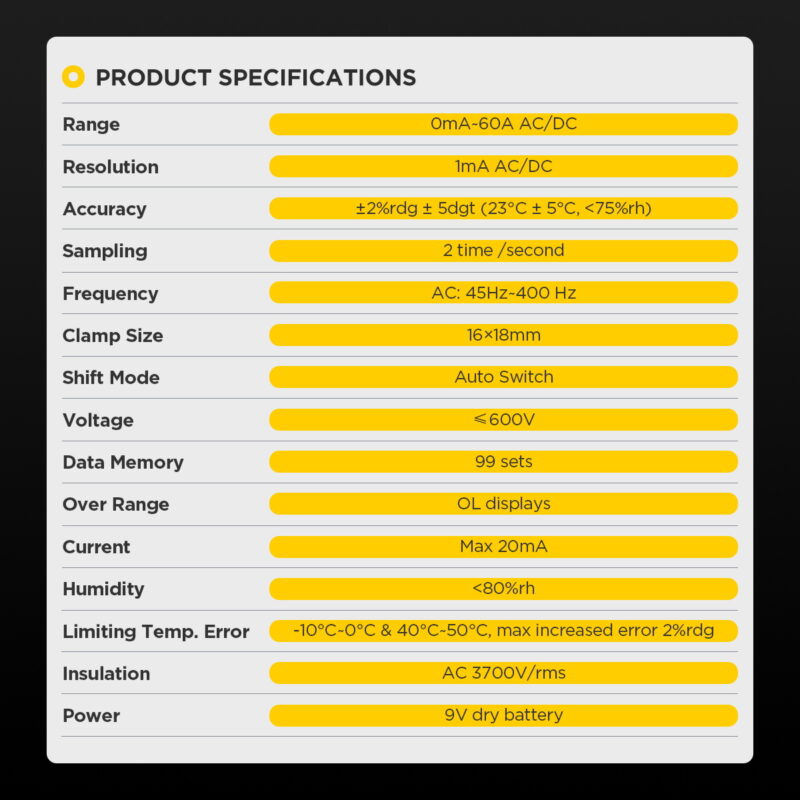

Specification
| Range | OmA-60AAC/DC |
| Resolution | 1mA AC/DC |
| Accuracy | ±2%rdg ± 5dgt(23°c ± 5°℃,<75%rh) |
| Sampling | 2 time/second |
| Frequency | AC: 45Hz~400 Hz |
| Clamp size | 16x18mm |
| Shift Mode | Auto switch |
| Voltage | <600V |
| Data Memory | 99 sets |
| Over Range | OL displays |
| Current | Max 20mA |
| Humidity | 80%rh |
| Limiting Temp.Error | -10°C-0°C&40°C-50°C, max increased error 2%rdg |
| Insulation | AC 3700V/rms |
| Power | 9V dry battery |
