AUTOOL BT210 Car Circuit Tester 9-30V Electrical Testers
$27.90
- Four Detection Modes: Voltage, continuity, polarity, and temperature tests.
- Overload Protection: Works within 9-30V DC. When voltage or current exceeds limits (30V or 10A), overload protection activates to reduce losses.
- Light Function: Turns on by default after power-on. Press the “Lighting” key to toggle the probe light.
- Applicable Models: Suitable for cars, trucks, motorcycles, and other vehicles. Online Support>>
AUTOOL BT210 Car Circuit Tester Power Probe Car Diagnostic Tool Electric Voltage Integrated Scanner for 12V Car 24V Heavy Truck

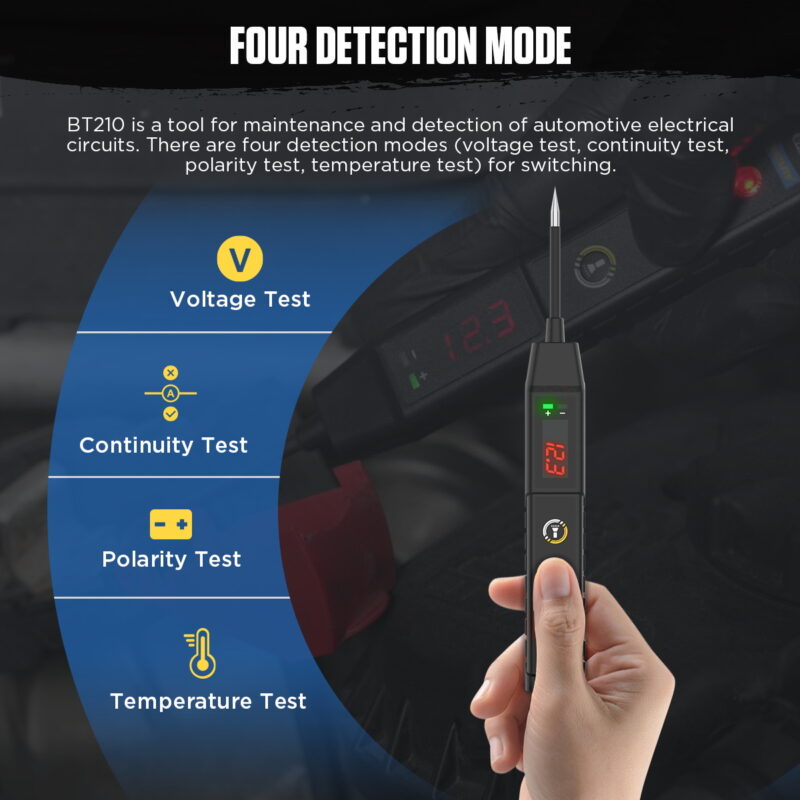

BT210 is a tool for maintenance and detection of automotive electricalcircuits. There are four detection modes (voltage test, continuity test, polarity test, temperature test) for switching.
What Is The Difference Between AUTOOL Car Circuit Tester?
AUTOOLCar Circuit Tester Quick Search
AUTOOL BT210 Car Circuit Tester Feature：
- Voltage Test: Used for voltage measurement of the circuit under test.
- Continuity Test: You can detect open-circuit, closed-circuit, virtual circuit, and real circuit. If the indicator light is on, it means that the circuit under test is a closed-circuit or a real circuit. If the indicator light is off. it means that the circuit under test is a open-circuit or a virtual circuit.
- Polarity Test: Test the circuit polarity, the green light represents the positive pole and the red light represents the negative pole. The green light represents the positive pole. The red light represents the negative pole.
- Temperature Test: A temperature sensor at the tip detects the temperature of the designated contact.

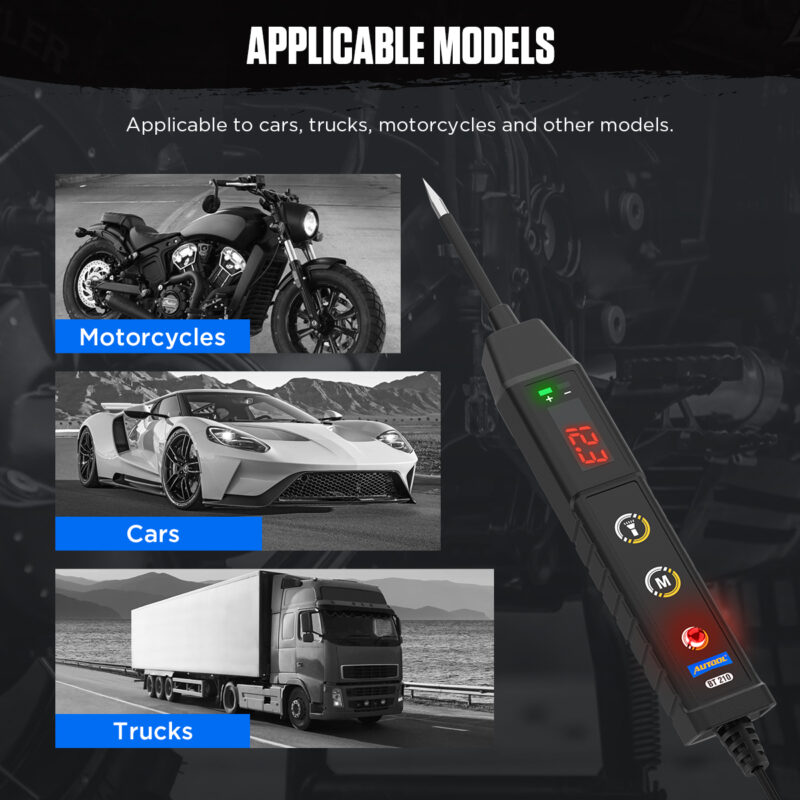

- Applicable Models: Applicable to cars, trucks, motorcycles and other models.

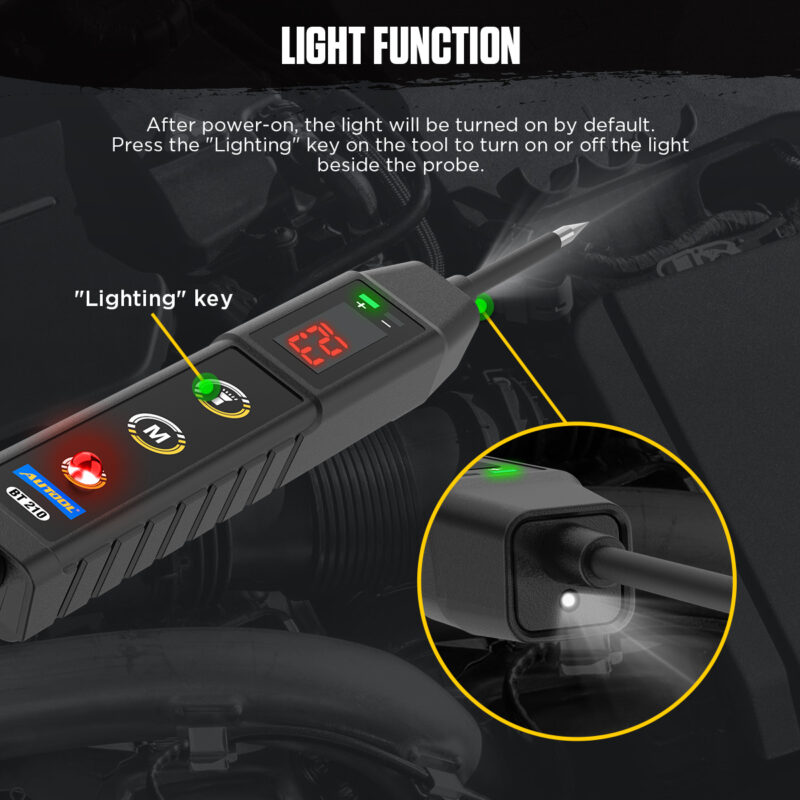

- Light Function: After power-on, the light will be turned on by default. Press the”Lighting” key on the tool to turn on or off the light beside the probe.
- Overload Protection: It is applicable to 9-30V DC. When the voltage or current is overloaded, it activates overload protection to reduce losses. When the measured voltage is greater than 30V or the measured current is greater than 10A, The device will start the self-protection settings.
- 3-year Warranty: For damage caused by non-human factors, we promise to resend parts for free within 3 years.

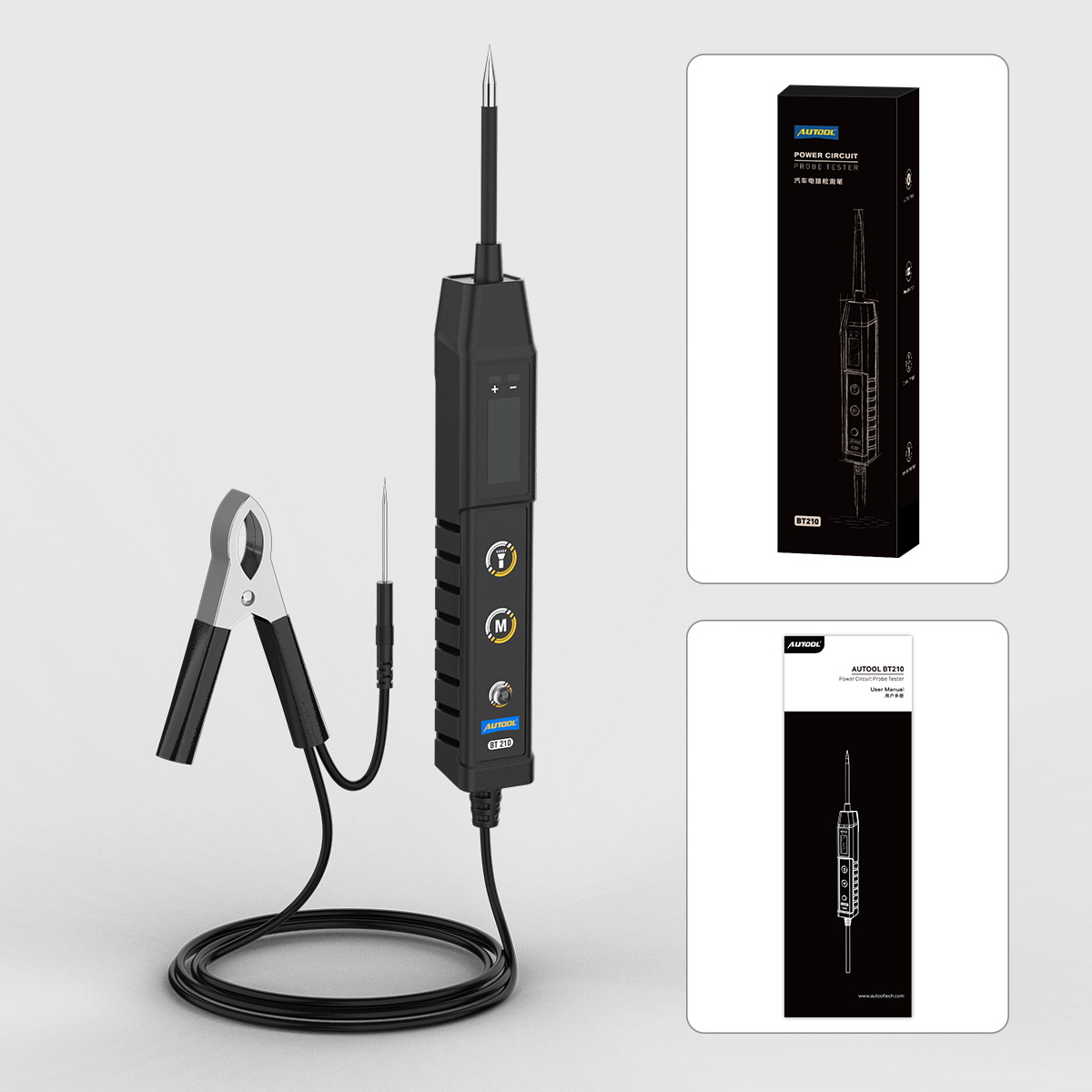

Packing List

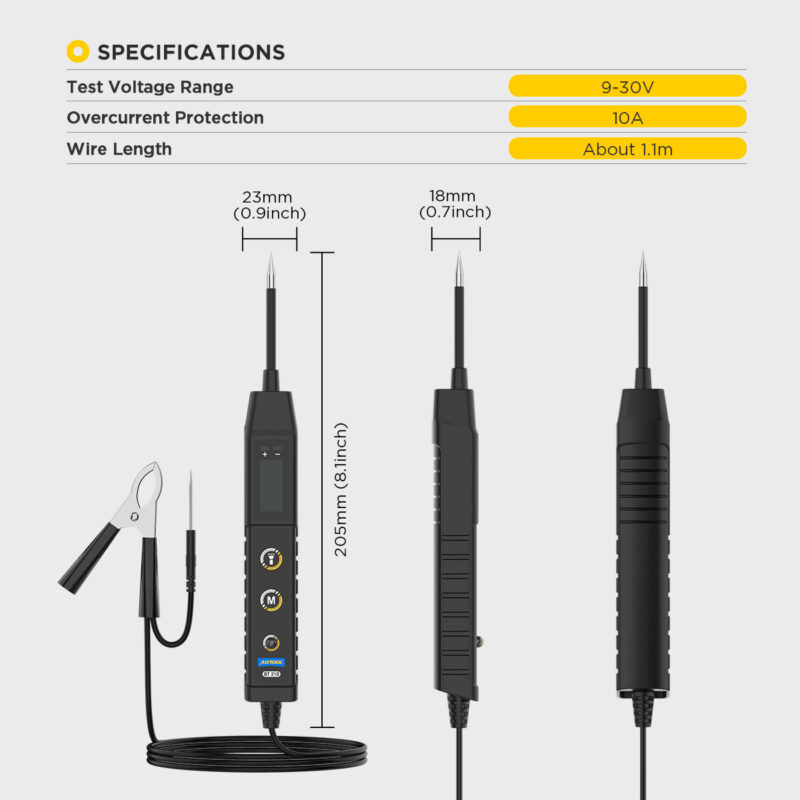

SPECIFICATIONS
- Model Number: BT210
- Brand Name: AUTOOL
- Origin: Mainland China
- Function1: Electric Voltage Integrated Power Scanner
- Function2: Automotive Diagnostic Tool
- Function3: Car Circuit Tester Power Probe
- Function4: pb100 and kM10
- Test voltage range: 9-30V
- Overload protection current: 10A
- Line length: about 1.1m
