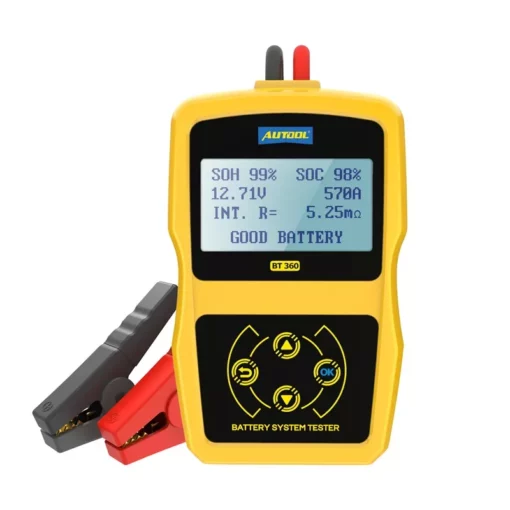

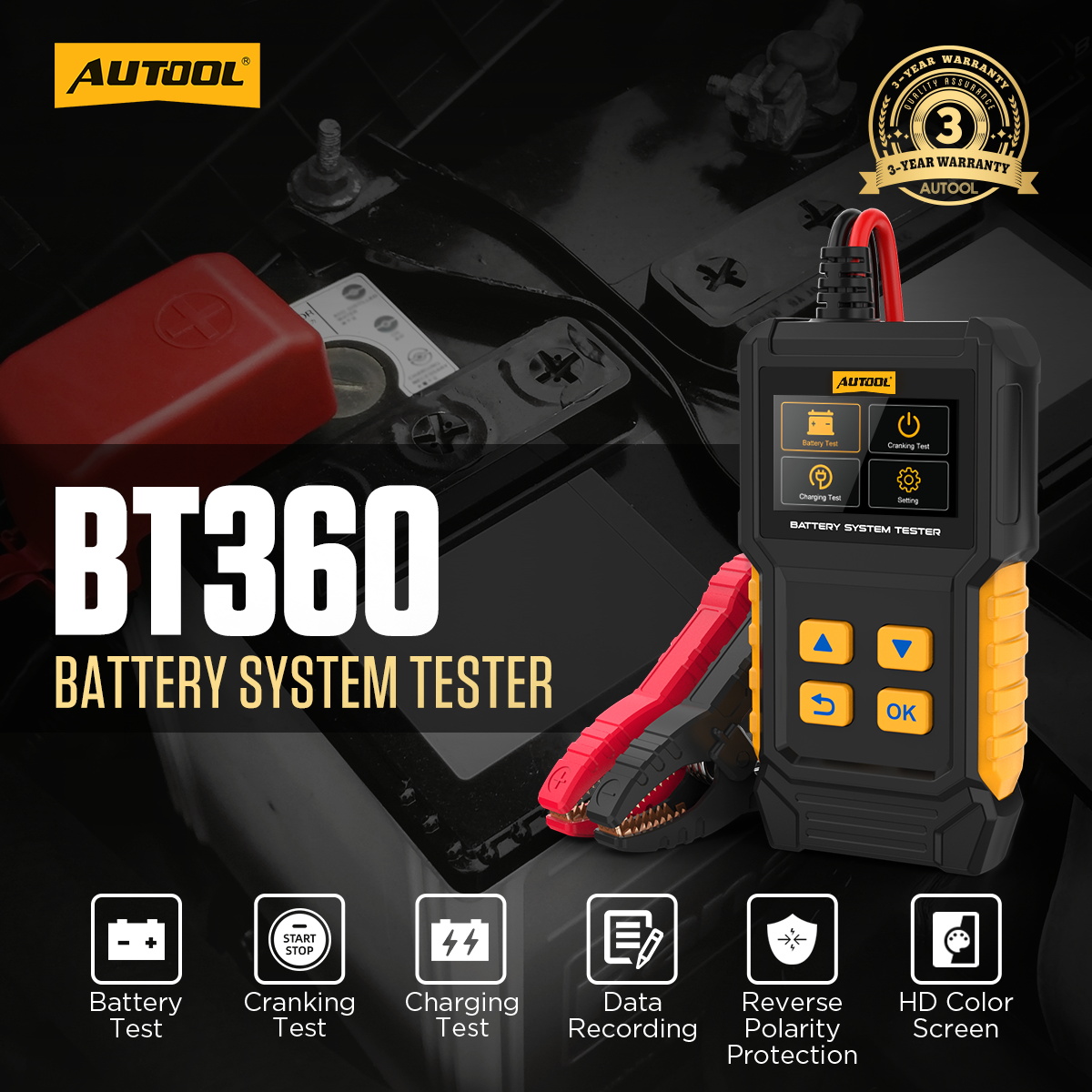

AUTOOL BT360 Digital Automotive Diagnostic Battery Tester Analyzer Charging Scanner Tool
$34.99
BT360 free shipping worldwide from China!
For more discount and online support please click here.
- China can ship to all countries, Germany only to EU countries, the United States and Russia only to their own countries.
- Tax-free and fast free shipping from overseas warehouses in USA, EU, Russia for most products.
- Parcels shipped from China generally require the customer to pay shipping and customs duties.

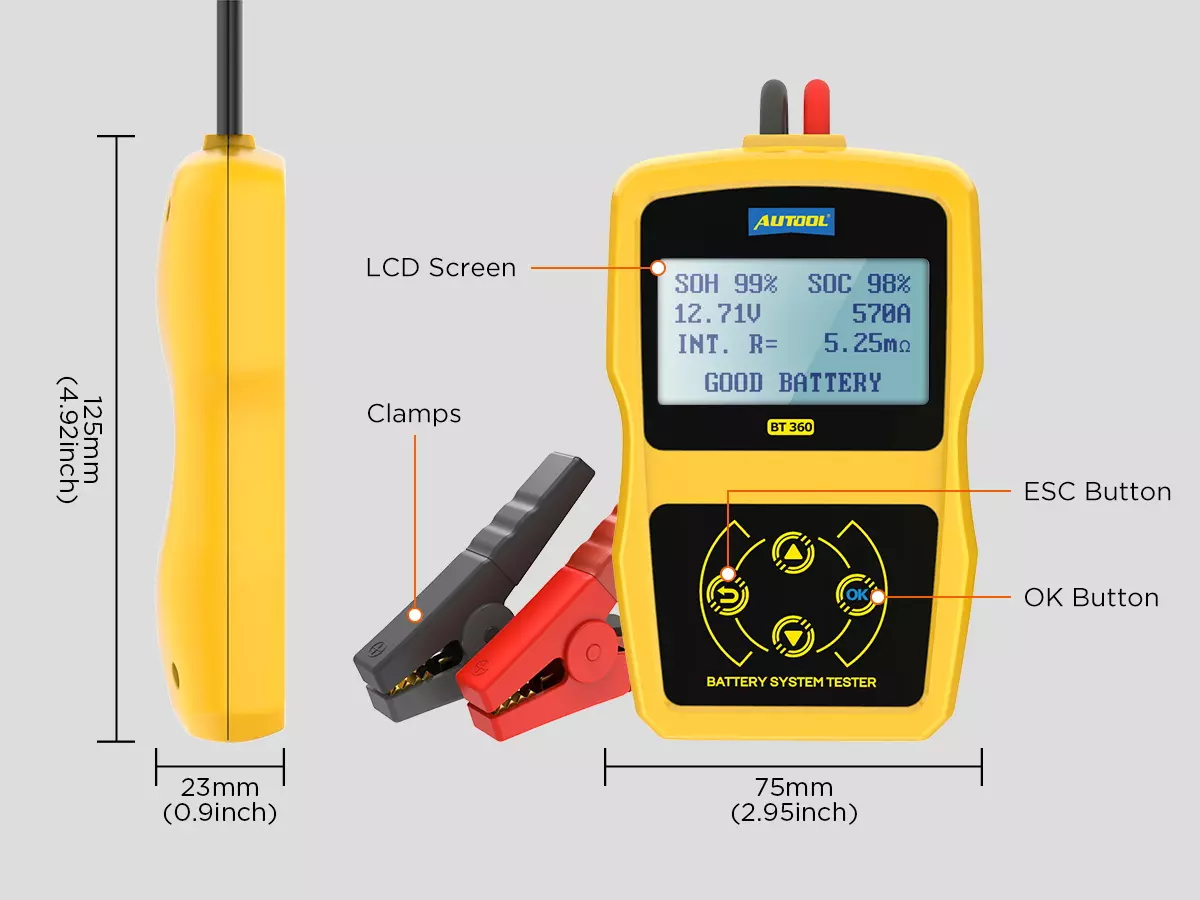

AUTOOL BT360 Digital Automotive Diagnostic Battery Tester Analyzer Charging Scanner Tool

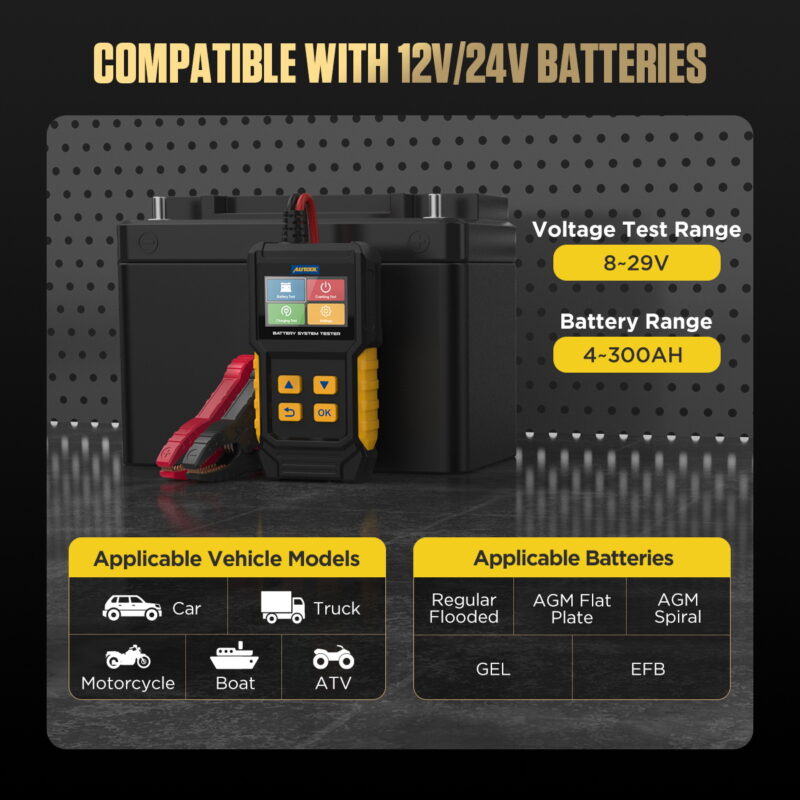

AUTOOL BT360 Car Battery Load Tester is dedicatedly developed to test 12V regular flooded, automotive lead-acid batteries, AGM flat plate, AGM spiral, GEL, and EFB batteries. It provides techs or DTYers with a quick, simple, and cost-effective solution to know the battery’s charging status better, check the battery’s health, and detect faults.
The working principle of the AUTOOL battery tester is to measure the ions on the surface of the plates to determine their chemical reaction ability and to infer the change of battery capacity by the change of the plates; it can compare the actual conductivity value measured by the battery with the standard conductivity value when the battery is in good condition, so as to determine the health condition of the battery.
Warm Tips
The current shipping version is still the original appearance of BT360 and requires you to select the version.
Version 1 supports English, Spanish, French, Russian, and German.
Version 2 supports English, Polish, Japanese, Chinese, and Dutch.

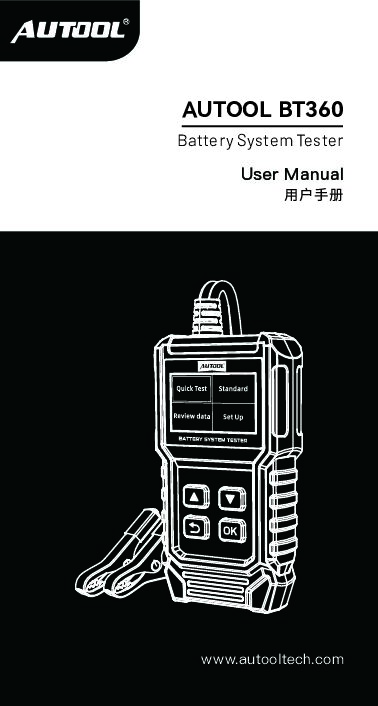

AUTOOL BT360 User Manual Download>>

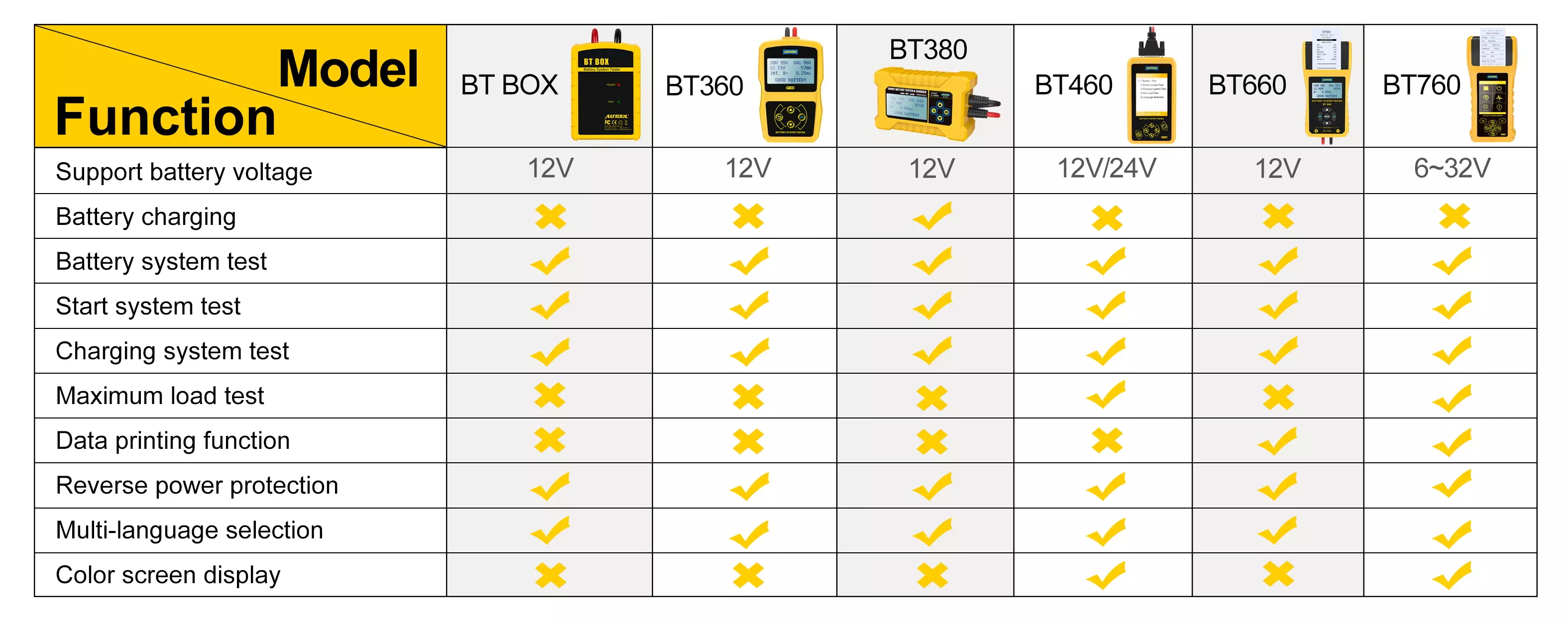

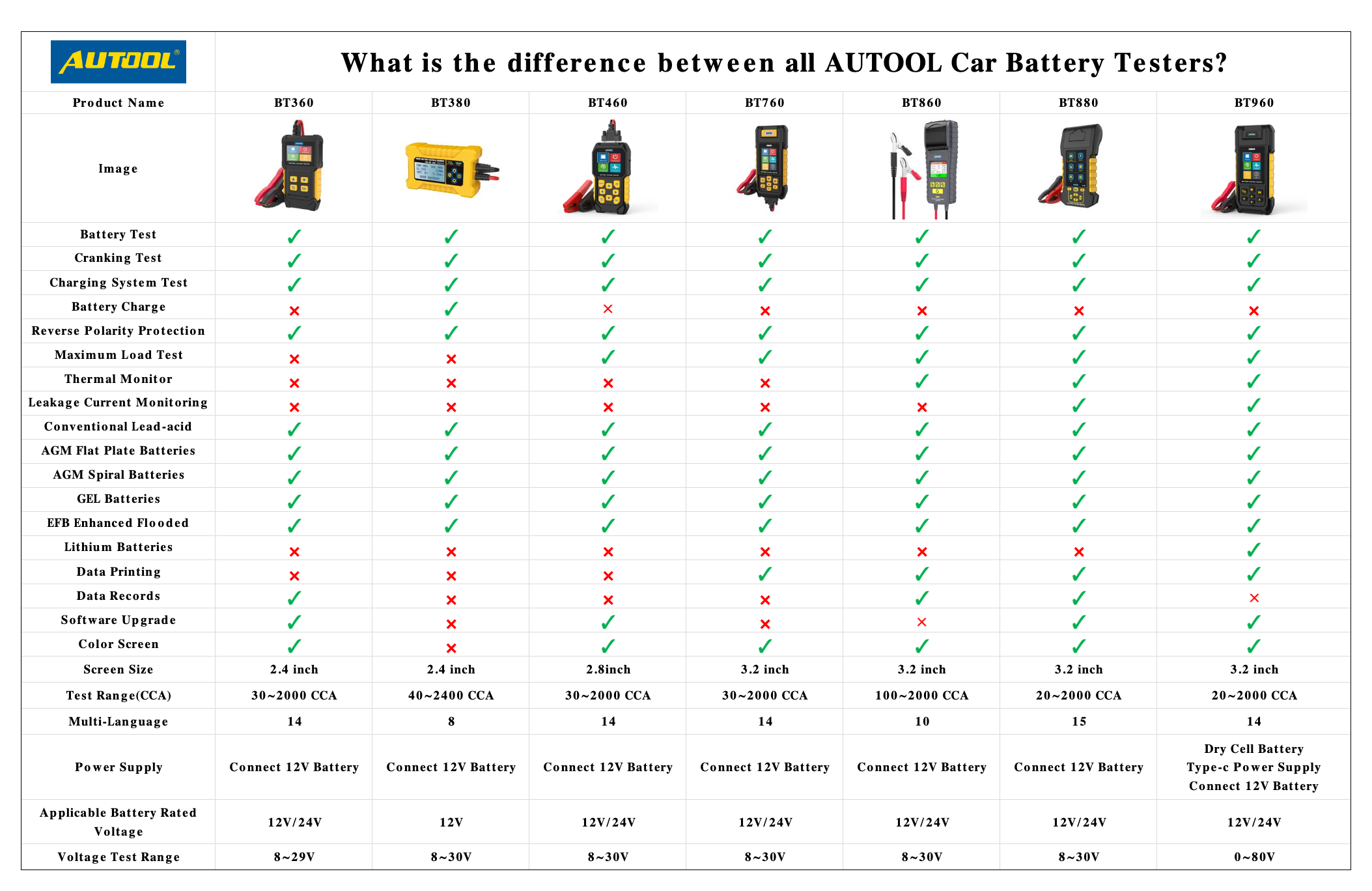

Autool Battery Tester Quick Search
- AUTOOL BT380 Battery Tester>>
- AUTOOL BT460 Battery Tester>>
- AUTOOL BT760 Battery Tester>>
- AUTOOL BT860 Battery Tester>>
- AUTOOL BT880 Battery Tester>>
AUTOOL BT360 12V Car Battery Load Tester Features :

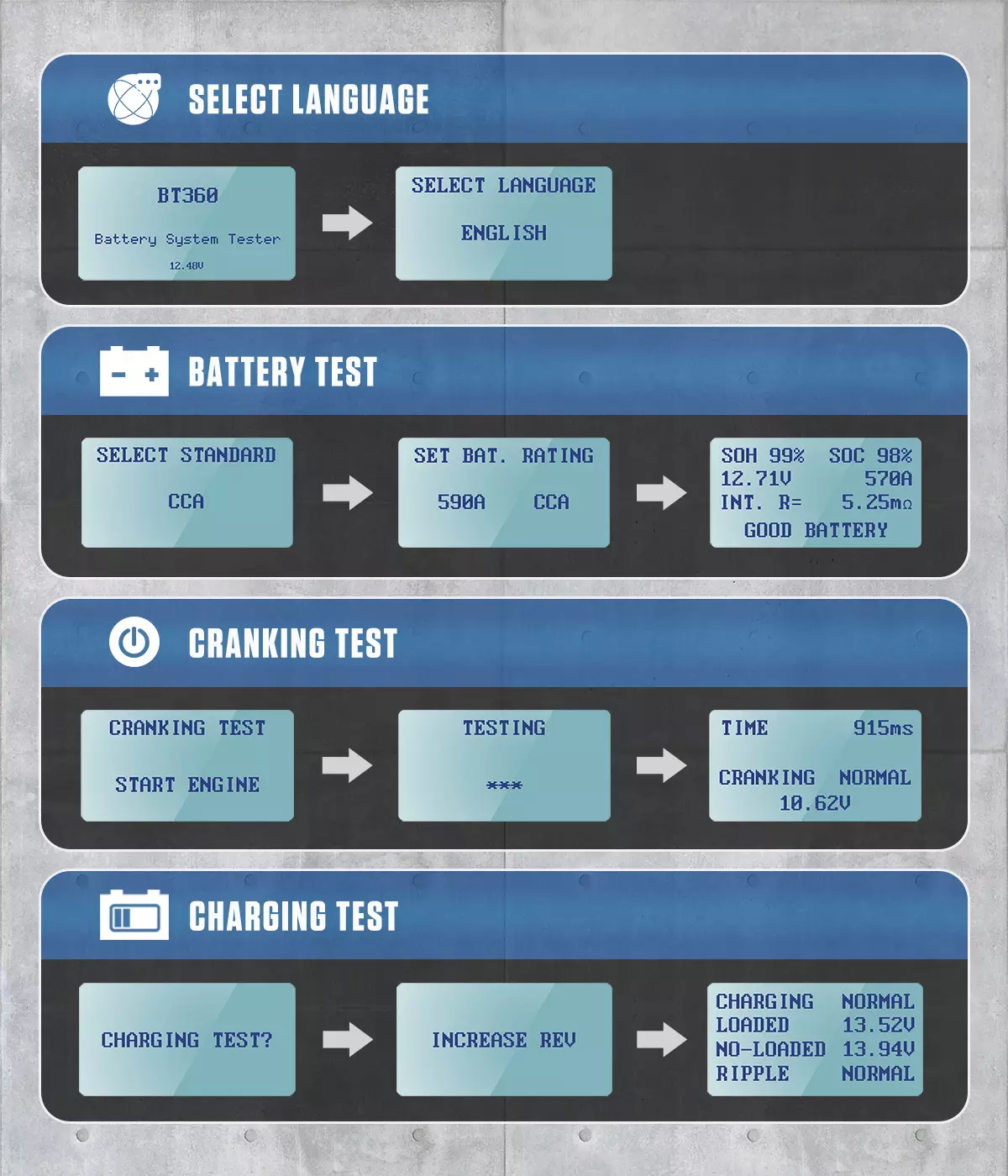

- Step 1: When doing a battery test, please make sure the car is off.
- Step 2: Connect the 12V battery, red clips to the positive pole, and black clips to the negative pole.
- Step 3: Battery Test: First, select the type of battery to be tested, then the test criteria and the test range, and then you have the results within a few seconds.
- Step 4: Cranking Test: After selecting the cranking test function, follow the prompts to start the engine. Test completed.

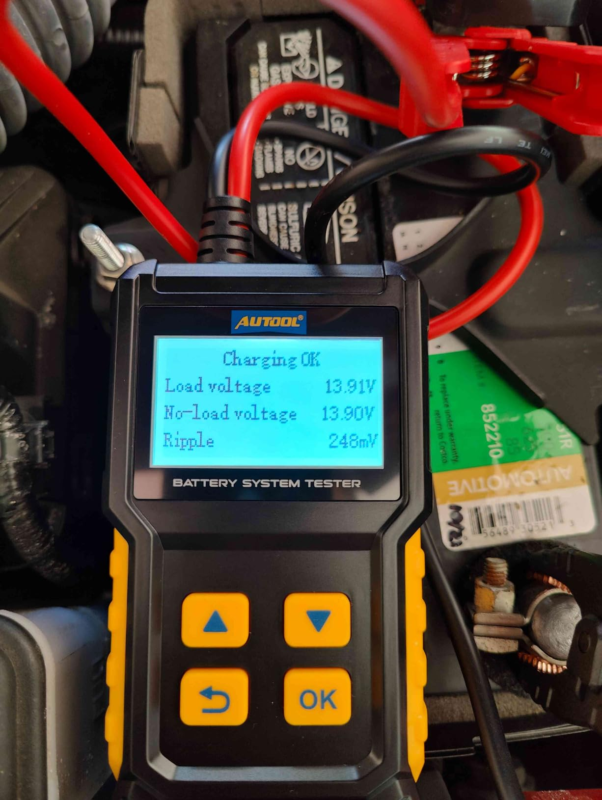

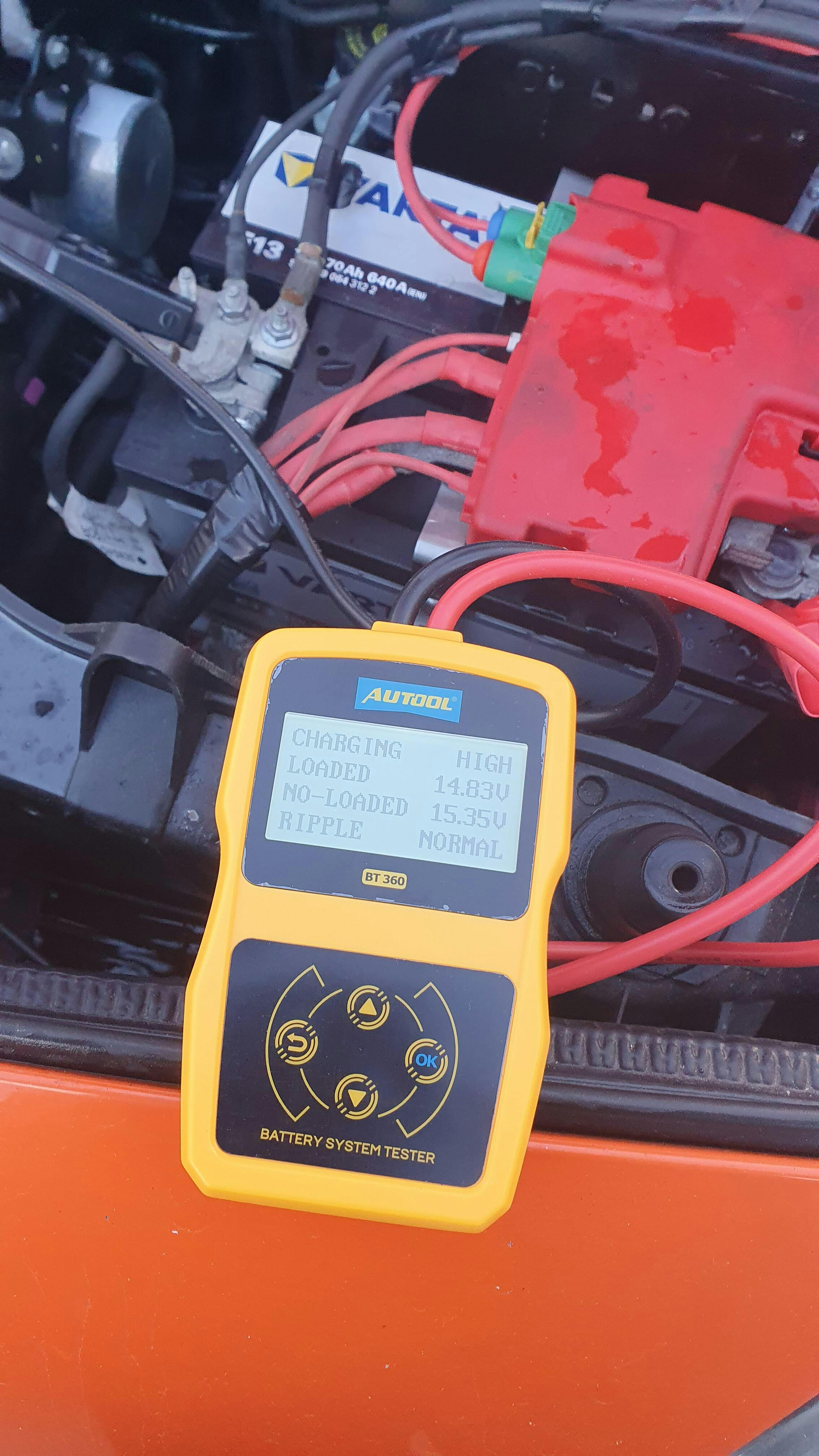

- Step 5: Charging Test: After entering the charging test function, follow the prompt to increase the speed to 2500 RPM for 5 seconds, then press OK. Test completed.
AUTOOL BT360 12V Car Battery Load Tester Features :

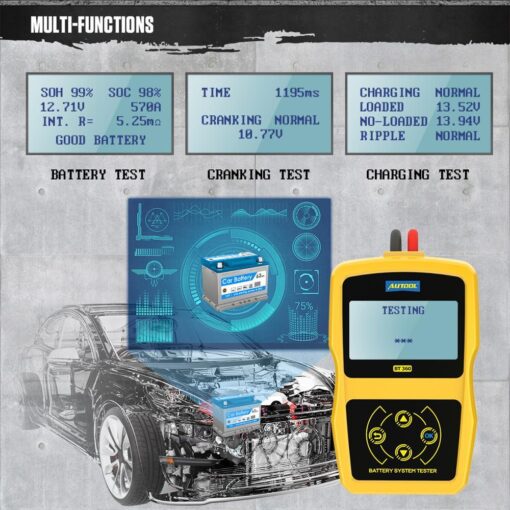

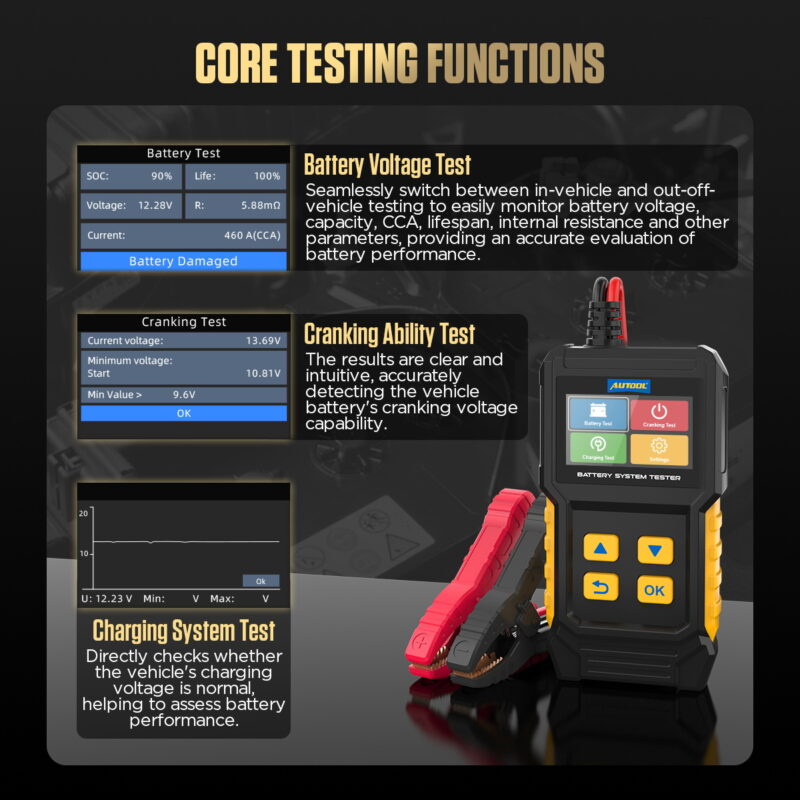

- Multi-Functions: AUTOOL BT-360 Battery Tester includes Battery test, Cranking test, and Charging test functions. Mainly targeted to analyze the battery health status. It directly detects whether the battery is good or bad, and presents suggested solutions.

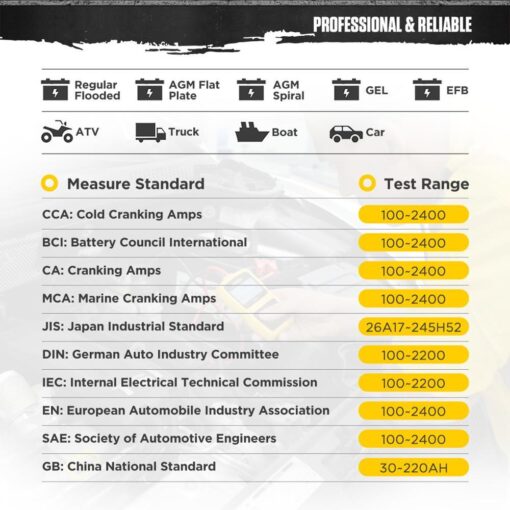

- Professional & Reliable: Test standards include most battery standards in the world, CCA, BCI, CA, MCA, JIS, DIN, IEC, EN, SAE, and GB, which covers from 100- 2400 CCA, 30-220 AH.

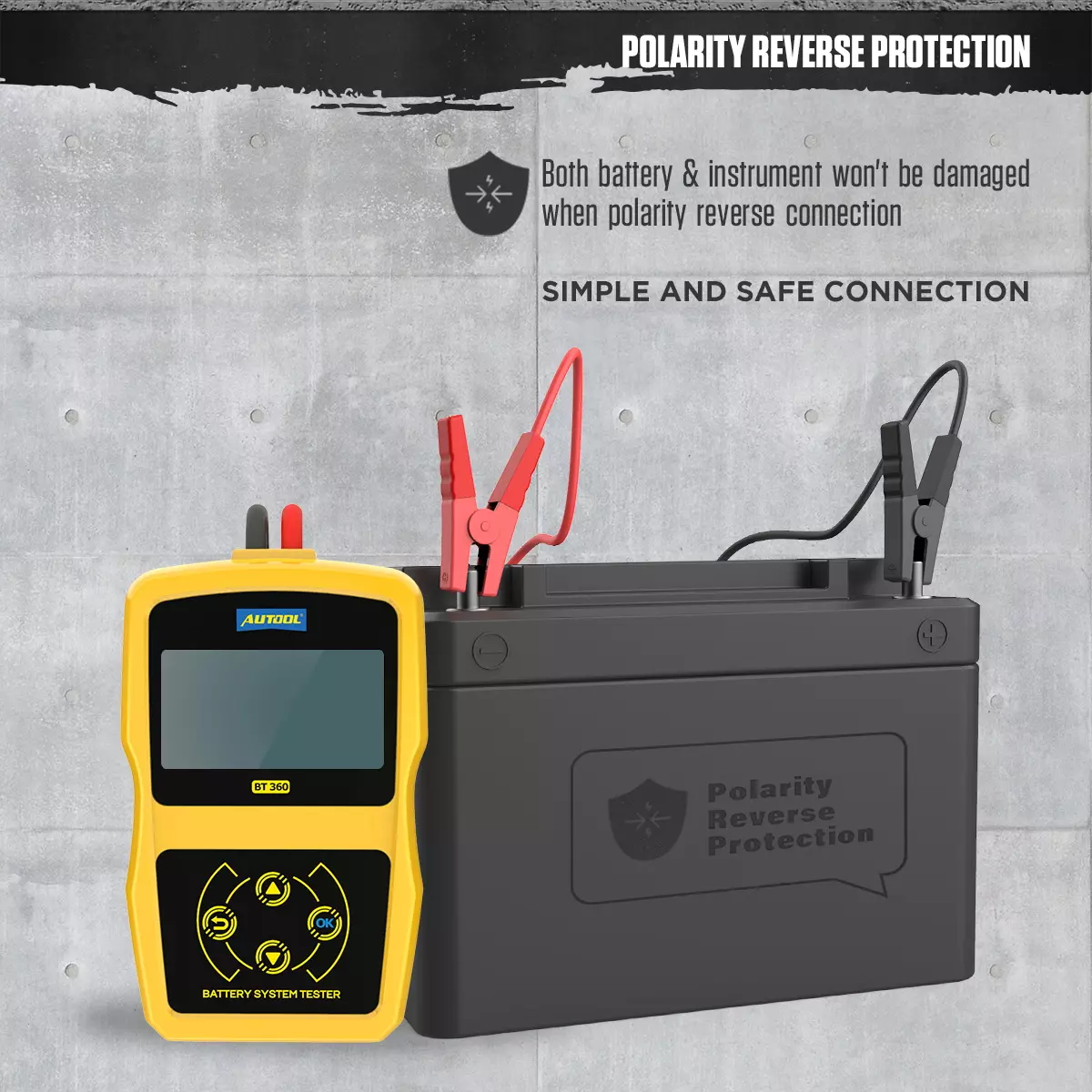

- Efficiency & Safety: Using advanced conductive technology, it can directly display the high-accuracy results of vehicle info. Designed with polarity reverse connection protection. It will not damage the device or affect the car or battery.

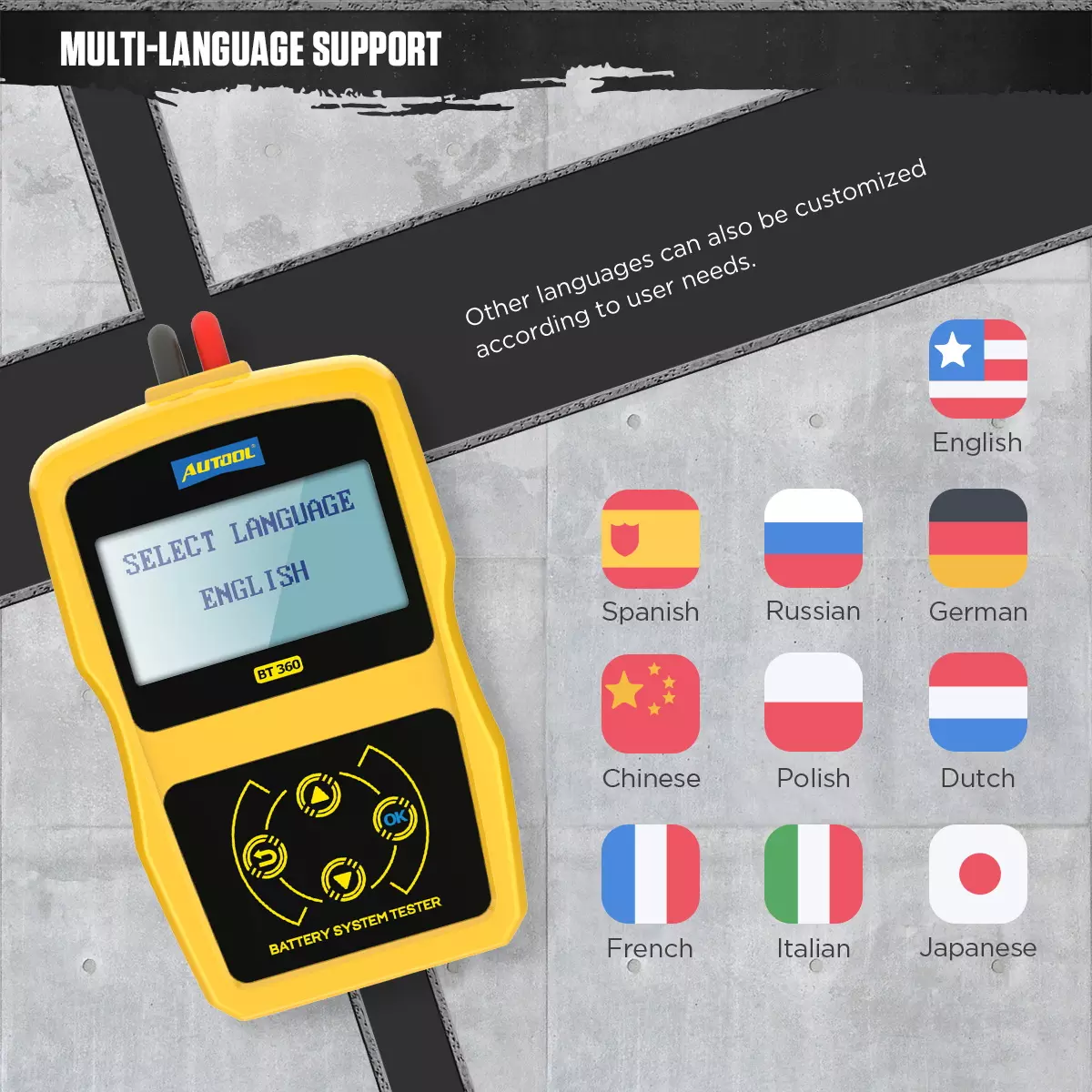

- Multi-language Support: 10 Languages are available.Available in English, Spanish, German, French, Italian, Russian, Polish, Chinese, Dutch and Japanese. Other languages can be customized.
- Version 1 English, Spanish, French, Russian, German, Italian;
- Version 2:English, Polish, Chinese, Dutch, Japanese.
- 3-YEAR WARRANTY: For damage caused by non-human factors, we promise to resend parts for free within 3 years.
For any needs, you are warmly welcome to contact us and we will get back to you ASAP within 24 hours.

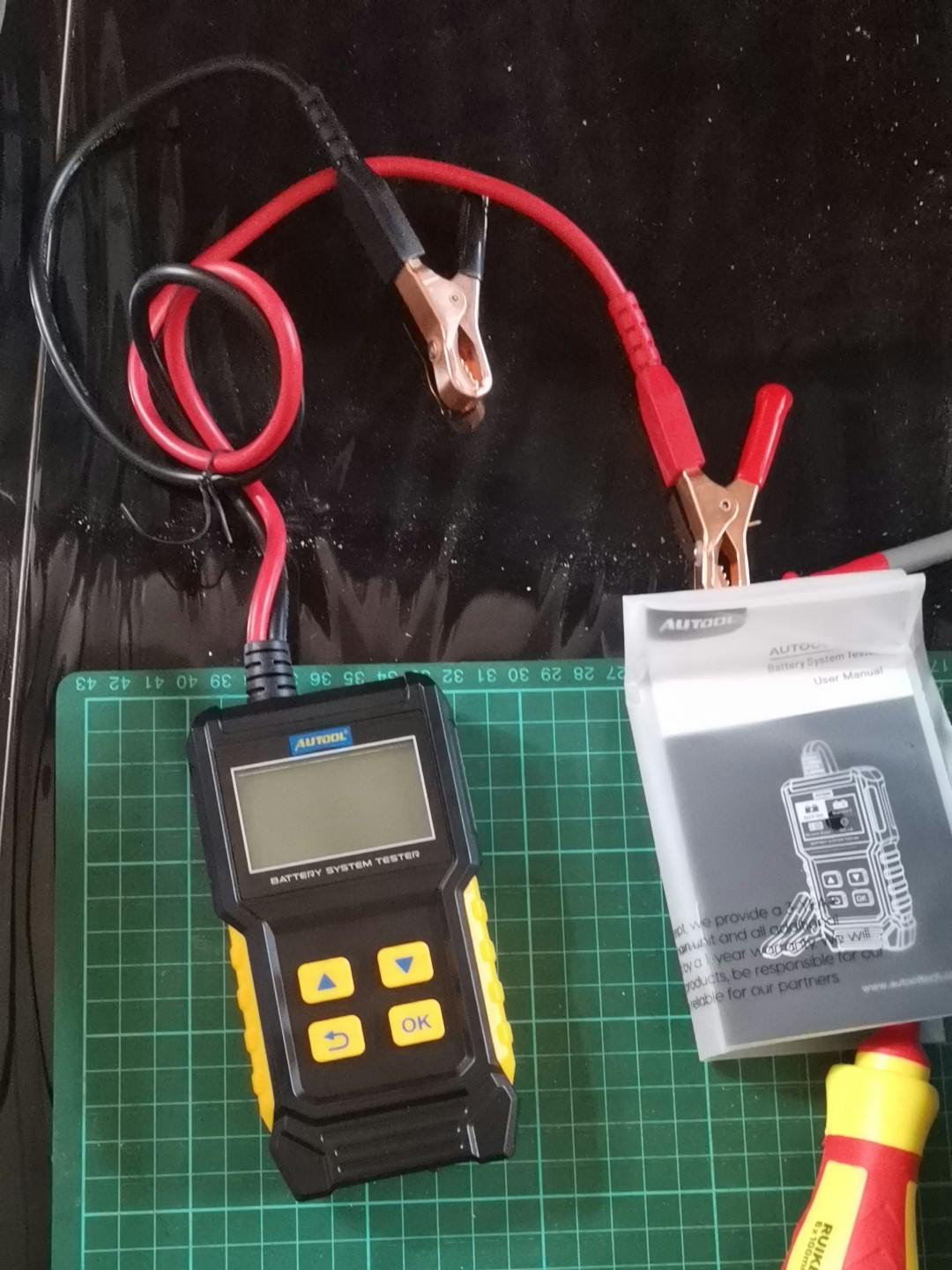

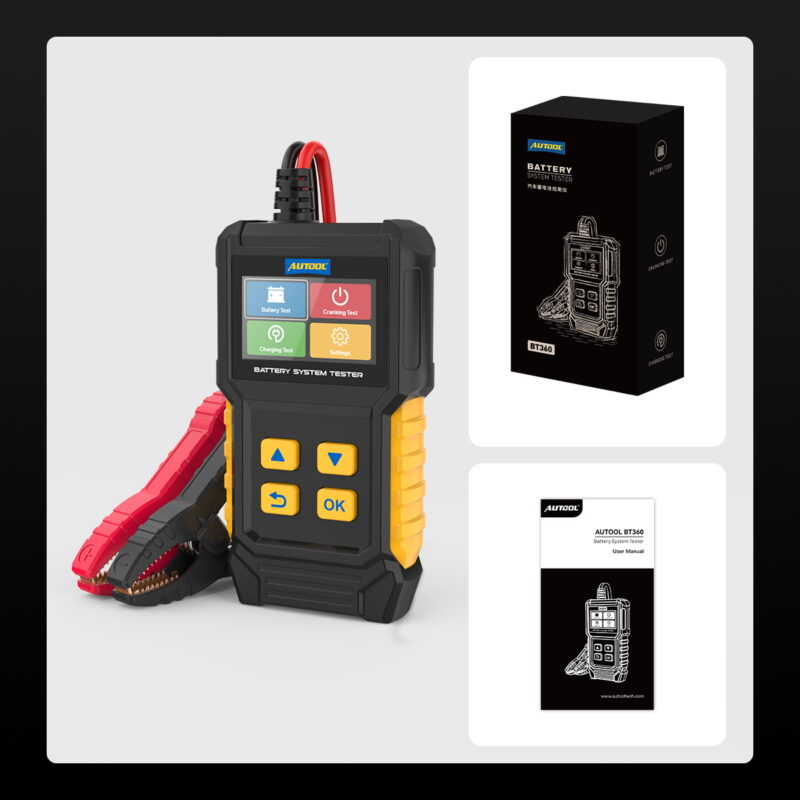

Packing List:

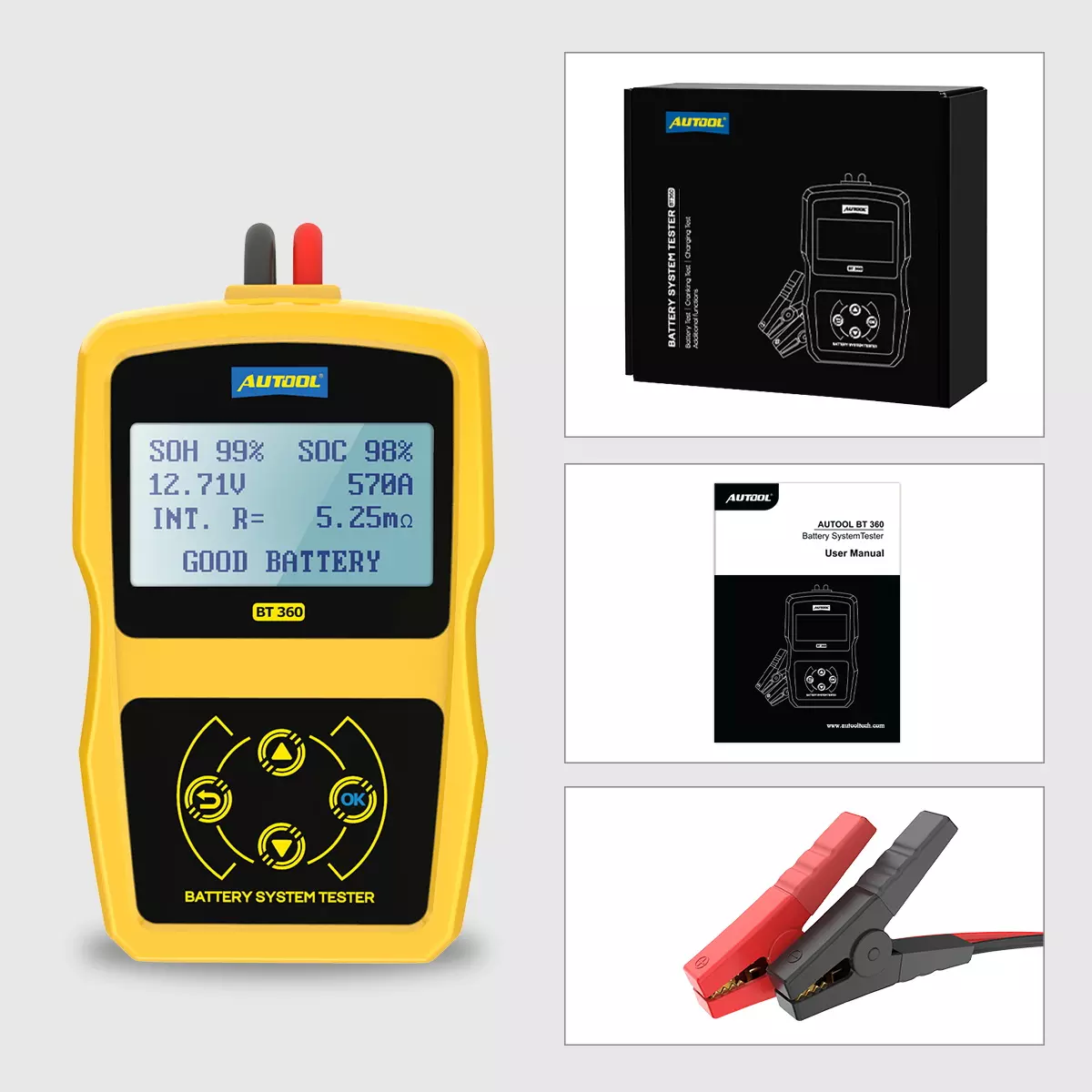

- 1pc * AUTOOL BT360 Car Battery Load Tester
- 2pcs * Full copper core kelvin clip
- 1pc * Manual
FQA
Please do an inspection according to the following methods before you turn on the device. Method 1: Please check whether the negative terminal and the positive terminal are connected correctly, then ensure the battery and the tester are in good contact. Method 2: please check whether the voltage of your battery is within our device measurable range.
We suggest you having a product inspection according to the following methods firstly. Method 1: Please check whether the power clip accurately connect the right position of the battery terminal; Method 2 : please use other battery testing devices to test your battery and compare results to see whether it is within the error range; Method 3: please perform function calibration on AUTOOL battery tester, but currently only BT460 and BT760 have this function.
BT360 can support 24V battery testing in series, but you need to divide it into two 12V batteries for testing firstly.
We are sorry that AUTOOL battery testers can’t test deep cycle batteries. As for solar cells, it’s suggested to provide us with specific battery parameters, then we will get back to you soon.
AUTOOL battery tester can’t test lithium iron batteries.
AUTOOL battery tester can test Start/Stop batteries as long as battery parameters are within measurable range. If you are not sure yours, we’d like to help you to confirm after you provide us the battery parameters.
AUTOOL battery testers can test most of motorcycle batteries, but it also depends on specific situations. You need to check weather your battery is within the measurable range. We recommend BT460 battery tester for you, which has a wider testing range.
You don’t need to set the language every time after the first set. If you wanna switch to another language, it’s convenient to operate.
BT380 adopts the intelligent charging mode, which will adjust the charging capacity according to the change of the battery power, and it will stop charging automatically after full charge.
AUTOOL battery testers can test tractor batteries, but it’s suggested to provide specific battery parameters for reference first.
SPECIFICATIONS
- Brand Name: AUTOOL
- Origin: CN(Origin)
- Certification: CE
- Model: AUTOOL BT360
- Item Type: Car Battery Tester
- Function: Test Analyzer Vehicle Battery
- Feature: Battery Cranking Charging Scanner
- Languages of Version 1: English, Spanish,France, Russian,Germany
- Languages of Version 2: Languages with English, Polish, Chinese, Dutch and Japanese.
- Battery type 1: lead-acid battery
- Battery type 2: AGM flat plate battery
- Battery type 3: AGM spiral battery
- Battery type 4: Gel battery and etc.
- Note to seller: which version would you like
- Battery type: 12V automotive batteries
VIDEO

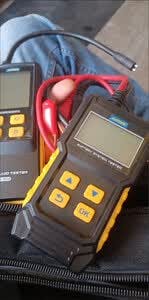

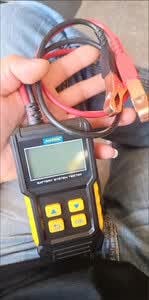

Super

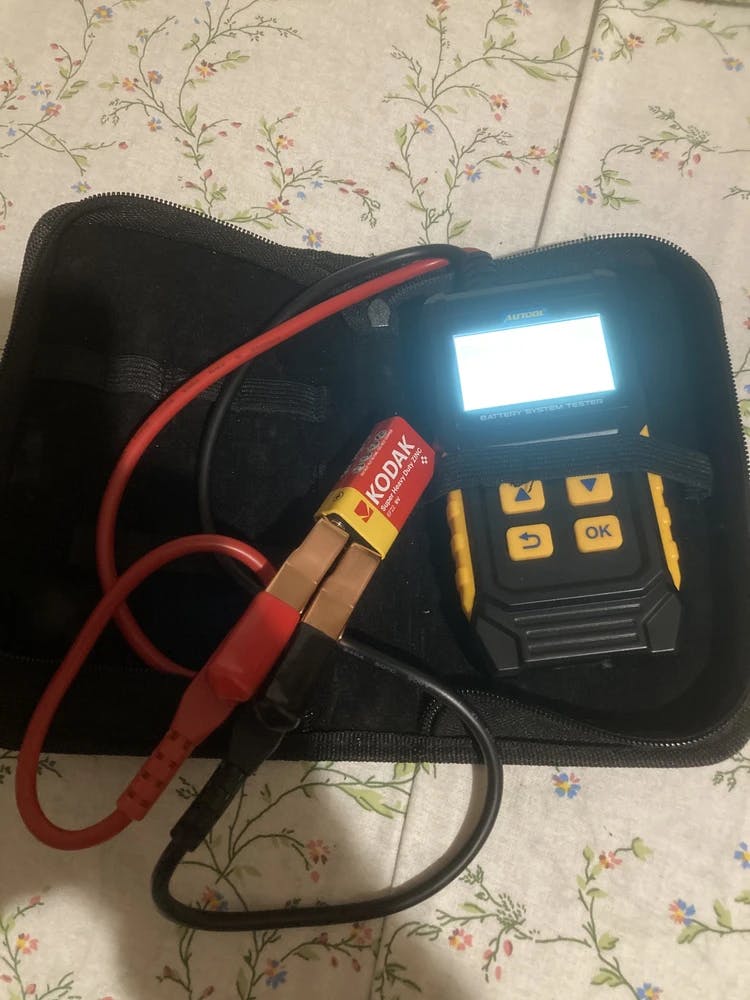

works as it should! Easy to carry.
Dear Friends
Good day!
We're glad you're happy with our product. AUTOOL is committed to providing the best customer experience possible, and we're happy when we know we've achieved that goal.
Best Regards
AUTOOL Customer Service Team

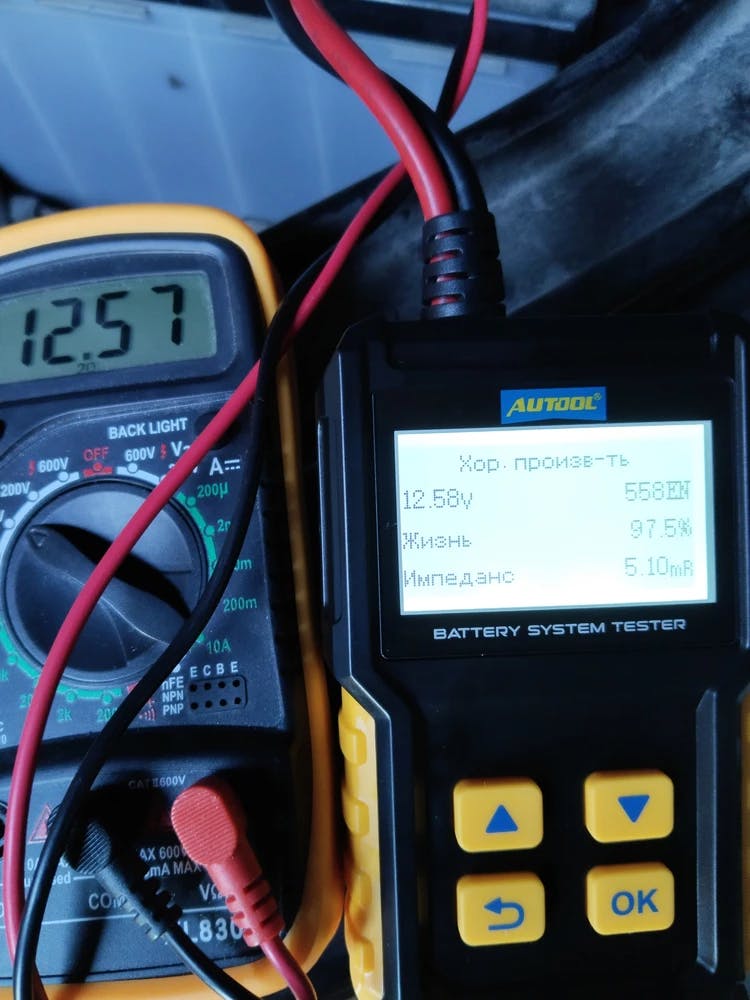

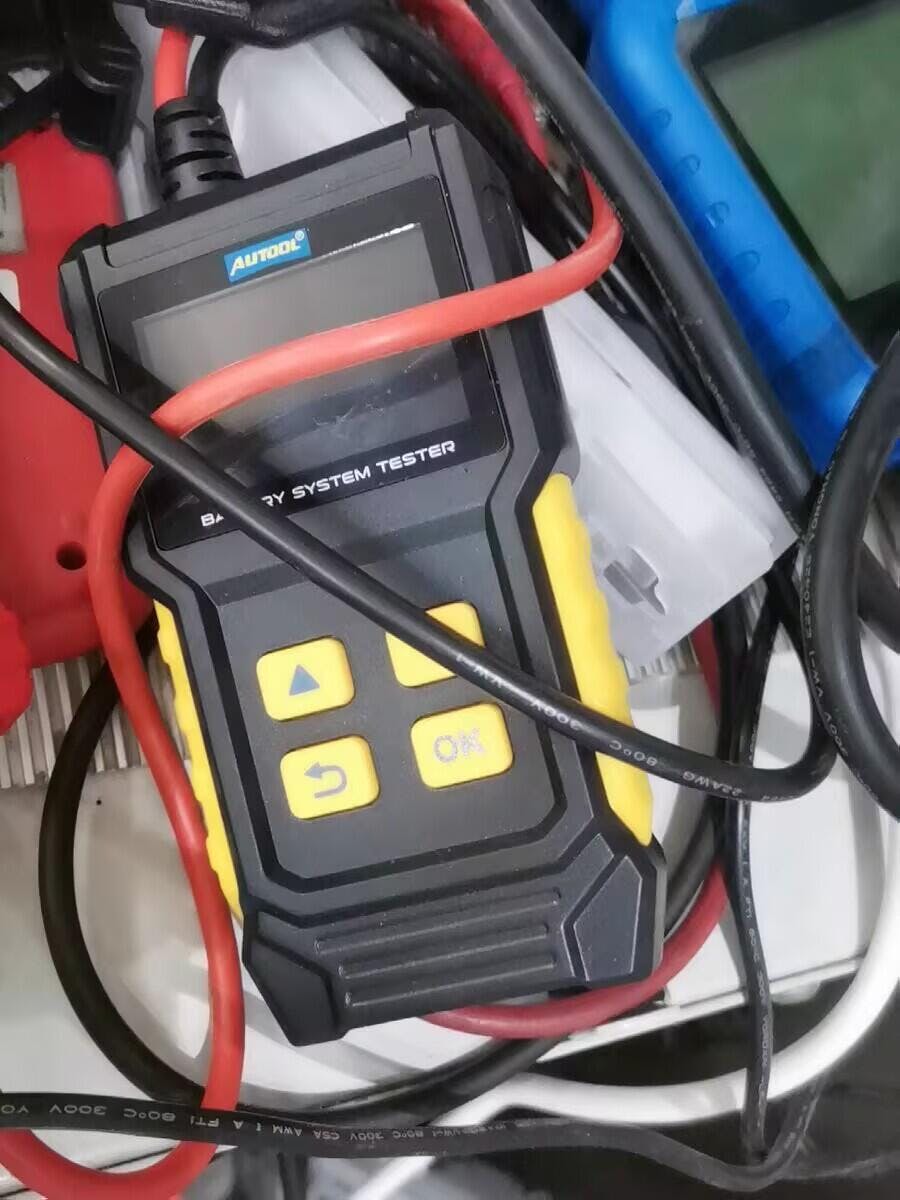

Delivery fast
