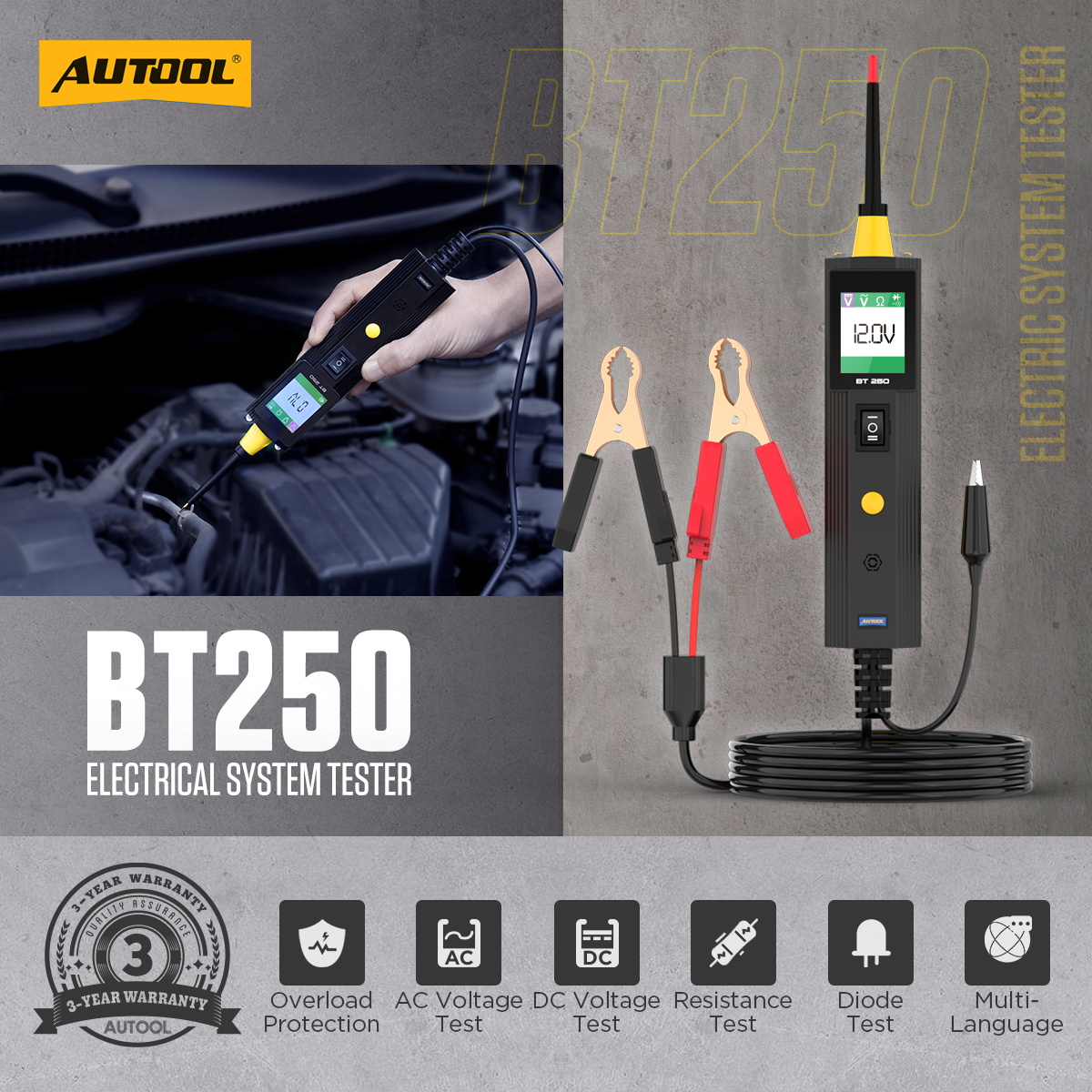

AUTOOL BT250 Car Electrical Circuit Tester 6V-30V

AUTOOL BT250 Car Electrical Circuit Tester-Quickly Test 6V-30V Automotive Circuit Systems

AUTOOL BT250 Electrical Circuit Tester is a tool used to quickly test all 6V-30V automotive circuit systems. It has the function of quickly finding the short circuit location of the vehicle. It is an efficient and advanced testing tool that can greatly improve the user’s work efficiency.

AUTOOL BT250 Manual

Download

Warm Tips

• Wear safety glasses that meet ANSL standards.
• Keep clothing, hair, hands, tools, test equipment, etc. away from all operating or hot equipment.
• Because the exhaust fumes emitted during testing are toxic, test the vehicle in a well-ventilated work area.
• Please place blocks at the bottom of the wheels and do not leave the vehicle unattended for testing.
• When working around the ignition coil, be especially careful with the distributor cap, ignition wires, and spark plugs. These components can generate dangerously high voltages when the engine is running.
• Keep a fire extinguisher near gasoline/chemical/electrical equipment in case of fire.
• Put the transmission into Park (automatic transmission) or Neutral (manual transmission) and make sure the handbrake is engaged.
• Do not connect or disconnect any test equipment while the ignition is on or the engine is running.
• When the power switch of the tool is pressed, the battery current and voltage will be directly conducted to the ground or certain circuits, which may cause sparks. Therefore, do not use near flammable materials such as gasoline or its vapor. Sparks from powered tools can ignite these vapors, so follow the same precautions as you would with a welder to stay safe.
• Keep equipment dry, clean, and free of oil, water, or grease. Use a clean cloth if necessary for cleaning equipment.

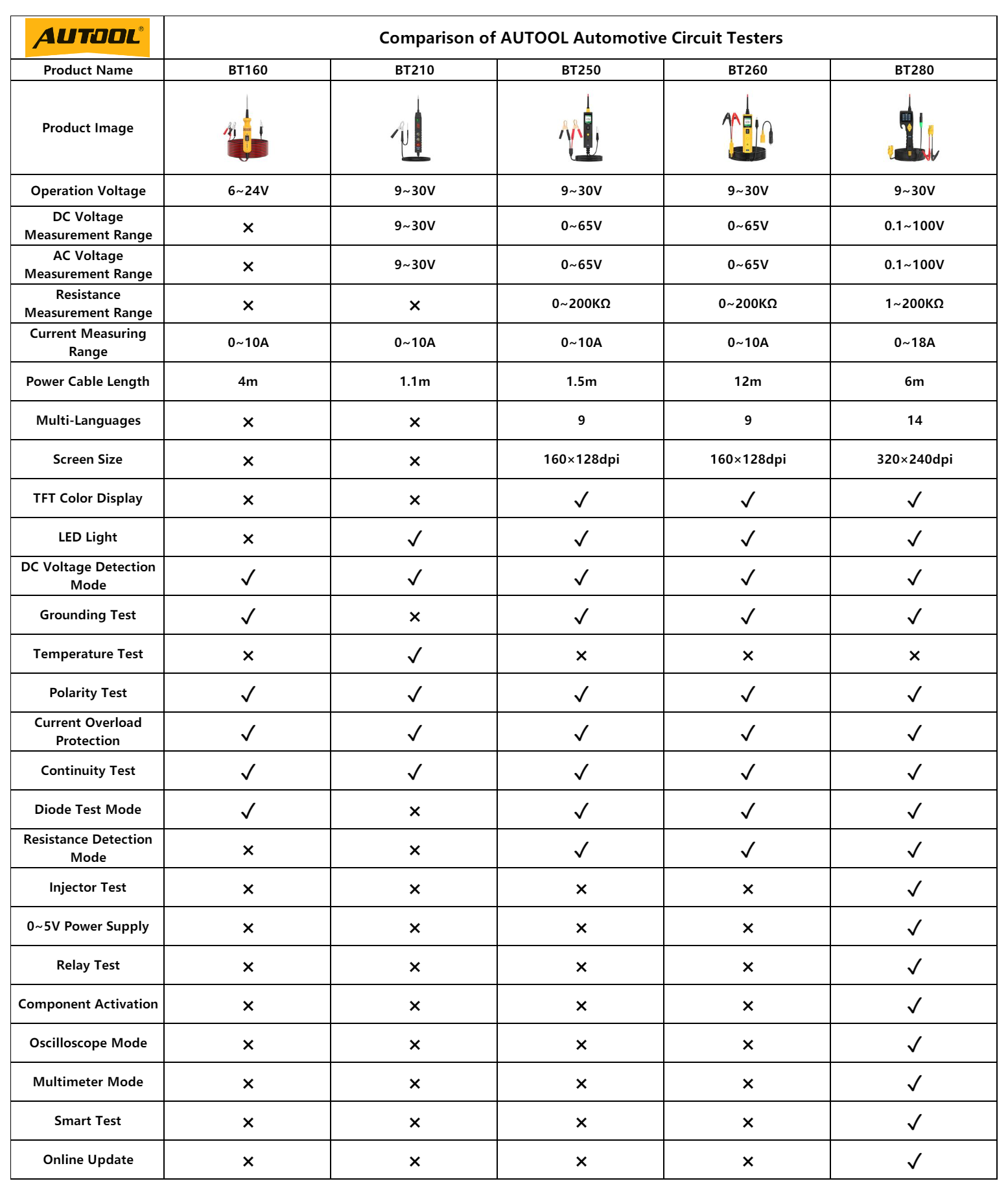

What Is The Difference Between AUTOOL Car Circuit Tester?

AUTOOL Car Circuit Tester Quick Search

AUTOOL BT210 Car Circuit Tester 9-30V Electrical Testers

$27.90

AUTOOL BT160 Automotive Circuit Tester Circuit Checker

$32.90

AUTOOL BT250 Car Electrical Circuit Tester 6V-30V

$39.00

AUTOOL BT260 Electrical Circuit Tester For Trucks

$75.00

AUTOOL BT280 Electrical Circuit Tester Power Probe Electric System Tester

$169.00

AUTOOL BT250 Car Electrical Circuit Tester Features

• Overload Protection: The AUTOOL BT250 Electrical Circuit Tester has short-circuit protection, and the AUTOOL BT250 Electrical Circuit Tester can automatically reset if an overload causes its internal circuit breaker to automatically trip.

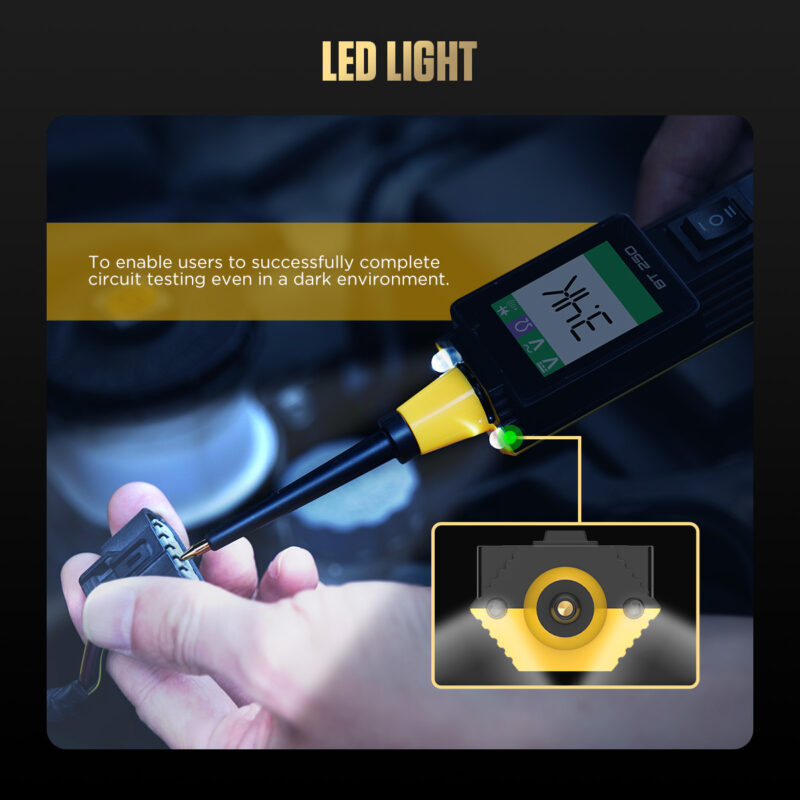

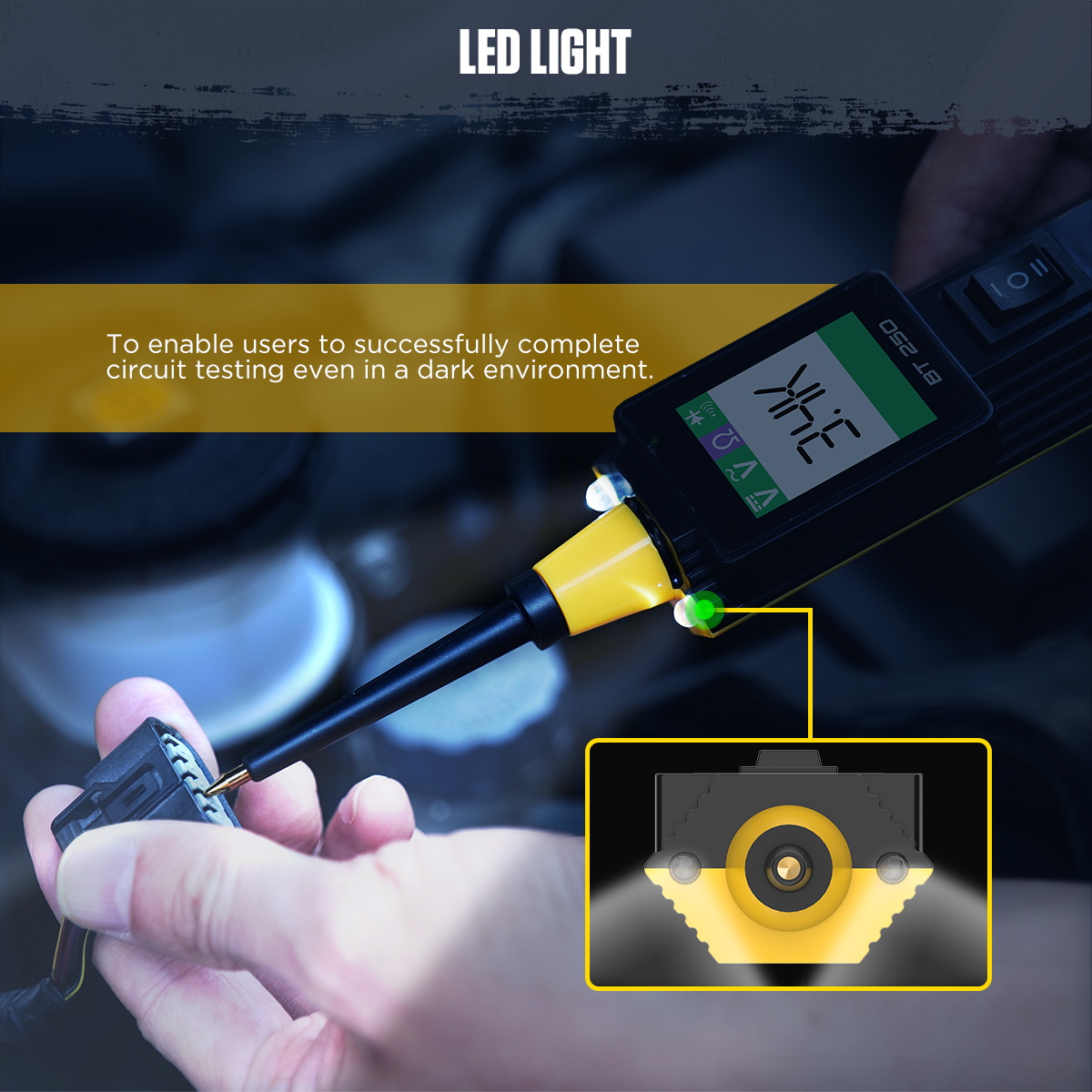

• Led Light: The AUTOOL BT250 Electrical Circuit Tester enables users to complete circuit testing even in a dark environment.

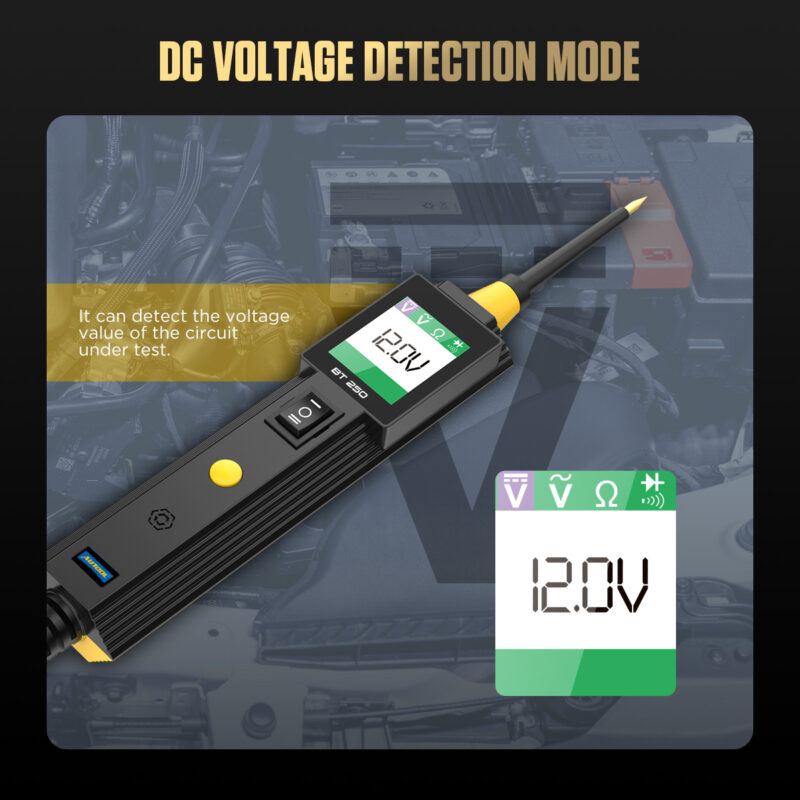

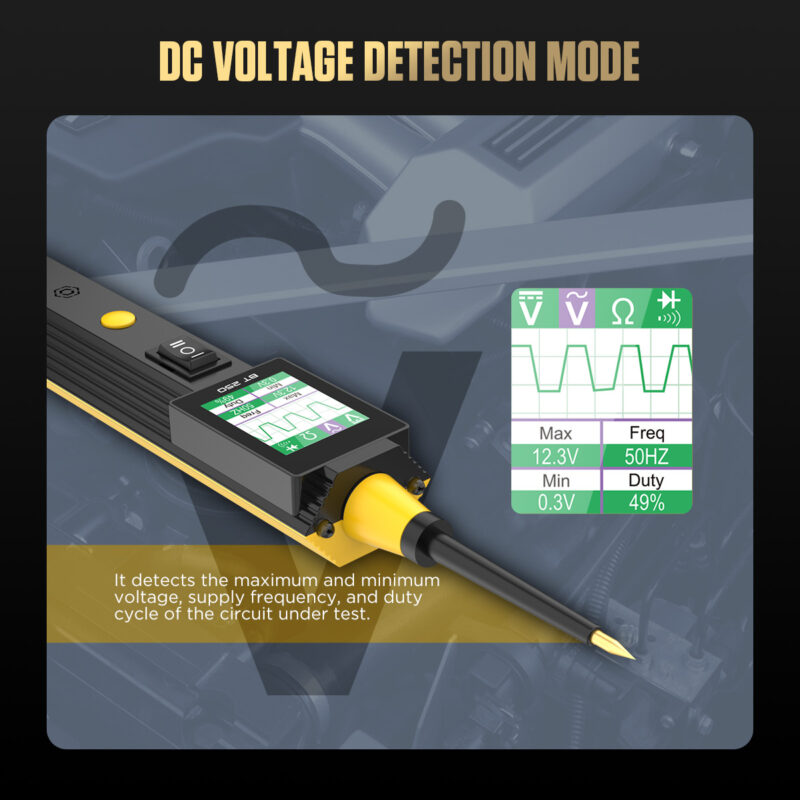

• AC and DC Voltage Detection Mode: AC mode measures voltage, frequency, and duty cycle; DC mode detects voltage values.

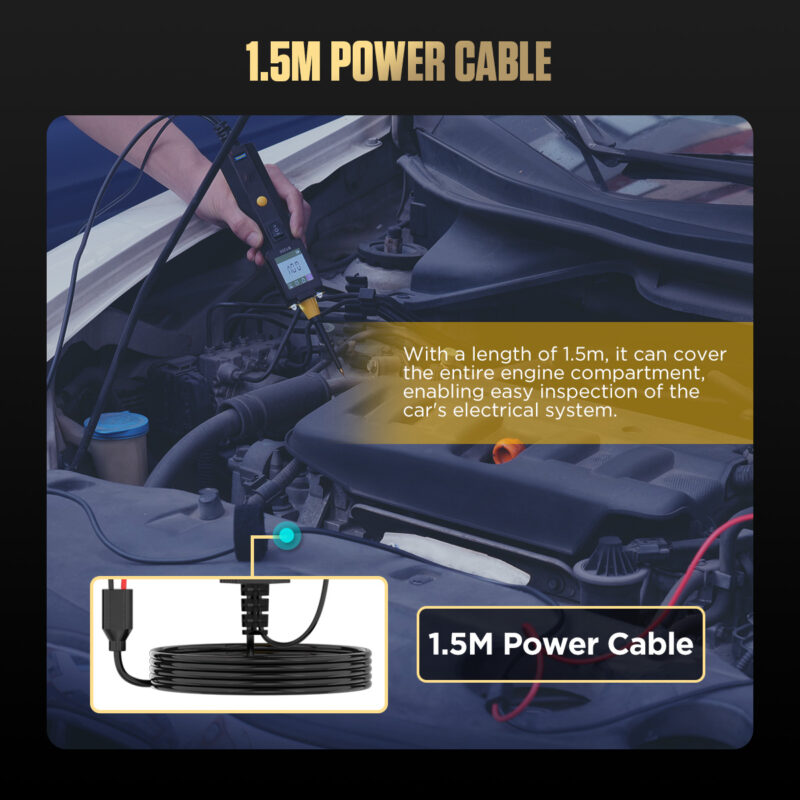

• 1.5M Power Cable: The 1.5m cable covers the engine compartment for easy system checks.

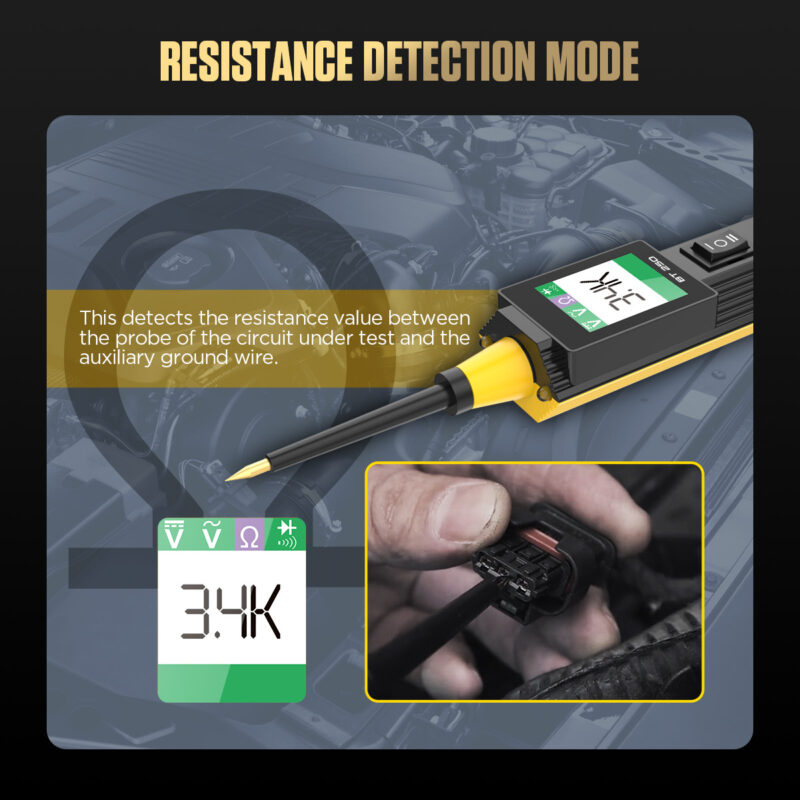

• Resistance Detection Mode: Measures the resistance between the probe and auxiliary ground wire.

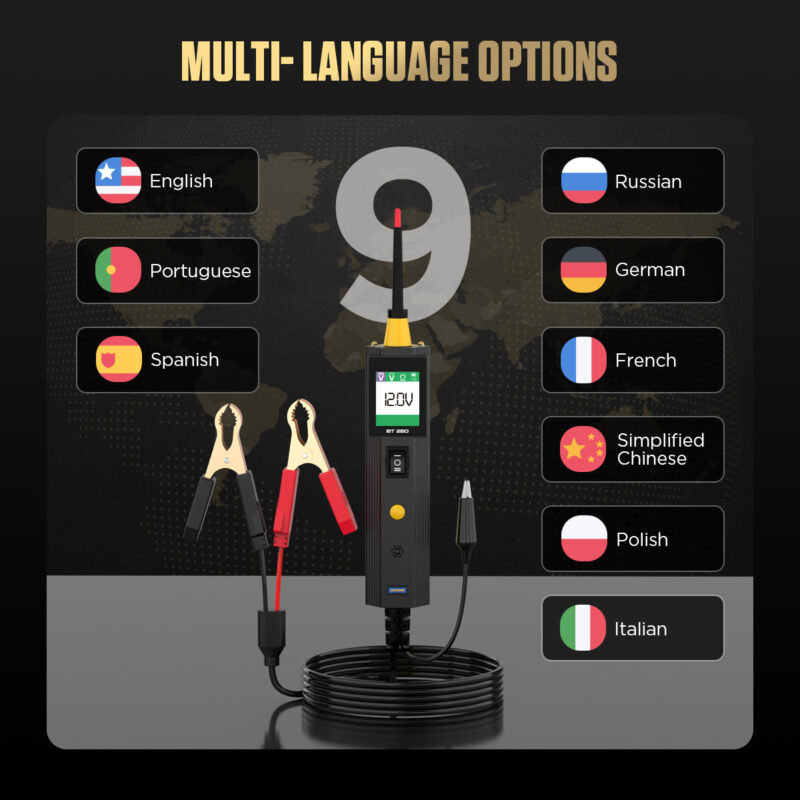

• Multi-language options: Including English, Russian, German, Spanish, French, Italian, Portuguese, Chinese, and Polish.

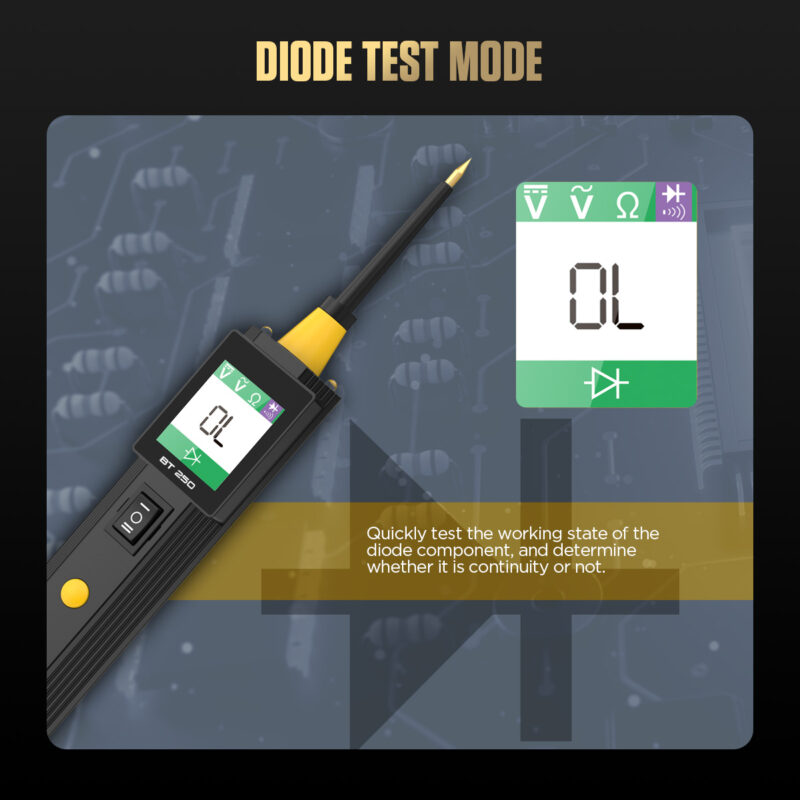

• Diode test mode: The AUTOOL BT250 Circuit Tester can quickly test the working status of diode components to determine whether they are conducting.

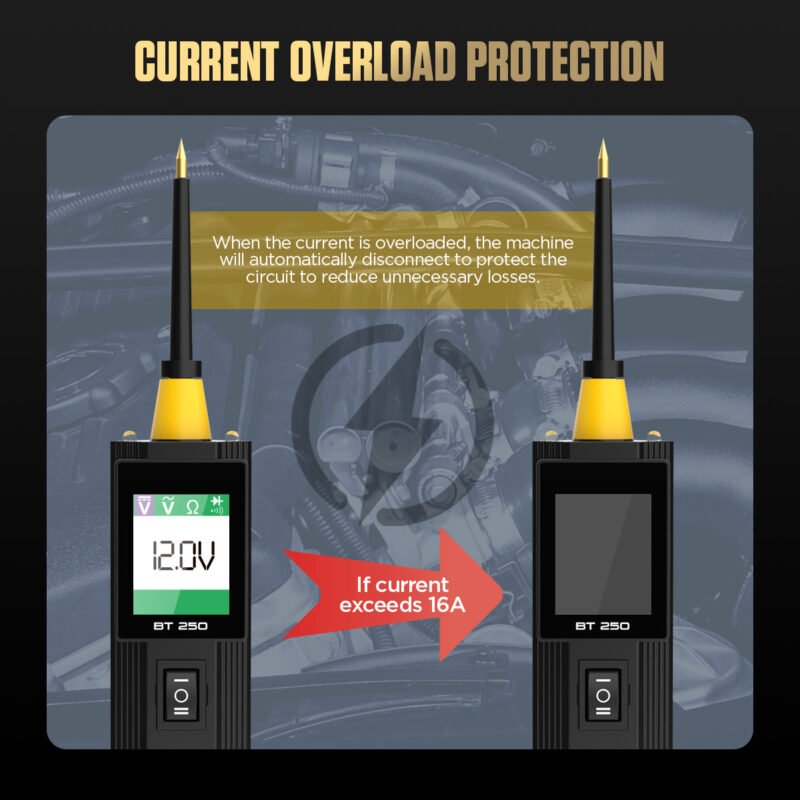

• Current overload protection: When the current overloads, the AUTOOL BT250 Circuit Tester automatically disconnects to protect the circuit and reduce unnecessary losses.
• Three-Year Warranty, Lifetime Maintenance: For damage caused by non-human factors, AUTOOL promises to resend parts for free within 3 years. For any needs, you are warmly welcome to contact us and we will get back to you ASAP within 24 hours.

Packing List
