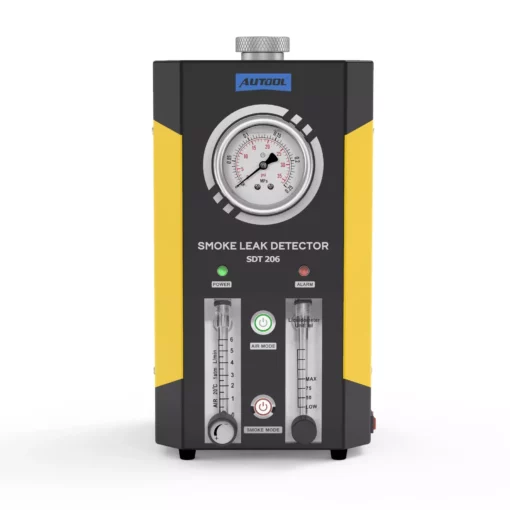

AUTOOL SDT206 is a mid to high-end automotive smoke leak detector and the star of the SDT series. It has stable performance with dual testing modes of air and smoke.

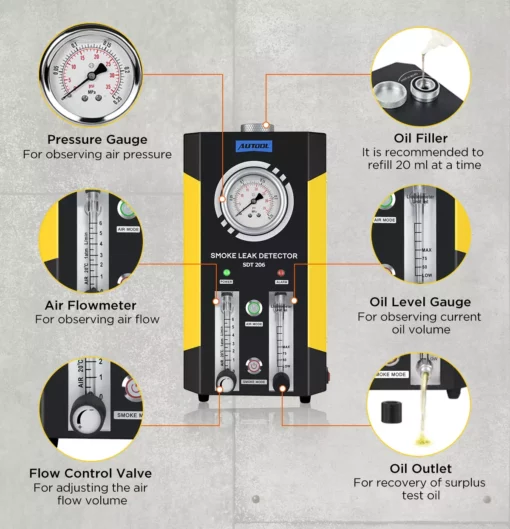

Built-in 2 sets of high-power air pumps, no need to buy additional air pumps or air compressors. Meanwhile, the visualized oil level gauge can effectively observe the filling level and purity of the test oil. Visualization Visualized flow meter and adjustable twist to effectively observe and control the smoke flow, visualized pressure gauge The visualized pressure gauge makes it easier and faster to detect leaks.
- When you use this AUTOOL SDT 206 Car Smoke Leak Detector for the first time, fill it with 20ml oil. Please be careful NOT to beyond this range.
- Before use, gently turn the knob to open the airflow regulator valve.
- The testing liquid: both liquid paraffin and baby oil are OK.
- Fresh oil can be filled with only when the smoke gets thin, and it can’t be filled over 20ml each time.
- Before filling fresh oil, please pour out the left oil in the detector & replace the detector oil regularly.
- During the process of leak detection, please keep away from smoke-sensitive parts.
- Do not run the detector for over 8 minutes continuously. It needs interval rest.
- The detector has an intelligent protector, if it exceeds the working limit, such as over 75 ℃, it will automatically turn off the power. In this case, please operate it later.
- The round part of this detector has temperature, please be careful to avoid burns.
Autool Smoke Detector Machine Quick Search
- AUTOOL SDT101 Smoke Detector Machine >>
- AUTOOL SDT103 Smoke Detector Machine >>
- AUTOOL SDT106 Smoke Detector Machine >>
- AUTOOL SDT202 Smoke Detector Machine >>
- AUTOOL SDT203 Smoke Detector Machine >>
- AUTOOL SDT205 Smoke Detector Machine >>
- AUTOOL SDT205S Smoke Detector Machine >>
- AUTOOL SDT206(Modified Version) Smoke Detector Machine >>
- AUTOOL SDT208 Smoke Detector Machine >>
AUTOOL SDT206 Smoke Detector Machine Features
- Built-in Air Pump: Customers do not need to purchase additional air pumps, we use high-quality materials, after many tests, please rest assured to use. You can save more time and money.
- Air Mode & Smoke Mode: Built-in air pump and smoke generator, so it does not rely on an additional air machine, perfect for Mobile Automotive Repair! The smoke can be produced within 10 seconds, dramatically reducing diagnostic time. Smoke output value: 6L/min.
- External Pressure Gauge: You can observe the barometer to more accurately determine whether the car pipeline is leaking. If the barometer index keeps increasing, there is no problem with your car’s pipeline. If the barometer index keeps decreasing, your car’s pipeline leaks need to be repaired, and there is a barometer test. Leakage is faster and more accurate.
- Overheat and anti-freeze protection: The Autool SDT205 Smoke Detector Machine is equipped with the latest intelligent protection devices. When the temperature exceeds 75℃ the protection device will only activate and shut down the power supply to protect the operator and the equipment. Not only is it protected against high temperatures, but it is also suitable for low-temperature operation.
- Wide Range of Applications: The AUTOOL SDT205 Smoke Leak Detector is suitable for detecting leaks in automobiles, motorcycles, snowmobiles, ATVs, ATVs, light trucks, and speed boats, suitable for all models(only for 12v DC).
- Fast smoke output: smoke output within ten seconds, greatly improving your efficiency in the test.
- Compact and portable design: Most of the smoke leak detectors on the market are large and not easy to transport and store, Autool designed this smoke leak detector to help you solve this problem, not only is it small in size and light in weight, but also easy to carry. The handle design and cone adapter, airbag adapter, etc. can be adapted to most air inlets, which is an indispensable tool for you.
- External Flow Meter: You can easily control the air pressure because the air pressure of each pipe in the car is different. If the air pressure is too high, the pipe will be damaged, and if the air pressure is too low, the leak will not be detected. Therefore, the flow meter is very important to protect your detection system more effectively. Make testing safer.
- 3-Year Warranty: For damage caused by non-human factors, we promise to reissue parts free of charge within 3 years.
How To Use The AUTOOL SDT206 Smoke Detector Machine?
- Step 1: Fill 20ml baby oil into the detector for the first time. Open the engine cover, and hang the detector in the cover.
- Step 2: Disconnect the pipe that needs to be connected to the detector.
- Step 3: Connect the detector with the DC12V battery, turn on the power switch, and the detector starts to work.
- Step 4: In about 30 seconds, the pipe will be filled with smoke. Check the leak points. Please use a headlamp if necessary.

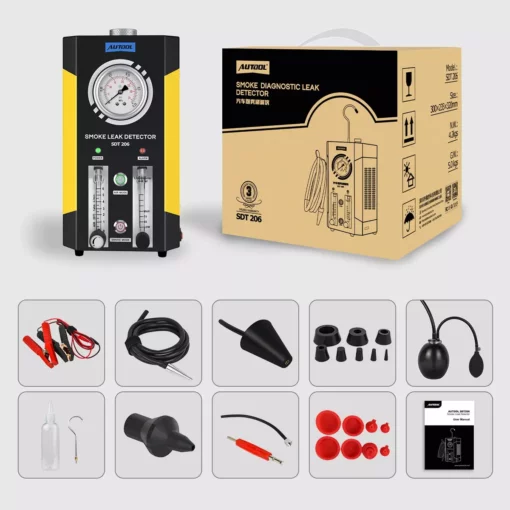

- AUTOOL SDT 206 Main Unit
- Hook (with hand-tighten nuts)
- Hard Rubber Hose Plug
- Standard Rubber and Cone Connect
- Universal Airbag Adapter
- Power Cord Clamp
- Valve Core Wrench
- Test Oil Refill Bottle(oil not included)
- EVAP Special Connector
- Smoke Hose and User Manual
If you can’t find a professional test oil, you can buy baby oil or liquid paraffin at your local store as test oil.
It’s suggested to add 10-20ml testing oil for the first trial. Please drain some testing oil out if you add too much accidentally. You can reuse the extra next time.
Since the auto A/C system is not an ordinary pipeline system, the output pressure generated by the air-conditioning compressor is 1.7-3.0Mpa, while our smoke leak detectors can only generate 0.1 Mpa output pressure. So the smoke leak detector cannot directly test the auto A/C system for leaks. You can use our machine to perform segment-assisted testing for air-conditioning pipelines.
First, press the air pump into the air-conditioning pipeline to increase the system pressure, and then spray the smoke along the air-conditioning pipeline. At the same time, carefully observe whether the smoke is blown up by the airflow. If there is, it means that the location is a leak point, you can repair later.
AUTOOL smoke leak detectors can test leaks in the EVAP system. We have equipped professional fuel EVAP testing tools in the package, you can choose proper tools to test.
In the AUTOOL smoke leak detector series, SDT101, SDT103 are specially designed for automotive EVAP systems with 3.2Kpa output pressure; SDT106 and SDT202 are designed for beginners with 12 psi output pressure. SDT203, SDT205, SDT205S are standard versions with 15 psi output pressure; SDT206, SDTMASTER are high-end versions with 15 psi output pressure. SDT208 supports up to 35Psi.
Our products are made of different materials with different functions, so the prices are also different. You can visit our official websites for details if you are interested.
All AUTOOL smoke leak detectors adopt 12V car battery power, which is safe to operate and easy to get power. You can use our device safely without worrying about security issues.
The pressure of most AUTOOL smoke leak detectors cannot be adjusted except SDT MASTER.
Considering some automobile pipelines cannot carry too much pressure, our technicians set the pressure to a safe value of 0.1MPA before products leave the factory in order to protect the automobile pipeline system, which can meet your common maintenance and testing needs.
Different models of AUTOOL smoke leak detectors have different accessories. Generally our package will include 6-75mm hard rubber kits, cone adapter, airbag adapter, EVAP testing tools, smoke hose, adapters, power cable, test Oil Bottle, user Manual, warranty, certificate of qualification etc.
We promise up to three years warranty after your purchase. Today we sell 200,000+ machines online and offline in 160+ countries and regions. You can rest assured to purchase our smoke leak detectors since we have stable quality and reliable after-sales service.
