EV Battery Pack Air Tightness Tester
AUTOOL SVB305 Borescope Camera Automotive Endoscope
$179.00
- Automotive Video Inspection: 4.3-inch IPS HD display, 1080P HD bi-directional 210° steering lens, built-in 32GB memory card, supports JPG image and AVI video recording.
- 2000MAH Li-Ion Battery: Built-in 2000mAh rechargeable Li-Ion battery, up to 2 hours of continuous use.
- Three-Year Warranty: Contact us anytime with issues, and we’ll deal within 24 hours! Online Support>>
For wholesale prices and more discounts click here.

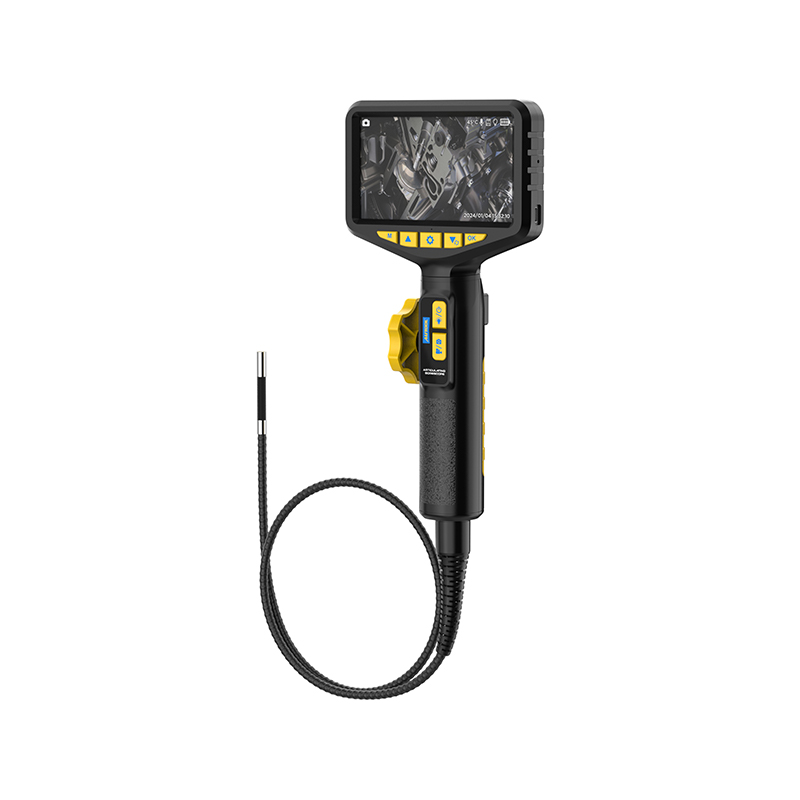

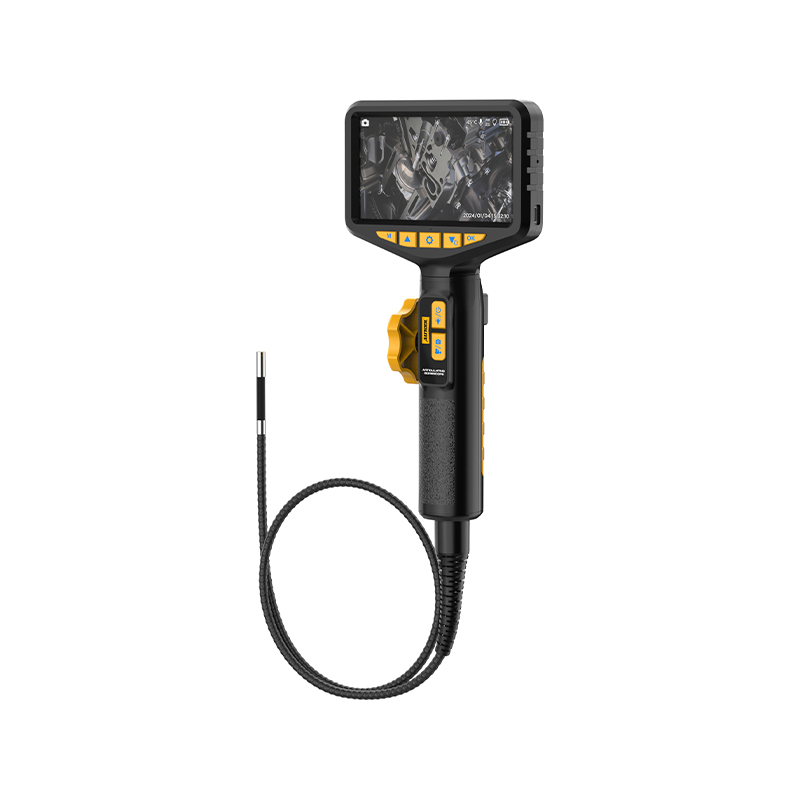

AUTOOL SVB305 Automotive Inspection Camera: High-Performance Borescope for Precise Vehicle Inspections
The AUTOOL SVB305 Automotive Borescope Camera is a mid-to-high-end articulating borescope. The AUTOOL SVB305 features a 4.3-inch HD display and adopts a 210° articulating design, making it easy to operate in narrow vehicle spaces. Equipped with a 2000mAh high-capacity battery, the SVB305 ensures long operating times. It supports 8 languages and comes with a built-in 32GB storage card, making it an essential tool for accurate and reliable inspections.
⚠️Snake Camera Inspection Warm Tips
- The SVB305 has a 5-inch screen, the SVB302 has no screen；
- The SVB302 has three port cables and one USB cable, while the SVB305 has only one USB cable.
- For more product inquiries and after-sales questions, please contact us! Online Support>>>>
- Typically, engine temperatures can reach 80°C to 100°C or more when you first stop the car. If artificial heat damages the camera, you will have to pay $45 for a replacement.
- It is recommended to use the endoscope after the engine has completely cooled down. Usually, it takes about 1 to 2 hours for the engine to cool down to a safe temperature. Do not place the hose in an environment above 75℃.
✅Articulating Borescope Working Principle
- The AUTOOL automotive articulating borescope utilizes optical and electronic imaging technologies. The front of the device is equipped with a miniature camera and an LED light source, which illuminates the target area and captures images. The camera transmits the image signal via fiber optics, cables, or wirelessly to a display device. After decoding, the signal is shown in real-time on the screen. Some models support functions such as image magnification, image inversion, and video/photo recording. The flexible probe is bendable, making it suitable for accessing complex, narrow structures.
- The automotive borescope is widely used for engine wear detection, pipeline blockage inspection, and hidden wiring observation. It has become an essential tool for efficient and non-destructive testing.
What is the Difference Between AUTOOL Articulating Borescope?
AUTOOL Best Borescope For Cylinder Inspection Quick Search
-30%
NEW
$208.00 – $243.00
-16%
NEW
Original price was: $378.00.$318.00Current price is: $318.00.
$159.00
AUTOOL SVB305 Borescope Camera Features
-

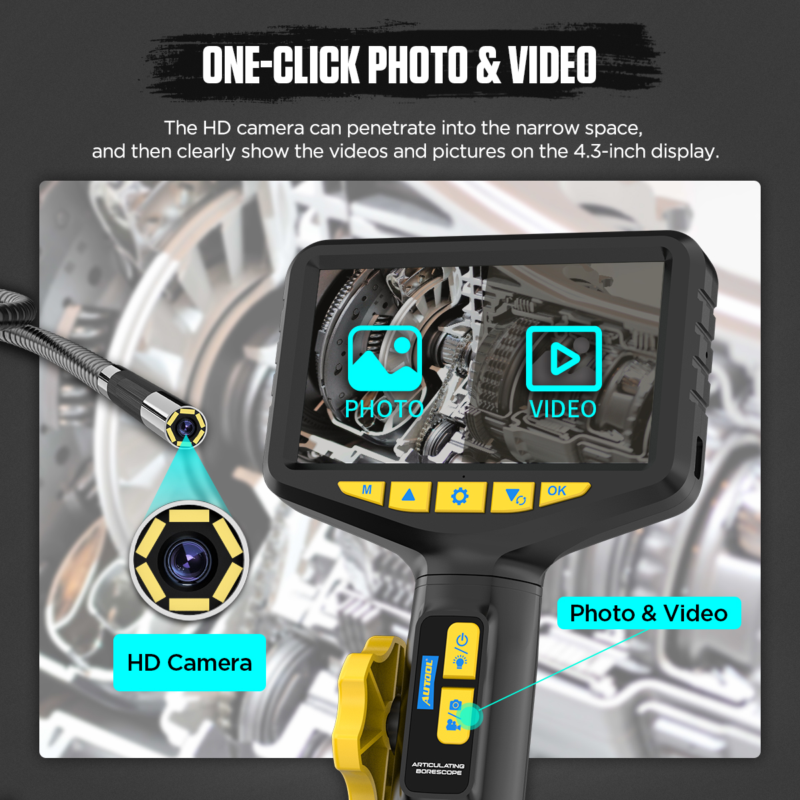

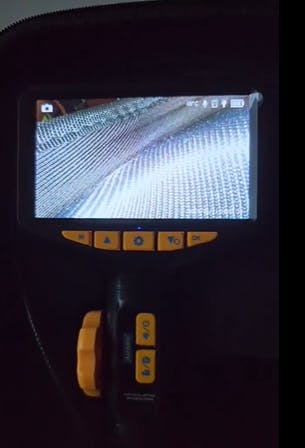

One-Click Photo and Video Capture: The1080P HD camera can reach into narrow spaces and clearly display videos and images on the 5-inch display.

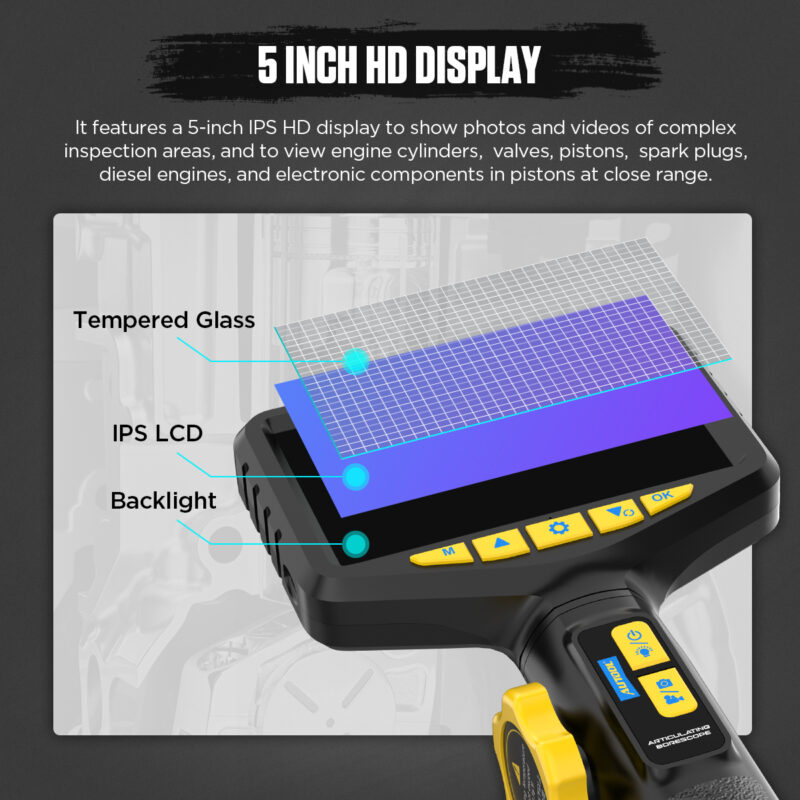

- 4.3-Inch HD Display: Equipped with a 4.3-inch IPS HD display, you can see the electronics in your engine up close.

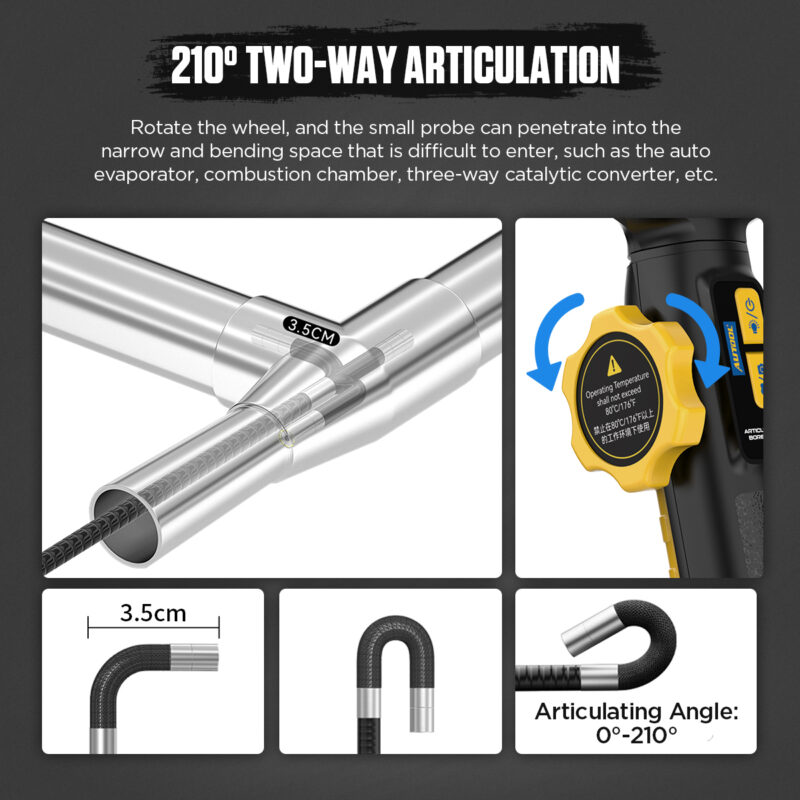

- Two-Way 210° Steering Lens: Flexible access to narrow, curved spaces thanks to a rotating push-button design.

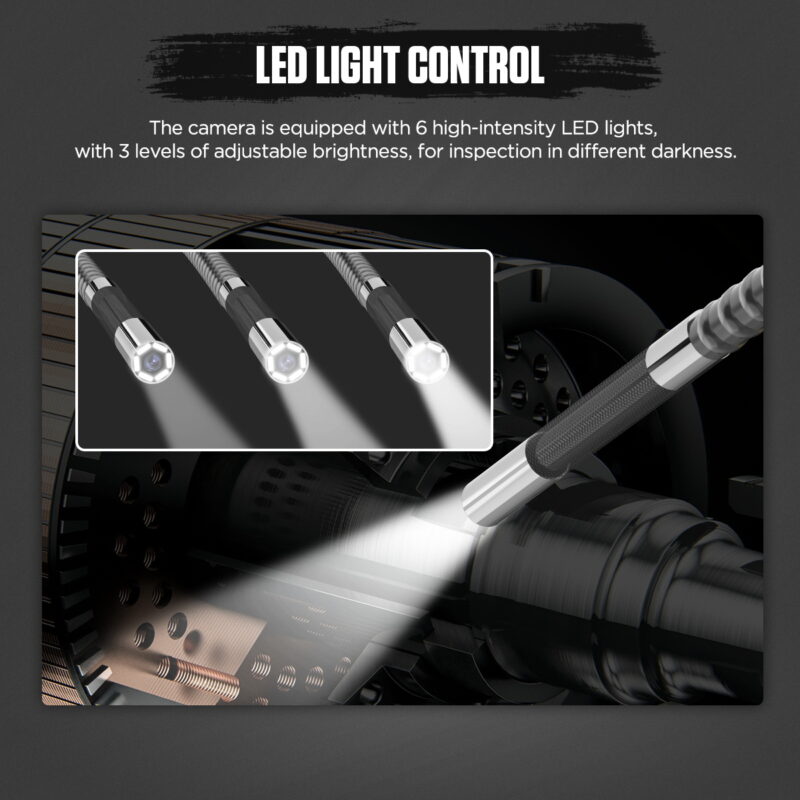

- LED Light Control: The camera features 6 high-intensity LED lights with 3 levels of adjustable brightness, allowing for inspection in various lighting conditions.

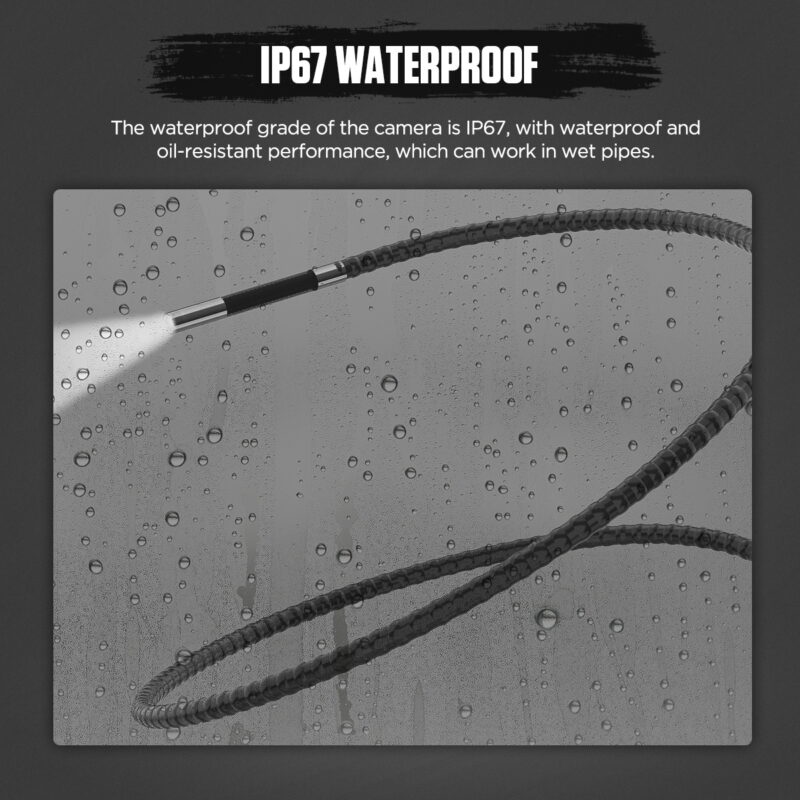

- IP67 Waterproof: The waterproof grade of the camera is IP67, with waterproof and oil-resistant performance, which can work in wet pipes.
- Multi-Lingual: Support multilingual settings: English, French, German, Italian, Spanish Russian, Chinese, Japanese, etc.
- 2000mAh Lithium Battery: The built-in 2000mAh rechargeable lithium battery allows for continuous use for up to 2 hours
- Widely Used: It applies to auto inspection, mechanical maintenance—the construction industry, power facilities, chemical pipelines, security monitoring, etc.
- Built-In 32GB Memory Card: It has a built-in 32GB memory card and supports JPG image and AVI video recording.
- 3-Year Warranty: For damage caused by non-human factors, we promise to resend parts for free within 3 years
Automotive Borescope Snake Camera Operating Instructions
- Step 1: Press and hold the power button and open the camera protective cover.
- Step 2: Adjust the ideal lighting and insert the probe into the engine.
- Step 3: Use the joystick to adjust the camera direction.
- Step 4: The buttons on the LED screen allow you to zoom and invert images
- Step 5: The snake camera handle has a photo button for taking pictures or recording videos.

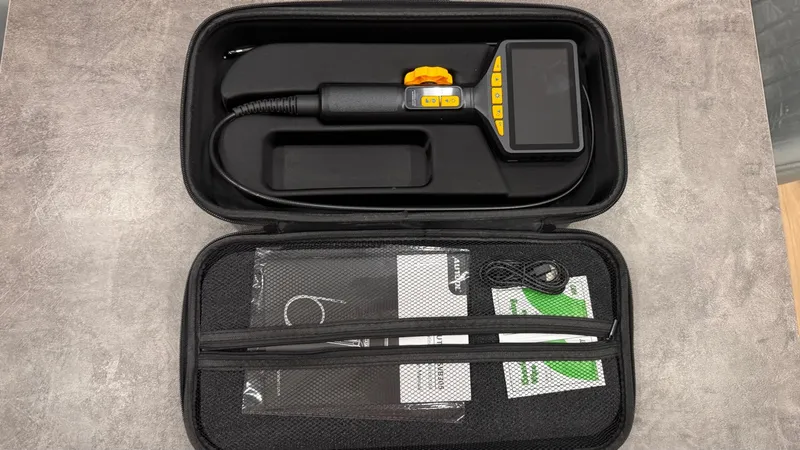

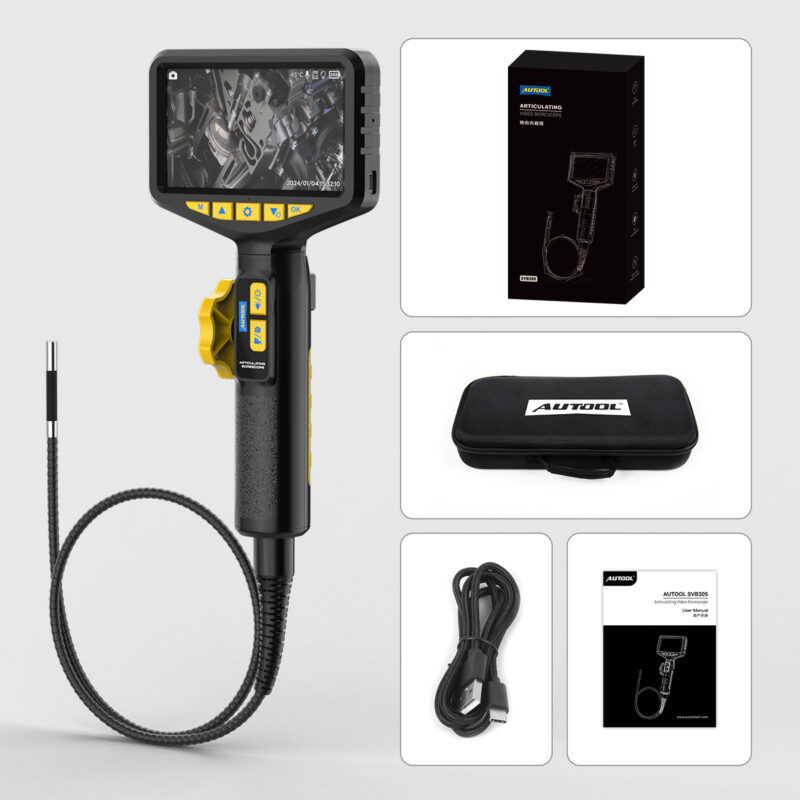

Packing List
Related blogs

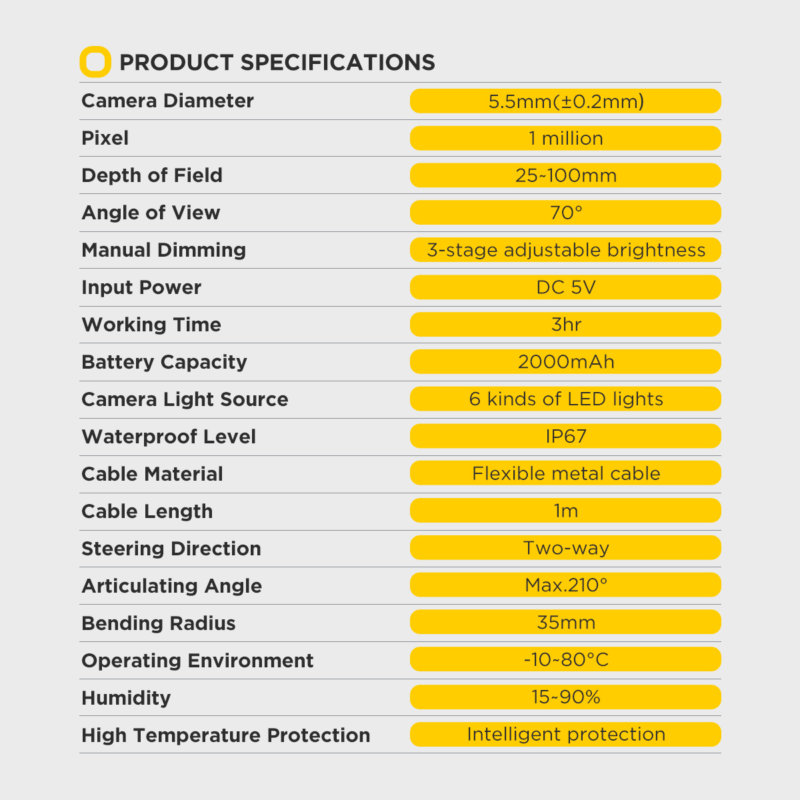

SPECIFICATIONS
- Model Number: SVB305
- Origin: Mainland China
- Item Width: 13.3cm
- Item Length: 25.5cm
- Brand Name: AUTOOL
- Steering Diection: Two way
Customer Reviews
Based on 33 reviews
100%
(33)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
D

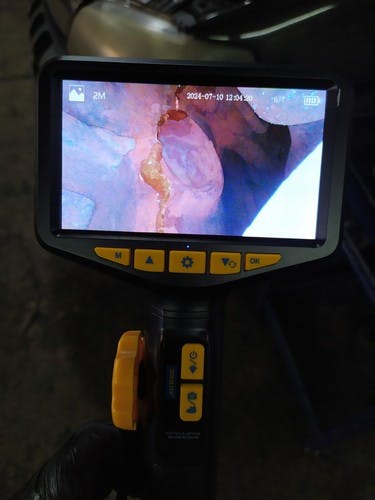

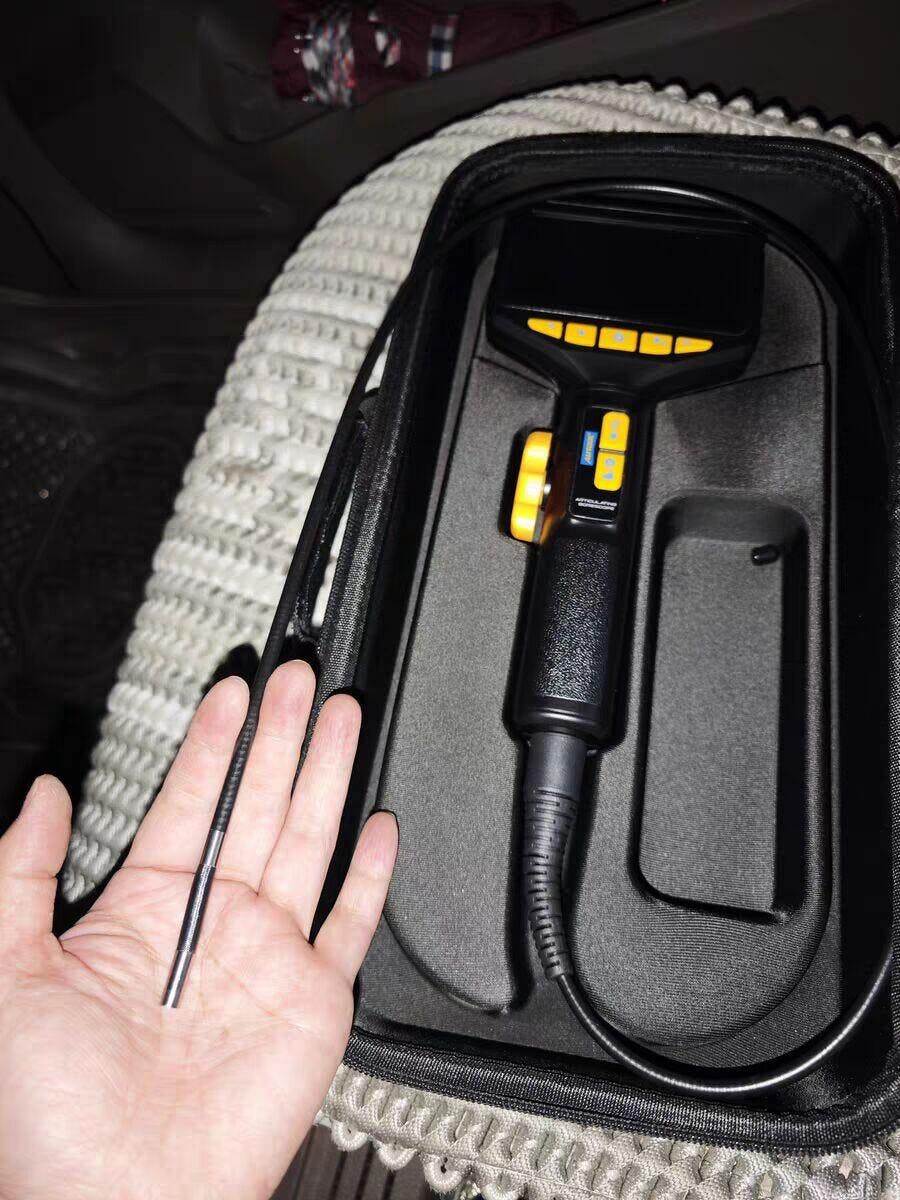

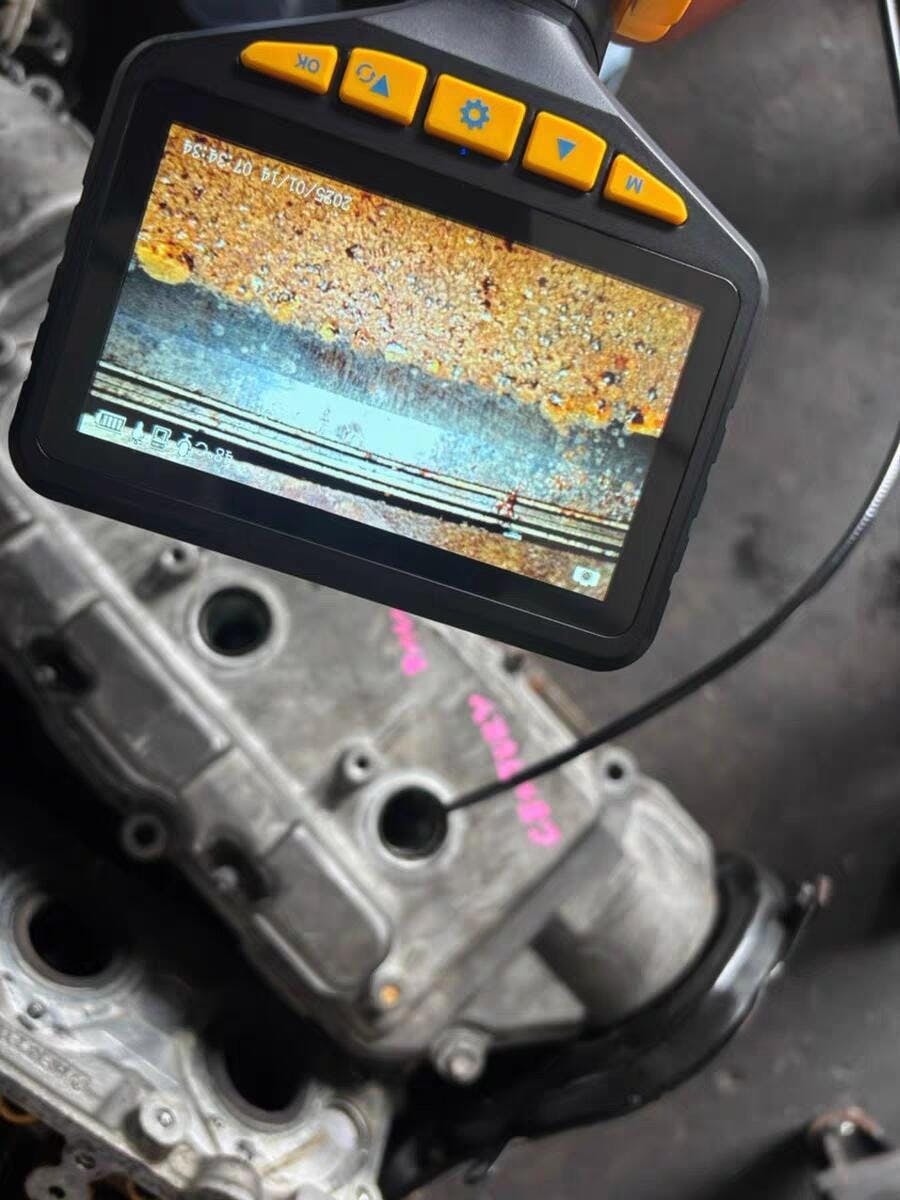

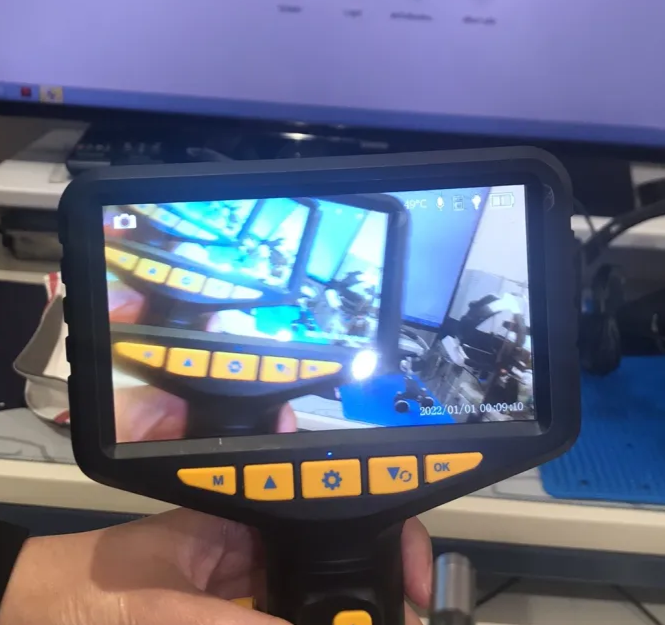

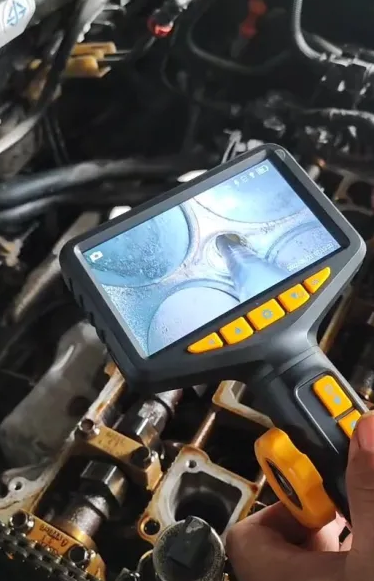

The pictures taken during the trial run were quite clear. The diameter of the lens is small enough to penetrate into the combustion chamber of the motorcycle through the spark plug hole. The elbow function can check whether the entire cylinder wall is damaged. It is very practical.
W
This industrial endoscope is truly a must-have tool! First of all, it comes with a 1080P HD camera and a 4.3-inch IPS screen, delivering extremely clear visuals. Whether you're inspecting inside an engine or checking small components in narrow spaces, everything is clearly visible. What impressed me the most is the 210° adjustable dual-direction lens, which is highly flexible and makes it easy to explore even curved or hard-to-reach areas.
Additionally, the six high-brightness LED lights with three adjustable levels ensure excellent visibility even in total darkness. With its IP67 waterproof and oil-resistant design, I can use it worry-free for auto repair or pipeline inspection. The built-in 32GB memory card is also a great feature, allowing for convenient recording and review of videos and images.
The built-in 2000mAh lithium battery offers decent battery life, enough for a complete inspection session. Overall, this device is not only packed with features and easy to operate, but also widely applicable across various industries—making it an indispensable tool for mechanical maintenance, construction, or automotive diagnostics!
O

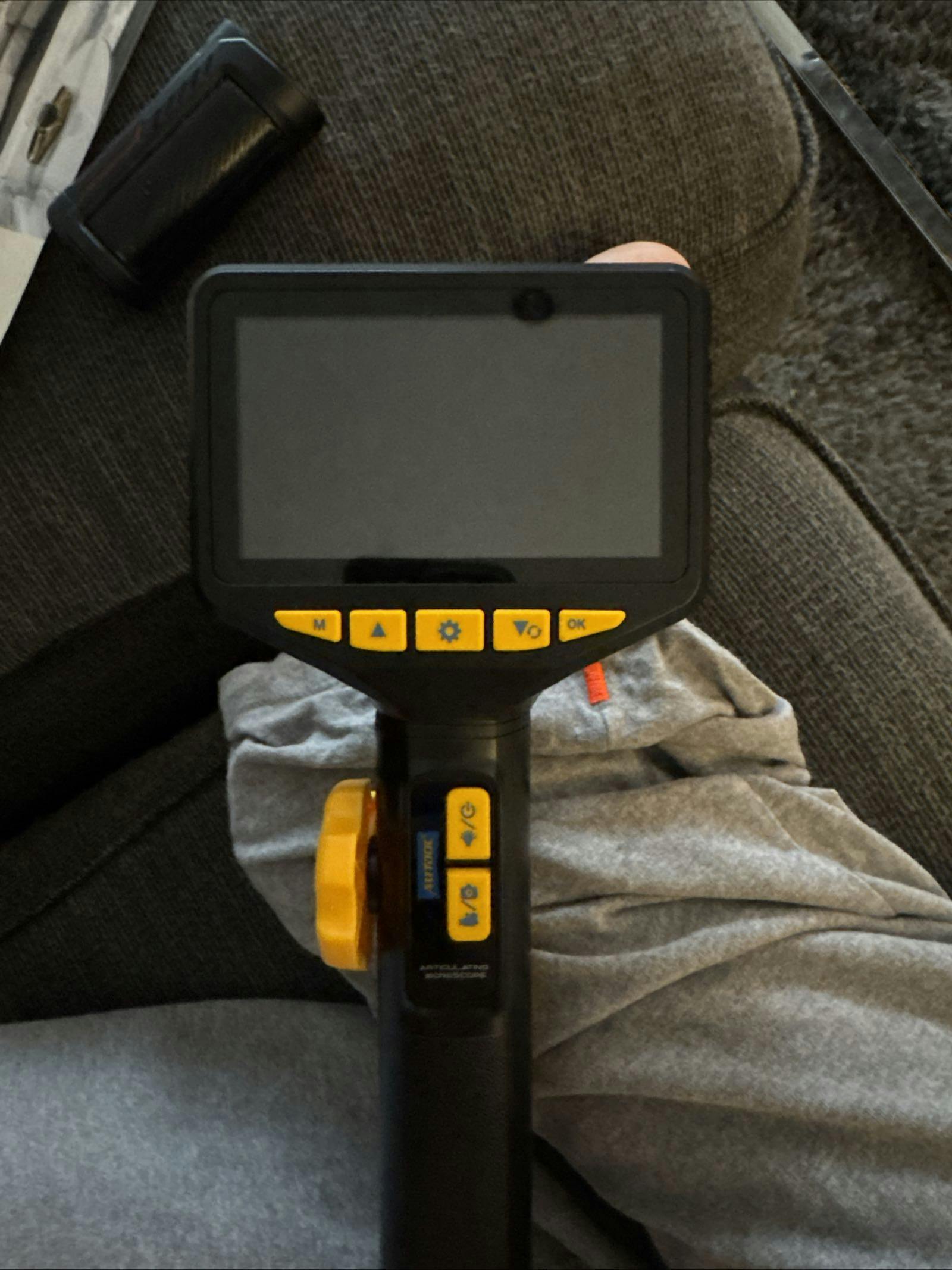

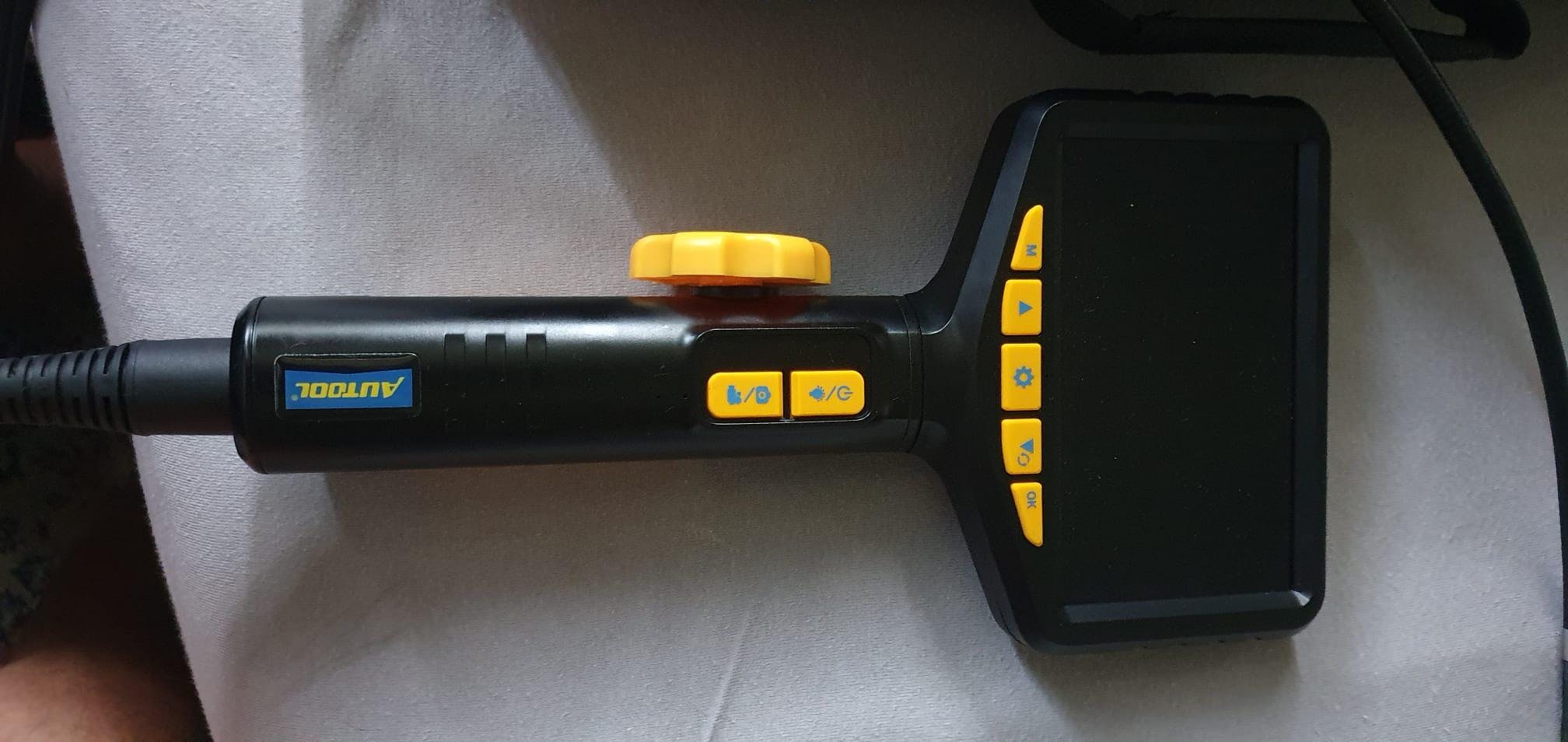

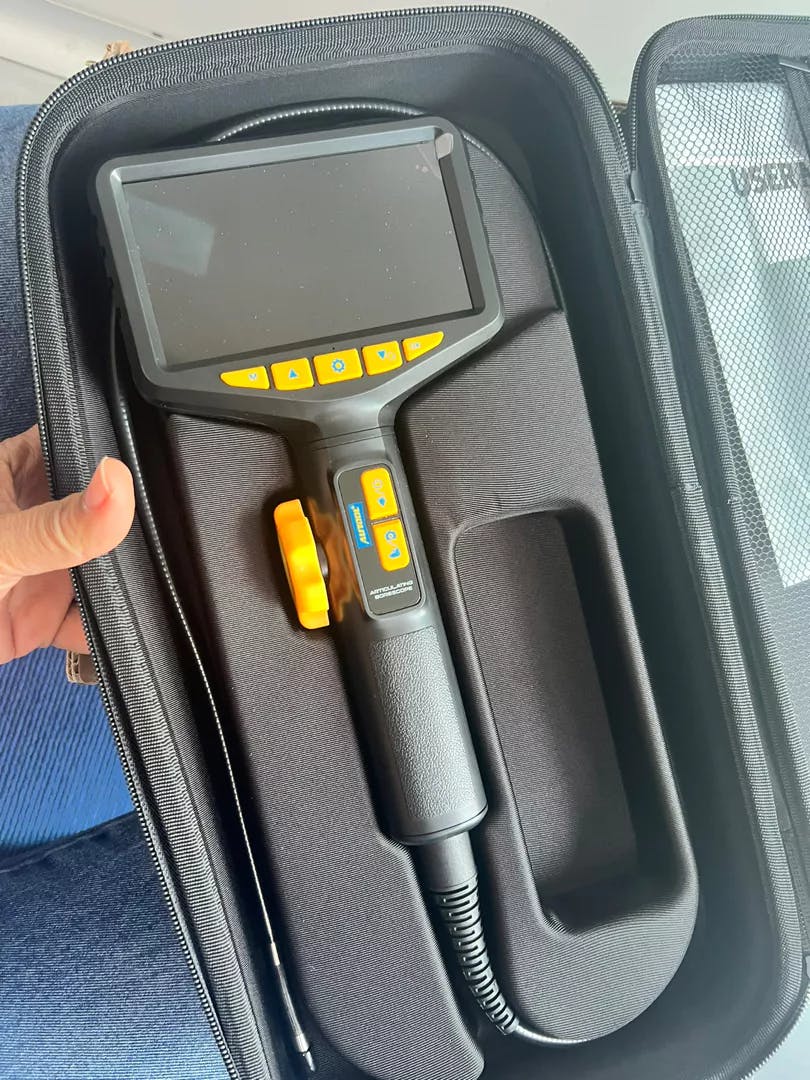

It's great... When I first received the package, it felt so light that I thought it was an empty box.
I opened it and saw that the camera is so light.
It's great, I can hold it for a long time without feeling tired. I'm sure it's waterproof.
C

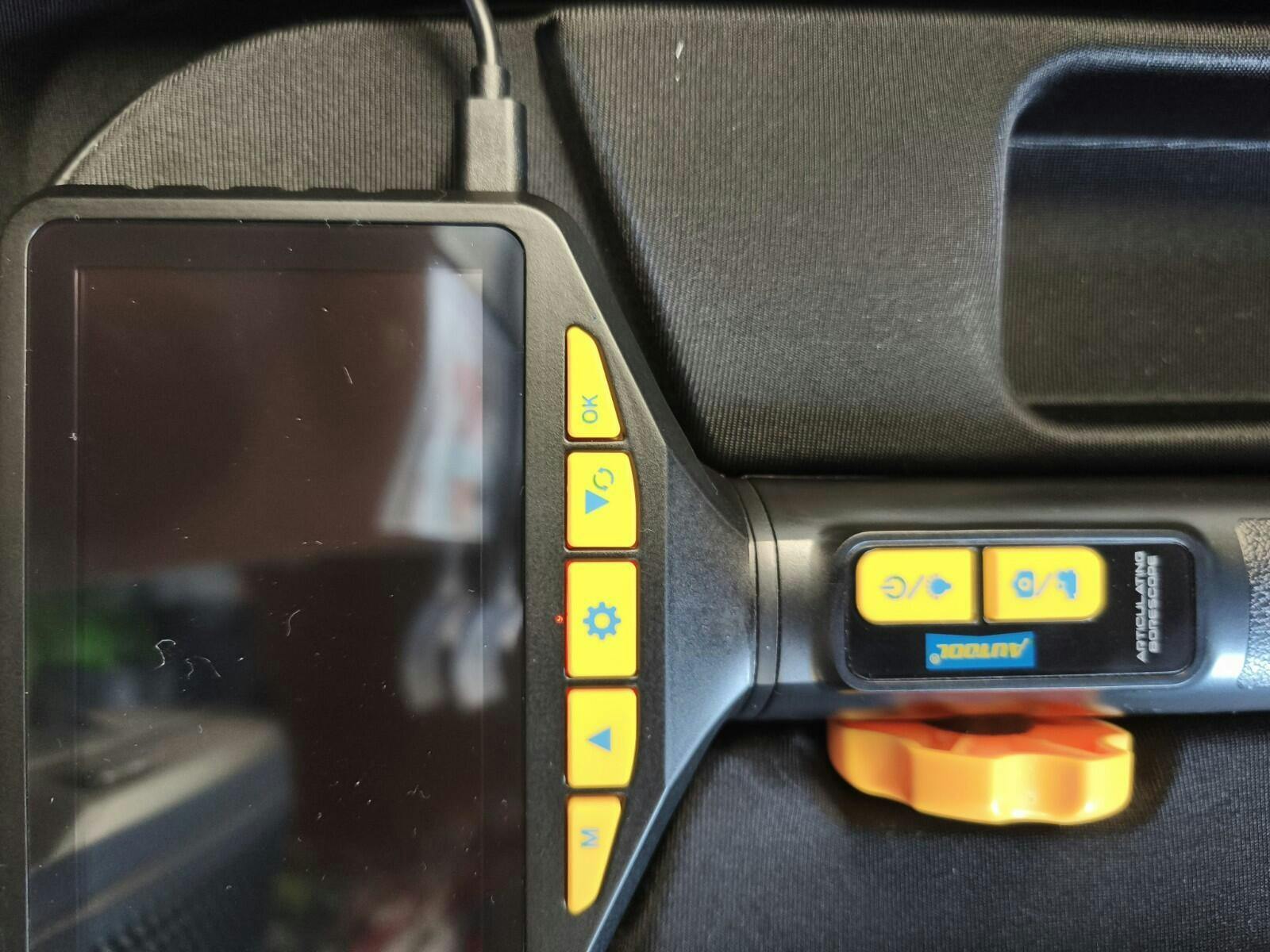

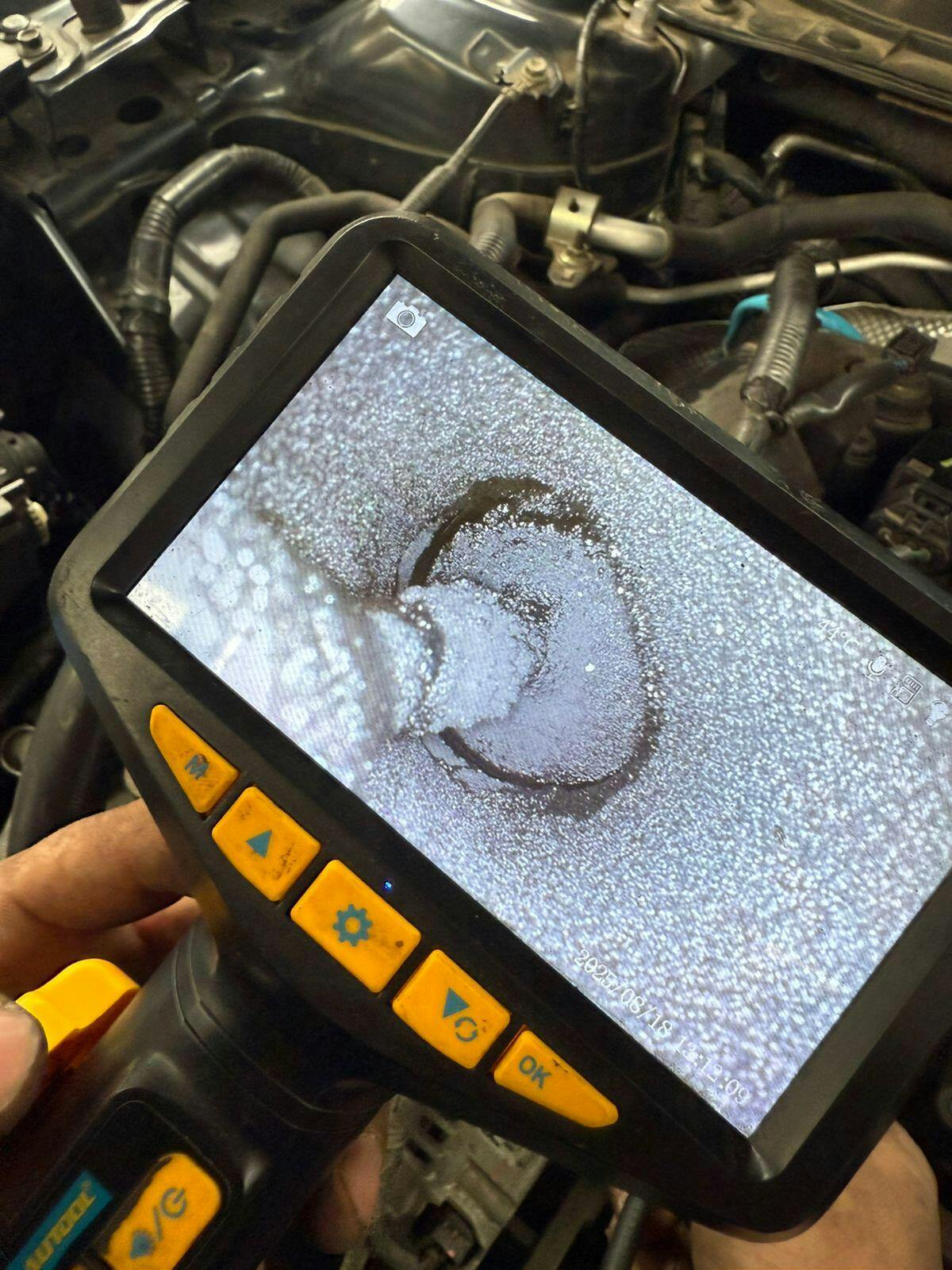

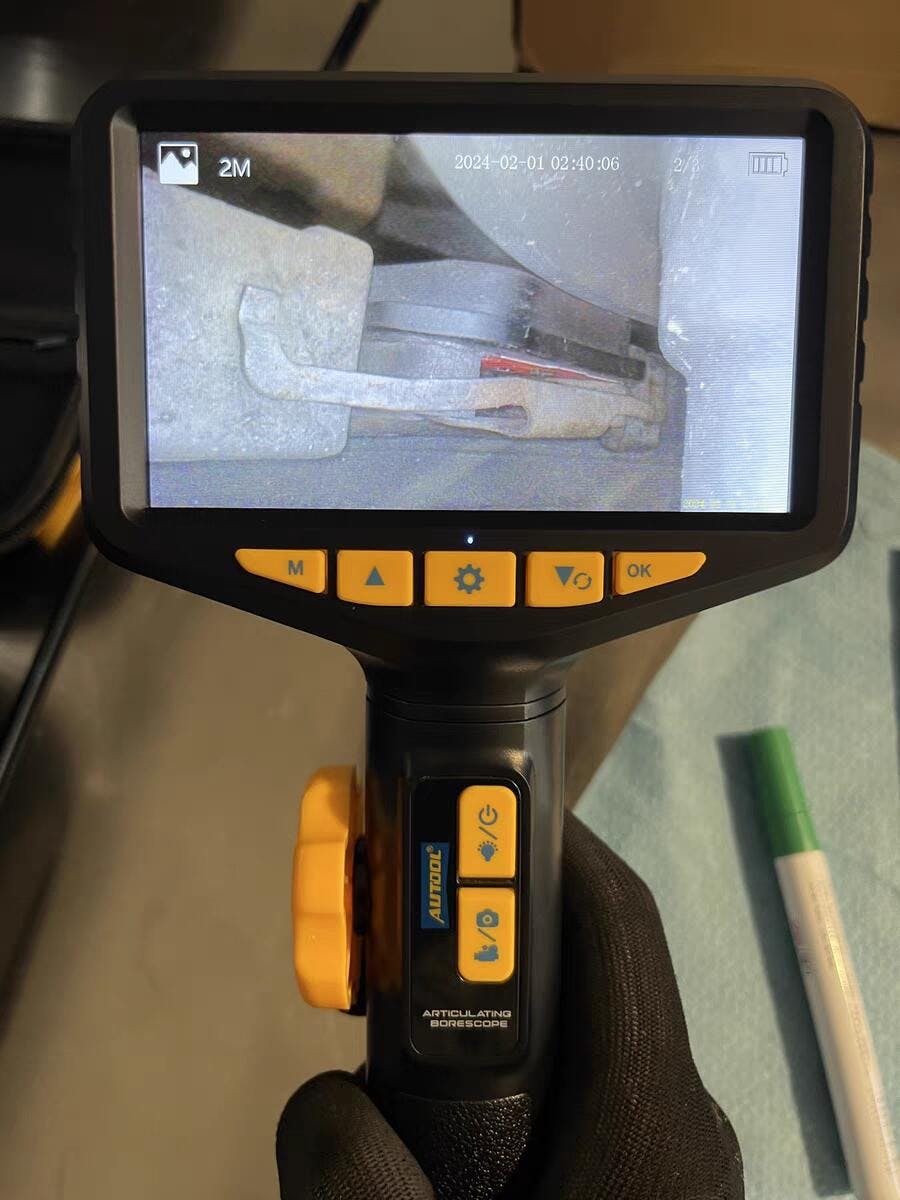

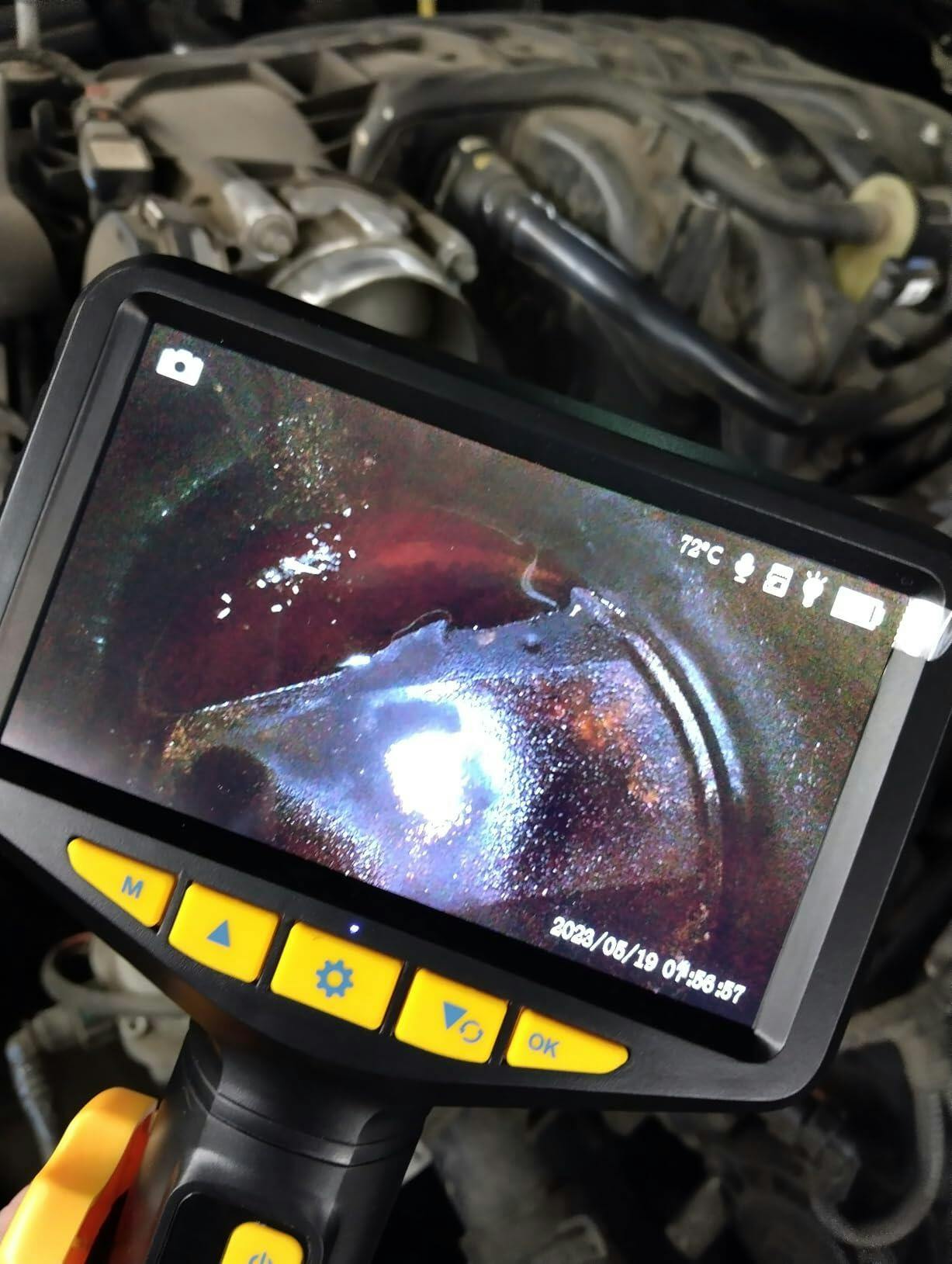

I recently used this inspection camera to check some hard-to-reach areas in my car, and it made the task so much easier. The image quality is clear, allowing me to see details I couldn't access before. The device feels sturdy and reliable, and the controls are intuitive—even for someone like me who's not a professional mechanic. It saved me a lot of time and effort, and I didn't have to take apart parts unnecessarily. Overall, I'm very satisfied with this tool and would recommend it to anyone needing to inspect tight spaces.
h

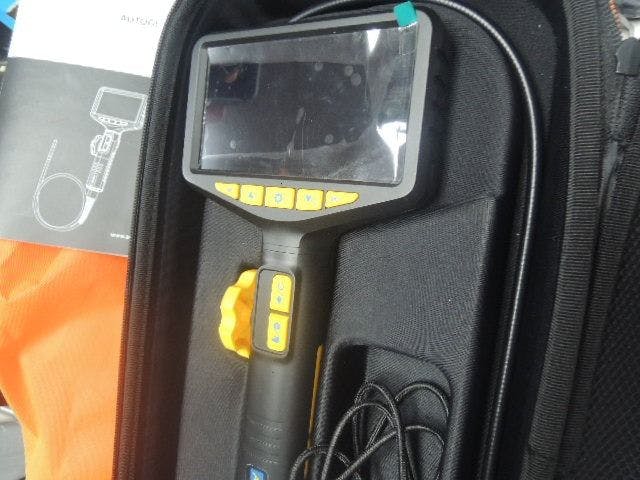

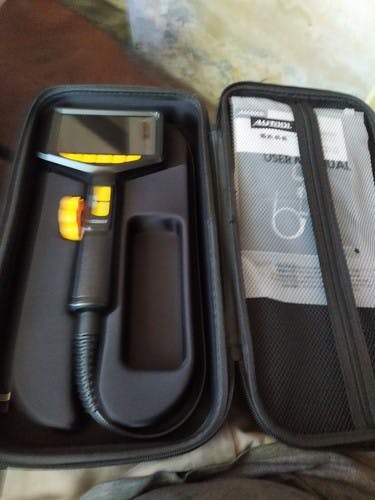

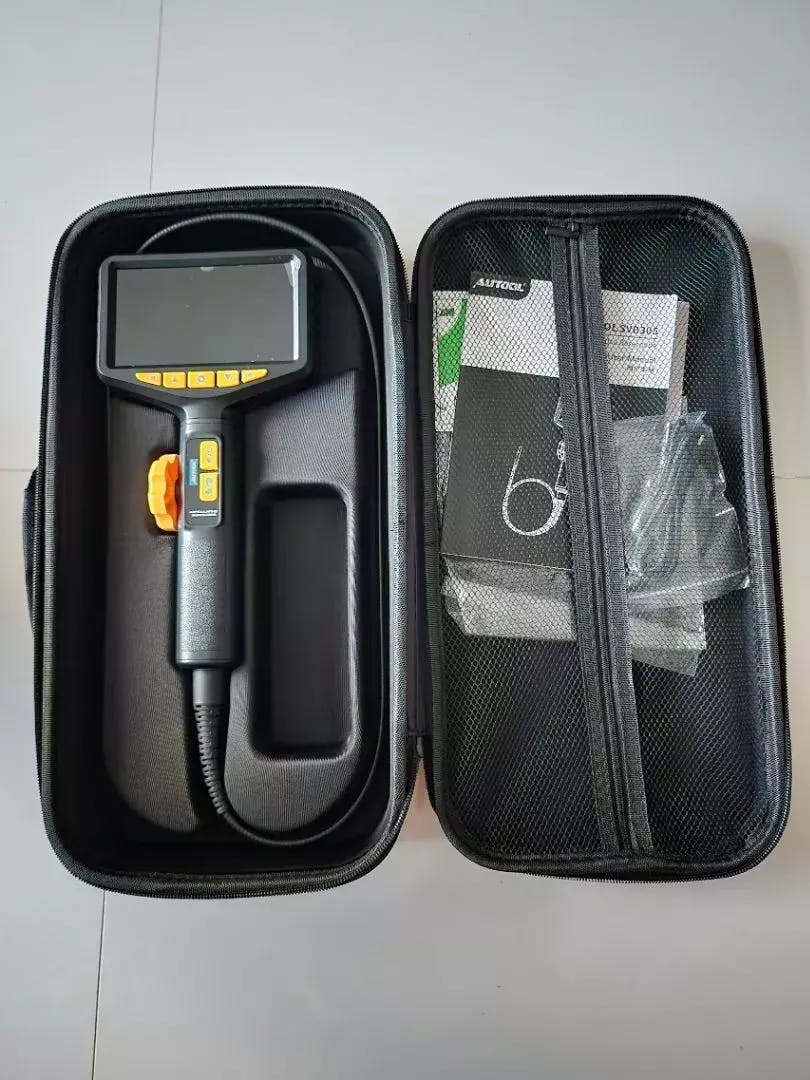

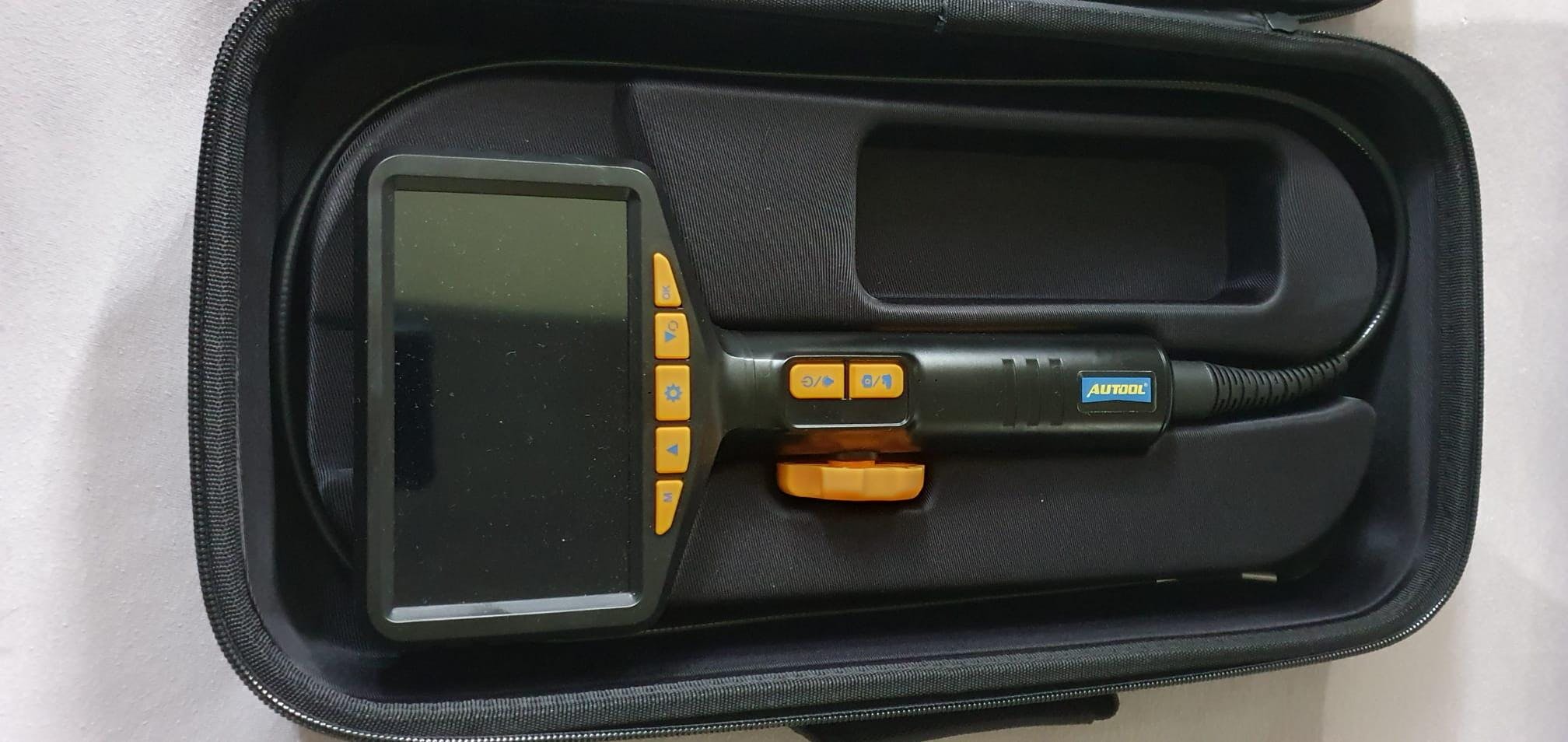

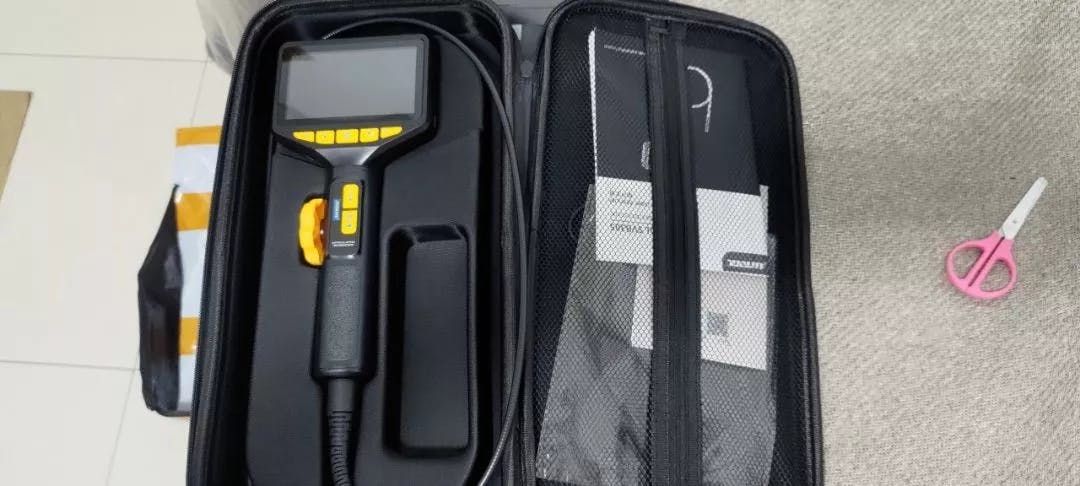

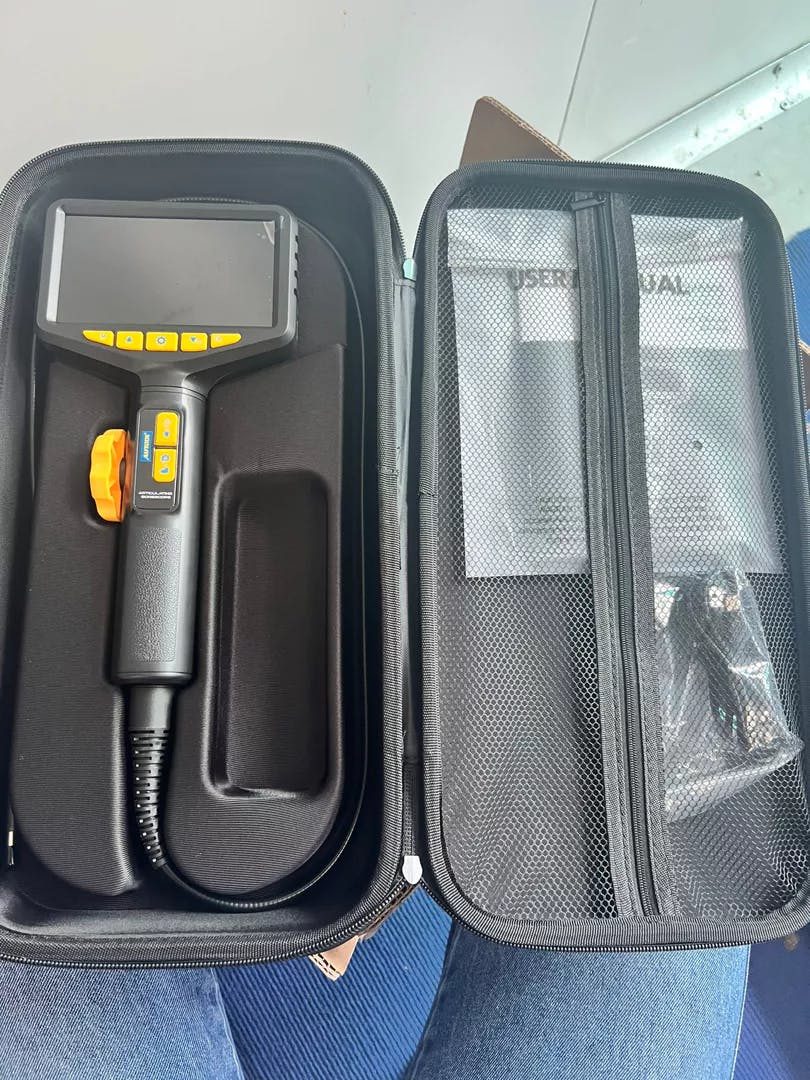

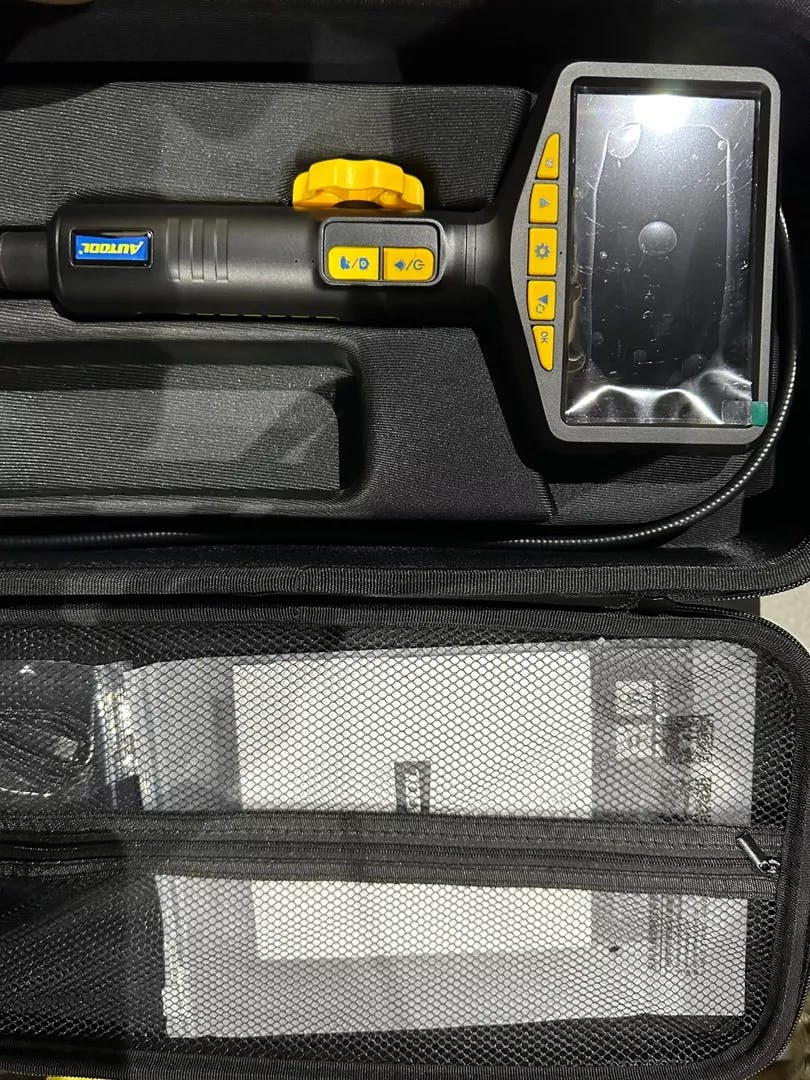

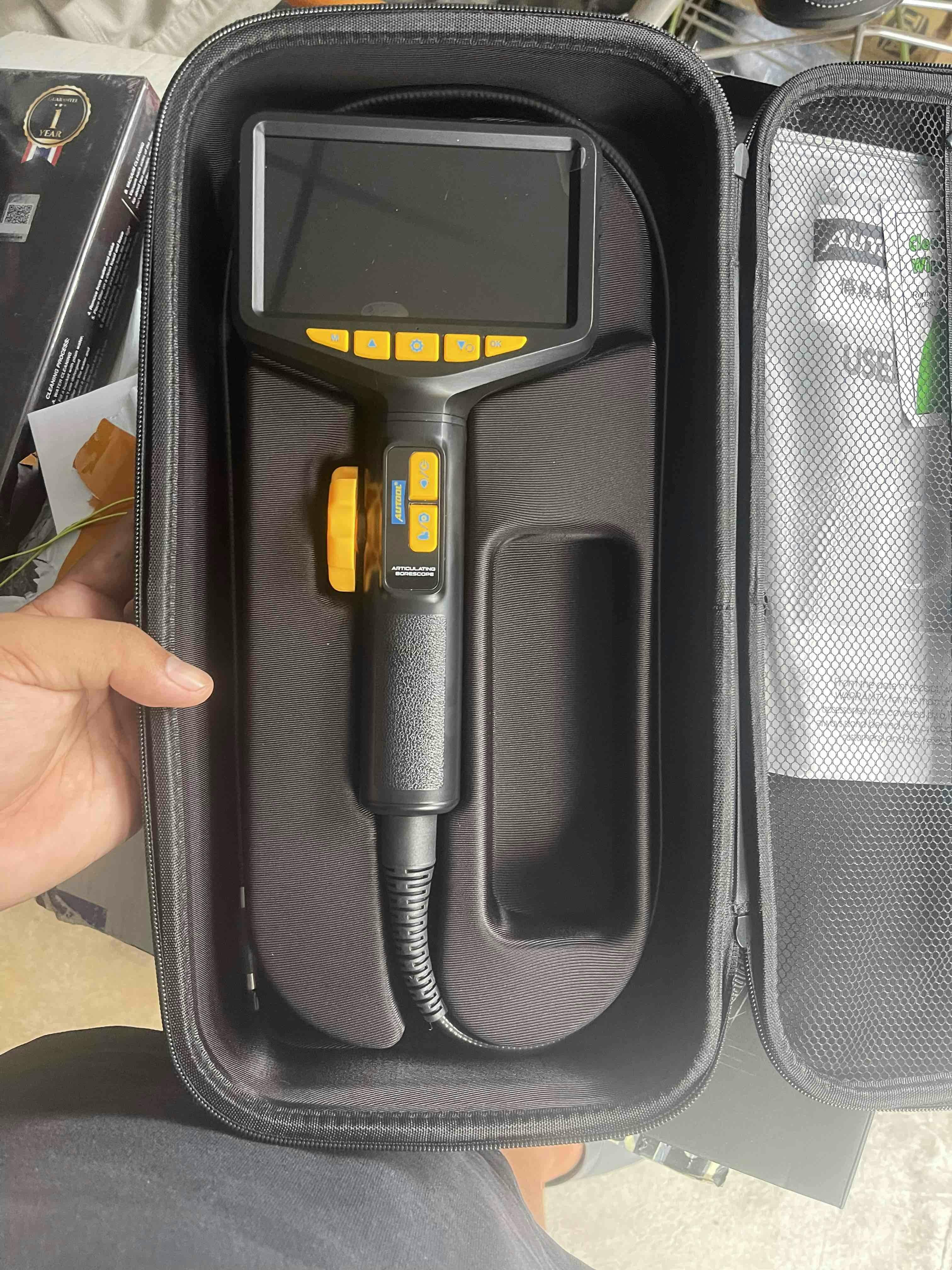

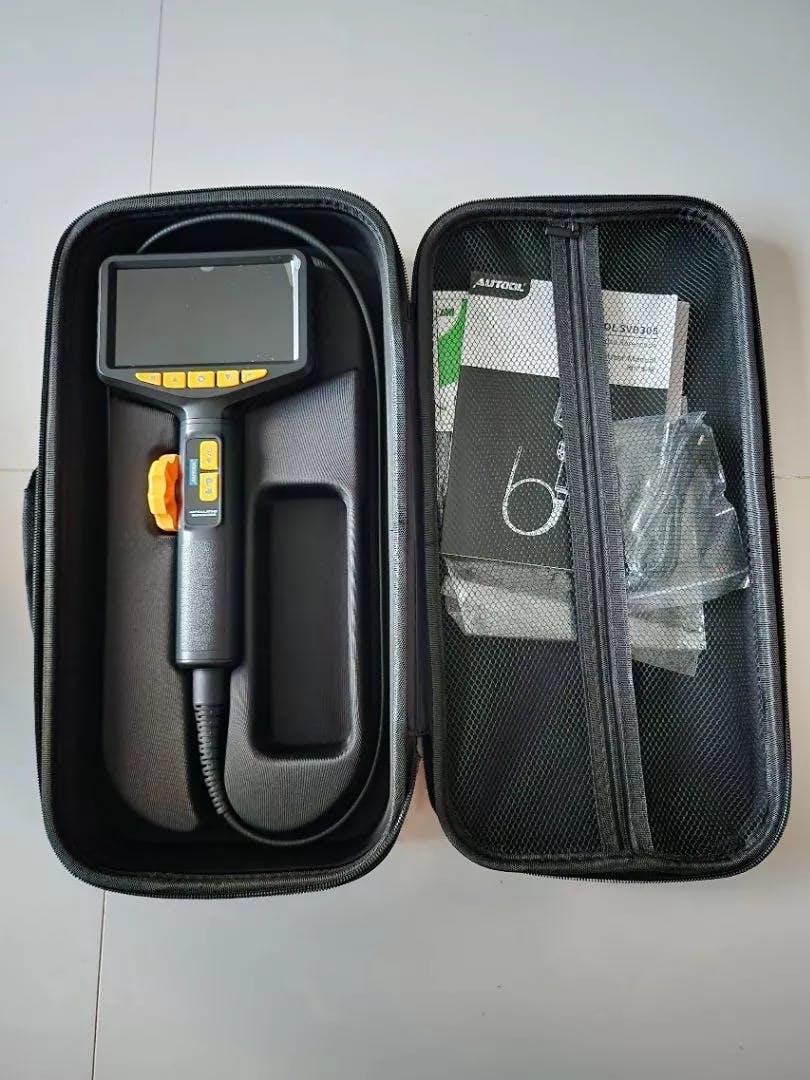

There is an outer storage box, the test is good, you can take pictures, I love this tool!
