Name: AUTOOL Automotive Inspection Camera Borescope Camera
Brand: AUTOOL
SKU: MMT577-1
Availability: InStock

The AUTOOL SVB Automotive Inspection Camera is a key product recently launched for the global automotive aftermarket. This design specializes in inspecting hard-to-reach, narrow, and curved spaces, including automotive evaporators, combustion chambers, and catalytic sensor areas. The product features a Four-way or two-way (360°/210°) bidirectional rotation and detection function, along with a unique high-temperature alarm function. Users can insert the ultra-thin probe into tight spaces and view video and images on the screen, meeting the diverse inspection needs of various scenarios.

Working Principle

The AUTOOL Automotive Articulating Borescope utilizes optical and electronic imaging technologies. The front of the device is equipped with a miniature camera and an LED light source, which illuminates the target area and captures images. The camera transmits the image signal via fiber optics, cables, or wirelessly to a display device. After decoding, the signal is shown in real-time on the screen. Some models support functions such as image magnification, image inversion, and video/photo recording. The flexible probe is bendable, making it suitable for accessing complex, narrow structures. The automotive borescope is widely used for engine wear detection, pipeline blockage inspection, and hidden wiring observation, making it an essential tool for efficient and non-destructive testing.

AUTOOL Automotive Inspection Camera Comparison

FAQS

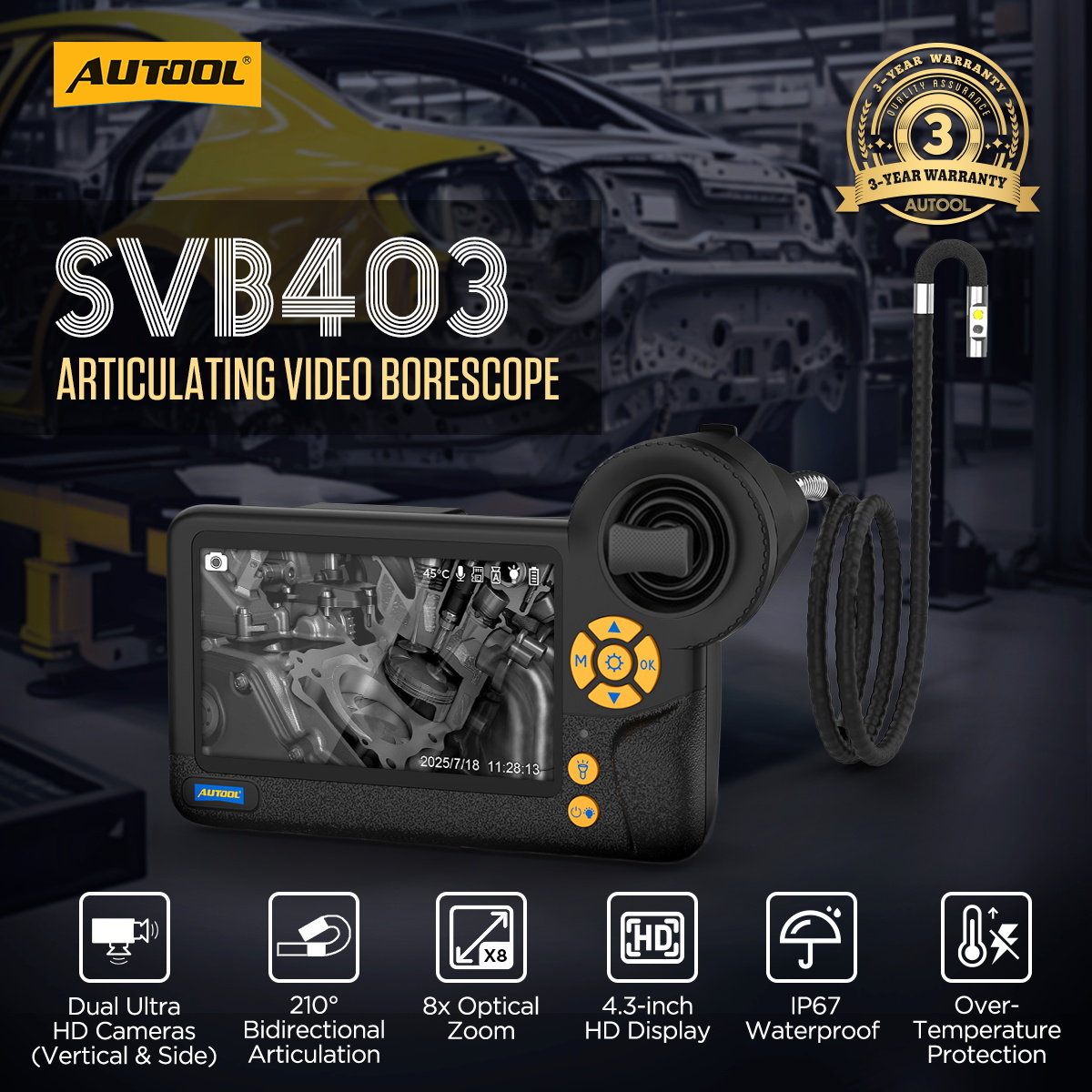

Comparison: AUTOOL SVB403 vs SVB405 vs SVB408 Automotive Engine Borescope Camera

1、Steering Angle

SVB403 is 210-degree two-way rotation, SVB405 and SVB408 are 360-degree four-way rotation.

2、Number of Lenses

The SVB403 has two lenses: a front lens and a side lens. The SVB405 and SVB408 have only one lens.

3、Resolution

The SVB405 has a 2-megapixel camera, while the SVB403 and SVB408 have a 1-megapixel camera.

4、Display Screen

The SVB403 has a 4.3-inch screen, while the SVB405 and SVB408 have a 4.5-inch screen.

5、Lens Diameter

The SVB403’s lens diameter is 6.5mm, while the SVB405’s is slightly smaller at 6.45mm. The SVB408 has the smallest lens diameter of the three models, at 3.9mm.

6、8× Digital Zoom

The SVB405 and SVB408 have an 8x zoom function, while the SVB403 does not.

7、Bending Radius

The SVB403’s bending radius is 35mm, the SVB408’s is slightly longer at 37mm, and the SVB405 has the longest bending radius of the three at 47mm.

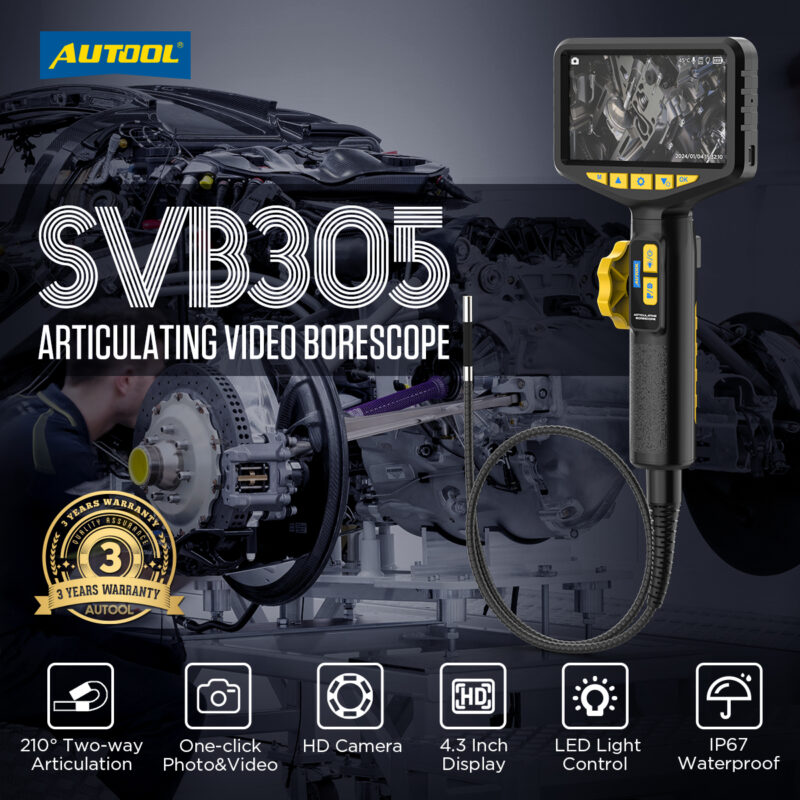

Comparison: AUTOOL SVB305 vs SVB308 Automotive Engine Borescope Camera

1、Steering Angle:

The SVB305 has a 210-degree, two-way rotation, while the SVB308 has a 360-degree, four-way rotation.

2、Lens Diameter:

The SVB305’s lens is 505mm, while the SVB308’s is 6.2mm.

3、Supported Languages:

The SVB305 supports eight languages: English, German, French, Italian, Spanish, Chinese, Russian, and Japanese. The SVB308 also supports Traditional Chinese and Korean.

4、Battery Capacity:

The SVB305 has a 2000mAh lithium battery, while the SVB308 has a 2600mAh lithium battery.

5、Magnetic and Detachable Design:

This is a unique feature of the SVB308. The SVB308 has a magnet on the bottom that allows it to attach to magnetic surfaces. The screen and handle can be detached for easy storage.

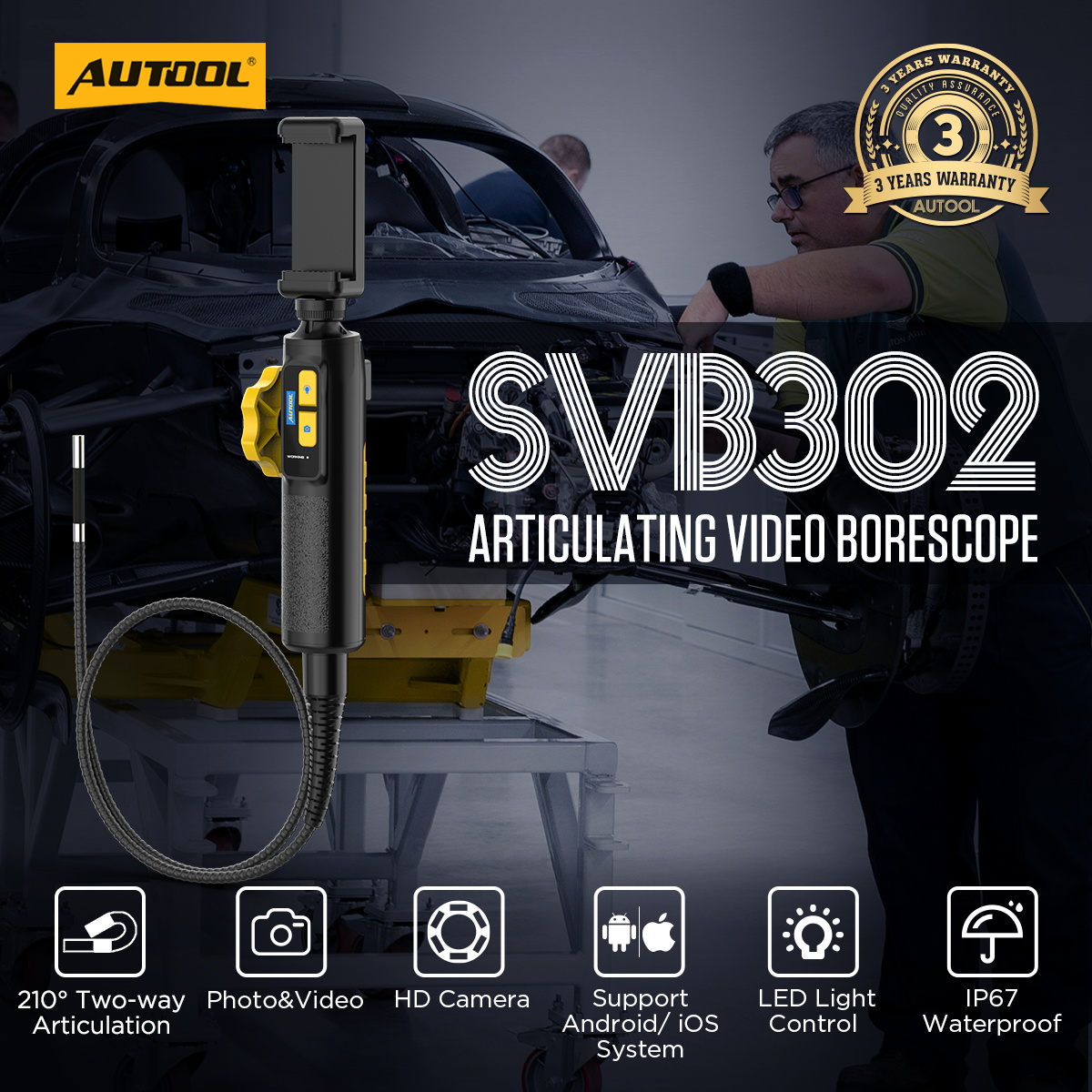

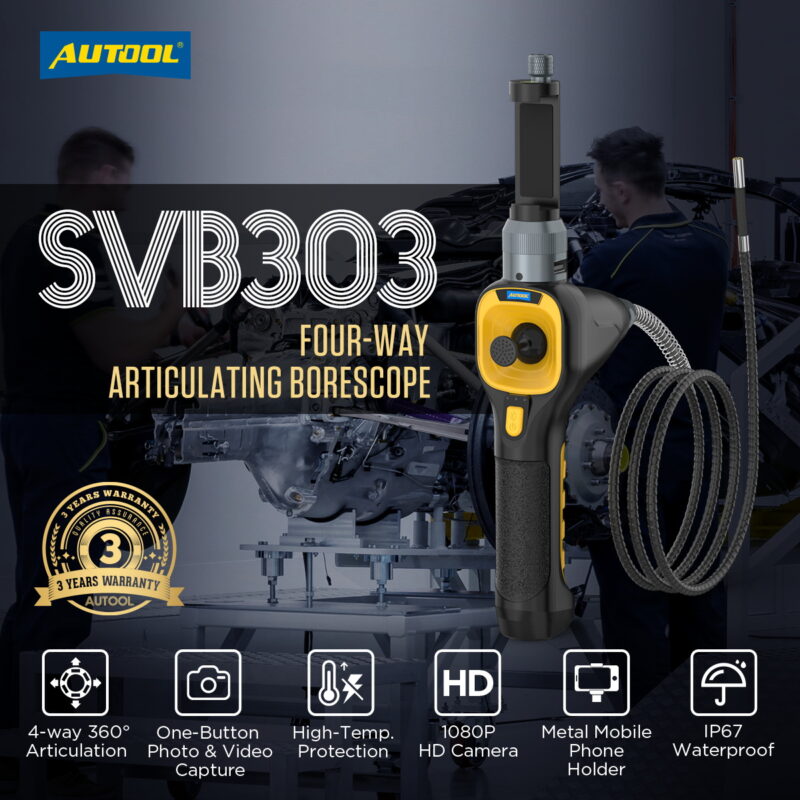

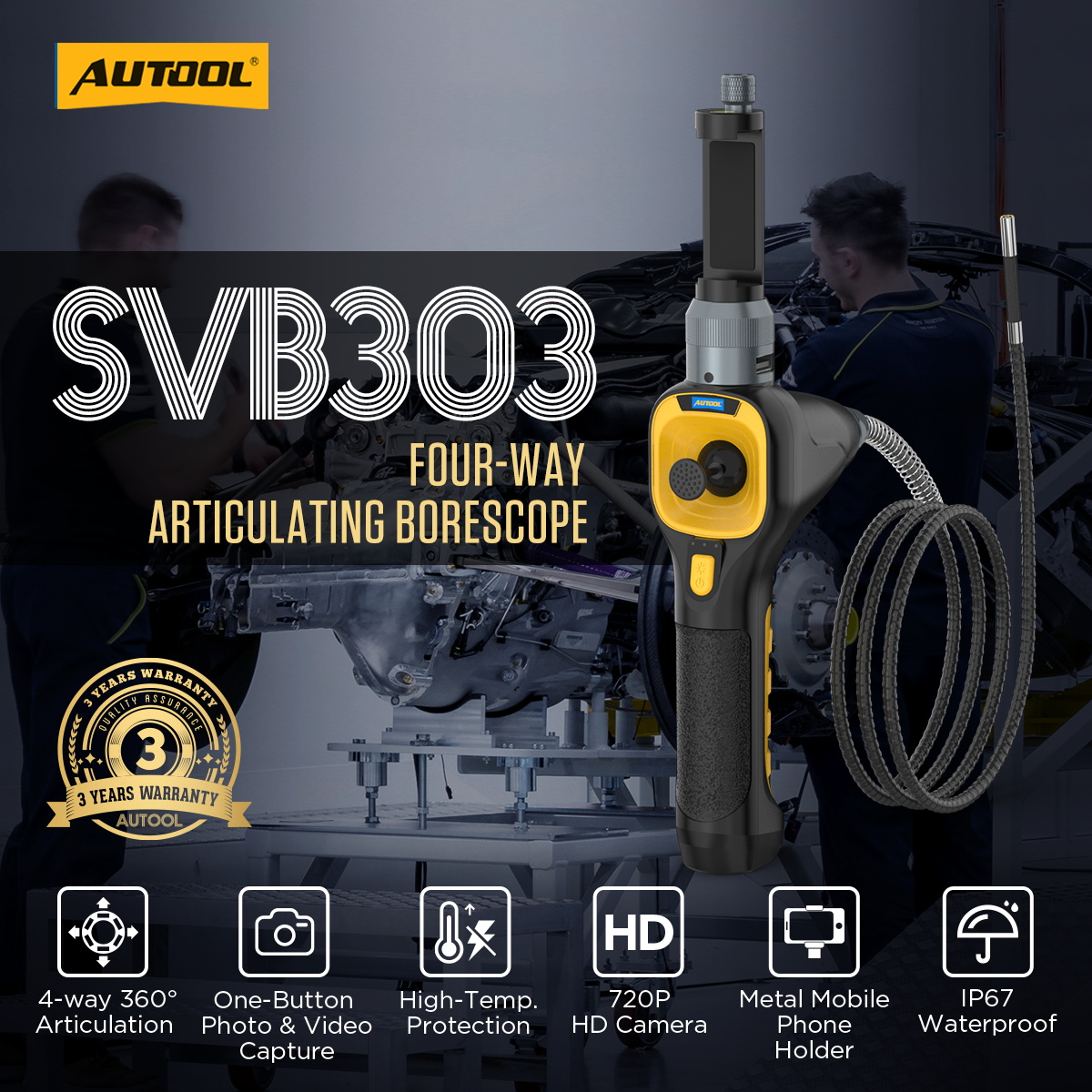

Comparison: AUTOOL SVB302 vs SVB303 Automotive Engine Borescope Camera

1、Steering Angle

The SVB302 has a 210-degree dual-angle lens, while the SVB303 has a 20-100mm depth of field.

2、Supported Languages
The SVB302 supports English, German, and 360-degree rotation, while the SVB303 offers 360-degree rotation.

3、Lens Diameter
The SVB302’s lens diameter is 6.45mm, while the SVB303’s is slightly smaller at 6.2mm.

4、Depth of Field
The SVB302 has a depth of field of 30-100mm and supports seven languages: French, Italian, Spanish, Chinese, and Japanese. The SVB303 also supports Traditional Chinese, Russian, and Korean, for a total of ten languages.

5、Magnetic and Detachable Design
This is a unique feature of the SVB303. The SVB303 has a magnet on the bottom that allows it to attach to magnetic surfaces. The SVB308’s screen and handle can be detached for easy storage.

I need one with a screen.

We recommend the SVB305/308/403.
These come in handheld and landscape versions.

I need one that connects to my phone.

We recommend the SVB302/303.
The SVB302 supports 210° bidirectional probe rotation.
The SVB303 supports 360° quad-directional probe rotation.

I want a camera that can rotate.

SVB302/305/403 supports bidirectional 210° rotation.
SVB303/308 supports four-way 360° rotation.

Can the device take photos and record videos?

It supports one-click photo and video recording, with the ability to review footage repeatedly. It comes with a 32GB memory card and a high-capacity battery, offering up to 3 hours of continuous use.

Can the photos and videos be downloaded?

Yes, we provide an app and memory card for exporting work examples at any time.

How do I download and use the app?

The manual includes a QR code. Scan it with your phone to download the app, then connect the phone using the original data cable and follow the on-screen instructions.

⚠️ Must Read Before Use

The automotive inspection camera lens is not resistant to high temperatures. For optimal use, wait until the engine has completely cooled down, which usually takes 1 to 2 hours. Avoid placing the hose in environments above 75°C to prevent damage.
The flexible hose is removable for easy replacement. Simply unscrew the screw on the AUTOOL logo to replace it.
To protect the endoscope, avoid using it immediately after the car has stopped or when the engine is still hot. Engine temperatures can range from 80°C to 100°C or higher, which can damage the camera. If damaged by high temperatures, you will need to pay 45 USD for a replacement.

How to Choose SVB Series Products?

🔔 Warm Tips

Do not allow any liquid (e.g., motor oil) to penetrate the screen, as it will cause damage. If this occurs, you will need to purchase a replacement screen at your own expense. To purchase, click the link below>>

AUTOOL Automotive Inspection Camera Functions

The functions of different models vary slightly. For details, please refer to the individual links for CT series products.

Function

Rotatable Lens: This adjustable endoscope features a joystick control design and is equipped with a 210°/360° rotating lens, allowing flexible access to narrow, curved spaces.
Detachable Design: The hose and display screen are detachable for easy storage and portability.
Equipped With A 1080P HD Camera And 6 LED Lights: Provides accurate and detailed feedback through high-resolution imaging. Ensures clear visibility even in low-light or dark environments.
Detailed Design: Large-sized display screen, built-in storage card, supports JPG image and AVI video recording functions. The powerful magnetic base facilitates storage after use.
IP67 Waterproof: The endoscope camera meets the IP67 waterproof rating, offering waterproof and oil-resistant performance, suitable for humid pipeline environments.
High-Capacity Lithium Battery: Built-in high-capacity lithium battery supports extended use and supports Type-C charging. Additionally, the battery is removable, allowing for easy replacement when needed.
High-Temperature Protection: The device automatically shuts down when the on-site temperature exceeds 90°C, protecting the snake-shaped camera from prolonged high-temperature exposure.
Multi-Language Support: Supports English, French, Spanish, Russian, Traditional Chinese, Korean, Italian, German, Simplified Chinese, and Japanese.
3-Year Warranty: We guarantee free replacement parts for any damage caused by non-human factors within 3 years.

AUTOOL Engine Borescope Camera Quick Search

Quick View

AUTOOL SVB302 Endoscope Camera

$159.00

Quick View

AUTOOL SVB303 Camera Inspection Best Automotive Borescope

$259.00

HOT

Quick View

AUTOOL SVB305 Borescope Camera Automotive Endoscope

$179.00

-30%

NEW

Quick View

AUTOOL SVB308 Car Inspection Camera Articulating Borescope

-30%

NEW

Quick View

AUTOOL SVB403 Automotive Engine Borescope Camera

$209.00 – $249.00

Related Blogs

How to Troubleshoot Your Car – Automotive Inspection Cameras

Are you still confused about how to find car parts quickly? In this article I [...]

03
Sep

Automotive Endoscope Camera-Important Tool

With the rapid development of automotive endoscope cameras, the role and importance of endoscope cameras [...]

03
Jul

Which car inspection camera Should You Buy?

[...]

11
Apr

Very clear

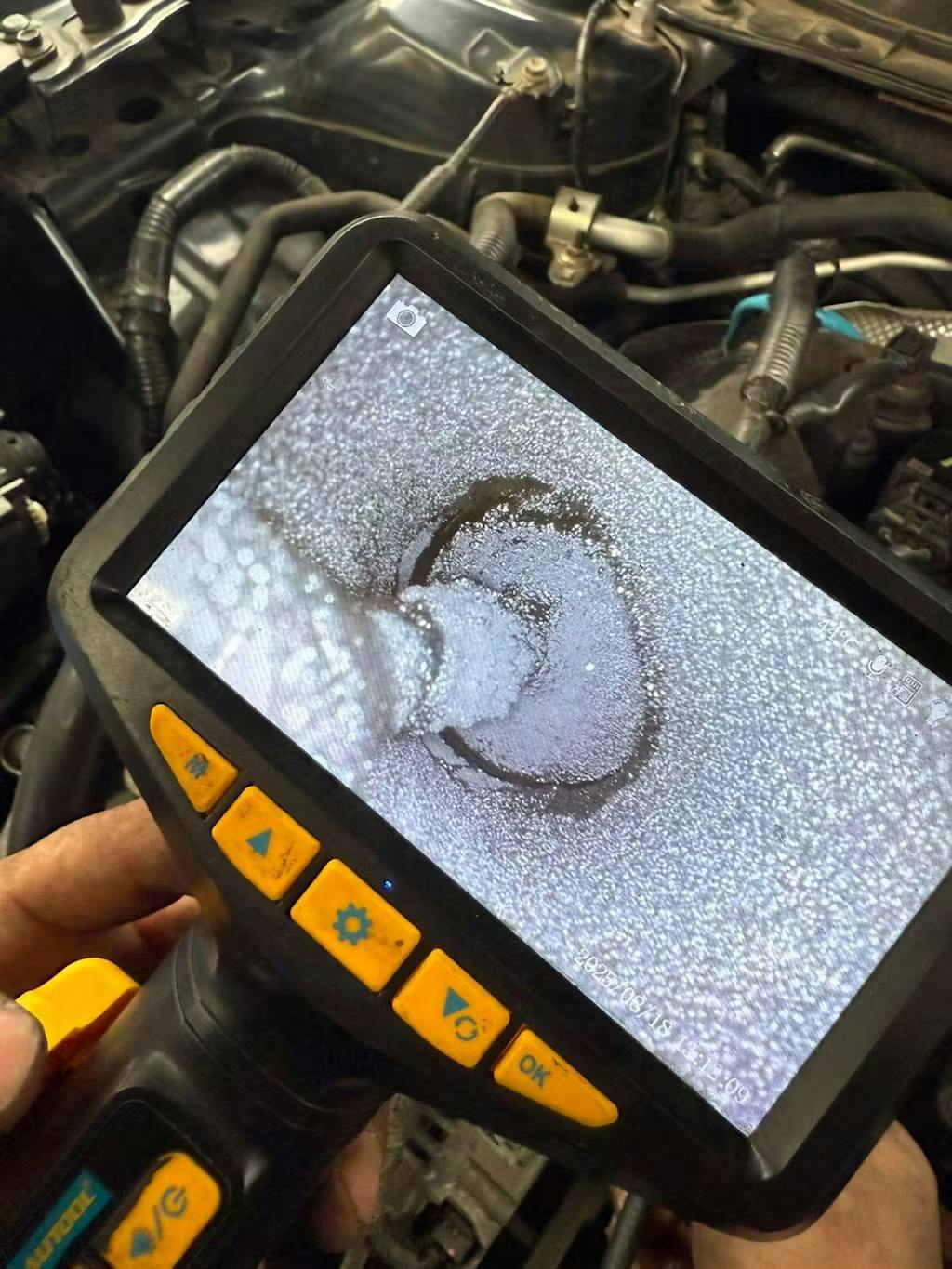

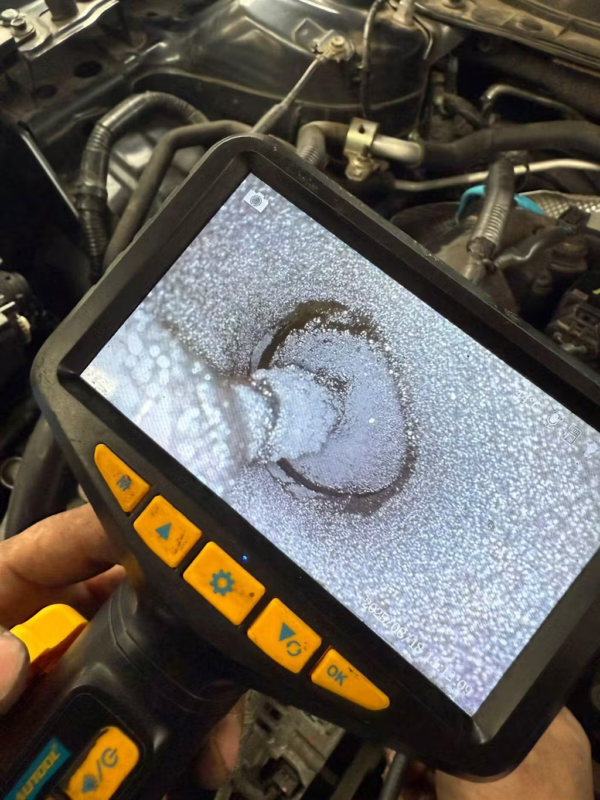

When I’m digging around the engine bay, trying to spot a leak or a loose wire in those tight gaps between hoses, I just hit the button and boom—clear 1080P shots right on the 4.3-inch screen. No more squinting with a flashlight and trying to remember what I saw to tell the boss or the customer.
The 210° steering lens is where it really shines. Last week, I had to check a clogged fuel line that was tucked way back near the firewall. Instead of yanking out half the engine to get a look, I just twisted the push-button, snaked the camera in, and there it was—some gunk buildup. Saved me at least an hour of work. And those 6 LED lights? Perfect for dark spots under the dashboard. I can toggle the brightness so I don’t blind myself but still see every detail.
