AUTOOL SDT205S automotive smoke tester
AUTOOL SDT205S automotive smoke tester

AUTOOL SDT205S Smoke Leak Detector

$249.00

  • Fast Smoke Output: Outputs smoke in less than ten seconds, greatly improving testing efficiency.
  • Air Mode and Smoke Mode: Built-in air pump and smoke generator, so there is no need to rely on an additional air unit, ideal for mobile automotive repair! Smoke output: 6 liters per minute.
  • Compact and Portable Design: It has a hook-and-loop design with a cone adapter and airbag adapter to fit most vehicles. Lightweight and easy to move around for maintenance.

For wholesale prices and more discounts click here.

AUTOOL SDT205S Automotive Smoke Tester is an automotive smoke leak detector with dual test modes, air mode, and smoke mode.

🗣️You may want to know.

⚠️Warm Tips
  • Please note that the SDT series requires the connection of a 12V battery.
  • When you use this AUTOOL SDT205S Car Smoke Leak Detector for the first time, fill it with 10-15ml oil. Please be careful NOT to beyond this range.
  • Before use, gently turn the knob to open the airflow regulator valve.
  • The testing liquid: both liquid paraffin and baby oil are OK.
  • Fresh oil can be filled with only when the smoke gets thin, and it can’t be filled over 15ml each time.
  • Before filling fresh oil, please pour out the left oil in the detector & replace the detector oil regularly.
  • During the process of leak detection, please keep away from smoke-sensitive parts.
  • Do not run the detector for over 8 minutes continuously. It needs interval rest.
  • The detector has an intelligent protector, if it exceeds the working limit, such as over 75 ℃, it will automatically turn off the power. In this case, please operate it later.
  • The round part of this detector has temperature, please be careful to avoid burns.
📔AUTOOL SDT205S Manual
Download

What is the Difference Between the AUTOOL Automotive Smoke Tester?

AUTOOL Automotive Evap Smoke Machine Quick Search

+
 This product has multiple variants. The options may be chosen on the product page Quick View

Automotive Smoke Leak Detector for EVAP Smoke Tests SDT60

$99.00
+
 This product has multiple variants. The options may be chosen on the product page Quick View

Auto Smoke Leak Detector For EVAP System-AUTOOL SDT101

$99.00
Automotive Smoke Tester for EVAP Systemsmoke leak tester
+
 This product has multiple variants. The options may be chosen on the product page Quick View

Automotive Smoke Tester for EVAP System 12V- AUTOOL SDT103

$109.00
+
 This product has multiple variants. The options may be chosen on the product page Quick View

AUTOOL SDT106 Auto EVAP Leakage Smoke Test Machine

$129.00
+
 This product has multiple variants. The options may be chosen on the product page Quick View

AUTOOL SDT202 Smoke Detector Machine for EVAP System

$169.00
AUTOOL SDT203 EVAP Smoke Machine Vacuum Smoke Tester
+
 This product has multiple variants. The options may be chosen on the product page Quick View

AUTOOL SDT203 EVAP Smoke Machine Vacuum Smoke Tester

$139.00
+
 This product has multiple variants. The options may be chosen on the product page Quick View

AUTOOL SDT205 Automotive Smoke Machine Leak Detector

$197.00
AUTOOL SDT205S automotive smoke tester
+
 This product has multiple variants. The options may be chosen on the product page Quick View

AUTOOL SDT205S Smoke Leak Detector

$249.00
-24%
HOT
+
 This product has multiple variants. The options may be chosen on the product page Quick View

AUTOOL SDT206 Smoke Machine For Vacuum Leaks

$259.00 – $289.00
-14%
HOT
+
 This product has multiple variants. The options may be chosen on the product page Quick View

AUTOOL SDT208 Smoke for Leak Detection

Original price was: $499.00.Current price is: $429.00.
Online Support

AUTOOL SDT205S Automotive Smoke Tester Features:

  • Fast smoke output: smoke output within ten seconds, greatly improving your efficiency in the test.

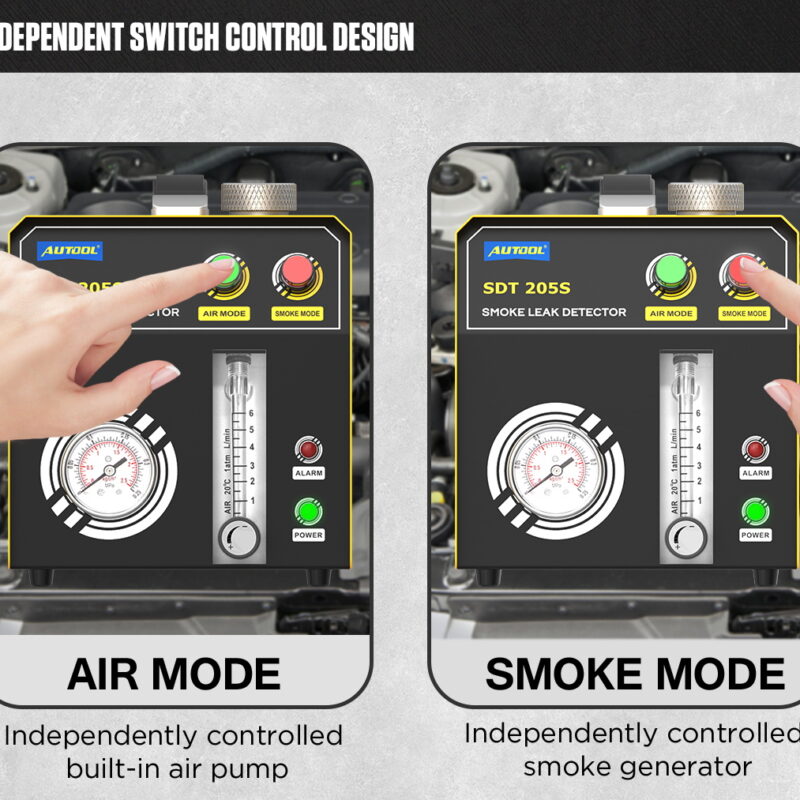

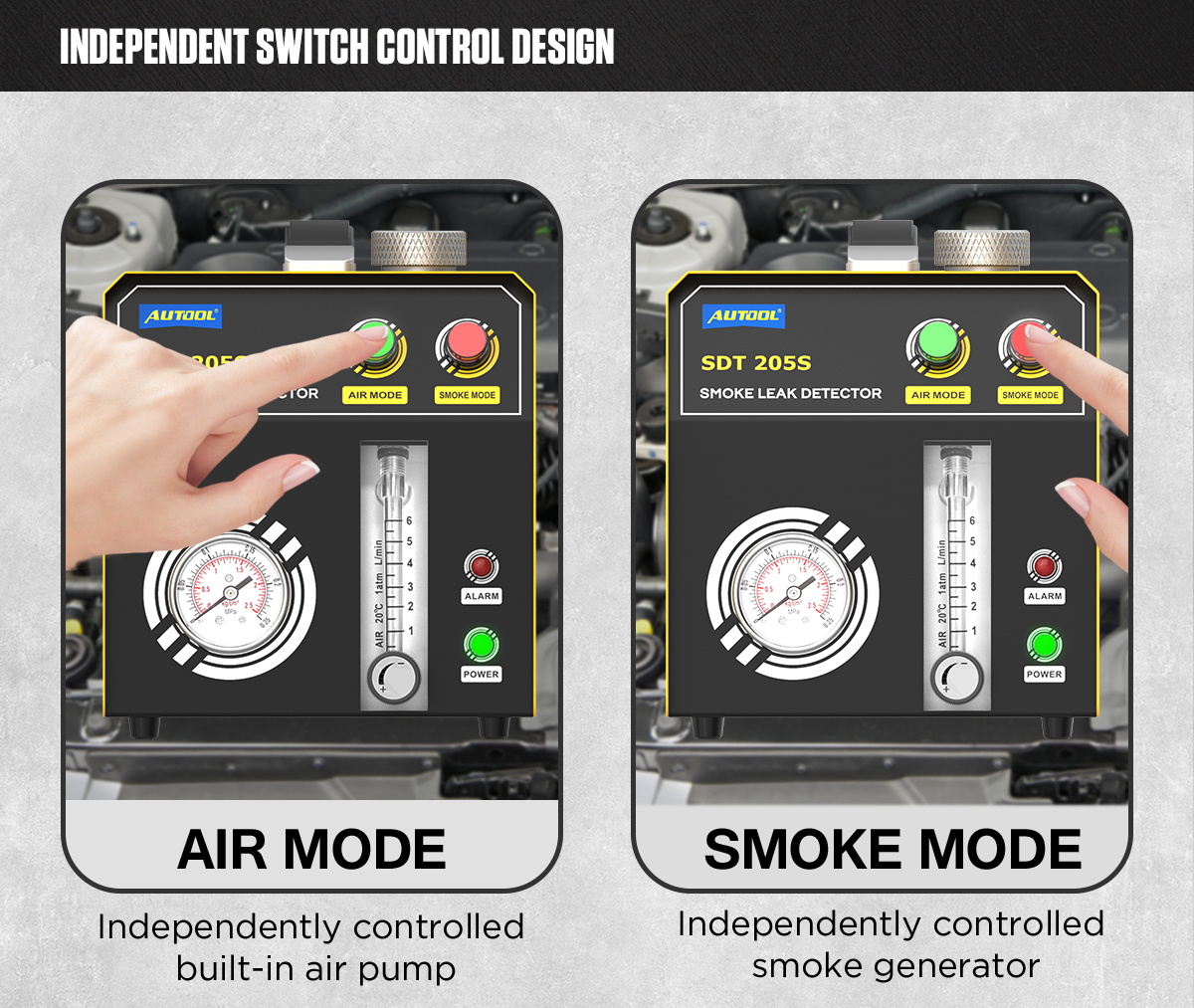

  • Air Mode & Smoke Mode: Built-in air pump and smoke generator, so it does not rely on an additional air machine, perfect for Mobile Automotive Repair! The smoke can be produced within 10 seconds, dramatically reducing diagnostic time. Smoke output value: 6L/min.
  • Compact and Portable Design: Most smoke leak detectors on the market are too large for easy transportation and storage, so Autool designed this smoke leak detector to be small, lightweight, and portable. With a hook and loop design, a cone adapter, and an airbag adapter to fit most air inlets, this is an indispensable tool.
  • Built-in Air Pump: Customers do not need to purchase additional air pumps, we use high-quality materials, after many tests, please rest assured to use. You can save more time and money
  • External Pressure Gauge: You can observe the barometer to more accurately determine whether the car pipeline is leaking. If the barometer index keeps increasing, there is no problem with your car’s pipeline. If the barometer index keeps decreasing, it indicates that your car’s pipeline has leaks that need to be repaired. Performing a barometer test helps detect the leakage faster and more accurately.
  • External Flow Meter: You can easily control the air pressure because the air pressure of each pipe in the car is different. If the air pressure is too high, it will damage the pipe, and if the air pressure is too low, it will fail to detect the leak.Therefore, the flow meter is very important to protect your detection system more effectively. Make testing safer

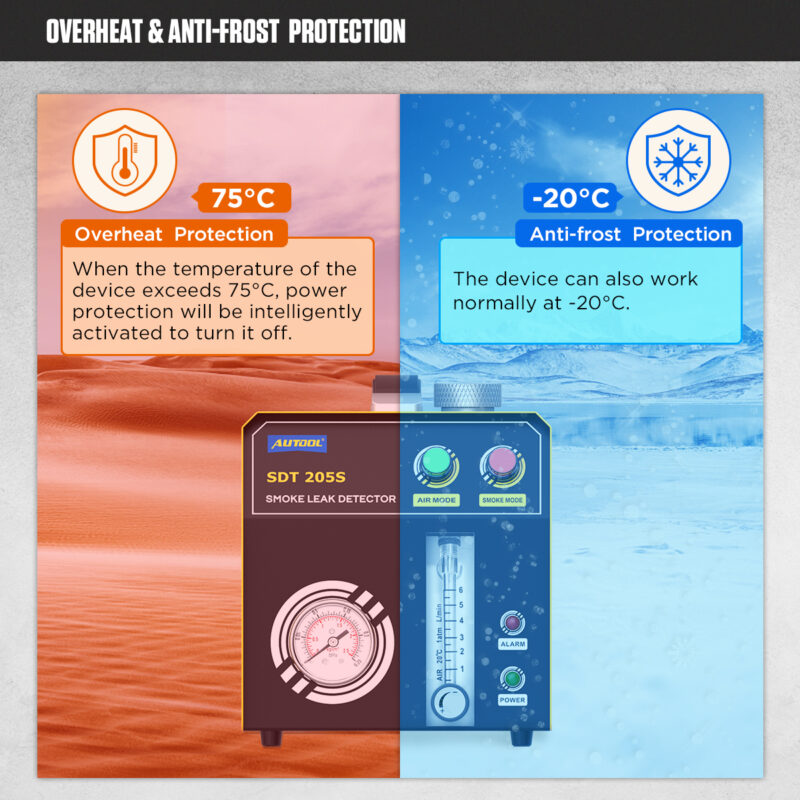

  • Overheat and anti-freeze protection: The Autool SDT205S Smoke Detector Machine features the latest intelligent protection devices. When the temperature exceeds 75℃ the protection device will only activate and shut down the power supply to protect the operator and the equipment. Not only is it protected against high temperatures, but it is also suitable for low-temperature operation.
  • Wide Range of Applications: The AUTOOL SDT205S Smoke Leak Detector is suitable for detecting leaks in automobiles, motorcycles, snowmobiles, ATVs, ATVs, light trucks, and speed boats, suitable for all models(only for 12v DC).
  • 3-Year Warranty: For damage caused by non-human factors, we promise to reissue parts free of charge within 3 years.

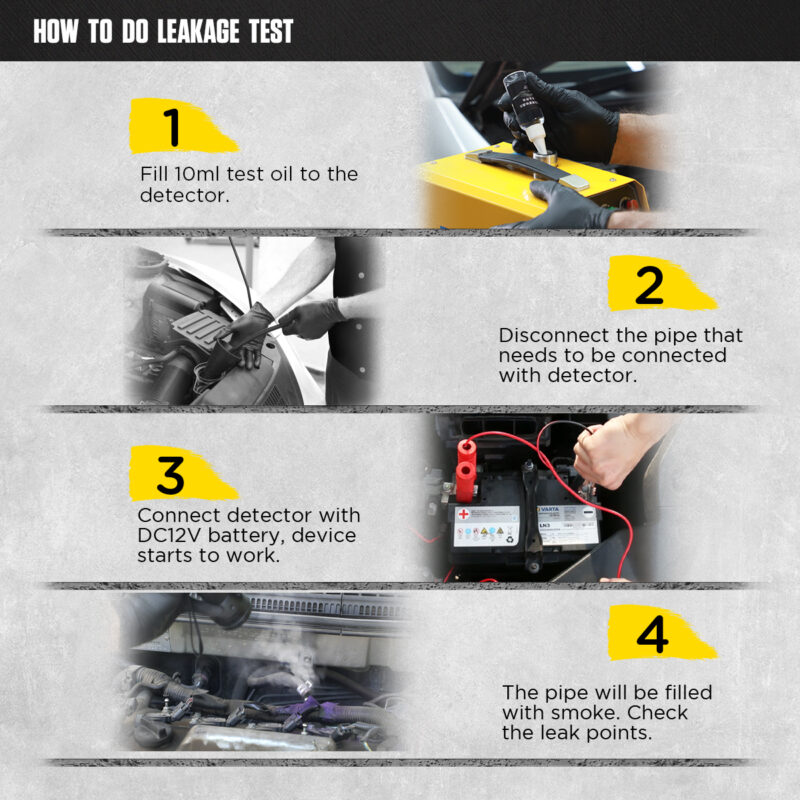

How To Use The AUTOOL SDT205S Automotive Evap Smoke Machine?

  • Step 1: Fill 10-15ml baby oil into the detector for the first time. Open the engine cover, and hang the detector in the cover.
  • Step 2: Disconnect the pipe that needs to be connected to the detector.
  • Step 3: Connect the detector with the DC12V battery, turn on the power switch, and the detector starts to work.
  • Step 4: In about 30 seconds, the pipe will be filled with smoke. Check the leak points. Please use a headlamp if necessary.

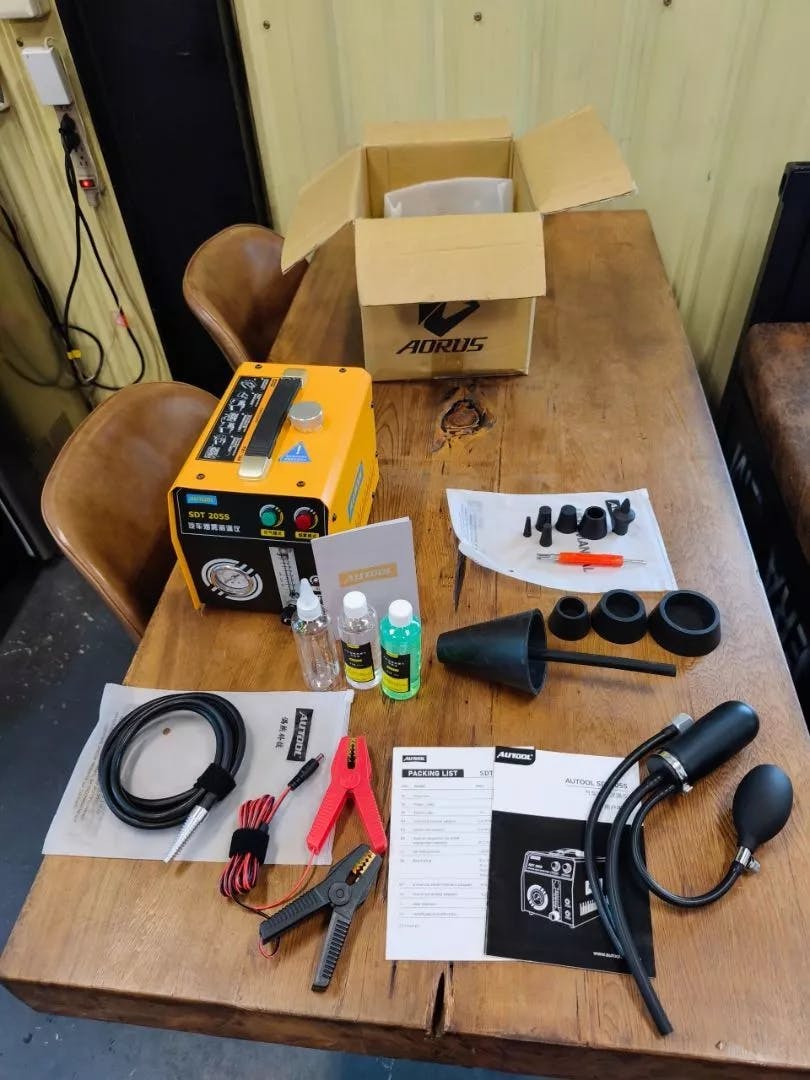

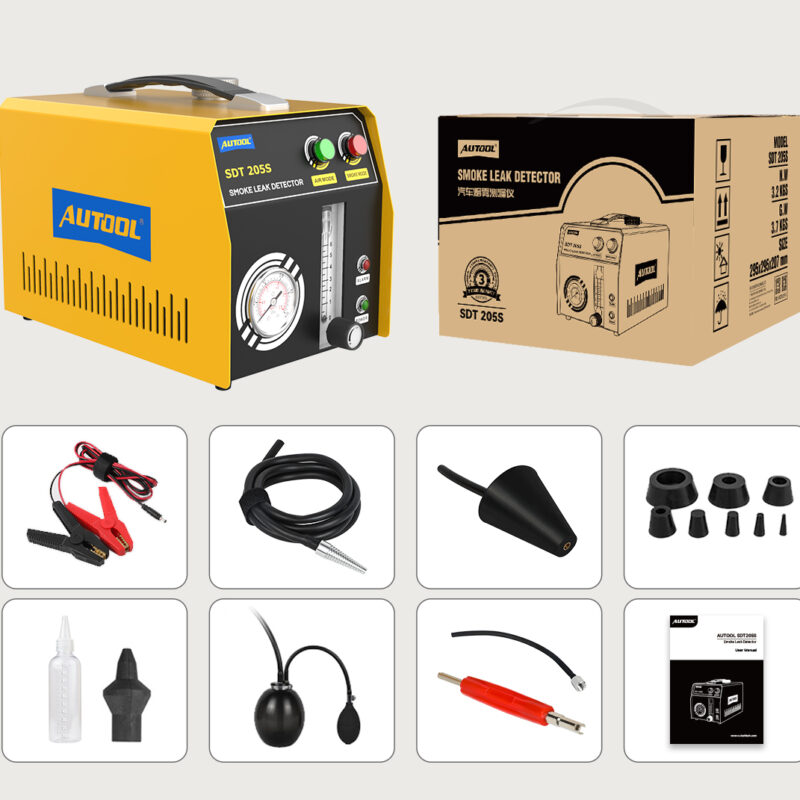

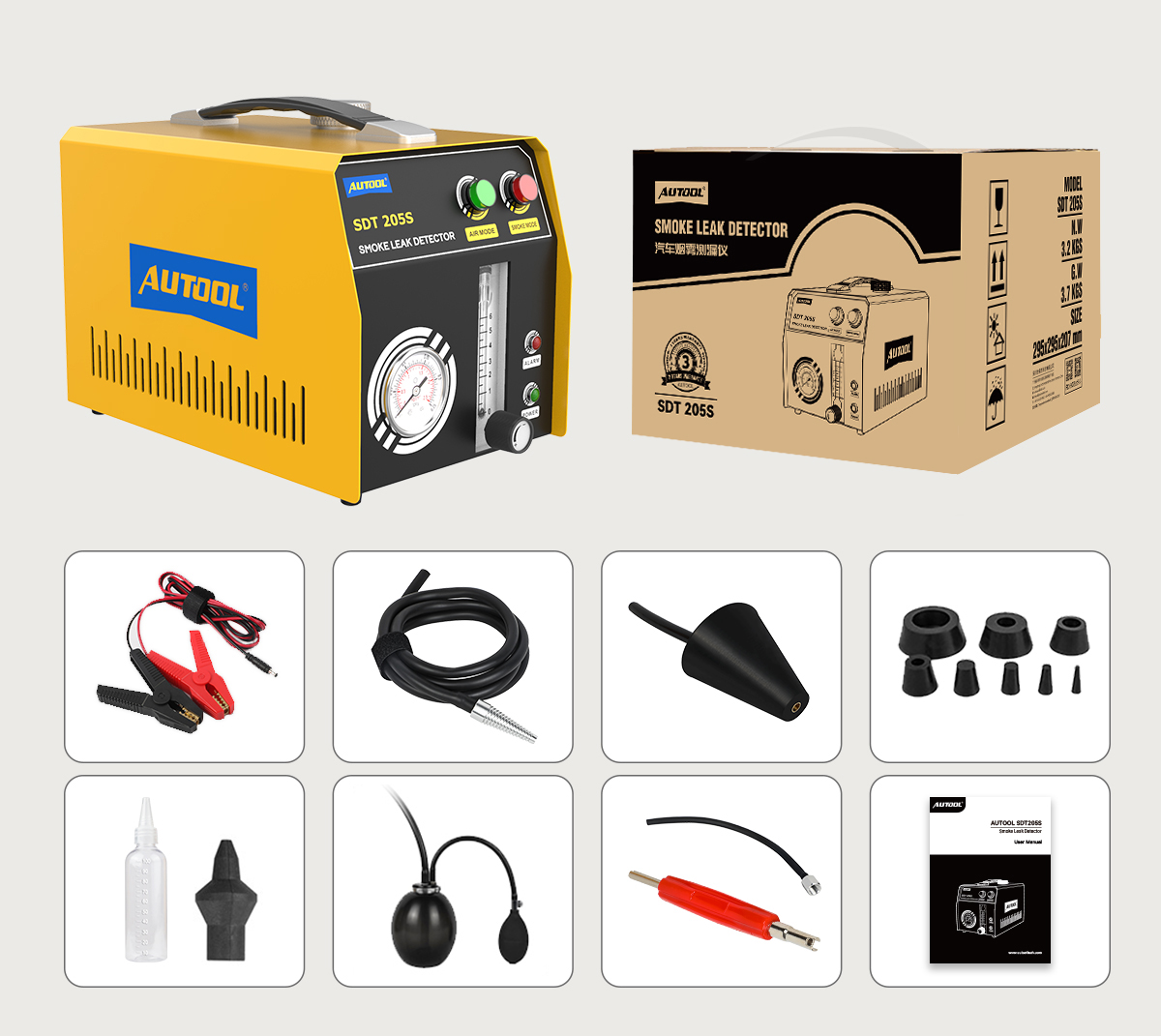

Packing List

FQA

What testing oil should be added into AUTOOL smoke leak detectors ?

If you can’t find a professional test oil, you can buy liquid paraffin or baby oil at your local store as test oil.

How much testing oil should be added to the auto smoke leak detector?

We suggest to add 10-20ml testing oil for the first trial. Please drain some testing oil out if you add too much accidentally. You can reuse the extra next time.

Can smoke leak detectors detect auto A/C system?
The auto A/C system operates at 1.7-3.0Mpa output pressure, while our smoke leak detectors generate only 0.1Mpa. So the smoke leak detector cannot directly test the auto A/C system for leaks. You can use our machine to perform segment-assisted testing for air-conditioning pipelines.
How to use a smoke leak detector to perform a segmental auxiliary test on the air conditioning pipeline?

First, pressurize the air-conditioning pipeline, then spray smoke and observe if the airflow blows it. If there is, it means that the location is a leak point, you can repair later.

Can smoke leak detectors detect EVAP system?

AUTOOL smoke leak detectors can test leaks in the EVAP system. We have equipped professional fuel EVAP testing tools in the package, you can choose proper tools to test.

What’s the difference among various models of smoke leak detectors ?

The AUTOOL smoke leak detector series includes SDT101 and SDT103 for EVAP systems (3.2Kpa), SDT106 and SDT202 for beginners (12 psi), and SDT203, SDT205, SDT205S, SDT206, and SDTMASTER as standard and high-end models (15 psi).SDT208 supports up to 35Psi.
We use different materials and functions in our products, resulting in varying prices. If you’re interested, check out our official websites for more details.

What’s the voltage of smoke leak detectors?

All AUTOOL smoke leak detectors adopt 12V car battery power, which is safe to operate and easy to get power. You can use our device safely without worrying about security issues.

Can the pressure of the smoke leak detector be set?

Most AUTOOL smoke leak detectors have fixed pressure, except for the SDT MASTER, which allows adjustment.
To protect automobile pipelines, our technicians set a safe pressure of 0.1MPA before shipping, ensuring it meets common maintenance and testing needs.

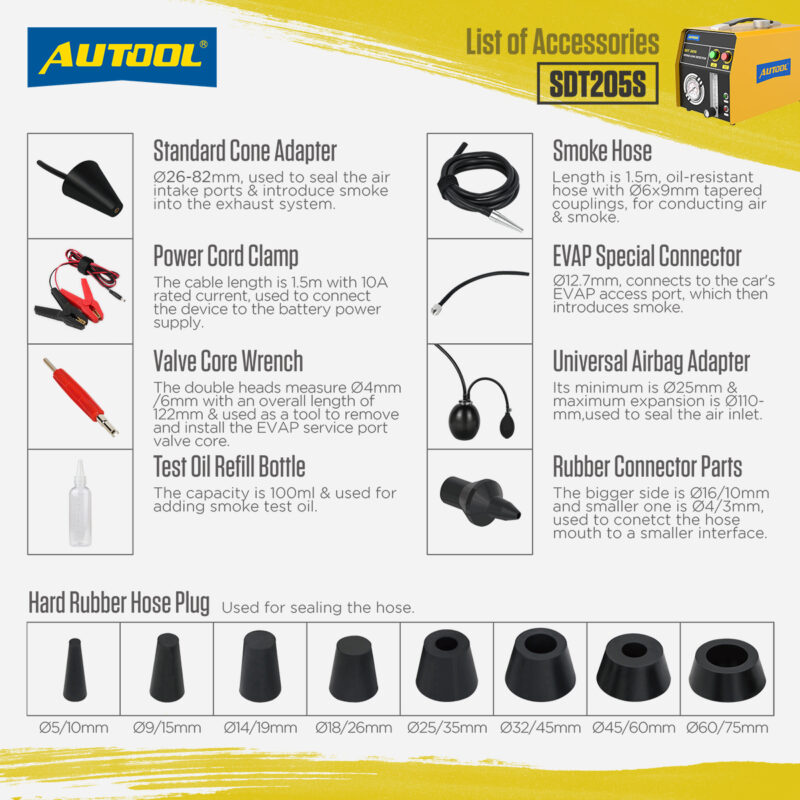

What accessories does smoke leak detectors have?

Different models of AUTOOL smoke leak detectors have different accessories. Our package typically includes 6-75mm hard rubber kits, cone and airbag adapters, EVAP testing tools, smoke hose, power cable, test oil bottle, user manual, warranty, and certificate of qualification.

How long is the warranty for smoke leak detectors?

We promise up to three years warranty after your purchase. Today we sell 200,000+ machines online and offline in 160+ countries and regions. You can rest assured to purchase our smoke leak detectors since we have stable quality and reliable after-sales service.

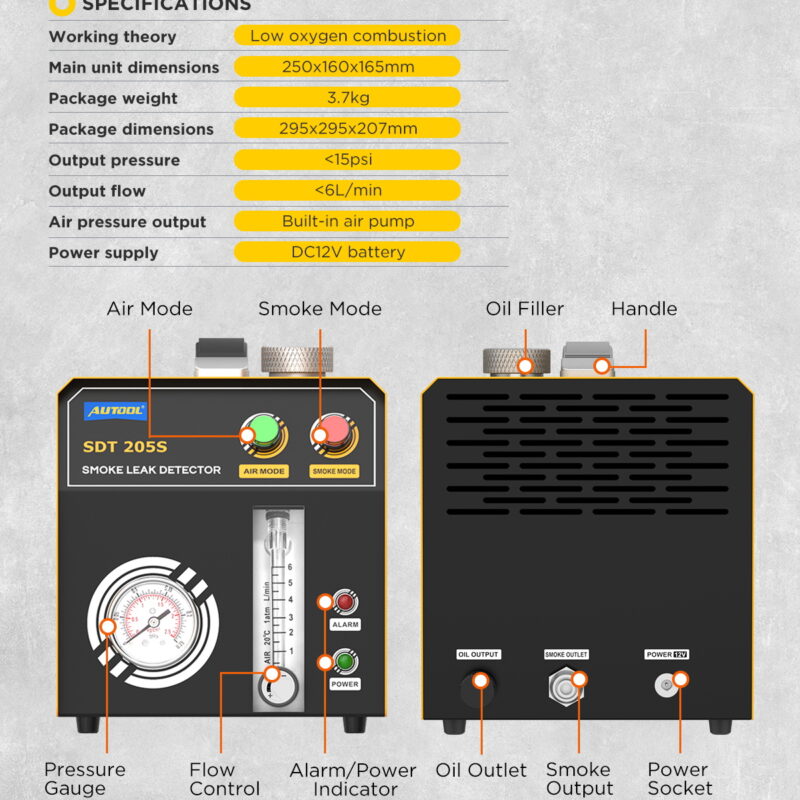

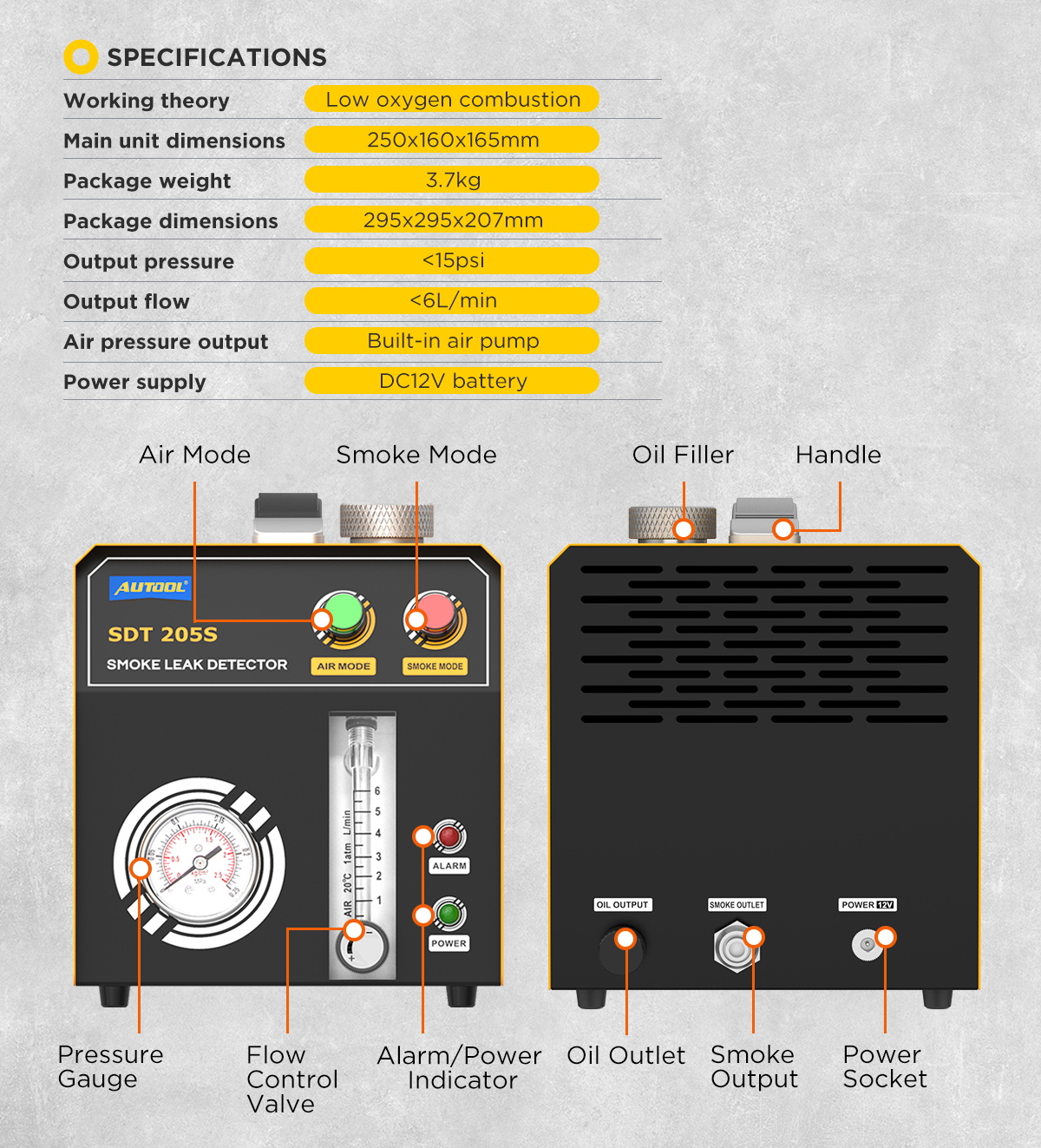

SPECIFICATIONS

    >>>>

  • style=”list-style-type: none;”&gt;<ul>
    • a

    ss=”product-specs-list util-clearfix

“>=”c

    ol

or: #000000;”>>>>>>>>><

li>style=”list-styl

      • e-type: none;”&gt;<ul>



  • lass=”yoast-text-mark”>class=”yoast-text-mark”>e=”list-style-type: none;”>
      a

    ss=”product-specs-list util-clearfix



“>=”c

    ol

or: #000000;”>>>>>>>>><

li>style=”list-styl

    le=”color: #000000;”>

  • “list-style-type: none;”><ul class=”yoast-text-mark”>ass=”product-specs-list util-clearfix” style=”color: #000000;”>
    • e-type: none;”&gt;<ul>



  • lass=”yoast-text-mark”>class=”yoast-text-mark”>e=”list-style-type: none;”>
      a

    ss=”product-specs-list util-clearfix



“>=”c

    ol

or: #000000;”>>>>data-darkre=””><li

class=”yoast-text-

    <li style=”list-style-type: none;”>

    • ass=”<li style=”>

      • mark”>le=”list-style-type: none;”

>

    lass=”product-specs-list util-clearfix” style=”color: #000000;” data-darkre=””>ader-in

line-color=””><l

    • =”color: #000000;” data-dark=””>re=””>

      • i

    class=”product-pro

      p line-limit-length”>

s=”property-title” style=”color: #999999;” data-darkreader-inline-color=””>Brand Name: AUTOOL

    • Origin: e-color=””>CN(Origin)
    • ass=”product-prop line-limit-length”>class=”property-title” style=”color: #999999;” data-darkreader-inline-color=””>Product Name: s=”property-desc line-limit-length” style=”color: #151515;” title=”Smoke Leak Detector” data-darkreader-inline-color=””>>Smoke Leak Detector
    • Input Voltage: le=”color: #151515;” title=”DC12V” data-darkreader-i=””>nline-color=””>DC12V</li>
    • s=”product-prop line-limit-length”>s=”yoast-text-mark”>ss=”property-title” style=”color: #999999;” data-darkreader-inl=””&gt;ine-color=””>Output Pressure: <span class=”property-desc line-limit-length” style=”color: #151515;”>le=”15Pis” data-darkreader-in=””>line-color=””>15Pis
    • “color: #999999;” data-darkreader-inline-color=””>Output Smoke Flow: 6L/min
    • >tyle=”color: #999999;” data-=””>darkreader-inline-c=””>olor=””>Size: &lt;/span>ass=””>=”property-desc line-limit-length” style=”color: #151515;” title=”29.5*29.5*21cm” data-darkreader-inline-color=””>29.5*29.5*21cm
    • <li

class=”product-prop

    • line-limit-length”>

    </li>

ass=”yoast-text-mark”>ss=”property-title” style=”color: #999999;” data-darkreader-i=””>nline-col=””>or=””&gt;Weight: </span&gt;le=”color: #151515;” title=”4kg” data-da=””>rkreader-inline-color=””>4kg</p>

  • Warranty: le=”3 Year” data-darkreader-inline-color=””&gt;3 Year</span&gt;
  • -spm=””>-anchor-id=”a2g0o.detail.0.i7.616054443GPS9N”>ss=”property-title” style=”color: #999999;”>ta-darkrea=””>der-inline-color=””>Type: “EVAP Machine” data-darkreader-inline-color=””>EVAP Machine

Customer Reviews

Based on 45 reviews
93%
(42)
4%
(2)
2%
(1)
0%
(0)
0%
(0)
B
Bart W.
Do not add more than 15ml of baby oil

The delivery speed is super fast, the response speed to questions is also very fast, and the service is impeccable. The product is easy to operate, the smoke volume is large, and it can be adjusted, which is very convenient to use! It is recommended to try it with baby oil. You only need about 15ml each time. Don't add more (I added 50ml, there was no room to generate smoke, and I poured out the baby oil to use it normally)

User picture
A
Aldrich V.

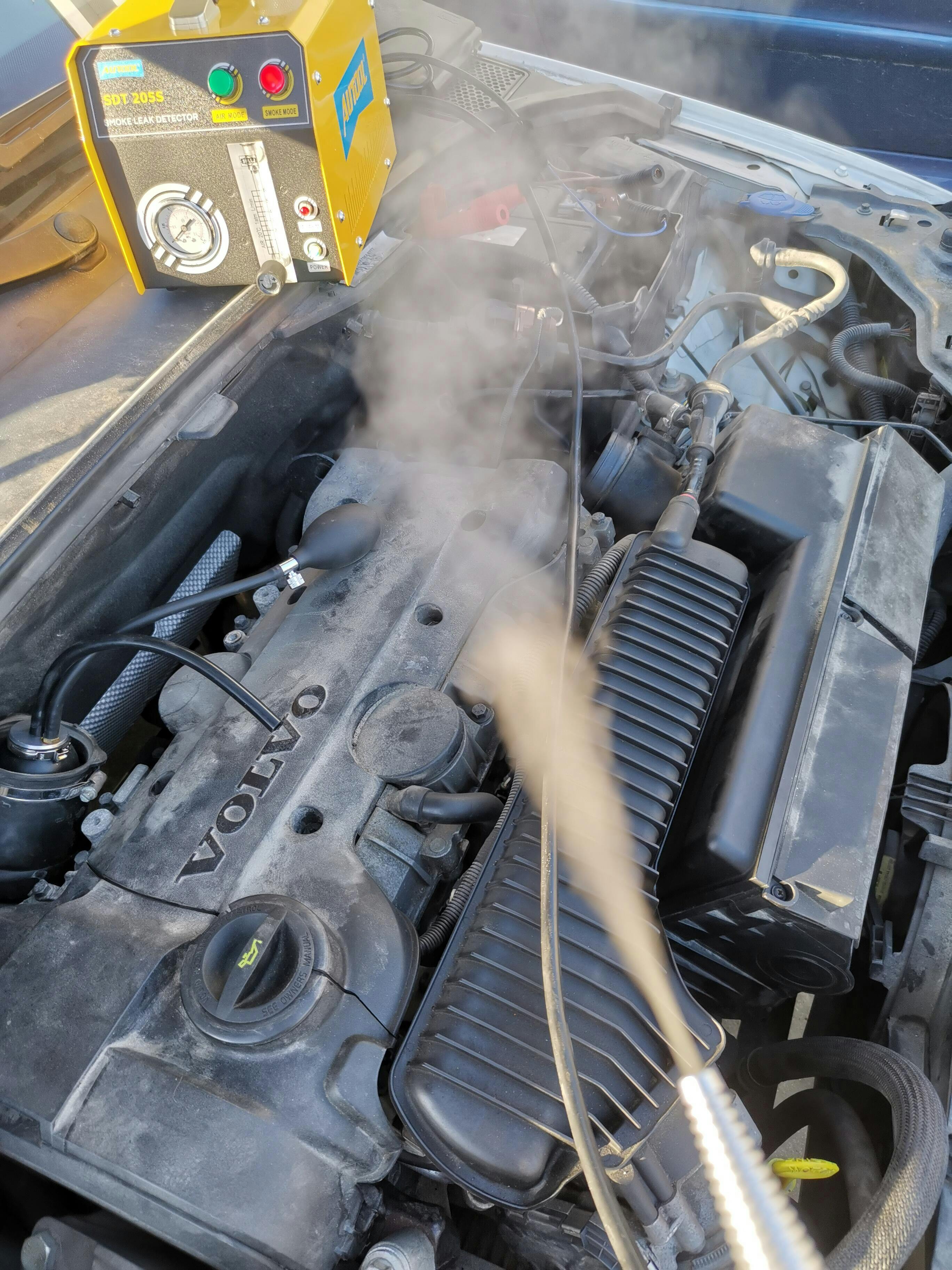

This smoke tester is a game-changer! The built-in air pump means I don't need any extra equipment—just plug it into a 12V battery, and it's ready to go. It starts producing smoke in under 10 seconds, which really speeds up diagnostics. The compact design makes it easy to carry around the shop, and the included adapters fit most vehicles I work on. Overall, it's a reliable and efficient tool that's made leak detection much simpler for me.

User picture
O
Owen B.
Works great

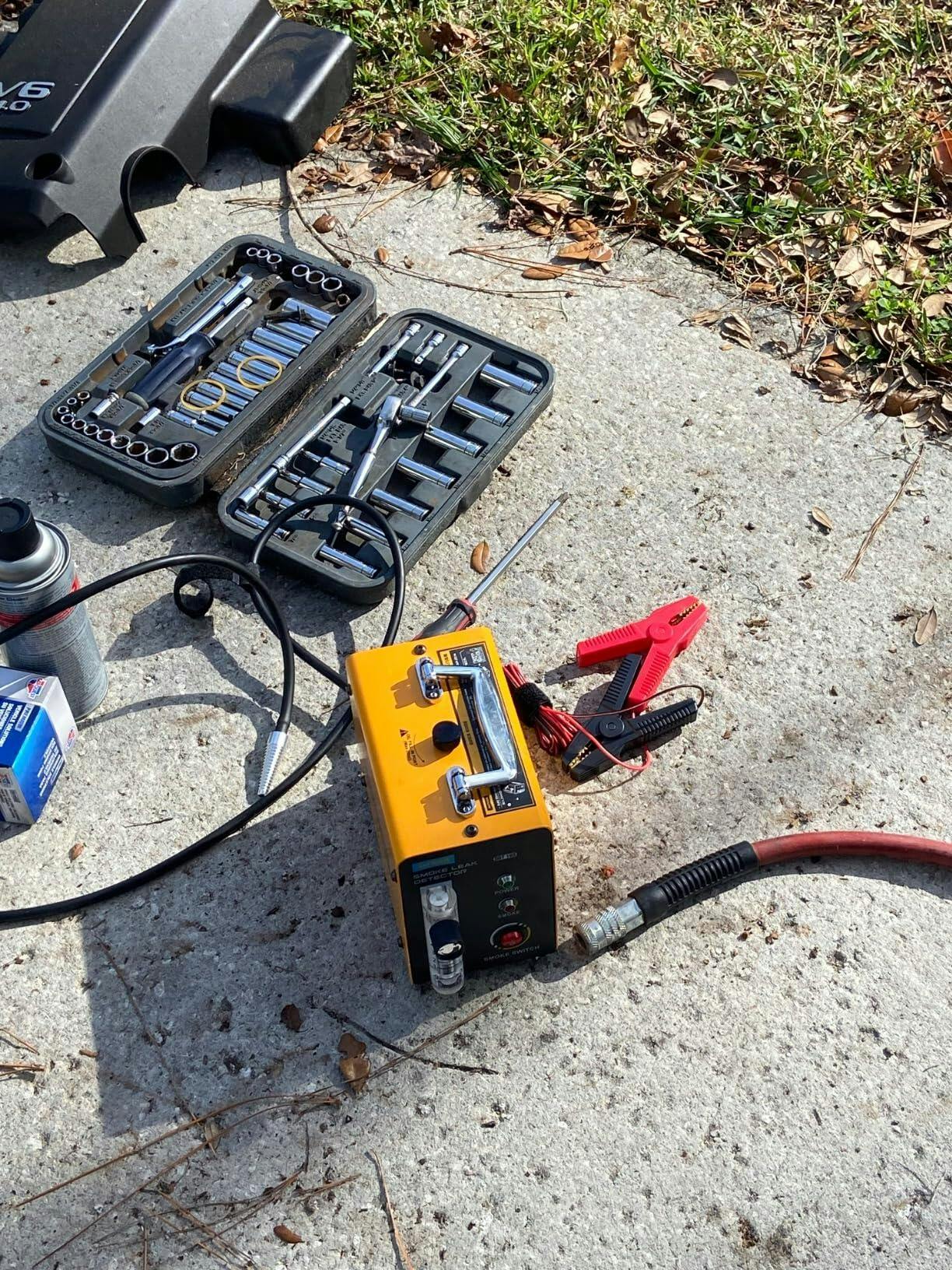

I’ve use many of these to diagnose vehicles. I like this little smoke machine.

User picture
G
Gorge A.
Snabb leverans och toppen produkt

Kvalitet byggt och levererar rök som ska.

User picture User picture

Hej Gorge,

Vi uppskattar verkligen att du tar dig tid att dela med dig av din feedback om våra produkter. Kundtillfredsställelse är vår högsta prioritet och vi är glada att du tyckte om din upplevelse, det betyder mycket för hela vårt team!

Vi ser fram emot att få betjäna dig igen.

Bästa hälsningar
AUTOOLs kundtjänst

T
T.M.
Puts out plenty of smoke

Previously I had bought a cheap smoke detector, one of those that looks like an aluminum can. Well it wasn’t a good buy, especially because you also need to set up an air compressor to use it. Worst of all I could never find the Evan leak with it. So I decided to buy a better smoke machine, especially one with a built in air pump. So I bought this and it worked perfectly. The built in pump made it easy to use
