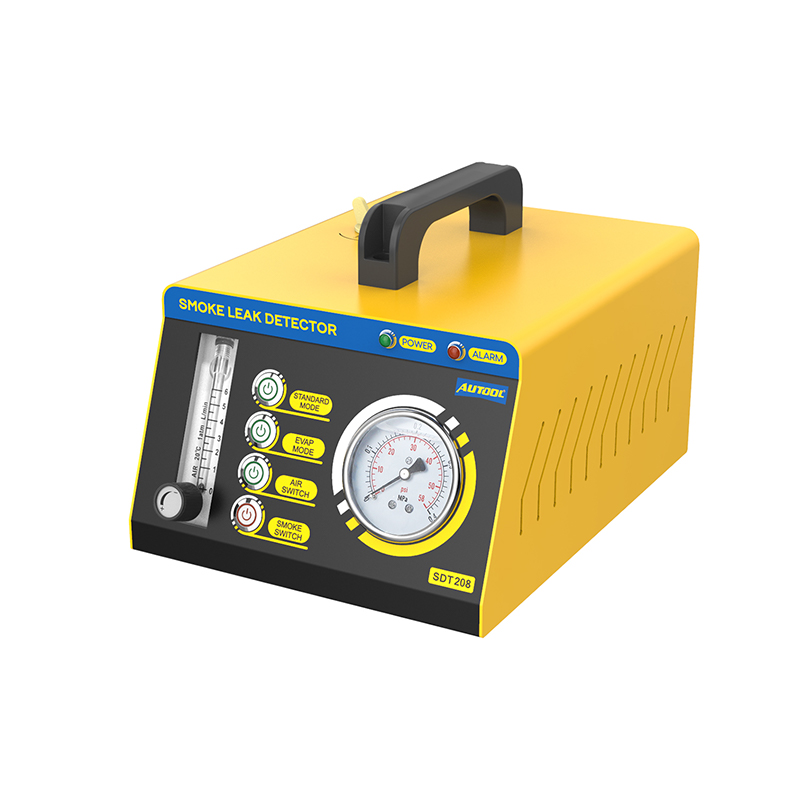

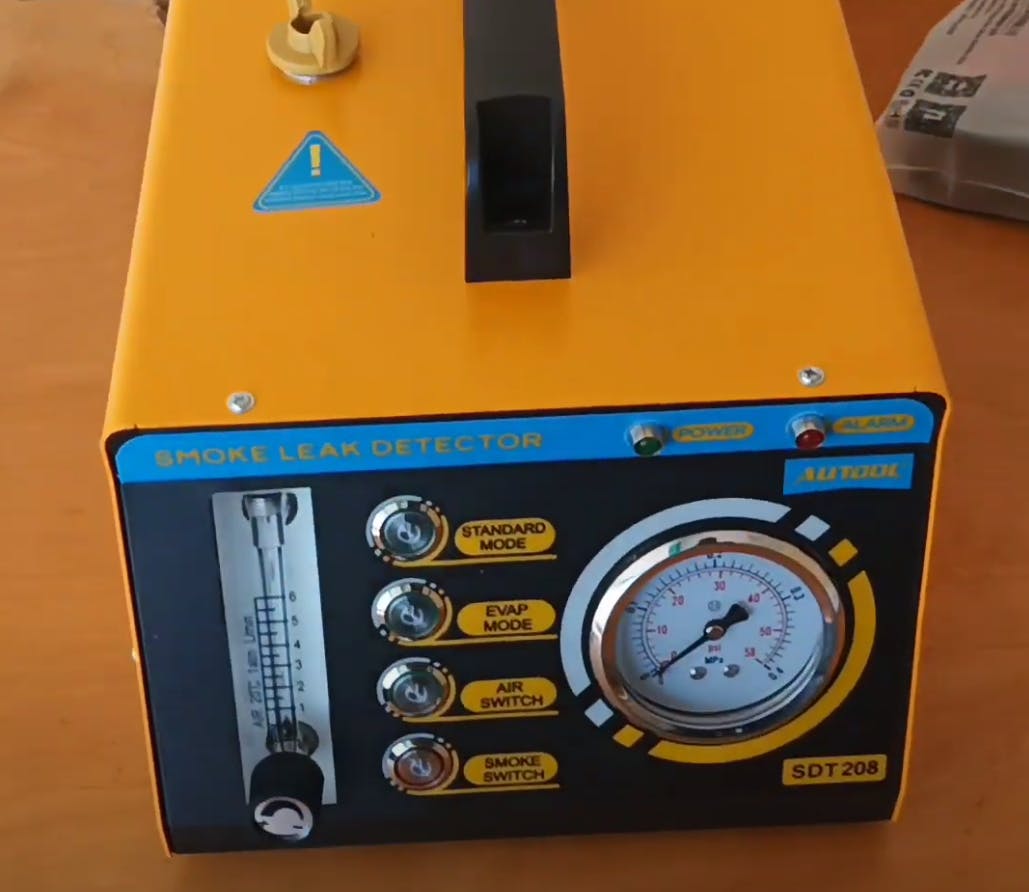

AUTOOL SDT208 Smoke for Leak Detection

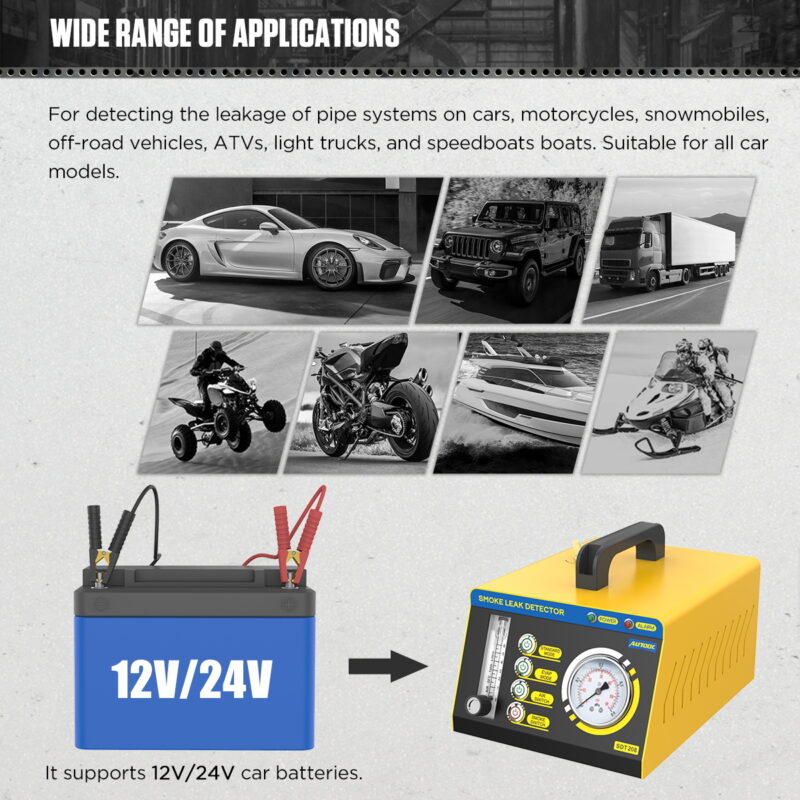

• Please note that the SDT series requires the connection of a 12V/24v battery.

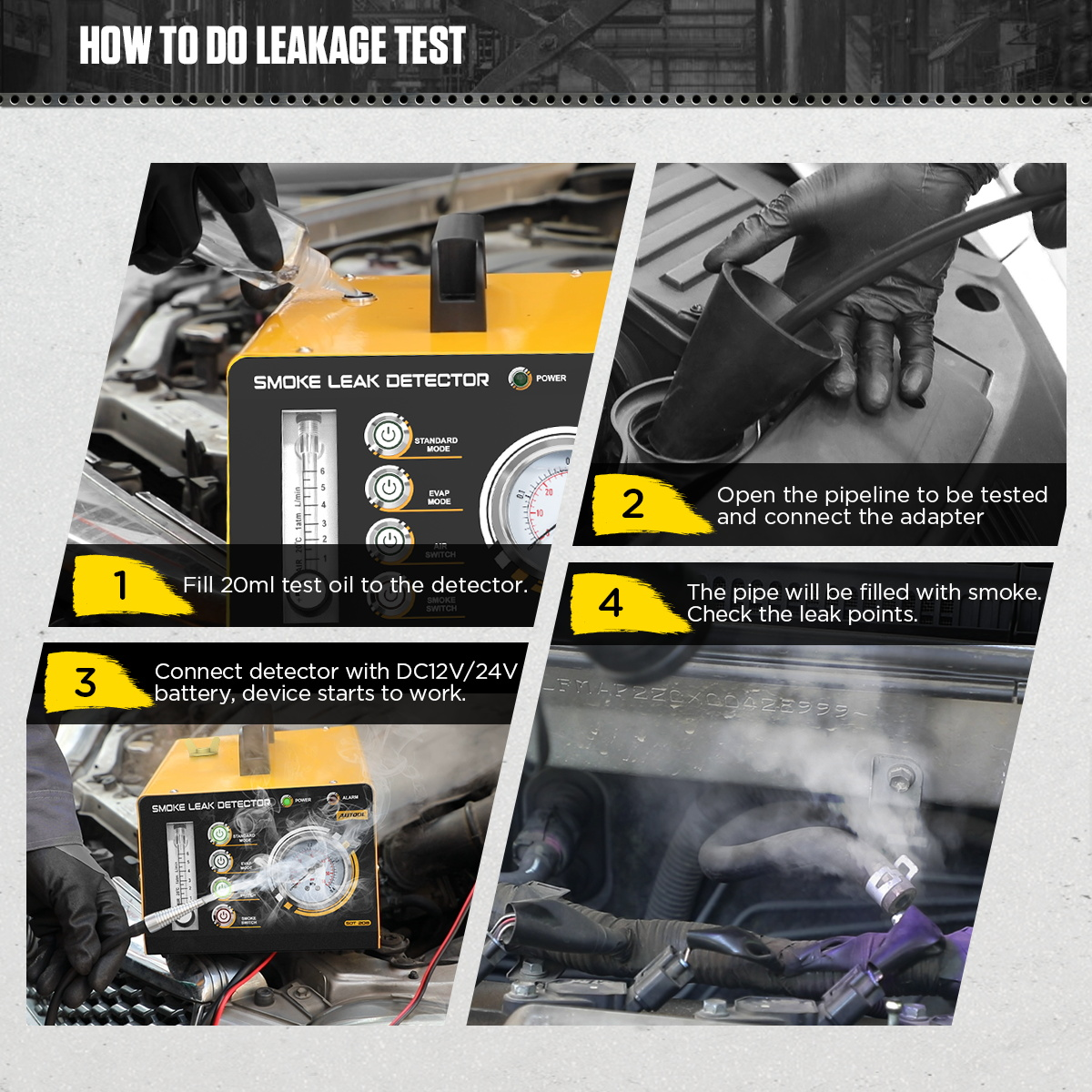

• When you use this AUTOOL SDT208 Car Smoke Leak Detector for the first time, fill it with 10-15ml oil. Please be careful NOT to beyond this range.

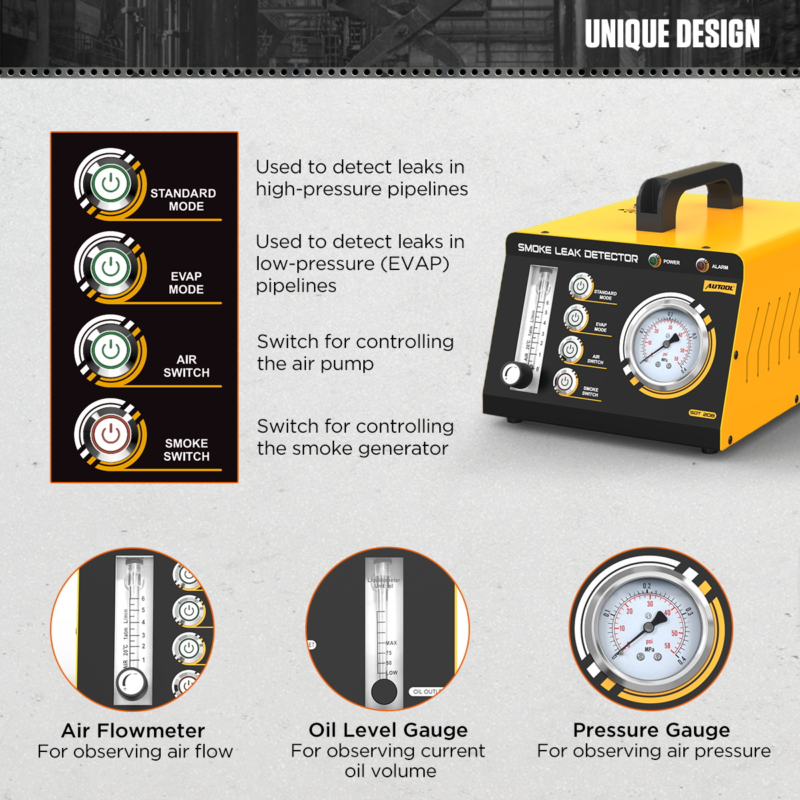

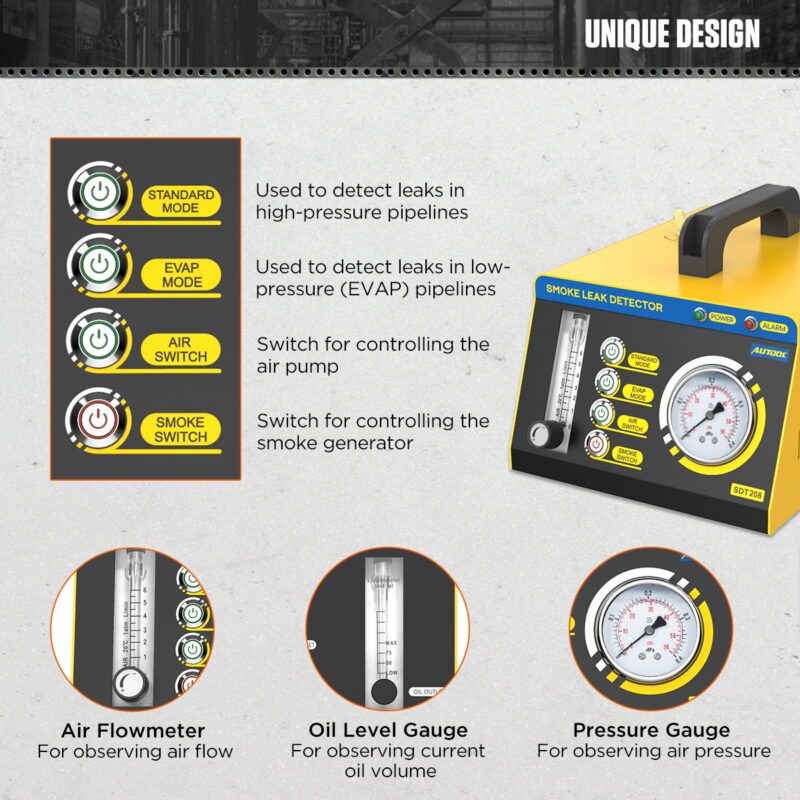

• Before use, gently turn the knob to open the airflow regulator valve.
• The testing liquid: both liquid paraffin and baby oil are OK.
• Fresh oil can be filled with only when the smoke gets thin, and it can’t be filled over 15ml each time.
• Before filling fresh oil, please pour out the left oil in the detector & replace the detector oil regularly.
• During the process of leak detection, please keep away from smoke-sensitive parts.
• Do not run the detector for over 8 minutes continuously. It needs interval rest.
• The detector has an intelligent protector, if it exceeds the working limit, such as over 75 ℃, it will automatically turn off the power. In this case, please operate it later.
• The round part of this detector has temperature, please be careful to avoid burns.

If you can’t find a professional test oil, you can buy liquid paraffin or baby oil at your local store as test oil.

It’s suggested to add 10-20ml testing oil for the first trial. Please drain some testing oil out if you add too much accidentally. You can reuse the extra next time.

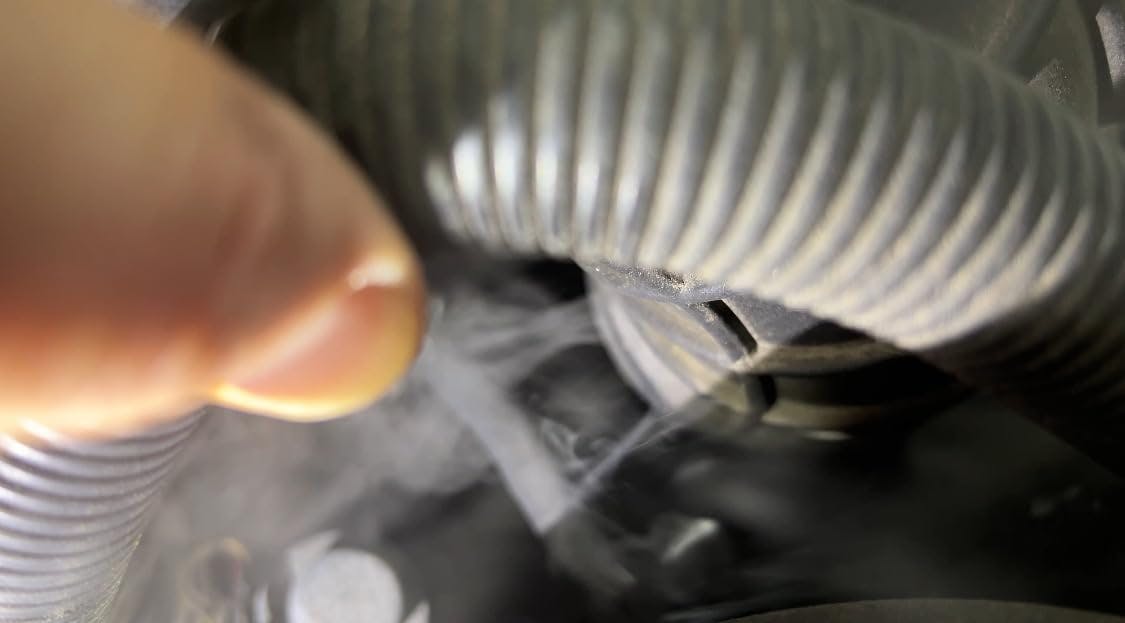

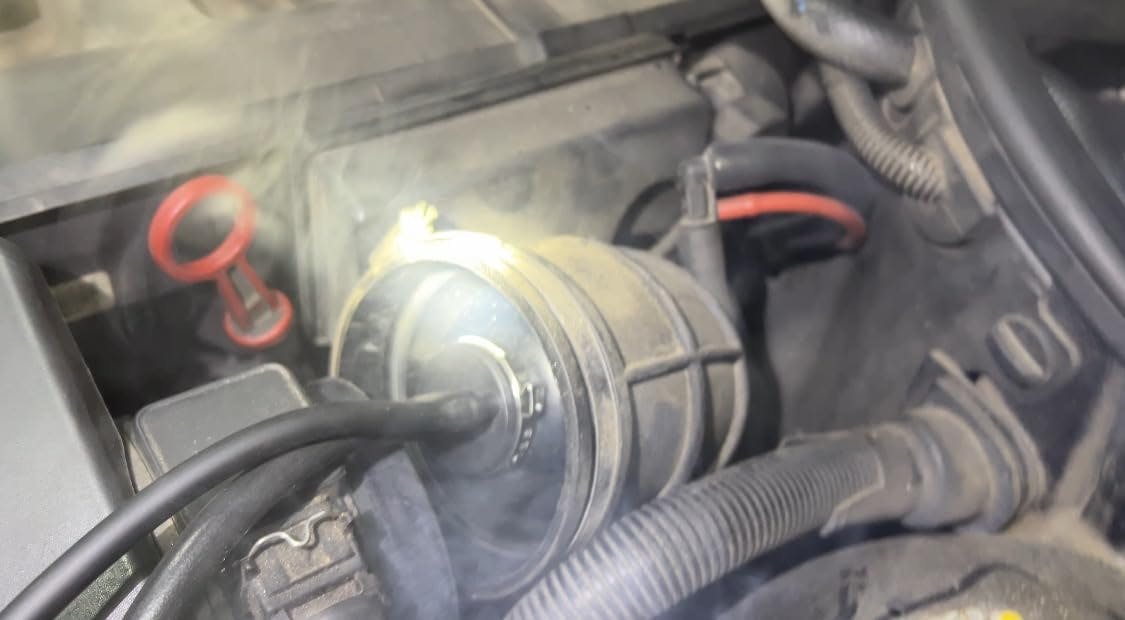

First, pressurize the air-conditioning pipeline, then spray smoke and observe if the airflow blows it. If there is, it means that the location is a leak point, you can repair later.

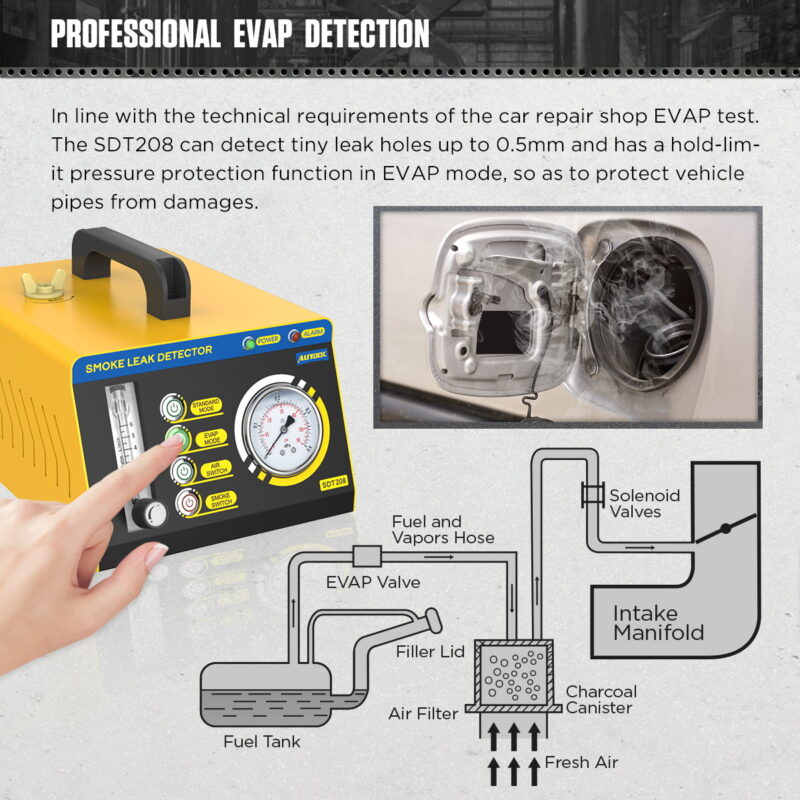

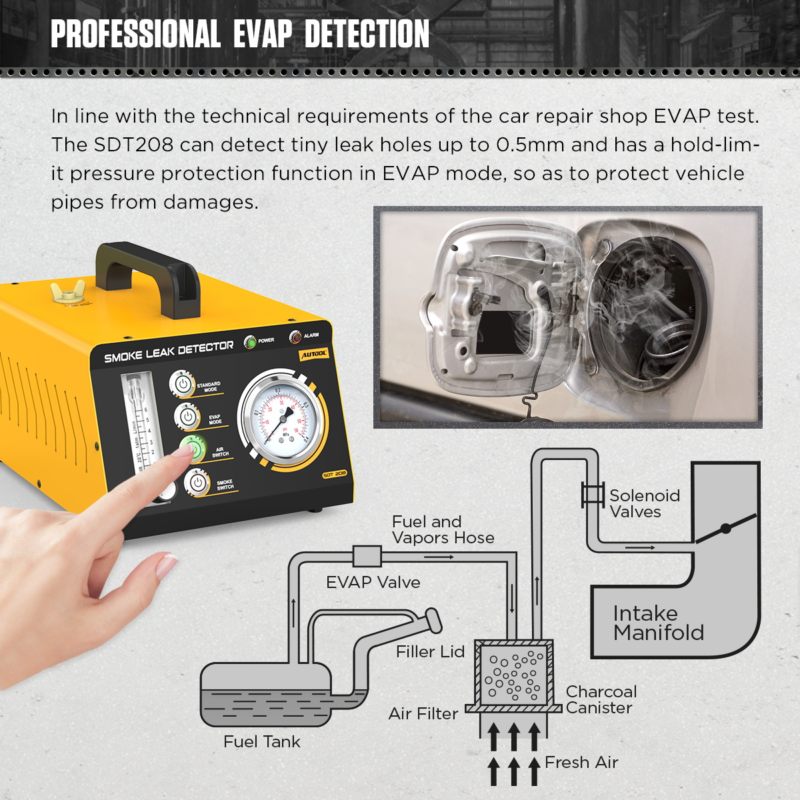

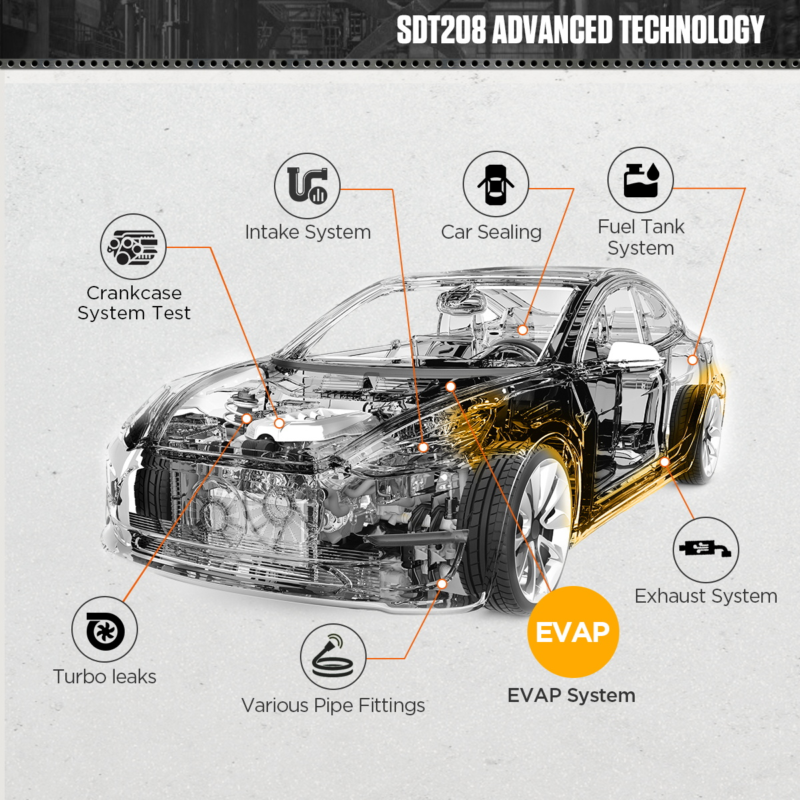

AUTOOL smoke leak detectors can test leaks in the EVAP system. We have equipped professional fuel EVAP testing tools in the package, you can choose proper tools to test.

The AUTOOL smoke leak detector series includes SDT101 and SDT103 for EVAP systems (3.2Kpa), SDT106 and SDT202 for beginners (12 psi), and SDT203, SDT205, SDT205S, SDT206, and SDTMASTER as standard and high-end models (15 psi), while SDT208 supports up to 35 psi.
We use different materials and functions in our products, resulting in varying prices. Visit our official websites for details if you’re interested.

All AUTOOL smoke leak detectors adopt 12V car battery power, which is safe to operate and easy to get power. You can use our device safely without worrying about security issues.

Most AUTOOL smoke leak detectors have fixed pressure, except for the SDT MASTER, which allows adjustment.
To protect automobile pipelines, our technicians set a safe pressure of 0.1MPA before shipping, ensuring it meets common maintenance and testing needs.

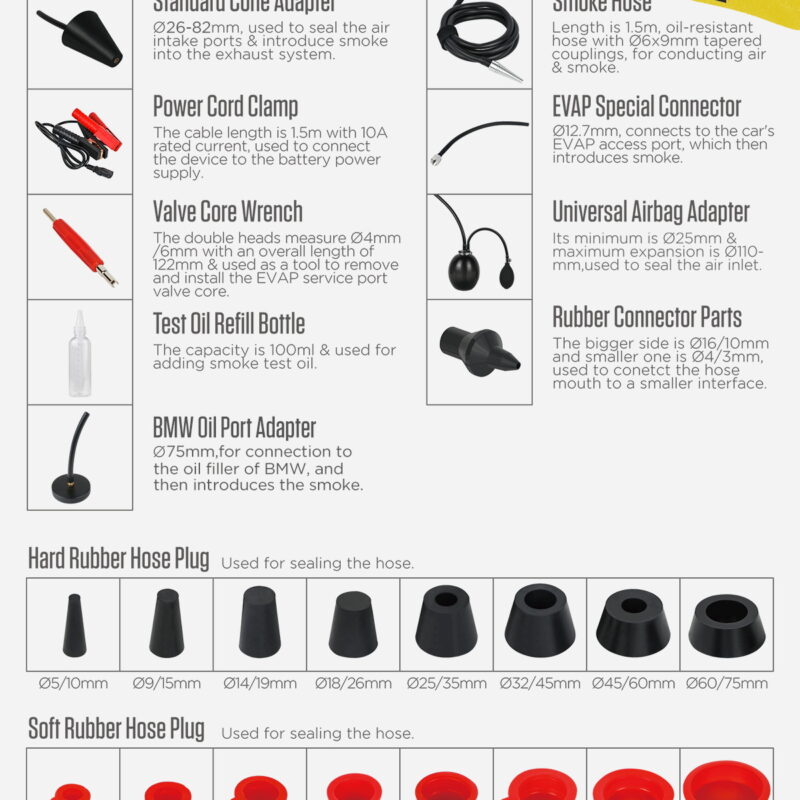

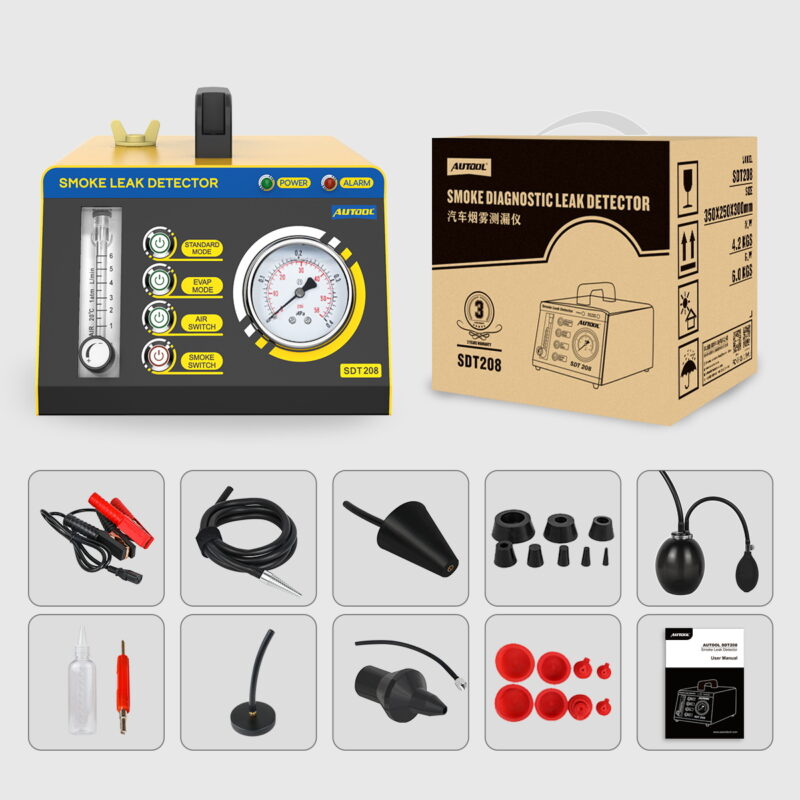

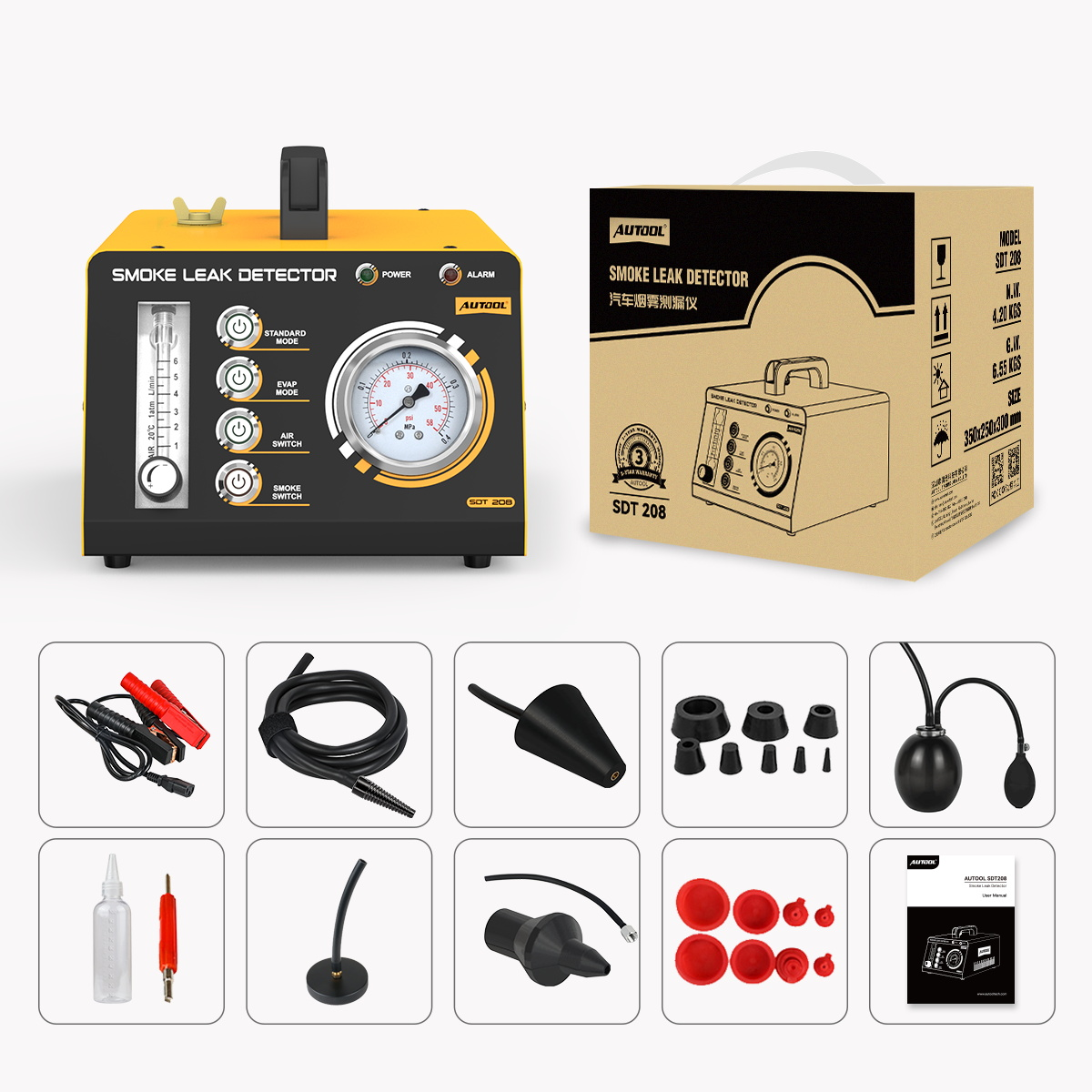

Different models of AUTOOL smoke leak detectors have different accessories. Our package includes 6-75mm rubber kits, adapters, EVAP tools, a smoke hose, power cable, oil bottle, manual, warranty, and certificate.

We promise up to three years warranty after your purchase. Today we sell 200,000+ machines online and offline in 160+ countries and regions. You can rest assured to purchase our smoke leak detectors since we have stable quality and reliable after-sales service.
