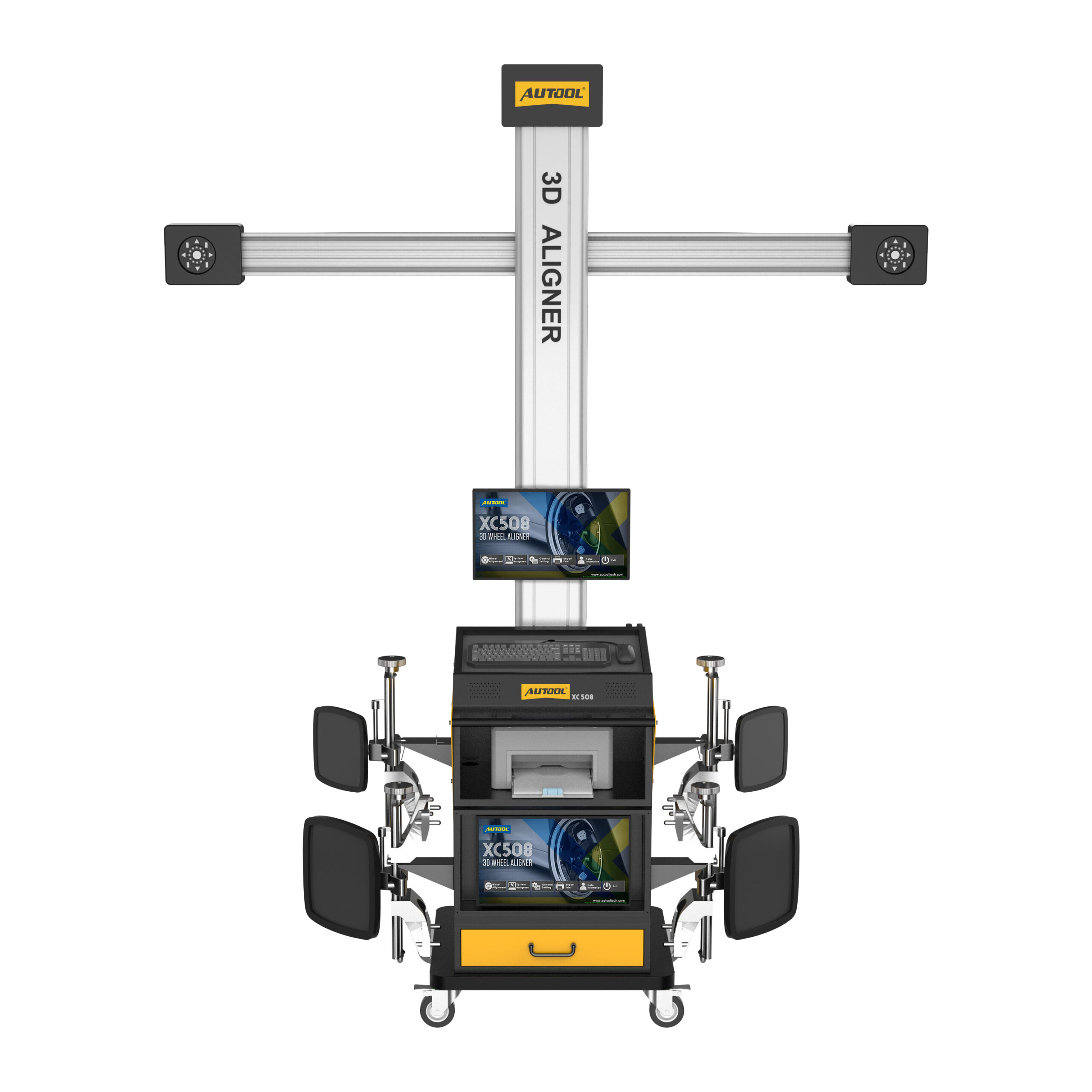

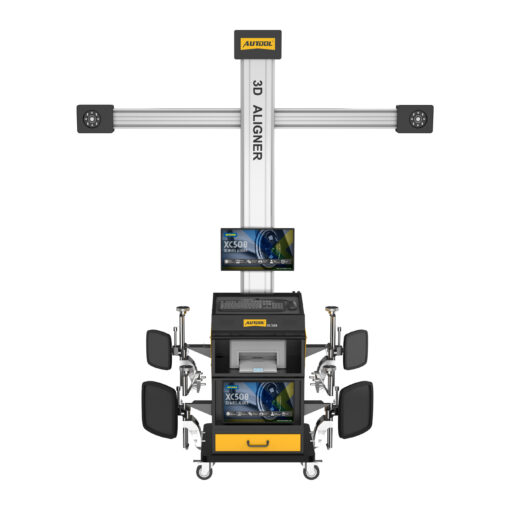

AUTOOL XC508 3D Wheel Alignment Machine-Tire Aligner System

AUTOOL XC508 3D Wheel Alignment Machine-Tire Aligner System-Fully Automatic Positioner

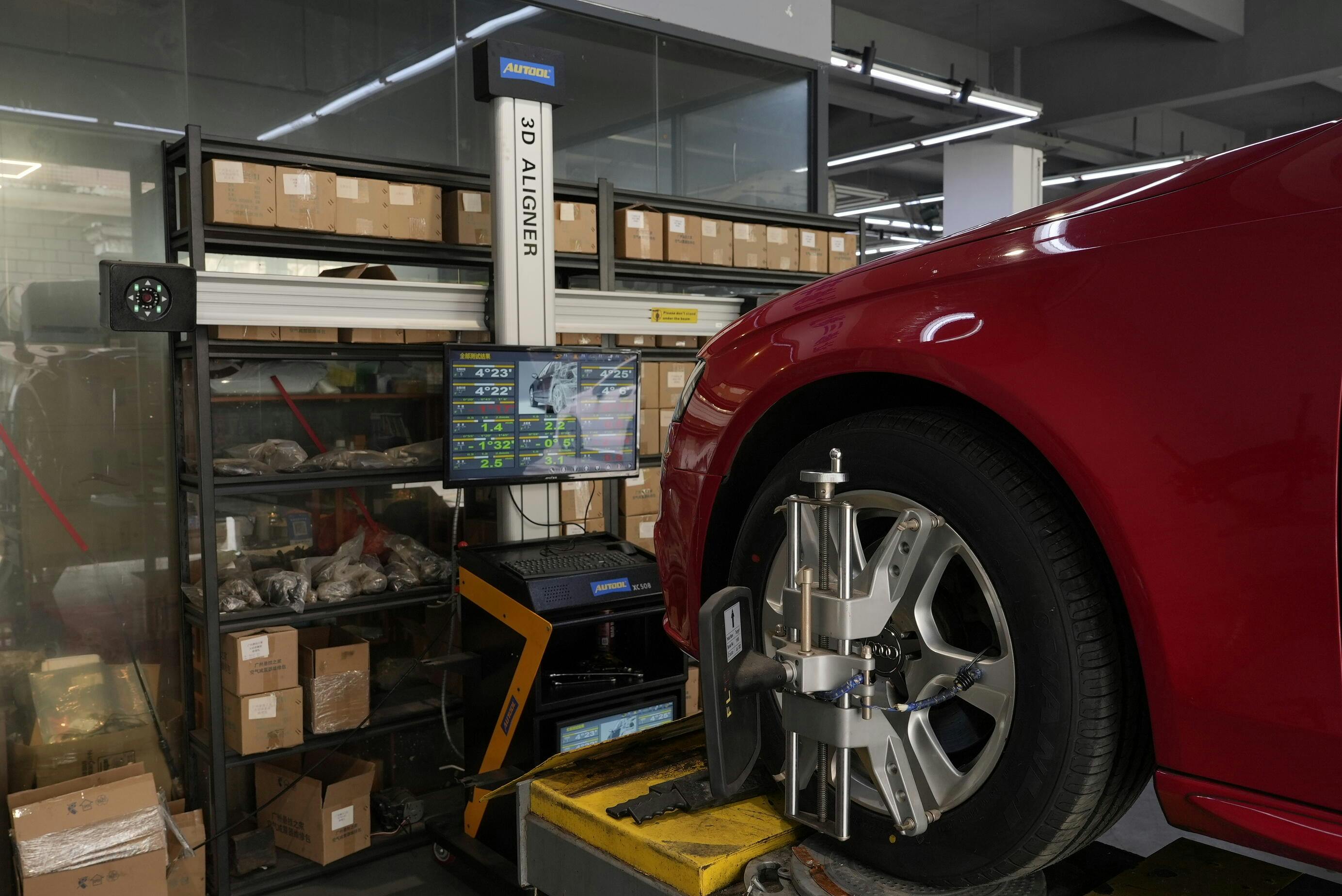

AUTOOL 3D four-wheel aligner is used to detect the positioning parameters of car wheels and compare them with the original design parameters to guide the user to adjust the wheel positioning parameters accordingly so that they meet the original design requirements to achieve ideal car driving performance, easy to operate, stable and reliable driving, and reduces partial wear of tires.

Warm Tips

• The 3D four-wheel aligner uses AC mains power: 1PH AC220V±10% 50Hz or 1PH AC110V±10% 60Hz. Regularly check if the power connection is secure and if the cable is damaged. If the power supply voltage is unstable, use an AC voltage stabilizer.
• After vehicle maintenance, check and tighten all loose bolts and components to ensure safety. The 3D wheel aligner uses computer vision technology to identify the target mounted on the wheel through a high-resolution camera. Avoid blocking the light path between the target and the camera for a long time while the instrument is working.
• Do not install the 3D wheel aligner on a vibrating object or an inclined plane. Protect it from direct sunlight and moisture. The target of the 3D four-wheel aligner is essential for testing. Do not damage its structure during use or storage, and keep the surface clean. If stains appear, wipe them with a soft cloth and neutral detergent or absolute alcohol.
• The wires in the 3D wheel aligner column and the camera beam are tightly connected. Do not touch the wires after the initial installation. The camera has accurate calibration before leaving the factory. Do not open or adjust the camera during or after use.
• Do not dismantle columns, beams, or targets without the manufacturer’s authorization. Unauthorized disassembly can damage components, affect detection, and increase maintenance costs. The company will not warranty damage from unauthorized disassembly.

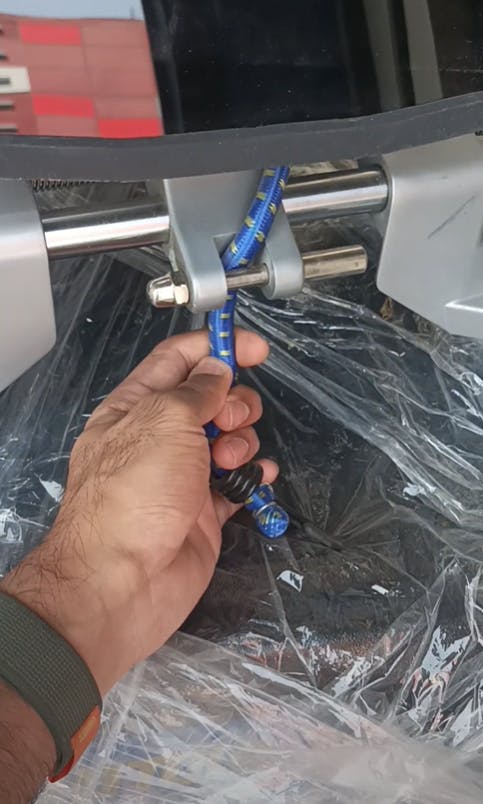

• When installing the wheel clamp, choose the method based on the rim’s condition. Use even force when tightening. After tightening, gently pull the wheel clamp to check its security. The camera of the 3D wheel aligner is a crucial optical component. Keep the filter surface clean; wipe stains gently with lens paper.
• Use even force when operating each knob and tighten appropriately. Do not apply excessive force to avoid damaging the locking mechanism. After use, cut off all power sources promptly. Do not operate the wheel alignment system in a flammable or explosive environment.
• Operators must implement appropriate fire protection measures at the measuring platform. Keep the equipment away from sources of fire, especially when you store flammable materials in the vehicle.

AUTOOL XC508 Manual

Download

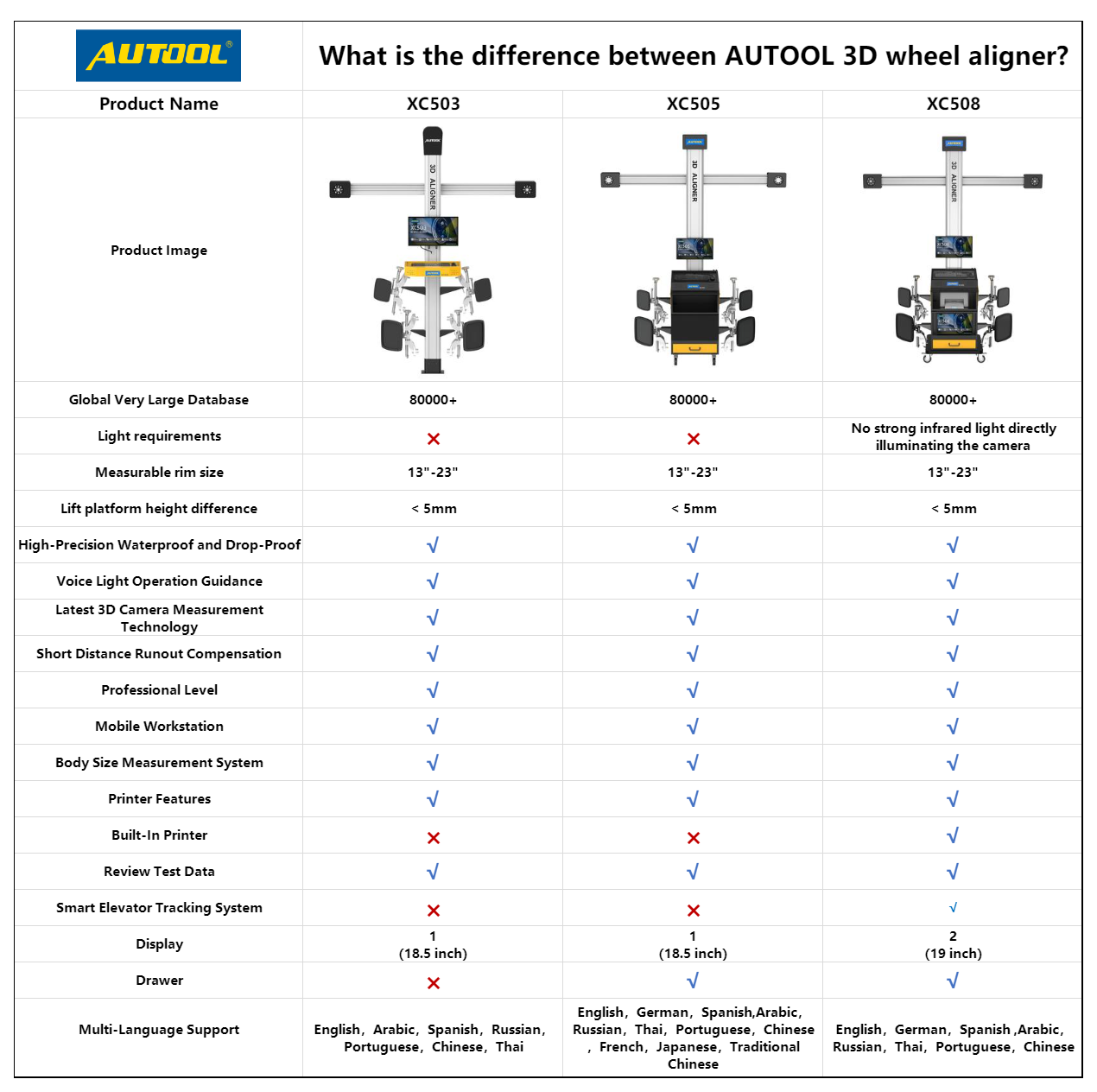

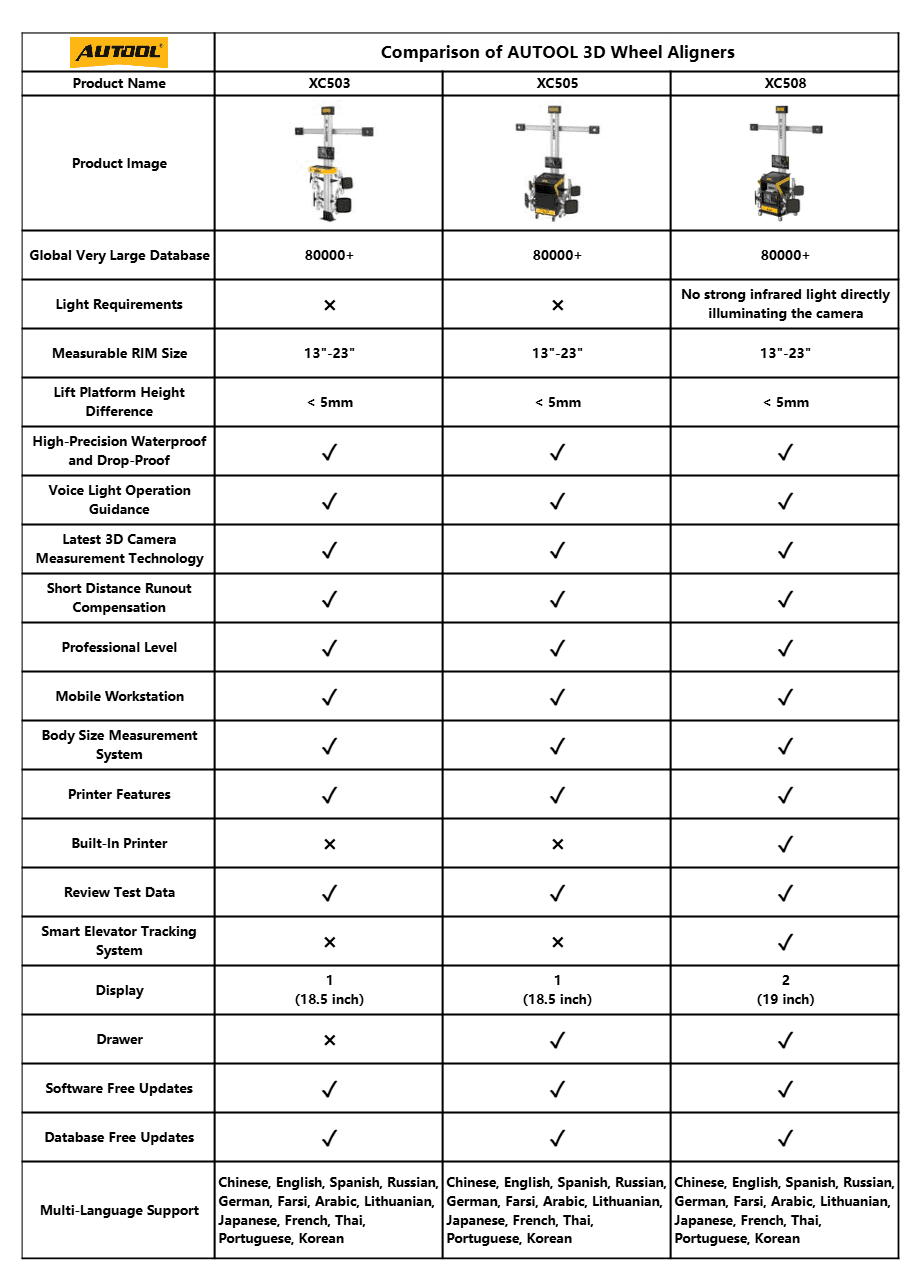

What Is The Difference Between AUTOOL 3D Wheel Alignment Machine?

AUTOOL 3D Wheel Alignment Machine Quick Search

-16%

+

Quick View

AUTOOL XC503 Export Mode car 3D Wheel Alignment Machine Equipment Wheel Aligner

7 reviews

$4999.00 $4199.00

-9%

+

Quick View

AUTOOL XC505 3D Wheel Aligner Machine Tire Alignment

7 reviews

$6599.00 $5999.00

-18%

New

+

Quick View

AUTOOL XC508 3D Wheel Alignment Machine-Tire Aligner System

7 reviews

$7999.00 $6599.00

AUTOOL XC508 3D Wheel Alignment Machine Features

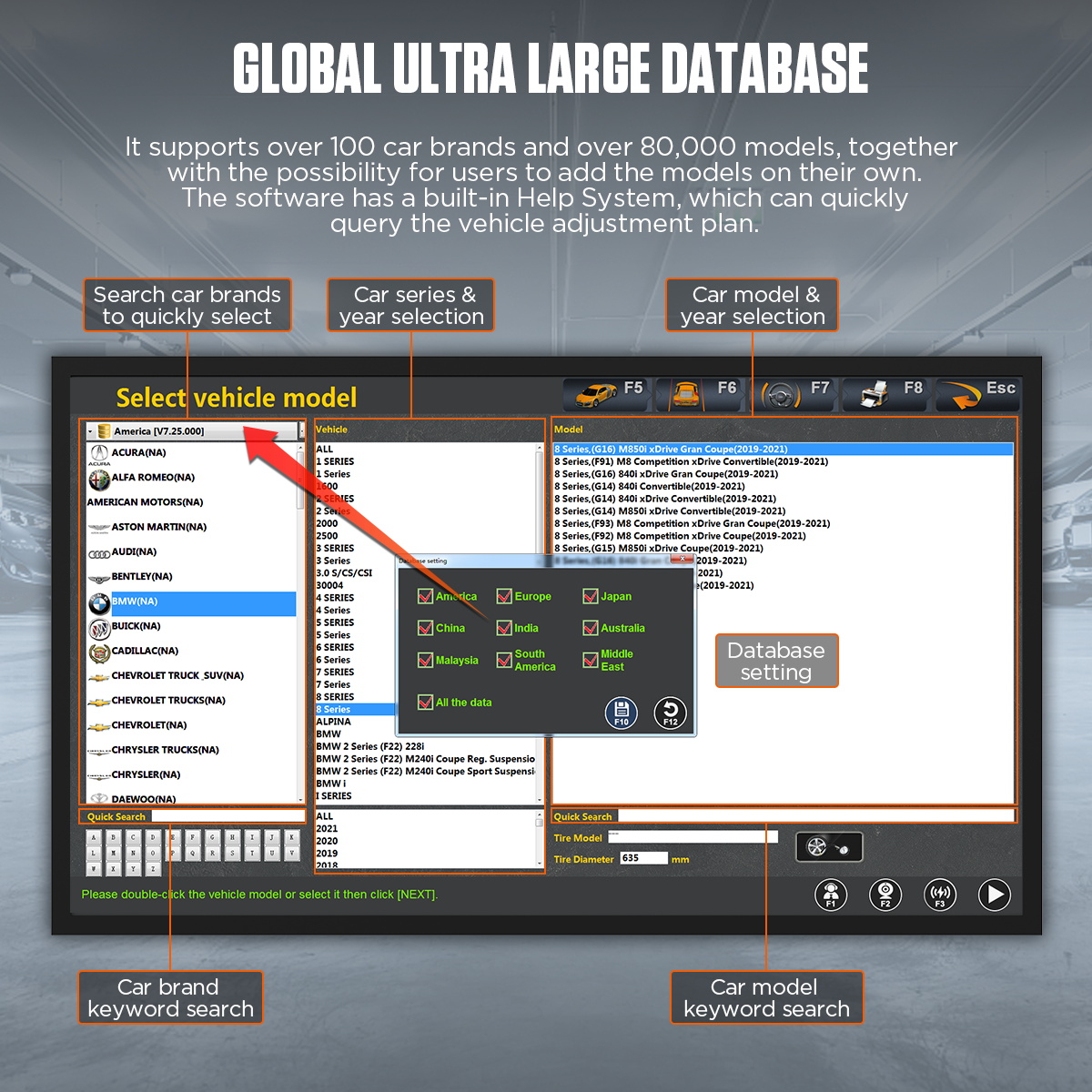

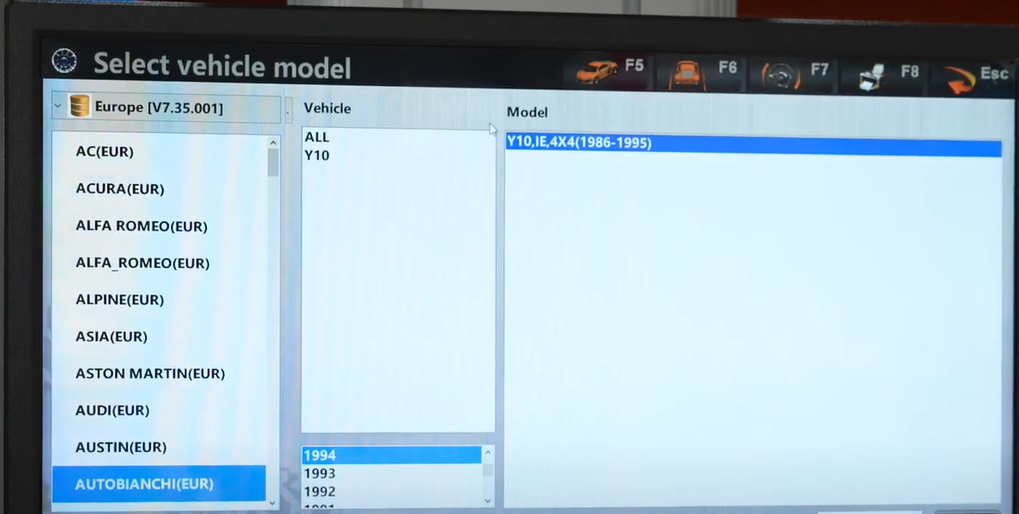

• Global Very Large Database: AUTOOL XC508 3D Wheel Alignment Machine supports more than 100 car brands and more than 50,000 car models, and users can add car models by themselves. In addition, the software has a built-in help system that can quickly query vehicle adjustment plans.

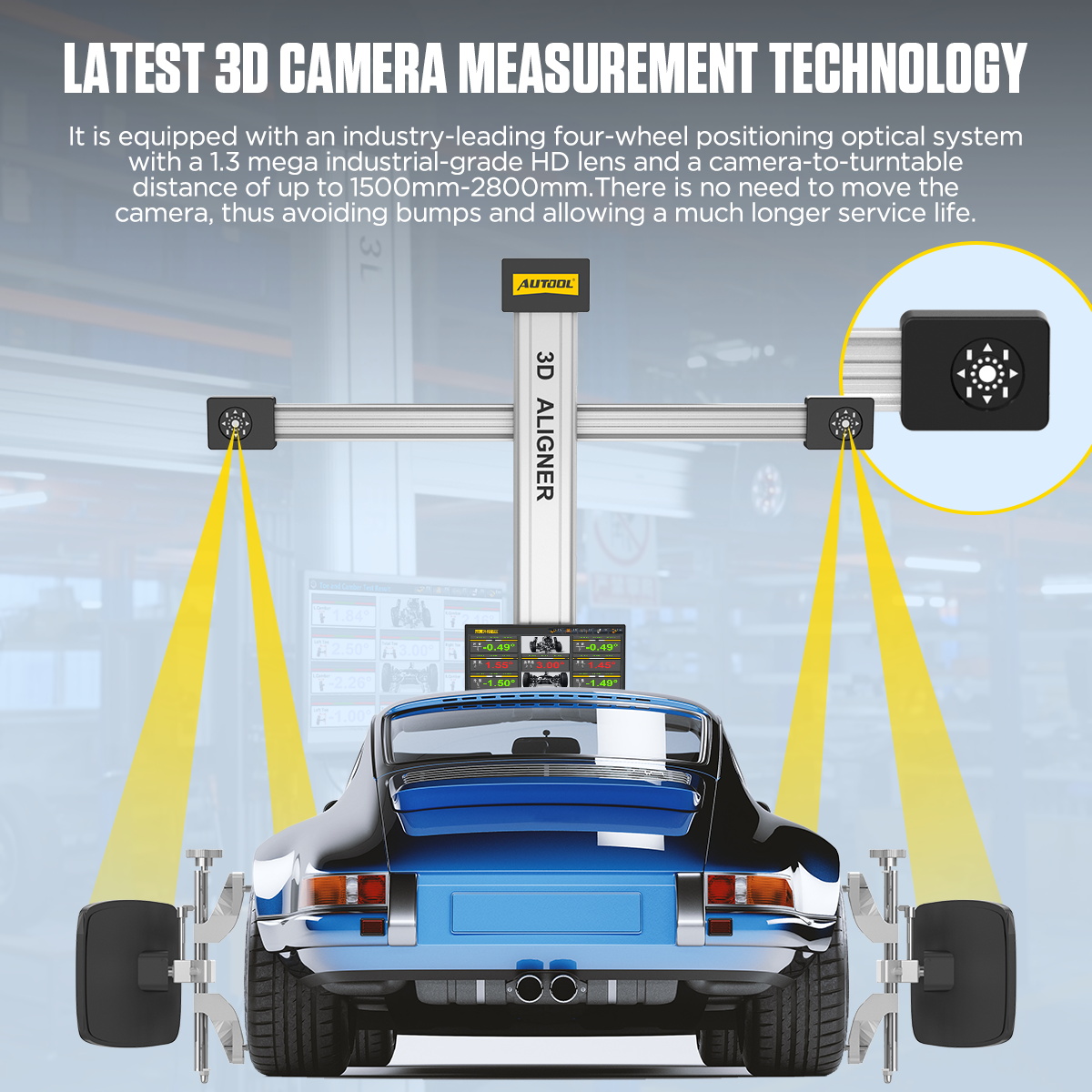

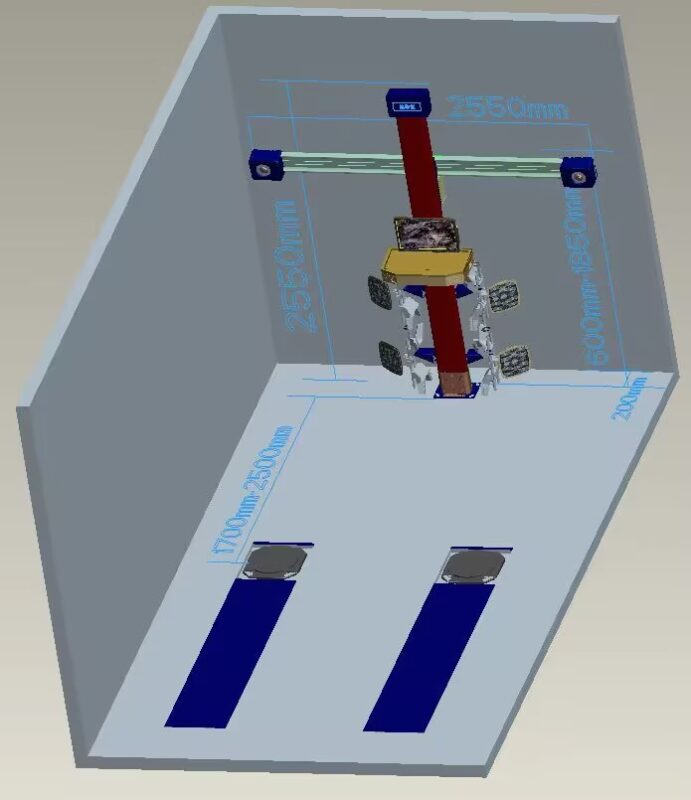

• Latest 3D Camera Measurement Technology: AUTOOL XC508 3D Wheel Alignment Machine is equipped with an industry-leading four-wheel alignment optical system and uses a 5-megapixel industrial-grade high-definition lens. The distance from the camera to the turntable can reach 1500 mm-2800 mm. Therefore, there is no need to move the camera when using the device, fully avoiding bumps, making shooting easier and the device having a longer service life.

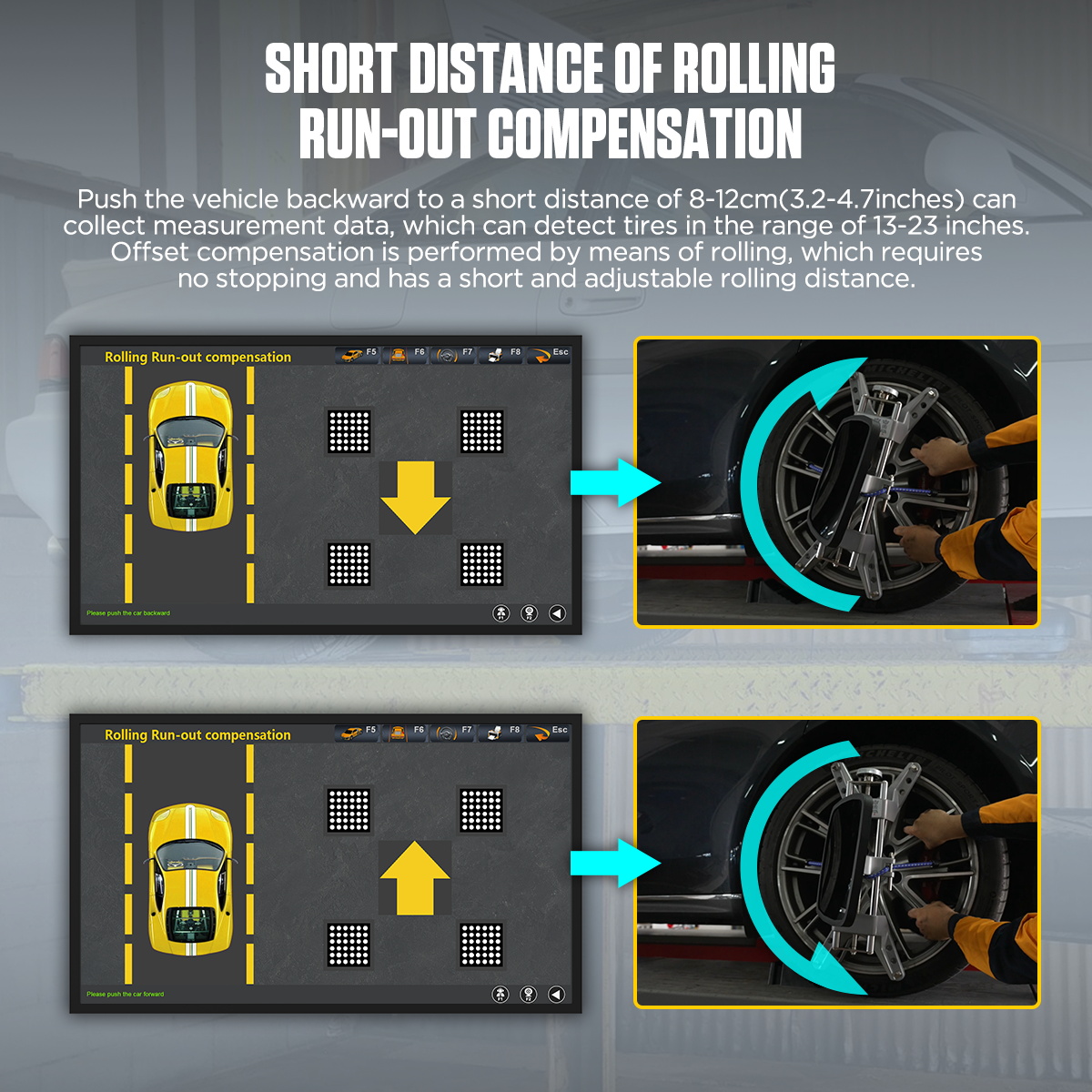

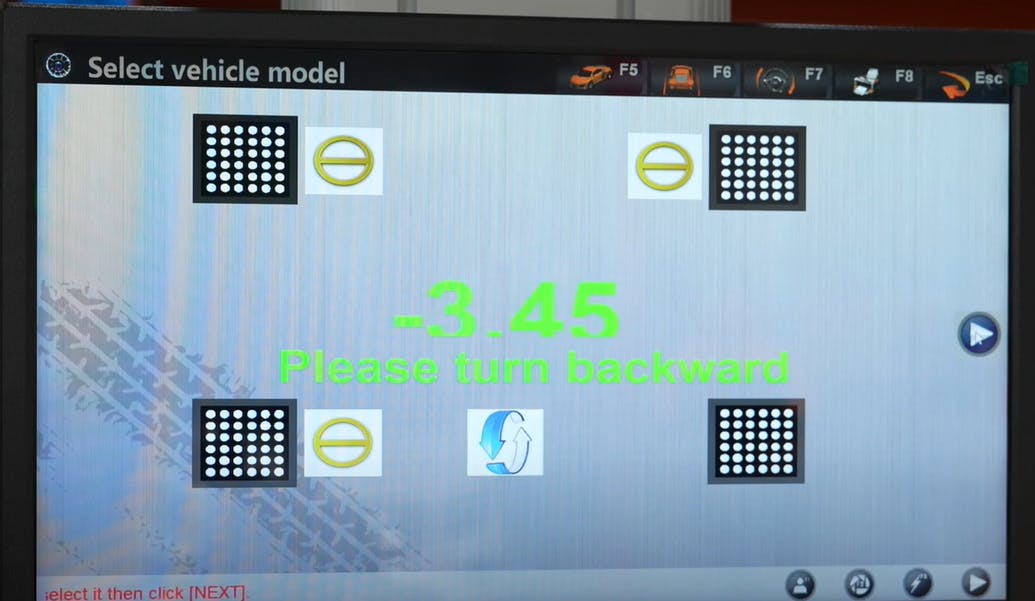

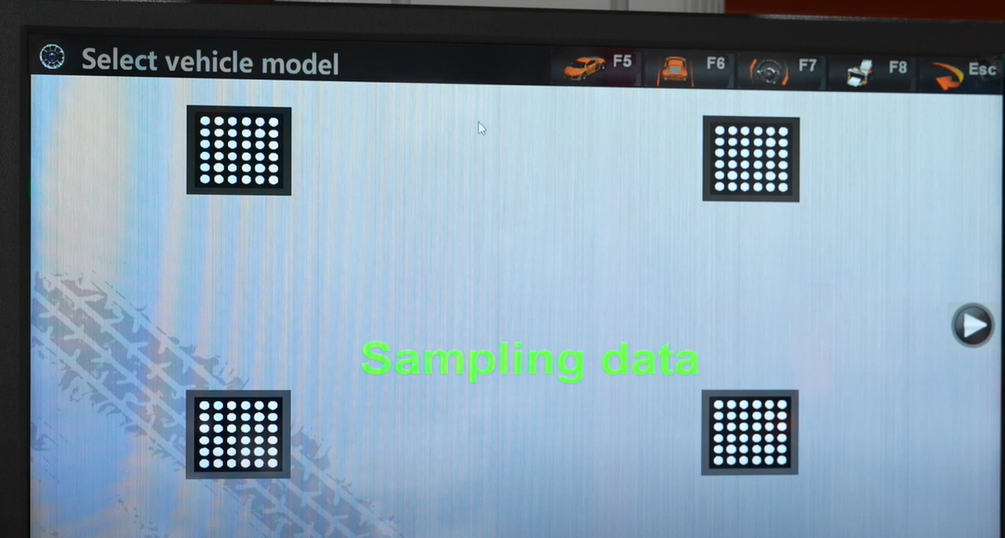

• Short Distance Runout Compensation: When using the Autool XC508 3D Wheel Alignment Machine, push the vehicle back 8-12 cm (3.2-4.7 inches) to collect measurement data, and can detect tires in the 13-23 inch range. Offset compensation is carried out through rolling, without stopping, it has a short-term compensation function, and the rolling distance can also be adjusted.

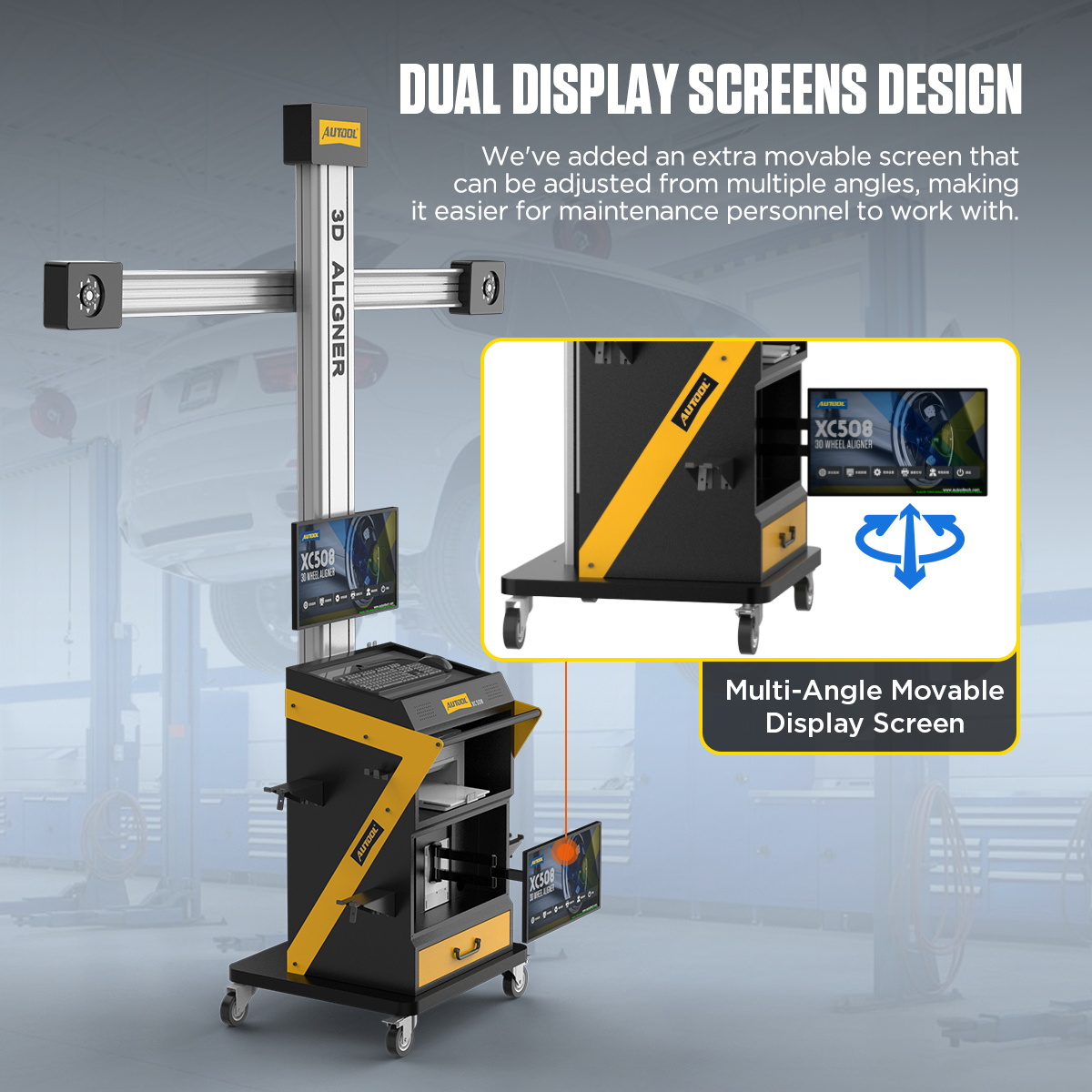

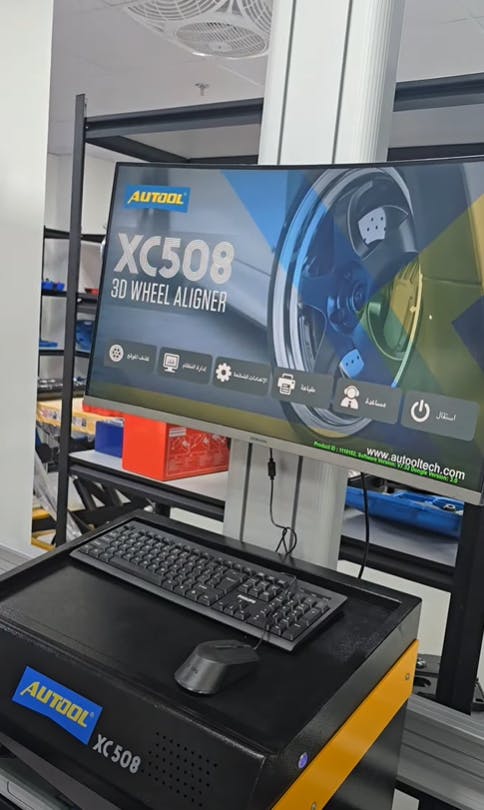

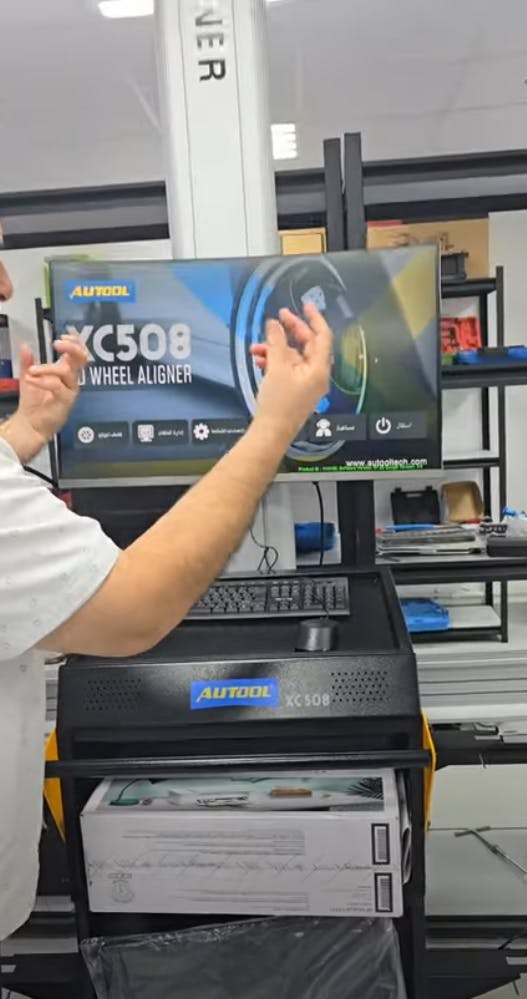

• Dual Display Design: We have added a movable screen to the Autool XC508 3D Wheel Alignment Machine, which can be adjusted at multiple angles to facilitate maintenance personnel’s operation.

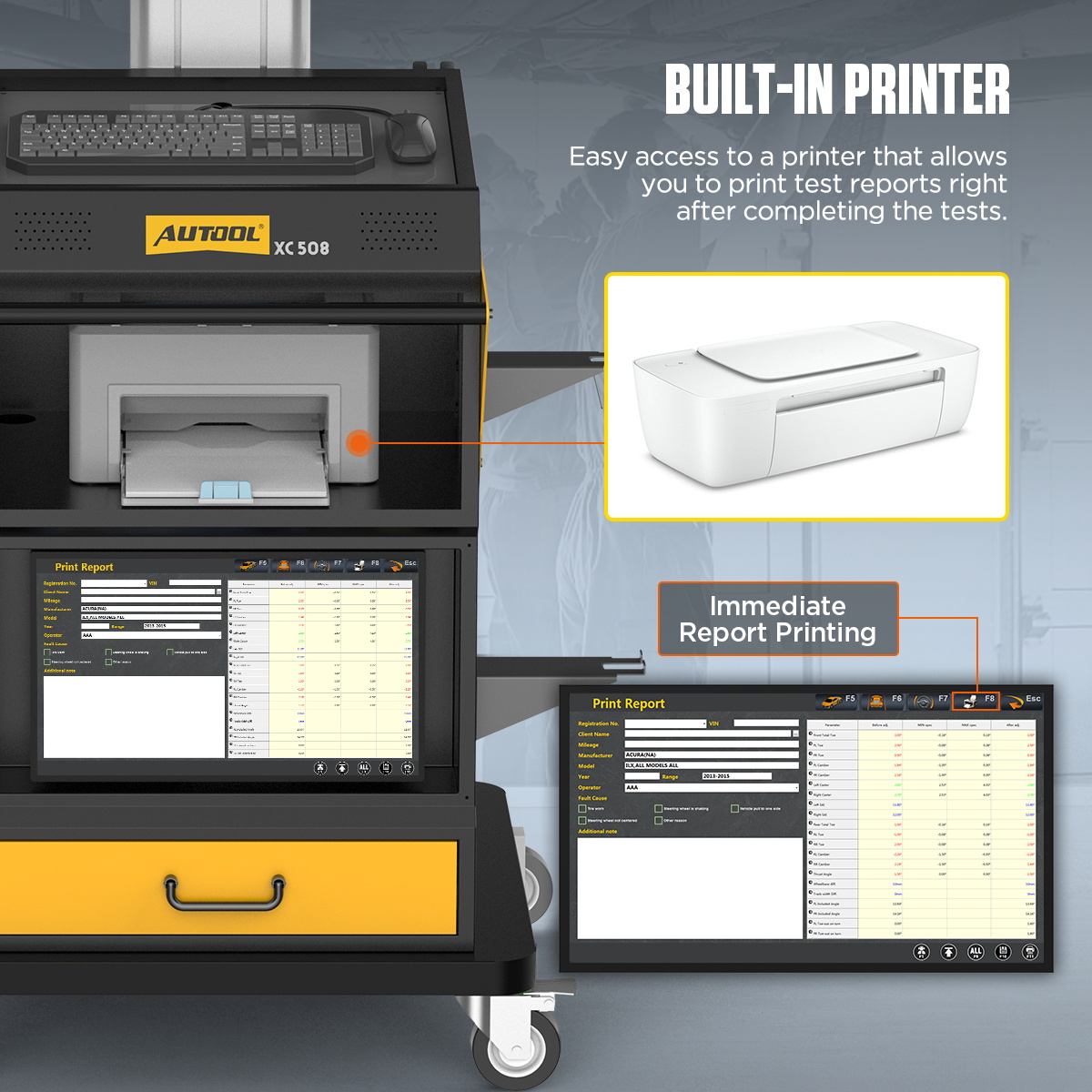

• Built-In Printer: AUTOOL XC508 3D Wheel Alignment Machine also comes with a built-in printer for easy use, allowing you to print test reports immediately after completing the test.

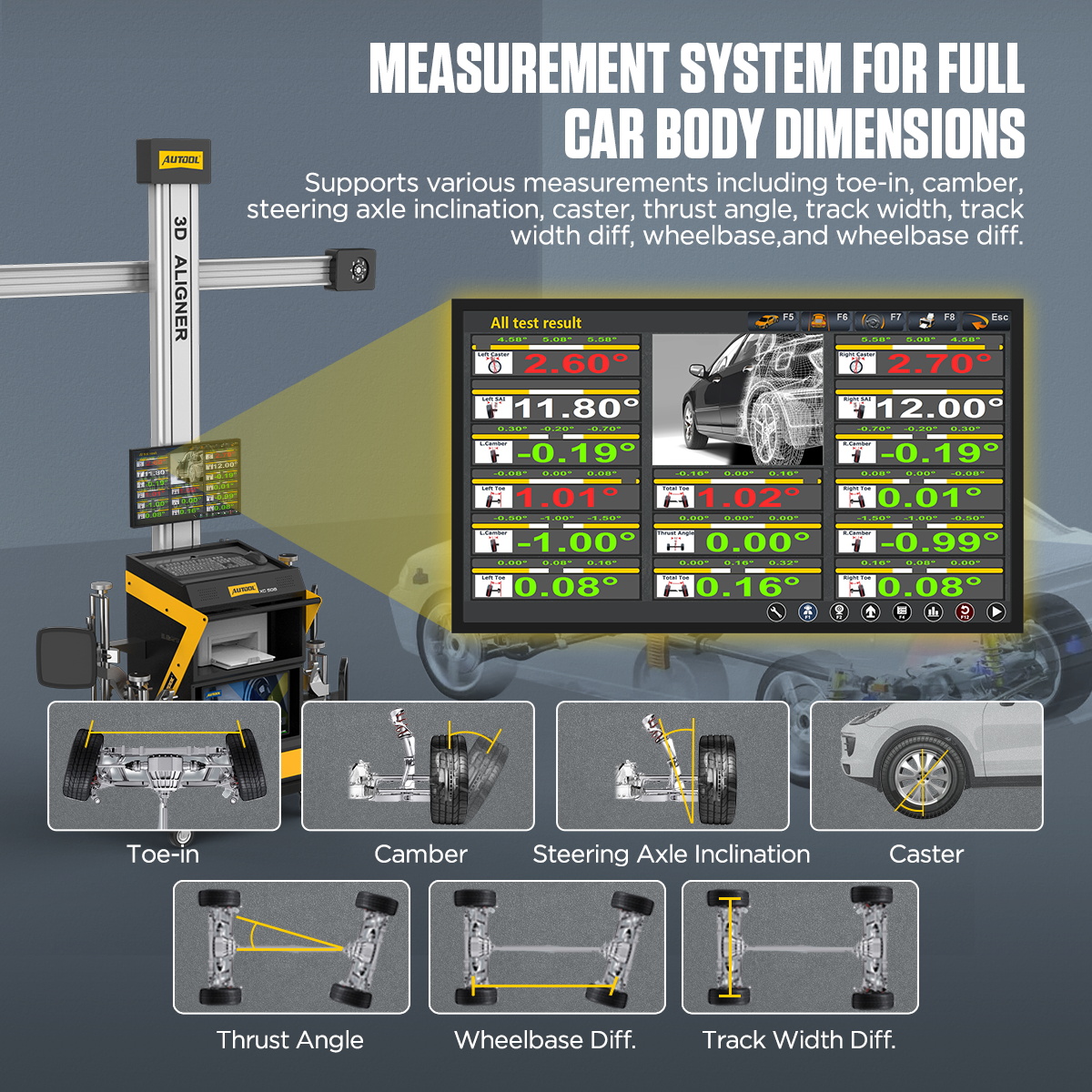

• Body Size Measurement System: AUTOOL XC508 3D Wheel Alignment Machine supports a variety of measurements including toe, camber, caster, thrust angle, track, track difference, wheelbase, and wheelbase difference

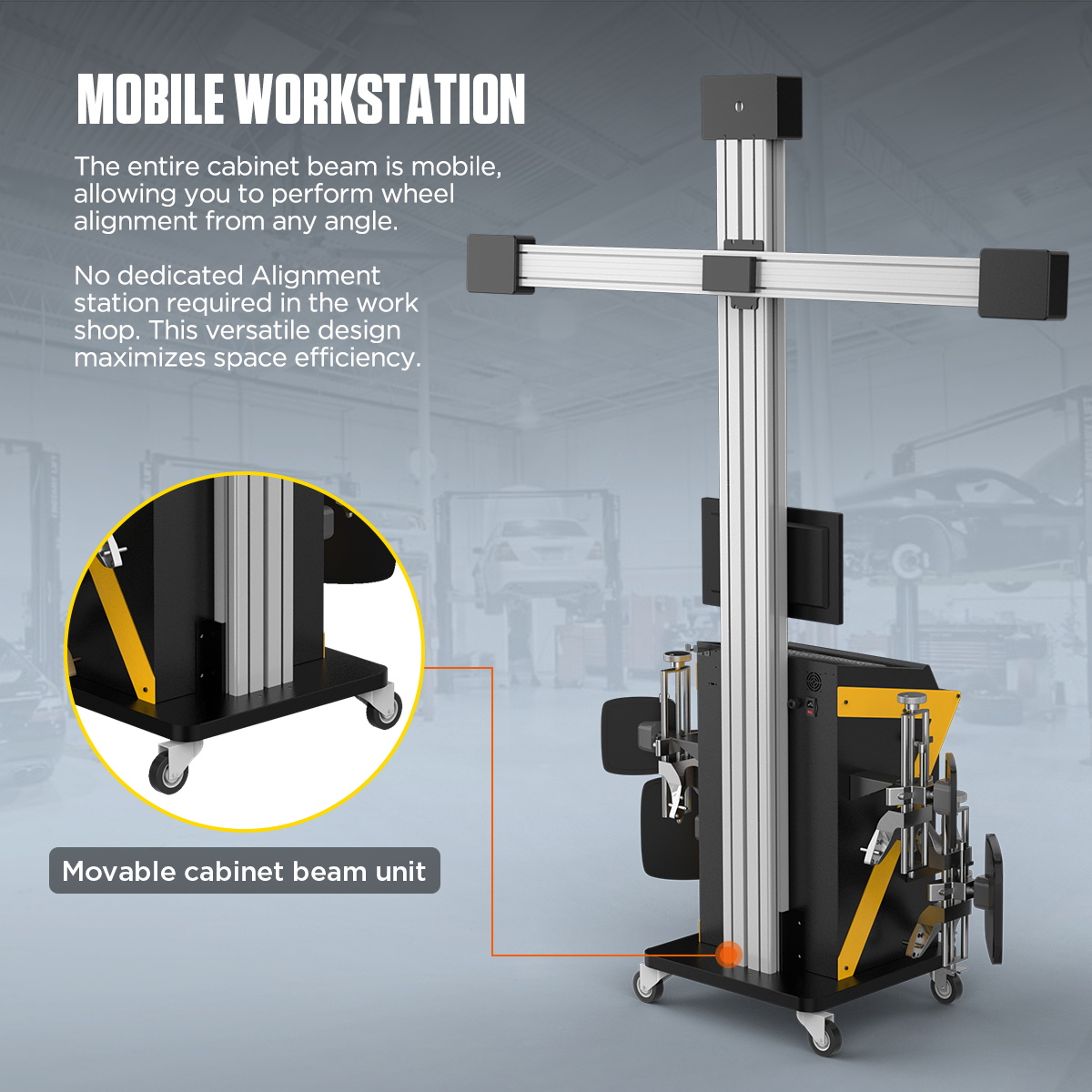

• Mobile Workstation: The entire cabinet crossbar of the Autool XC508 3D Wheel Alignment Machine is removable, allowing wheel alignment from any angle. In addition, there is no need for a dedicated alignment station in the workshop. This versatile design maximizes space efficiency.

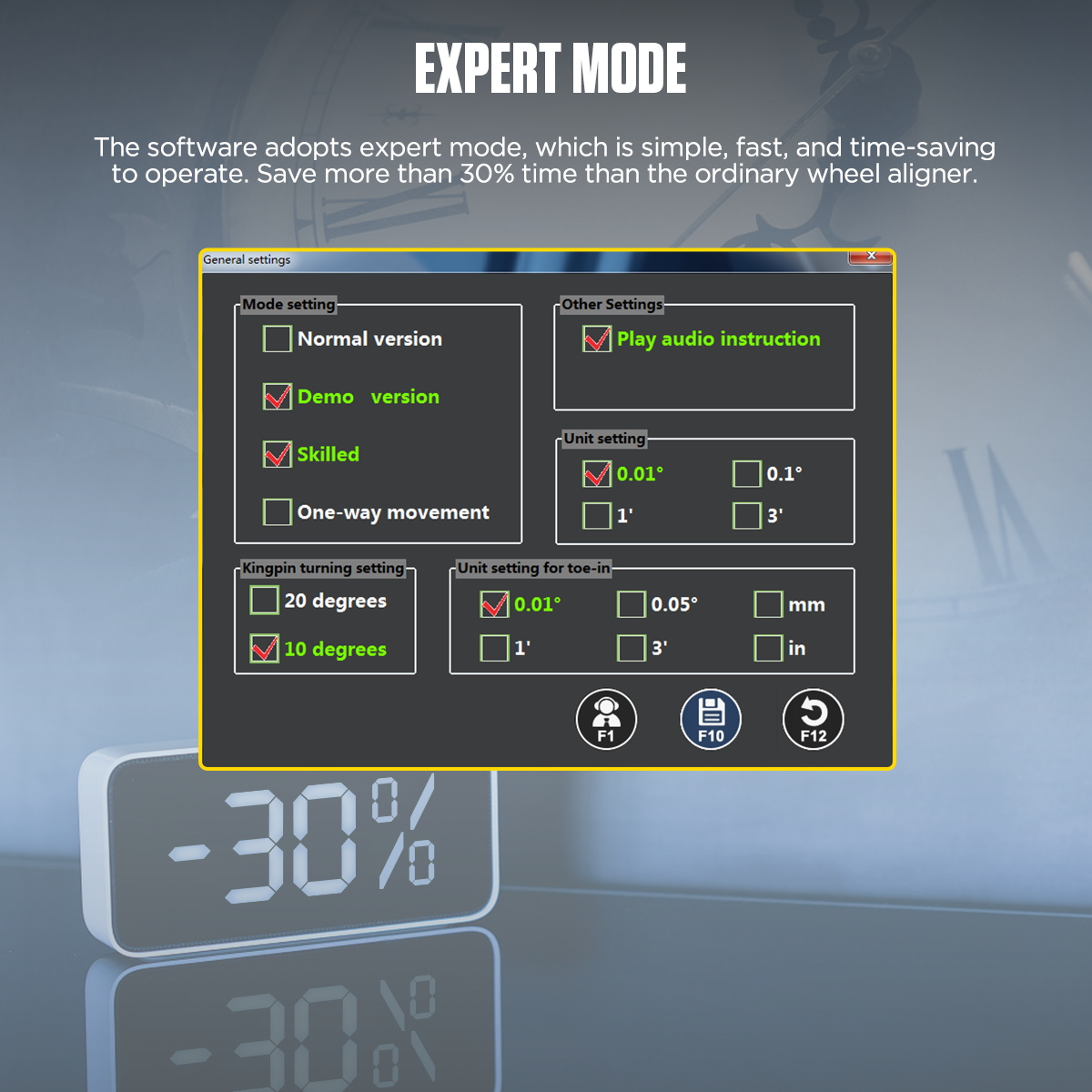

• Professional Level: The software of AUTOOL XC508 3D Wheel Alignment Machine adopts expert mode for simple, fast, and time-saving operation. It saves more than 30% of the time compared with ordinary wheel aligners.

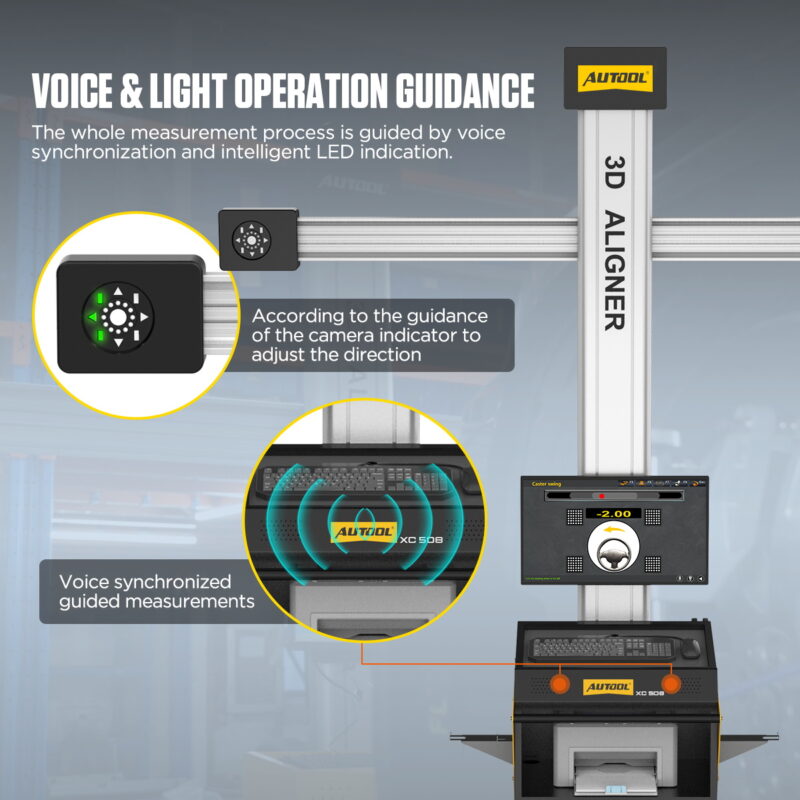

• Voice Light Operation Guidance: The entire measurement process of the AUTOOL XC508 3D Wheel Alignment Machine is guided by voice synchronization and smart LED instructions.

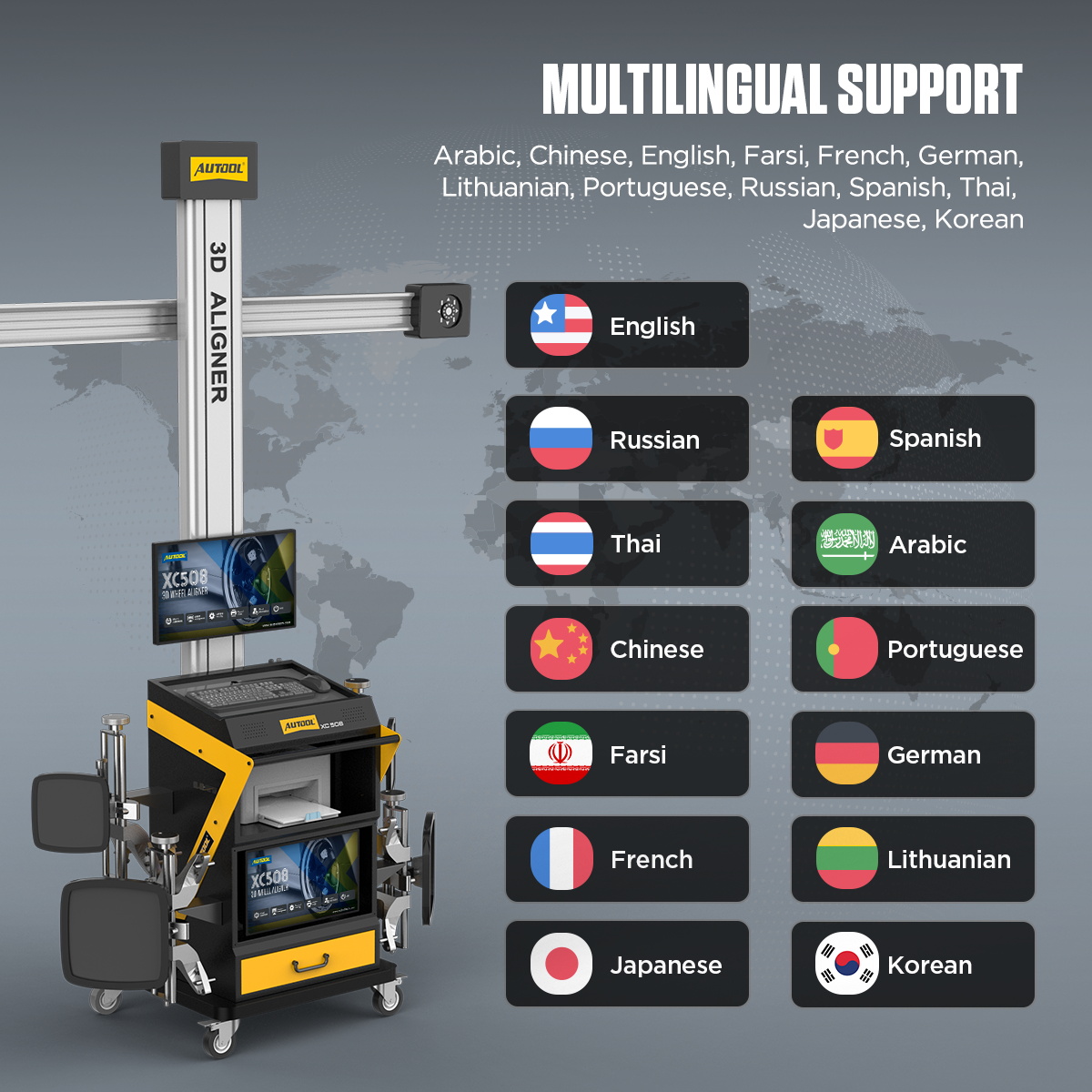

• Multi-Language Support: AUTOOL XC508 3D Wheel Alignment Machine supports multiple languages, including English, Spanish, Russian, Arabic, Thai, Portuguese, Chinese, and German.

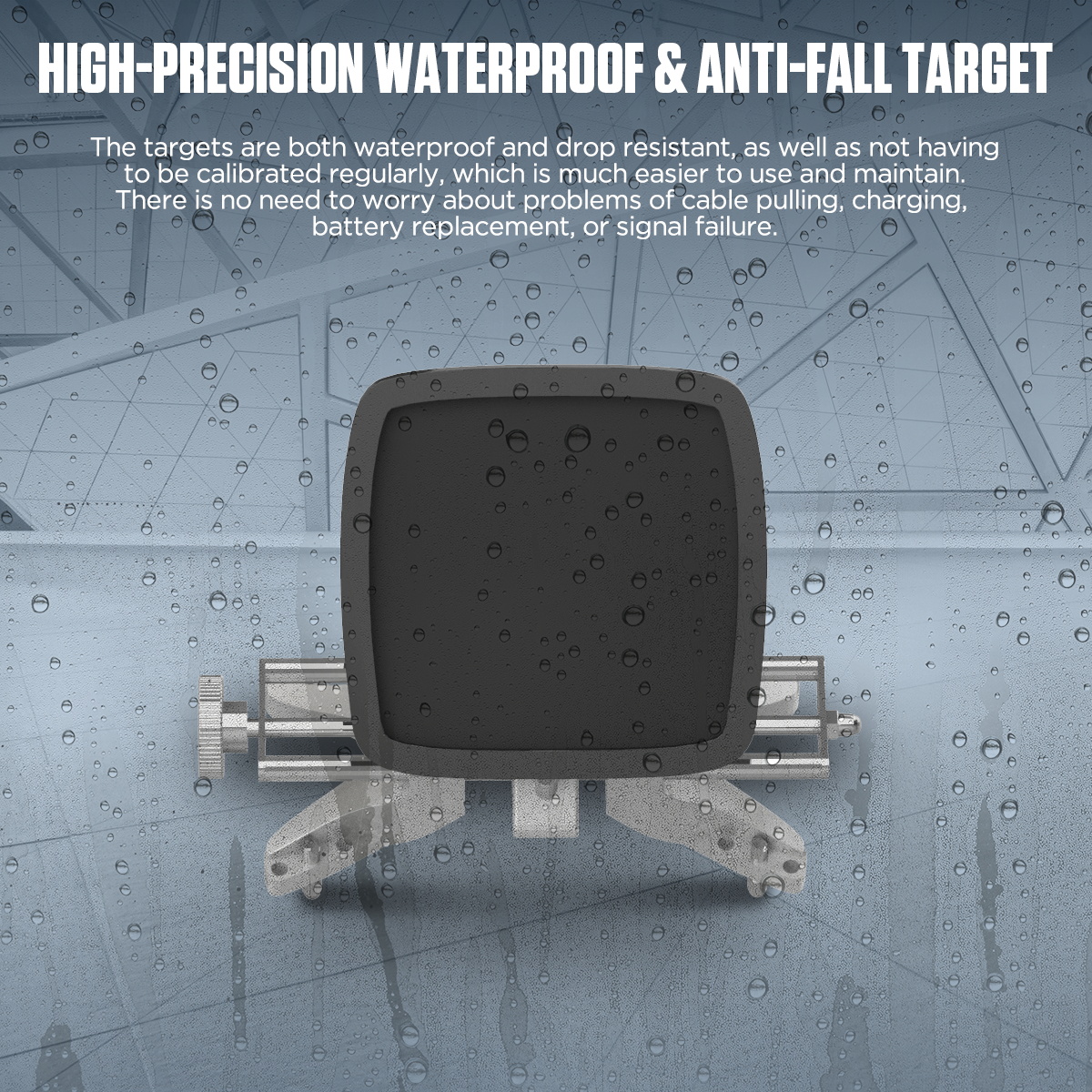

• High-Precision Waterproof and Drop-Proof: AUTOOL XC508 3D Wheel Alignment Machine is both waterproof and drop-proof, and does not require regular calibration, making it more convenient to use and maintain. At the same time, there is no need to worry about pulling cables, charging, replacing batteries, or signal failure.

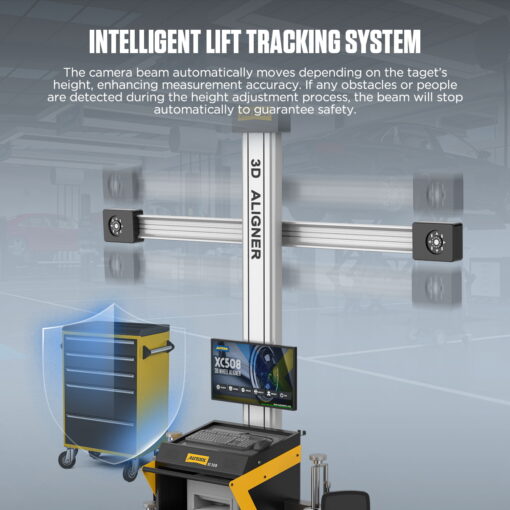

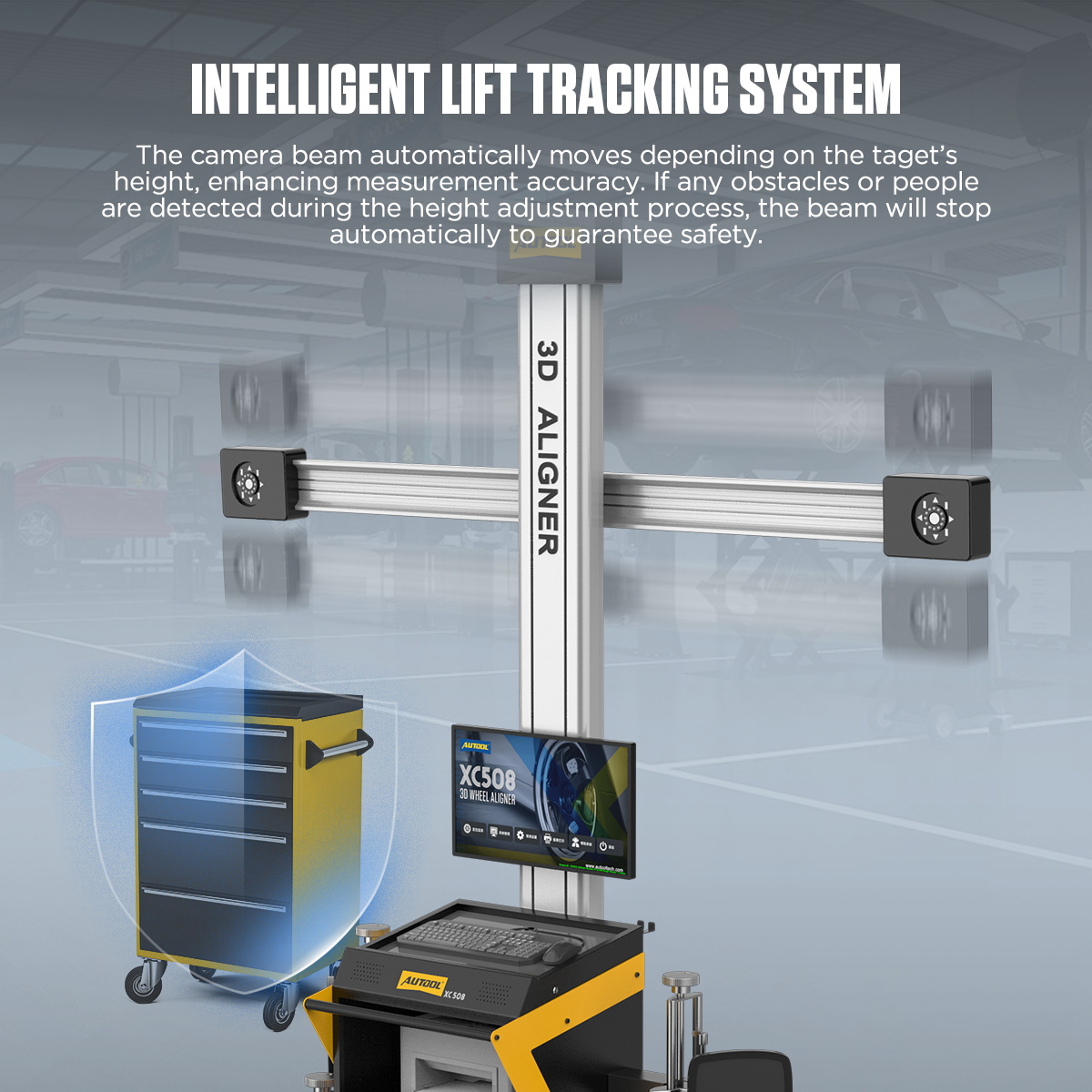

• Smart Elevator Tracking System: The camera beam of the AUTOOL XC508 3D Wheel Alignment Machine automatically moves according to the target height to improve measurement accuracy. During the height adjustment process, if an obstacle or person is detected, the crossbeam will automatically stop to ensure safety.
• Three-Year Warranty, Lifetime Maintenance:  For damage caused by non-human factors, we promise to resend parts for free within 3 years.

AUTOOL XC508 3D Wheel Alignment Machine Functions

• Boasts a global database with over 50,000 vehicle models.
• Intelligent tracking elevation system.
• Dual display screen design.
• Features a movable workstation.
• Includes a printer, allowing for immediate printing of test results.
• Features high-precision, waterproof, and drop-resistant targets.
• Includes a comprehensive vehicle size measurement system.
• Utilizes 3D camera measurement technology.
• Supports various language settings.
• Integrated Cabinet Design.
• Support Software Upgrade.
• Allows for uninterrupted and adjustable rolling run-out distance, with short rolling requirements.
• Expert mode is provided in the software for simple and time-saving operations.

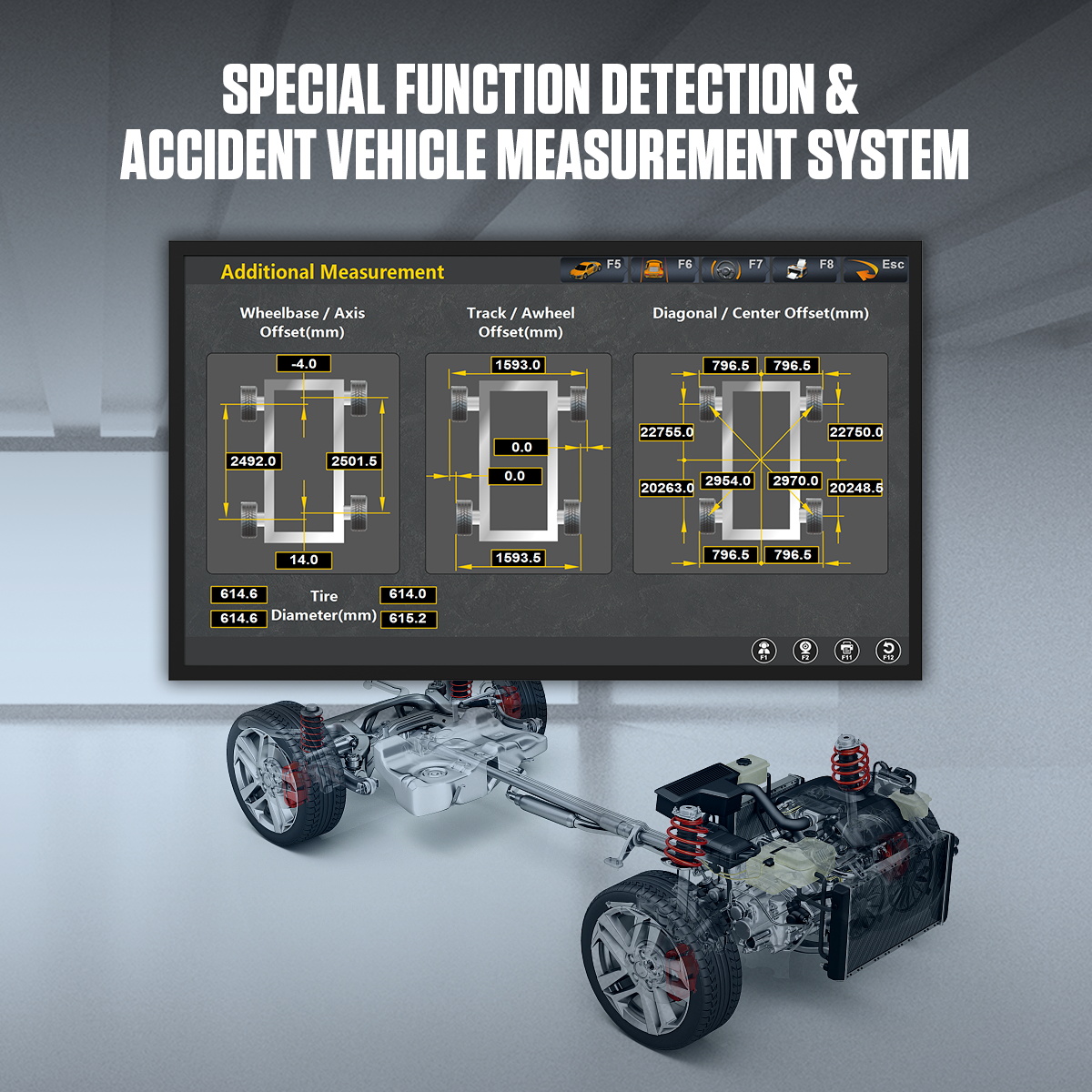

• Equipped with special functionality for accident vehicle measurement systems
• Offers full voice guidance synchronized with LED intelligent indicators for the measurement process.

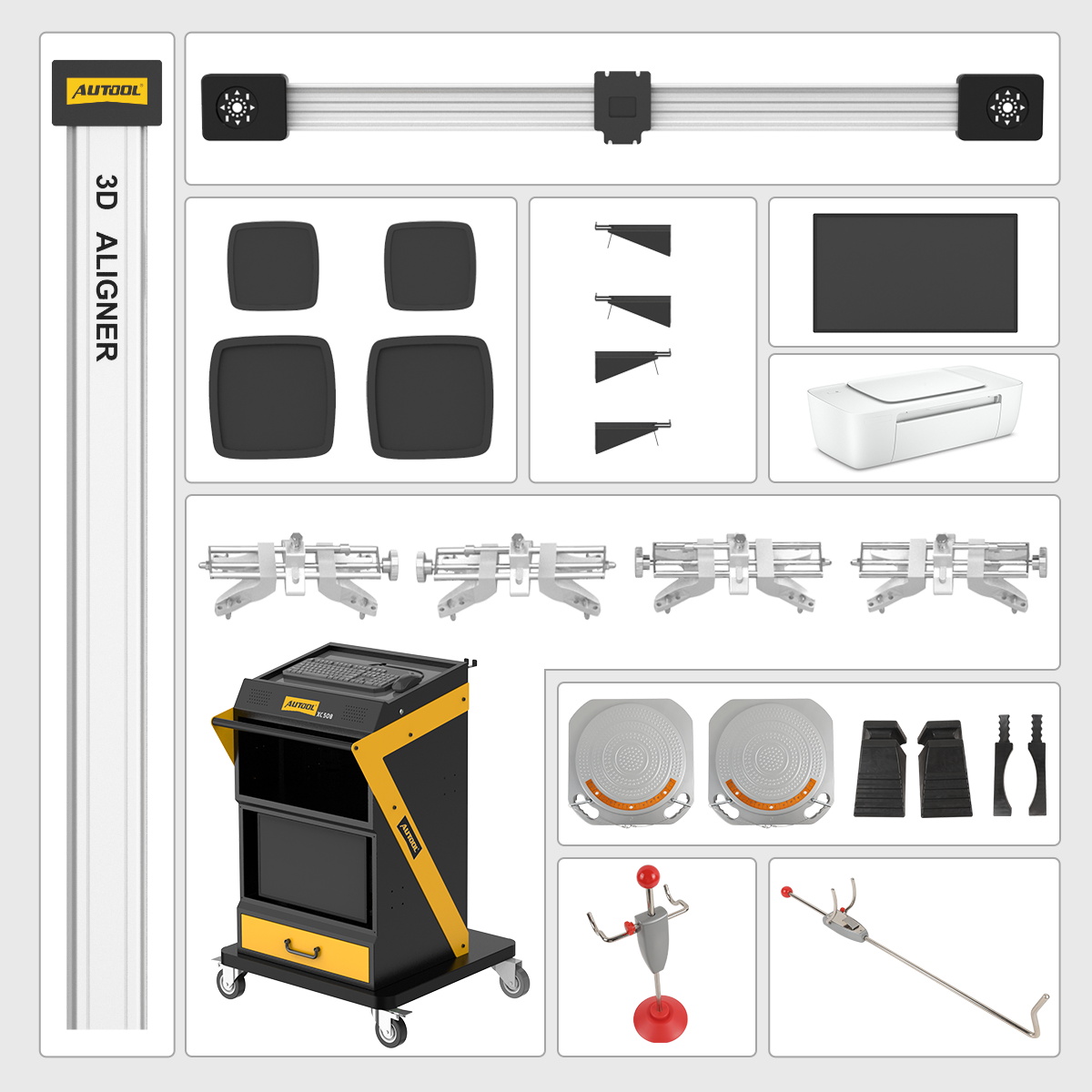

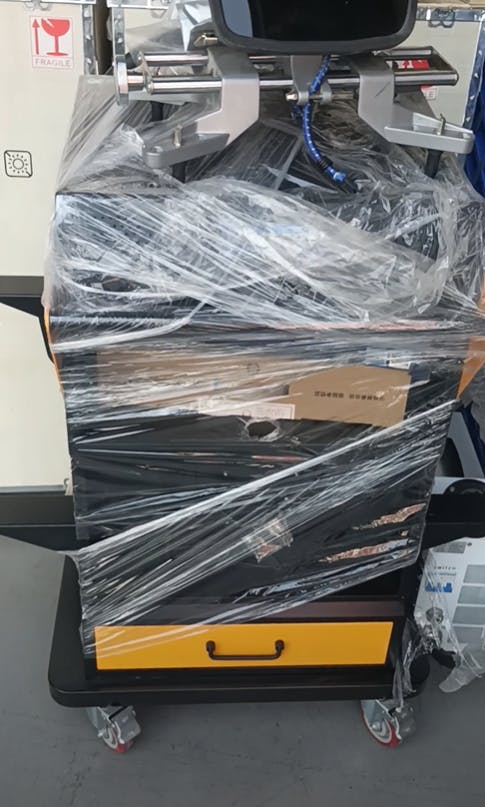

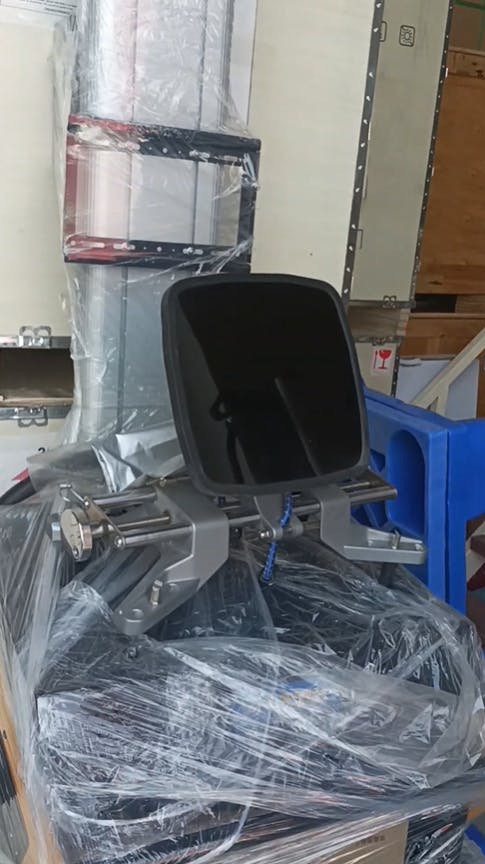

Packing List
