AUTOOL XC505 3D Wheel Aligner Machine Tire Alignment

AUTOOL XC505 Export Mode Car 3D Wheel Aligner Machine Equipment Wheel Alignment

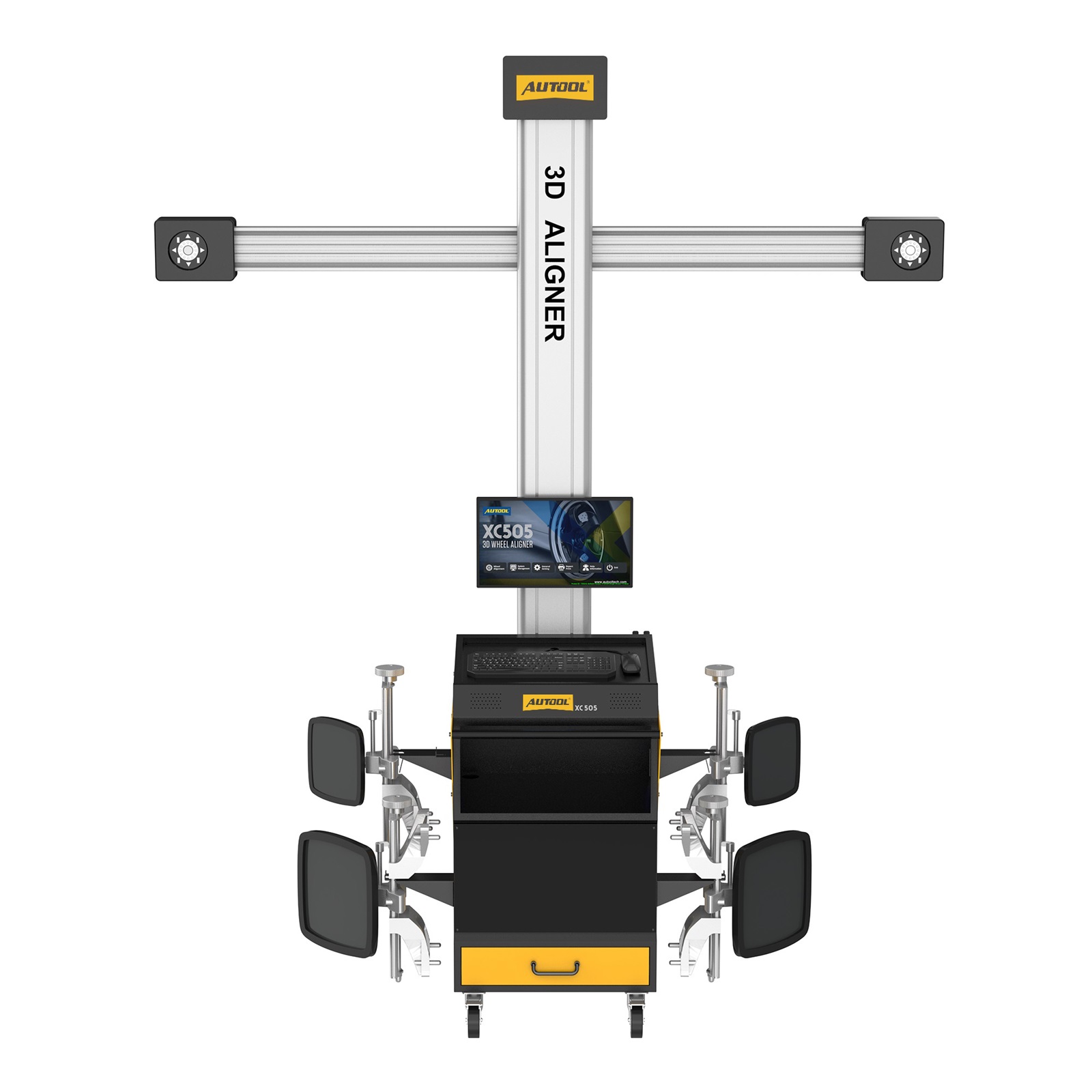

The AUTOOL XC505 3D wheel alignment system tests wheel parameters and references manufacturer specifications. Operators compare these parameters to adjust the wheels, ensuring they remain in good condition and preventing excessive tire wear. The system includes a vast database with 106 car brands and over 50,000 models, plus options for user-defined models.

Warm Tips

• The 3D four-wheel aligner uses AC mains power: 1PH AC220V±10% 50Hz or 1PH AC110V±10% 60Hz. Regularly check if the power connection is secure and if the cable is damaged. If the power supply voltage is unstable, use an AC voltage stabilizer.
• After vehicle maintenance, check and tighten all loose bolts and components to ensure safety. The 3D wheel aligner uses computer vision technology to identify the target mounted on the wheel through a high-resolution camera. Avoid blocking the light path between the target and the camera for a long time while the instrument is working.
• Do not install the 3D wheel aligner on a vibrating object or an inclined plane. Protect it from direct sunlight and moisture. The target of the 3D four-wheel aligner is essential for testing. Do not damage its structure during use or storage, and keep the surface clean. If stains appear, wipe them with a soft cloth and neutral detergent or absolute alcohol.
• The wires in the 3D wheel aligner column and the camera beam are tightly connected. Do not touch the wires after the initial installation. The camera has accurate calibration before leaving the factory. Do not open or adjust the camera during or after use.
• Do not dismantle columns, beams, or targets without the manufacturer’s authorization. Unauthorized disassembly can damage components, affect detection, and increase maintenance costs. The company will not warranty damage from unauthorized disassembly.
• When installing the wheel clamp, choose the method based on the rim’s condition. Use even force when tightening. After tightening, gently pull the wheel clamp to check its security. The camera of the 3D wheel aligner is a crucial optical component. Keep the filter surface clean; wipe stains gently with lens paper.
• Use even force when operating each knob and tighten appropriately. Do not apply excessive force to avoid damaging the locking mechanism. After use, cut off all power sources promptly. Do not operate the wheel alignment system in a flammable or explosive environment.
• Operators must implement appropriate fire protection measures at the measuring platform. Keep the equipment away from sources of fire, especially when you store flammable materials in the vehicle.

AUTOOL XC503/XC505 Manual

Download

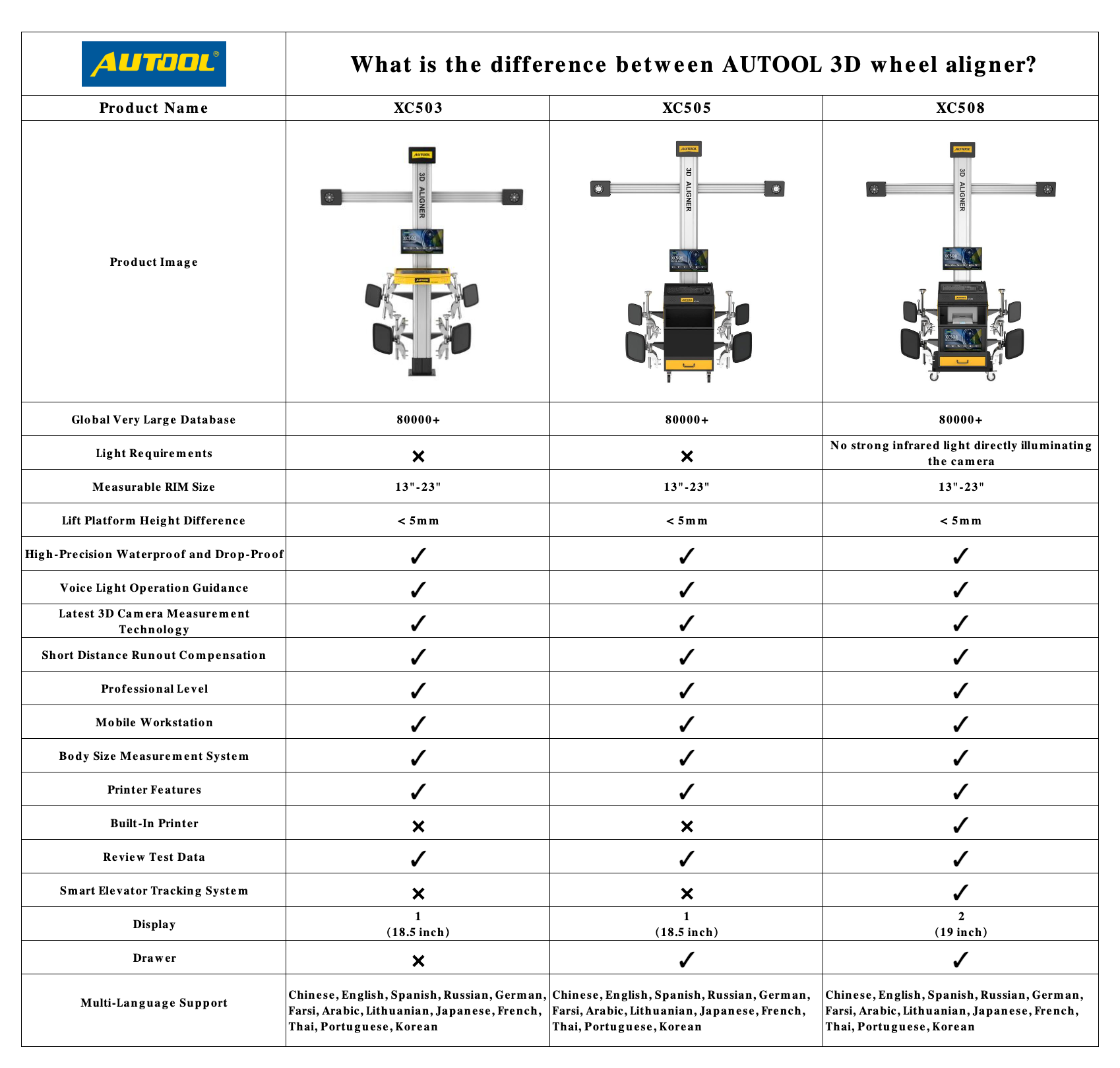

What Is The Difference Between AUTOOL 3D Wheel Aligner Machine?

AUTOOL 3D Wheel Aligner Machine Quick Search

+

Quick View

AUTOOL XC503 Export Mode car 3D Wheel Alignment Machine Equipment Wheel Aligner

6 reviews

$5499.00

NEW

+

Quick View

AUTOOL XC505 3D Wheel Aligner Machine Tire Alignment

6 reviews

$6799.00

-20%

+

Quick View

AUTOOL XC508 3D Wheel Alignment Machine-Tire Aligner System

4 reviews

$7999.00 $6399.00

AUTOOL XC505 3D Wheel Aligner Features

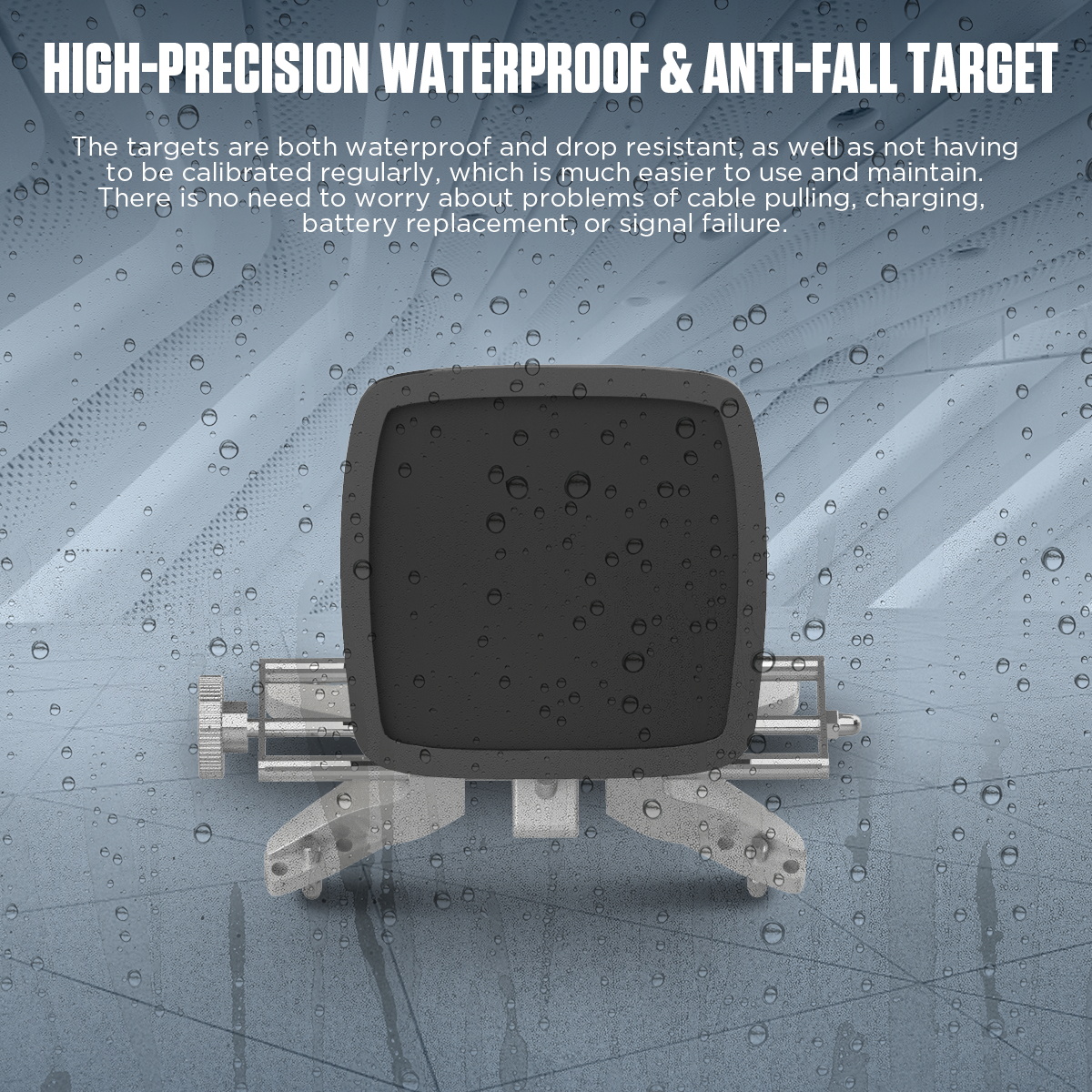

• High-precision Target with Waterproof and Fall Resistance: The Autool XC505 is equipped with a professionally designed target that is waterproof and anti-falling, ensuring the high precision, high repeatability, and high reliability of aligning technology.
• High Precision Technology: The Autool XC505 adopts high-precision technology to accurately receive data and signals, without the trouble of cable dragging, charging, battery replacement, and signal failure.

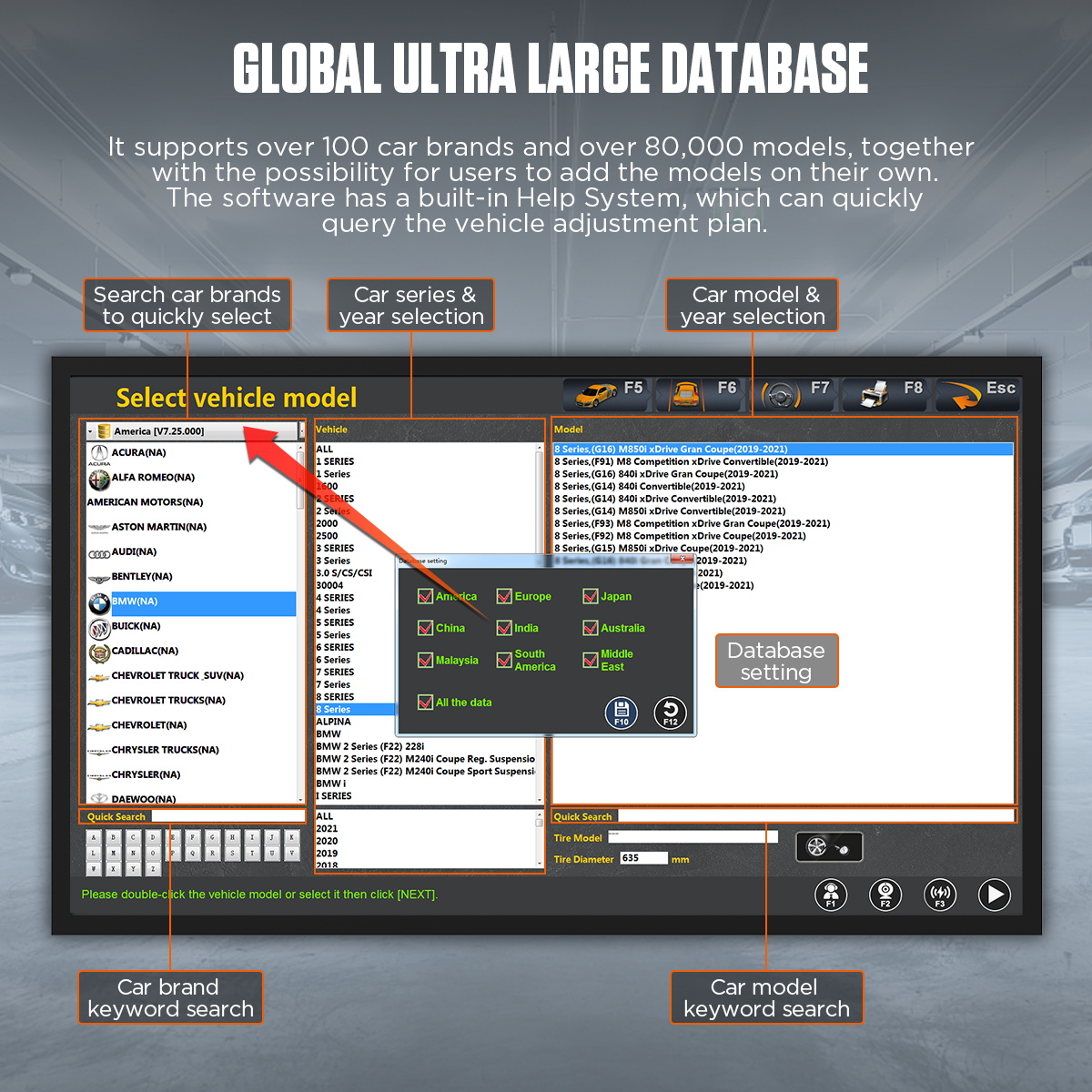

• Global Database: The Autool XC505 features a unique, comprehensive, and accurate database. It can acquire vehicle chassis data and support rapid selection of vehicle brands, series, and years, as well as vehicle models and years. The database settings include brand keyword search and model keyword search. It contains over 100 auto brands and more than 50,000 models, with support for users to add customized models. The software includes built-in assistance for quick querying of vehicle adjustment schemes.

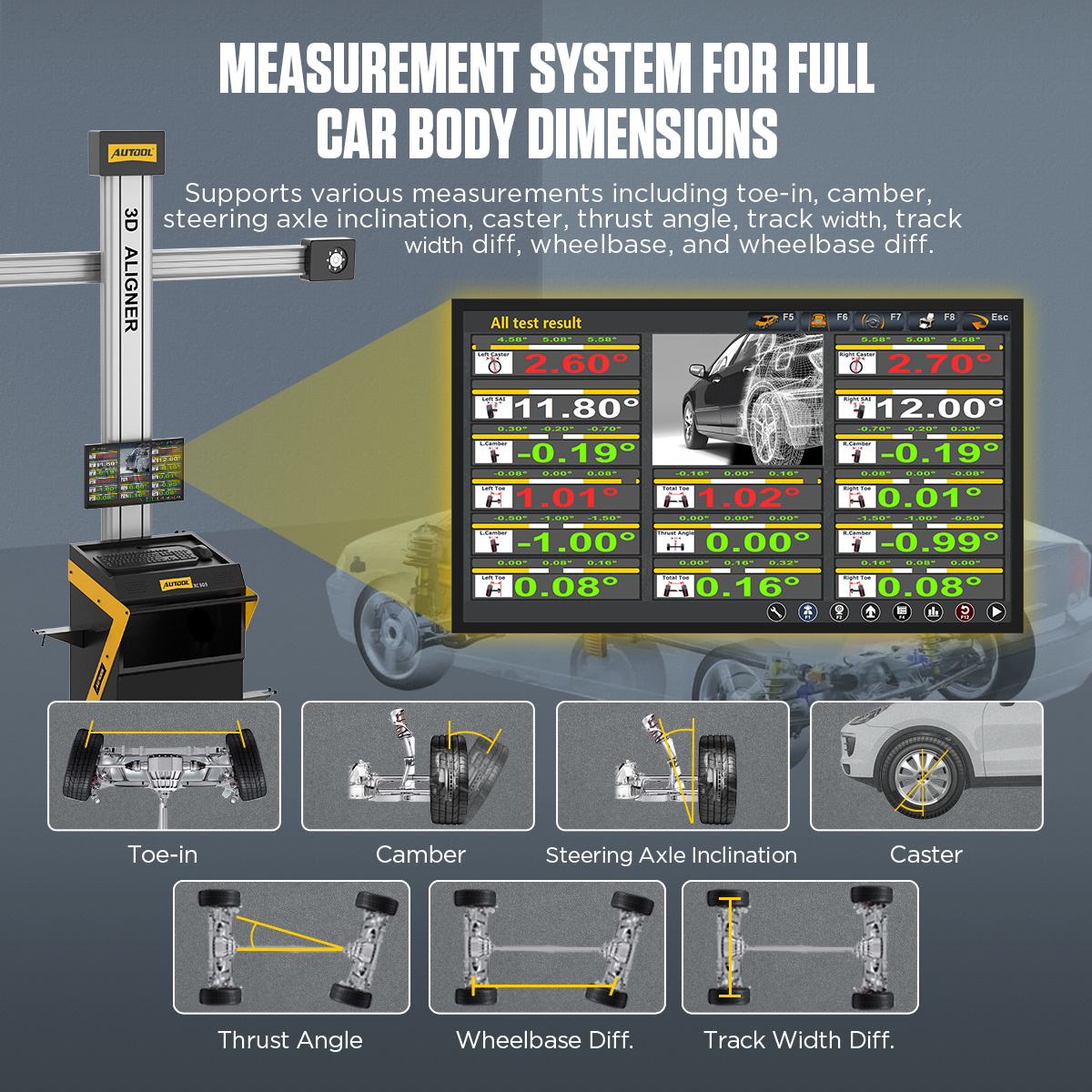

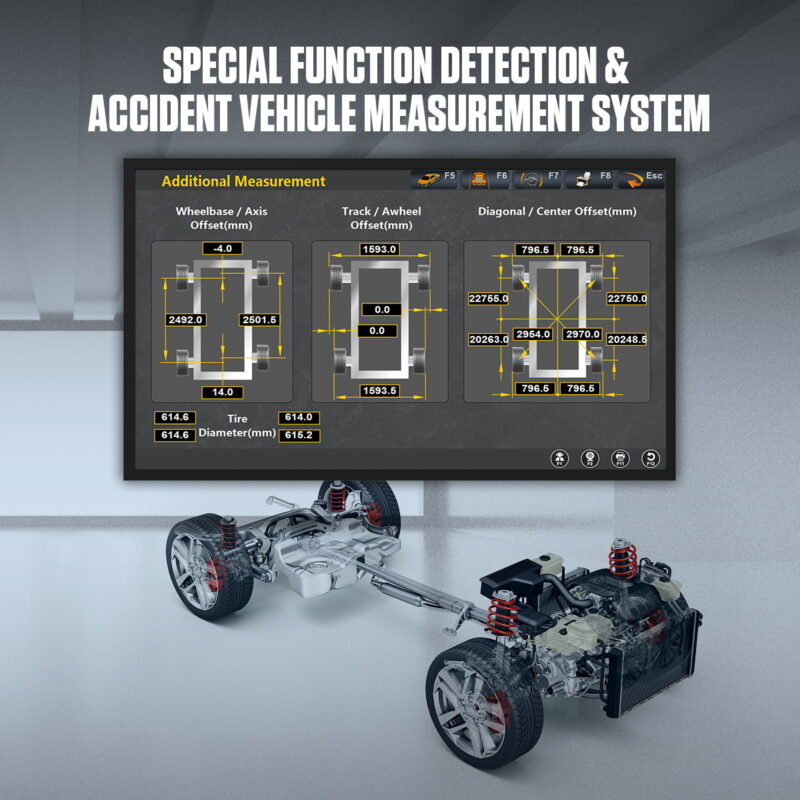

• Measurement System for Full Body Dimension: The Autool XC505 boasts comprehensive measurement parameters and supports data measurements such as toe-in, camber, steering axle inclination, caster, thrust angle, wheelbase, wheelbase difference, track width, track width difference, and diagonal.

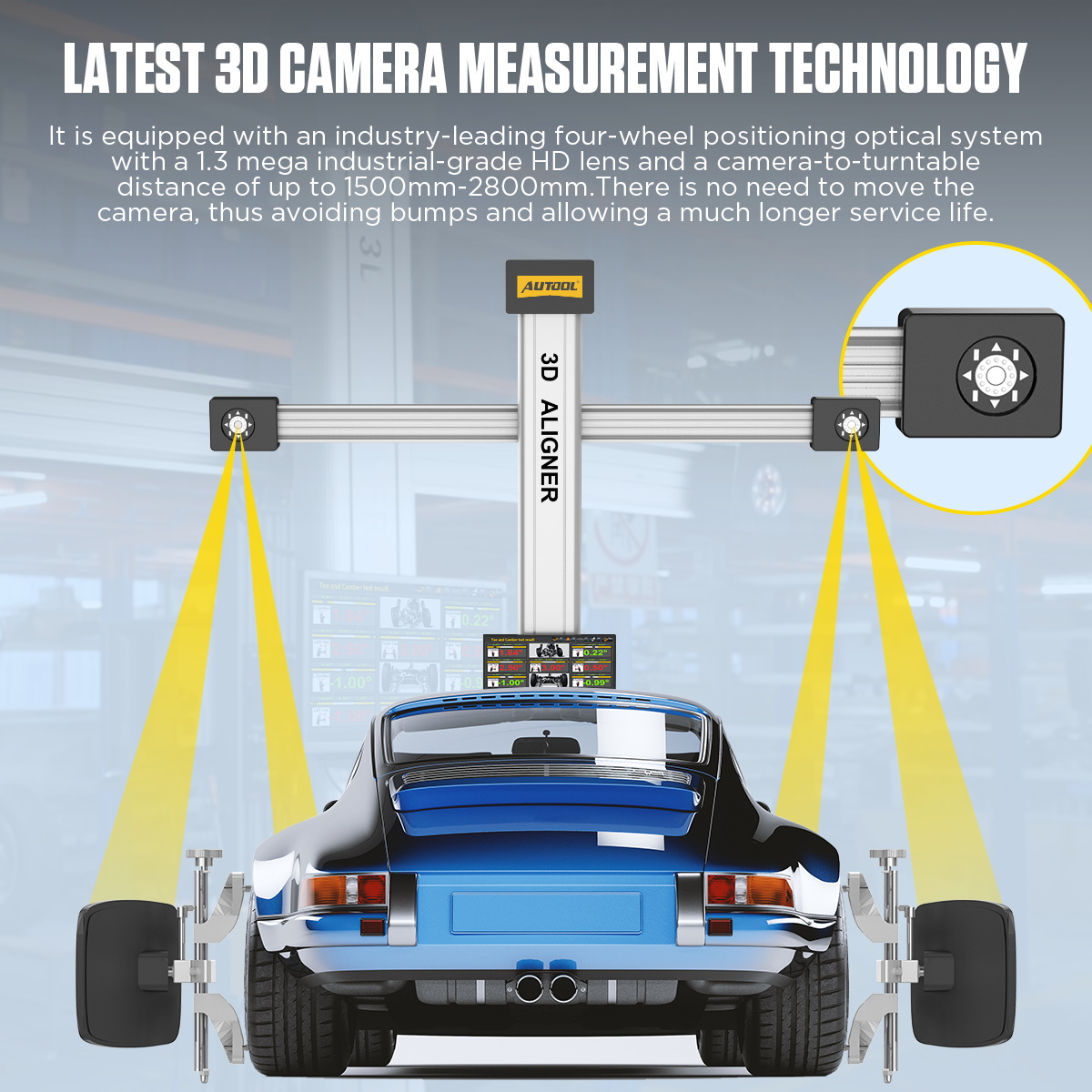

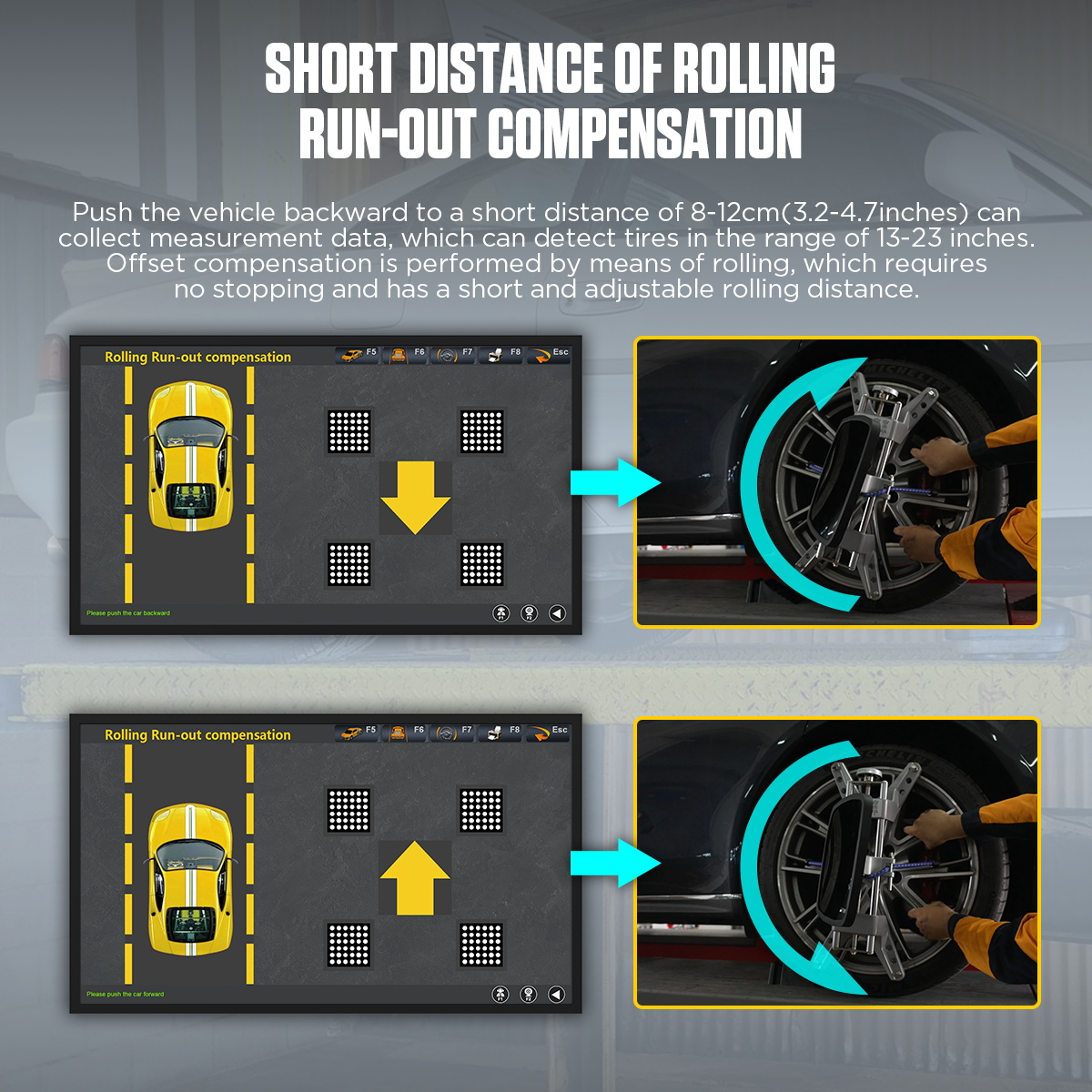

• Push the Vehicle Over Short Distance for Measurement: For the Autool XC505, pushing the vehicle over a short distance for measurement is practical (8~12CM), allowing accurate measurements to be made over short distances. It can detect the wheel hub within the range of 13~23.5 inches. Offset compensation is carried out by rolling, which requires no stopping and has a short and adjustable rolling distance.
• Cost Savings: The XC505 is composed of fewer parts, with a simple system structure and a low failure rate. After installation, the instrument only needs to be calibrated once, and the calibration process is simple, without periodic repeated calibration. The aligning technology is maintenance-free, greatly reducing the cost of use.
• Three-Year Warranty, Lifetime Maintenance:  For damage caused by non-human factors, we promise to resend parts for free within 3 years.

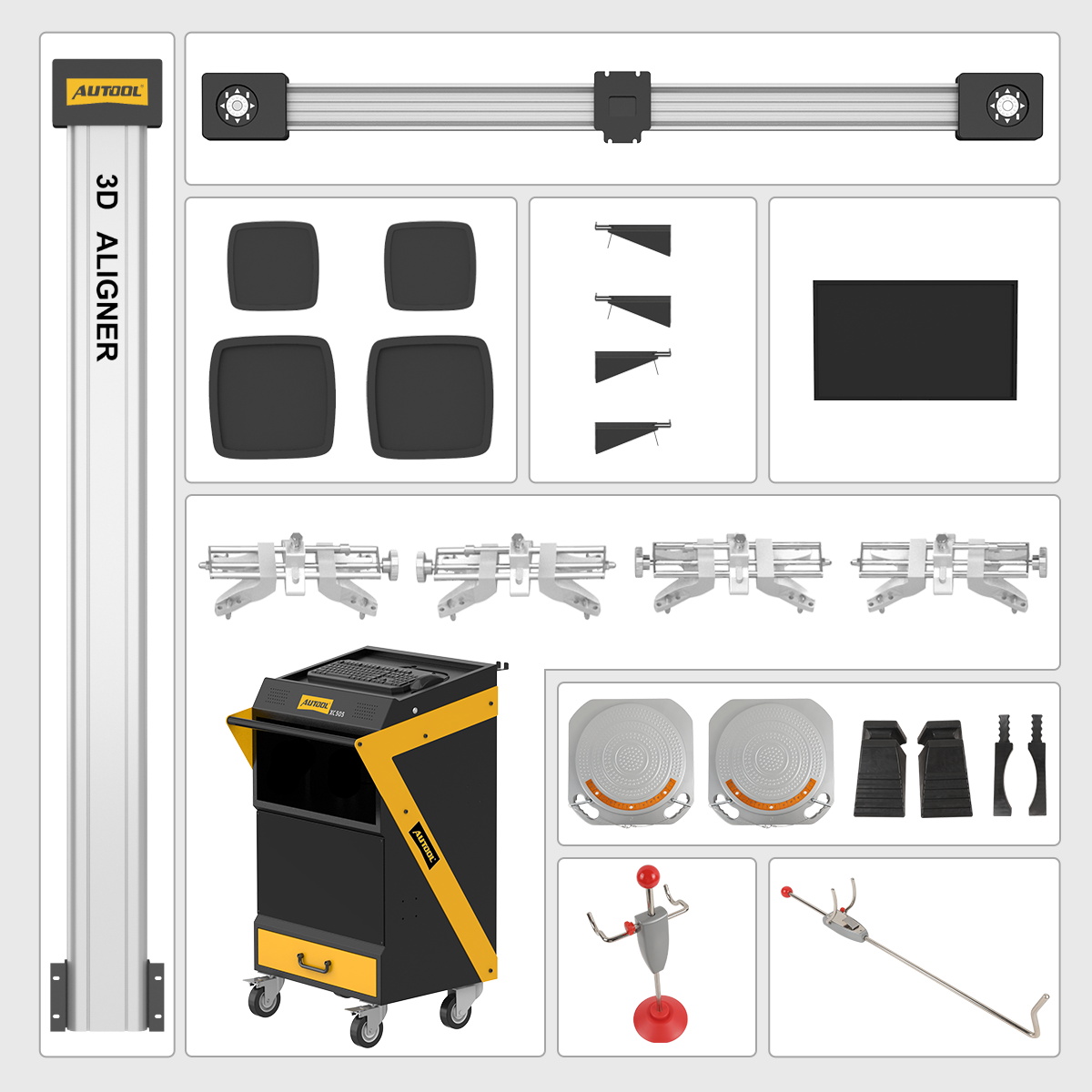

Packing List
