AUTOOL SVB303 Camera Inspection Best Automotive Borescope
$259.00
- 4-Way 360° Articulating Borescope Camera: Joystick-controlled design with 360-degree rotating lens.
- HD Camera: Equipped with a 720P HD camera and one-touch photo and video capture.
-
Supports Multiple Mobile Devices: Compatible with smartphones and tablets running Android, Apple, and HarmonyOS, as well as laptops and other mobile devices.
The AUTOOL SVB303 Camera Inspection is designed to probe into narrow spaces. It features a unique temperature protection function and offers a 360° steering capability.
The AUTOOL SVB303 Automotive Camera Inspection is a high-end inspection tool designed for automotive use. The SVB303 features a 4-way articulated design, making it ideal for inspecting hard-to-reach, narrow, and curved spaces such as evaporator boxes, combustion chambers, and catalytic converter sensors. The SVB303 automotive endoscope includes a unique temperature protection function and a 360° rotating capability, allowing users to easily maneuver the small probe into tight areas. Real-time images can be transmitted to external devices via a data cable. With advanced, expandable accessories and real-time temperature display, the SVB303 meets a wide range of inspection needs.
⚠️Automotive Borescope Warm Tips
- To protect the Automotive Inspection Camera， please avoid using it when the car has just stopped or the engine is hot. Usually, the temperature of the engine when it has just stopped may reach 80℃ to 100℃ or even higher. High temperatures can damage the camera, which counts as artificial damage. If you damage the camera due to high temperature, replacing it will cost you $45.
- It is recommended to use the endoscope after the engine has completely cooled down. Usually, it takes about 1 to 2 hours for the engine to cool down to a safe temperature. Do not place the hose in an environment above 75℃.
- The flexible hose is removable for easy replacement. To replace: unscrew the screw on the AUTOOL logo.
✅Car Inspection Camera Working Principle
- The AUTOOL Automotive Articulating Borescope combines optical and electronic imaging technologies. At the front of the device, a miniature camera and LED light source work together to illuminate the target area and capture clear images. The camera then transmits the image signal through fiber optics, cables, or wirelessly to a display device. Once decoded, the signal appears in real-time on the screen. Additionally, some models offer advanced features such as image magnification, image inversion, and video/photo recording. Thanks to its flexible, bendable probe, the borescope easily accesses complex, narrow structures.
- As a result, users widely apply the automotive borescope for engine wear detection, pipeline blockage inspection, and hidden wiring observation. It has become an essential tool for efficient, non-destructive testing.
What Is the Difference Between AUTOOL Articulating Borescopes?
FAQS
Comparison: AUTOOL SVB403 vs SVB405 vs SVB408 Automotive Engine Borescope Camera
1、Steering Angle
SVB403 is 210-degree two-way rotation, SVB405 and SVB408 are 360-degree four-way rotation.
2、Number of Lenses
The SVB403 has two lenses: a front lens and a side lens. The SVB405 and SVB408 have only one lens.
3、Resolution
The SVB405 has a 2-megapixel camera, while the SVB403 and SVB408 have a 1-megapixel camera.
4、Display Screen
The SVB403 has a 4.3-inch screen, while the SVB405 and SVB408 have a 4.5-inch screen.
5、Lens Diameter
The SVB403’s lens diameter is 6.5mm, while the SVB405’s is slightly smaller at 6.45mm. The SVB408 has the smallest lens diameter of the three models, at 3.9mm.
6、8× Digital Zoom
The SVB405 and SVB408 have an 8x zoom function, while the SVB403 does not.
7、Bending Radius
The SVB403’s bending radius is 35mm, the SVB408’s is slightly longer at 37mm, and the SVB405 has the longest bending radius of the three at 47mm.
Comparison: AUTOOL SVB305 vs SVB308 Automotive Engine Borescope Camera
1、Steering Angle
The SVB305 has a 210-degree, two-way rotation, while the SVB308 has a 360-degree, four-way rotation.
2、Lens Diameter
The SVB305’s lens is 505mm, while the SVB308’s is 6.2mm.
3、Supported Languages
The SVB305 supports eight languages: English, German, French, Italian, Spanish, Chinese, Russian, and Japanese. The SVB308 also supports Traditional Chinese and Korean.
4、Battery Capacity
The SVB305 has a 2000mAh lithium battery, while the SVB308 has a 2600mAh lithium battery.
5、Magnetic and Detachable Design
This is a unique feature of the SVB308. The SVB308 has a magnet on the bottom that allows it to attach to magnetic surfaces. The screen and handle can be detached for easy storage.
Comparison: AUTOOL SVB302 vs SVB303 Automotive Engine Borescope Camera
1、Steering Angle
The SVB302 has a 210-degree dual-angle lens, while the SVB303 has a 20-100mm depth of field.
2、Supported Languages
The SVB302 supports English, German, and 360-degree rotation, while the SVB303 offers 360-degree rotation.
3、Lens Diameter
The SVB302’s lens diameter is 6.45mm, while the SVB303’s is slightly smaller at 6.2mm.
4、Depth of Field
The SVB302 has a depth of field of 30-100mm and supports seven languages: French, Italian, Spanish, Chinese, and Japanese. The SVB303 also supports Traditional Chinese, Russian, and Korean, for a total of ten languages.
5、Magnetic and Detachable Design

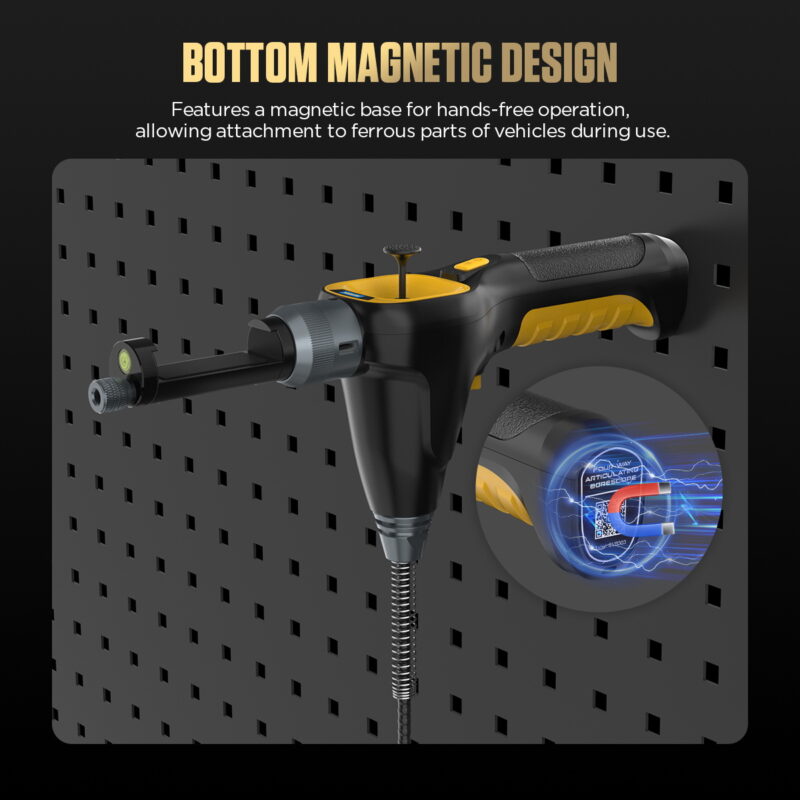

This is a unique feature of the SVB303. The SVB303 has a magnet on the bottom that allows it to attach to magnetic surfaces. The SVB308’s screen and handle can be detached for easy storage.
AUTOOL Best Automotive Borescope Quick Search
HOT
-25%
$229.00 – $249.00
-36%
HOT
Original price was: $319.00.$205.00Current price is: $205.00.
$159.00
AUTOOL SVB303 Snake Camera Inspection Features

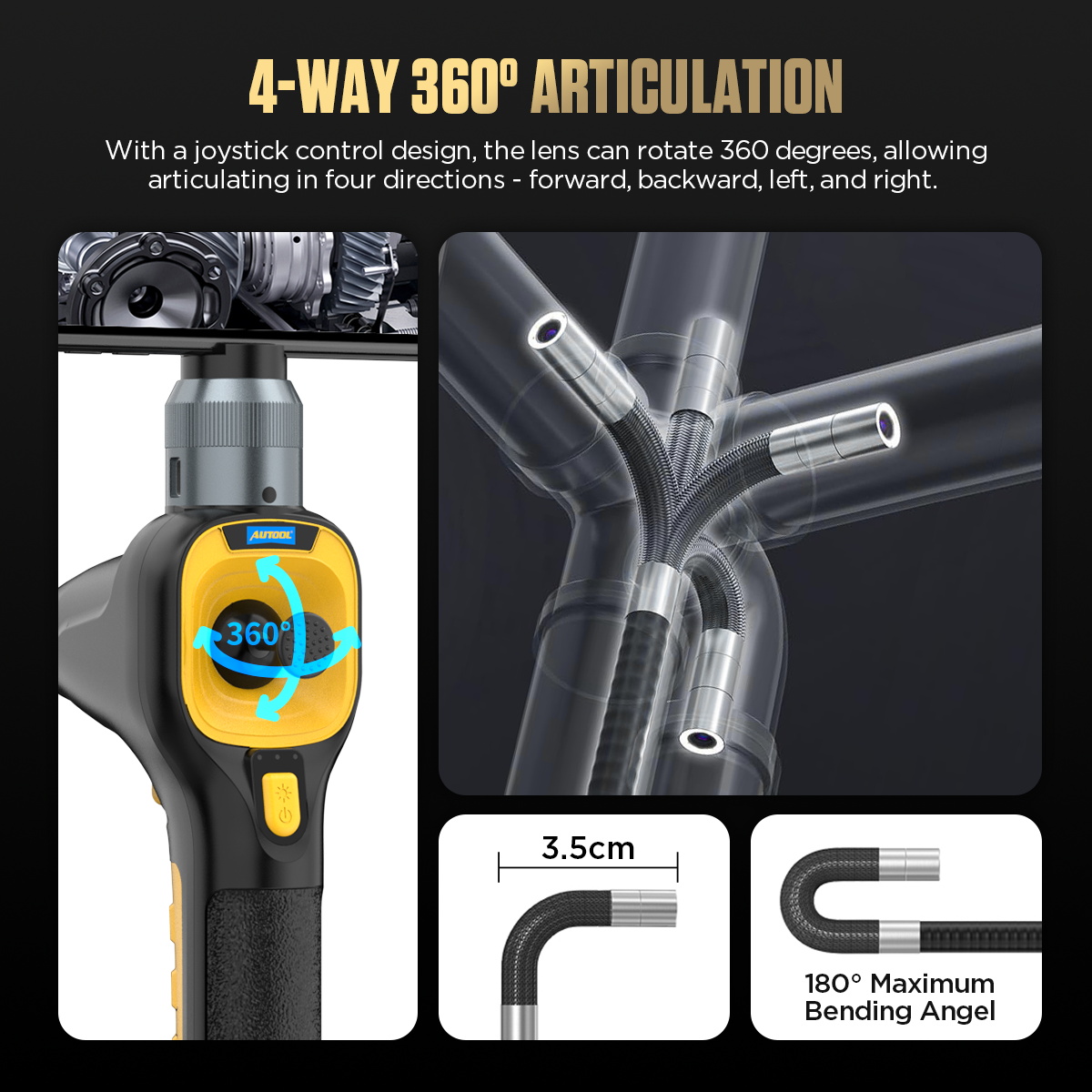

- 4-Way 360° Articulating Endoscopic Camera: Camera Inspection features a joystick-controlled design with a 360-degree rotating lens. It provides flexible access to narrow, curved spaces.

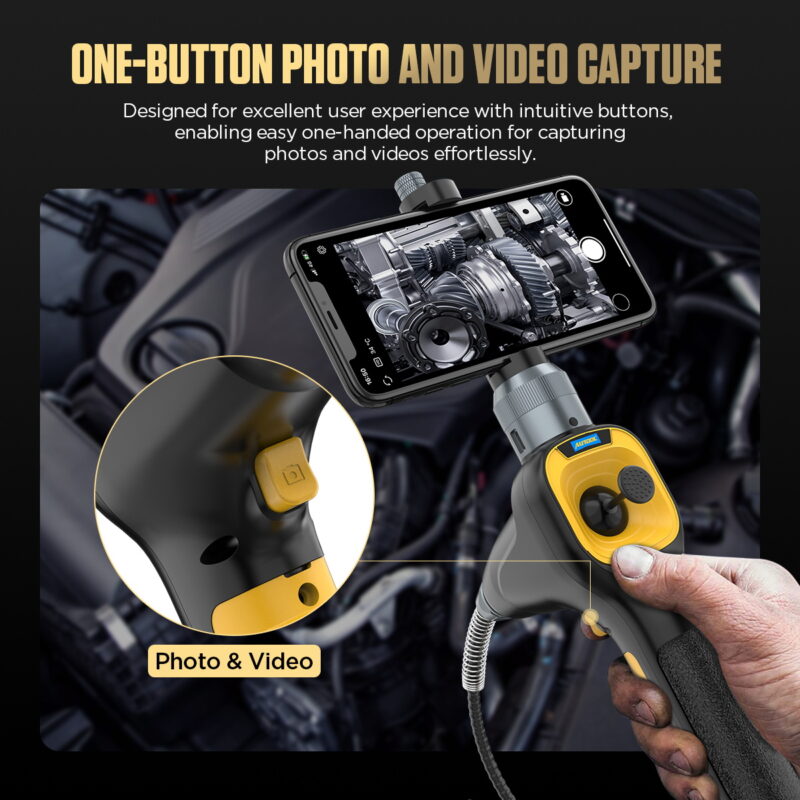

- One-Touch Photo Capture: Featuring an intuitive push-button design, it’s easy to take photos and videos with one-handed operation.

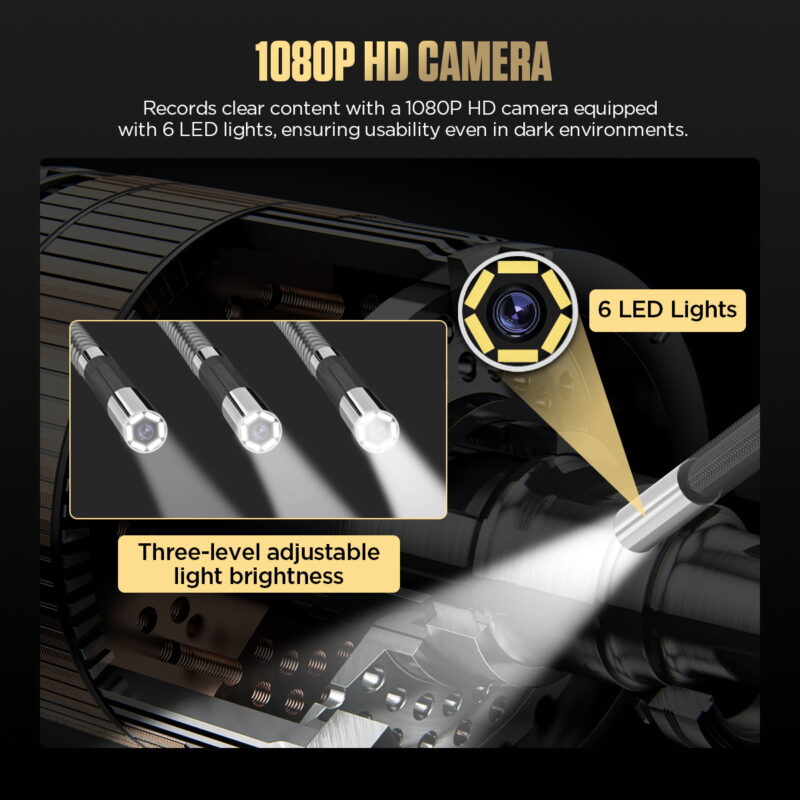

- HD Camera: Equipped with a 720P HD camera and one-touch photo and video capture, the 720P HD camera with 6 LEDs records clear content.

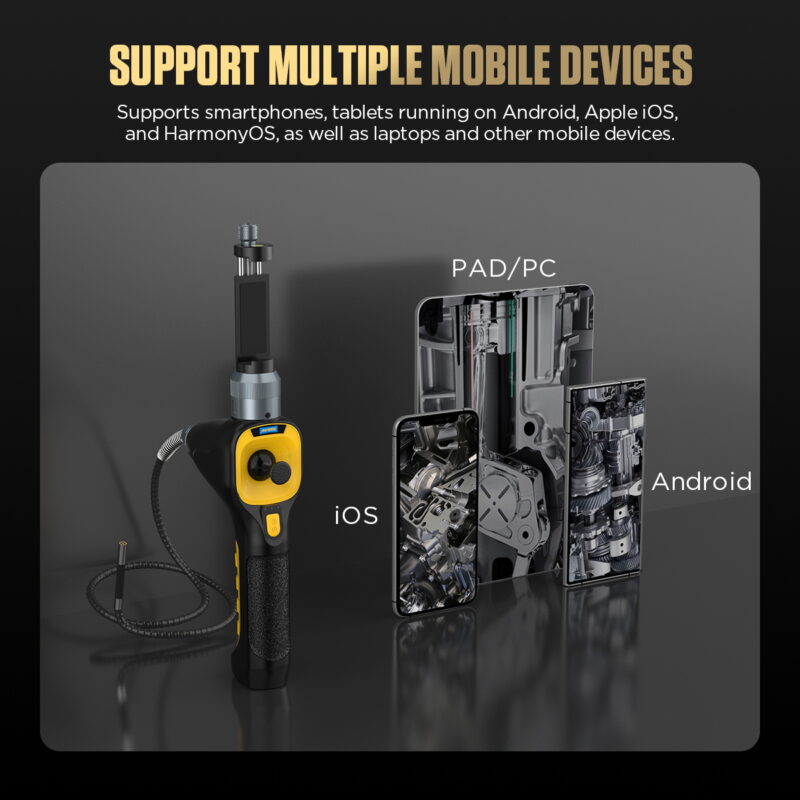

- Supports Multiple Mobile Devices: Supports smartphones and tablets with Android, Apple, and HarmonyOS, as well as laptops and other mobile devices.
- IP67 Waterproof Rating: The borescope camera is waterproof with an IP67 rating, which is waterproof and oil-proof, and can work in wet pipes.

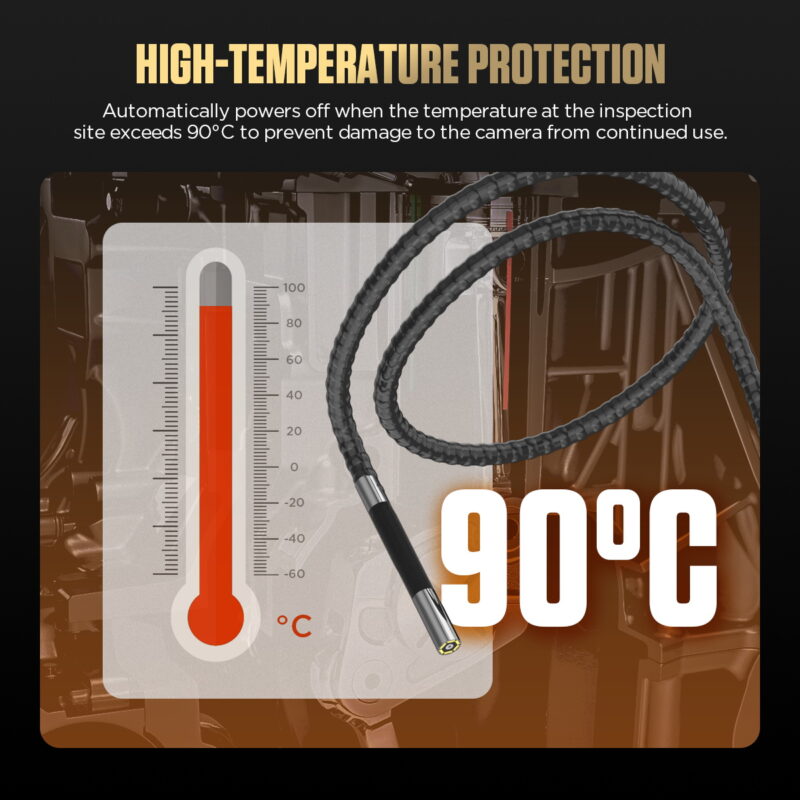

- High Temperature Protection: When the temperature of the inspection site exceeds 90°C, it will automatically turn off the power to prevent damage to the camera from further use.
- Multi-Language Design: Support English, French, Spanish, Russian, Traditional Chinese, Korean, Italian, German, Simplified Chinese, and Japanese.
- 3-Year Warranty: For damage caused by non-human factors, we promise to resend parts for free within 3 years.

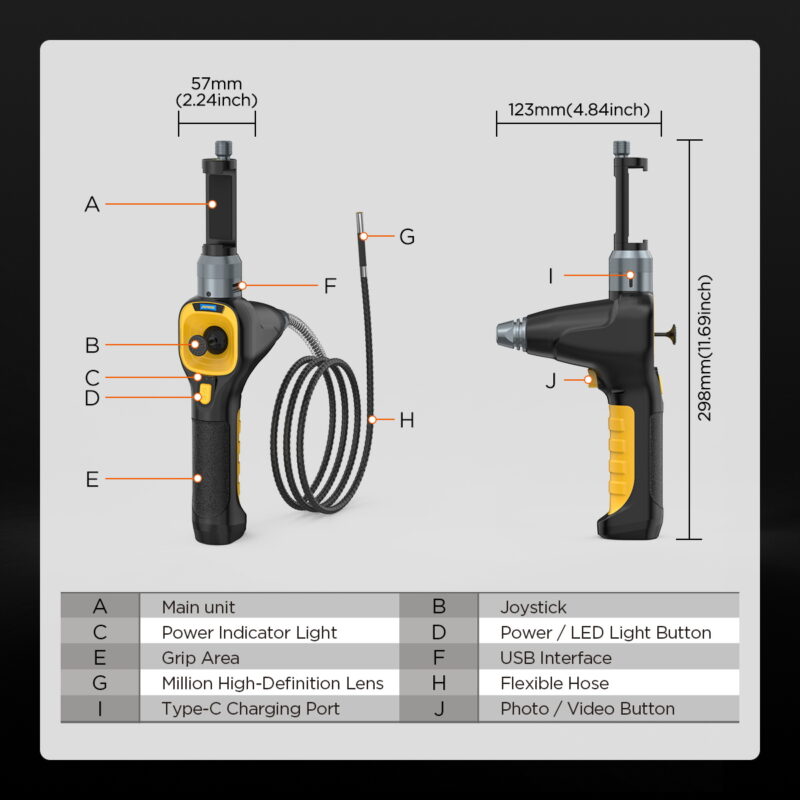

Automotive Borescope Operating Instructions
- Step 1: Press and hold the power button and open the camera protective cover.
-
Step 2: Adjust the ideal lighting and insert the probe into the engine.
-
Step 3: Use the joystick to adjust the camera direction.
-
Step 4: The buttons on the LED screen allow you to zoom and invert images
-
Step 5: The camera handle has a photo button for taking pictures or recording videos.

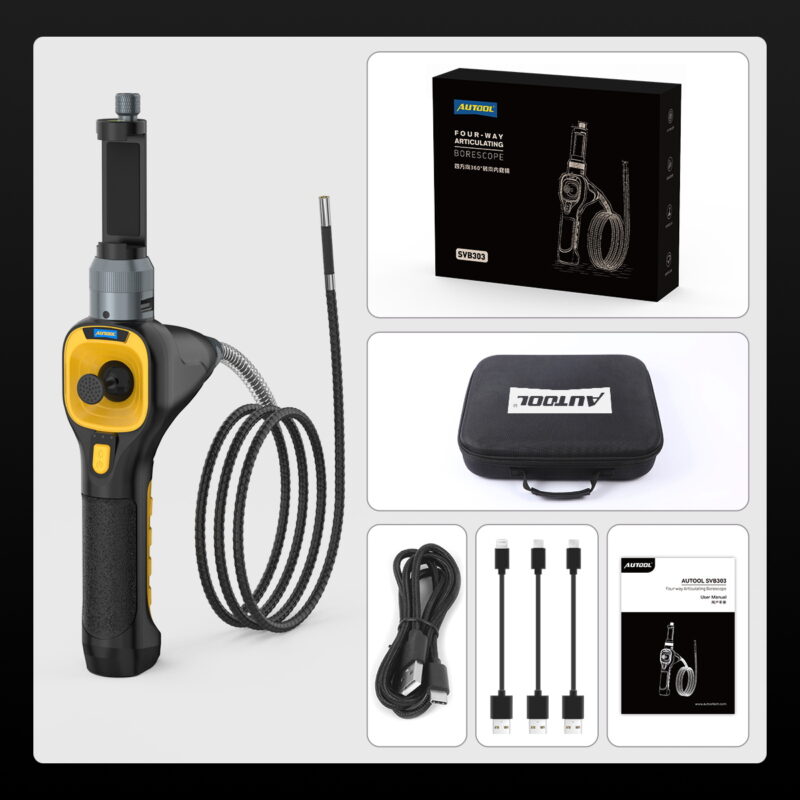

Packing List
Related blogs

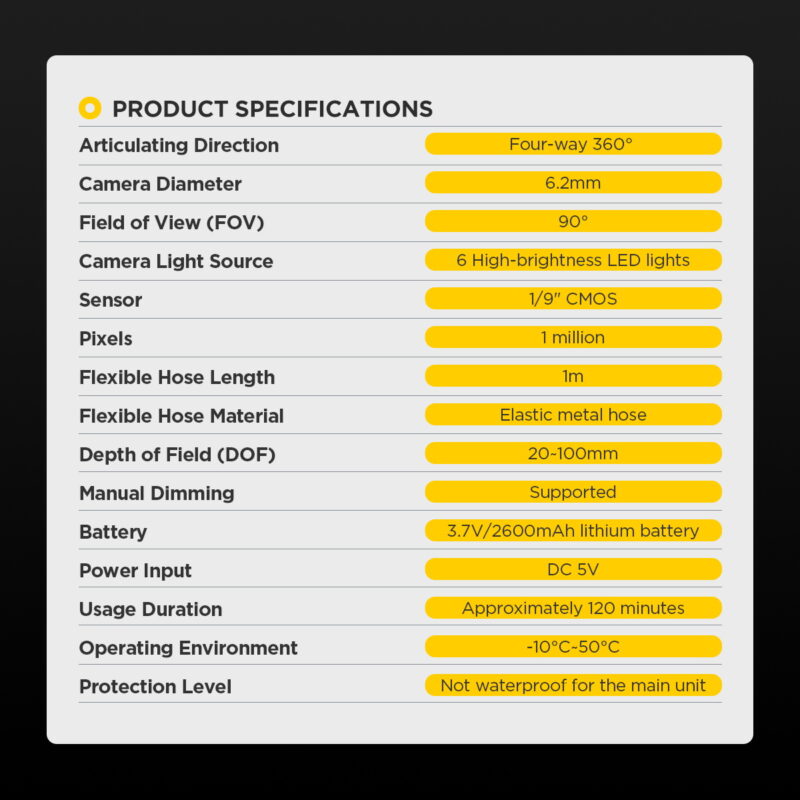

Specification
| Articulating Direction | Four-way 360° |
| Camera Diameter | 6.2mm |
| Field of View(FOV) | 90° |
| Camera Light Source | 6 High-brightness LED lights |
| Sensor | 1/9″ CMOS |
| Pixels | 1 million |
| Flexible Hose Length | 1m |
| Flexible Hose Material | Elastic metal hose |
| Depth of Field(DOF) | 20-100mm |
| Manual Dimming | Supported |

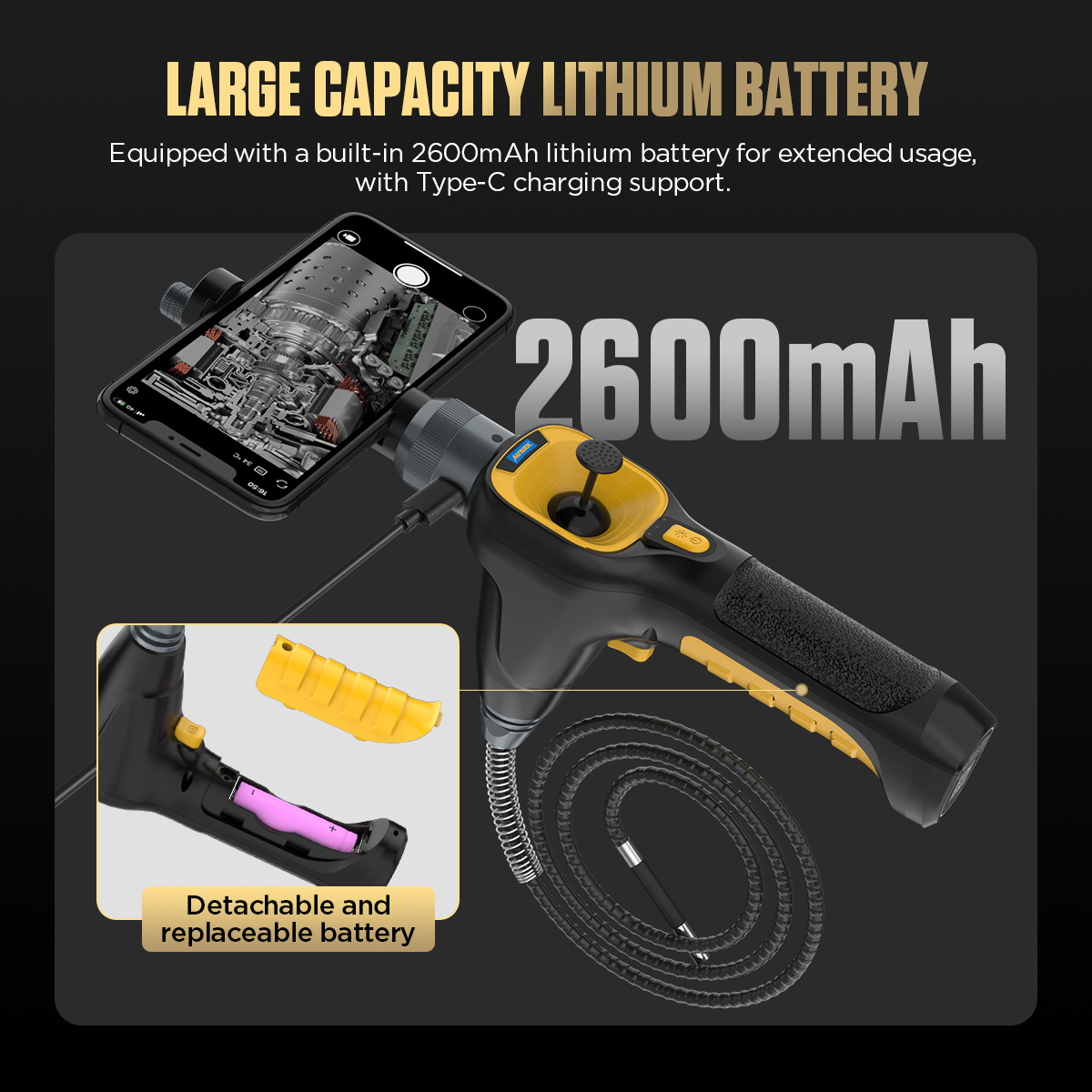

| Battery | 3.7V/2600mAh lithium battery |
| Power Input | DC 5V |
| Usage Duration | Approximately 120 minutes |
| Operating Environment | -10°C-50°C |
| Protection Level | Not waterproof for the main unit |
