AUTOOL SVB208 HD Automotive Borescope Camera for Engine Diagnostics

AUTOOL SVB208 Automotive Borescope Camera – 210° Four-Way Articulating Endoscope with 6.25mm Probe for Engine & Component Inspections

⚠️Engine Inspection Snake Camera Warm Tips

• The automotive inspection camera lens isn’t resistant to high temperatures, so it’s recommended to use it below 75°C. Please check it under cold conditions to avoid damaging the lens.
• To protect the endoscope, please avoid using it when the car has just stopped or the engine is hot. When the engine has just stopped, its temperature usually reaches 80°C to 100°C or even higher. High temperatures can damage the camera
• It is recommended to use the endoscope after the engine has completely cooled down. Usually, it takes about 1 to 2 hours for the engine to cool down to a safe temperature. Do not place the hose in an environment above 75℃. High temperature can damage the camera, we consider this to be abnormal damage. If the camera is damaged by high temperature, free warranty will not be provided.
• Do not operate the dial while coiling the flexible hose, as this can break or deform the articulating pull wire.
• Keep the articulating borescope clean, avoid prolonged exposure to sunlight, and protect it from direct contact with water, oil, and corrosive liquids.

✅Why Choose AUTOOL SVB208 Car Engine Endoscope

• Nondestructive testing: The best endoscope camera allows for inspection without the need to disassemble automotive parts, preventing potential damage and additional costs associated with the disassembly process.
• Efficient diagnosis: It quickly provides detailed images of hard-to-reach areas such as the engine, transmission, and exhaust system, significantly improving the speed and accuracy of fault diagnosis.
• Visual image detection: The real-time image and video functions enable technicians to clearly identify internal issues, leading to more precise assessments.
• Save time and cost: By minimizing the need for disassembly, the endoscope reduces maintenance time and labor costs, while preventing unnecessary part replacements.

📔AUTOOL SVB208 Automotive Borescope Camera Manual

Download

What Is The Difference Between AUTOOL Articulating Borescope?

Car Inspection Camera FAQS

Comparison: AUTOOL SVB403 vs SVB405 vs SVB408 Automotive Engine Borescope Camera

• The SVB403 Automotive Engine Borescope Camera has a 210-degree two-way steering angle, while both the SVB405 and SVB408 offer 360-degree four-way rotation for improved maneuverability.
• Regarding the number of lenses, the SVB403 includes two lenses—a front lens and a side lens—while the SVB405 and SVB408 each have only one lens.
• In terms of image quality, the SVB405 is equipped with a 2-megapixel camera, while the SVB403 and SVB408 have 1-megapixel cameras.
• The display size also differs slightly: the SVB403 has a 4.3-inch screen, while the SVB405 and SVB408 come with larger 4.5-inch screens for clearer viewing.
• As for bending radius, the SVB403 offers a 35mm radius, the SVB408 slightly longer at 37mm, and the SVB405 has the longest at 47mm, providing different flexibility options for various applications.

Comparison: AUTOOL SVB305 vs SVB308 Automotive Engine Borescope Camera

• The SVB305 Automotive Engine Borescope Camera features a 210-degree two-way steering angle, while the SVB308 offers a full 360-degree four-way rotation, allowing for more flexible inspection.
• In terms of lens size, the SVB305 has a 5.05mm diameter lens, whereas the SVB308 is slightly larger at 6.2mm.
• For language support, the SVB305 includes eight languages: English, German, French, Italian, Spanish, Chinese, Russian, and Japanese. The SVB308 supports all of these plus Traditional Chinese and Korean, making it more versatile for international users.
• When it comes to power, the SVB305 is equipped with a 2000mAh lithium battery, while the SVB308 has a larger 2600mAh battery for longer operation time.

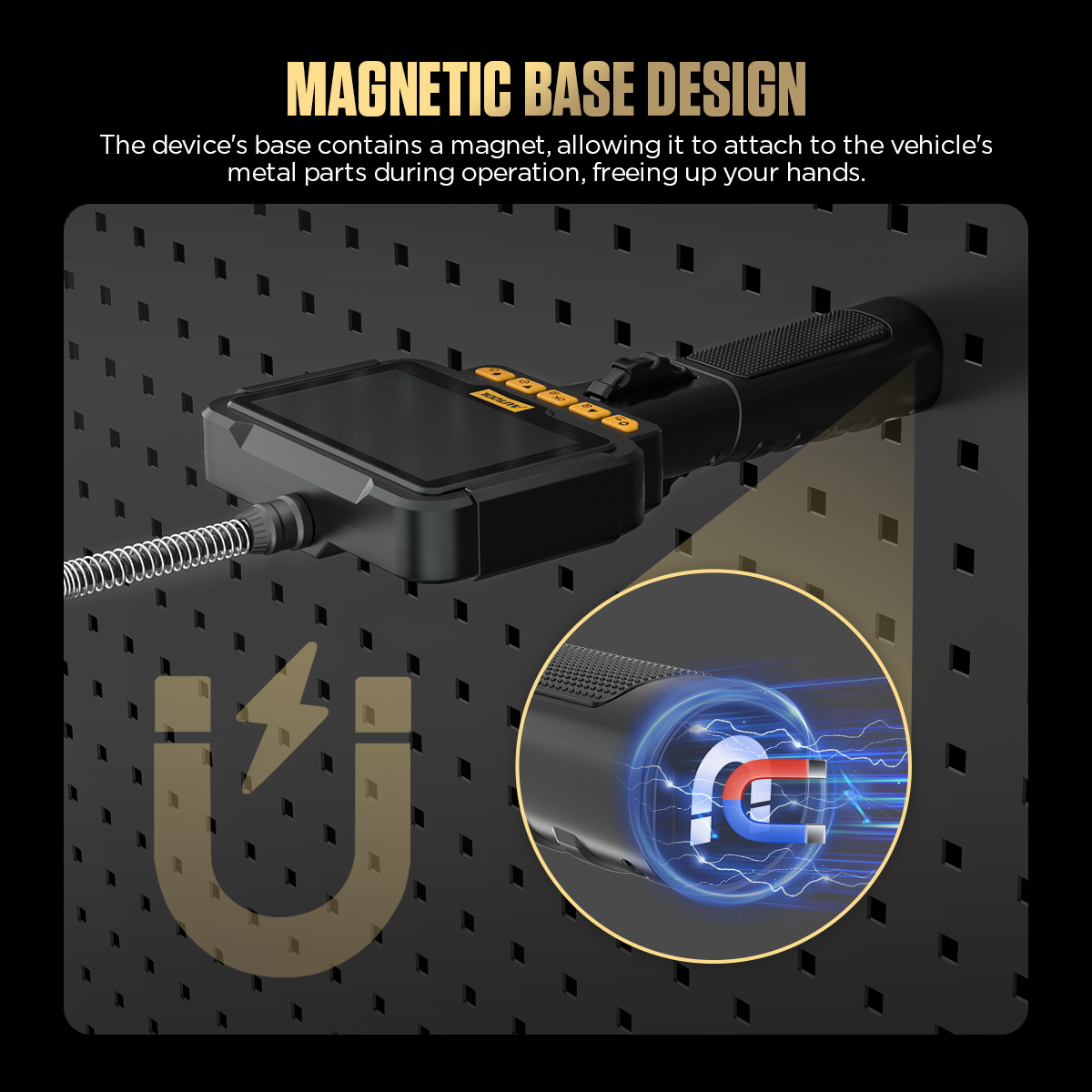

• The SVB308 also features two unique functions: a magnetic base and a detachable design. The magnetic design allows it to attach to metal surfaces for hands-free use, and the detachable screen and handle make storage and maintenance much easier.

Comparison: AUTOOL SVB302 vs SVB303 Automotive Inspection Camera

• The SVB302 Automotive Engine Borescope Camera features a 210-degree two-way steering angle, while the SVB303 supports a full 360-degree four-way rotation for greater control and visibility.
• In terms of lens diameter, the SVB302 has a 6.45mm lens, and the SVB303 is slightly slimmer at 6.2mm, making it easier to access tight spaces.
• The depth of field also differs: the SVB302 has a focus range of 30–100mm, while the SVB303 offers a closer range of 20–100mm, allowing clearer inspection of nearby objects.
• The SVB302 supports seven languages including English, German, French, Italian, Spanish, Chinese, and Japanese. The SVB303 supports all of these plus Traditional Chinese, Russian, and Korean, for a total of ten languages.
• Lastly, the SVB303 includes two additional practical features—a magnetic base and a detachable design. The magnetic base allows the borescope to attach to metal surfaces for stability, and the detachable screen and handle make it easier to store and transport.

AUTOOL Automotive Borescope for Sale Quick Search.

-36%

HOT

AUTOOL SVB308 Car Inspection Camera Articulating Borescope

$319.00 Original price was: $319.00.$205.00Current price is: $205.00.

HOT

AUTOOL SVB408 Automotive Engine Borescope Camera

$289.00

AUTOOL SVB305 Borescope Camera Automotive Endoscope

$179.00

-25%

AUTOOL SVB403 Automotive Engine Borescope Camera

$229.00 – $249.00

New

AUTOOL SVB405 Automotive Engine Borescope Camera

$259.00

AUTOOL SVB303 Camera Inspection Best Automotive Borescope

$259.00

AUTOOL SVB302 Endoscope Camera

$159.00

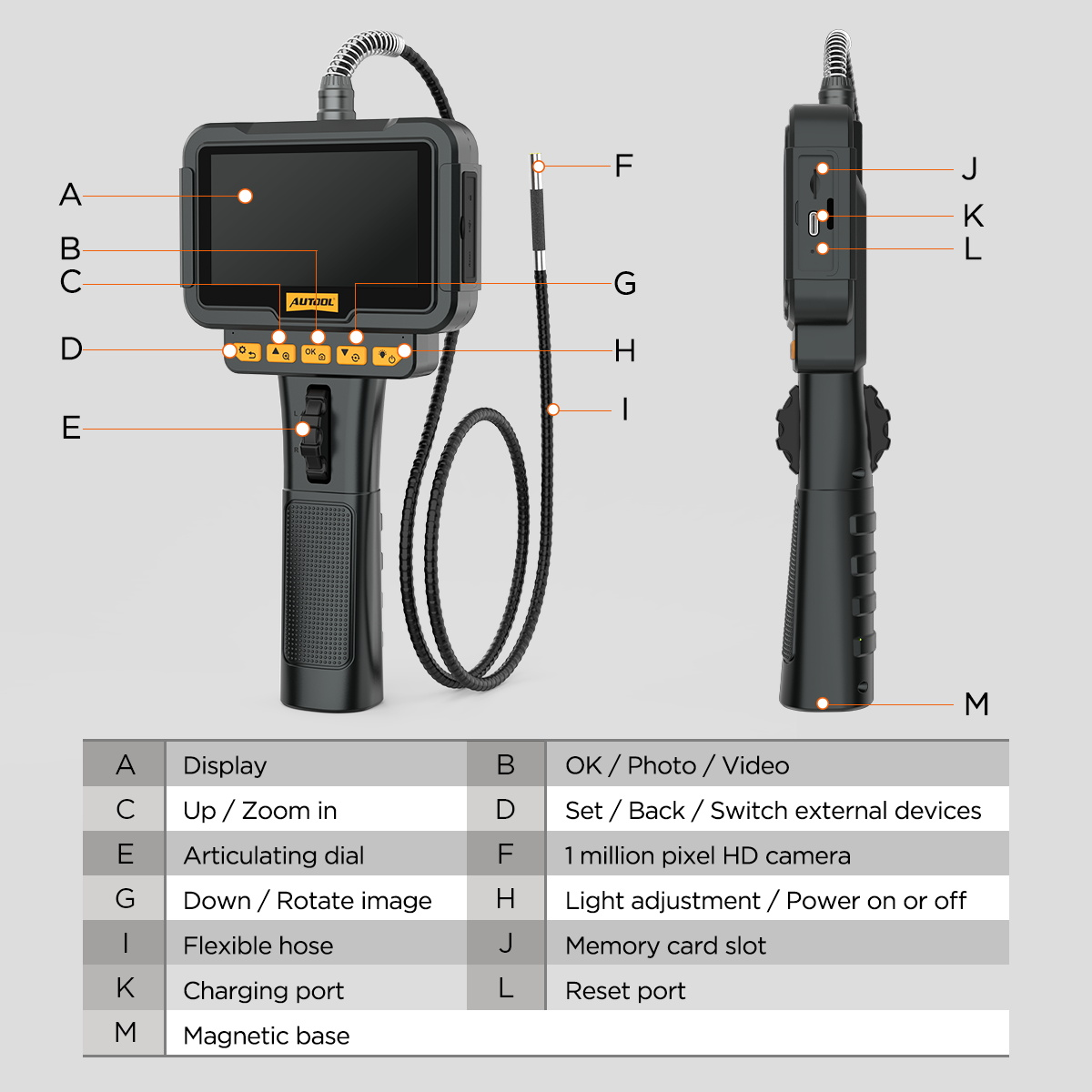

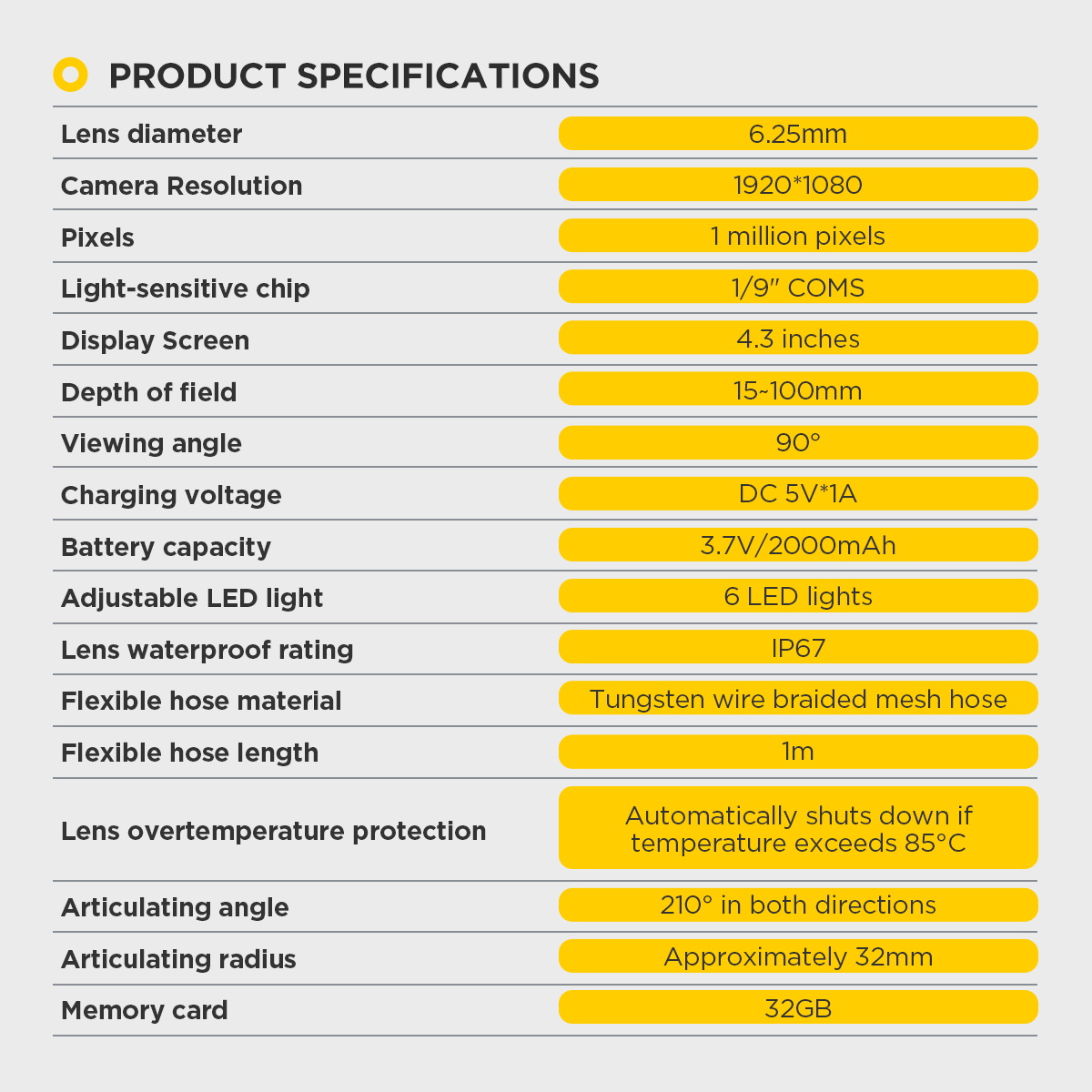

AUTOOL SVB208 Car Articulating Borescope Camera Features

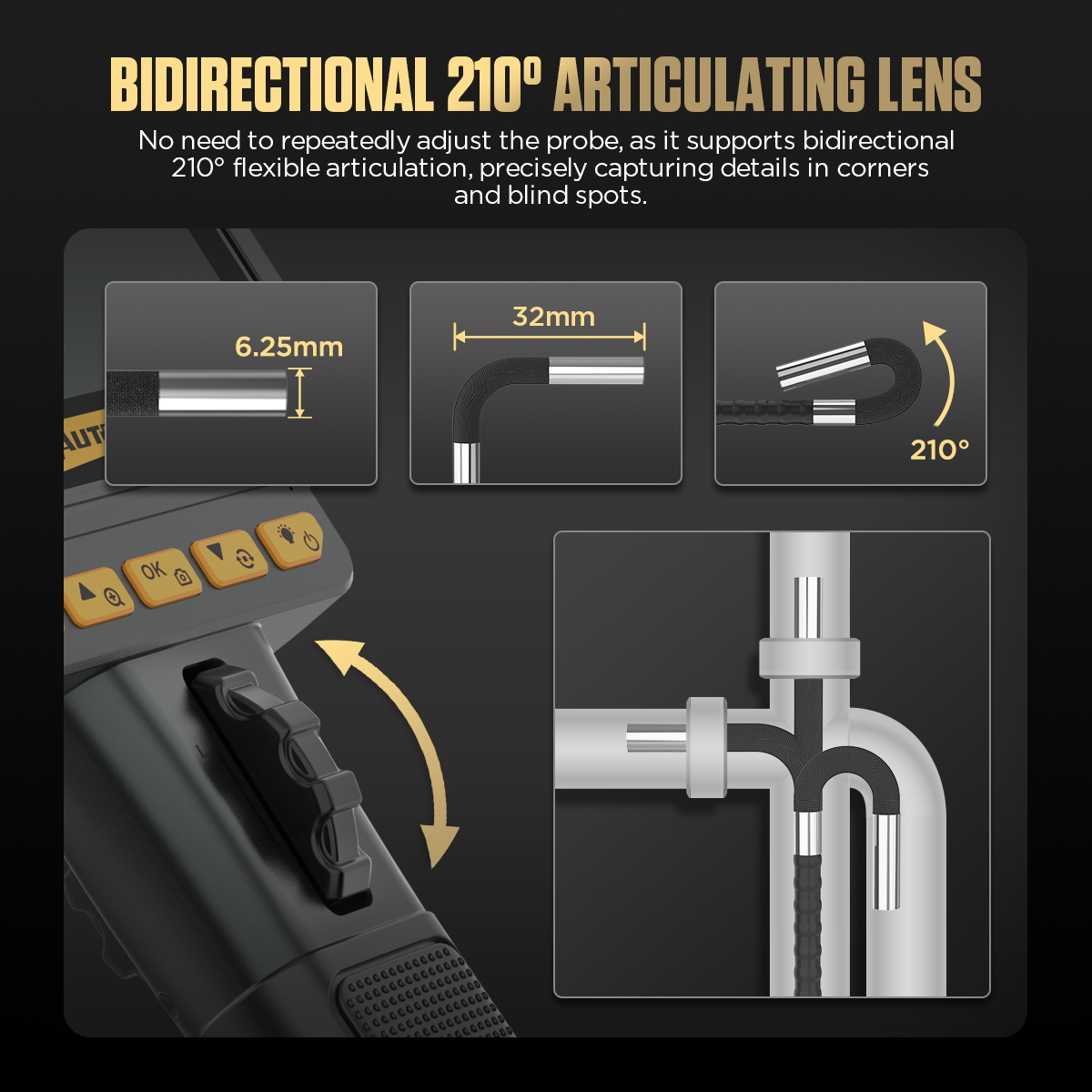

• Two-Way 210° Steering Lens: Flexible access to narrow, curved spaces thanks to a rotating push-button design.
• 8x Digital Zoom: High-definition imaging shows clear details, from near threads to deep pipe cracks.

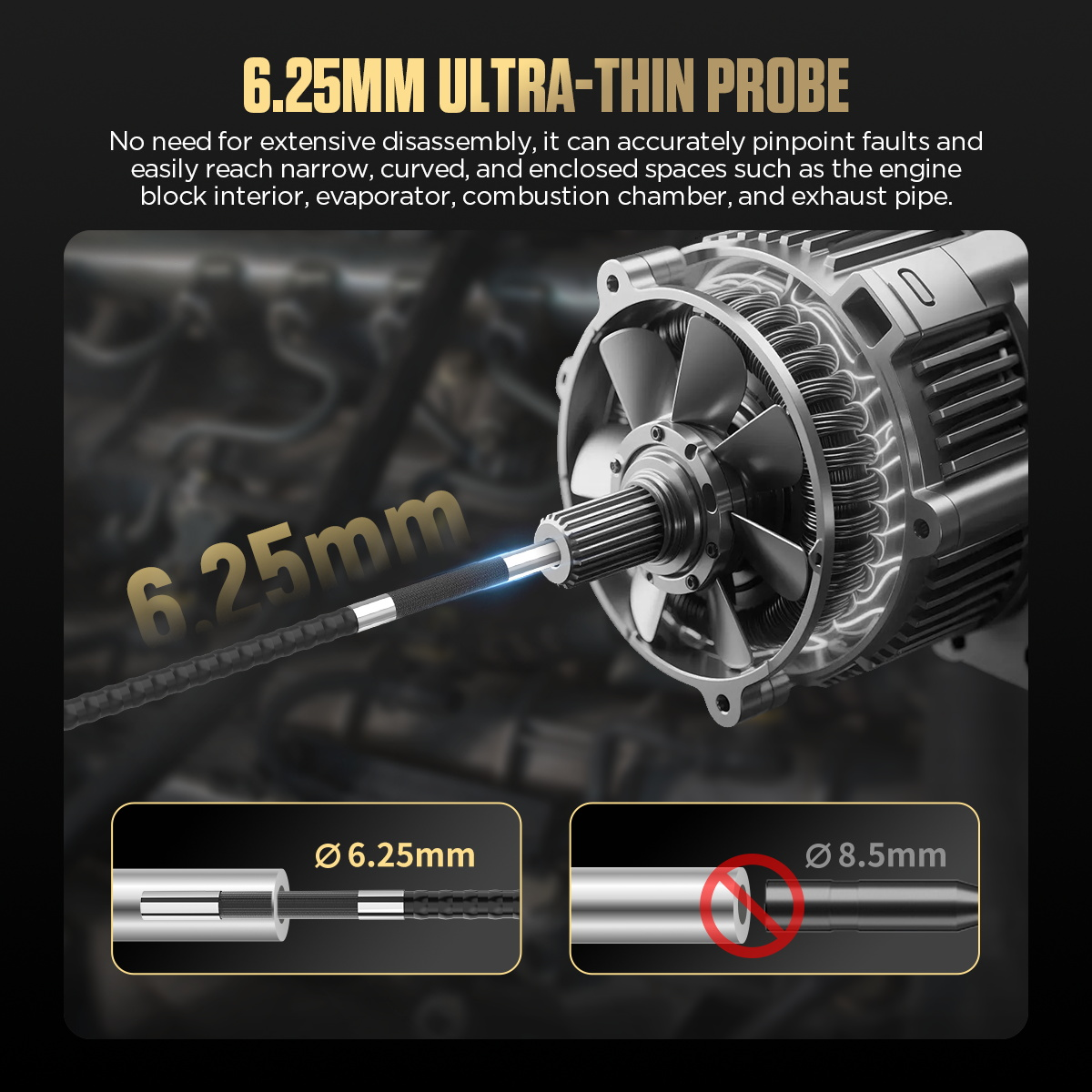

• 6.25mm Lens Diameter: The very small lens design easily accesses engine gaps, pipes, and other narrow spaces, providing flexible and convenient operation.

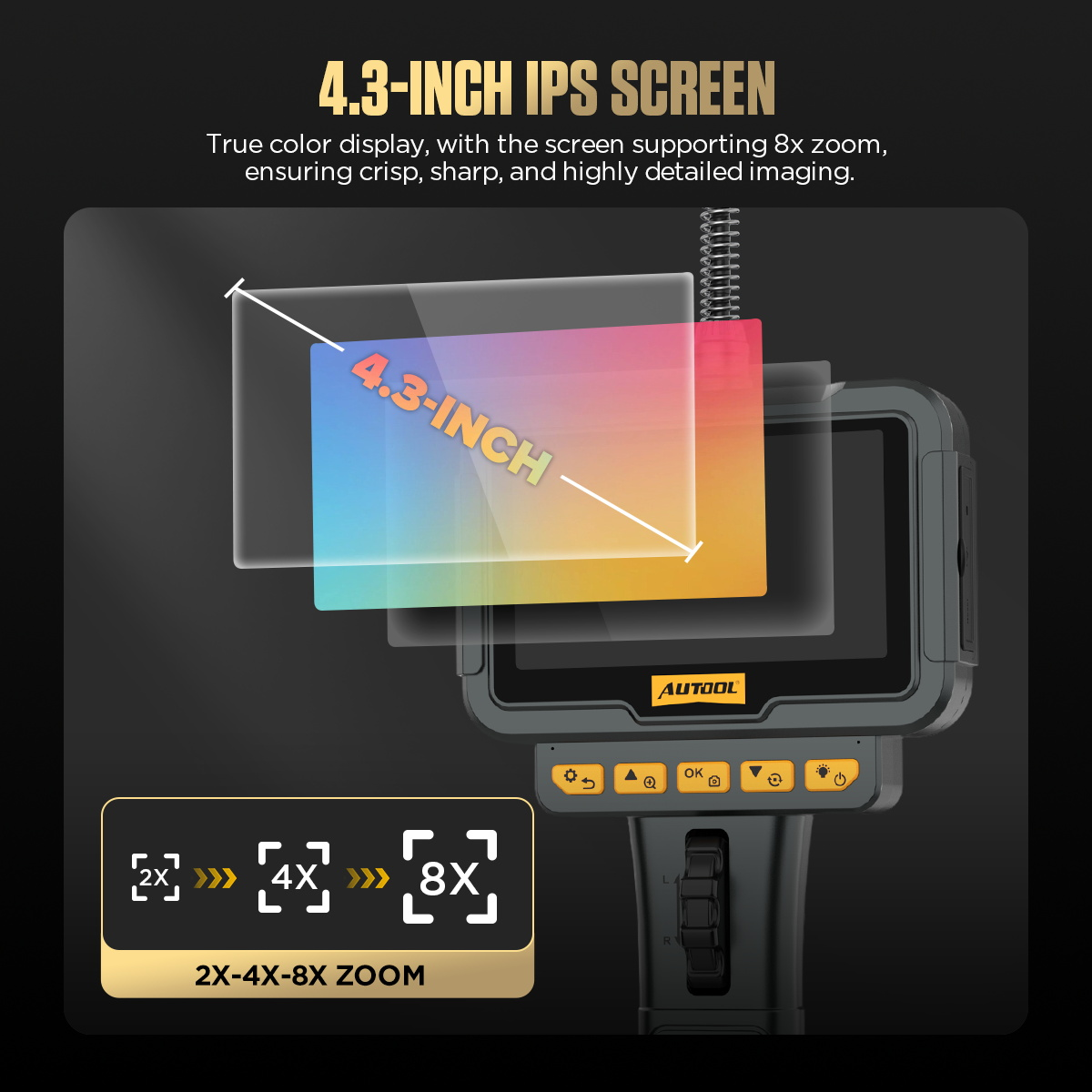

• 4.3-inch IPS HD Screen: Equipped with a  1MP camera and up to 8x digital zoom, it delivers clear images and every detail.
• 15–100mm Depth of Field: Combined with an 90° wide field of view, the AUTOOL inspection camera captures clear and precise details during near and medium distance inspections.

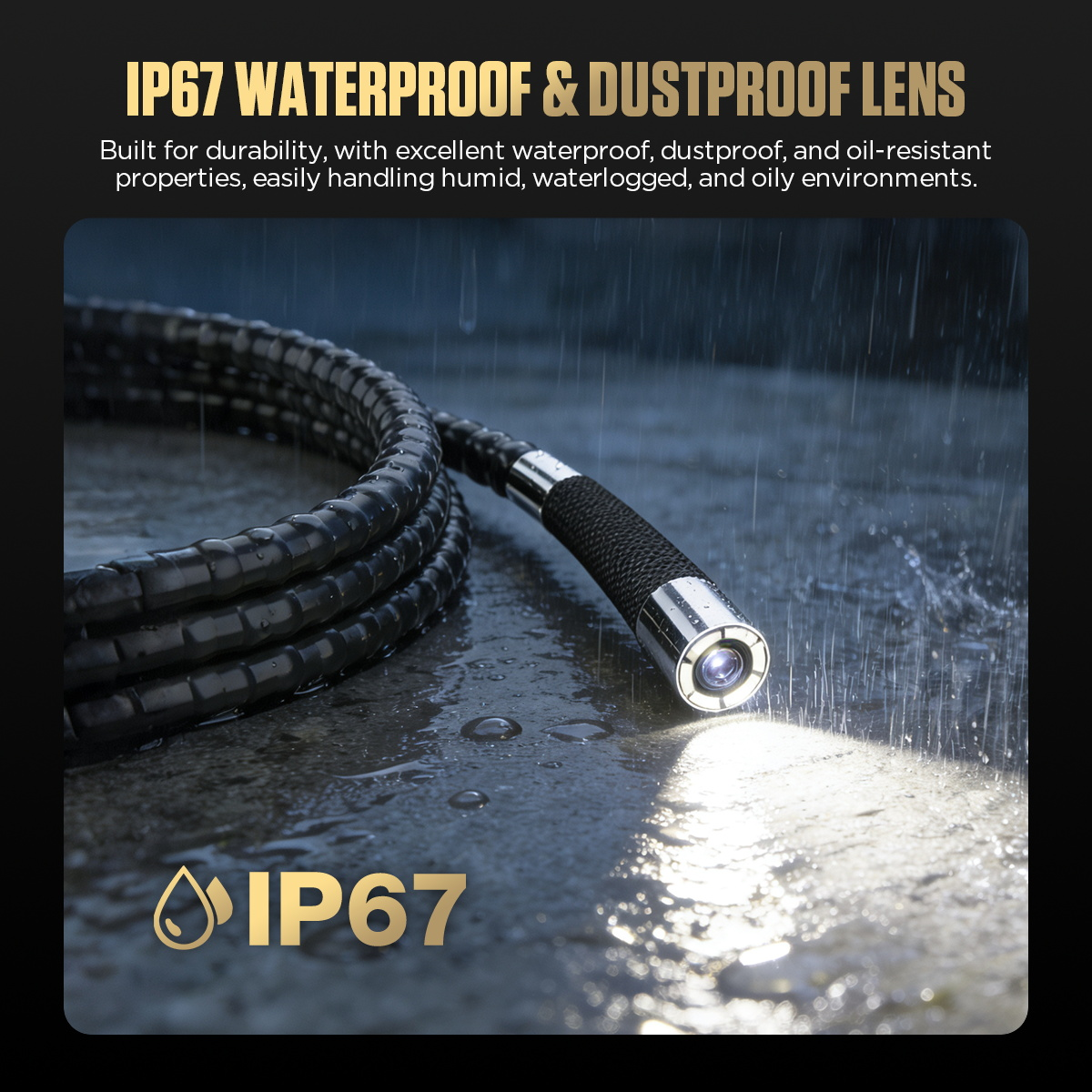

• IP67 Waterproof Rating: The strong metal probe hose is waterproof and durable, suitable for use in wet or harsh environments.
• 1m Flexible Hose: The minimum turning radius of 32mm makes it easy to move through curved pipes and complex spaces.

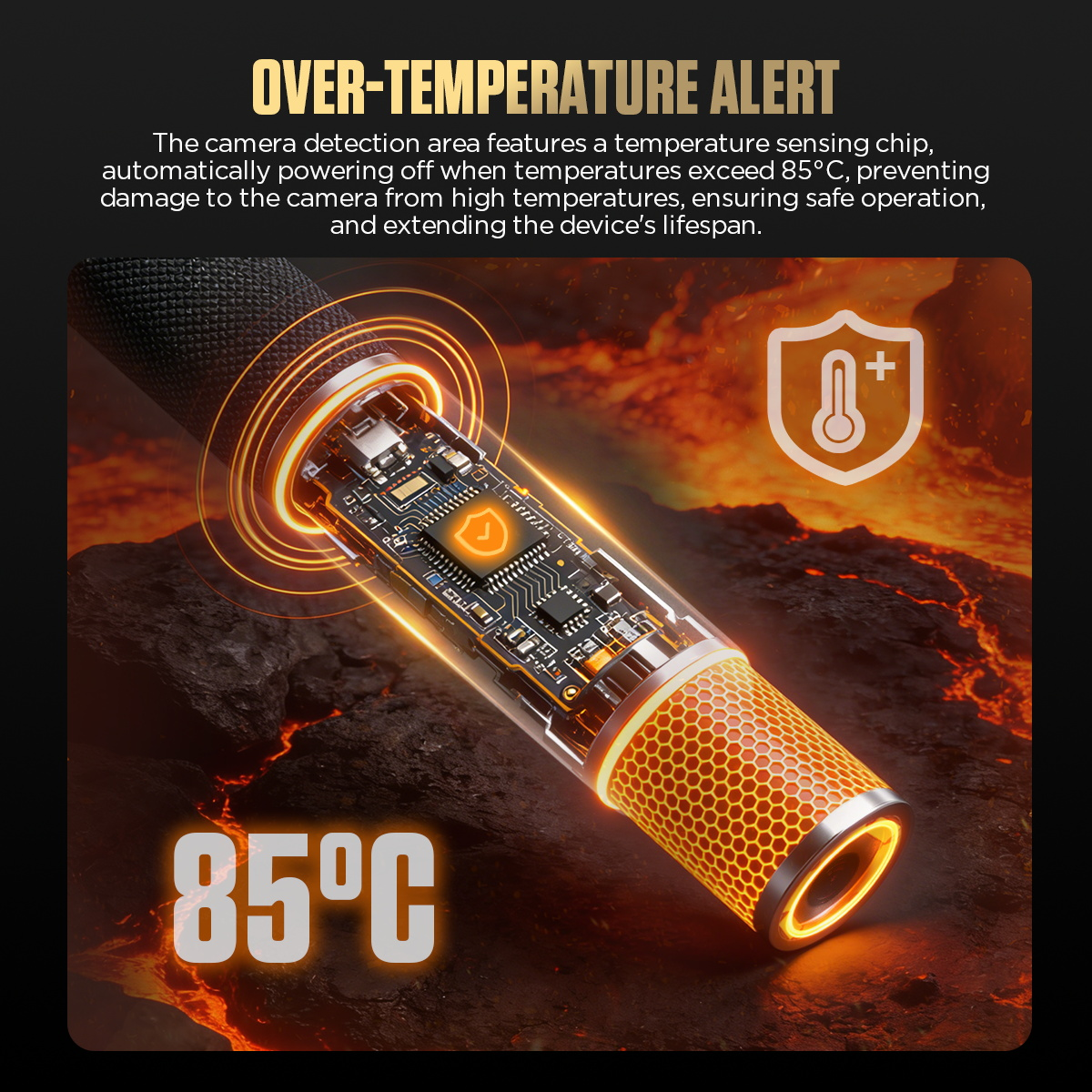

• Overheat Protection: Real-time temperature monitoring and an 85°C over-temperature alarm ensure safe use and extend the device’s device life.

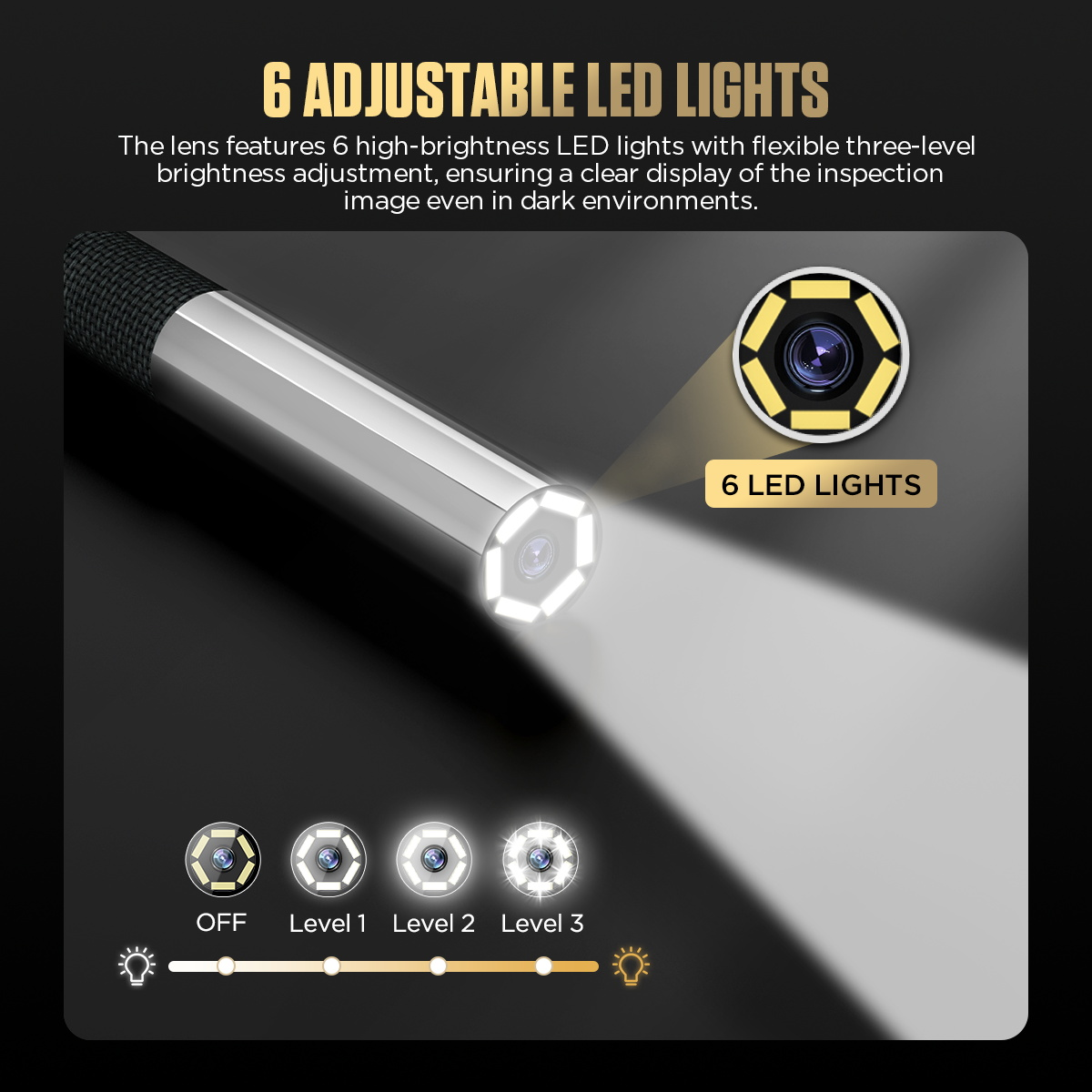

• Six High-brightness Ceramic LEDs: Three adjustable brightness levels provide stable and even light, even in dark or confined spaces.
• 2000mAh High-capacity Battery: Supports up to 180 minutes of continuous use, reducing frequent charging and ensuring long-term inspections.

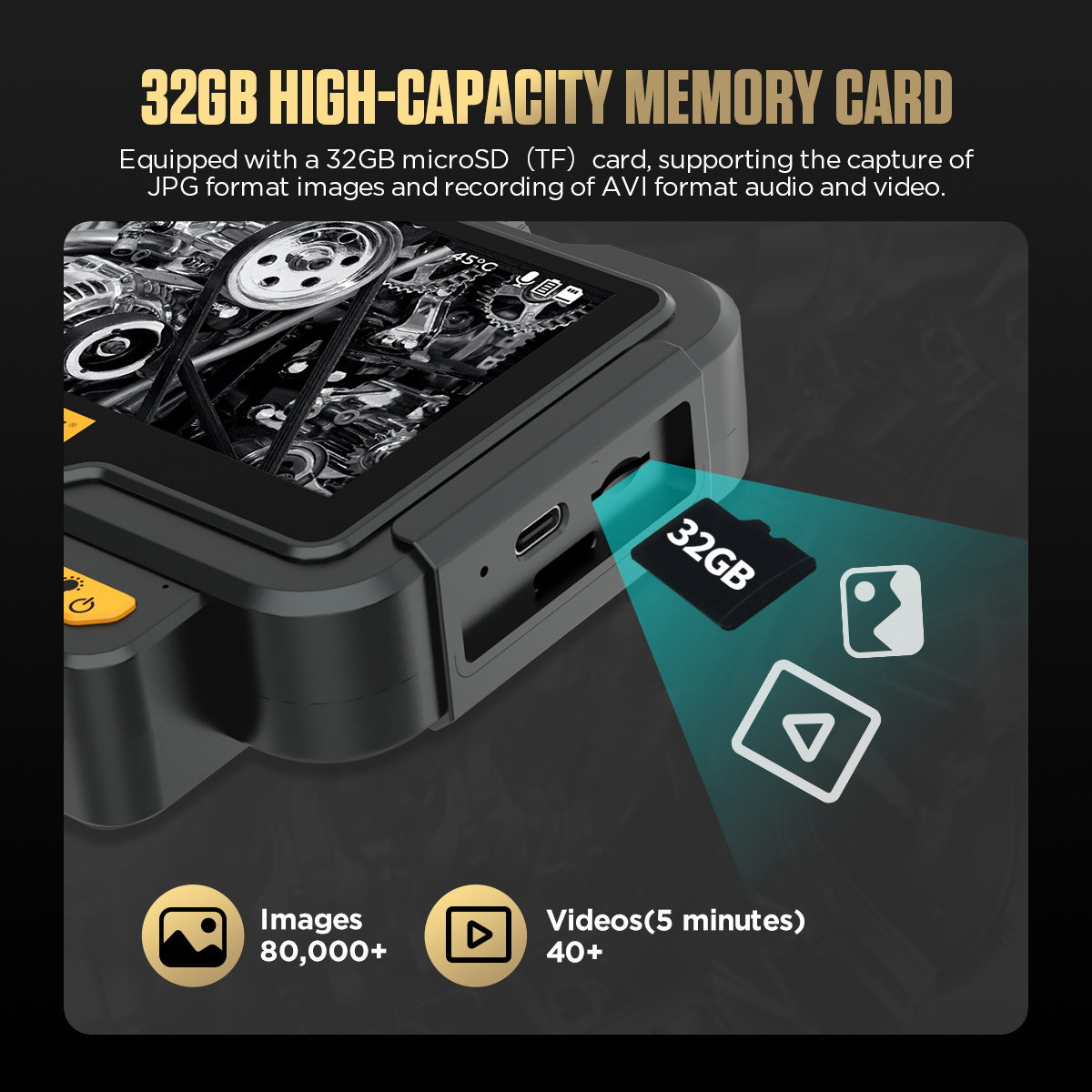

• Built-in 32GB High-speed Memory Card: Stores over 80,000 images or 40 videos, meeting massive data storage needs.

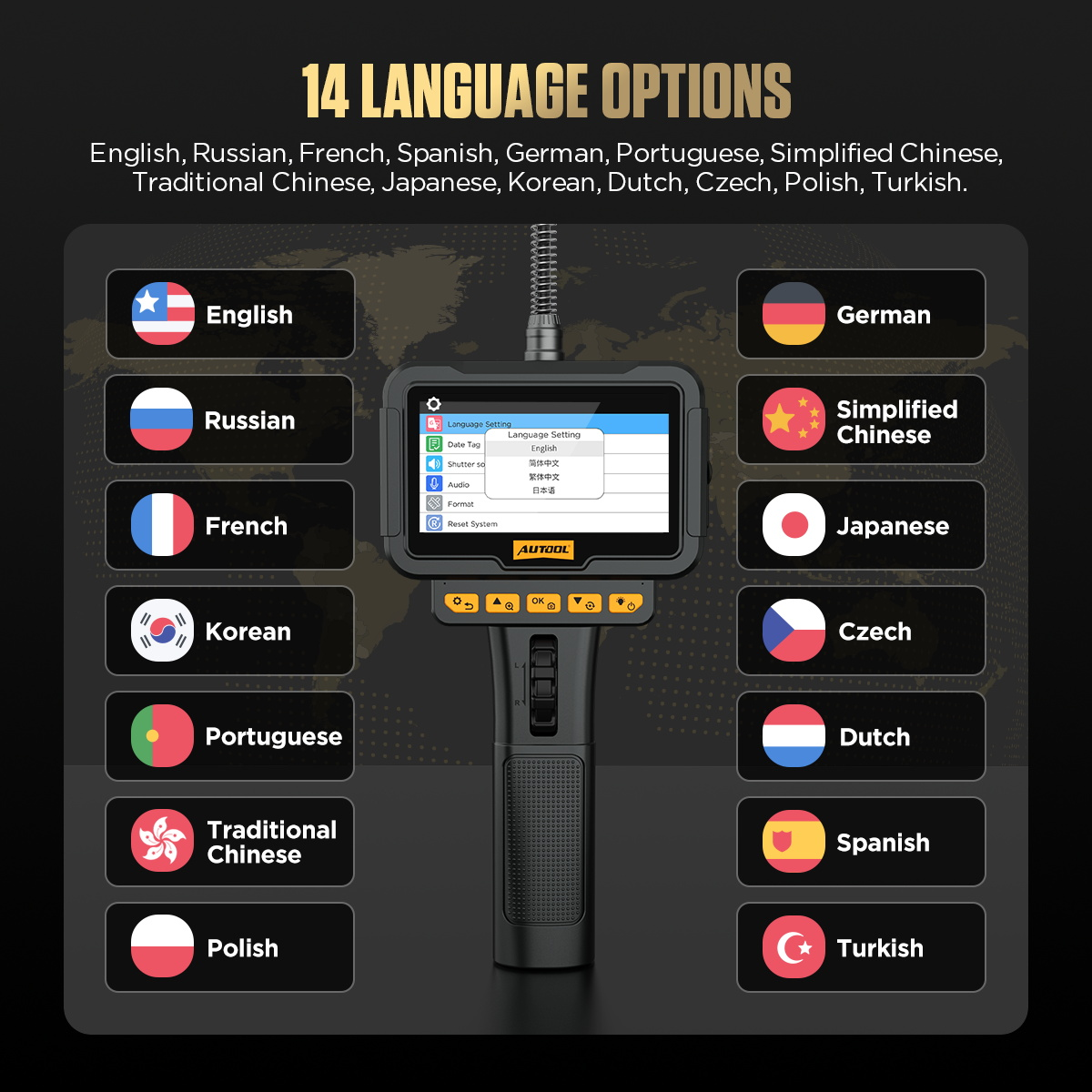

• Supports 14 Languages: English, Russian, French, Spanish, German, Portuguese, Simplified Chinese, Traditional Chinese, Japanese, Korean, Dutch, Czech, Polish, and Turkish.
• 3-year Warranty: Free parts replacement within 3 years for non-artificial damage.

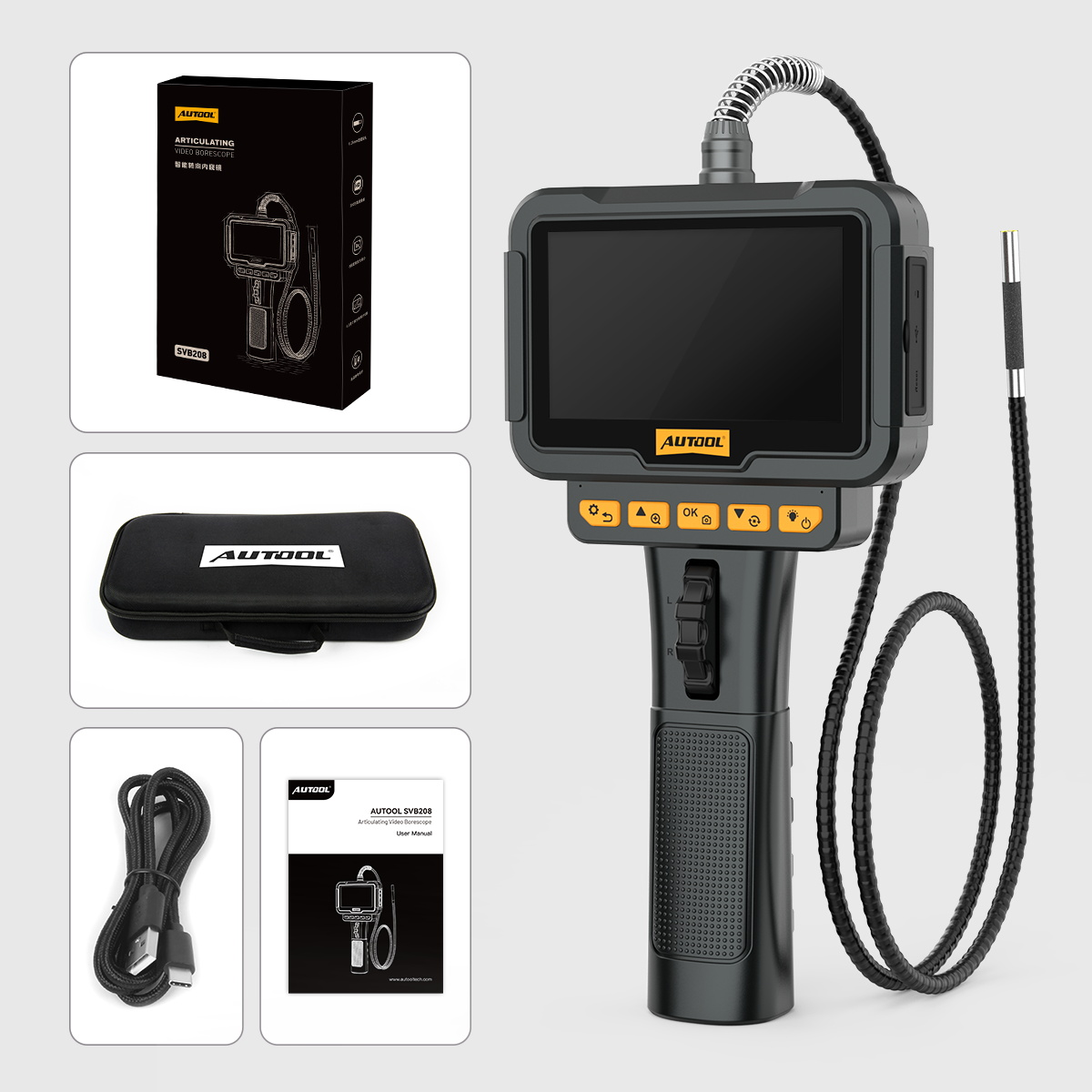

Packing List
