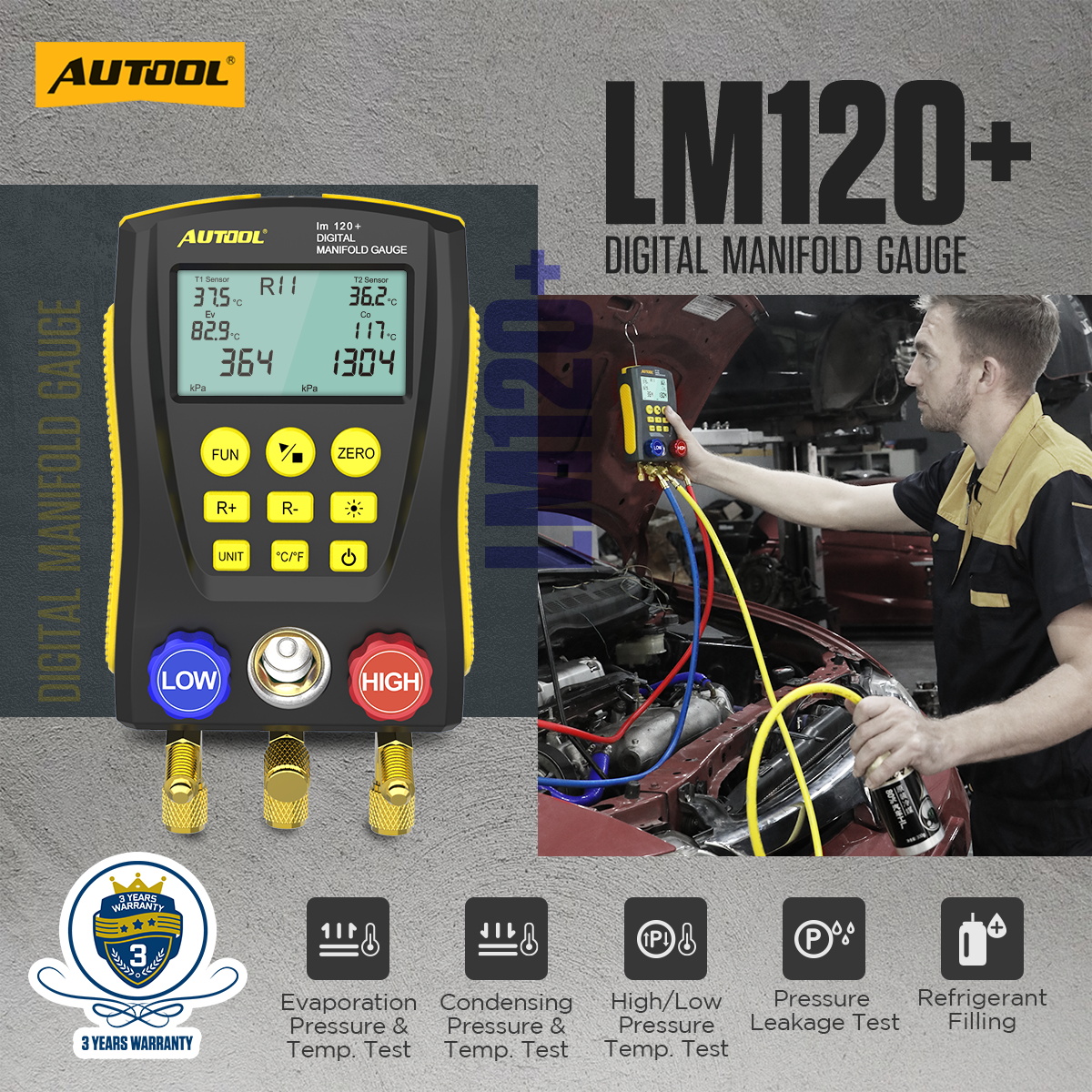

AUTOOL LM120+ Digital Refrigerant Gauges Hvac Gauges
$149.00

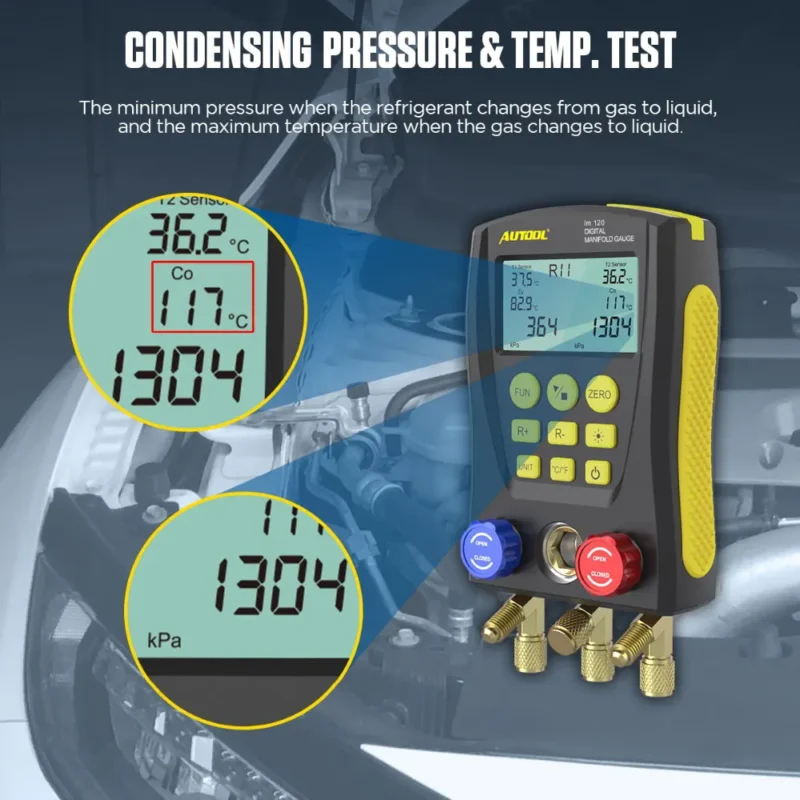

- Multiple Test Modes: Measures dual pressures and temperatures, vacuum levels, and features leak detection, multi-unit pressure conversion, and Celsius/Fahrenheit conversion.
- Industrial-Grade Design: Durable valve switch and 1/4 inch standard interface ensure long-lasting performance.
- Three-year warranty: Contact us anytime with issues, and we’ll deal within 24 hours! Online Support>>
For wholesale prices and more discounts click here.
AUTOOL LM120+ Digital Refrigerant Gauges is an auxiliary instrument for the installation,testing and maintenance of refrigeration equipment such as air conditioners and cold storage. It is a digital refrigerant manifold with dual pressure test, dual temperature test (test clip required, not included), digital readout, multi-unit switching, multi-mode function and built-in refrigerant database.
🗣️You may want to know.
⚠️Warm Tips
- The digital manifold pressure tester measures gauge pressure, with a range of -101 kPa to 6 MPa (-0.1 bar to 60 bar) and a limit of 10 MPa (100 bar). The standard hose’s max operating pressure is 600 PSI (about 4.13 MPa, 41.3 bar), with a limit of 3000 PSI (about 20.68 MPa, 206.8 bar).
- Please confirm the rated pressure of the tested equipment before testing. Do not use if it exceeds the instrument’s range. Also, for DY517A, if the packed…
hoses does not match the pressure requirement, you can use suitable replacements for testing. - Do not use and store the instrument in high temperature, high humidity, flammable, explosive and strong electromagnetic fields.
- Please do not change the instrument internal circuit, to avoid any damage of the instrument or danger occurring.
- Please wear qualified protective equipment to protect user during testing.
- Please use the instrument in a well-ventilated environment to prevent inhalation of toxic gases.

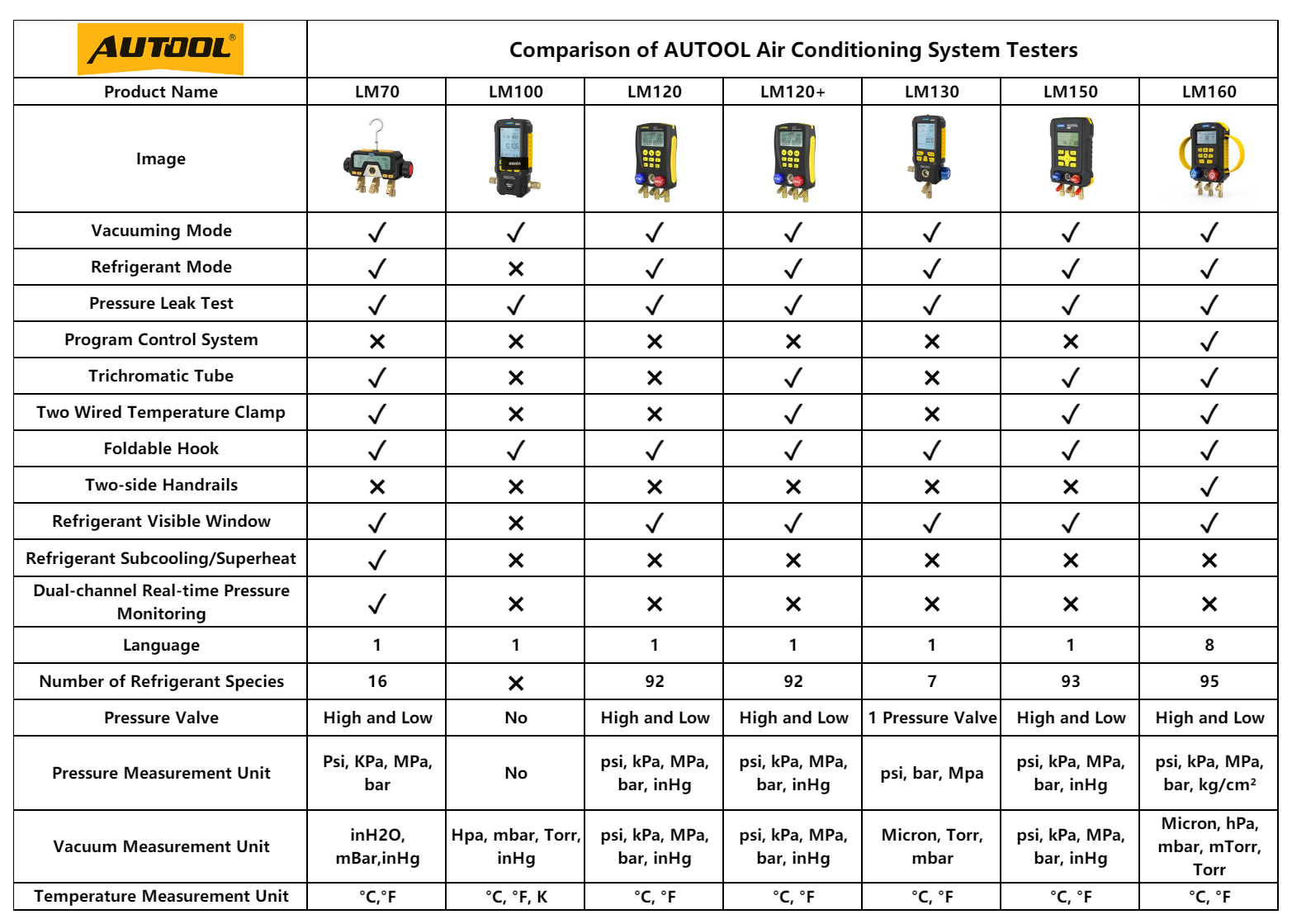

What is the Difference Between the AUTOOL Digital Refrigerant Gauges Hvac Gauges?
AUTOOL Digital Refrigerant Gauges Hvac Gauges Quick Search
AUTOOL LM120+ AC Digital Refrigerant Gauges Hvac Gauges Features
- Widely Applicable: Designed for installation, testing, and maintenance of refrigeration equipment like air conditioners and cold storage.

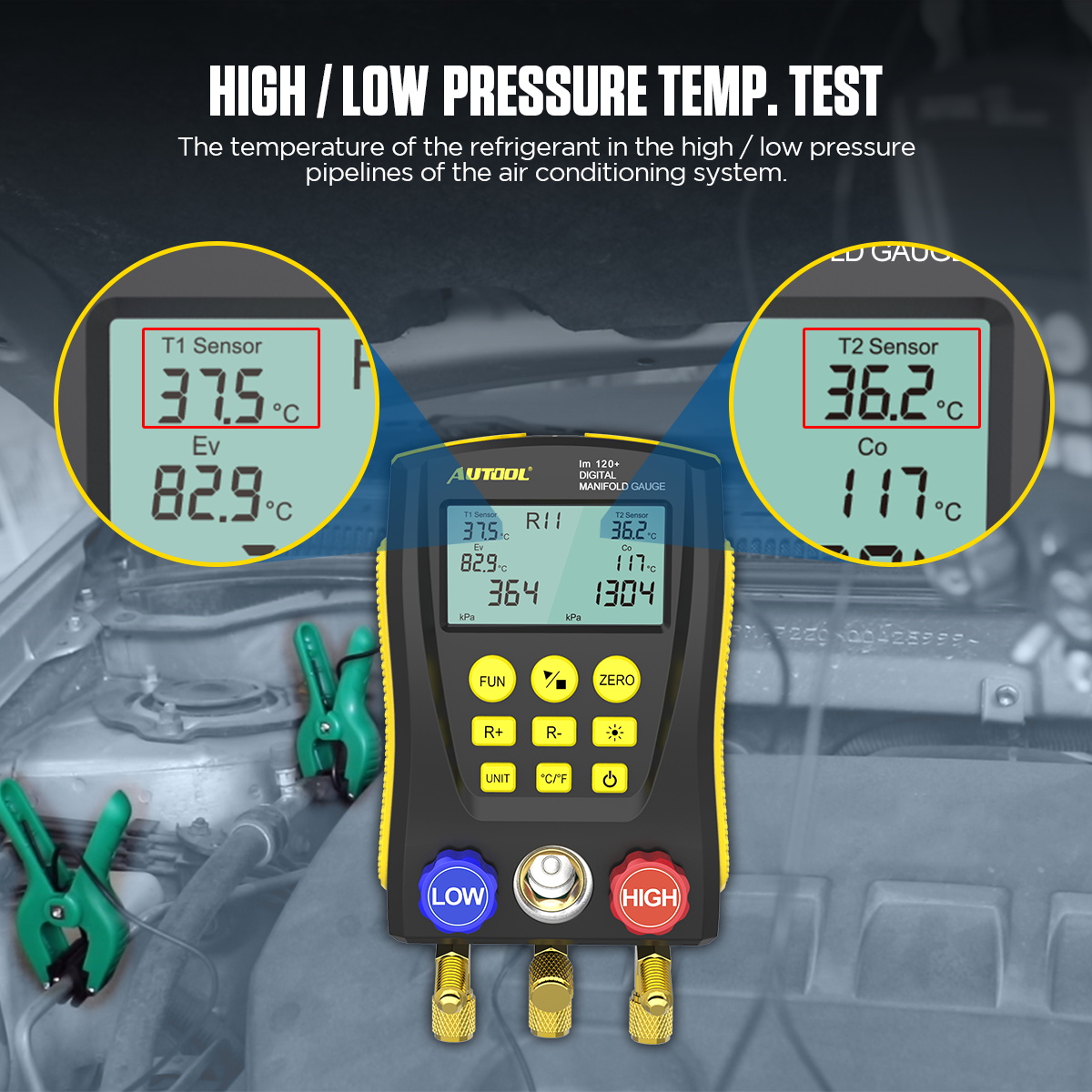

- Multiple Test Modes: Measures dual pressures and temperatures, vacuum levels, and features leak detection, multi-unit pressure conversion, and Celsius/Fahrenheit conversion.
- Intelligent Digital Display: Large backlit LCD provides clear data, enhancing maintenance efficiency through easy operation.
- Built-in Database: Features a 32-bit processor and 89 refrigerant databases for calculating supercooling and superheating, with direct access to operational data.
- Industrial-Grade Design: Durable valve switch and 1/4 inch standard interface ensure long-lasting performance.
- Excellent Material: Made from high-strength plastic and non-slip silicone, offering an ergonomic design and enhanced durability.
- 3-Year Warranty: For damage caused by non-human factors, we promise to reissue parts free of charge within 3 years.

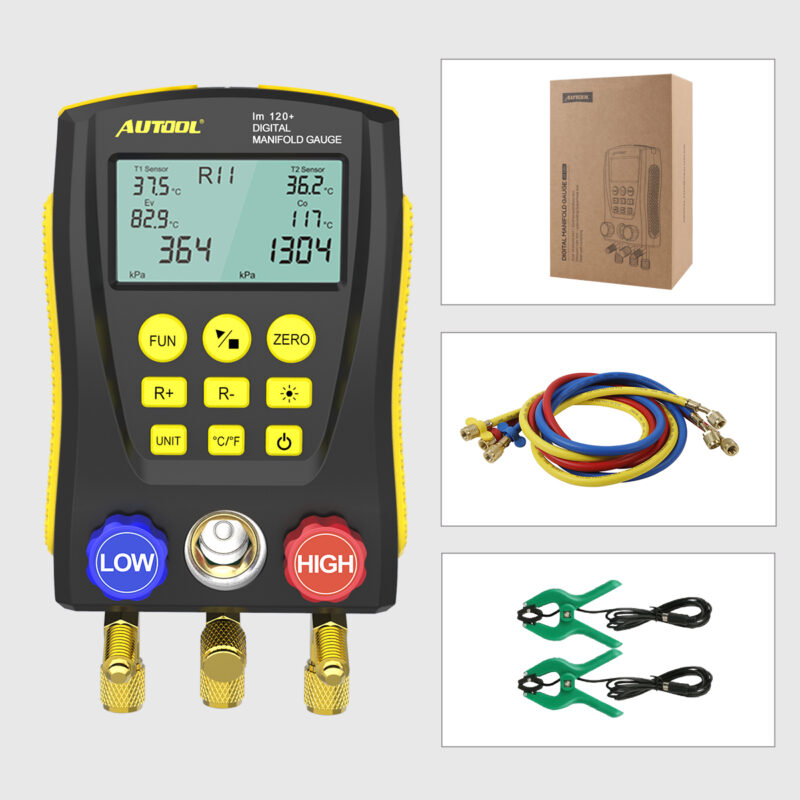

Packing List
SPECIFICATIONS
- Brand Name: AUTOOL
- Origin: CN(Origin)
- Function1: Digital Manifold Meter
- Function2: PK testo 557 digital manifold
- Function3: digital manifold cooling
- Pressure test: gauge pressure
- Pressure test unit: Kpa; Mpa; bar; inHg; PSI.
- Pressure test resolution: 1 Kpa
- Pressure overload limit: 10000 Kpa (10 Mpa; 100 bar;)
- Vacuum test: relative vacuum
- Vacuum test unit: Kpa; Mpa; bar; inHg; PSI.
- Vacuum test resolution: 1 Kpa
- Built-in 89 kinds of refrigerant NIST: According to American NIST standard
- Power Supply: 4 X 1.5V (SIZE.AA / LR6) Battery not include
- Size: 170*110*50mm
- Weight: 1950g
- Hose length: 1.5m
Customer Reviews
Based on 54 reviews
91%
(49)
7%
(4)
2%
(1)
0%
(0)
0%
(0)
Z

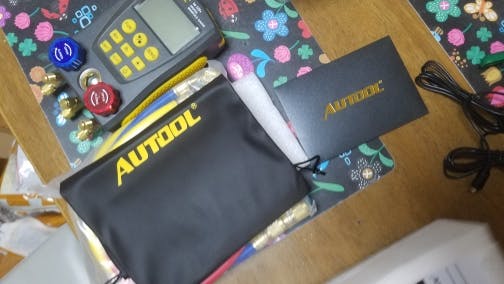

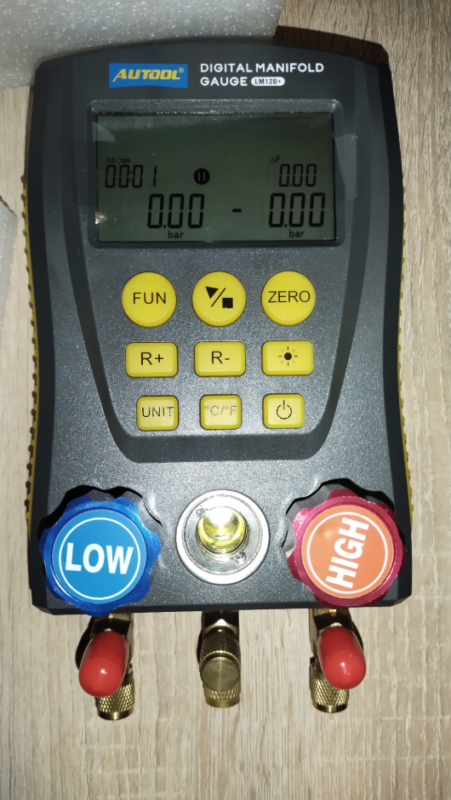

It's decent . You can recalibrate and zero out the pressure but you could have pressure in your lines still. Temperature sensors are good but would work better if the clamps had a copper insert for the sensor that covered the surface area of the hoses toy clamp to. I'm gonna make some new clamps with my 3d printer and add space for thermal conducting material in the clamp so the sensor gets a more accurate reading. But still it's decent for the cost.
J
Arrived fast!!!11 days, all this as described, thank you!!!
V
These gauges work great they are pretty accurate and will recommend to others great value thank you
R
Give your freedom of thermostats and tapes around the pipes to check for super heat and sub cooling, it’s just great .recommend 100%
2 people found this helpful
T
This is a very good product that I would recommend to anyone.
The unit is very easy to use and accurate.
The delivery time and packaging was excellent.
