AUTOOL CT150 Fuel Injector Tester and Cleaner Machine
$259.00
- Accessibility: detailed data display and control panel for easy data reading and instrument operation
- Professional four-cylinder design： Equipped with four 110 ml testing cylinders for efficient testing and intuitive display.
- After-sales Service: Three-Year Warranty, Lifetime Maintenance. Online Support>>
AUTOOL CT150 Fuel Injector Tester & Cleaner Machine is a professional 4-cylinder auto fuel injector testing and cleaning machine. It will help us clean and test the injectors of gasoline cars and motorcycles.
Support for more cars and motorcycles. It can only be used to clean diesel fuel injectors. The cleaning fluid is a 3M car injector, and the test fluid is industrial alcohol. Its working voltage range is 110- 230V. CT150 Car Fuel Injector Tester Cleaner has two versions: Russian and English.
Warm Tips
- Please use professional injector test fluid, as corrosive cleaning fluid will damage the equipment. If you damage the equipment by using cleaning fluid while testing the injector, you will be responsible for the repair costs.
- How to choose a cleaning fluid? To achieve the best cleaning effect, it is recommended to use a professional syringe ultrasonic cleaning fluid to clean the injector. Or you can use medical alcohol with an alcohol content of more than 75% instead of cleaning fluid, but the cleaning effect may not be good enough.
- How to choose a test fluid? To achieve the best test effect, recommended to use professional automotive injector test fluids. If it is not available locally, as an alternative, we recommend that medical alcohol with an alcohol content of more than 75% be used instead of the test fluid.
- When you test a single injector, you simply need to plug only the other 3 cylinders, so the CT150 comes with three plugs.
What is the Difference Between the AUTOOL Fuel Injector Cleaner & Tester Machine?
FAQs
Comparison: AUTOOL FN608 vs FN606 car injector cleaner machine
- 1. Cylinder Testing Capacity
The FN608 supports testing for 8 cylinders, while the FN606 supports testing for 6 cylinders.
- 2. Pump Configuration
The FN608 is equipped with two independent fuel pumps, each corresponding to a separate fuel rail (left and right). Both pumps operate independently during testing — if one pump fails (e.g., the left pump), only the corresponding fuel rail is affected, while the other continues to function normally. This dual-pump system ensures greater reliability and uninterrupted testing. The FN606, on the other hand, has a single fuel pump, meaning that if it fails, the entire system stops working until the pump is replaced.
Comparison: AUTOOL FN608 vs CT500 fuel injector tester
- 1. Cylinder Testing Capacity
The FN608 supports testing for 8 cylinders, while the CT500 supports testing for 6 cylinders. This makes the FN608 more suitable for high-capacity or multi-cylinder engine injectors.
- 2. Heating Function
The FN608 features a heating cleaning tank capable of maintaining a constant temperature up to 50°C, which significantly improves cleaning efficiency and performance. In contrast, the CT500 does not support heating, offering a more basic cleaning function.
- 3. Voltage Settings
The FN608 supports multiple voltage ranges — 12V, 12–70V, and 120–180V — making it compatible with a wider variety of injector types. The CT500, however, supports only 12V, 70V, and 120V, providing more limited voltage adaptability.
- 4. Cleaning Tank Design
The FN608’s cleaning tank can be used independently or together with the main unit, providing greater flexibility for maintenance and cleaning. The CT500’s cleaning tank is integrated with the main body and cannot be used separately, limiting its independent operation.
- 5. Pump Configuration
The FN608 is equipped with two independent fuel pumps, each corresponding to a separate fuel rail (left and right). Both pumps operate independently during testing — if one pump fails (e.g., the left pump), only the corresponding fuel rail is affected, while the other continues to function normally. This dual-pump system ensures greater reliability and uninterrupted testing. The CT500, on the other hand, has a single fuel pump, meaning that if it fails, the entire system stops working until the pump is replaced.
Comparison: AUTOOL CT400 vs CT450 vs CT500 injector cleaning machine
- 1. Testing Functions:
The CT450 adds the Pulse Injection Test compared to the CT400, while the CT500 further adds Wide Pulse Injection Test and Continuous Injection Test compared to the CT450, offering more advanced and versatile injector testing capabilities.
- 2. Cleaning & Heating Function:
The CT450 features ultrasonic cleaning with heating up to 50°C, whereas the CT400 and CT500 do not have a heating function, making CT450 more effective for thorough injector cleaning.
Comparison: AUTOOL CT200 vs CT400 fuel injector cleaner machine
- 1. Supported Injector Types
CT200 only supports 12V standard fuel injectors, whereas CT400 supports both 12V standard and GDI (Gasoline Direct Injection) injectors, making it compatible with a wider range of injector types and vehicles.
- 2. Accessory Storage Design
CT200 does not have dedicated accessory storage, while CT400 features a drawer for injector adapters and other accessories, providing more convenient organization and storage.
Comparison: AUTOOL CT150 vs CT160 vs CT200 ultrasonic fuel injector cleaner
- Both the CT150 and CT160 are designed for cleaning and testing fuel injectors of 4-cylinder gasoline engines.
The main difference is that the CT160 is equipped with an ultrasonic heating function, while the CT150 does not have this feature. - Compared with the CT150, the CT200 simply adds two more testing cylinders (6 in total), while the other functions remain the same.
- If you only need a tester for 12V gasoline fuel injectors, the CT160 is an excellent choice.
However, if you need to test GDI (Gasoline Direct Injection) high-pressure injectors, we recommend choosing CT400, CT450, CT500, FN606, or FN608 for better compatibility and performance.
AUTOOL Fuel Injector Cleaner and Tester Quick Search
-35%
Original price was: $379.00.$245.00Current price is: $245.00.
-11%
Original price was: $575.00.$509.00Current price is: $509.00.
-18%
Original price was: $769.00.$629.00Current price is: $629.00.
How To Use AUTOOL CT150 Fuel Injector Tester & Cleaner
- Step 1: Clean the injector’s outside with cleaning liquid before opening the machine. Putting injectors in the ultrasonic bathtub after the outside of the injector is free of dirt. The cleaning fluid does not exceed the connection port of the pulse line.
- Step 2: Turn on the ultrasonic system, allowing the ultrasonic energy to dislodge any particles that build up inside the injectors. After cleaning, you can recycle the remaining cleaning solution.
- Step 3: Fixed injectors on the main machine, testing injectors for resistance, shorts, and current draw. Add the test solution to half of the glass tube.
- Step 4: Performing leak test, spray pattern, and flow rate testing on the flow bench. The injectors are now returned to the flow bench for retesting of all functions.
AUTOOL CT Series Products
- Effectively cleans fuel injectors.
- It helps restore power and fuel economy.
- Help improve idle and throttle response.
- Help eliminate stalling due to dirty fuel injectors.
- Help differentiate the fuel injector working status.
- Help reduce the cost of injector replacement, especially for the expensive GDI injectors (CT400 and CT500).
AUTOOL CT150 Fuel Injector Tester & Cleaner Machine Features：
- Wide range of applications： The CT150 Car Fuel Injector Tester Cleaner has good compatibility. Support for more cars and motorcycles to ‘clean’ and ‘test’ fuel injectors. Also can be used to ‘clean’ diesel fuel injectors.
- Easy to operate: Fix the car injector in the socket of the washing tank and add an appropriate amount of 3M cleaning fluid. Once you power it on, the cleaning will complete automatically. For testing, secure the car injector in the oil separator and add industrial alcohol to the glass tube. After powering it on, the test will finish automatically.
- Leading technology: At present, only our company produces this portable and multi-functional automobile fuel injector cleaning and testing machine, and it has obtained a special patent.
- Safety: Its working voltage range is 110- 230V. When the machine is short-circuited, the fuse inside will automatically trip to shut down the running machine to prevent electric shock.
- 3-year warranty: For damage caused by non-human factors, we promise to resend parts for free within 3 years.
AUTOOL CT150 Fuel Injector Tester & Cleaner Machine Main Functions
- Cleaning petrol injector with ultrasonic
- Cleaning spark plug. Put spark plug into cleaning tank, input clean fluid, and begin clean
- Testing injector injection in different situations, checking leaking and blocking
- Cleaning injector without disassembly (need extra accessory and extra fee, choose by yourself)
- Cleaning throttle valve without disassembly. (need extra accessory and extra fee, choose by yourself)
- Cleaning and test motorcycle injector, testing function for HONDA YAMAHA SUZUKI SANYANG injectors only, (need extra accessory and extra fee, choose by yourself)*Fuel Injector Cleaner- Clean Your Fuel Injectors Without Removal.
Packing List
FAQs
Can diesel injectors be cleaned and tested by using AUTOOL CT series products?
AUTOOL CT series products can clean diesel injectors, but not test.
How to choose a test fluid?
The test fluid assesses the fuel injector’s performance. It is a colorless, odorless, and non-corrosive liquid that simulates various injector working states. For best results, recommended to use a professional automotive injector test fluid. If not available, medical alcohol with more than 75% alcohol content can be used instead.
How to choose cleaning fluid?
To clean deposits (such as carbon deposits) on fuel injectors, use a cleaning fluid that is highly corrosive and flammable. For the best testing results, opt for a professional injector ultrasonic cleaning fluid. If local options are unavailable, you may use 75%+ medical alcohol as a substitute, but its effectiveness may vary.
Can I use cleaning liquid to test the injectors?
Absolutely not! The cleaning liquid is corrosive and may damage internal machine components, corrode rubber, and cause leaks.
How do I set test parameters?
You don’t need special settings. All you have to do is set the number for the feature and set the test time. The testing process is simple and easy to use.
How to select the correct voltage when using CT400 to test GDI injectors?
Select the voltage according to the injectors to be tested. Gradually increase the voltage from 12V, 70V to 120V, until the injectors function correctly.
When testing GDI injectors with CT400, will the wrong voltage damage the injectors?
In the short term, the wrong voltage won’t cause damage. However, do not apply the wrong high voltage to the injectors for a long time. If the injector does not work properly, please adjust it to the correct voltage in time.
SPECIFICATIONS
- Brand Name: AUTOOL
- Origin: CN(Origin)
- Support for: Automobile fuel nozzle cleaning detector
- Item Type: 4 Cylinders Injector clean test machine
- Function: Car/motorcycle Fuel Injector Cleaning and Testing
- Features: Fuel Injector Cleaner and Tester
- Material: Aluminum alloy
- Feature 1: Ultrasonic Gasoline Auto Tool
- Feature 2: Support almost all 12V car petrol injector
- Feature 3: Support 110V/220V Voltage
- Feature 4: Support Spark Plug Throttle Valve Clean
- Feature 5: Support 4 cylinder injector Test
- Fuel Tank Capacity: 1000 ml TESTER CLEANER
- Capacity of Measuring Cylinder: 125 ml
- Fit for: Gasoline car motorcycle injector
- OBD Interface: CAN, EOBD, OBD, OBDII
- Vehicle Type: Motorcycle, Passenger Vehicle
- Warranty: 3 Year
- Size: 15.7″x14.9″x11.8″ (40x38x30cm)
- Weight: 10KG
- Speed Range: 0~7500 rpm
- Frequency: 50HZ±0.5
- Humidity: 85%
- Environment Temperature: 40°C
- Injecting Times: 0~9900 Step: 100ms
- PWM Pulse: 0~20.0 ms Step: 0.1 ms
- System Pressure: 0~0.6Mpa (adjustable)
- Time: 0~20 minute (adjustable)
- Power of Ultrasonic Cleaning: 70W
- Frequency of Ultrasonic Cleaning: 28 KHZ±0.5 KHZ
- Used for: Injector Cleaner Test
VIDEO
65 reviews for AUTOOL CT150 Fuel Injector Tester and Cleaner Machine
| 5 star | 86% | |
| 4 star | 13% | |
| 3 star | 0% | |
| 2 star | 0% | |
| 1 star | 0% |
Customer Images
1-5 of 65 reviews
Add a review
AUTOOL CT150 Fuel Injector Tester and Cleaner Machine
Your review
* Review is required
Name
* Name is required
Email
* Email is required
Add photos or video to your review
[jgm-review-widget]
Home
Shopping Guide
Product
Wheel Aligner Machine
Smoke Leak Detector
Fuel Injector Tester
Brake Fluid Exchanger
Dry lce Blasting Machine
Walnut Sand De-Carbon Cleaner
Refrigerant Recovery Machine
Articulating Borescope
Transmission Fluid Exchanger
Spark Plug Tester
Battery System Tester
Engine Pressure Tester
Diagnostic Multimeter
Key Frequency Tester
Maintenance Environment Tester
Pneumatic Oil Drainer & Extractor
Oil Analysis Tester
Circuit Tester
OBD Diagnostic Tool
Digital Manifold Gauge
Inverter Programming Power Supply
EV Charging
Used Car Diagnostic Tester
Cooling System Tester and Filler
Workshop Tool Storage Series
EV Battery Pack Air Tightness Tester
Wheel Alignment Machines
ACCESSORIES&OTHER
News
Help Center
Custom Solutions (OEM & ODM)
Track My Order
Online Support

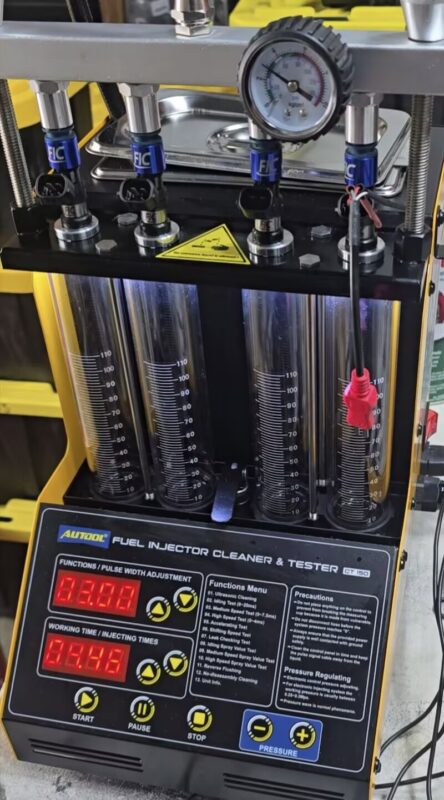

The AUTOOL CT150 is incredibly easy to use—simply secure the fuel injector, add the cleaning solution, and press the switch; the device will run automatically. It works for both my car and my motorcycle, but it cannot be used to test diesel injectors or for diagnostic purposes. The safety fuse gives you peace of mind, and its patented technology makes it a reliable tool for both home users and small repair shops!
