EV Battery Pack Air Tightness Tester
AUTOOL CT400 Fuel Injector Cleaning Tester with GDI Test
$549.00

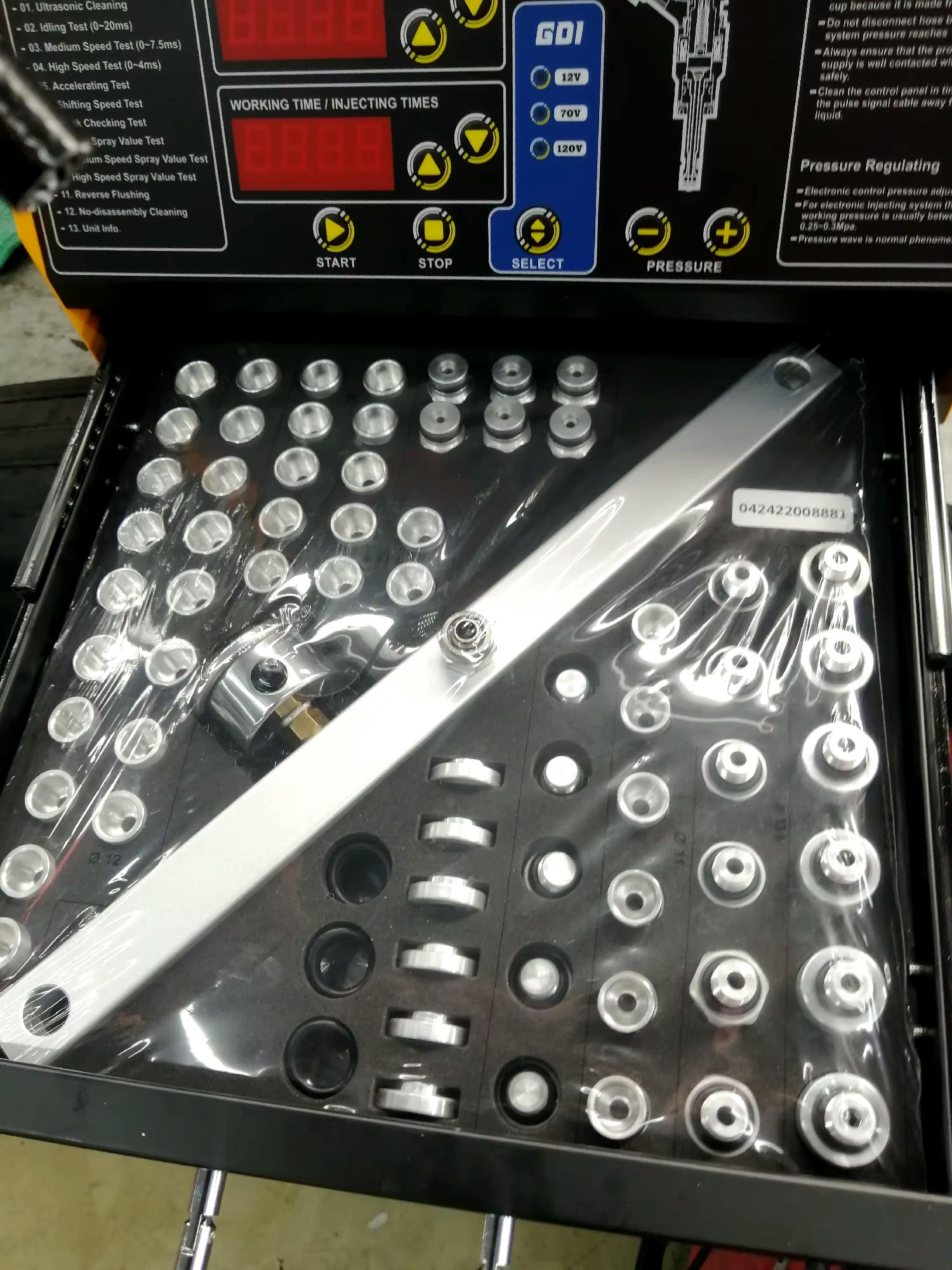

- High adaptability: Supports GDI injector inspection and cleaning， 9 types of connectors can be adapted to most injector types.
- Intelligent Design: Equipped with high-definition digital control panel display, easy to operate and learn.
- After-sales Service: Three-Year Warranty, Lifetime Maintenance. Online Support>>
For wholesale prices and more discounts click here.
AUTOOL CT400 Fuel Injector Cleaning Tester adopts the latest unique GDI injector driving technology, which can drive 12V, 70V, and 120V high-voltage injectors.
When unsure about the injector’s voltage type, you don’t need to worry about damaging the nozzle. The CT400 will intelligently determine the necessary driving voltage for the GDI injector. If the voltage is selected incorrectly, there will be no fuel injection or alarm. It is your first choice of equipment for automotive service and repair.
How To Choose Test Fluid And Cleaning Fluid?
- Test Fluid: This colorless, odorless, non-corrosive liquid checks injector performance and simulates working conditions. For best results, use professional test fluid, or if unavailable, medical alcohol (75%+ alcohol content) as an alternative.
- Cleaning Fluid: Removes deposits from injectors and is typically corrosive and flammable. Use professional ultrasonic cleaning fluid for the best results. If unavailable, medical alcohol (75%+ alcohol) can be used but may be less effective.
Warm Tips
-
-
Please use professional injector test fluid, do not use corrosive cleaning fluid, cleaning fluid will damage the equipment, if the equipment is damaged because you use the cleaning fluid when testing the injector, you need to bear the repair costs.
-
Before using the ultrasonic cleaning function, add the carbon cleaning fluid first. Do not run the equipment without adding the fluid, as it may damage the ultrasonic motherboard.

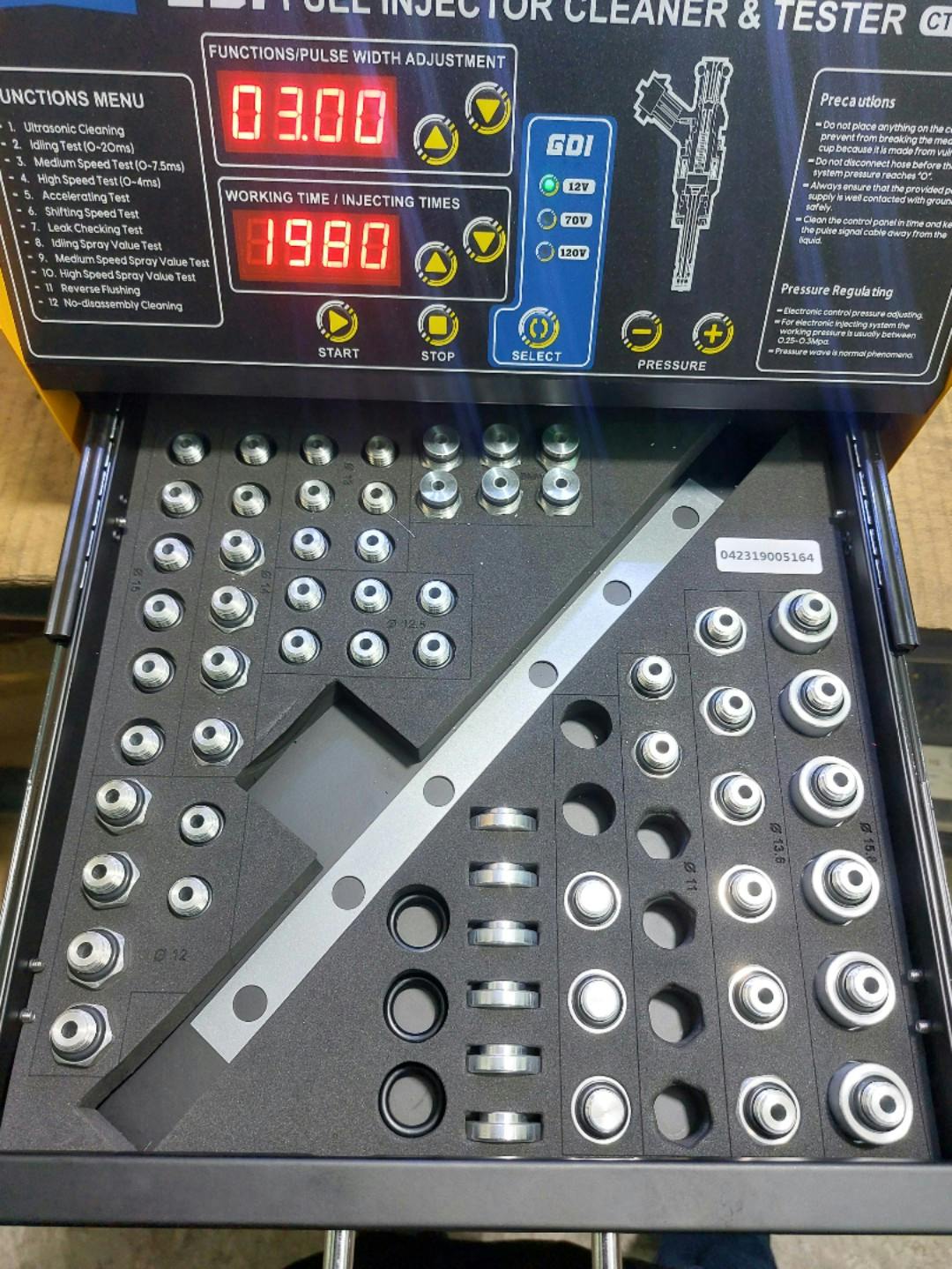

- When you test a single injector you simply need to plug only the other 5 cylinders, so the CT400 comes with five plugs.
What is the Difference Between the AUTOOL Fuel Injector Cleaner & Tester Machine?
AUTOOL Fuel Injector Cleaner and Tester Quick Search
-13%
$349.00 – $409.00
-21%
Original price was: $779.00.$619.00Current price is: $619.00.
$1.35 – $89.90
Why Need AUTOOL CT400 Fuel Injector Cleaning Tester?
Injector performance is crucial for engine function. Carbon buildup from combustion can lead to injector failures and increased wear on cylinder walls and piston rings, resulting in unstable idling, higher fuel consumption, poor acceleration, starting problems, and potential engine damage.

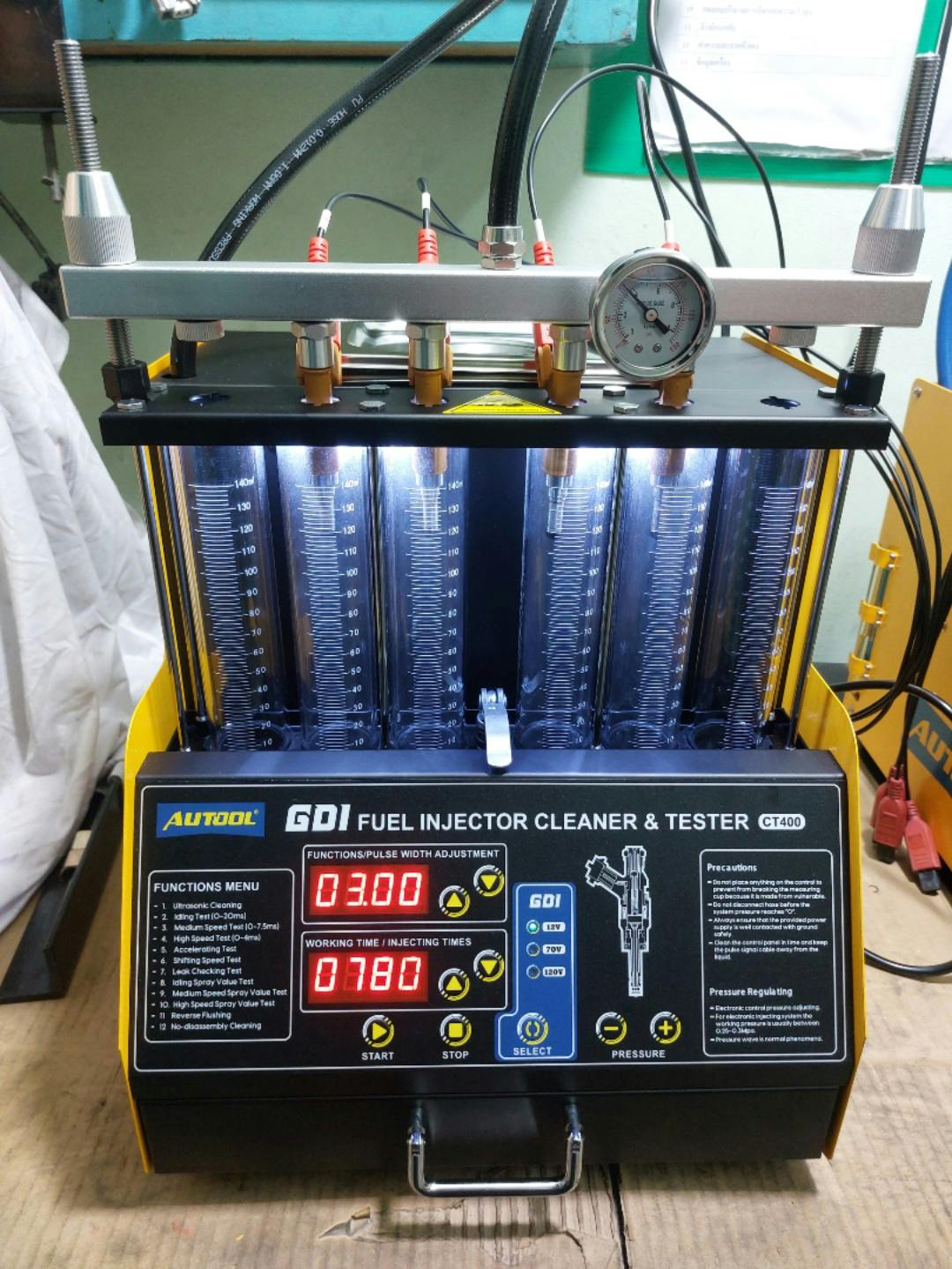

AUTOOL CT400 GDI Fuel Injector Cleaner & Tester Machine Feature

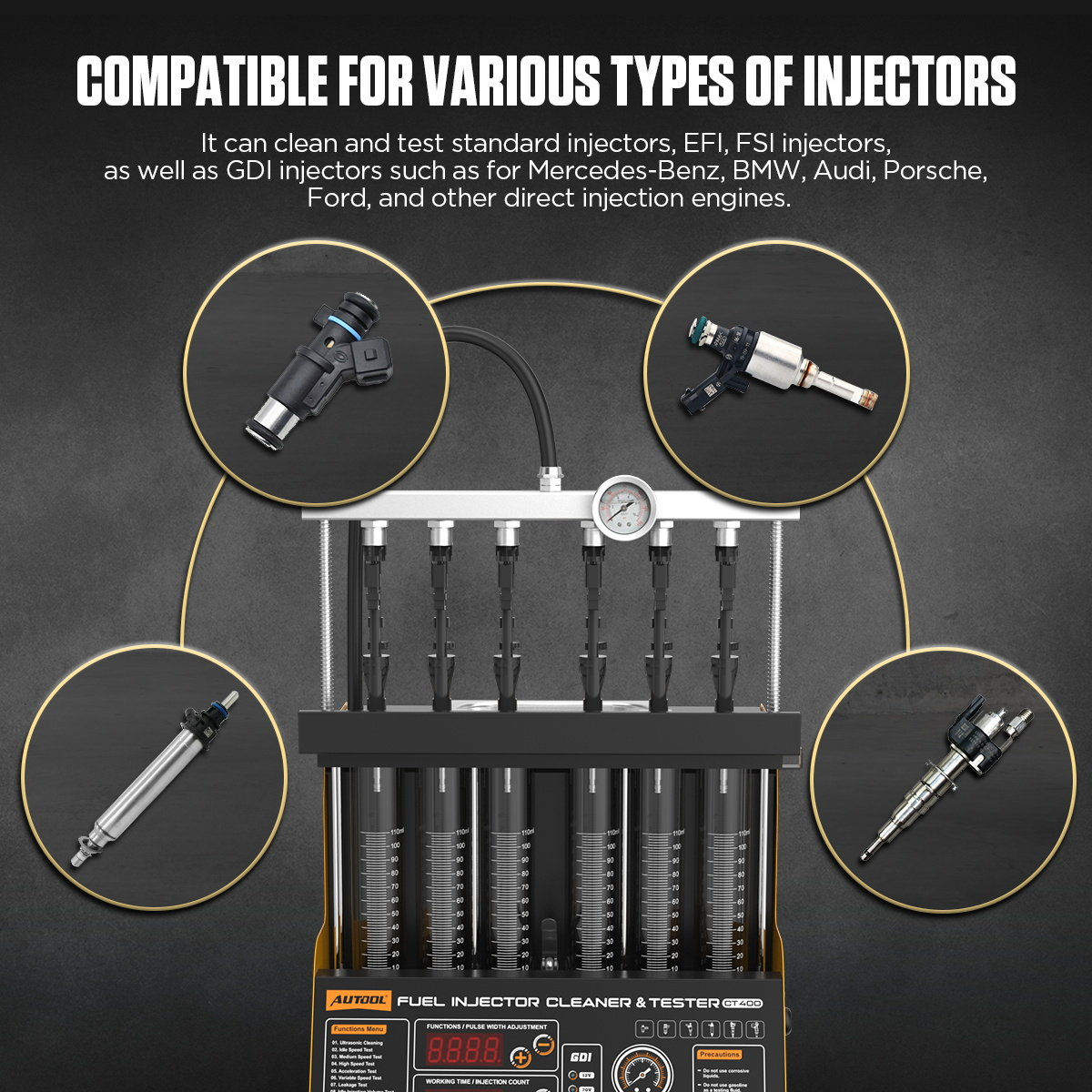

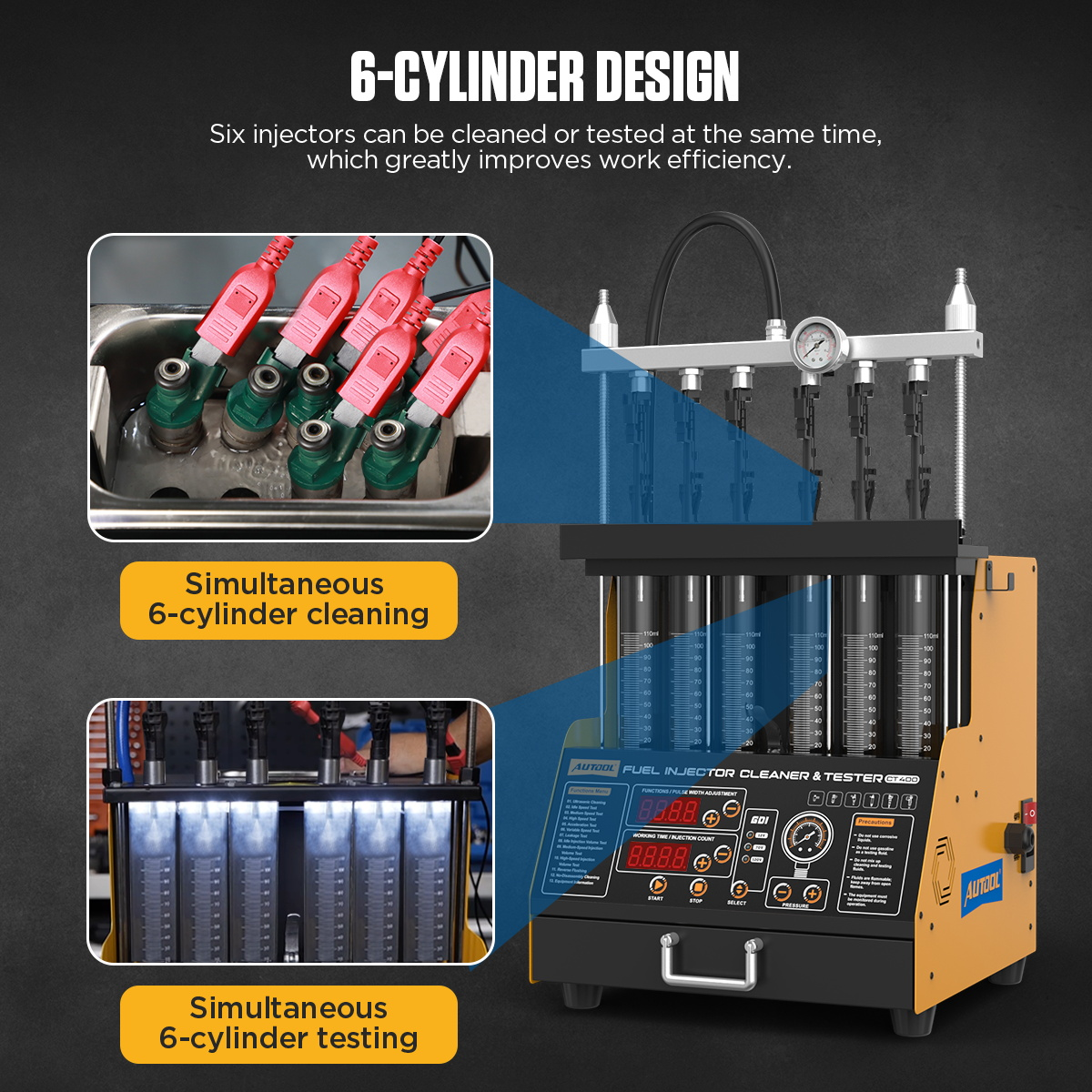

- For GDI Injector Cleaning and Testing:AUTOOL CT400 employs advanced GDI injector drive technology to clean and test both standard and GDI injectors, compatible with brands like Mercedes-Benz, BMW, Audi, and Porsche. Its 6-cylinder design enables simultaneous testing of multiple injectors.
- Advanced Ultrasonic Cleaning Technology: Stable oil pressure, wide adjustable range. Strong cleaning capacity, large capacity of cleaning cylinder, can clean several injectors at the same time.

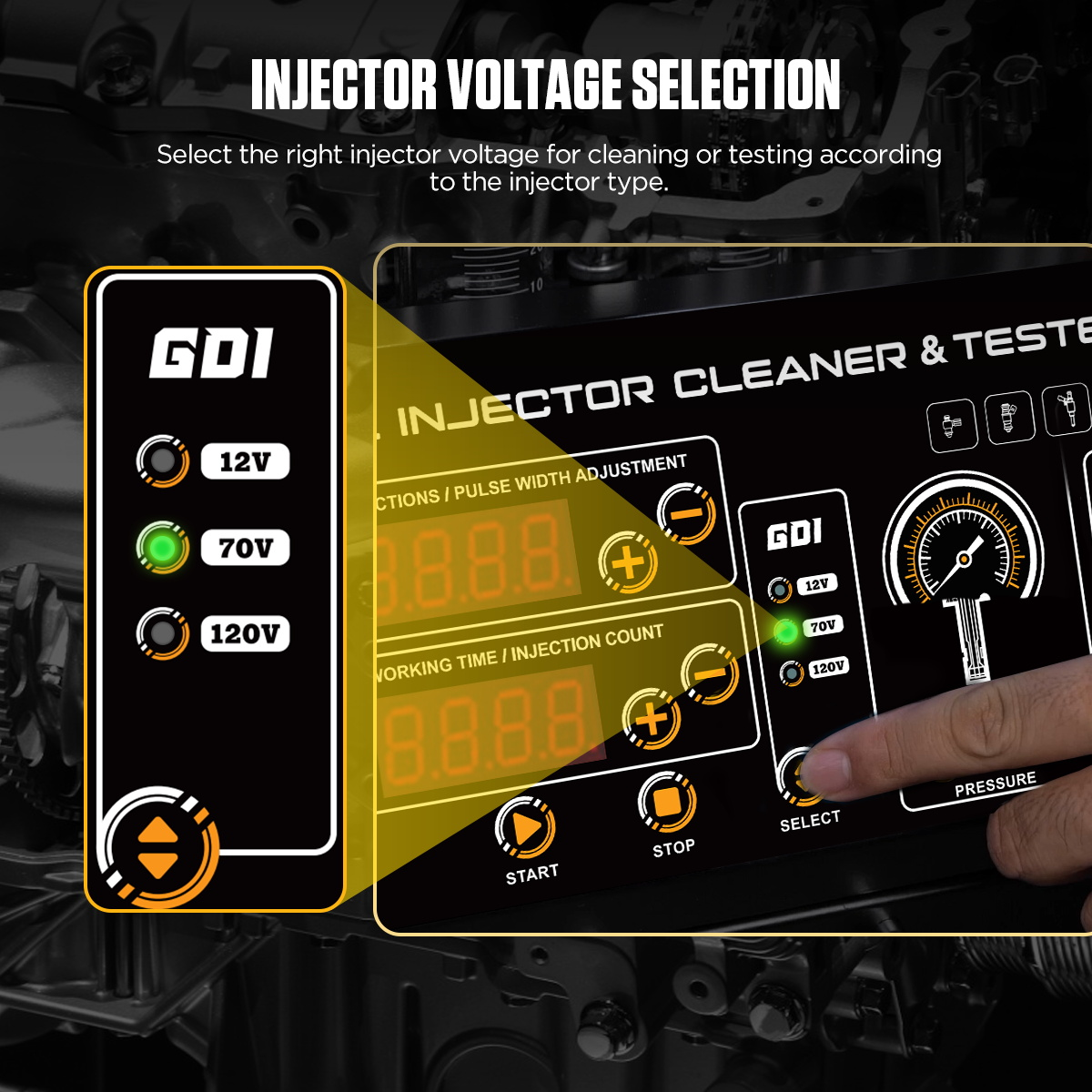

- Multi-voltage selection: The CT400 6 Cylinder Injector Nozzle Cleaning Tester offers adjustable voltage outputs (12V, 70V, 120V) for different injectors. It smartly identifies the necessary driving voltage for GDI injectors to prevent damage from incorrect settings while avoiding oil injection or alarm signals.
- Support Car Model: Support for major automakers: Audi, Benz, BMW, Chevrolet, Chrysler, Fiat, GM, Honda, Hyundai, Jaguar, Kia, Mazda, Mitsubishi, Nissan, Opel, Peugeot, Porsche, Renault, Saab, Toyota, and more.
-

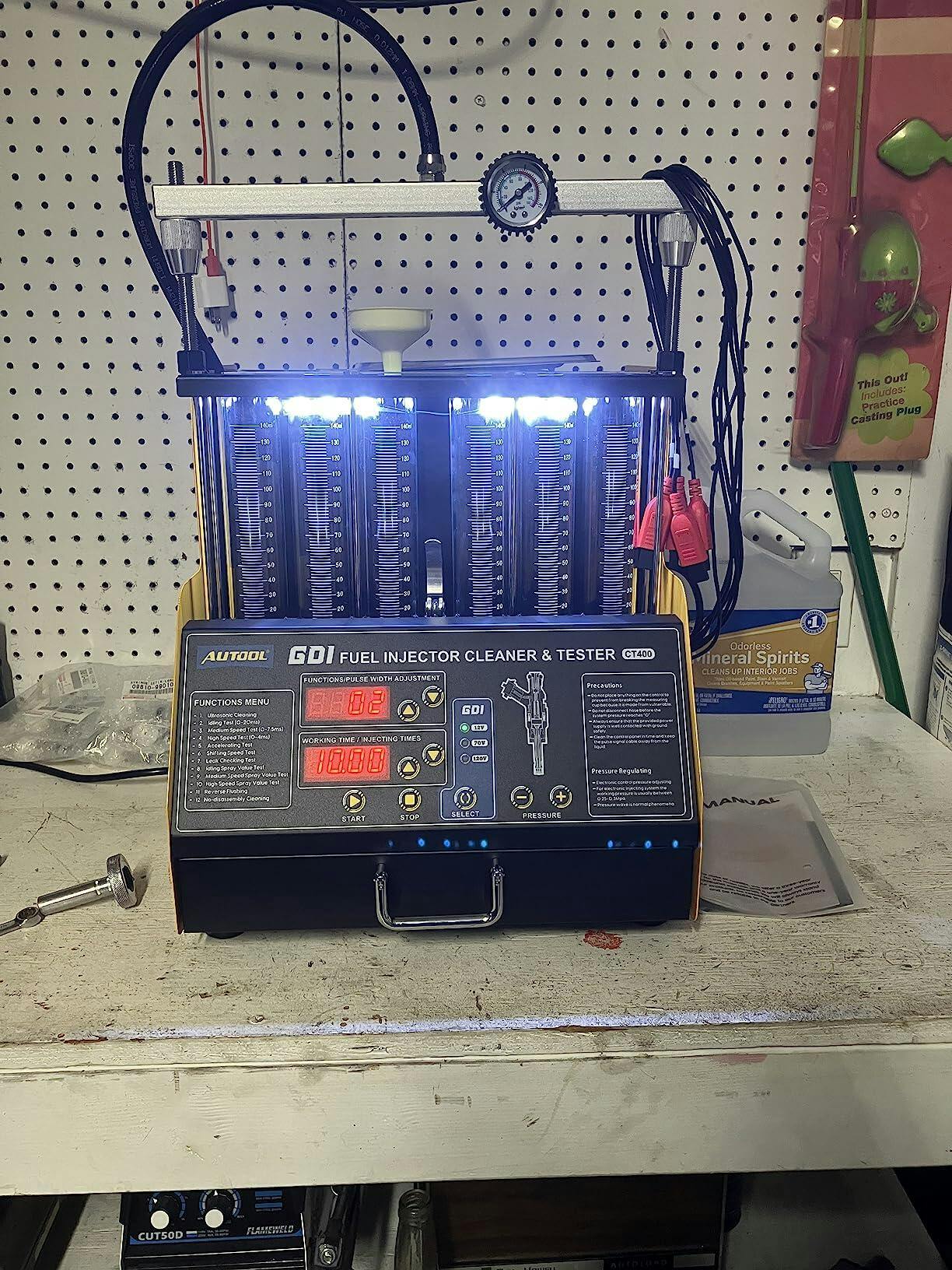

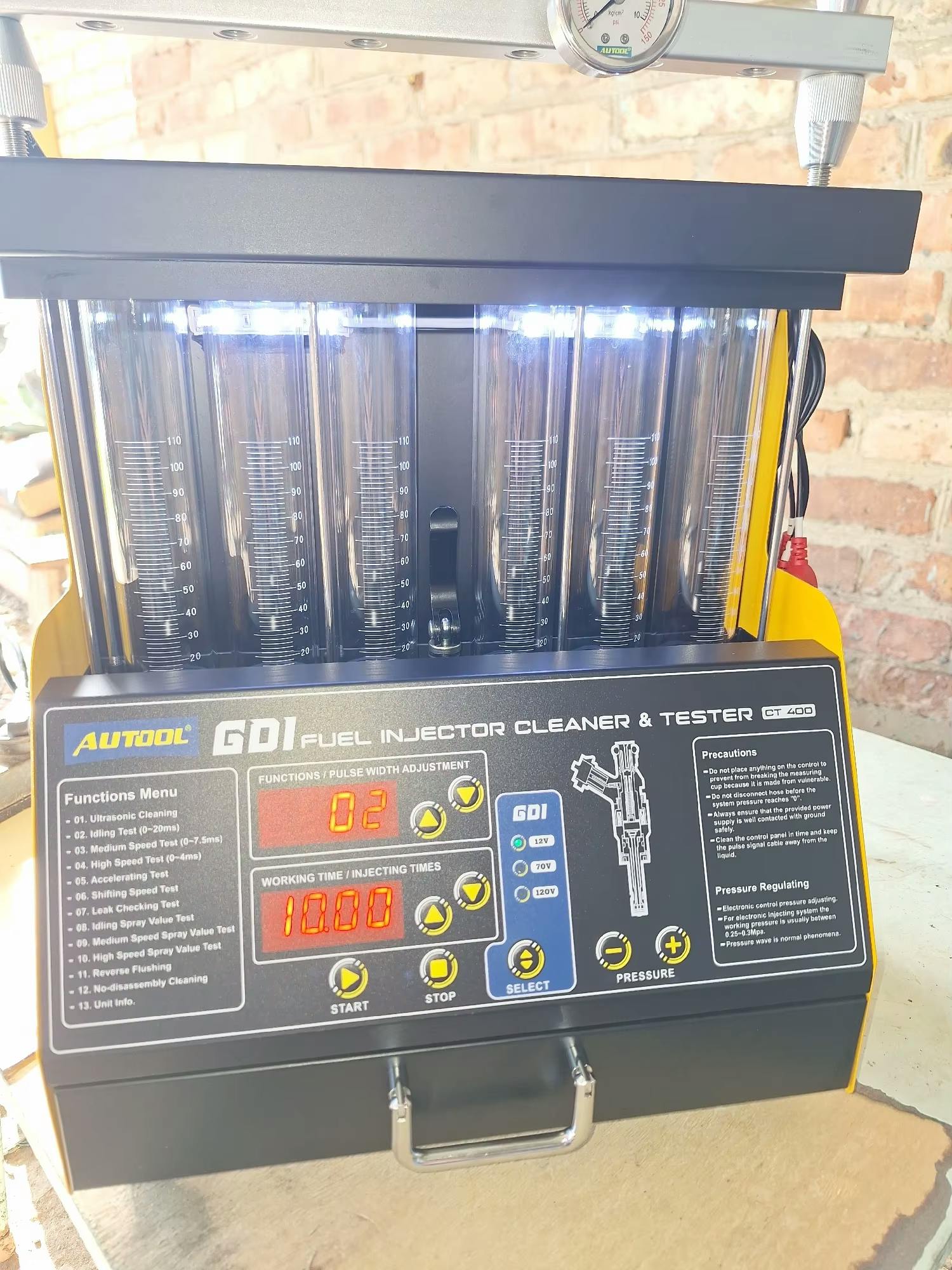

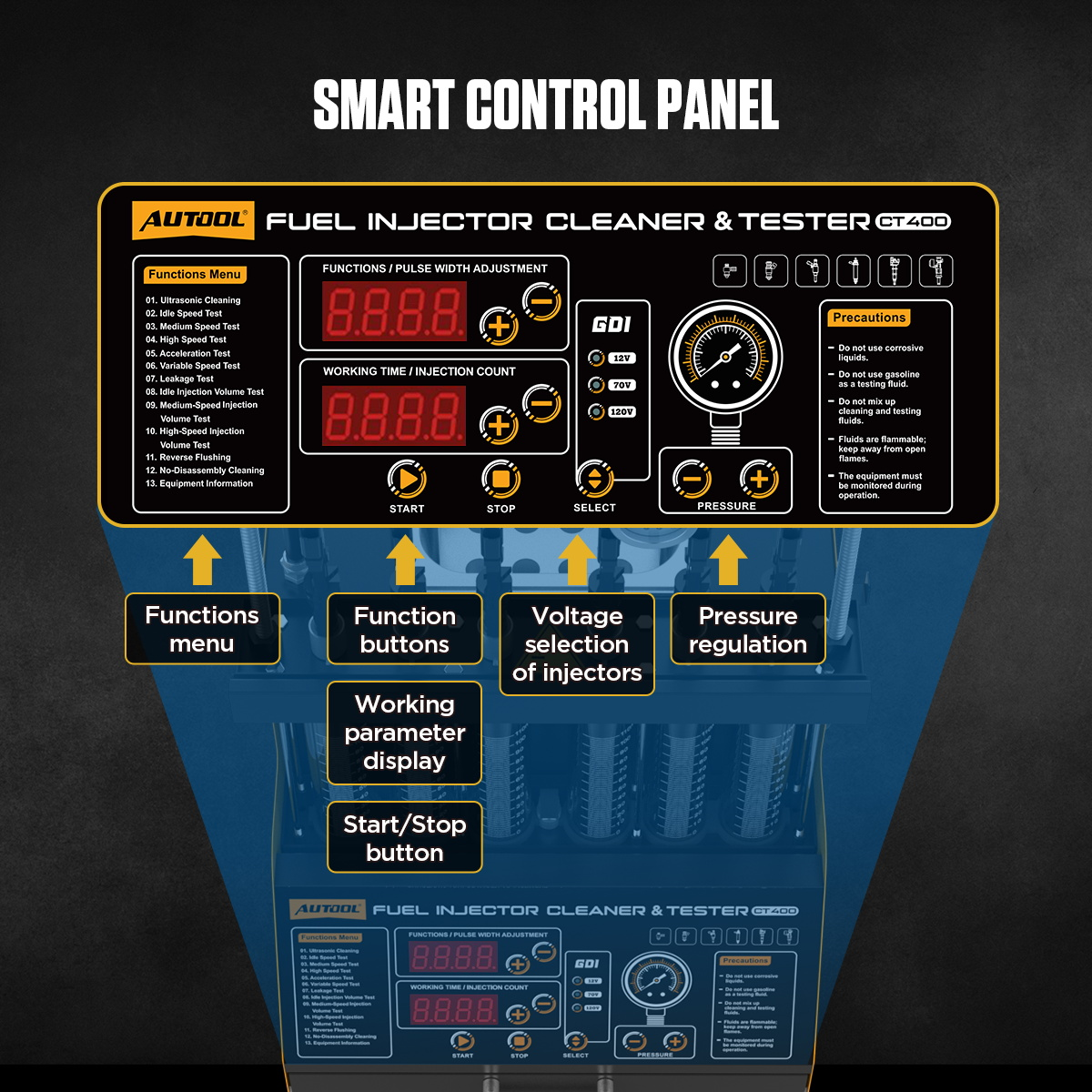

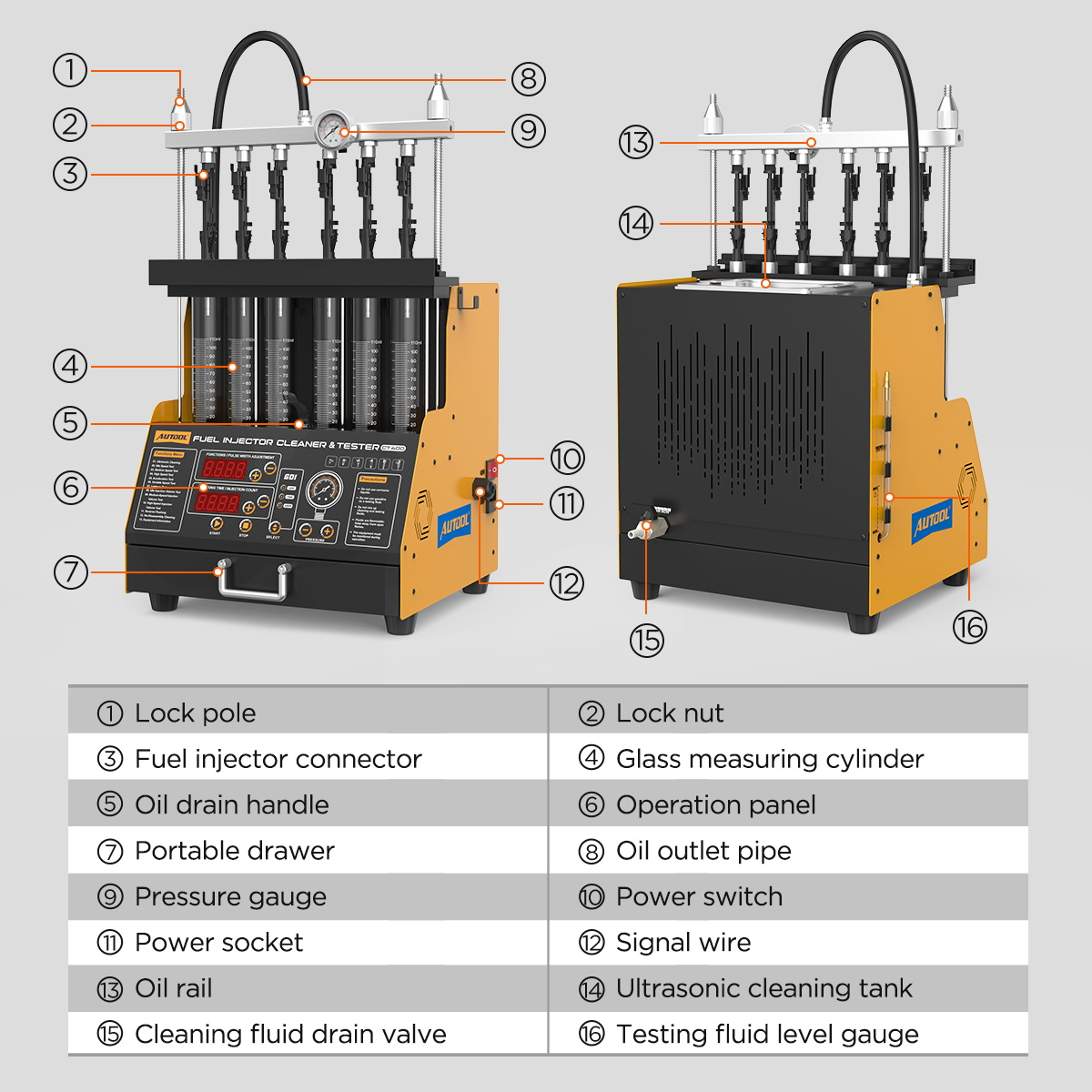

Intelligent Design: The device features a high-definition digital control panel for easy operation. A bright LED backlight lets you monitor the injector’s working conditions. It also includes a test fluid drain valve for clear observation and recycling of the test fluid.
-
Three-Year Warranty and Lifelong Maintenance: AUTOOL will replace parts free of charge for damages due to non-human factors within three years. For inquiries, please contact us; we aim to respond within 24 hours.

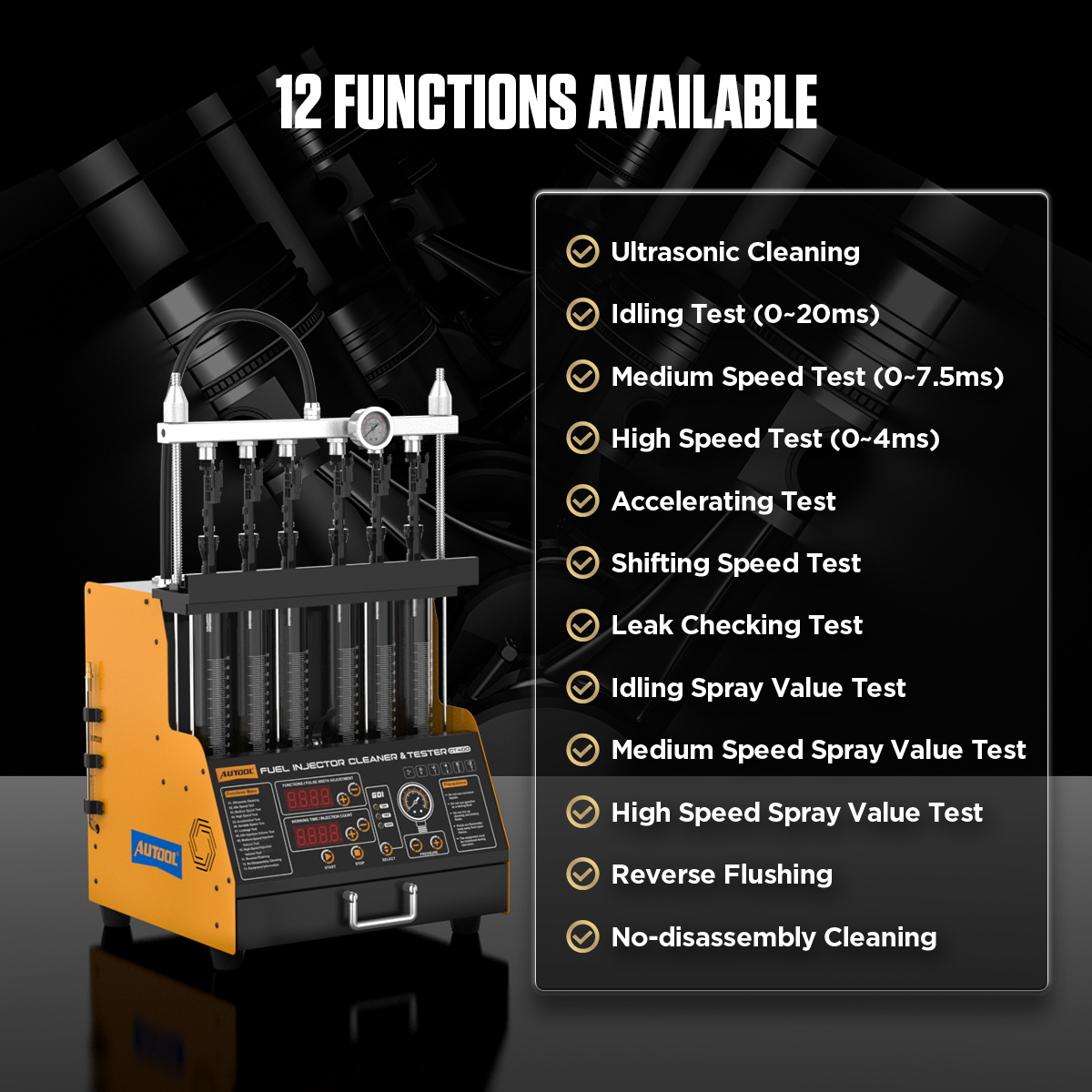

AUTOOL CT400 GDI Fuel Injector Cleaner & Tester Machine Functions

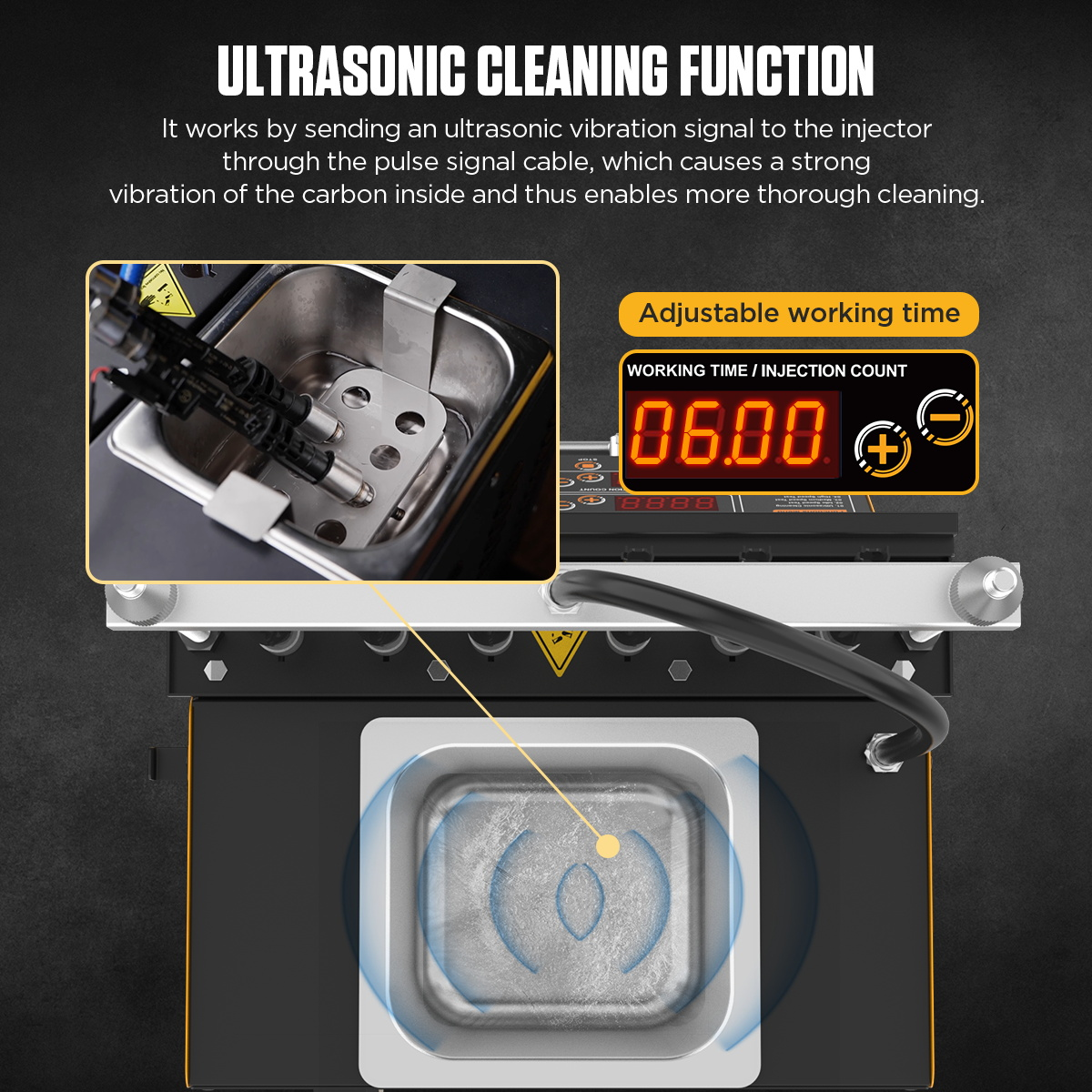

- Ultrasonic cleaning: It sends signals to the injectors through the pulse signal line, using the cleaning fluid with ultrasonic vibration to completely remove the carbon and impurities inside the injectors.
- Idle speed test (0-20ms): Simulate the engine idling speed and test the state of the fuel injector.
- Medium speed test (0-7.5ms): simulate the engine running at medium speed and test the state of the fuel injector.
- High-speed test (0-4ms): Simulate the high-speed performance of the engine and test the state of the fuel injector.
- Acceleration test: Simulate the acceleration state of the car and test the performance of the fuel injector.
- Shift speed test: Simulate the shifting state of the car and test the working performance of the fuel injector.
- Leakage test: Test the sealing condition of the fuel injector.
- Idle speed sprayability Test: Simulate the engine idling state and test the spraying performance of the fuel injector.
- Medium-speed sprayability test: Simulate the engine’s medium-speed state and test the spraying performance of the fuel injector.
- High-speed sprayability test: Simulate the high-speed state of the engine and test the spraying performance of the fuel injector.
- Reverse flush: Reverse flush is a way to clean the injectors with the test liquid flowing from the outlet to the inlet of the injector. Reverse flush may remove the dirt inside the injector or the injector Strainer (Only for the top fuel supply injector).
- No-disassembly cleaning: Direct cleaning without disassembling the injectors, this function is an additional function, that requires special adapters.

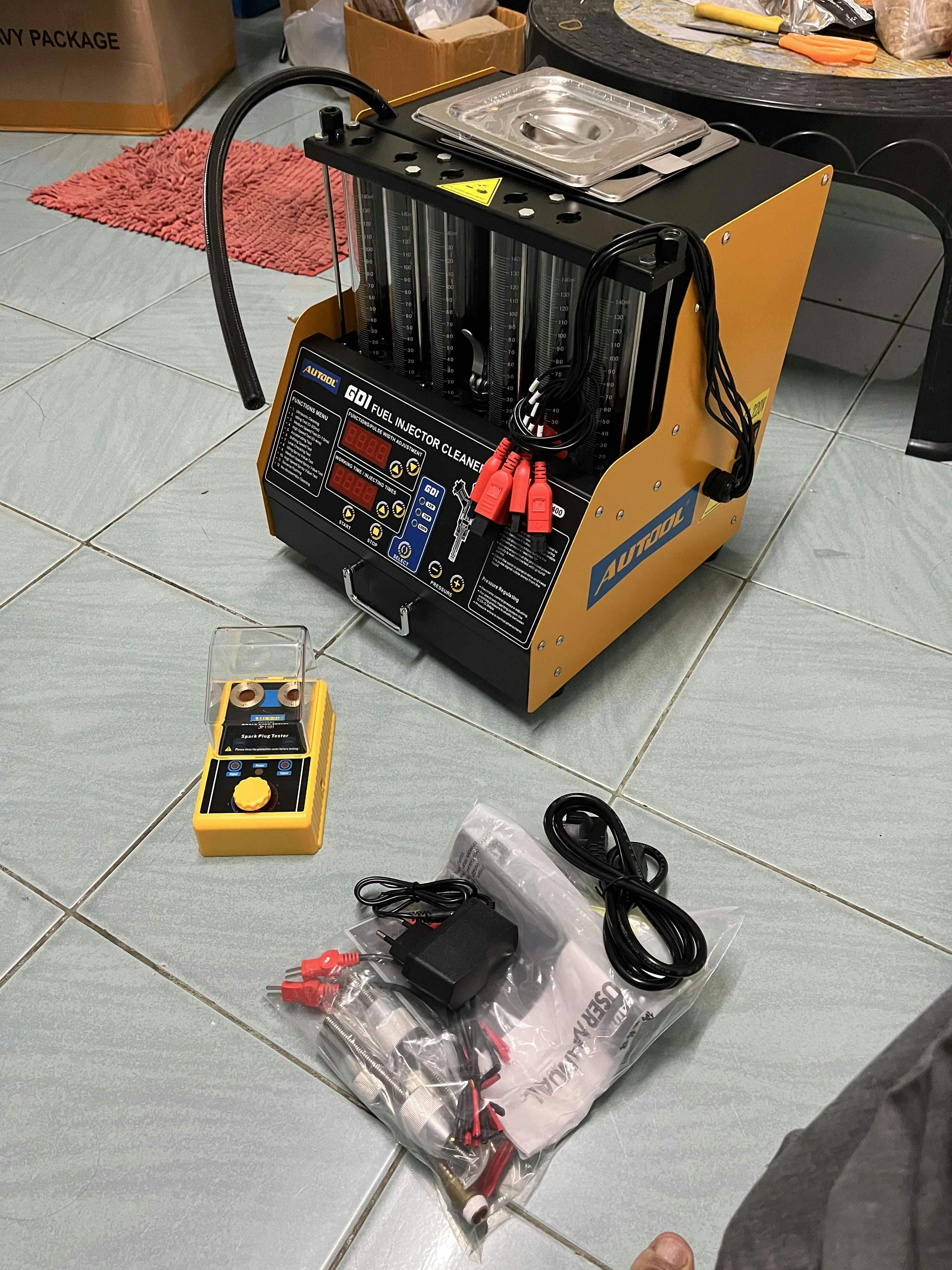

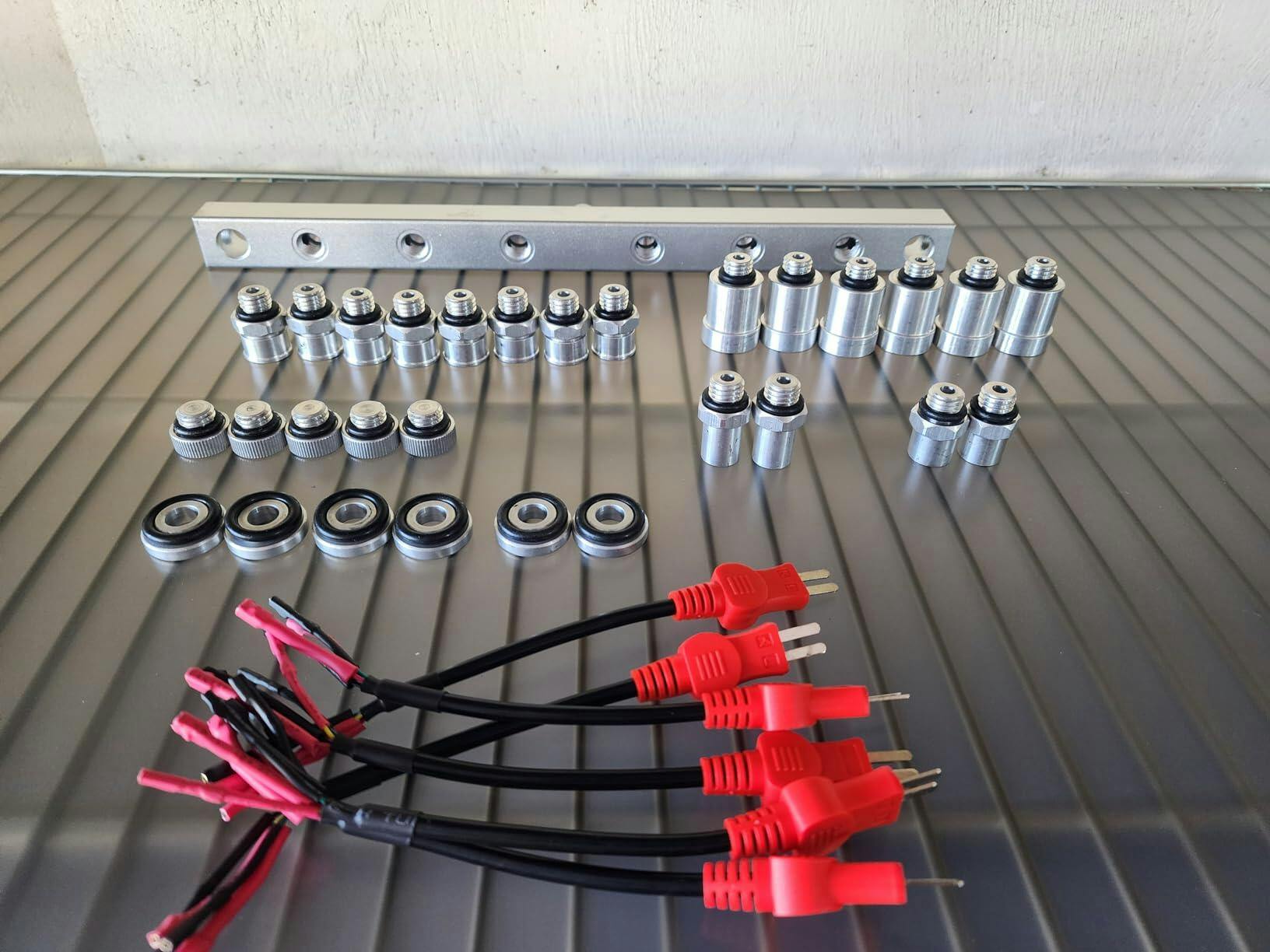

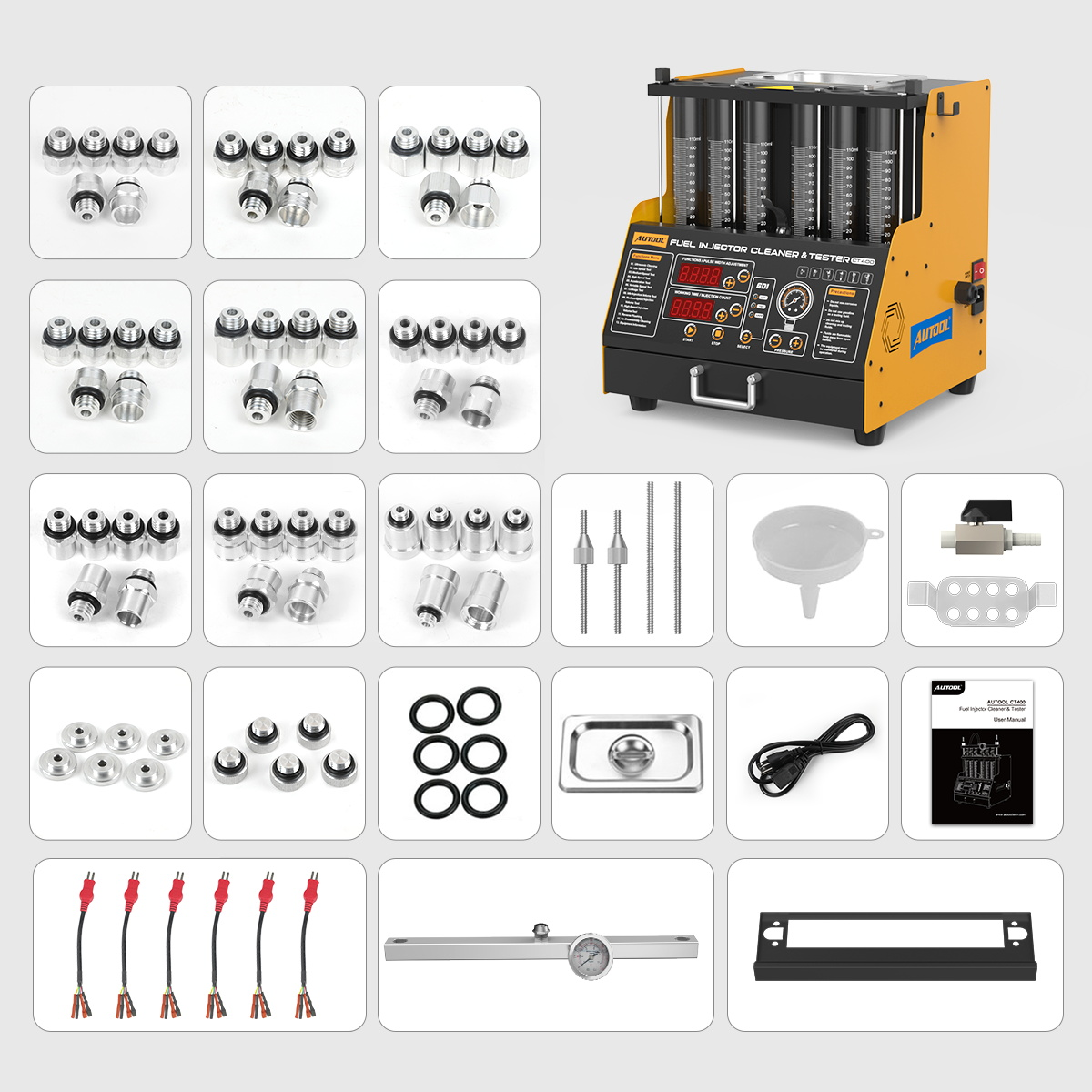

Packing List
FAQs
Can diesel injectors be cleaned and tested by using AUTOOL CT series products?
AUTOOL CT series products can clean diesel injectors, but not test.
How to choose test fluid?
The test fluid evaluates fuel injector performance. It’s a colorless, odorless, non-corrosive liquid that simulates different injector working states. For optimal results, use a professional automotive injector test fluid. If unavailable, medical alcohol with over 75% alcohol content can be used instead.
How to choose cleaning fluid?
To clean carbon deposits on fuel injectors, use a highly corrosive and flammable cleaning fluid. For optimal results, choose a professional ultrasonic cleaning fluid. If unavailable, 75%+ medical alcohol can be used as a substitute, though its effectiveness may vary.
Can I use cleaning liquid to test the injectors?
Not! The cleaning liquid is corrosive and may damage internal machine components, corrode rubber, and cause leaks.
How do I set test parameters?
You don’t need special settings. You need to set the number for the function and set the test time. The testing process is simple and easy to use.
How to select the correct voltage when using CT400 to test GDI injectors?
Select the voltage according to the injectors. Gradually increase the voltage from 12V, 70V to 120V until the injectors function correctly.
When testing GDI injectors with CT400, will the wrong voltage damage the injectors?
In the short term, the wrong voltage won’t cause damage. However, do not apply the wrong high voltage to the injectors for a long time. If the injector does not work properly, please adjust it to the correct voltage in time.

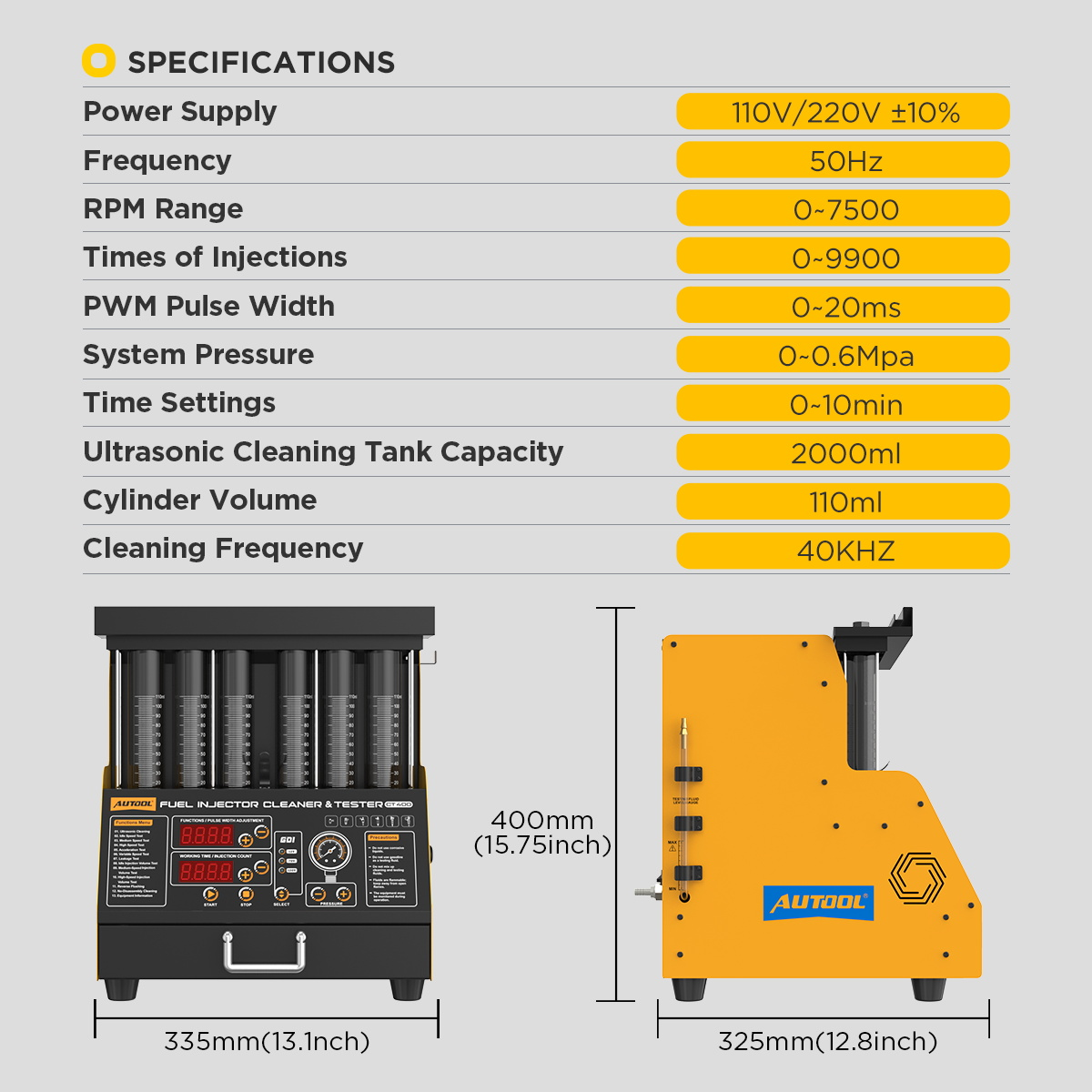

SPECIFICATIONS
- Brand Name: AUTOOL
- Origin: CN(Origin)
- Model: CT400 GDI Fuel Injector Cleaner & Tester Machine
- Function: Gasonline Nozzle Cleaner
- Feature 1: Fuel Injectors Cleaner & Tester
- Feature 2: Ultrasonic Cleaning
- Feature 3: petrol machine,nozzle stand
- Feature 4: injectors tester
- Feature 5: injector tester,injector cleaner
- Power supply: AC110V/220V±10%
- Frequency: 50-60HZ±0.5
- Relative humidity: <85%
- Ambient temperature: 0 to 40 Celsius
- External magnetic field strength: <400A/m
- Fuel tank capacity: 1500 ml
- Test tube amount: 140 ml
- RPM range: 0-7500 r/min
- Time range: 0-9900 times
- PWM pulse width: 0-20.0 ms
- System pressure: 0-140 PSI (adjustable)
- Timing: 0-20 minutes adjustable
- Ultrasonic cleaning power: 60W (intermittent work)
- Ultrasonic cleaning frequency: 28 KHZ±0.5 KHZ
- Dimensions: 390x410x430 mm
- Weight: 16.6KG
Customer Reviews
Based on 87 reviews
97%
(84)
3%
(3)
0%
(0)
0%
(0)
0%
(0)
M

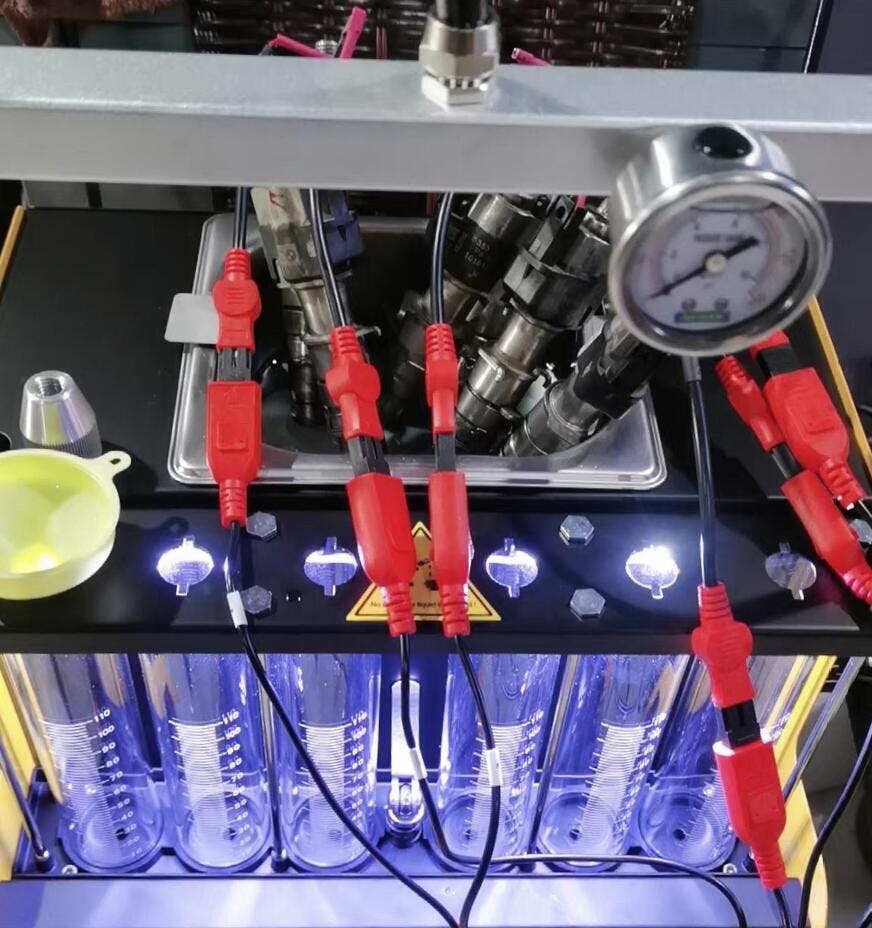

Great quality cleaner and tester, I mainly bought it to test high pressure injectors
D
I purchased the Autool CT400 thinking it should do a good job.. WOW, it cleans like a professional unit.
B
A very satisfying shopping experience! The packaging is tight, the delivery speed is also very fast, the machine is solidly made, and it is very smooth to use. Low noise during use, the operation interface is clear and straightforward, perfect for daily maintenance use. Customer service was also very patient and answered all my questions. Overall, this purchase exceeded my expectations and is highly recommended!
Ž
The CT400 does not come with Mercedes-Benz or BMW cables, but they can be purchased separately.
J
This product is simply awesome! Not only do you get to test the injectors, but you get them cleaned in the process, which I love!
