AUTOOL SDT205 Automotive Smoke Machine Leak Detector

Automotive Smoke Machine Leak Detector SDT205 is an automotive smoke leak detector with a visual pressure gauge that easily detects leaks in pipes. It has dual test modes: air mode and Smoke mode.

🗣️You may want to know.

⚠️Warm Tips

• Please note that the SDT series requires the connection of a 12V battery.
• When you use this AUTOOL SDT50 Car Smoke Leak Detector for the first time, fill it with 10-15ml oil. Please be careful NOT to beyond this range.
• Before use, gently turn the knob to open the airflow regulator valve.
• The testing liquid: both liquid paraffin and baby oil are OK.
• Fresh oil can be filled only when the smoke gets thin, and it can’t be filled over 15ml each time.
• Before filling fresh oil, please pour out the left oil in the detector & replace the detector oil regularly.
• During the process of leak detection, please keep away from smoke-sensitive parts.
• Do not run the detector for over 8 minutes continuously. It needs interval rest.
• The detector has an intelligent protector, if it exceeds the working limit, such as over 75 ℃, it will automatically turn off the power. In this case, please operate it later.
• The round part of this detector has temperature, please be careful to avoid burns.、
• Please note that the SDT50 needs to be connected to a 12V battery for use.

📔AUTOOL SDT205 Manual

Download

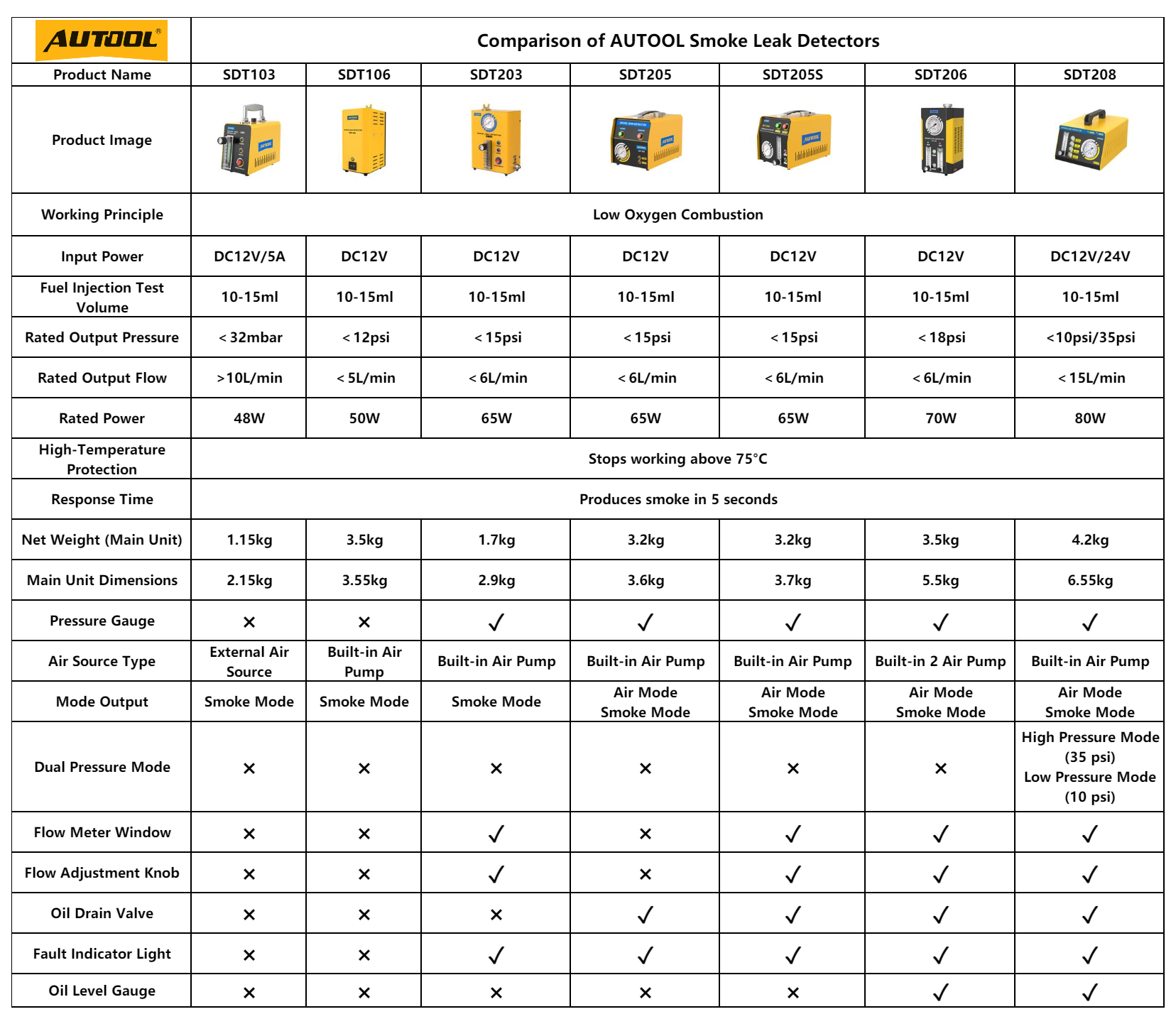

What is the Difference Between the AUTOOL New Smoke Leaks Detectors?

AUTOOL Automotive Smoke Machine Leak Detector Quick Search

+

This product has multiple variants. The options may be chosen on the product page Quick View

Automotive Smoke Leak Detector for EVAP Smoke Tests SDT60

14 reviews

$99.00

+

This product has multiple variants. The options may be chosen on the product page Quick View

Auto Smoke Leak Detector For EVAP System-AUTOOL SDT101

134 reviews

$99.00

+

This product has multiple variants. The options may be chosen on the product page Quick View

Automotive Smoke Tester for EVAP System 12V- AUTOOL SDT103

147 reviews

$109.00

+

This product has multiple variants. The options may be chosen on the product page Quick View

AUTOOL SDT106 Auto EVAP Leakage Smoke Test Machine

145 reviews

$129.00

+

This product has multiple variants. The options may be chosen on the product page Quick View

AUTOOL SDT202 Smoke Detector Machine for EVAP System

35 reviews

$169.00

+

This product has multiple variants. The options may be chosen on the product page Quick View

AUTOOL SDT203 EVAP Smoke Machine Vacuum Smoke Tester

36 reviews

$139.00

+

This product has multiple variants. The options may be chosen on the product page Quick View

AUTOOL SDT205 Automotive Smoke Machine Leak Detector

26 reviews

$197.00

+

This product has multiple variants. The options may be chosen on the product page Quick View

AUTOOL SDT205S Smoke Leak Detector

45 reviews

$249.00

-21%

HOT

+

This product has multiple variants. The options may be chosen on the product page Quick View

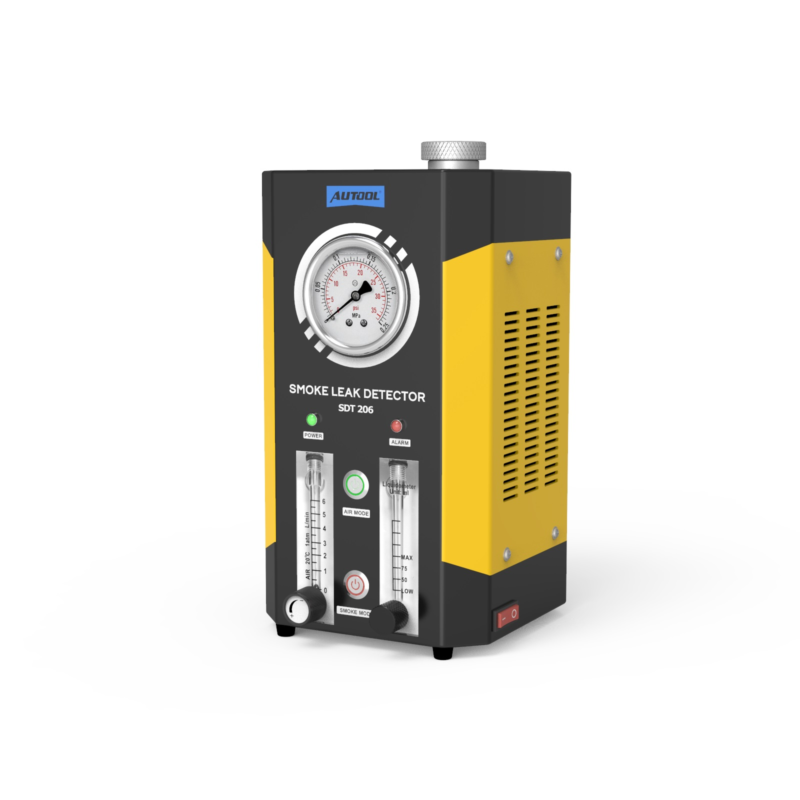

AUTOOL SDT206 Smoke Machine For Vacuum Leaks

143 reviews

$269.00 – $299.00

-14%

HOT

+

This product has multiple variants. The options may be chosen on the product page Quick View

AUTOOL SDT208 Smoke for Leak Detection

71 reviews

$499.00 Original price was: $499.00.$429.00Current price is: $429.00.

AUTOOL SDT205 Automotive Smoke Machine Leak Detector Features

• Fast smoke output: smoke output within ten seconds, greatly improving your efficiency in the test.
• Compact and portable design: Most smoke leak detectors are bulky and hard to transport, but AUTOOL designed this compact, lightweight, and portable detector to solve the problem. With a handle, cone adapter, and airbag adapter, it fits most air inlets and is an essential tool.
• Built-in Air Pump: Customers do not need to purchase additional air pumps, we use high-quality materials, after many tests, please rest assured to use. You can save more time and money
• Air Mode & Smoke Mode: Built-in air pump and smoke generator, so it does not rely on an additional air machine, perfect for Mobile Automotive Repair! The device produces smoke within 10 seconds, dramatically reducing diagnostic time.Smoke output value: 6L/min.
• External Pressure Gauge: You can observe the barometer to more accurately determine whether the car pipeline is leaking. If the barometer index keeps increasing, there is no problem with your car’s pipeline. A decreasing barometer index indicates a pipeline leak in your car that requires repair, as shown by the barometer test.Leakage is faster and more accurate
• Overheat and anti-freeze protection: The latest intelligent protection devices equip the Autool SDT205 Smoke Detector Machine. When the temperature exceeds 75℃ the protection device will only activate and shut down the power supply to protect the operator and the equipment. Not only is it protected against high temperatures, but it is also suitable for low-temperature operation.
• Wide Range of Applications: The AUTOOL SDT205 Smoke Leak Detector is suitable for detecting leaks in automobiles, motorcycles, snowmobiles, ATVs, ATVs, light trucks, and speed boats, suitable for all models(only for 12v DC).
• 3-Year Warranty: For damage caused by non-human factors, we promise to reissue parts free of charge within 3 years.

How To Use The AUTOOL SDT205 Automotive Smoke Machine Leak Detector?

• Step 1: Fill 10-15ml baby oil into the detector for the first time. Open the engine cover, and hang the detector in the cover.
• Step 2: Disconnect the pipe that needs to be connected to the detector.
• Step 3: Connect the detector with the DC12V battery, turn on the power switch, and the detector starts to work.

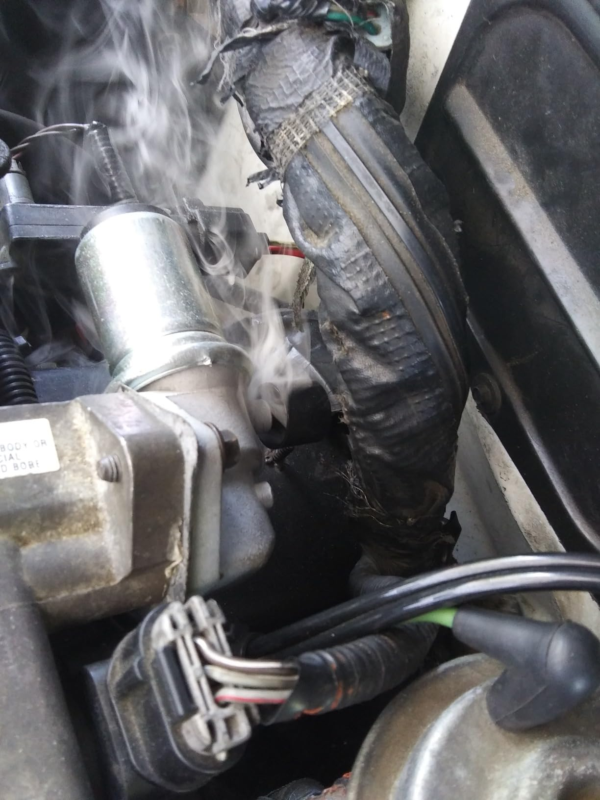

• Step 4: In about 30 seconds, the pipe will be filled with smoke. Check the leak points. Please use a headlamp if necessary.

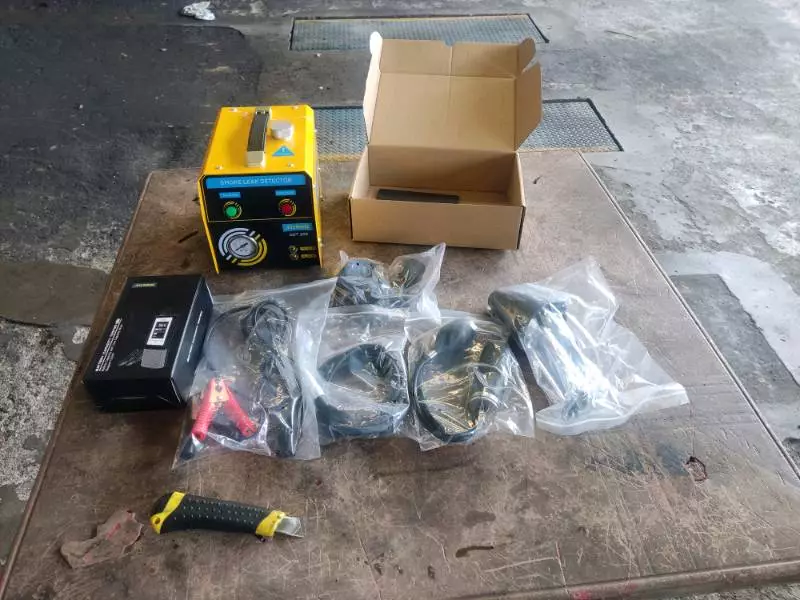

Packing List

FQA

What testing oil should be added into AUTOOL smoke leak detectors ?

If you can’t find a professional test oil, you can buy liquid paraffin or baby oil at your local store as test oil.

How much testing oil should be added into the auto smoke leak detector?

It’s suggested to add 10-20ml testing oil for the first trial. Please drain some testing oil out if you add too much accidentally. You can reuse the extra next time.

Can smoke leak detectors detect auto A/C system?

The auto A/C system operates at 1.7-3.0Mpa output pressure, while our smoke leak detectors generate only 0.1Mpa. So the smoke leak detector cannot directly test the auto A/C system for leaks. You can use our machine to perform segment-assisted testing for air-conditioning pipelines.

How to use a smoke leak detector to perform a segmental auxiliary test on the air conditioning pipeline?

First, pressurize the air-conditioning pipeline, then spray smoke and observe if the airflow blows it. If there is, it means that the location is a leak point, you can repair later.

Can smoke leak detectors detect EVAP system?

AUTOOL smoke leak detectors can test leaks in the EVAP system. We have equipped professional fuel EVAP testing tools in the package, you can choose proper tools to test.

What’s the difference among various models of smoke leak detectors ?

The AUTOOL smoke leak detector series includes SDT101 and SDT103 for EVAP systems (3.2Kpa), SDT106 and SDT202 for beginners (12 psi), and SDT203, SDT205, SDT205S, SDT206, and SDTMASTER as standard and high-end models (15 psi).SDT208 supports up to 35Psi.
We use different materials and functions in our products, resulting in varying prices. Visit our official websites for details if you’re interested.

What’s the voltage of smoke leak detectors?

All AUTOOL smoke leak detectors adopt 12V car battery power, which is safe to operate and easy to get power. You can use our device safely without worrying about security issues.

Can the pressure of the smoke leak detector be set?

Most AUTOOL smoke leak detectors have fixed pressure, except for the SDT MASTER, which allows adjustment.
To protect automobile pipelines, our technicians set a safe pressure of 0.1MPA before shipping, ensuring it meets common maintenance and testing needs.

What accessories does smoke leak detectors have?

Different models of AUTOOL smoke leak detectors have different accessories. Our package typically includes 6-75mm hard rubber kits, cone and airbag adapters, EVAP testing tools, smoke hose, power cable, test oil bottle, user manual, warranty, and certificate of qualification.

How long is the warranty for smoke leak detectors?

We promise up to three years warranty after your purchase. Today we sell 200,000+ machines online and offline in 160+ countries and regions. You can rest assured to purchase our smoke leak detectors since we have stable quality and reliable after-sales service.
