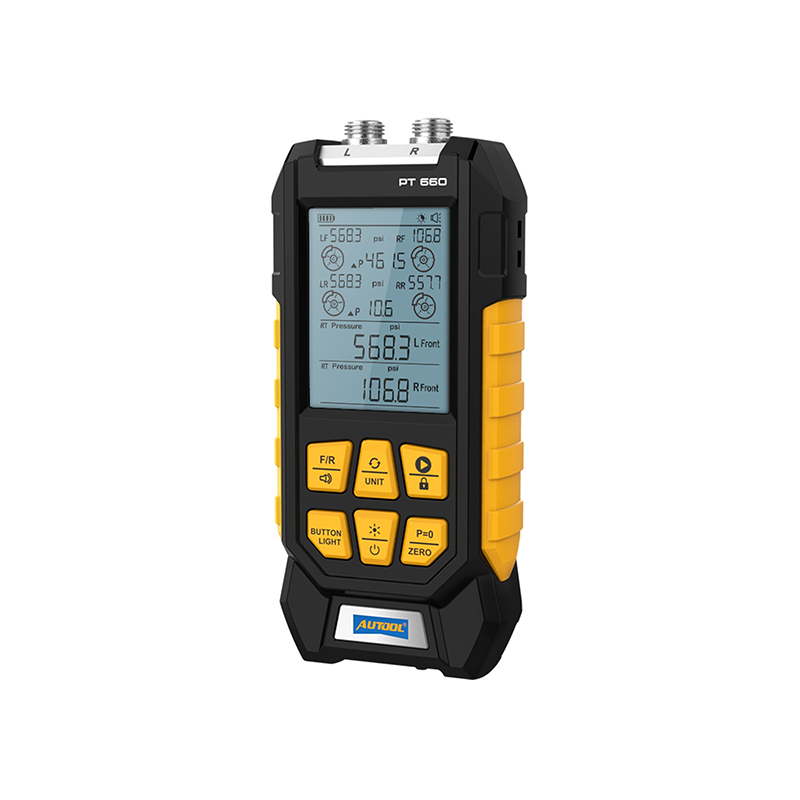

AUTOOL PT660 Brake Pressure Gauge Pressure Gauge
$359.00
- Dual-Channel Detection: AUTOOL PT660 detects front and rear brake pressures simultaneously, quickly capturing trends for easy comparison.
- Wide Leakage Range: Compatible with standard, high-performance, and racing brake systems, it offers versatile applications.
- High-Precision Sensor: Built-in high-precision sensor, can accurately detect the seat pressure, accuracy up to 1% FS, resolution of 0.1bar.
The AUTOOL PT660 Brake Pressure Gauge for brake system checking supports two-channel testing by means of a high-precision sensor and atmospheric pressure calibrator. One-touch locking and comparison of data at any time. Make your work more efficient and smarter.
🗣️You may want to know.
⚠️Warm Tips
- Please pay attention to zeroing operation before use
- Pay attention to the measuring range, if it is exceeded, the result will be the maximum and minimum value.
What is the Difference Between the AUTOOL Brake Pressure Gauge?
AUTOOL Brake Pressure Gauge Quick Search
-32%
$135.90 – $299.00
AUTOOL PT660 Brake Pressure Gauge Features
- Dual-Channel Detection: AUTOOL PT660 detects front and rear brake pressures simultaneously, quickly capturing trends for easy comparison.
- Wide Leakage Range: Compatible with standard, high-performance, and racing brake systems, it offers versatile applications.

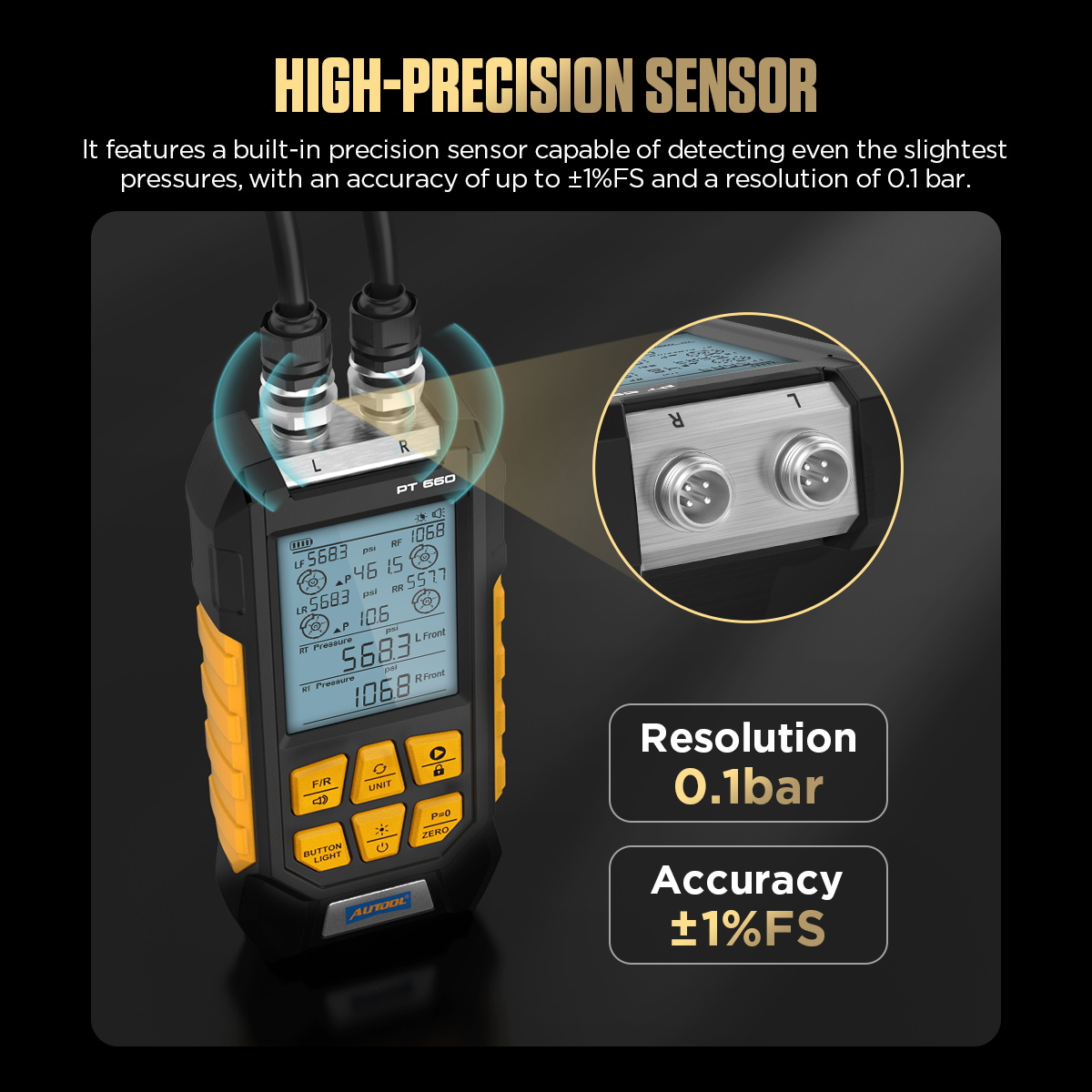

- High-Precision Sensor: Built-in high-precision sensor, can accurately detect the seat pressure, accuracy up to 1% FS, resolution of 0.1bar.

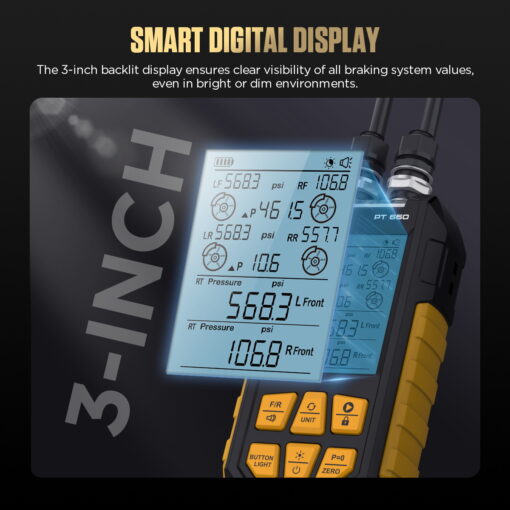

- Smart Digital Display: 3-inch backlit display shows data at a glance, no need to flick through it. And the backlit display makes test results visible at all times, even in bright or dimly lit environments.
- One-Piece Locking Function: Supports one-click locking or zeroing of inspection results, provides visualized results, and enables real-time transmission of the car’s condition.
- Three-Year Warranty: For damage caused by non-human factors, AUTOOL promises to resend parts for free within 3 years. If you have any problems, please contact us, and we will respond within 24 hours!
How to use AUTOOL PT660 Brake Pressure Gauge:
- Connect the pressure input cable to the L/R slot
- Operate the atmospheric pressure zero calibration before testing.
- Connect the model-specific adapter to the measurement probe.
- Select the unit and wheel direction.
- Press the Measurement button to start the pressure measurement.
- When the measurement is complete, you can view the results and switch units.
Packing List

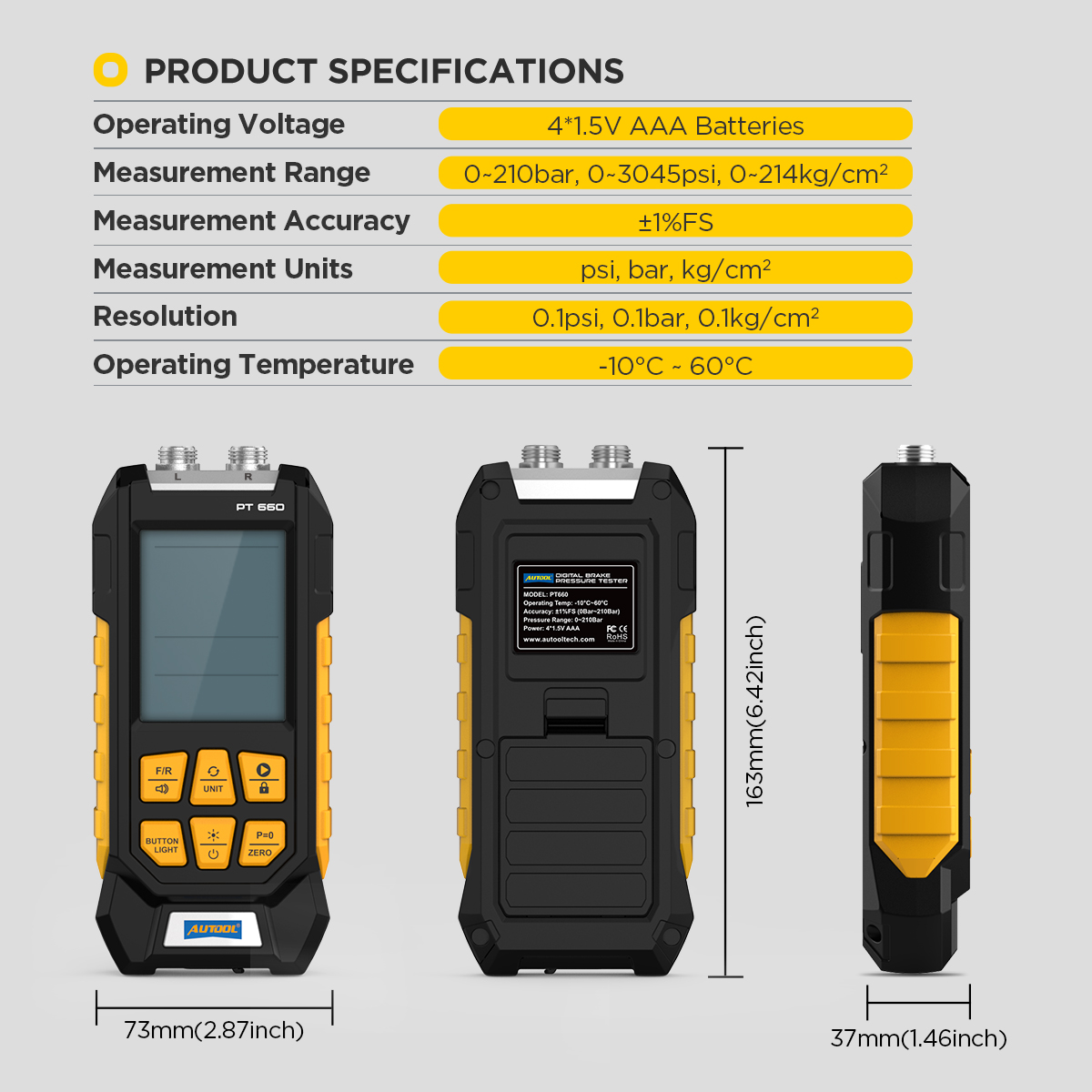

Specification
| Power Supply | 4*1.5V AAA batteries |
| Measurement ranges | 0-210bar,0-3045psi,0-214kg/c㎡ |
| Measurement accuracy | +1%FS |
| Measurement units | Psi, Bar,Kg/c㎡ |
| Resolution | 0.1psi, 0.1bar,0.1kg/c㎡ |
| Operating temperature | -10°C~60°C |
