AUTOOL Pneumatic Oil Extractor and Oil Catcher
$359.00 – $2499.00
- Large-Capacity Oil Pan: All models are equipped with large-capacity oil pans. The OD720 and OD760 also feature transparent, large-capacity tempered glass oil collection buckets.
- Fast oil transfer speed: Models equipped with pneumatic oil extractors achieve significantly enhanced oil collection efficiency.
The AUTOOL OD Series Oil Drain Station is specifically designed for draining waste oil from vehicle engines. Equipped with a large funnel and a steel storage tank, it efficiently collects waste fluids such as engine oil, transmission fluid, and coolant, preventing spills and messes. The pneumatic waste oil drain tank features fixed casters and swivel casters for smooth mobility and ease of use. This pneumatic waste oil drain pan is ideal for workshop applications, effortlessly handling various waste fluids to enhance productivity and promote environmental sustainability. Additionally, both the OD720 and OD760 models come equipped with pneumatic oil extractors powered by compressed air. The pneumatic oil extractor utilizes patented vacuum generation technology to create a vacuum within a transparent measuring cup or oil storage tank. This enables rapid waste oil processing, ensuring an efficient and environmentally responsible oil change process.
AUTOOL Oil Pumping Machine Working Principle
The pneumatic oil extraction and drainage machine utilizes compressed air to drive a vacuum generator, rapidly generating powerful negative pressure (achieved in approximately 3 minutes) for efficient waste oil extraction. Employing pneumatic principles, this system delivers robust oil extraction capabilities while ensuring safe and environmentally friendly operation. Compared to traditional electric equipment, the pneumatic system is more energy-efficient, effectively reducing power consumption to meet the low-energy requirements of workshop environments.

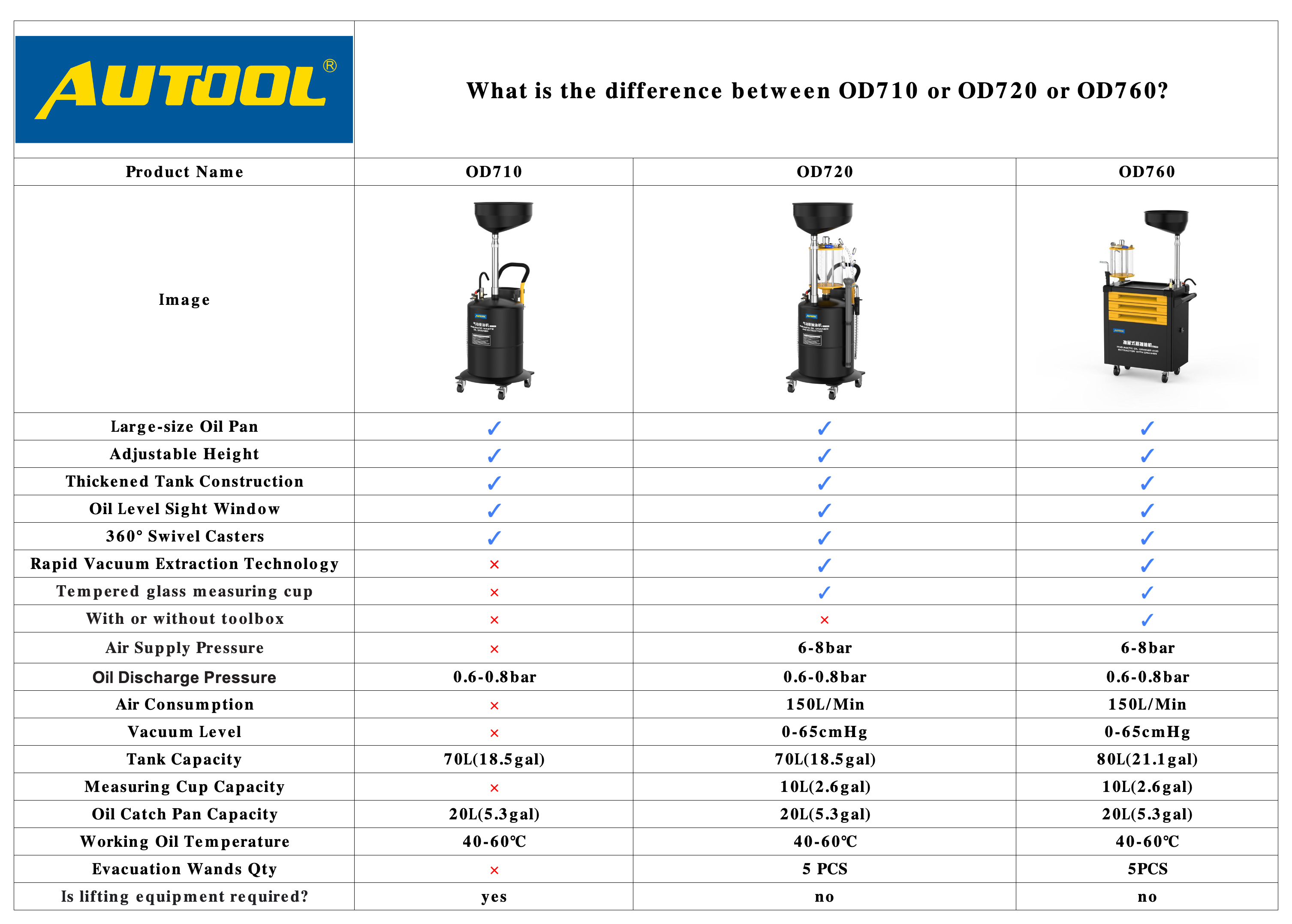

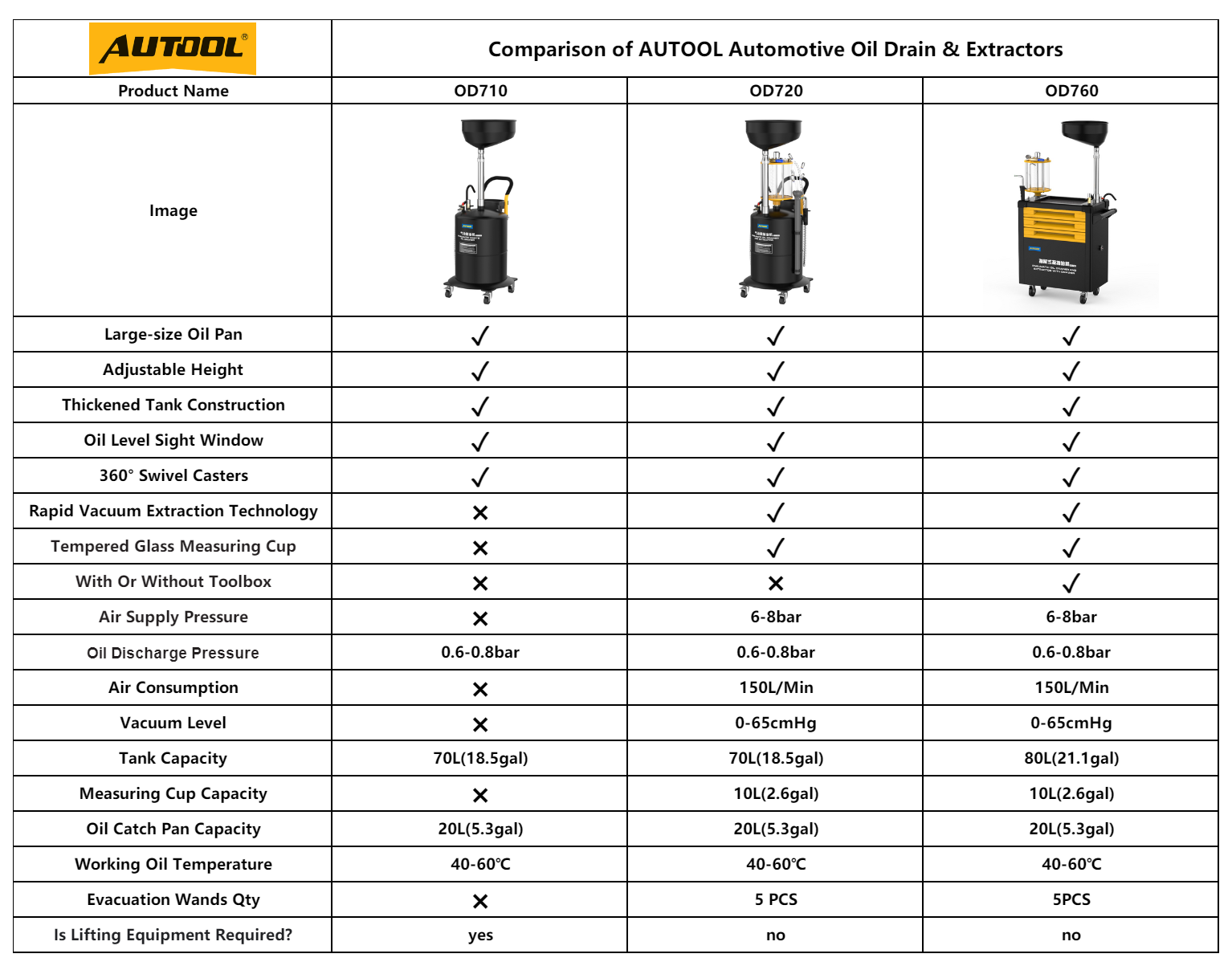

AUTOOL Oil Pumping Machine Comparison
How to Choose pneumatic oil extractor？
I want faster oil extraction efficiency.

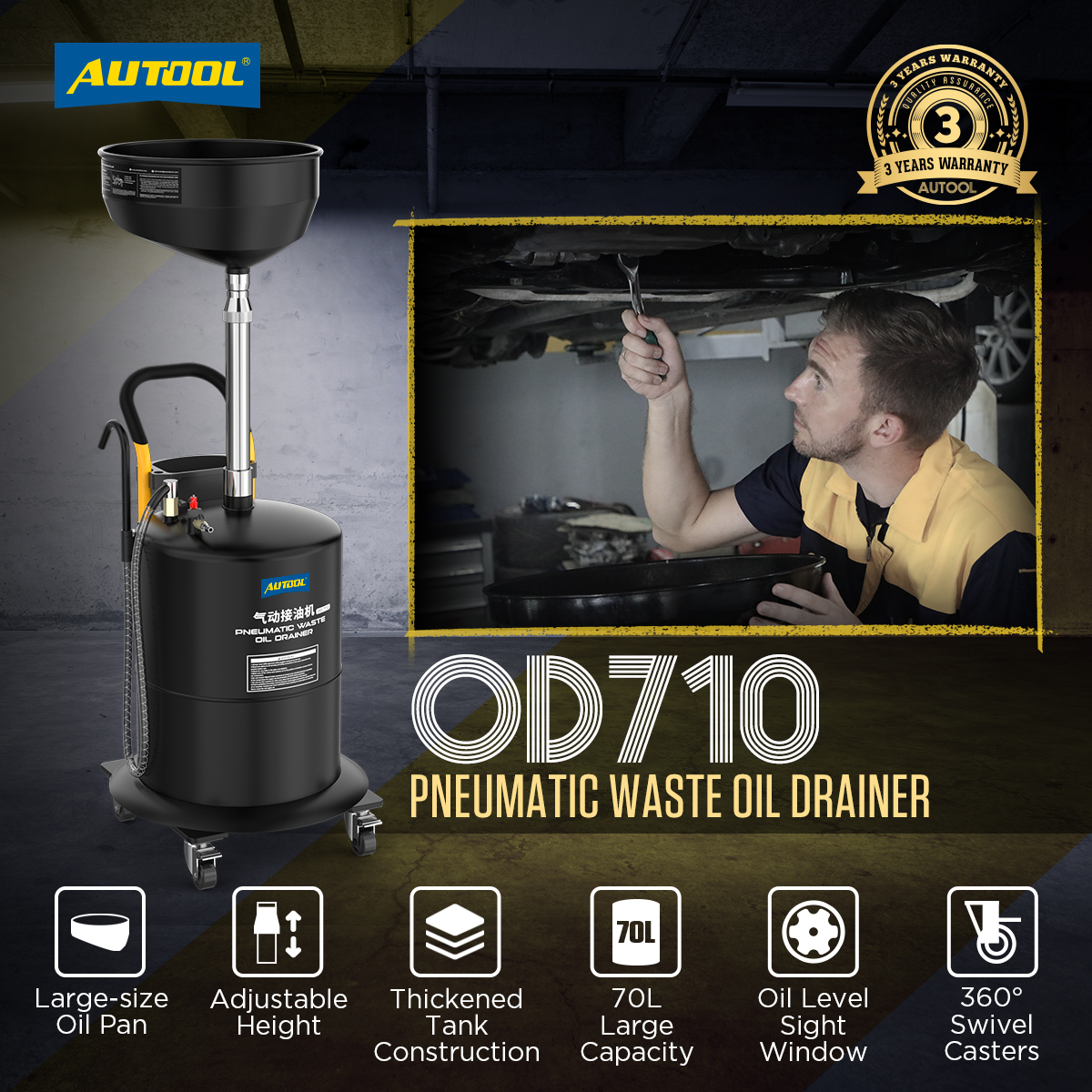

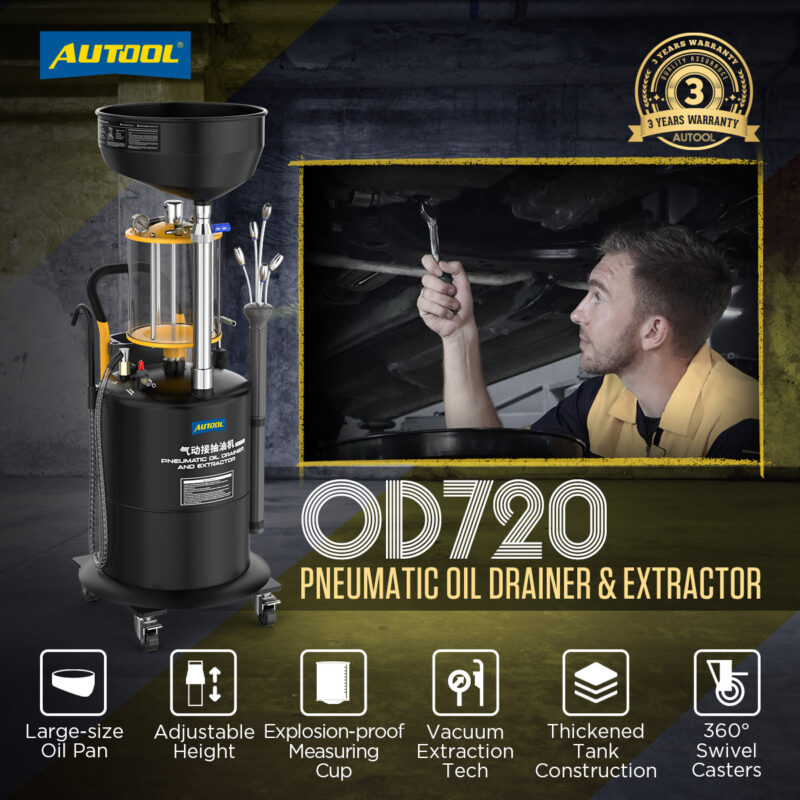

Except for the OD710 Oil Extractor, which lacks pneumatic oil extraction capability, both the OD720 and OD760 models feature oil extraction functionality. You may choose either of these two models.
I want to be able to collect used oil and observe its condition.
Both the OD720 and OD760 come with a tempered glass measuring cup, allowing for clear inspection of oil quality and quantity.
I have a lot of related accessories with nowhere to store them, so I need some storage space.

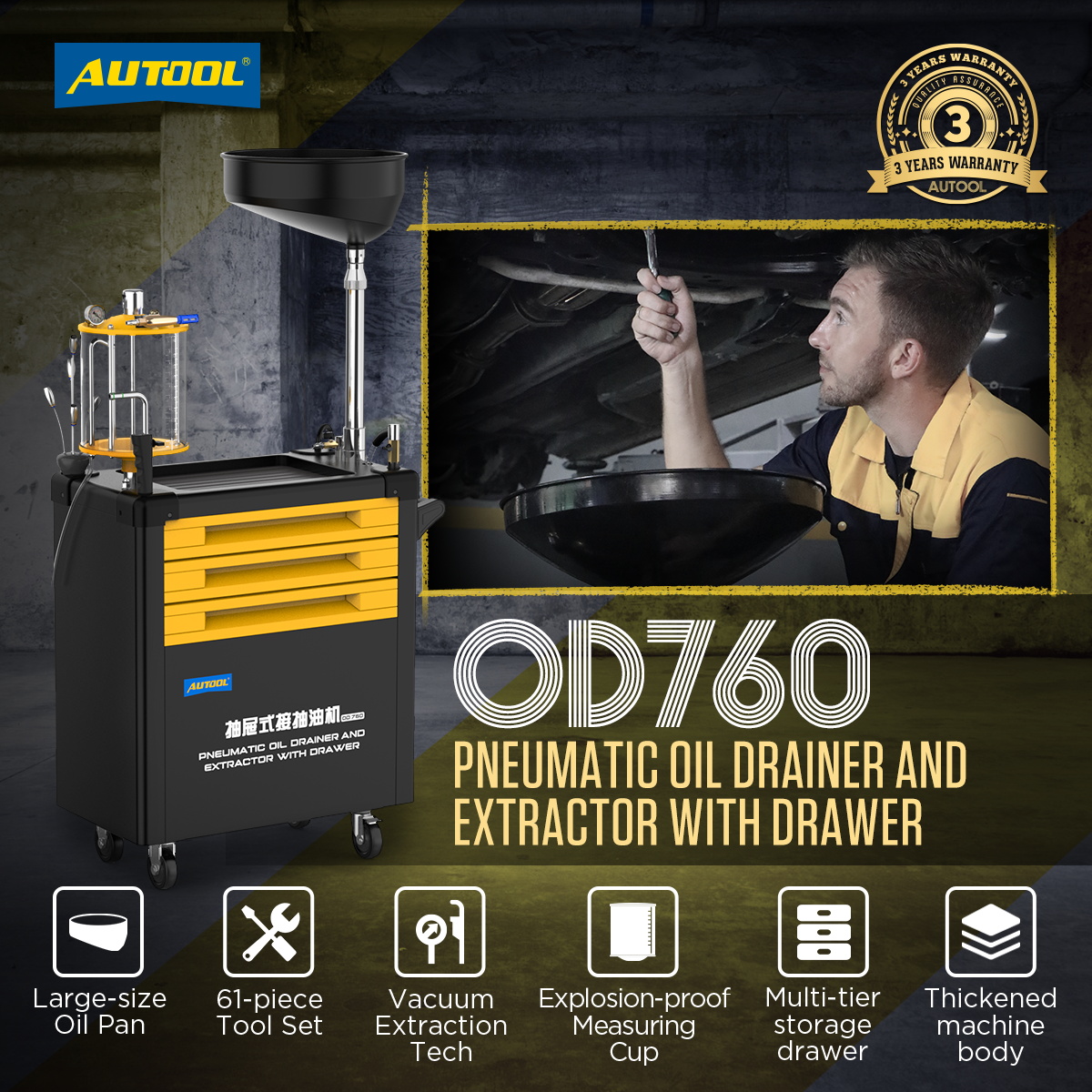

You can choose the OD760 pneumatic oil extractor, which features three drawers for storing your tools.
I want a larger oil reservoir capacity.
You can choose the OD760, which comes with an 80L oil reservoir.
AUTOOL Pneumatic Oil Extractor and Oil Catcher Quick Search
$799.00
HOT
-38%
$159.00 – $289.00
🔔 AUTOOL OD Pneumatic Oil Extractor Warm Tips
- No smoking or open flames during operation. Keep away from high-temperature, high-pressure, flammable, and explosive areas.
- Shut off the air supply and inspect for leaks in hoses or components immediately.
- Waste oil temperature is between 40~60°C; be cautious of burns.
- During operation, wear gloves and safety goggles to protect your eyes and hands.
- The engine must remain turned off throughout the operation.
- Strictly prohibited for use with brake oil, gasoline, diesel, and other liquids containing methanol, ketones, or flammable liquids.
- After completing the equipment operation, release the internal pressure, clean the equipment, and avoid equipment damage and personnel injury due to improper operation.
- Do not use the equipment for functions not listed in this manual.
- After extracting waste oil, promptly empty the waste oil from the measuring cup into the storage tank to protect the measuring cup better and extend its service life.
- After emptying the waste oil from the measuring cup, there is no need to close the measuring cup’s drain valve.
FAQs
The oil extraction function has no suction.
If the Pneumatic Oil Extractor function has no suction power, please confirm that the equipment is properly connected to the air source and that the equipment’s valve switches are operated correctly. Then check the pressure gauge; if negative pressure is displayed, it means the oil extraction function is ready to operate. If no negative pressure is displayed, first turn off the switch on the oil extraction handle. Then please check whether the vacuum generator is properly connected to the air source and whether the press valve on the glass measuring cup is closed. A vacuum can only form when the glass cup is sealed.
What is the gas supply pressure?
The required air supply pressure for the OD720 and OD760 is 6-8 bar.
1 review for AUTOOL Pneumatic Oil Extractor and Oil Catcher
| 5 star | 100% | |
| 4 star | 0% | |
| 3 star | 0% | |
| 2 star | 0% | |
| 1 star | 0% |
Customer Images
1-1 of 1 review
Add a review
AUTOOL Pneumatic Oil Extractor and Oil Catcher
Your review
* Review is required
Name
* Name is required
Email
* Email is required
Add photos or video to your review
[jgm-review-widget]
Home
Shopping Guide
Product
Wheel Aligner Machine
Smoke Leak Detector
Fuel Injector Tester
Brake Fluid Exchanger
Dry lce Blasting Machine
Walnut Sand De-Carbon Cleaner
Refrigerant Recovery Machine
Articulating Borescope
Transmission Fluid Exchanger
Spark Plug Tester
Battery System Tester
Engine Pressure Tester
Diagnostic Multimeter
Key Frequency Tester
Maintenance Environment Tester
Pneumatic Oil Drainer & Extractor
Oil Analysis Tester
Circuit Tester
OBD Diagnostic Tool
Digital Manifold Gauge
Inverter Programming Power Supply
EV Charging
Used Car Diagnostic Tester
Cooling System Tester and Filler
Workshop Tool Storage Series
EV Battery Pack Air Tightness Tester
Wheel Alignment Machines
ACCESSORIES&OTHER
News
Help Center
Custom Solutions (OEM & ODM)
Track My Order
Online Support

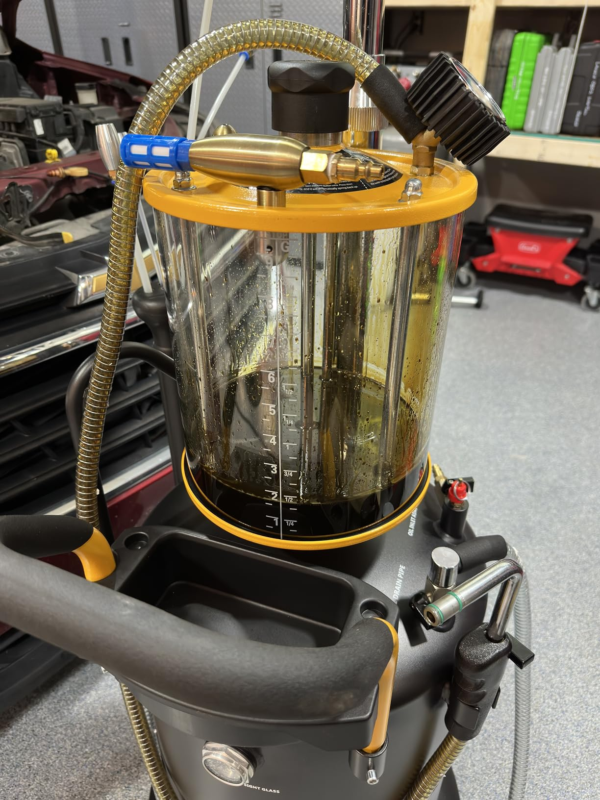

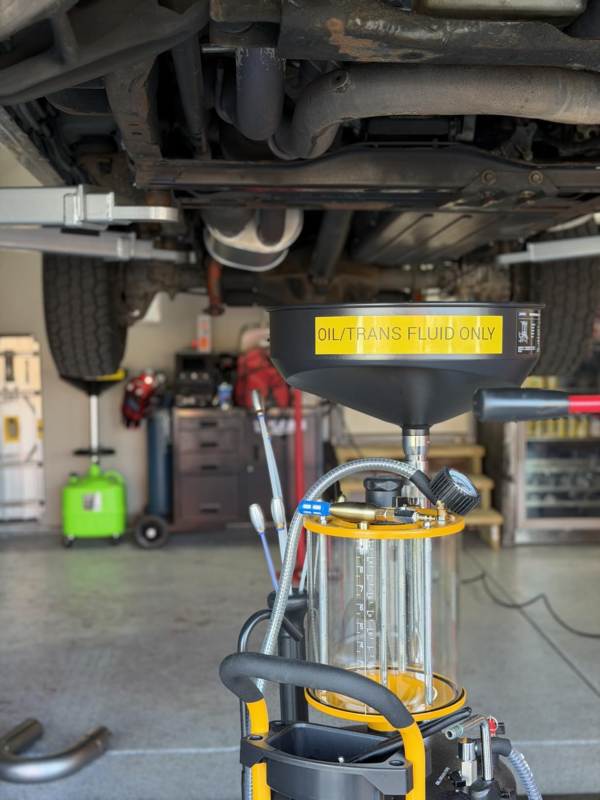

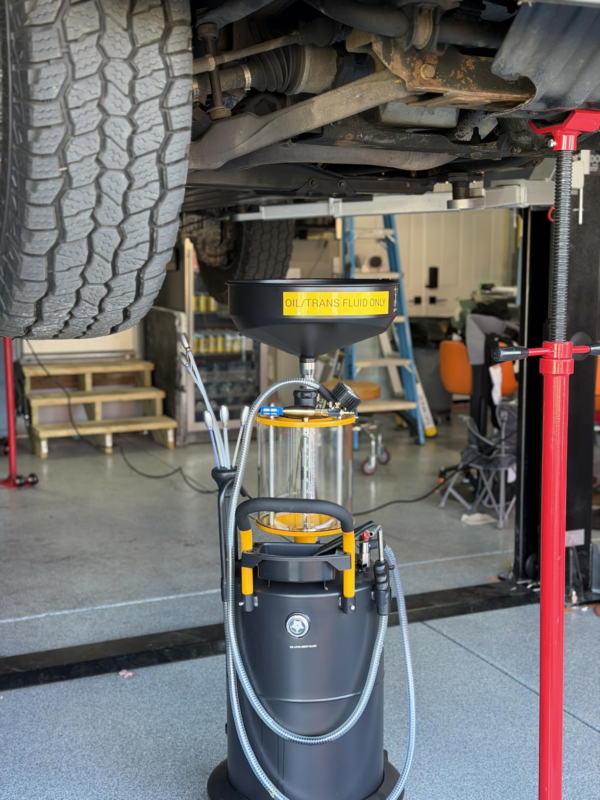

This is a great tool to have if you have a hoist. I have had my OD720 for about 6 months now and love it. The adjustable oil drain pan works great. I can set it lower for taller vehicles that I don’t lift as high or I can set higher when I’m under smaller cars. I have used the extraction function twice and it works well. If I had a stronger air compressor I would use it more since I really like the measuring function when using extraction.
