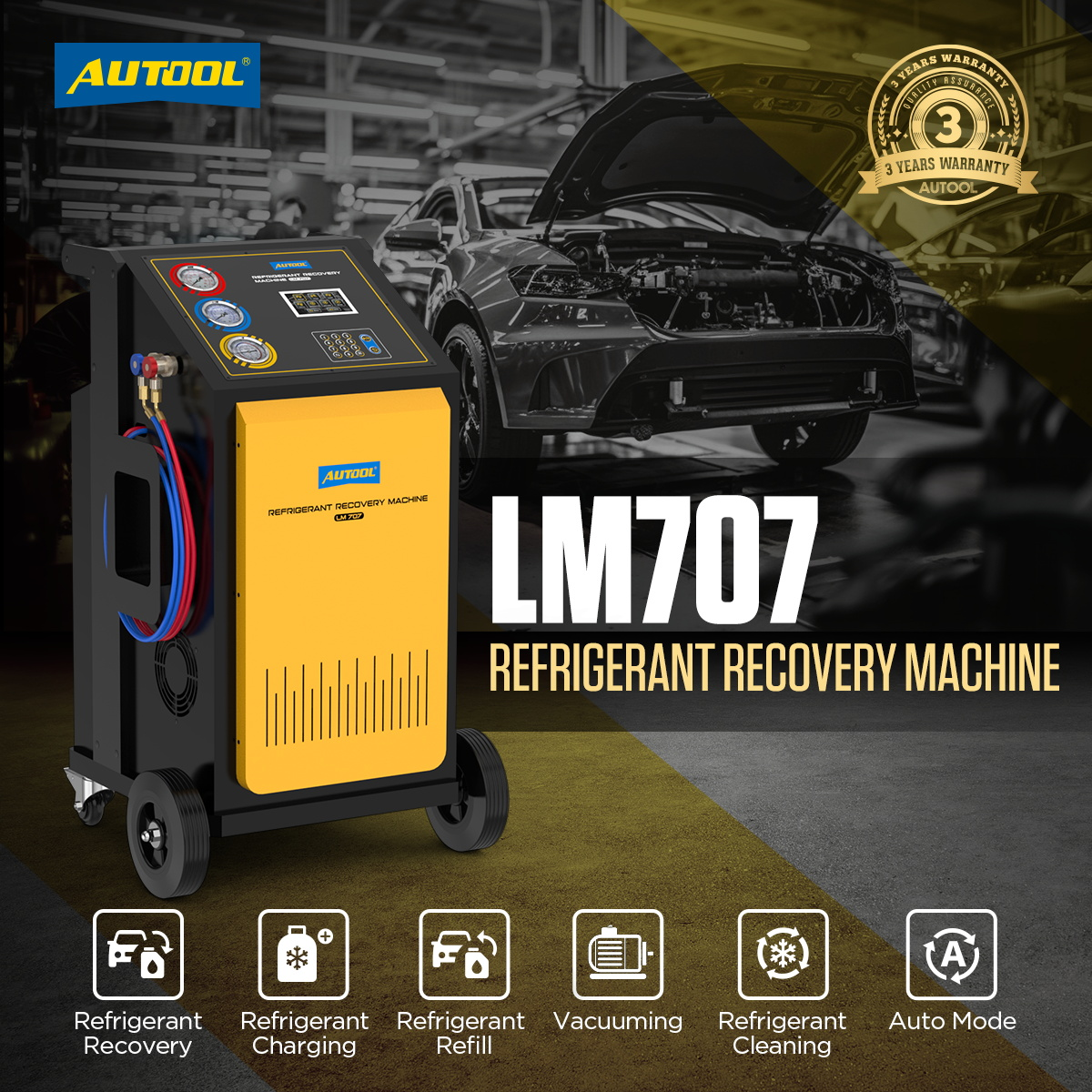

AUTOOL LM707 AC Refrigerant Recovery Machine-High-Precision Refrigerant Recovery And Filling

AUTOOL LM707 refrigerant recovery machine supports the recovery and charging of automotive refrigerant
R-134a. The refrigerant recovery machine is designed with a 5inch screen to recover, evacuate and refill
R-134a refrigerant in vehicles. Automatically follow the set process to complete the work, the operator canset the parameters in advance, greatly improving the efficiency of air conditioning system maintenance.

Warm Tips

Notes

• Please read the instruction manual carefully before using the equipment, and prohibit the use of the equipment near open flames and hot objects.
• LM707 refrigerant recovery machine is only used for charging and recovery of R134a refrigerant, mixing with other refrigerants is prohibited.
• Before operating, check the type of refrigerant used in the automotive air conditioning system and turn off the car engine.
• The actual usage capacity of the internal tank should be 80% of its maximum capacity (the internal tank capacity is 12kg) to avoid severe accidents caused by additional pressure from external factors.
• To ensure optimal recharging functions, the internal tank should not contain less than 3kg of refrigerant; otherwise, recharging may not be possible.
• The recovery procedure should be started no more than 10 times per hour; otherwise, the compressor may be damaged.
• When discharging the refrigerant oil from the car compressor, bubbles generally form. Users must be familiar with the repair and maintenance operations of automotive air conditioning to avoid operational errors that could result in damage to the equipment or the air conditioning system. The amount of oil to be added is determined by the amount discharged, and overfilling should be avoided.
• During daily maintenance, ensure that the vacuum pump oil inside the equipment is added to the normal level (this can be observed by opening the main door of the equipment).
• Do not modify the pressure reducing valve or system settings.
• Do not use compressed air for pressure or leak testing of the machine or vehicle air conditioning systems.
• After the filter has been used for 100kg, please change the filter as prompted by the unit and contact us for the code.
• After the vacuum pump has been used for a total of 600 minutes, the equipment will prompt to reset the vacuum pump oil data; if your vacuum pump oil already contains impurities as well as turbid state, please replace it in time.
• Please run the cycle purification function about once a month after using the equipment to purify and clean the refrigerant in the pipeline of the equipment for the maintenance and repair of the equipment.

Manual Download

Download

AUTOOL Refrigerant Recovery Machine Quick Search

AUTOOL LM707 Refrigerant Recovery Machine Functions

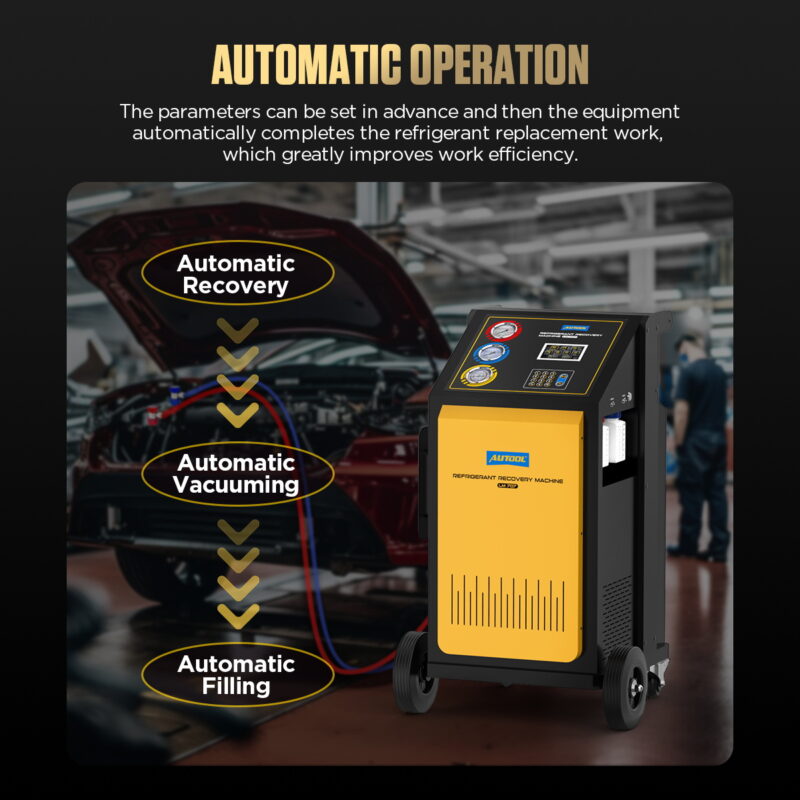

• Automatic Operation: LM707 refrigerant recovery machine can be pre-set parameters, and then the equipment automatically complete the refrigerant replacement work, greatly improving the work efficiency.

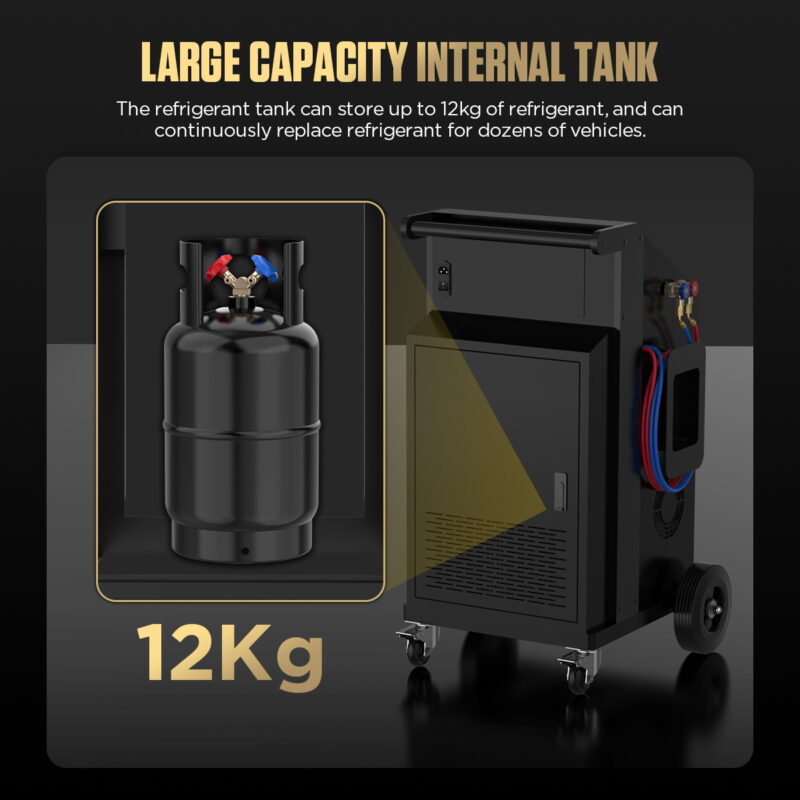

• Large Capacity Internal Tank: The refrigerant tank can store up to 12kg of refrigerant, and can continuously replace refrigerant for dozens of vehicles.

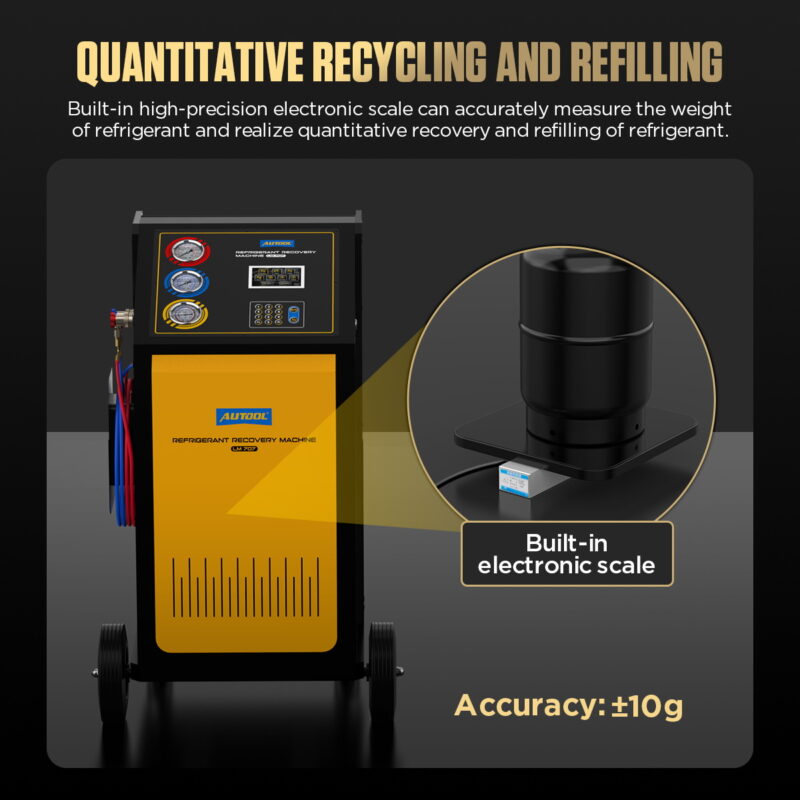

• Quantitative Recycling and Refilling: Built-in high-precision electronic scale can accurately measure the weight of refrigerant and realize quantitative recovery and refilling of refrigerant.

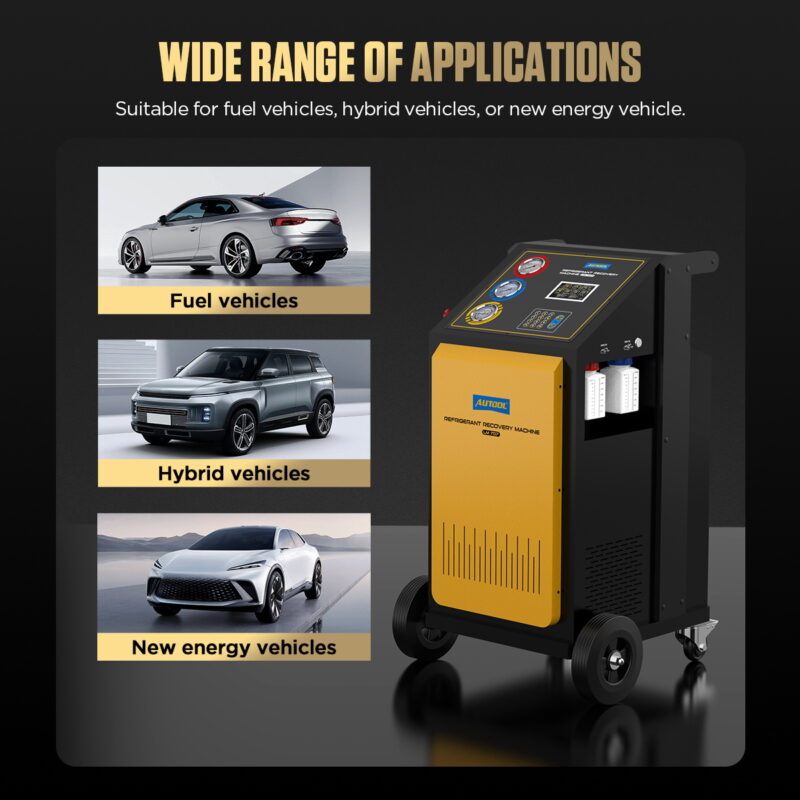

• Wide Range Of Applications: Suitable for fuel vehicles, hybrid vehicles, or new energy vehicle.

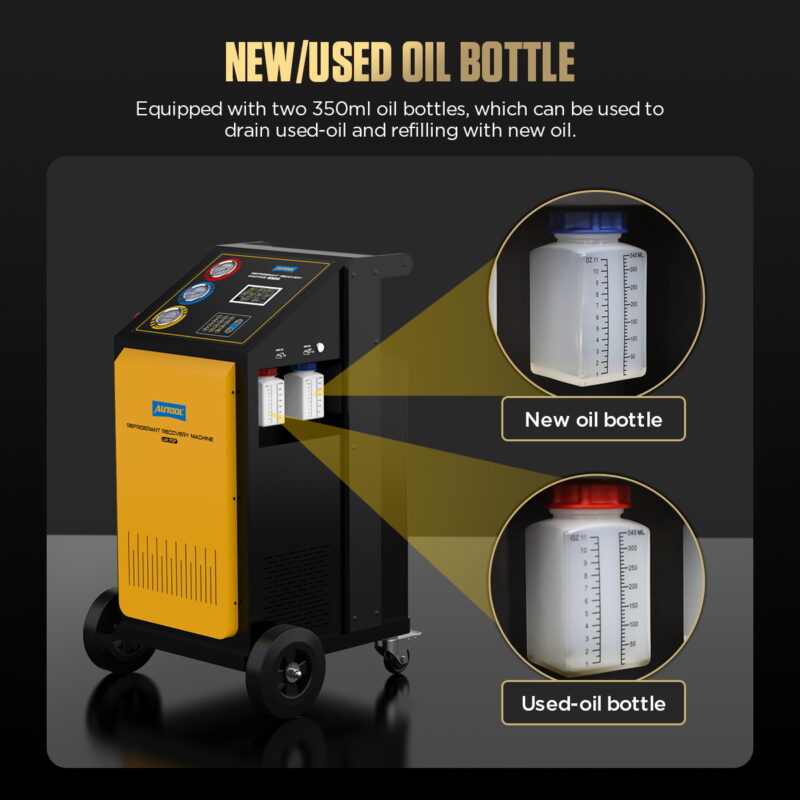

• New/Used Oil Bottle: Equipped with two 350 ml oil bottles for draining the compressor oil from the air conditioning system and for filling with new oil.

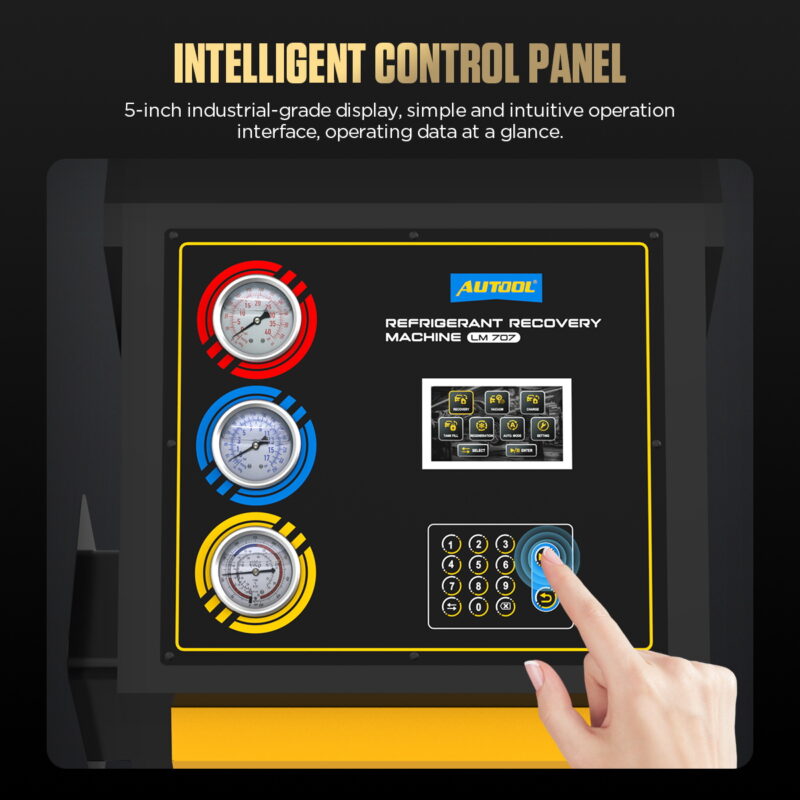

• 5 inch Intellegent Control Panel: 5-inch industrial-grade display, simple and intuitive operation interface, operating data at a glance.

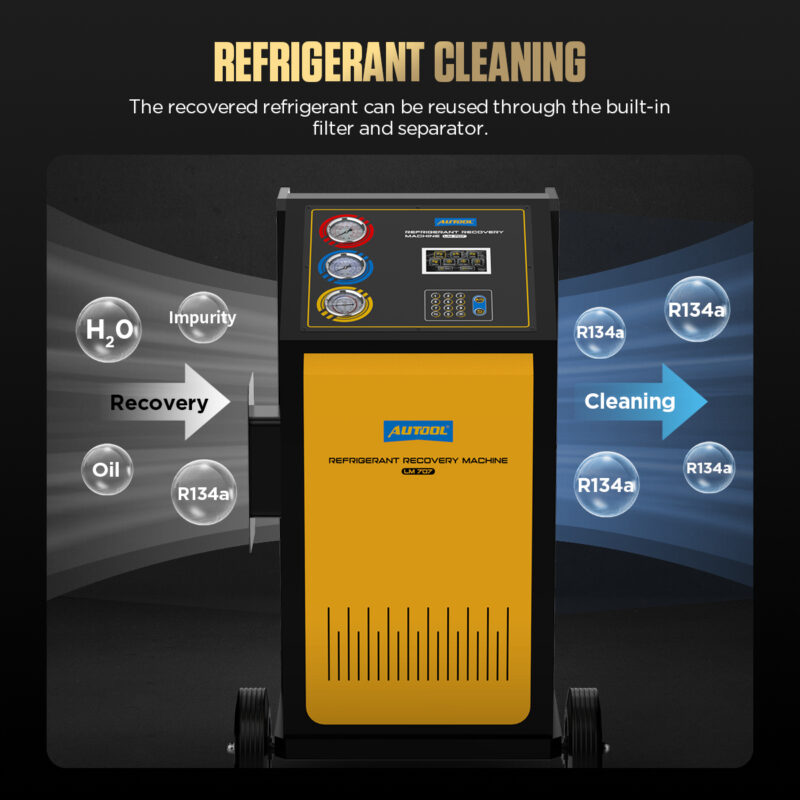

• Refrigerant Cleaning: The recovered refrigerant can be reused through the built-in filter and separator.
• Three-Year Warranty, Lifetime Maintenance:  For damage caused by non-human factors, AUTOOL promises to resend parts for free within 3 years. For any needs, you are warmly welcome to contact us and we will get back to you ASAP within 24 hours. Online Support>>

Packing List

• 1 PC LM707 Refrigerant Recovery Machine
• 1 PC Power Cable
• 1 PC Low Pressure Connector
• 1 PC High Pressure Connector
• 1 PC Low Pressure Fittings Hose(Blue)
• 1 PC High Pressure Fittings Hose(Red)
• 1 PC Manual
