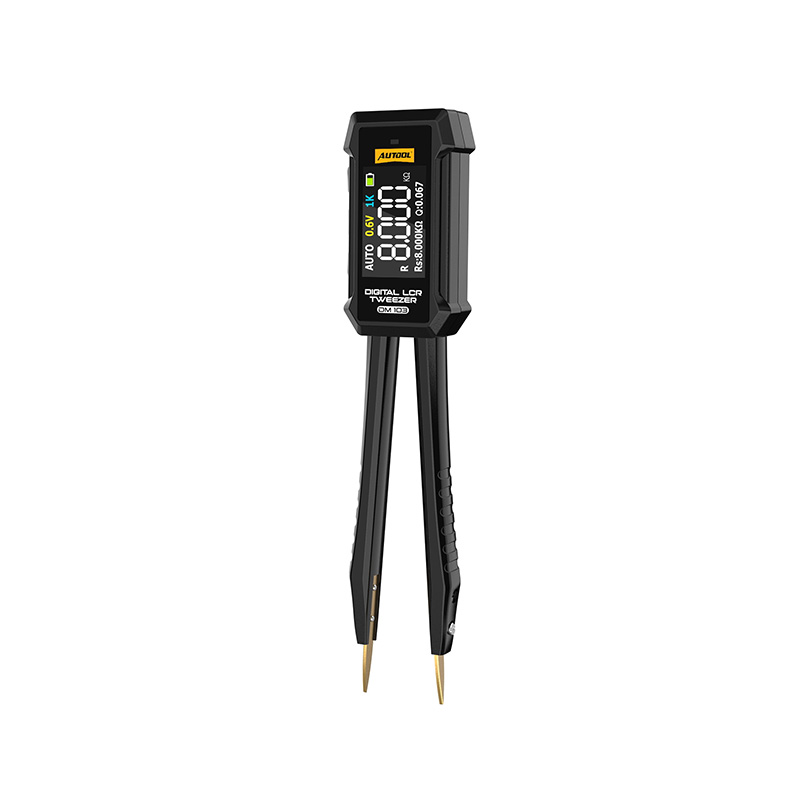

Name: AUTOOL DM103 Digital LCR Tweezer for Resistance Capacitance and Inductance
SKU: MMT1033
Availability: InStock

AUTOOL DM103 Digital LCR Tweezer for Resistance Capacitance and Inductance

$39.90

6 Test Modes: Precise testing of resistance, capacitance, inductance, and diodes/continuity.
Smart Recognition: Automatically detects component types for faster testing.
Precision Gold-Plated Contacts: Accurate measurements for small SMD components and high-density circuit boards.
HD OLED Display: Clear, bright screen for easy reading in all environments.
Long Battery Life: 12 hours of continuous use with a 400mAh battery.
Software Upgrades: Easy updates via Type-C connection.

For wholesale prices and more discounts click here.

AUTOOL DM103 Digital LCR Tweezer for Resistance Capacitance and Inductance

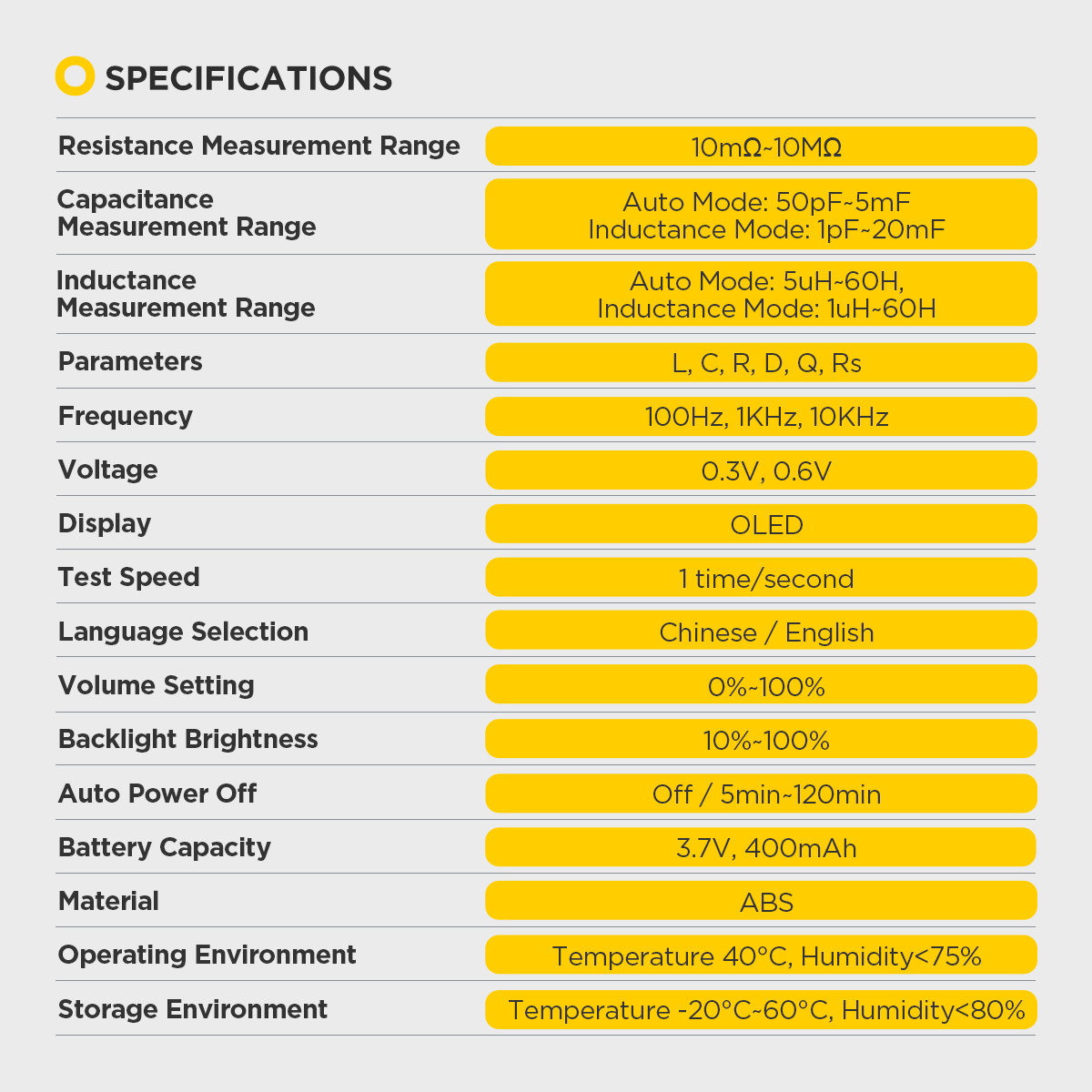

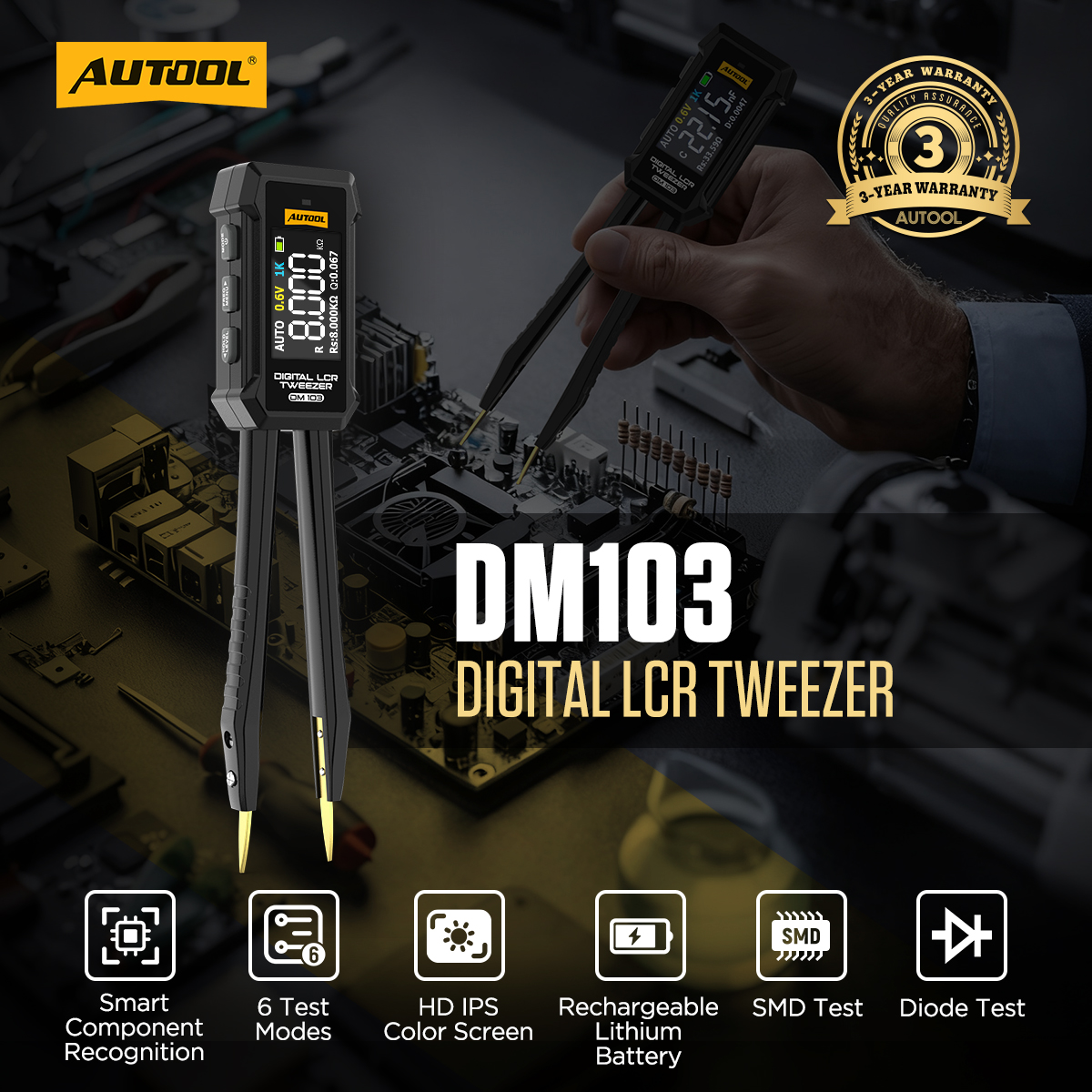

The AUTOOL DM103 is a multifunctional portable LCR tweezer with a measurement accuracy of ±0.5%. It features a HD OLED color display and supports precise measurements of resistance, capacitance, inductance, and diode/continuity. It offers three testing frequencies: 100Hz, 1kHz, and 10kHz, with the option to choose between 0.3V or 0.6Vrms effective test levels. During measurement, it can synchronously display both primary and secondary parameters. The secondary parameters include RS, D, Q, Z, and X values, meeting various component testing needs.

✅Why choose AUTOOL DM103 Smart Tweezers LCR Meter?

In automotive circuit board testing, the D value (loss factor) is a critical indicator of capacitor performance. A lower D value means lower loss and better component health, while a higher D value may signal aging, damage, or quality issues. Unlike traditional digital or needle-type multimeters, which only measure static capacitance, the AUTOOL DM103 digital LCR tweezer tests key parameters like D (loss factor) and Q (quality factor), helping to avoid misjudgments and reduce repair time and costs.

⚠️Smart Tweezers LCR Meter Warm Tips

Do not apply voltage during measurement. This smart digital LCR tweezer is not designed for measuring live circuits. Always disconnect power and fully discharge all capacitors before testing.
Always discharge capacitors before measurement to prevent damage to the device and ensure accurate readings.
Avoid high temperatures, dust, and direct sunlight during use or storage.
Do not use in humid environments or near flammable gases or vapors to prevent safety hazards.

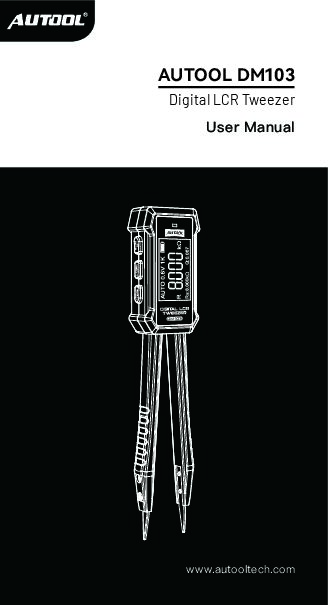

📔AUTOOL DM103 Digital LCR Tweezer Manual

Download

AUTOOL DM103 Smart Tweezers LCR Meter Features

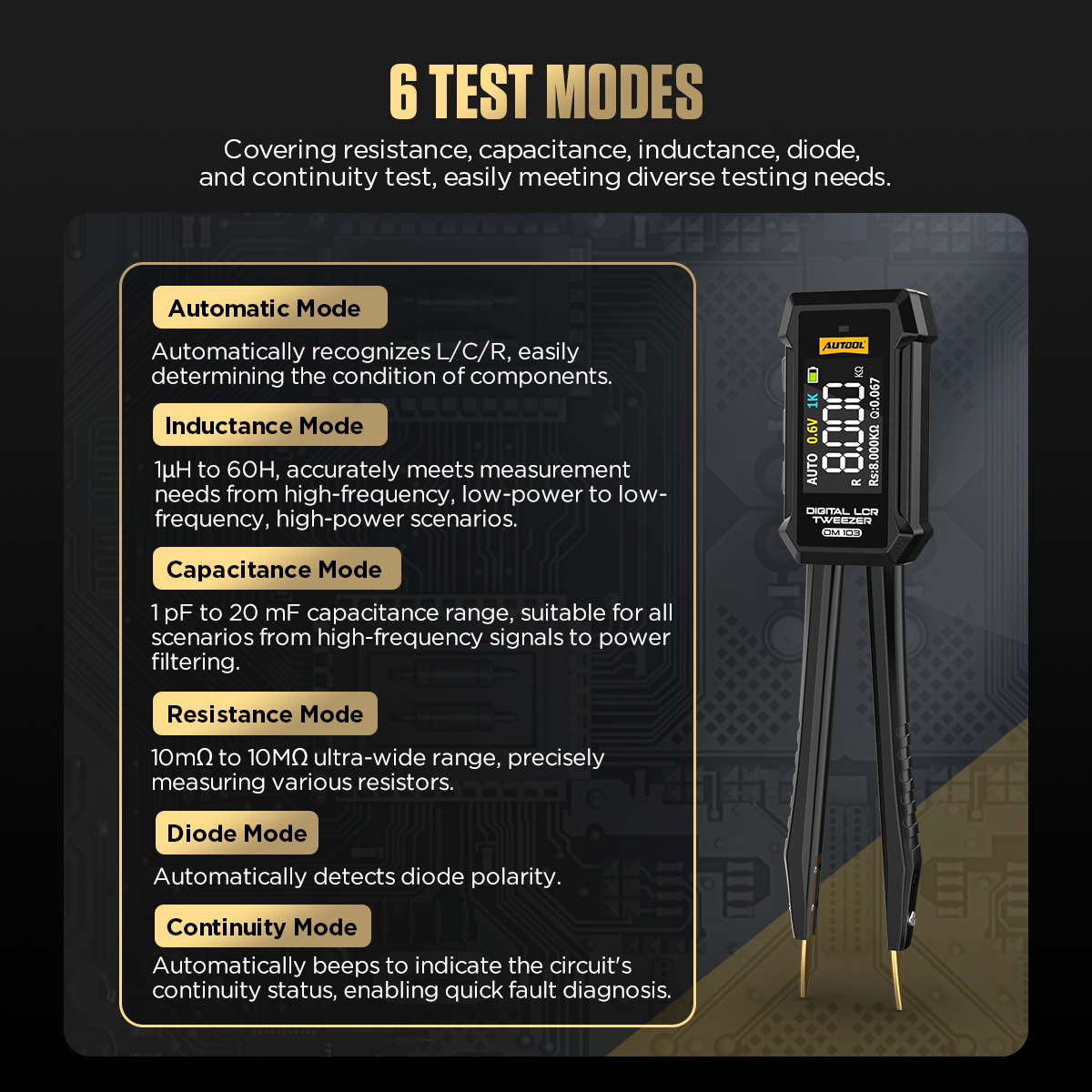

6 Test Modes: The AUTOOL DM103 Icr tweezers bridge tester offers precise measurements for resistance, capacitance, inductance, and diodes/continuity. It displays both primary and secondary parameters (RS, D, Q, Z, X values) simultaneously, helping you quickly identify components and assess their performance, boosting troubleshooting efficiency and repair accuracy.

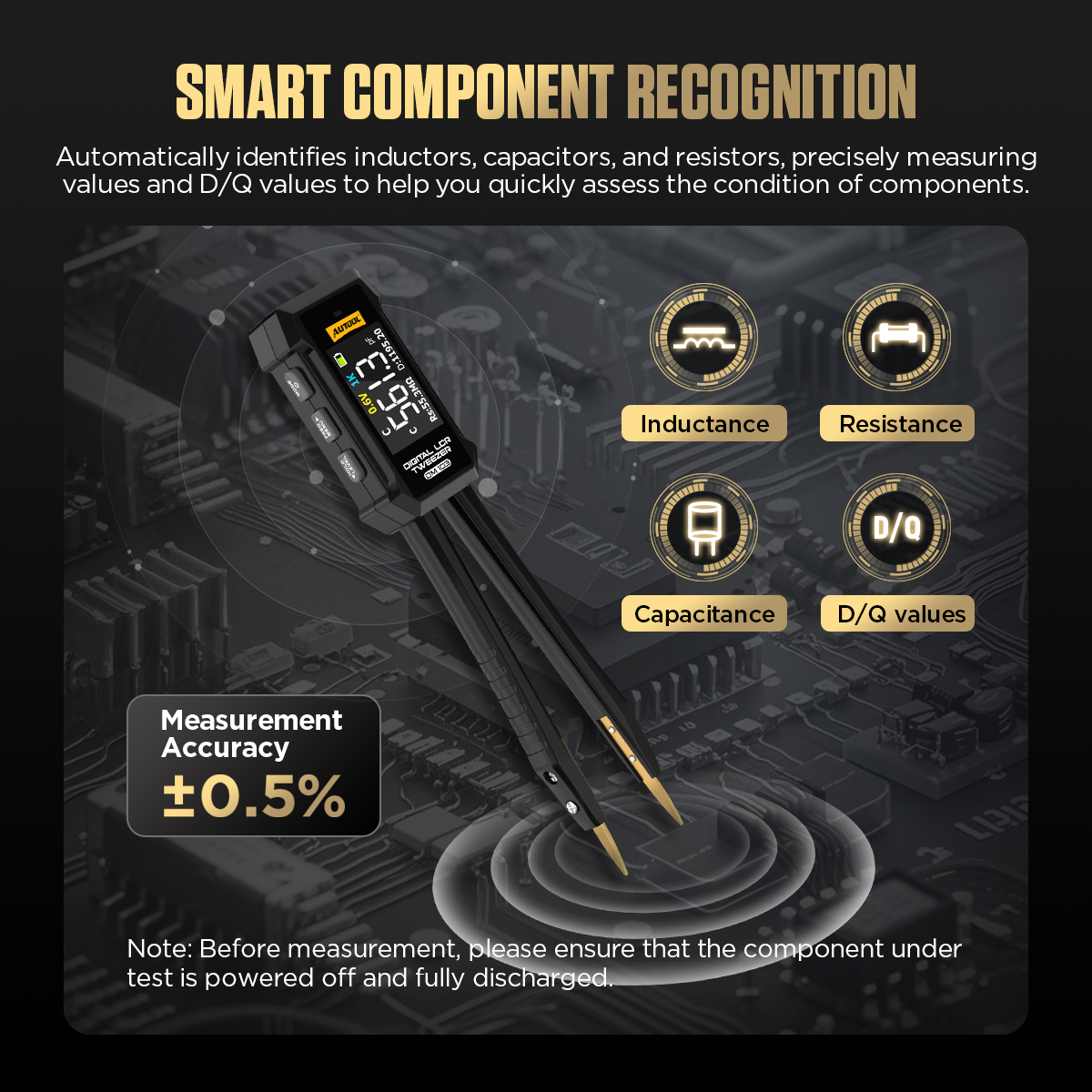

Smart Component Recognition: Automatically identifies component types without manual switching. In auto mode, it instantly measures resistance, capacitance, and inductance, making batch testing faster and improving repair efficiency.

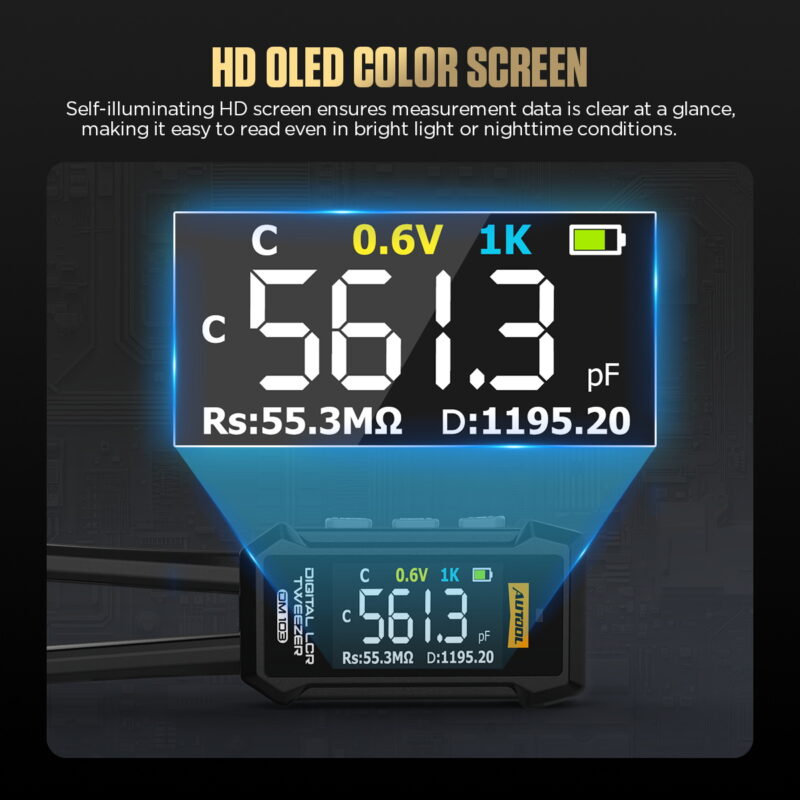

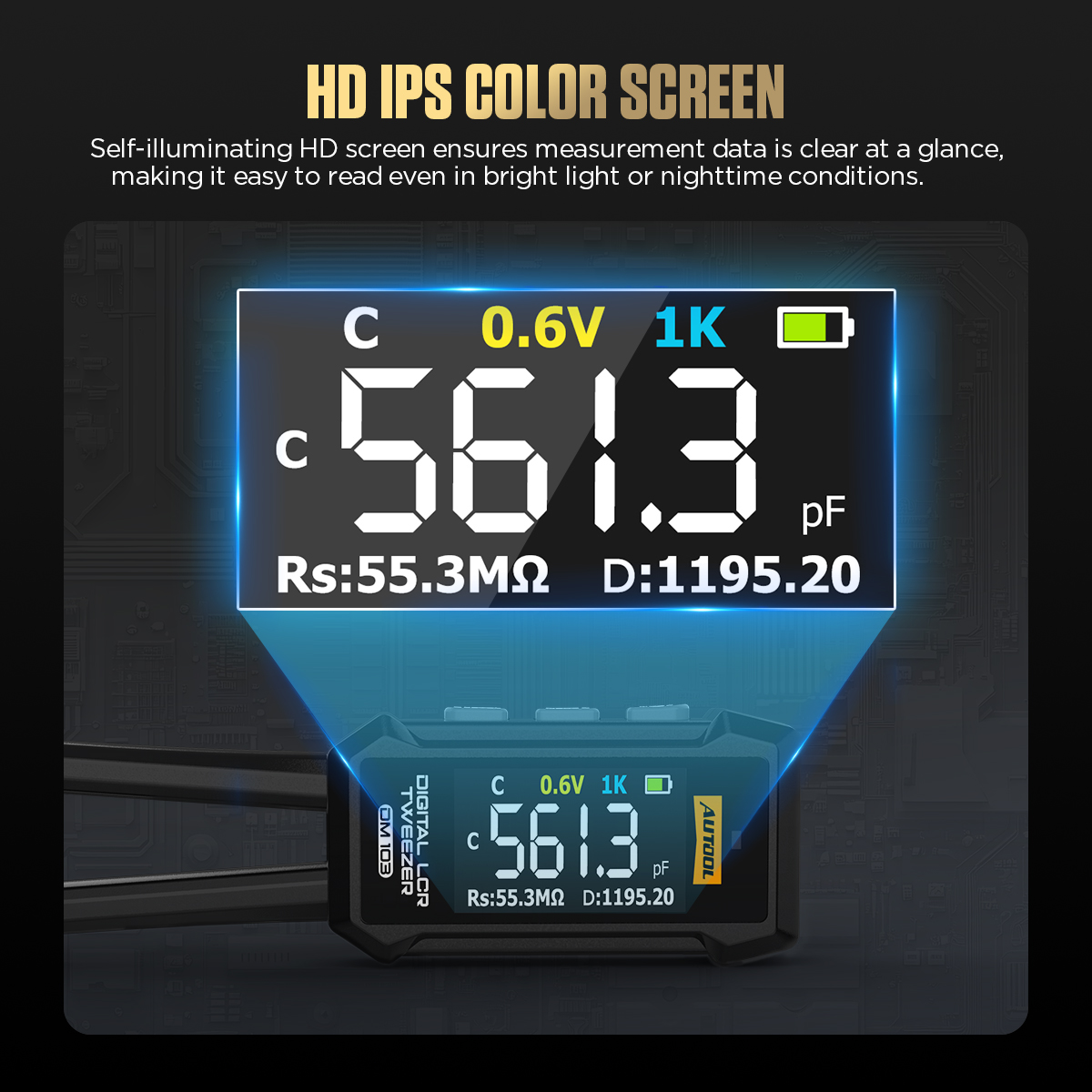

HD OLED Color Display: Featuring a self-illuminating HD OLED screen with high brightness, the display ensures clear and easy reading, even in bright or dim environments.

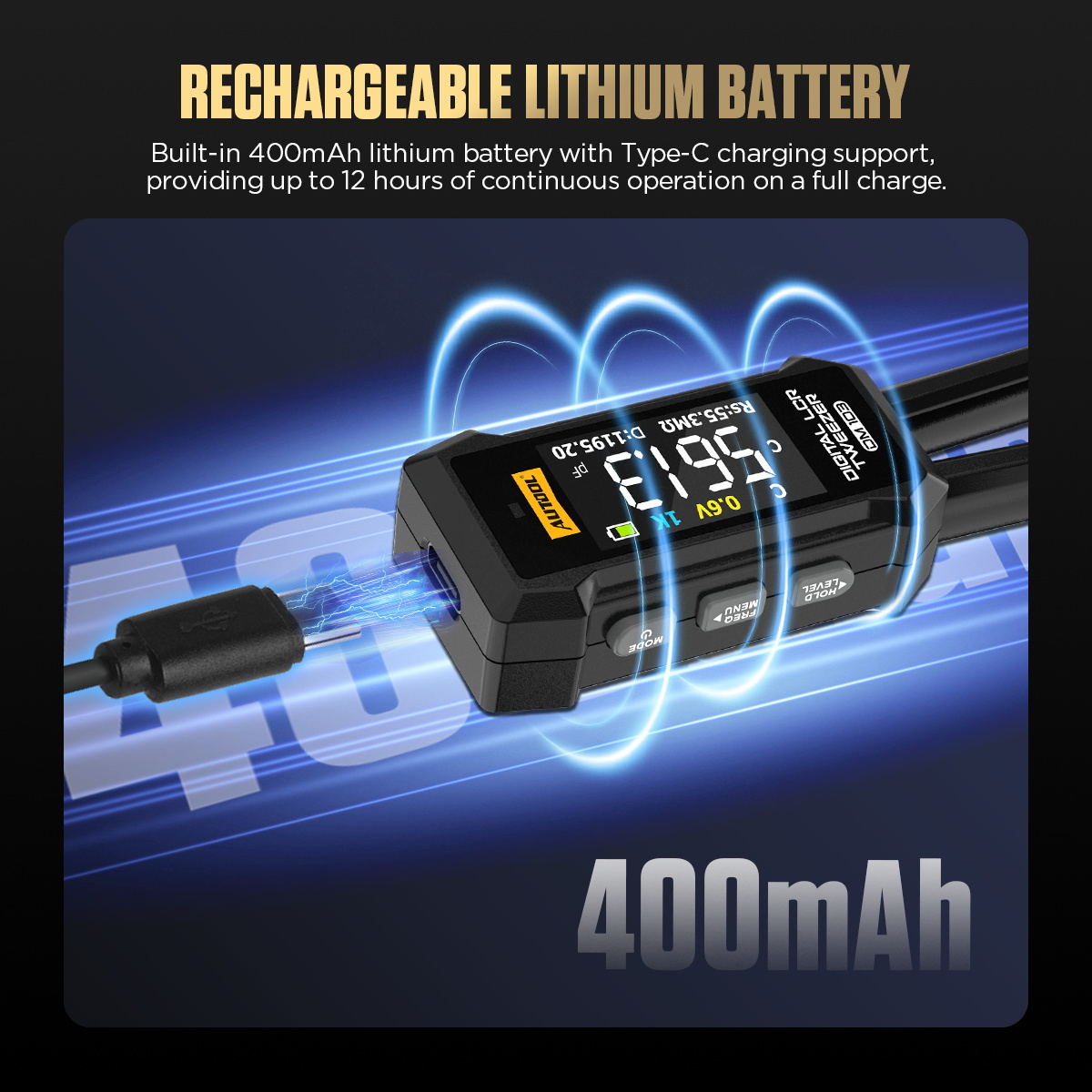

Long-Lasting Rechargeable Battery: The built-in 400mAh lithium battery provides up to 12 hours of continuous operation on a full charge, perfect for extended use.

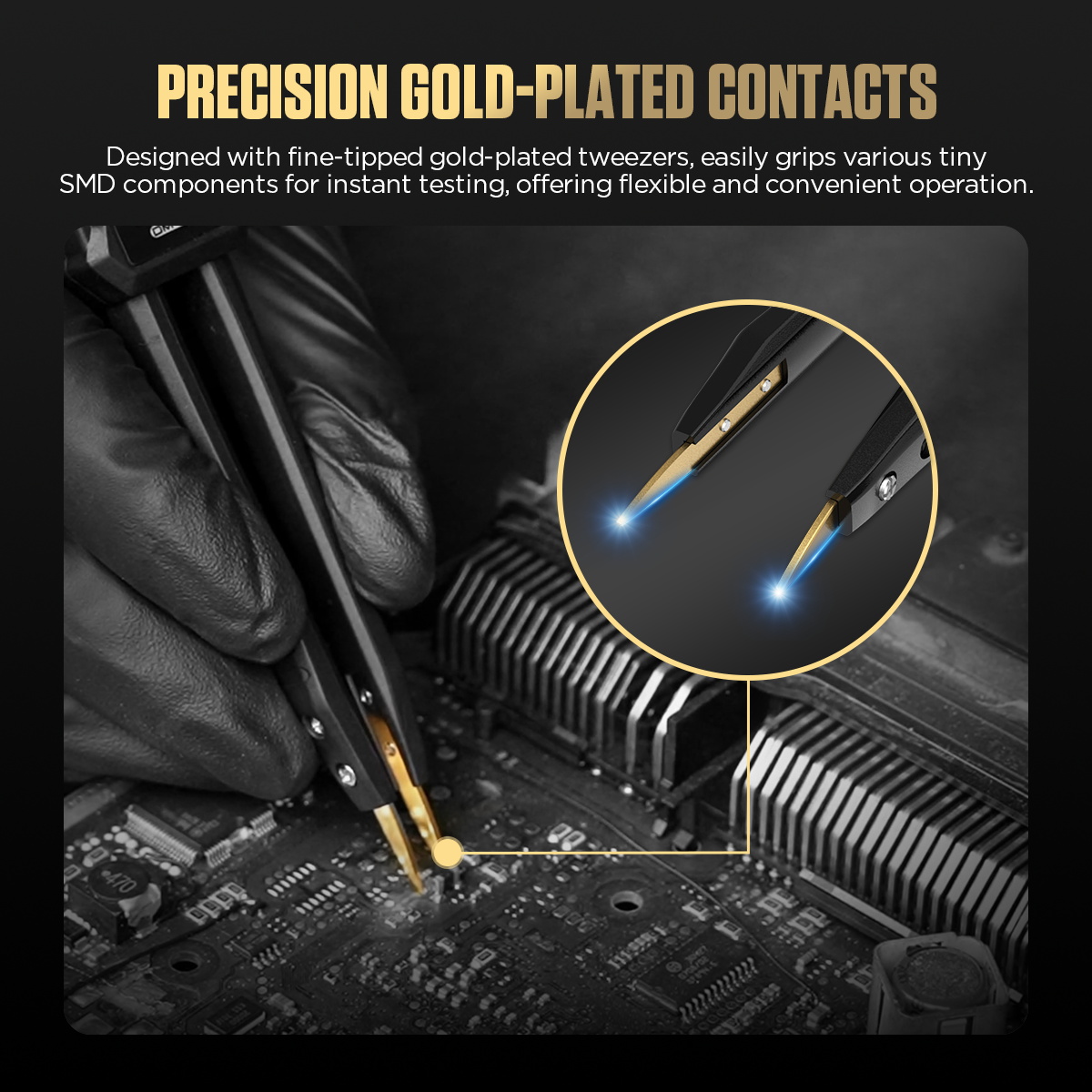

Precision Gold-Plated Contacts: Equipped with fine, gold-plated contact probes, the AUTOOL DM103 Icr tweezers bridge tester ensures accurate measurements, especially when testing small SMD components on high-density circuit boards.

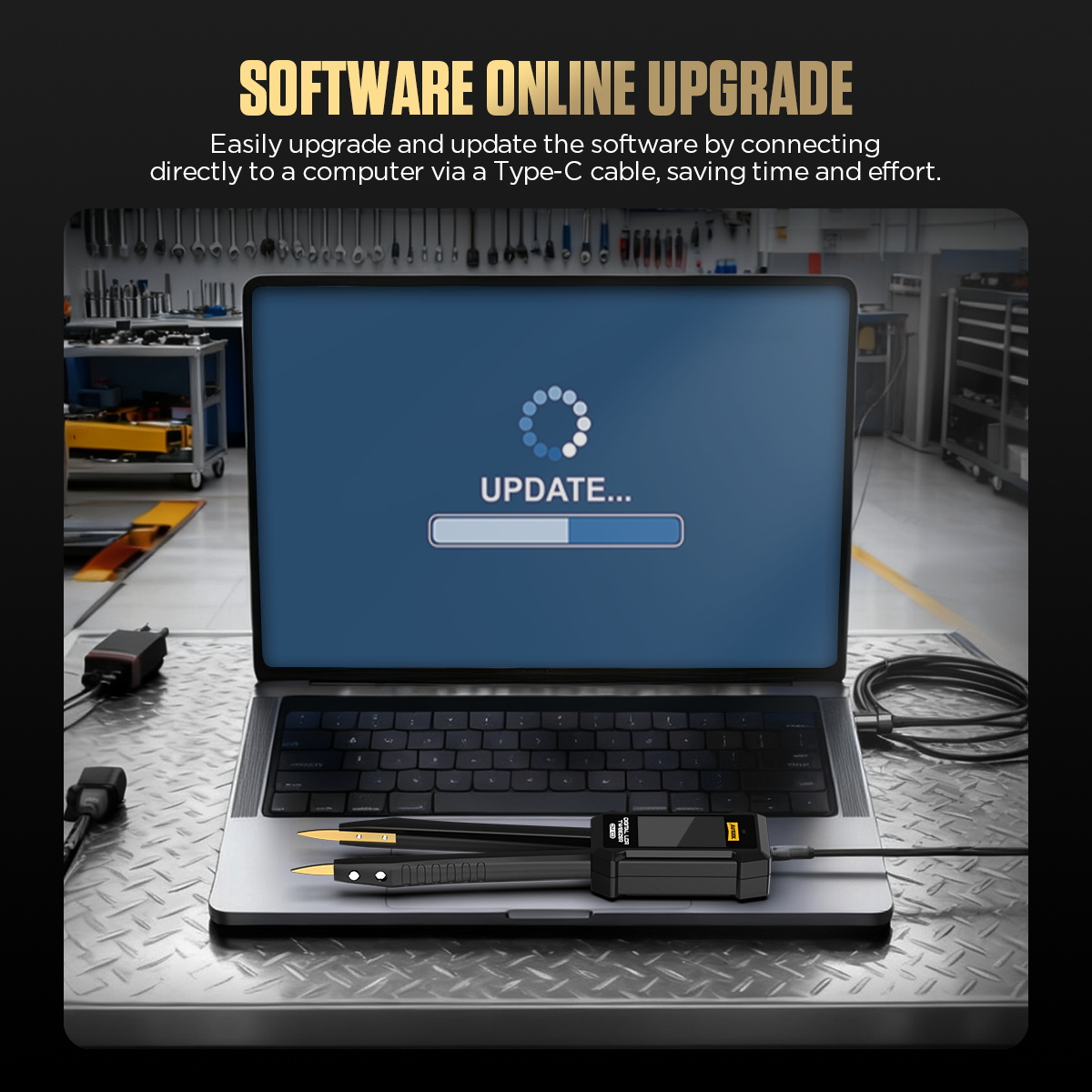

Software Upgrades via Type-C: Stay up-to-date with the latest features and improvements. The AUTOOL DM103 digital LCR tweezer supports online software upgrades through a Type-C connection to your computer, ensuring optimal performance at all times.
3-Year Warranty: For damage caused by non-human factors, we promise to resend parts for free within 3 years.
