AUTOOL ATL-4SHU Ultra-low Twin Scissor Lift for Wheel Alignment

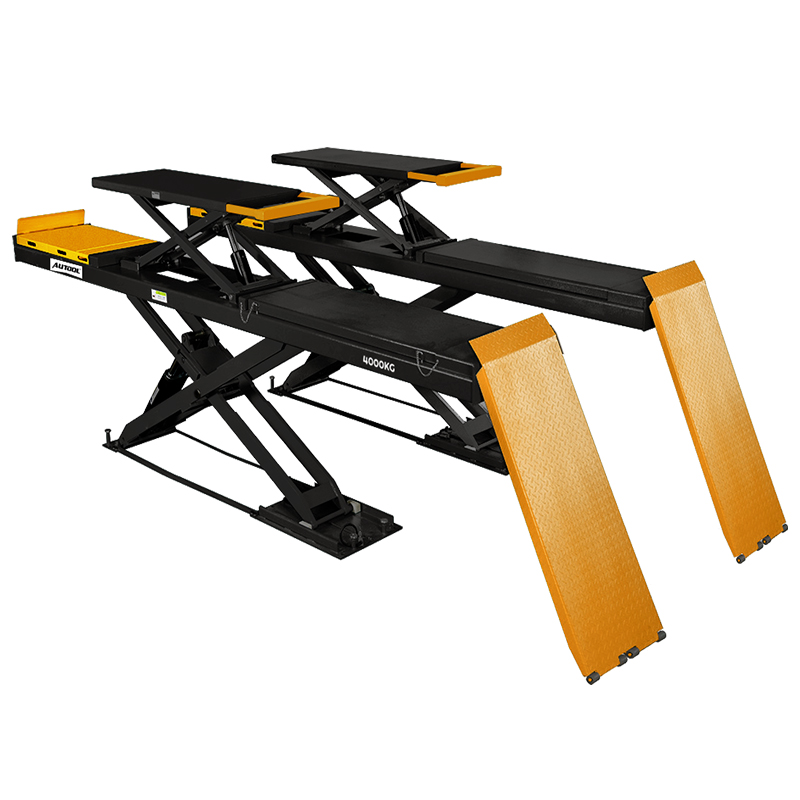

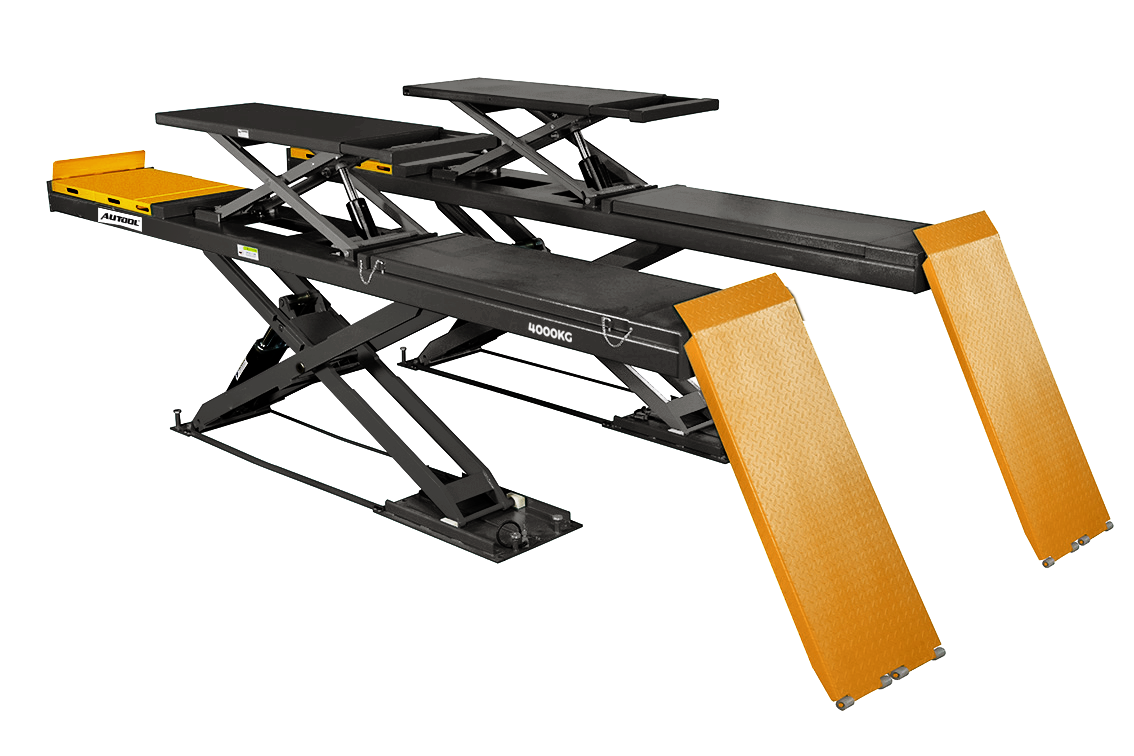

AUTOOL ATL-4SHU Ultra-Low Twin Scissor Lift (Main & Auxiliary)

The Ultra-Low Twin Scissor Lift features an exceptionally low profile, with a retracted height of just 190mm. Designed and manufactured using advanced Italian technology, this lift is engineered to provide both high performance and durability in various applications.

AUTOOL ATL-4SHU Ultra-Low Twin Scissor Lift Features

• Six-Cylinder Design: The entire lift system is powered by six hydraulic cylinders, ensuring robust lifting power and precise synchronization via dual hydraulic systems. This advanced hydraulic design enhances the stability and load-bearing capacity of the lift, even during heavy-duty operations.
• Hydraulic Synchronization: Dual hydraulic systems operate in perfect harmony, providing smooth and synchronized lifting and lowering actions. The system is equipped with wave pressure locks that ensure additional safety and prevent any unexpected movements.
• Triple Mechanical Safety Devices: To further enhance safety, the lift incorporates three independent mechanical safety mechanisms. These devices automatically engage during descent to prevent any sudden drops, ensuring both operator and equipment safety.
• Premium Alloy Steel X-Frame: The X-frame is made from high-quality alloy steel, laser-cut from a solid-core steel plate. This ensures superior strength, corrosion resistance, and deformation resistance, even under heavy usage and challenging environmental conditions.
• Surface Treatment & Durability: The lift features a shot blasting surface treatment followed by high-temperature spray coating. This combination significantly improves the durability of the entire system, offering superior resistance to wear and tear, corrosion, and external damage.
• Retractable Secondary Lifting Platform: The secondary lifting platform is designed to be retractable, providing added versatility and compactness when the lift is not in use.
• Wear-Resistant Components: All pivot points are fitted with wear-resistant bearings, and high-molecular wear-resistant sliders are used to reduce friction, extend service life, and enhance operational efficiency.
• Infrared Level Detection & Foot Protection Device: (Optional) Equipped with an infrared level detection system, the lift can detect any misalignment or obstacles during descent. The optional foot protection device provides an additional safety layer to prevent accidental injuries during operation.
• High-Precision Cylinder Manufacturing: The cylinder components are manufactured using high-speed fully automatic CNC lathes, ensuring excellent concentricity and surface finish. The cylinder barrel undergoes rolling burnishing treatment to enhance surface hardness and wear resistance.
• Safety Control Circuit: The lift is fitted with a 24V safety control circuit, ensuring the system operates within safe parameters and minimizes electrical hazards.
• Japanese Seals & Italian Ball Valves: The hydraulic seals are sourced from Japan for their reliability and performance, while Italian ball valves guarantee precise control over fluid flow and pressure management.
• Precision Manufacturing: All components are cut with laser and CNC equipment, ensuring precise dimensions, smooth edges, and an exceptional surface finish, contributing to the lift’s overall quality and operational efficiency.

Packing List

Main & Auxiliary Units

• Dimensions: 455 cm (L) × 65 cm (W) × 45 cm (H)
• Weight: 1975 kg

Trolley

• Dimensions: 92 cm (L) × 61 cm (W) × 25 cm (H)
• Weight: 132 kg

Approach Ramps

• Dimensions: 122 cm (L) × 60 cm (W) × 10 cm (H)
• Weight: 62 kg

Electrical Control Box

• Dimensions: 54 cm (L) × 47 cm (W) × 123 cm (H)
• Weight: 86 kg

Accessories Box

• Dimensions: 40 cm (L) × 40 cm (W) × 25 cm (H)
• Weight: 27 kg
