AUTOOL AST618 Pulsating Brake Fluid Exchanger Four-Wheel Oil Change
$999.00
- Adapters: Includes 17 different types of adapter, compatible with a variety of vehicle models from Europe, America, and Asia.
- Simultaneous Four-wheel Oil Change: The Pulsating Oil Exchange Vacuum Pump Oil Exchange Machine includes four oil collection bottles. This allows for the simultaneous replacement of brake fluid in four wheels, boosting efficiency.
- Pulse one-button Replacement: Remove sediments through efficient pulse vibration, avoid air mixing, accurate oil change, easy operation
For wholesale prices and more discounts click here.
AUTOOL AST618 12V Vehicles Pulsating Brake Oil Exchanger Four Clutch Slave Cylinders Automotive Brake System Tools

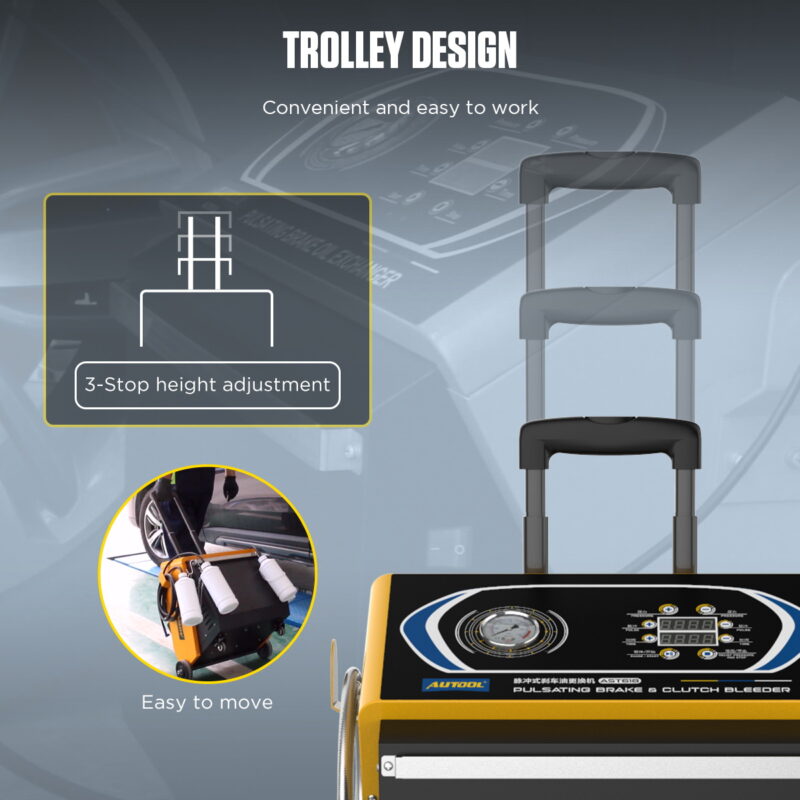

AUTOOL AST618 brake oil exchanger features a new pulse exchange technology that effectively removes impurities from the brake lines through high-frequency pulse pressure, improving efficiency. The brake fluid exchanger has 4 large-capacity fluid tanks and 17 adapters, supporting DOT3, DOT4, and DOT5.1 standards, making it compatible with most vehicle models. Its ergonomic design and four rollers make it easy to move, while the digital control panel allows precise adjustment of working time, pulse frequency, and pressure, with a maximum pressure of 3.5 bar. The system is simple to operate, with a one-button startup to complete all steps, making it ideal for large workshops.
✅Working Principle
- The brake fluid is pumped from the new fluid container and delivered to the vehicle’s brake fluid reservoir at a specified pressure.
- Then, drain the used brake fluid from each wheel brake caliper in the prescribed sequence until new fluid flows out.
- Compared to traditional pressurized brake fluid bleeders, this automotive brake fluid bleeder effectively prevents air bubbles from forming during the filling process.
- It also eliminates the need for manual bleeding. The built-in pressure monitoring device detects pressure levels.
- If pressure cannot be generated or the pump draws in air, it automatically shuts off to prevent air from entering the vehicle’s brake fluid reservoir.
⚠️Warm Tips
- How To Adjust Working Pressure Correctly?
- When the device is out of the factory, the working pressure of the pressure regulator is set to 1~1.5 bar, to ensure that the liquid storage chamber does not deform while changing liquid, thereby ensuring the tightness of the secondary sealing ring.
- In addition, it is also feasible to exhaust or change the liquid at a lower working pressure by adjusting the pressure and the size switch.
In special circumstances, while operating under a higher working pressure, be aware of the excessive pressure adjustment, which may damage the brake master cylinder of the brake system. - Please check each connection if there is any leak when changing the oil, and whether the connecting hose is damaged, to keep the new oil filler port clean.
What Is The Difference Between Brake Oil Bleeder Tool?
AUTOOL Brake Oil Bleeder Machine Quick Search
-31%
NEW
Original price was: $318.00.$218.00Current price is: $218.00.
-24%
$229.00 – $298.00
HOT
AUTOOL AST618 Brake Fluid Exchanger Features:

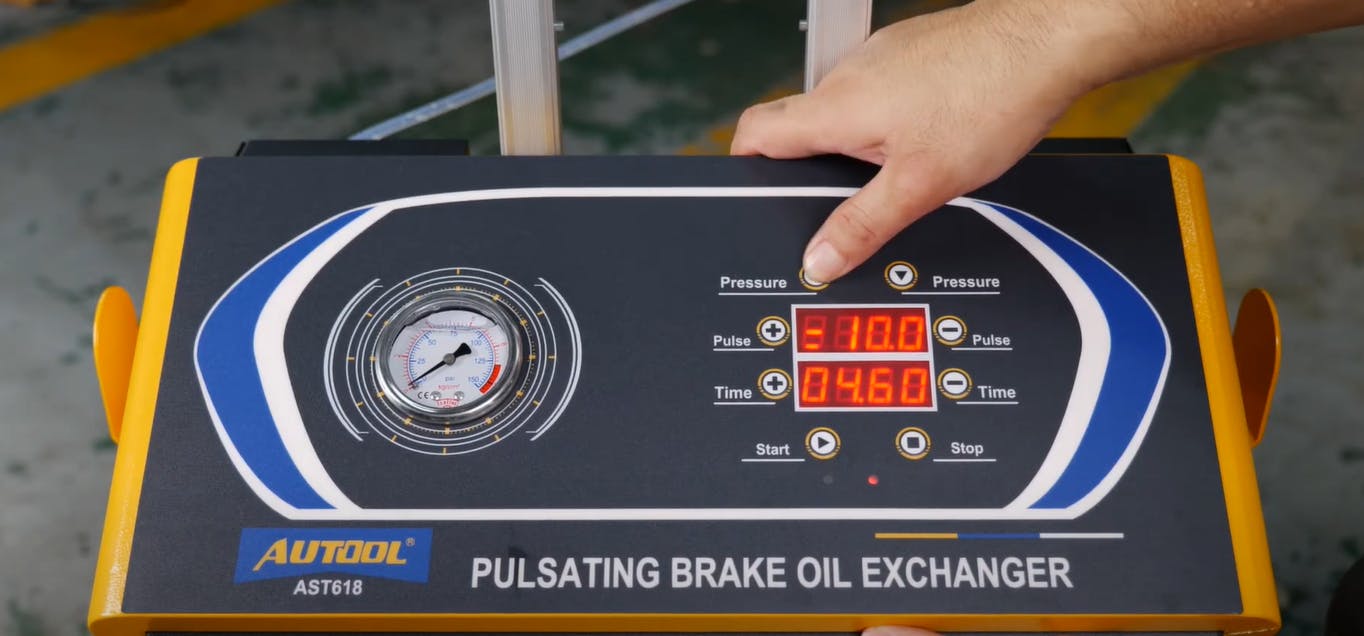

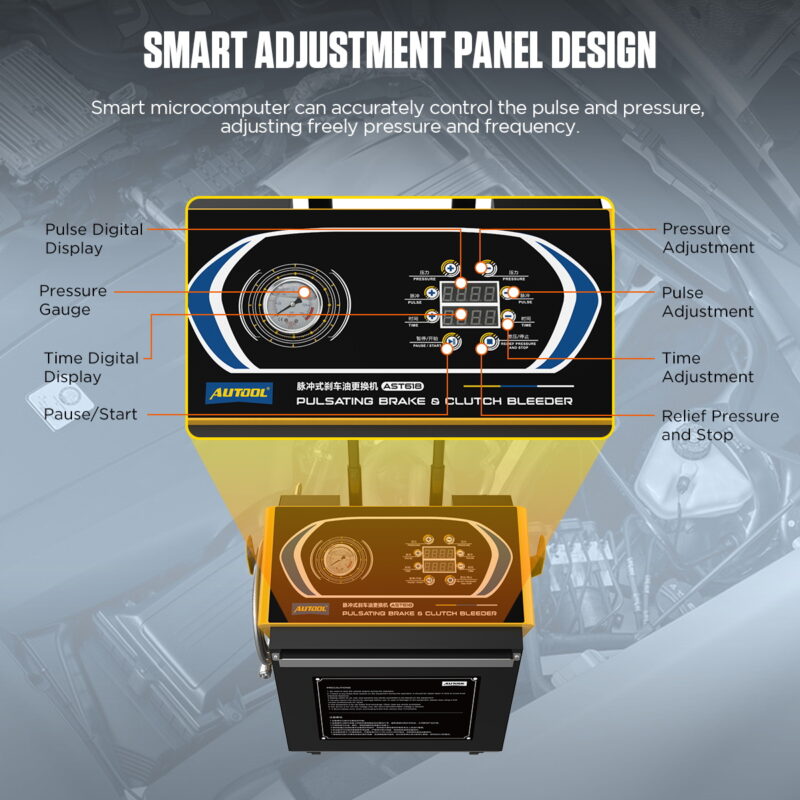

- Four Wheels Oil Can Be Exchanged Simultaneously: Working pulse, working pressure, and working time can be adjusted. The configuration of the pressure gauge and digital display meter can easily observe the working parameters.
- Pulse one-button Replacement: Only one person to operate. It allows for easy brake oil changes. The kit can change oil from two sub-pumps simultaneously. Once you set the working environment, the entire process is automatic. You don’t need to worry about being too busy.
- Intelligent Liquid Level Monitoring: The AUTOOL AST618 brake oil exchanger is equipped with a built-in pressure monitoring device. When the new fluid container runs out of brake fluid during filling, the device automatically stops, preventing air from entering the brake (braking) system pipelines.

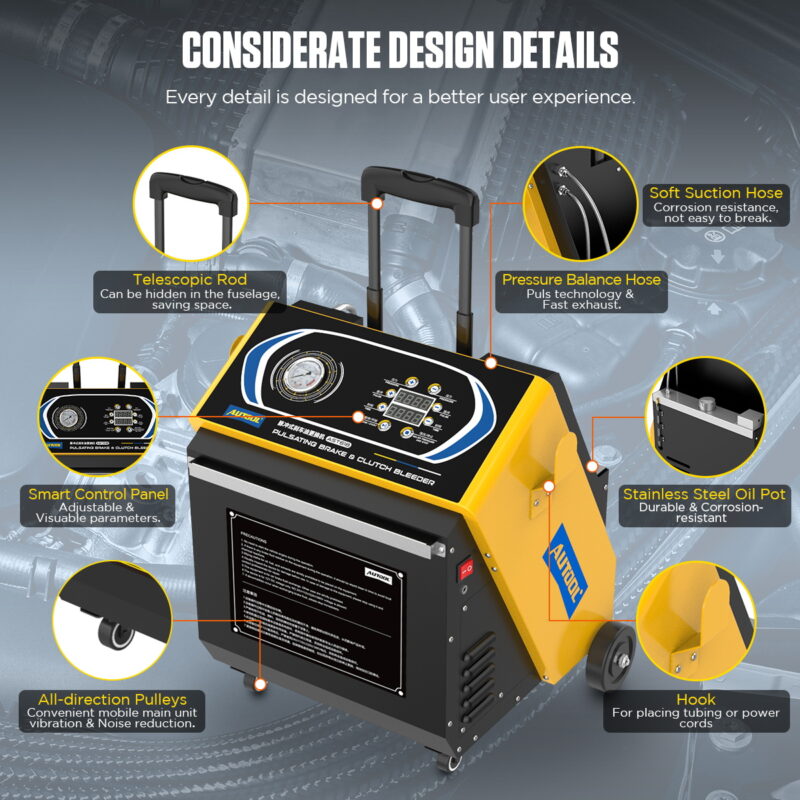

- Considerate Design Details: The AUTOOL AST618 brake oil exchanger does not need to exhaust the air in advance, the suction pipe can separate the moisture in the air, avoid mixing with the oil, and ensure the quality of the oil.

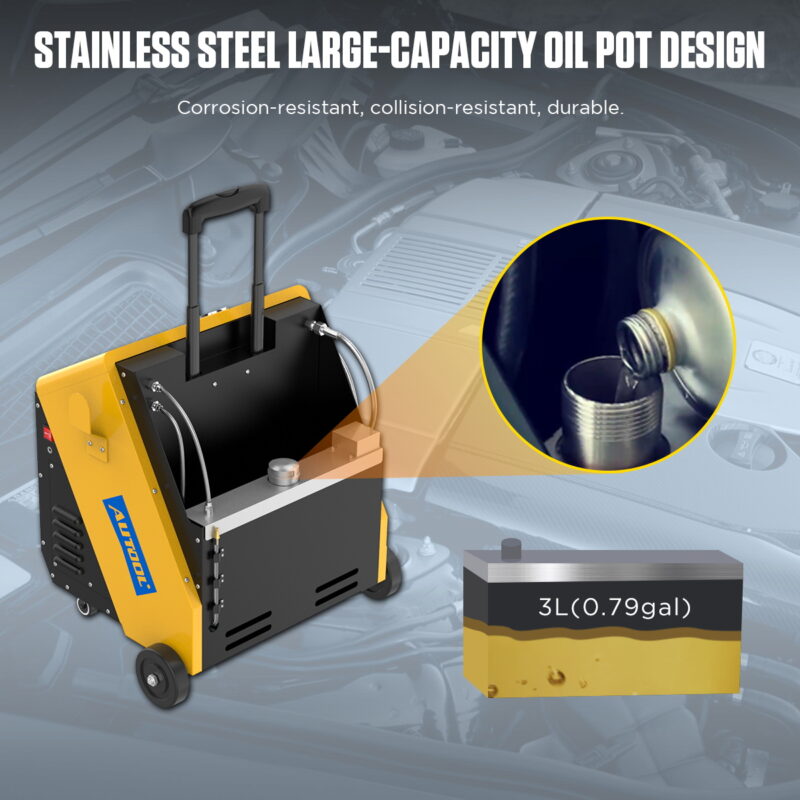

- Stainless Steel Large-Capacity Oil Pot Design: Oil pot volume 3L Corrosion-resistant,collision-resistant, and durable.

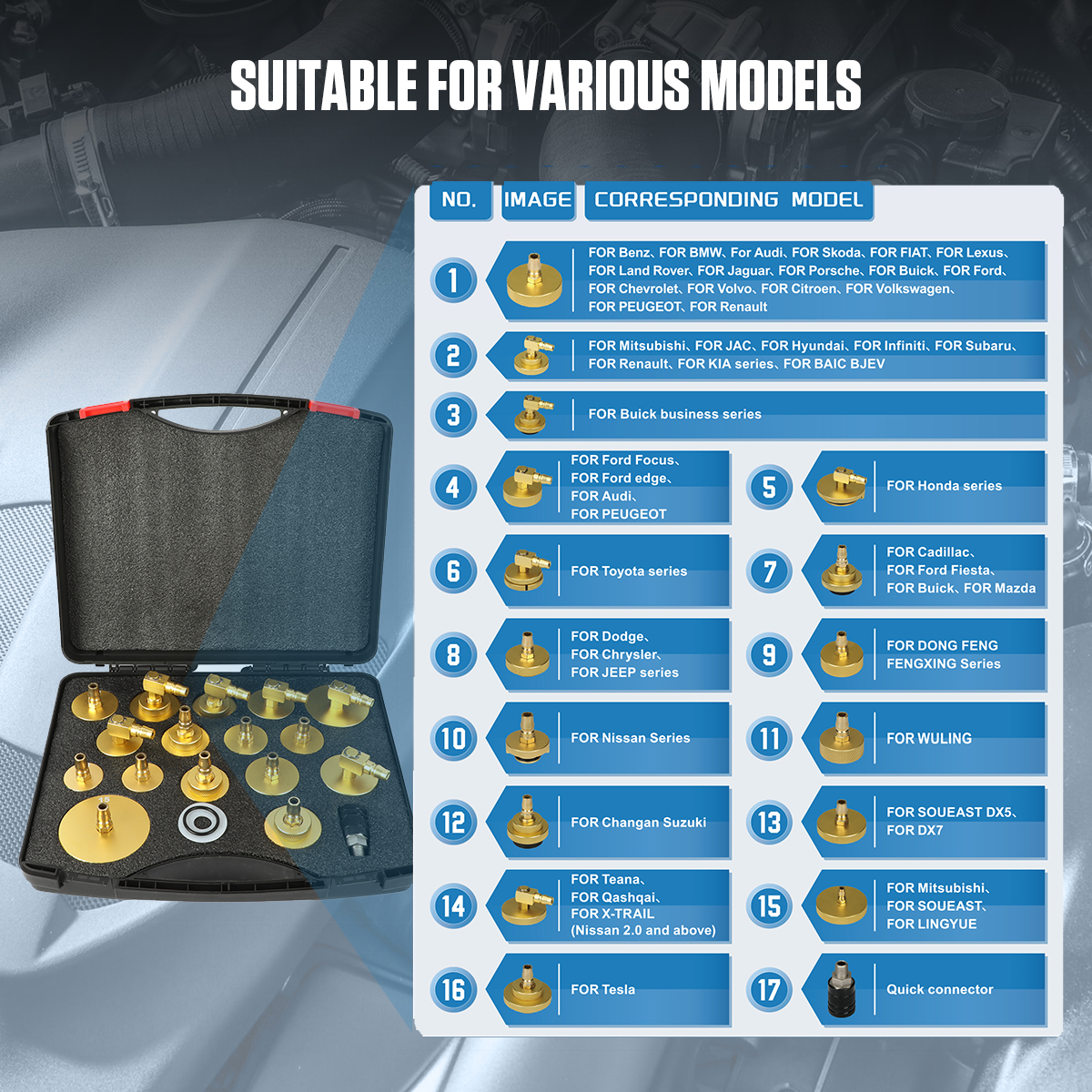

- Wide Application: Equipped with 17 different types of adapters and toolboxes, suitable for various car models in Europe, America, Asia, etc.
- Three-Year Warranty, Lifetime Maintenance: For damage caused by non-human factors, AUTOOL promises to resend parts for free within 3 years. If you have any problems, please contact us, and we will respond within 24 hours!

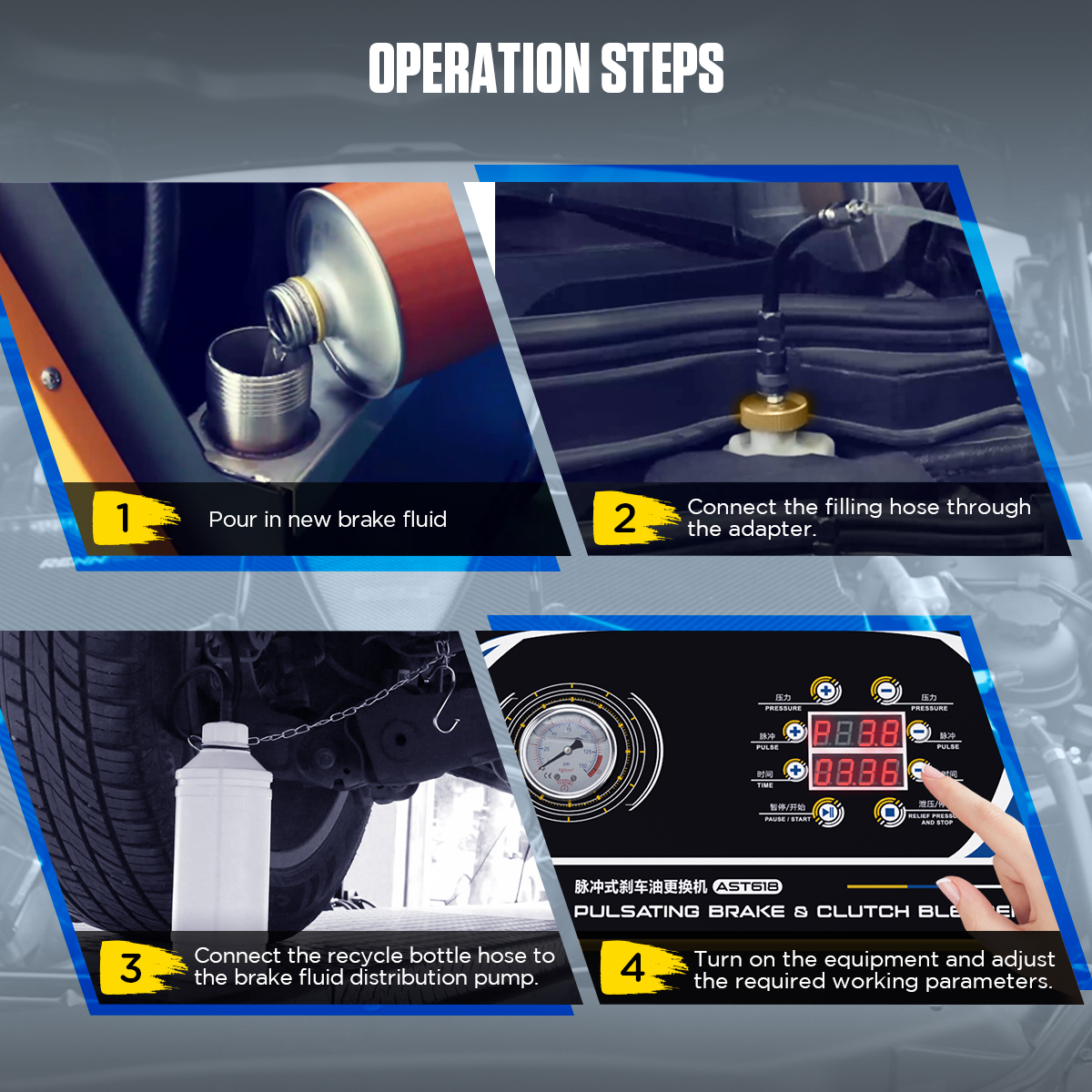

How To Use AUTOOL AST618 Car Pulsating Brake Oil Exchanger?
- Note: No need to start the vehicle for the operation.
- Step 1: Raise the car to a suitable height so the drive wheels are not on the ground.
- Step 2: Connect the device’s four oil ports to the car’s brake cylinder. Then, loosen the exhaust screw on the brake cylinder to allow the oil to flow out.
- Step 3: Pour 5 liters of new brake fluid into the equipment’s fuel filler port. Then, find the matching connector to connect to the brake master cylinder’s fuel filler.
- Step 4: Connect to 12V car power and turn on the power switch button.
- Step 5: Press the Vacuum Switch button.
- Step 6: Press the Fuel Switch button to change the brake fluid.
- Step 7: During the oil changing process, look at the car brake oil tank mouth, if the refueling is too slow, press the acceleration switch button on the device to accelerate refueling; if it’s too fast, press the deceleration switch button to slow down.
- Step 8: After the oil change, drain the used oil from the equipment’s tank completely. If not fully emptied, it can damage the vacuum pump and prevent further oil change operations.

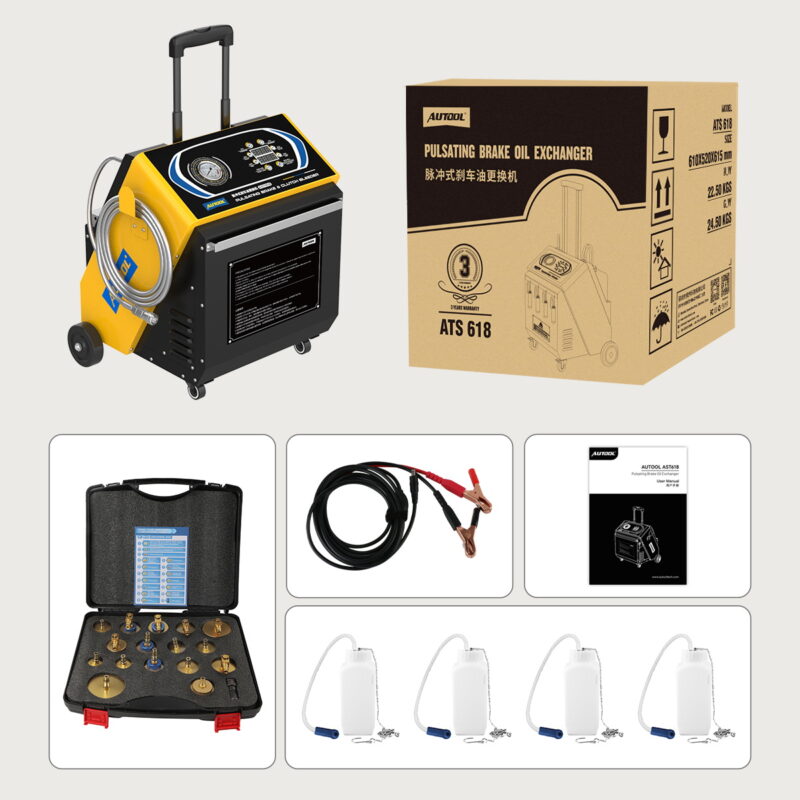

Packing List
Related Blogs

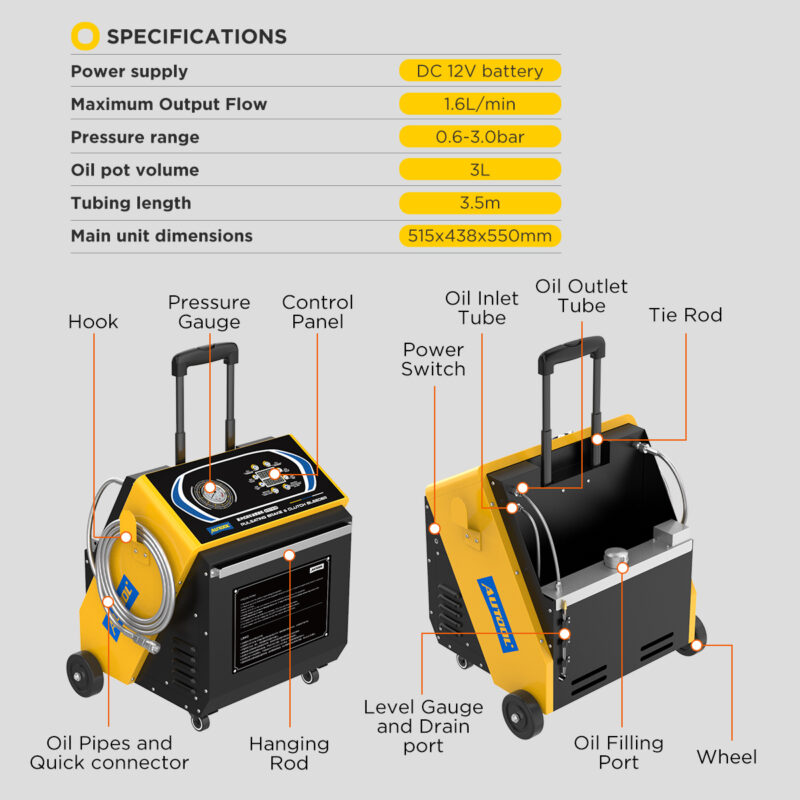

SPECIFICATIONS
- Brand Name: AUTOOL
- Origin: CN(Origin)

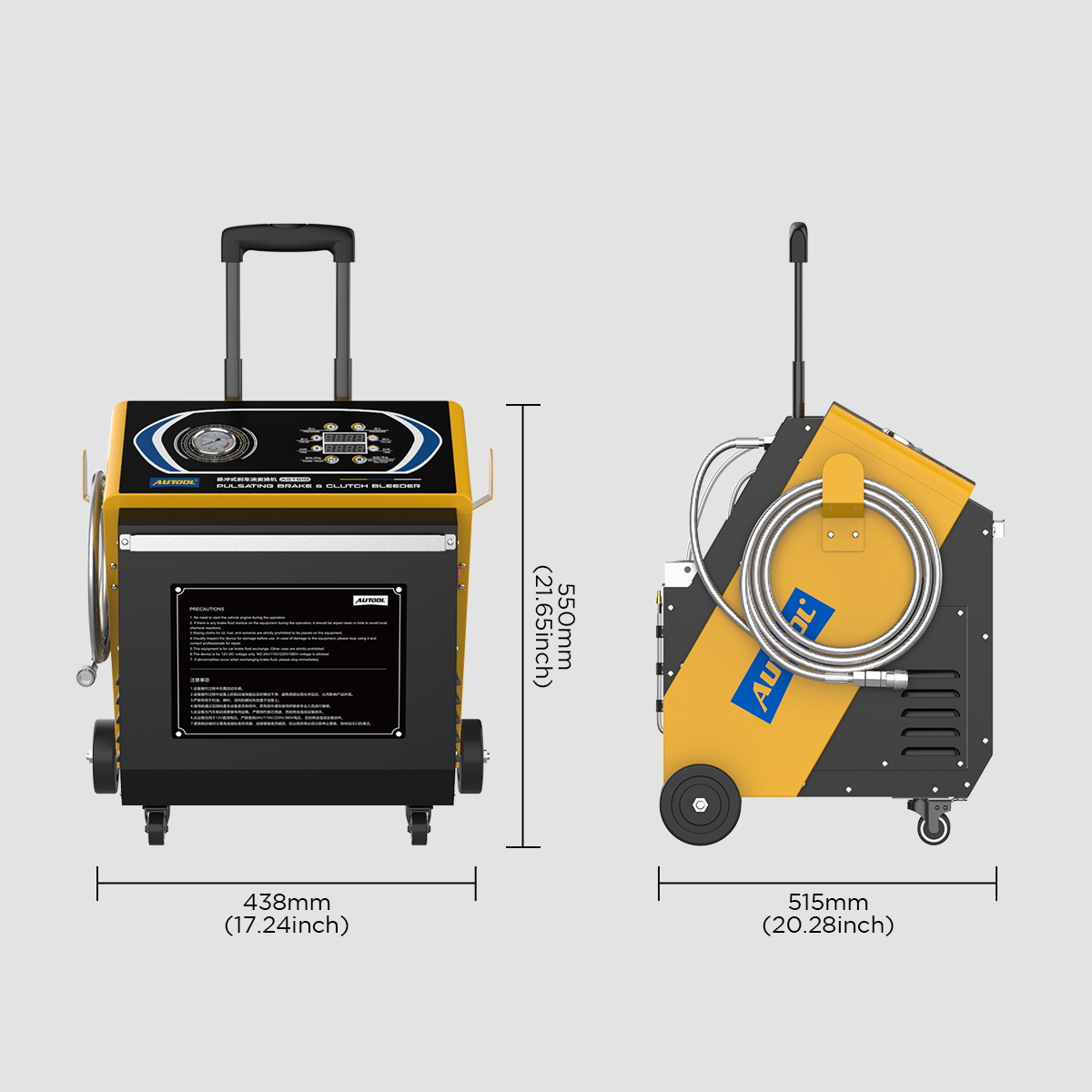

- Size: 17.24*20.27*21.65inch
- Weight: 43kg
Delivery
Customer Reviews
Based on 31 reviews
97%
(30)
3%
(1)
0%
(0)
0%
(0)
0%
(0)

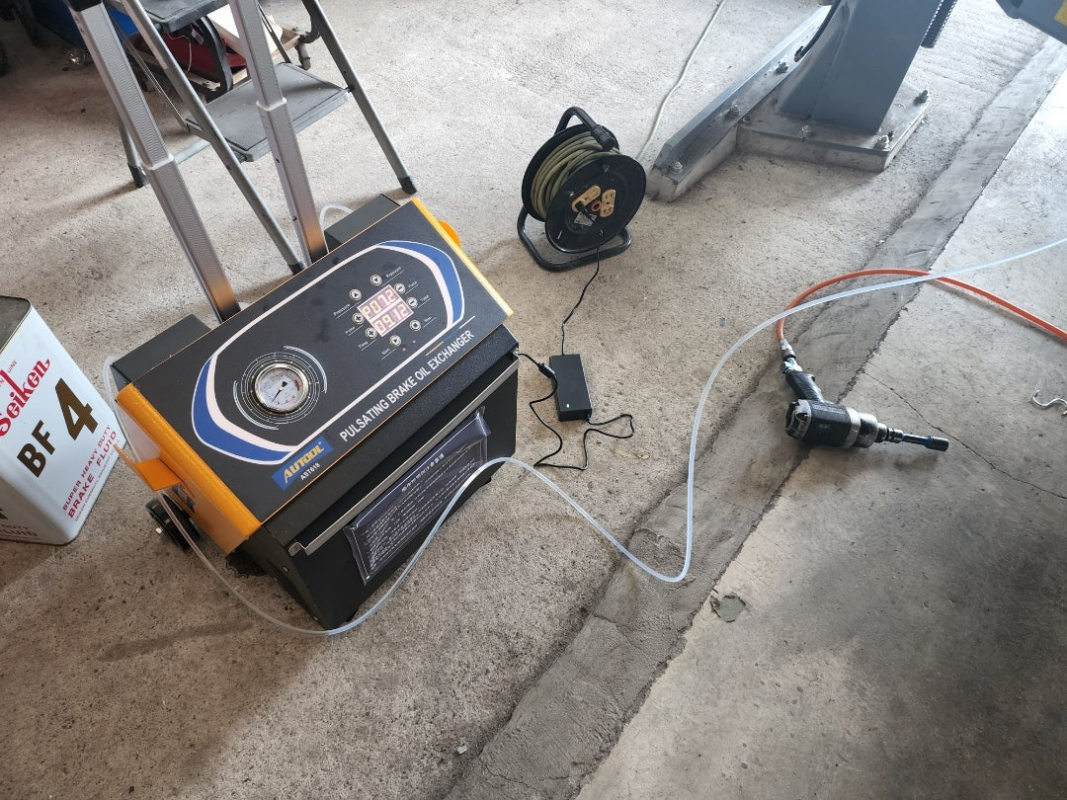

A
AST618 with 17 Auto Brake Fluid Replacement Connectors Fluid Pump Adapter, Compatible with Tesla, BMW, Mercedes Benz, I'm very satisfied with it because it can change the brake f AST618 with 17 Auto Brake Fluid Replacement Connectors Fluid Pump Adapter, Compatible with Tesla, BMW, Mercedes Benz, I'm very satisfied with it because it can change the brake fluid of four tires at a time, the fluid change is fast and my work efficiency is much improved.luid of four tires at a time, the fluid change is fast and my work efficiency is much improved.
R
It's much more efficient than the traditional way of changing brake fluid!
A
This device is very powerful. It can be operated by one person without bleeding air. It can replace four wheels at a time, which saves me a lot of time.
B

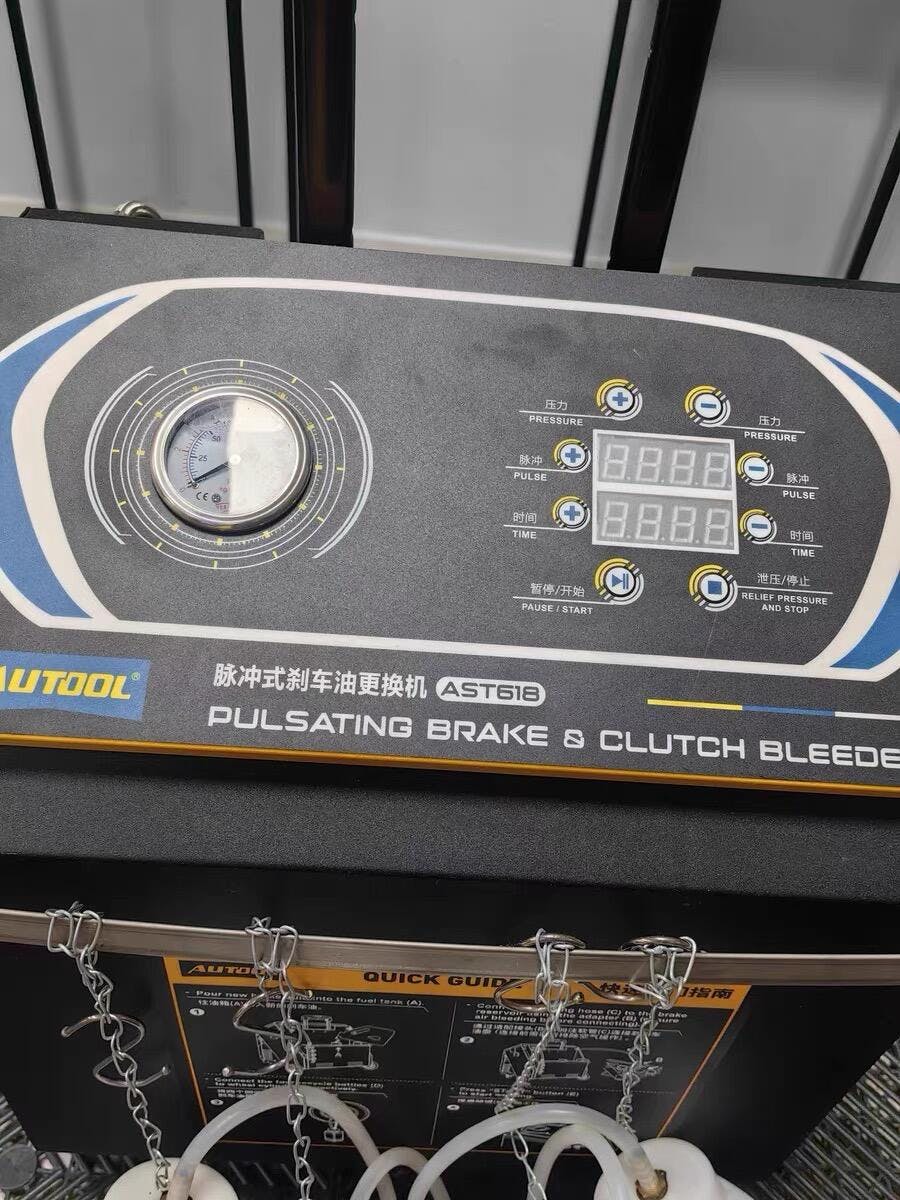

Quality:10
Appearance:10
Performance:Tested it, brake fluid change is very good, suggest button can be improved.
B
Simple operation, directly connected to the automatic oil change, pumping oil clean and thorough, saving time and effort. The most important thing is that the pressure is stable, do not have to worry about air into the brake system, after changing the brake feel obviously more stable.
