AUTOOL TG501 Coating Thickness Gauge Accurately Measures 0-2000μm
3 reviews
$89.00
For wholesale prices and more discounts click here.
AUTOOL TG501 Coating Thickness Gauge boasts a high-precision sensor measuring from 0 to 2000 μm with 0.1 μm accuracy. It automatically distinguishes between ferrous and non-ferrous paint, features a rotating screen for data viewing in complex settings, and includes an auto shut-off to conserve power. With calibration tools included, multi-unit support, and precise measurements across standards, TG501 coating thickness gauge ensures accuracy and efficiency in diverse applications.

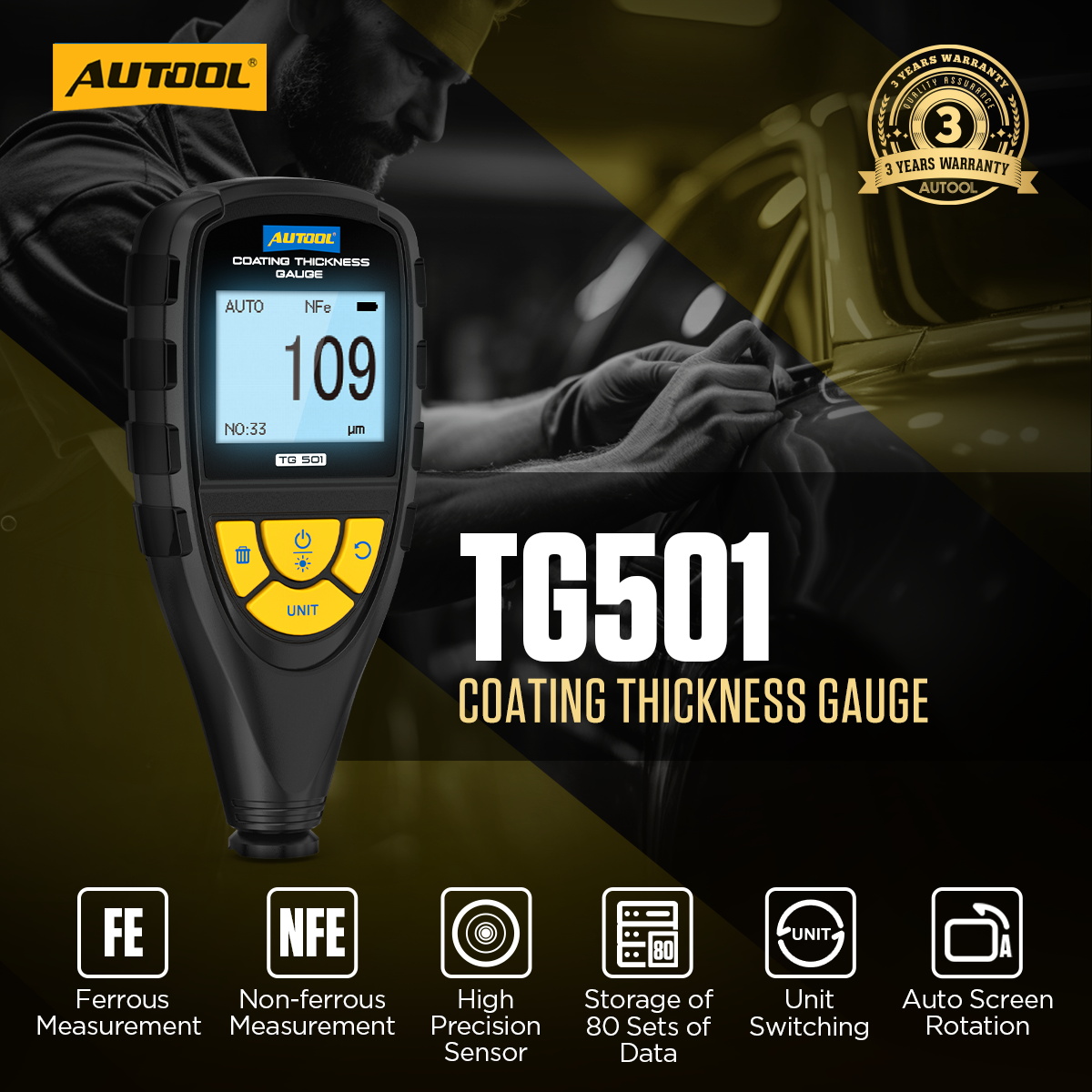

AUTOOL TG501 Coating Thickness Gauge

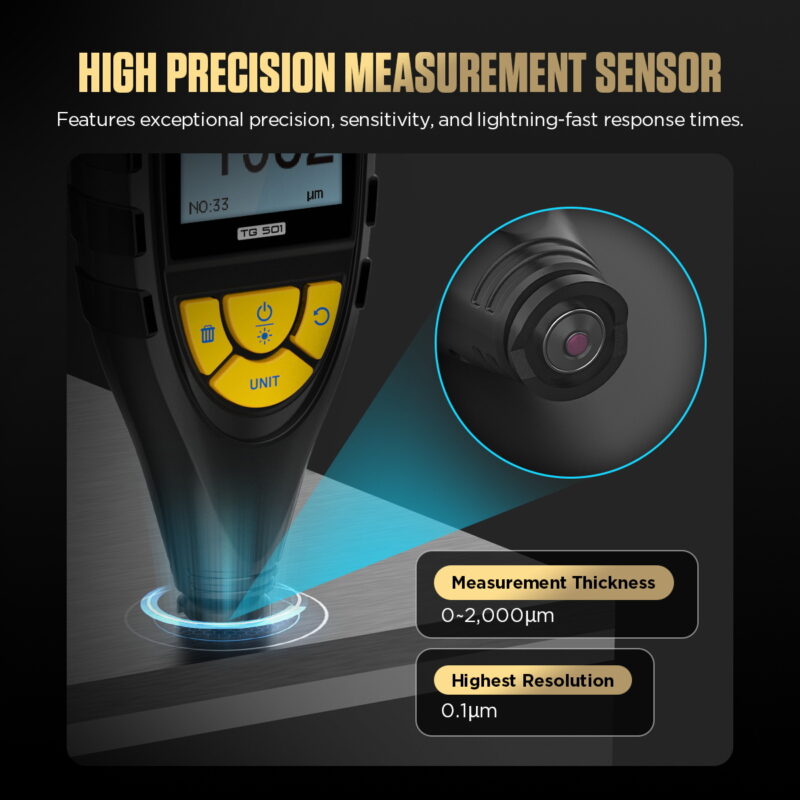

- High-Precision Sensor: Measures in the range of 0 to 2000μm, with an accuracy of 0.1μm.

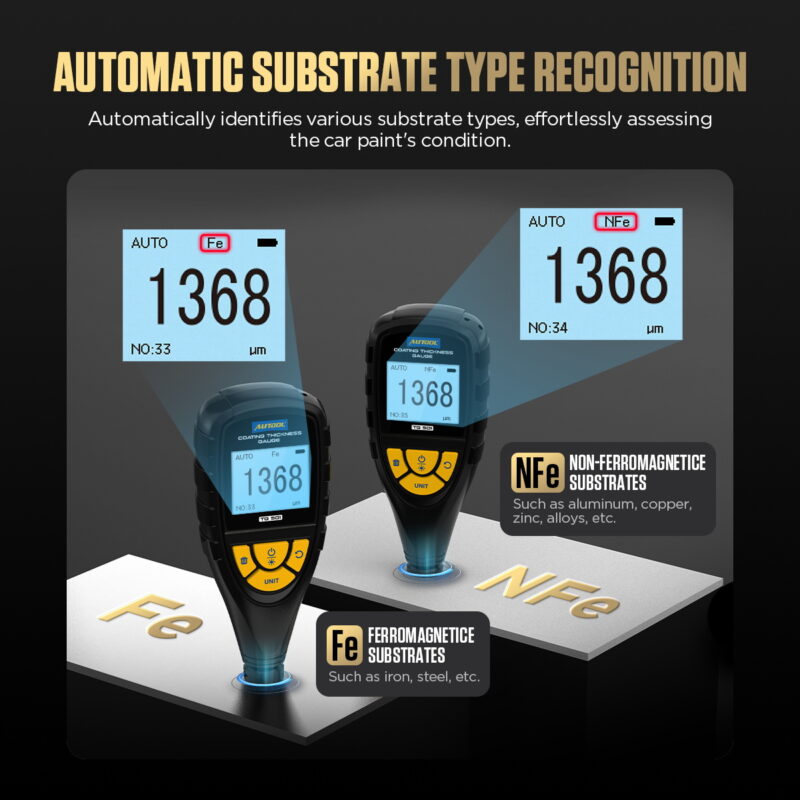

- Automatic Substrate Identification: Detects between ferrous and non-ferrous paint surfaces.

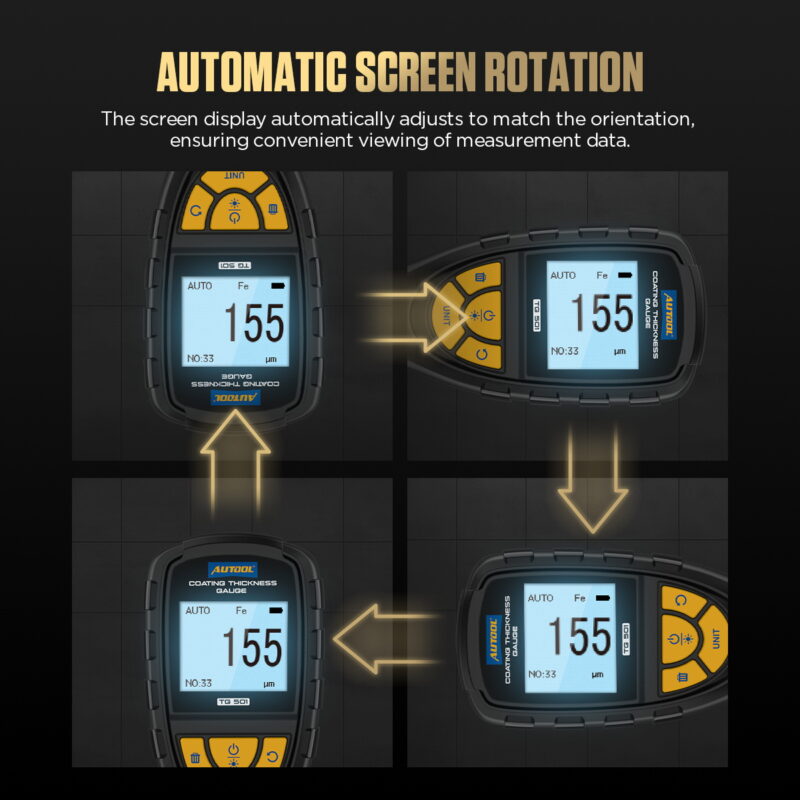

- Auto-Screen Rotation: Facilitates data observation in complex environments.

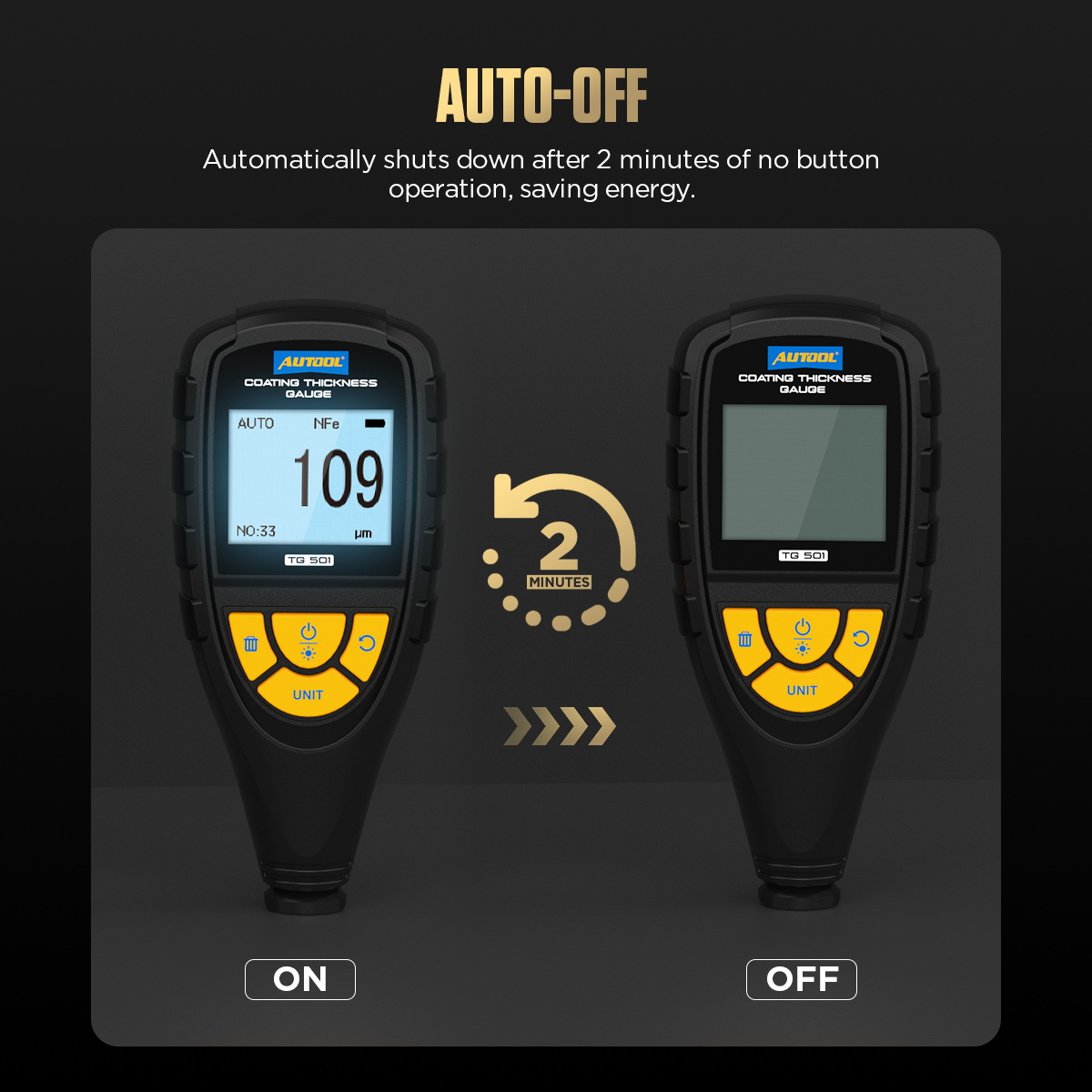

- Auto Shutdown: Saves power by automatically turning off after two minutes of inactivity.

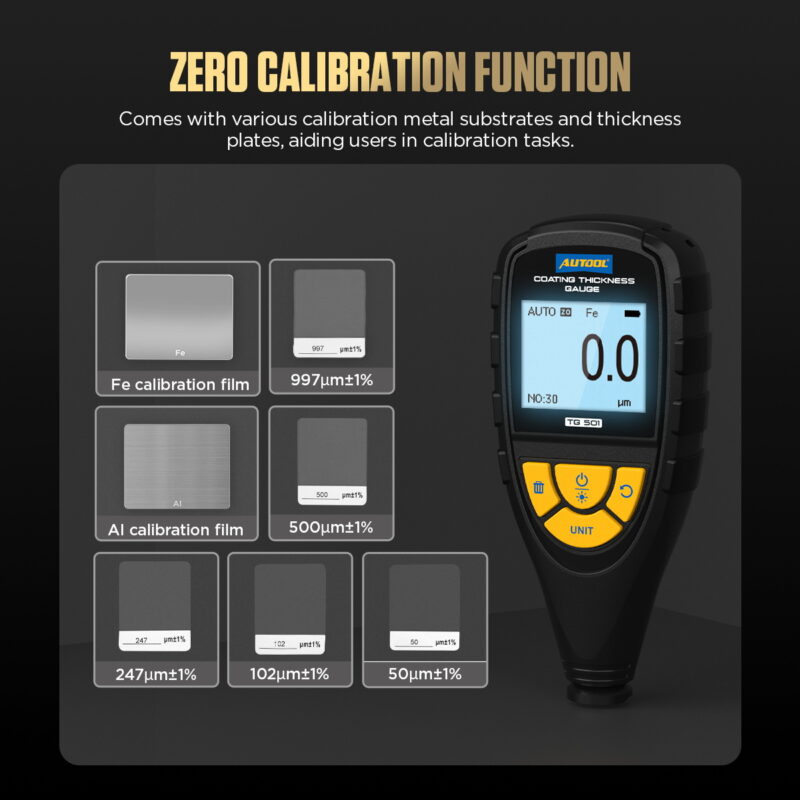

- Includes Calibration Metal Substrate and Thickness Plate: Aids customers in calibration references.

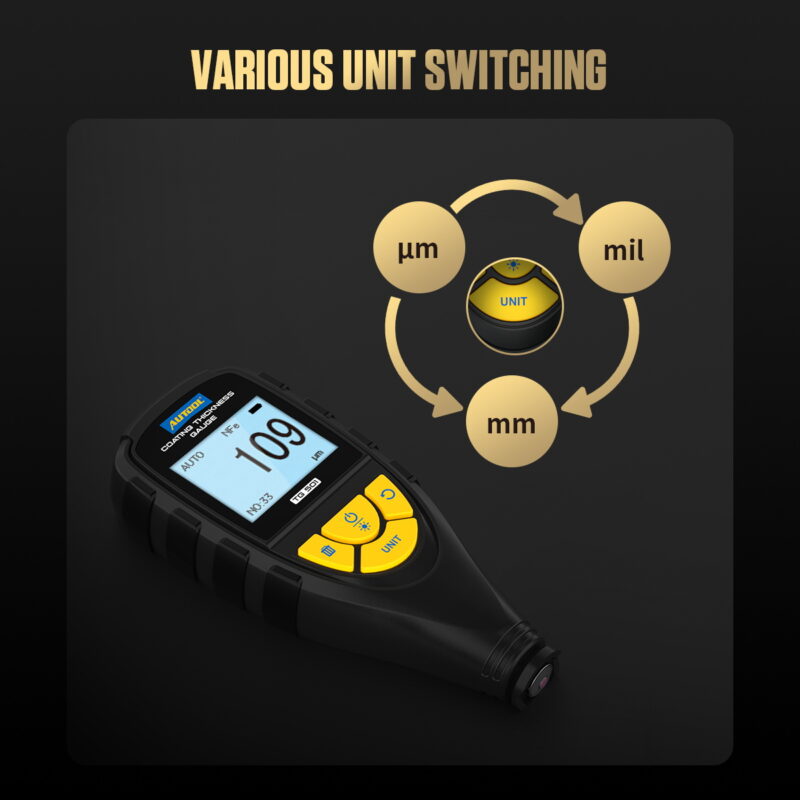

- Multi-Unit Conversion: Accommodates various reference standards.
- Three-Year Warranty, Lifetime Maintenance: For damage caused by non-human factors, AUTOOL promises to resend parts for free within 3 years. For any needs, you are warmly welcome to contact us and we will get back to you ASAP within 24 hours. Online Support>>

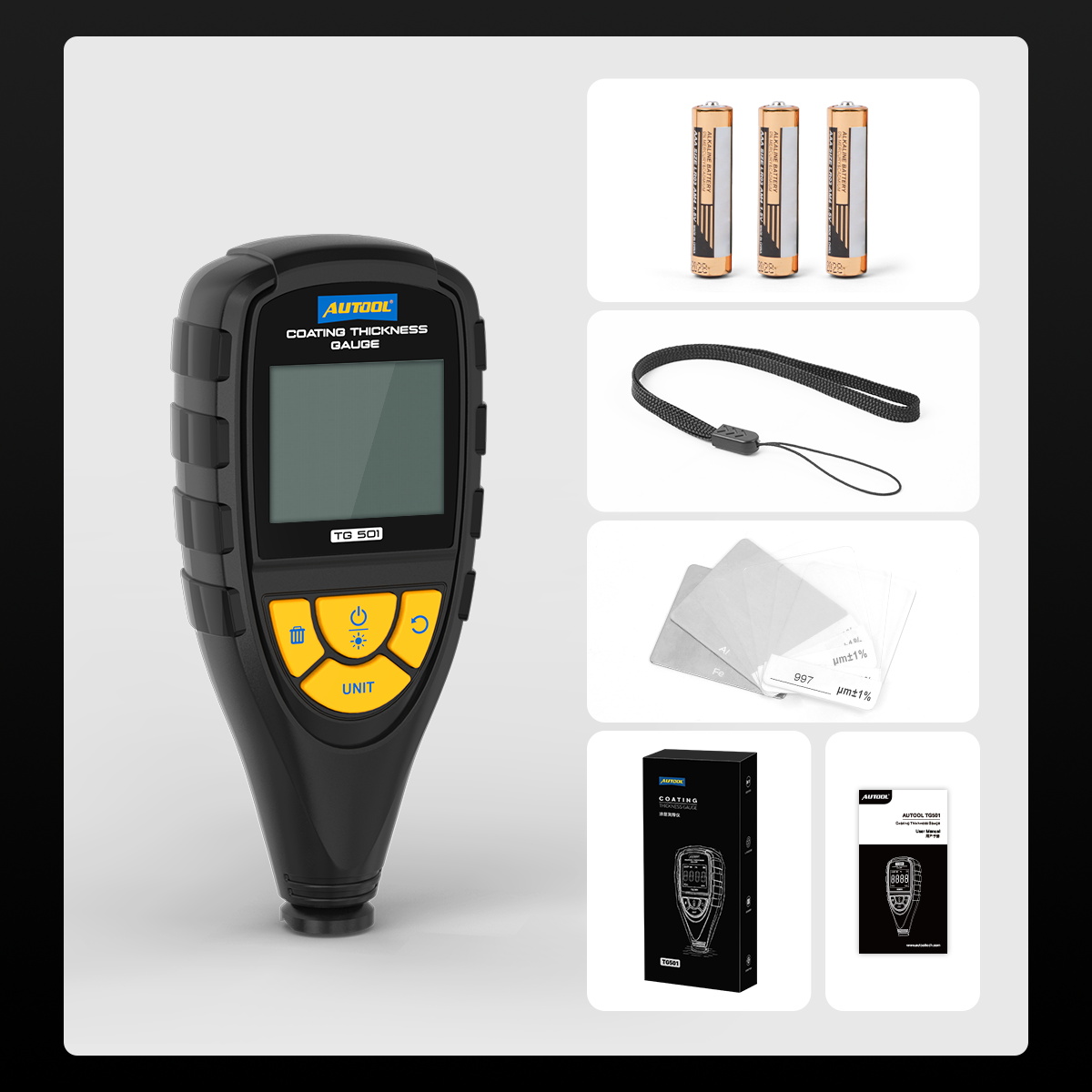

Packing List

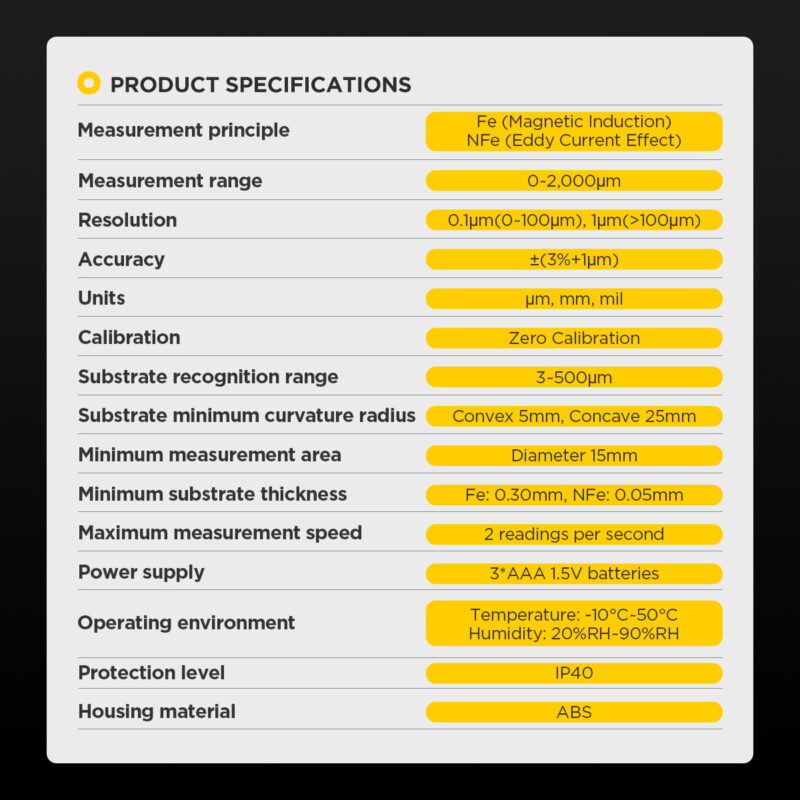

Specification
Measurement principle | Fe (Magnetic Induction) NFe (Eddy Current Effect) |
|
Measurement range | 0-2,000μm | |
Resolution | 0.1μm(0-100μm), 1μm(>100μm) | |
Accuracy | ±(3%+1μm) | |
Units | μm, mm, mil | |
Calibration | Zero Calibration | |
Substrate recognition range | 3-500μm | |
Substrate minimum curvature radius | Convex 5mm, Concave 25mm | |
Minimum measurement area | Diameter 15mm | |
Minimum substrate thickness | Fe: 0.30mm, NFe: 0.05mm | |
Maximum measurement speed | 2 readings per second | |
Power supply | 3*AAA 1.5V batteries | |
Operating environment | Temperature:-10°C~50°C Humidity: 20%RH~90%RH |
|
Protection level | IP40 | |
Housing material | ABS |
