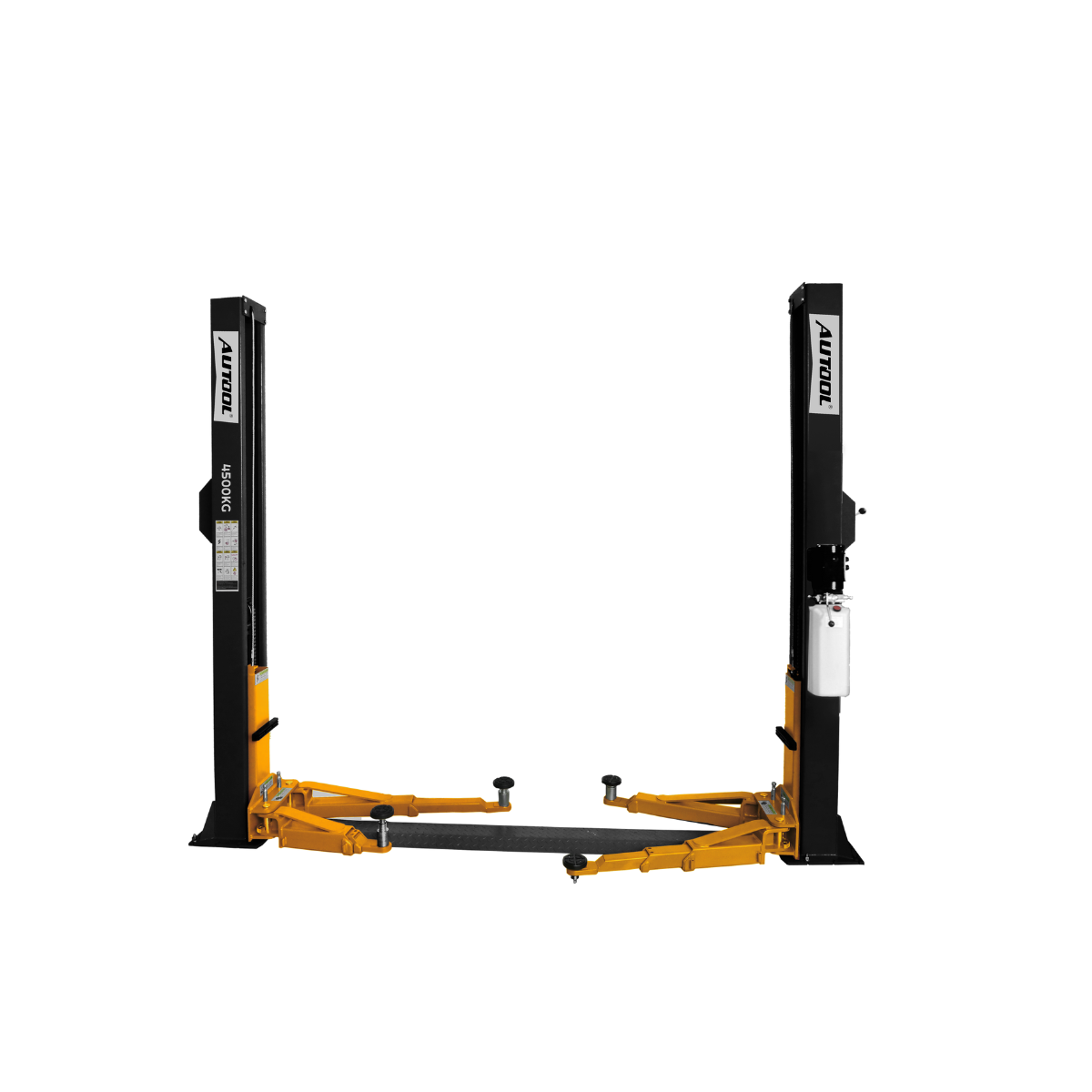

AUTOOL Two Post Car Lift ATL-4.5C Single-Sided Control 4.5T

AUTOOL Two Post Car Lift ATL-4.5C Single-Sided Control 4.5T

This 4.5-ton hydraulic two-post lift employs high-standard industrial manufacturing processes, specifically designed for automotive repair, maintenance, and inspection workstations. It balances high load capacity, safety performance, and long-term stability, making it an ideal choice for professional repair shops.

AUTOOL Two Post Car Lift ATL-4.5C Single-Sided Control 4.5T Features

• Drive & Balancing System: Dual-cylinder direct-drive hydraulic system delivers stable power output for smooth, seamless lifting.
• Balancing System: Equipped with a wire rope balancing system to ensure synchronized lifting on both sides and prevent vehicle tilt.
• Structure and Manufacturing Process: Columns and primary load-bearing components are fabricated from laser-cut steel plates, ensuring precise dimensions, smooth edges, and overall structural stability and reliability.
• Safety: Incorporates a gear-type arm lock mechanism + hook-type mechanical safety structure, effectively preventing slippage even with slider wear.
• Hydraulic Safety Protection: Multi-level mechanical and hydraulic safety protections comply with EU standards, comprehensively safeguarding equipment and personnel.
• Low Maintenance Costs: Utilizes polymer wear-resistant sliders for low operational noise, minimal wear, and reduced maintenance expenses.
• Manual Single-Side Unlocking: Enables simultaneous unlocking of both columns via single-side operation, reducing operator effort and eliminating tilt risks from unilateral locking.
• Imported Materials: Critical seals utilize Japanese/Italian imported components, effectively preventing oil leakage and ensuring long-term stable operation.
• Superior Craftsmanship: Surfaces undergo sandblasting + high-temperature electrostatic spraying, delivering strong coating adhesion with exceptional wear and corrosion resistance for demanding environments.

AUTOOL Two Post Car Lift ATL-4.5C Single-Sided Control 4.5T Core Performance Parameters

Rated Lifting Capacity: 4500 kg

Minimum Lifting Height: 95 mm

Maximum Lift Height: 1930 mm

Lifting Time: 50 seconds

Lowering Time: 30 seconds

Overall Height: 2820 mm

Column Inner Width: 2860 mm

Overall Width: 3440 mm

Power Supply: 380V / 220V optional

Motor Power: 2.2 kW
