AUTOOL OBD2 Breakout Box Protocol Detector Premium Version

AUTOOL OBD2 Protocol Detector Breakout Box Diagnostic Connector Detector Premium Version

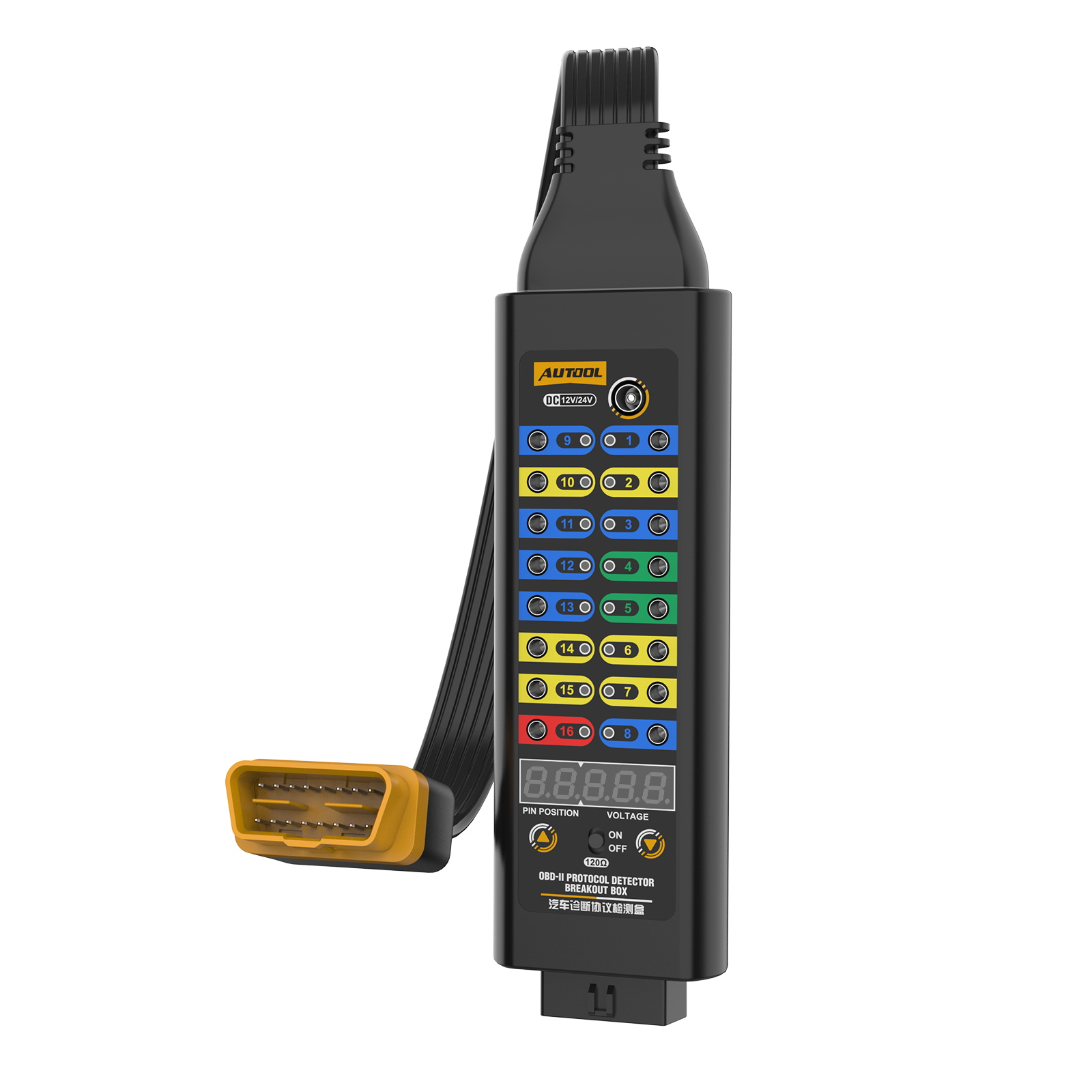

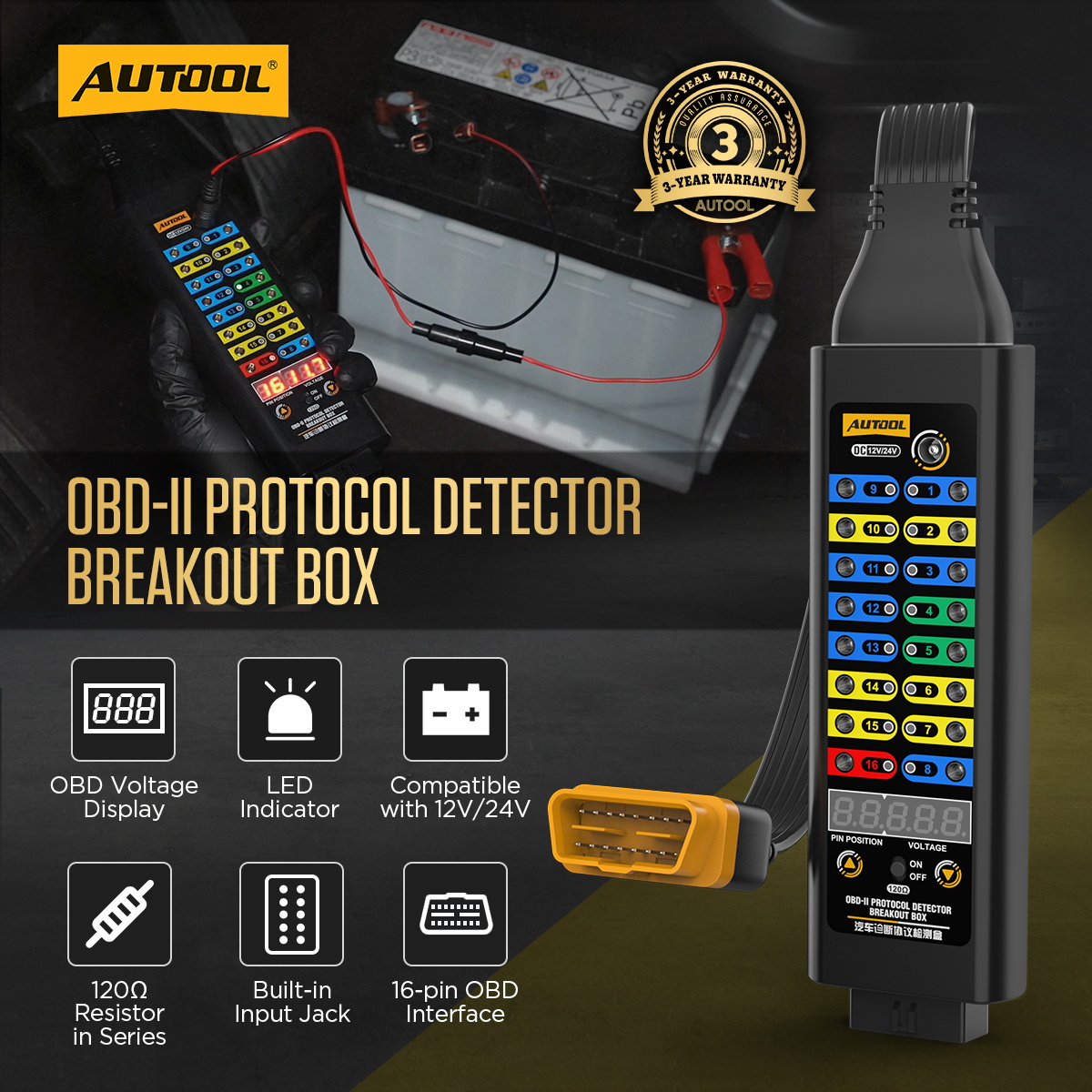

AUTOOL OBD2 Breakout Box Protocol Detector Premium Version is a pass-through OBD-II data cable tester designed specifically for vehicle diagnostics. It ensures stable connectivity between OBD-II scanners and vehicle OBD-II systems. The device’s core features include simplified safety monitoring of vehicle diagnostic communication protocols, power lines, and ground lines. Without complex operations, it rapidly identifies communication and power supply issues, guaranteeing efficient diagnostics.

The AUTOOL OBD2 Breakout Box Protocol Detector Premium Version supports an external 8-26V wide-voltage power supply, providing stable power to the vehicle. This effectively prevents ECU data loss caused by unstable power during diagnostics, safeguarding critical vehicle data security. Additionally, the device incorporates a 120Ω series mode. Even when the ECU is removed, it can still read ECU data through the cable, breaking through traditional diagnostic limitations and adapting to a wider range of repair and inspection needs.

Warm Tips

• This product directly connects to the vehicle data link.
• Improper use may damage the vehicle data communication system, related circuits, or systems.
• When you are not sure whether your operation will cause problems, please stop using this product immediately.
• When you are not sure about the electrical circuit on the car, do not use a jumper to short-circuit the input jack of this product.
• Do not use this product to connect a load device with a power exceeding 1 ampere.
• Do not directly short-circuit the 16th pin, the 4th pin, and the 5th pin of this product.

Manual (Premium Version )

Download

What Is The Difference Between AUTOOL OBD2 Breakout Box Protocol Detector?

AUTOOL OBD2 Protocol Detector Auto Car Breakout Box Quick Search

AUTOOL OBD2 Breakout Box Protocol Detector Upgraded Version

$109.00

AUTOOL OBD2 Breakout Box Protocol Detector Basic Version

$59.00

AUTOOL DM303 Digital Multimeter Car Circuit Tester

$189.90

AUTOOL 92PCS Automotive Circuit Test Leads Kit, Multimeter Test Leads Kit with Carrying Case, Electrical Testers Wire Connectors Adapter Cables with Alligator Clips

$109.00

AUTOOL BT30 ECU Emergency Power Supply Cable Includes 3A Fuse

$29.00

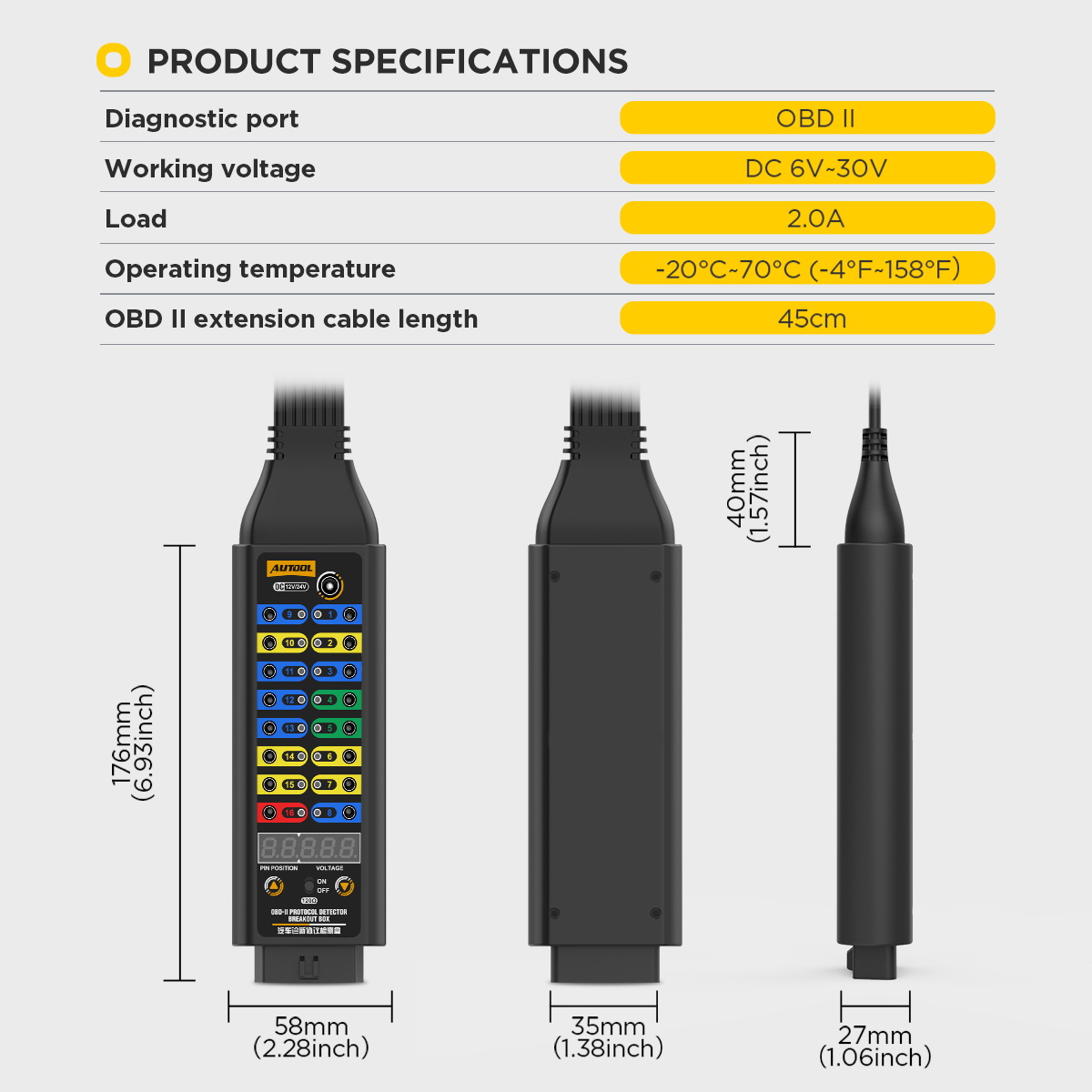

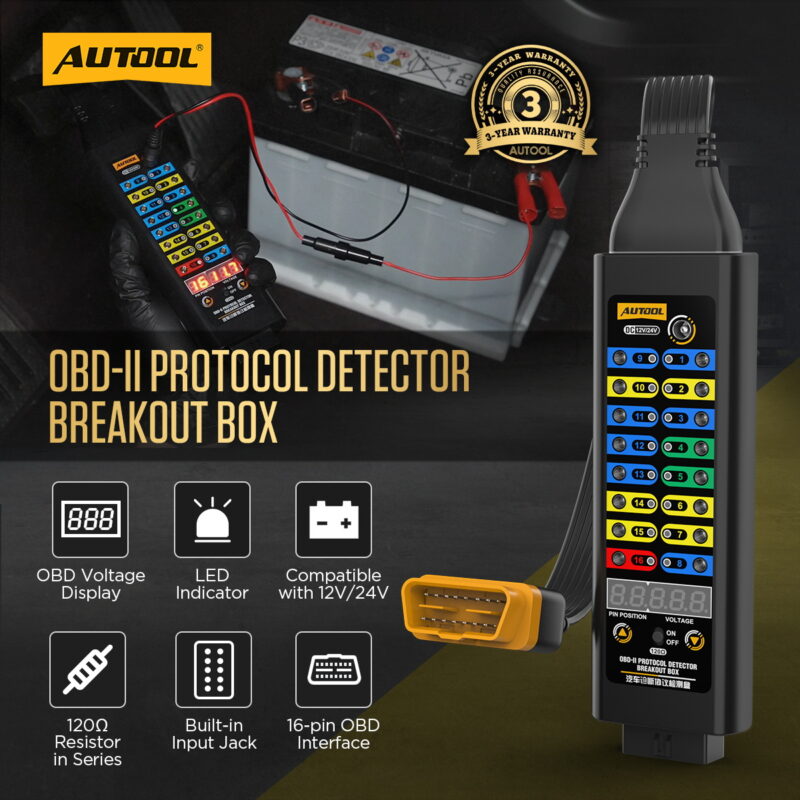

AUTOOL OBD2 Protocol Detector Breakout Box Premium Version Features:

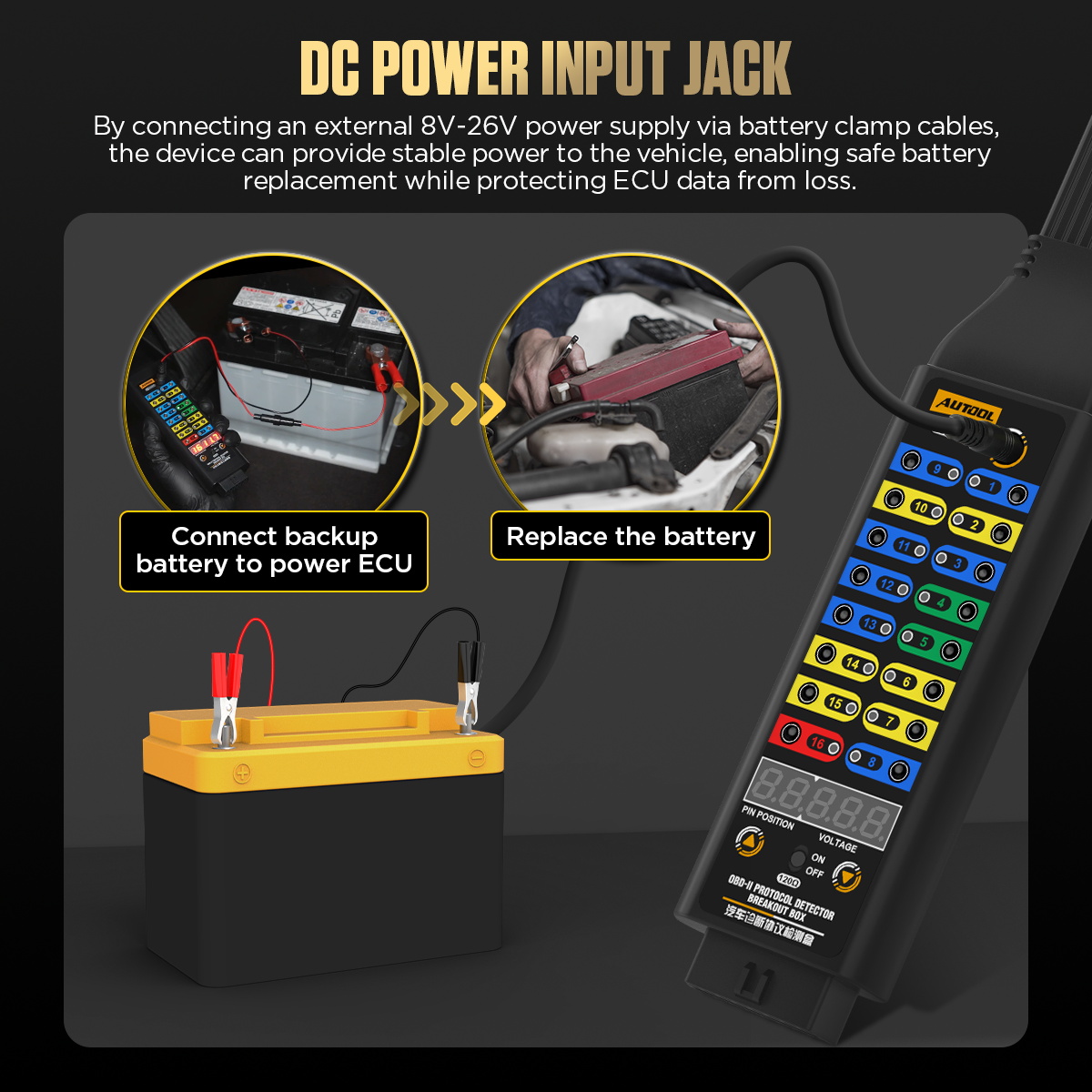

• Vehicle ECU Power Supply: Connects to 8-26V external power source to prevent ECU data loss.

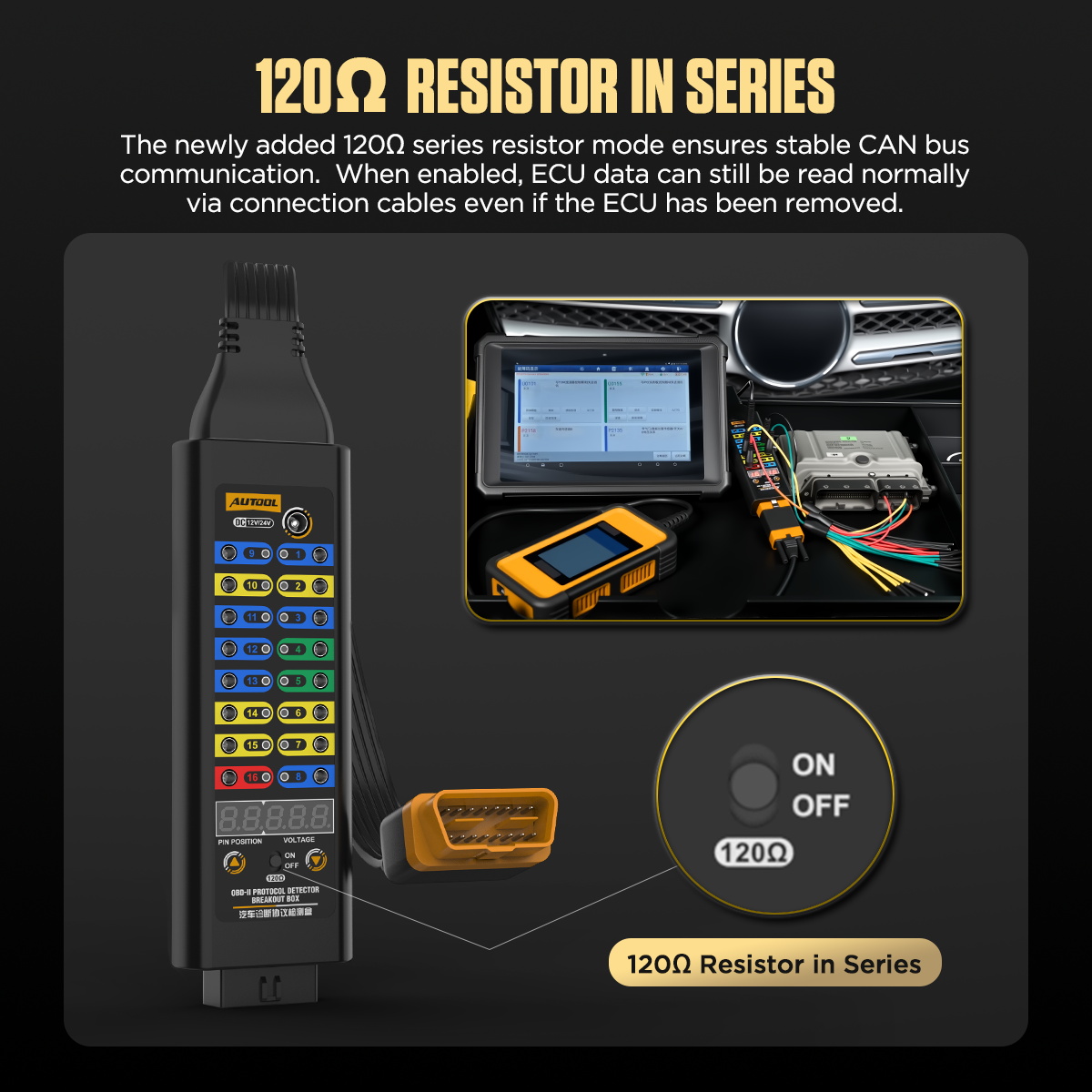

• 120Ω Series Resistor: Ensures stable CAN bus communication; ECU data remains readable via cable even after ECU removal.

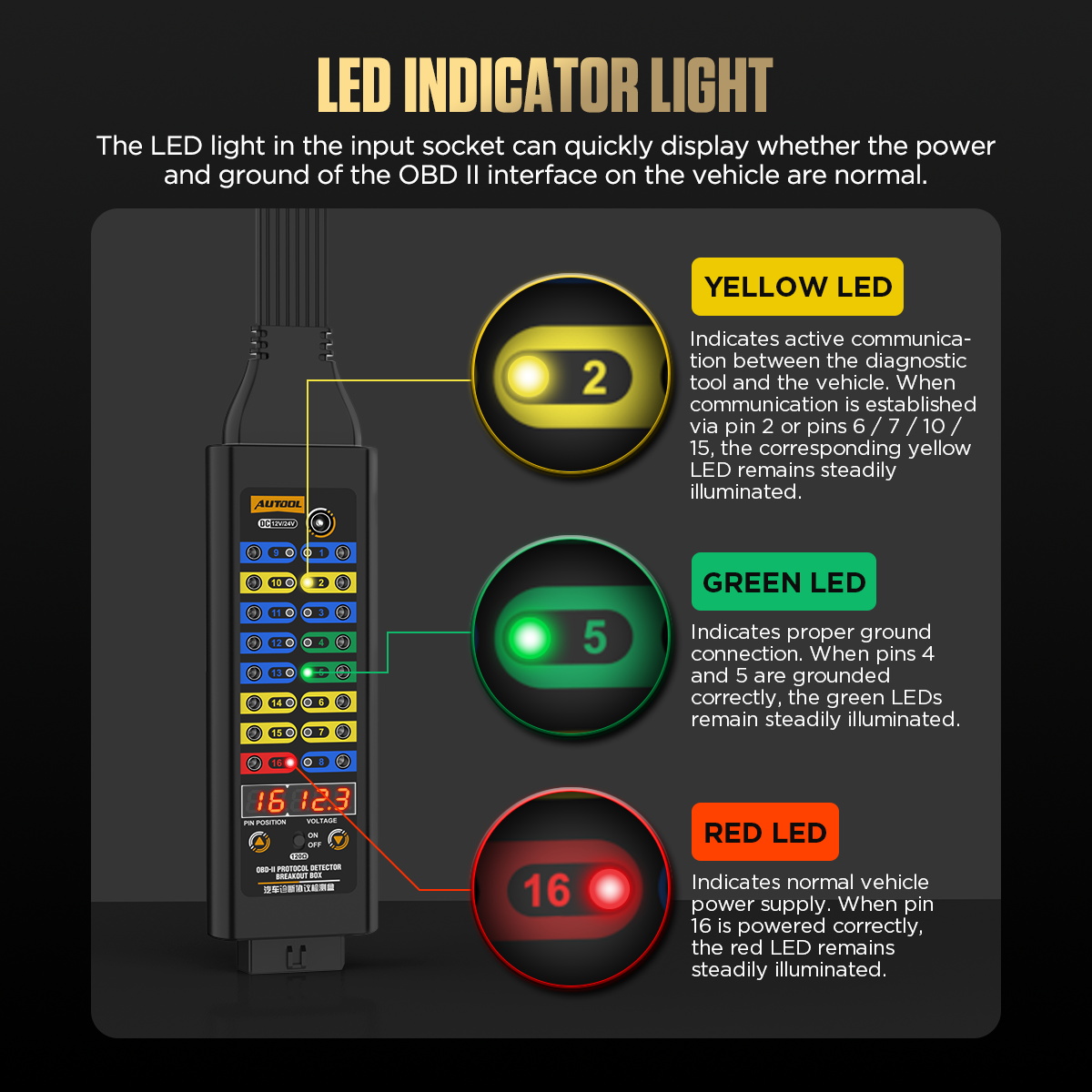

• LED Indicator Function: Instantly displays whether the vehicle’s OBD2 power and ground connections are normal.

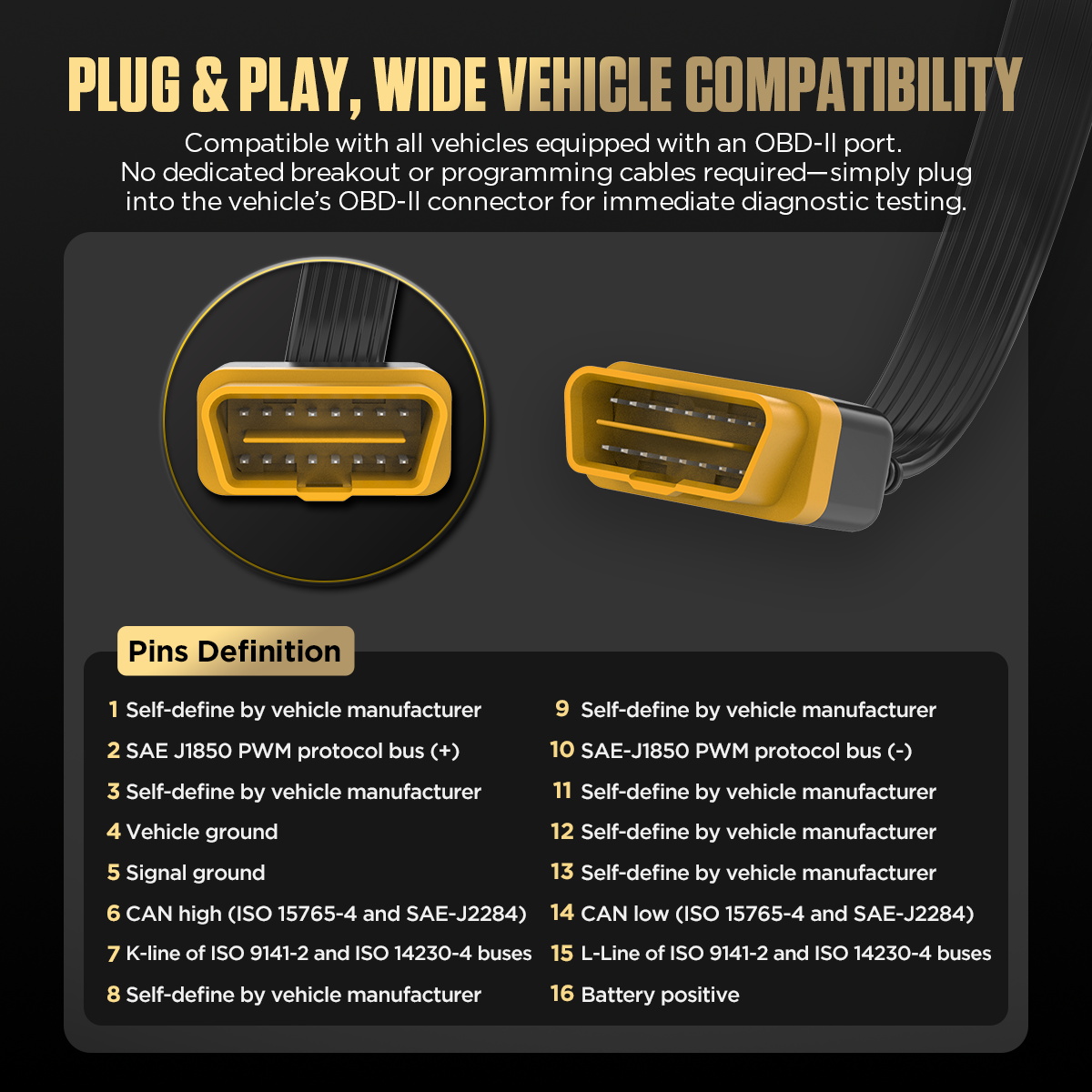

• Equipped With 16-Pin Connector: Compatible with all vehicles featuring an OBD2 interface.

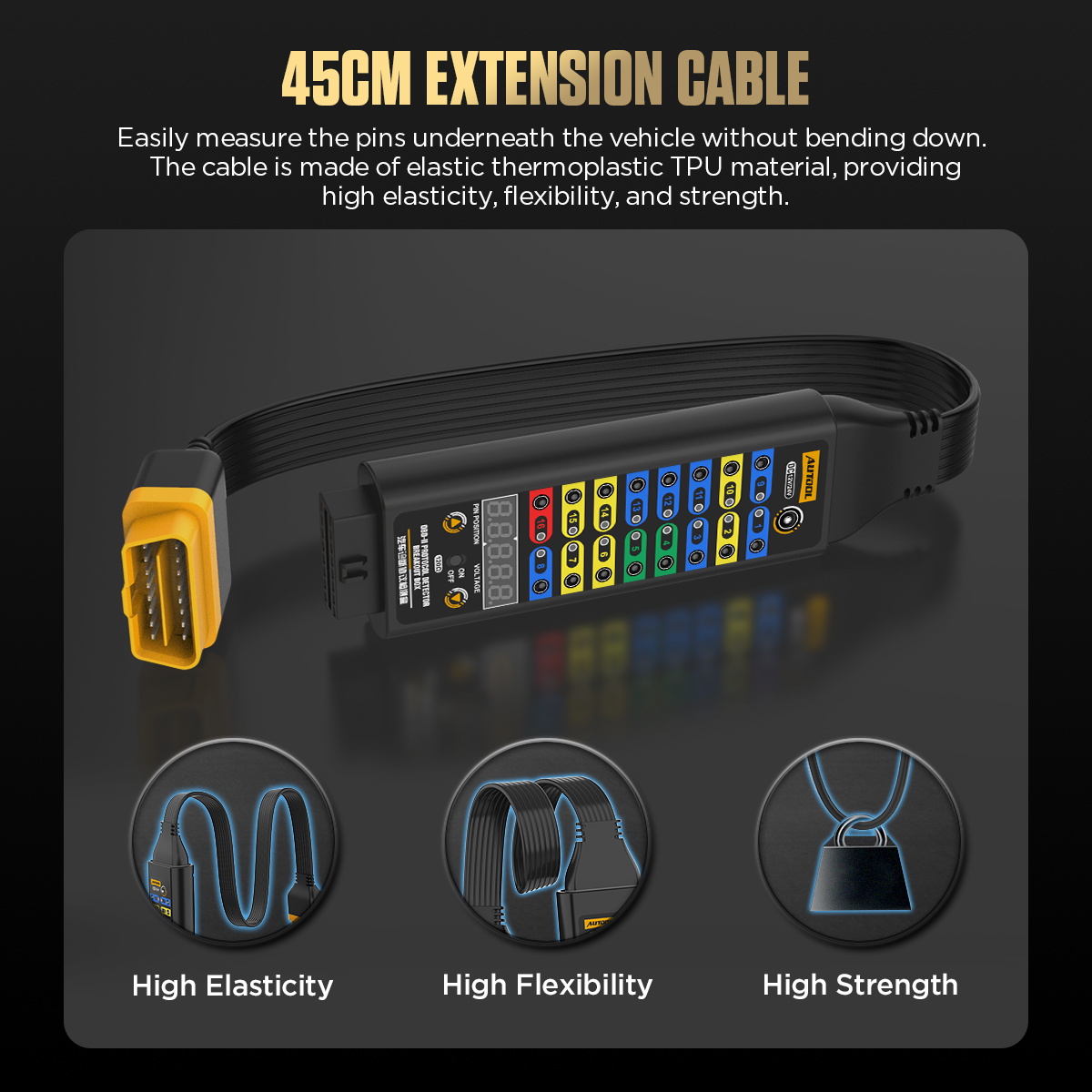

• 45cm TPU Cable: Offers high elasticity, flexibility, and durability

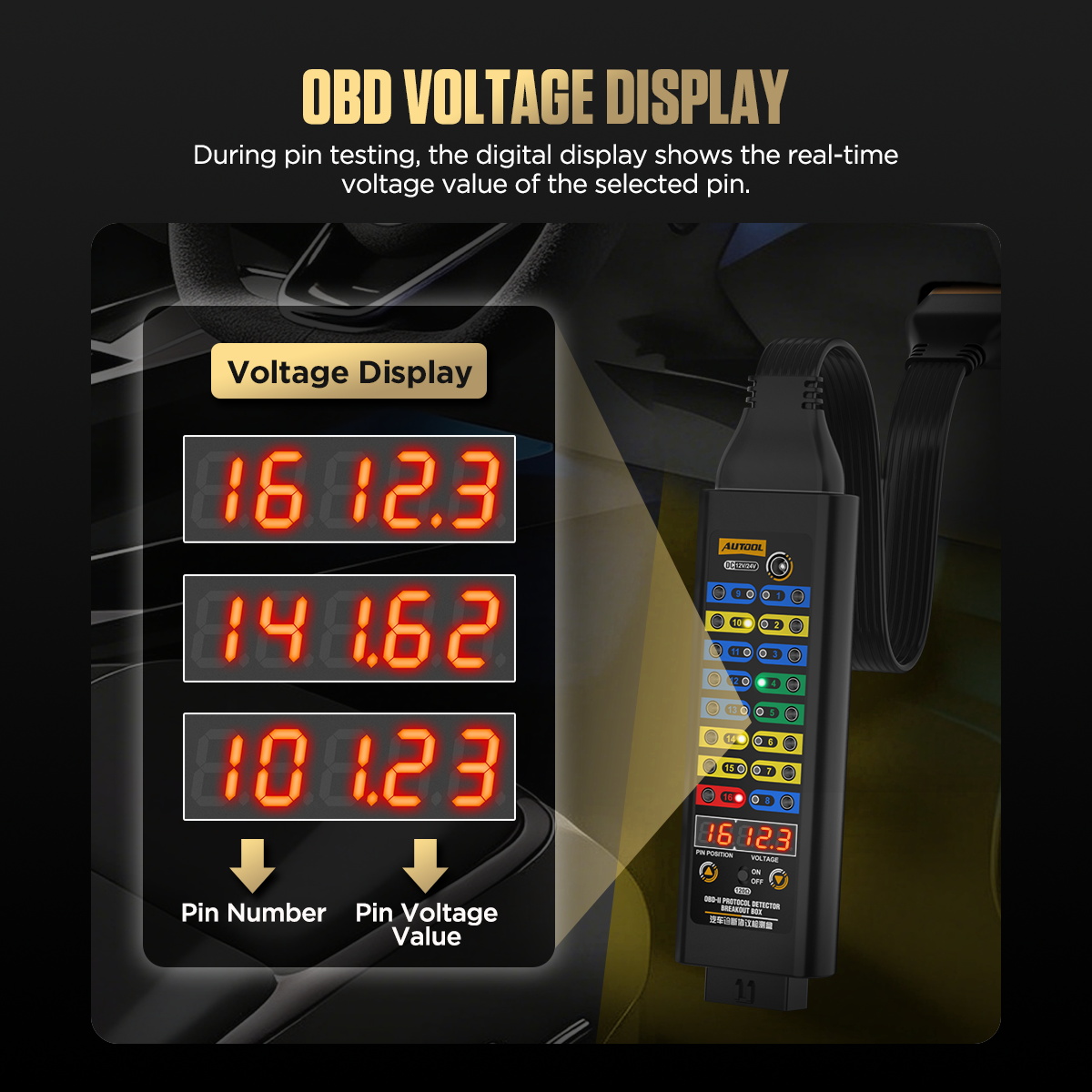

• Display Screen: Instantly measures OBD2 interface voltage and shows real-time readings.

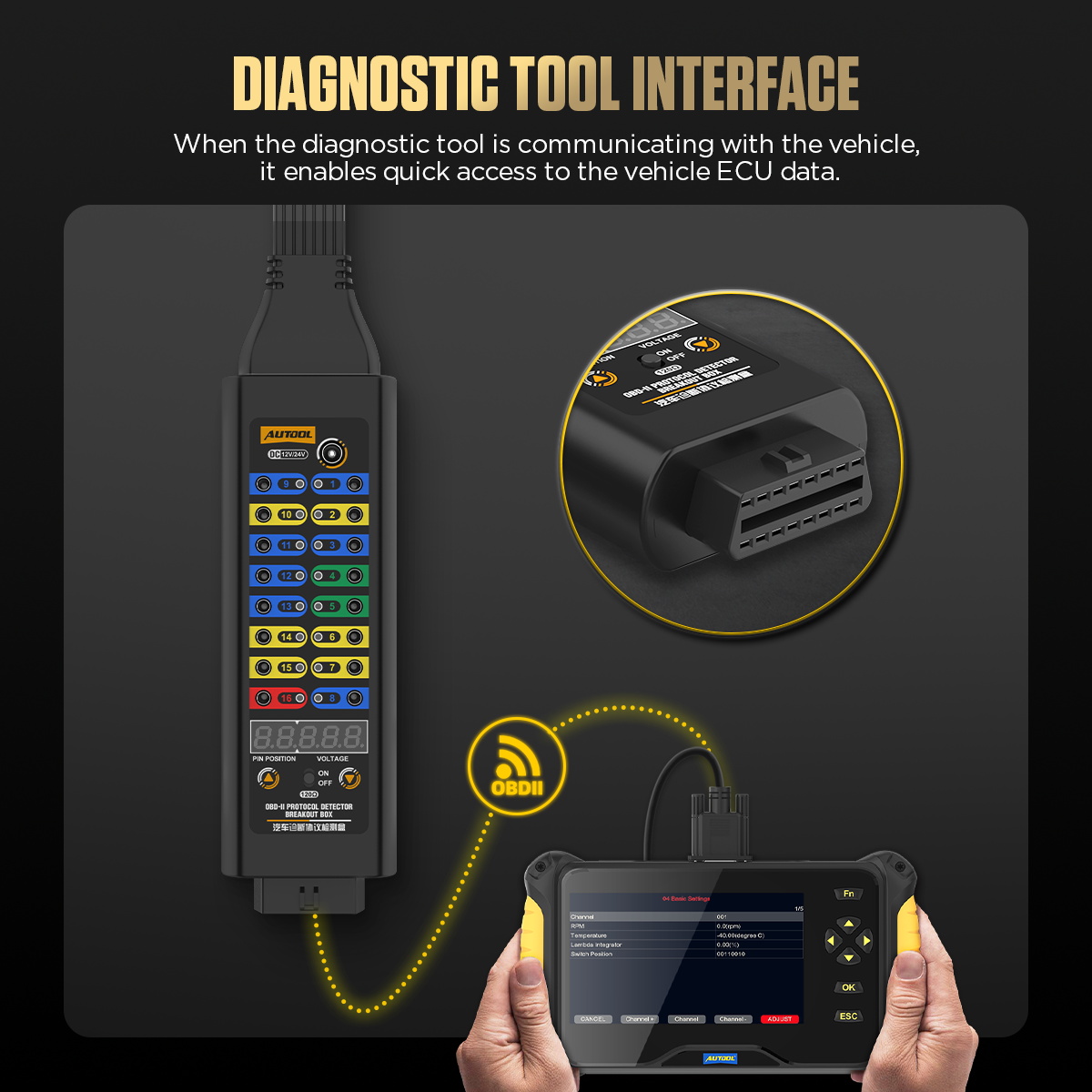

• Diagnostic Interface: Enables rapid connection to all 16 OBD2 pins during vehicle communication.

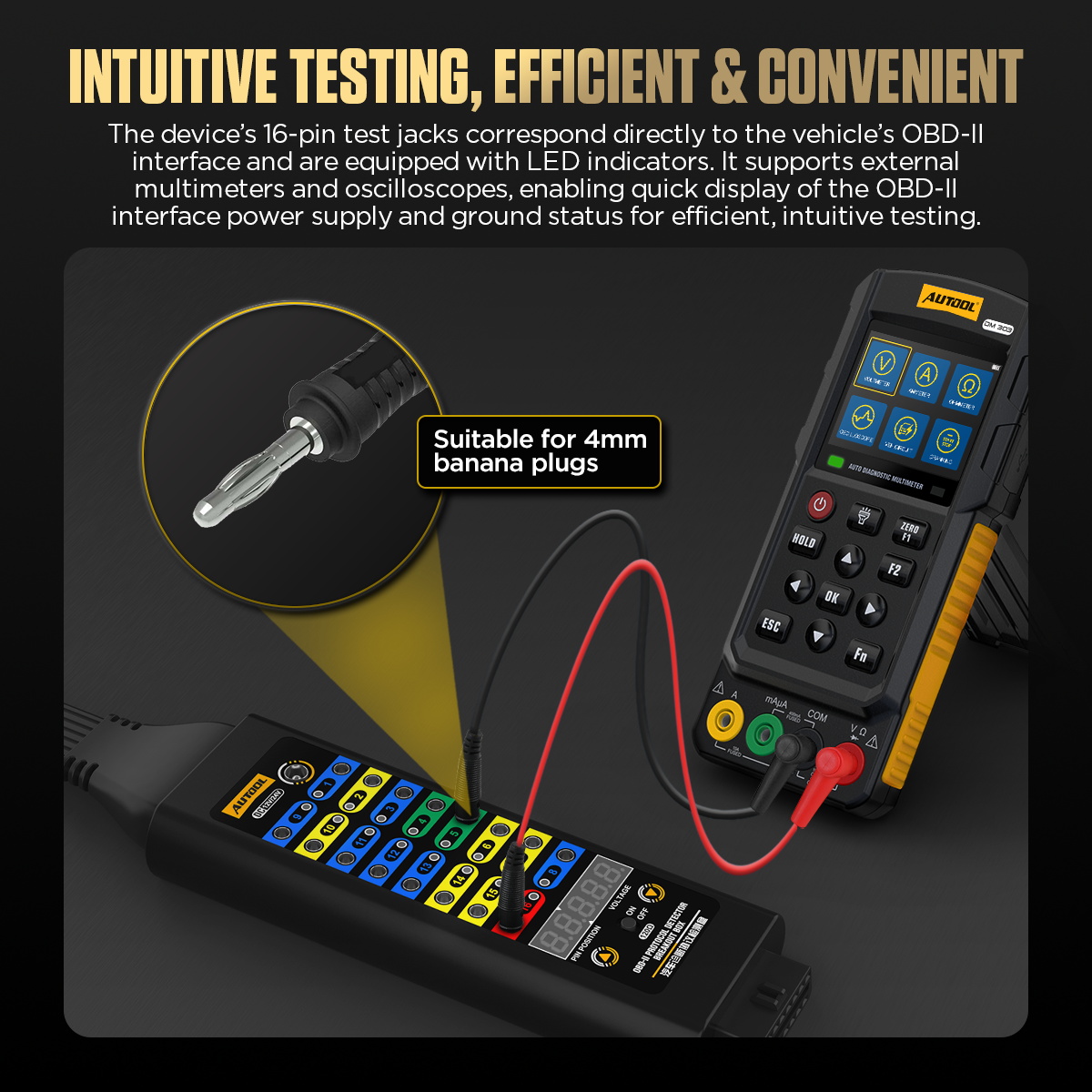

• Fully Analog OBD2 Interface: Compatible with multimeters and oscilloscopes for testing.
• Three-Year Warranty, Lifetime Maintenance:  For damage caused by non-human factors, we promise to resend parts for free within 3 years.

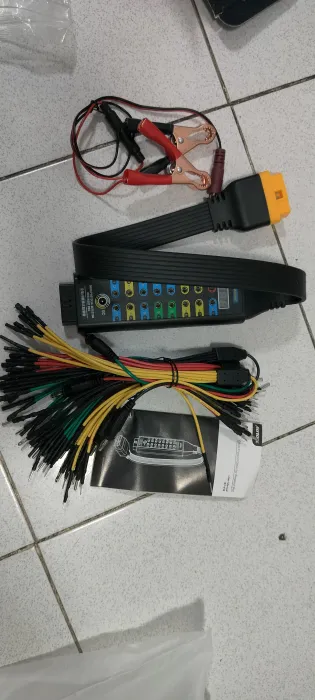

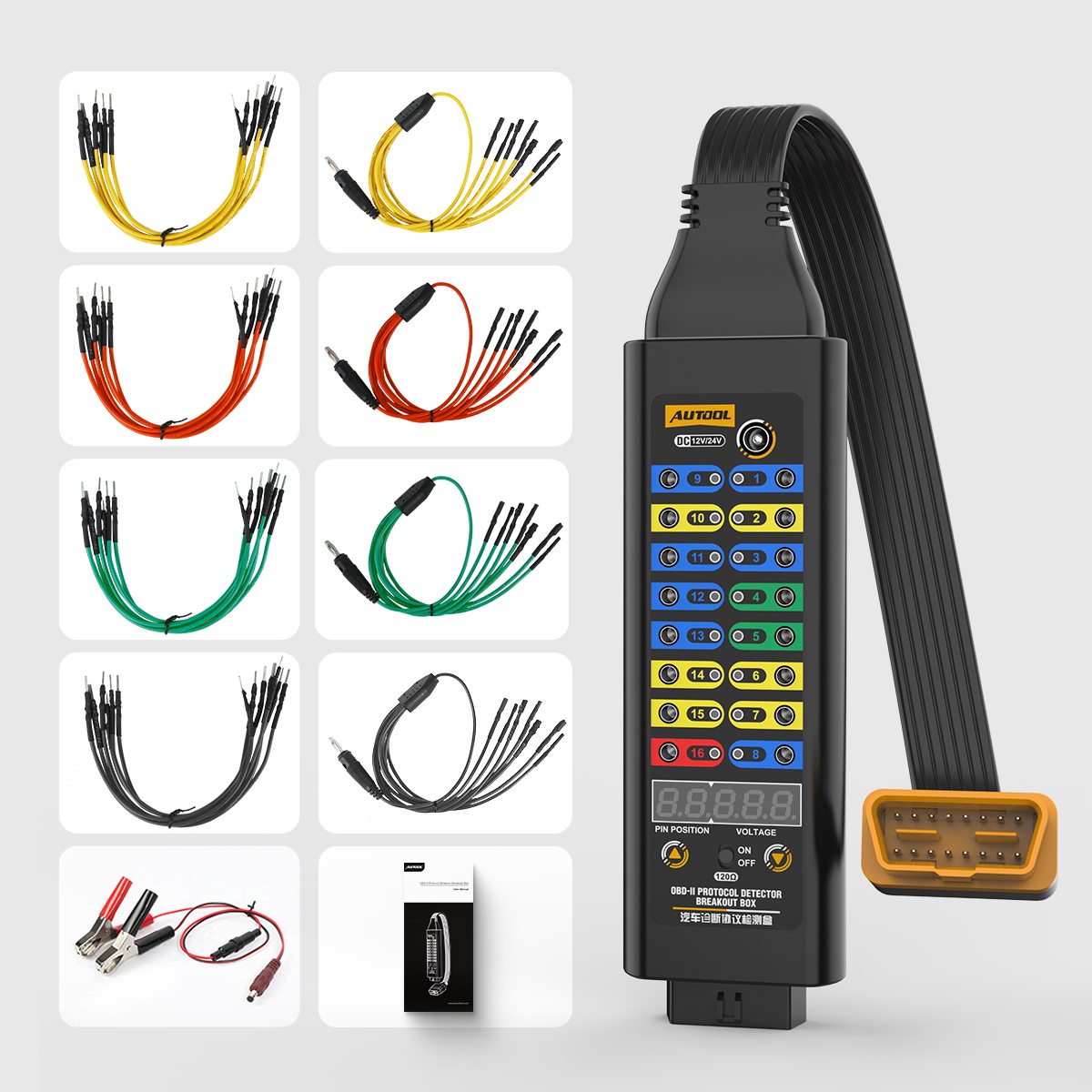

Packing List
