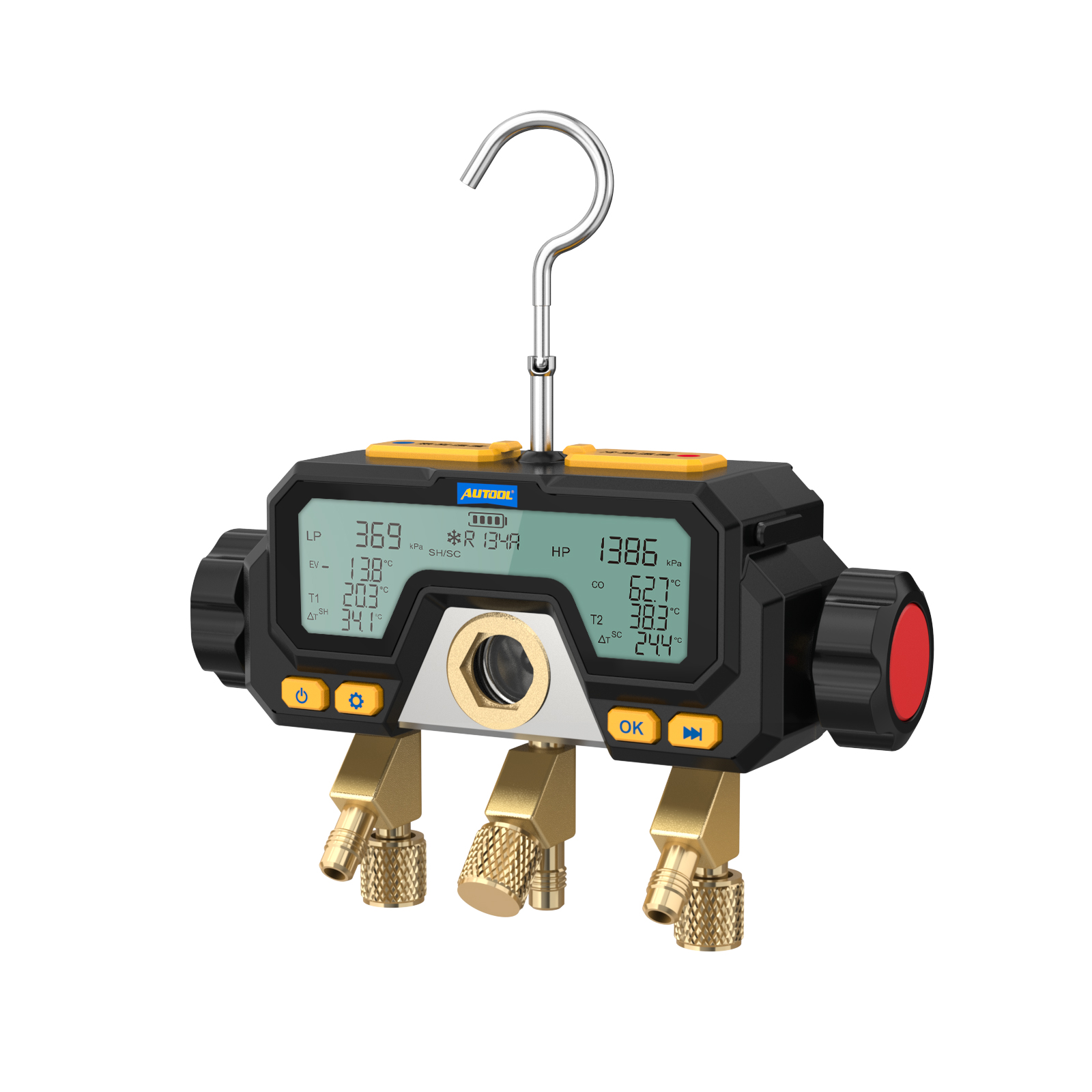

AUTOOL LM70 Smart Digital Manifold

The AUTOOL LM70 Smart Digital Manifold is a professional digital intelligent refrigerant gauge designed for automotive air conditioning systems, featuring high measurement accuracy with a resolution of 0.1 Psi and an error margin of ≤0.5% FS. Equipped with a dual-channel valve set and clamp-type temperature probes, it allows simultaneous monitoring of pressure changes on both sides without switching. Automatically calculates superheating and subcooling, significantly improving the accuracy of refrigerant filling and system debugging. Built-in data for 16 mainstream refrigerants, capable of detecting refrigerants such as R410A and R134f, suitable for both home and vehicle air conditioning! Flexibly adapts to maintenance tasks for various air conditioning systems. In addition to basic pressure and temperature measurements, it also supports vacuuming, refrigerant filling, pressure leak testing, and other maintenance procedures, providing one-stop support for the full lifecycle care of air conditioning systems!

⚠️Warm Tips

• Before testing, please confirm the rated pressure of the device under test. Do not use the instrument if the pressure exceeds its rated range. For the DY517A, if the filling hose does not meet the pressure requirements, an appropriate substitute may be used for testing.
• Do not use or store this instrument in environments with high temperature, high humidity, flammable or explosive atmospheres, or strong electromagnetic fields.
• Do not modify the internal circuitry of the instrument to avoid damage or danger.
• Wear proper protective equipment during testing to ensure user safety.
• Use the instrument in a well-ventilated environment to prevent inhalation of toxic gases.

✅Why choose the AUTOOL LM70？

• Convenient and Efficient: Features a dual-channel valve set design, allowing simultaneous monitoring of pressure changes on both sides without switching.
• Beginner-Friendly: Automatically calculates system subcooling and superheating, enabling beginners to quickly master key operating parameters of the refrigeration system.
• Versatile Applications: Supports detection of 16 refrigerants including R410A and R134f, suitable for both home and vehicle air conditioning systems.
• High-Precision Measurement: Equipped with advanced digital sensors, offering high measurement accuracy with a resolution up to 0.1 Psi and an error margin of ≤0.5% FS.

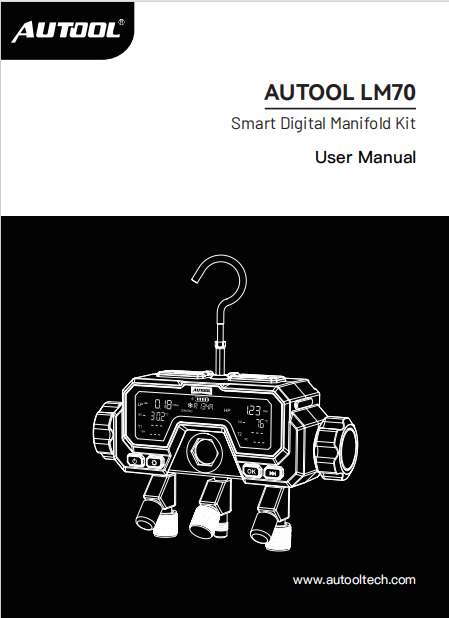

📔AUTOOL LM70 Smart Digital Manifold Manual

Download

What is the difference between the AUTOOL digital manifold gauges?

AUTOOL Digital Manifold Gauges Quick Search

HOT

AUTOOL LM120+ Digital Refrigerant Gauges Hvac Gauges

$149.00

AUTOOL LM120 AC Manifold Gauge Refrigerant Identifier

$98.00

AUTOOL LM130 Smart Digital Manifold Kit

$135.00

AUTOOL LM160 Refrigerant Leak Detector Digital Manifold Gauges

$209.00

AUTOOL LM70 Smart Digital Manifold Features:

Comprehensive functionality

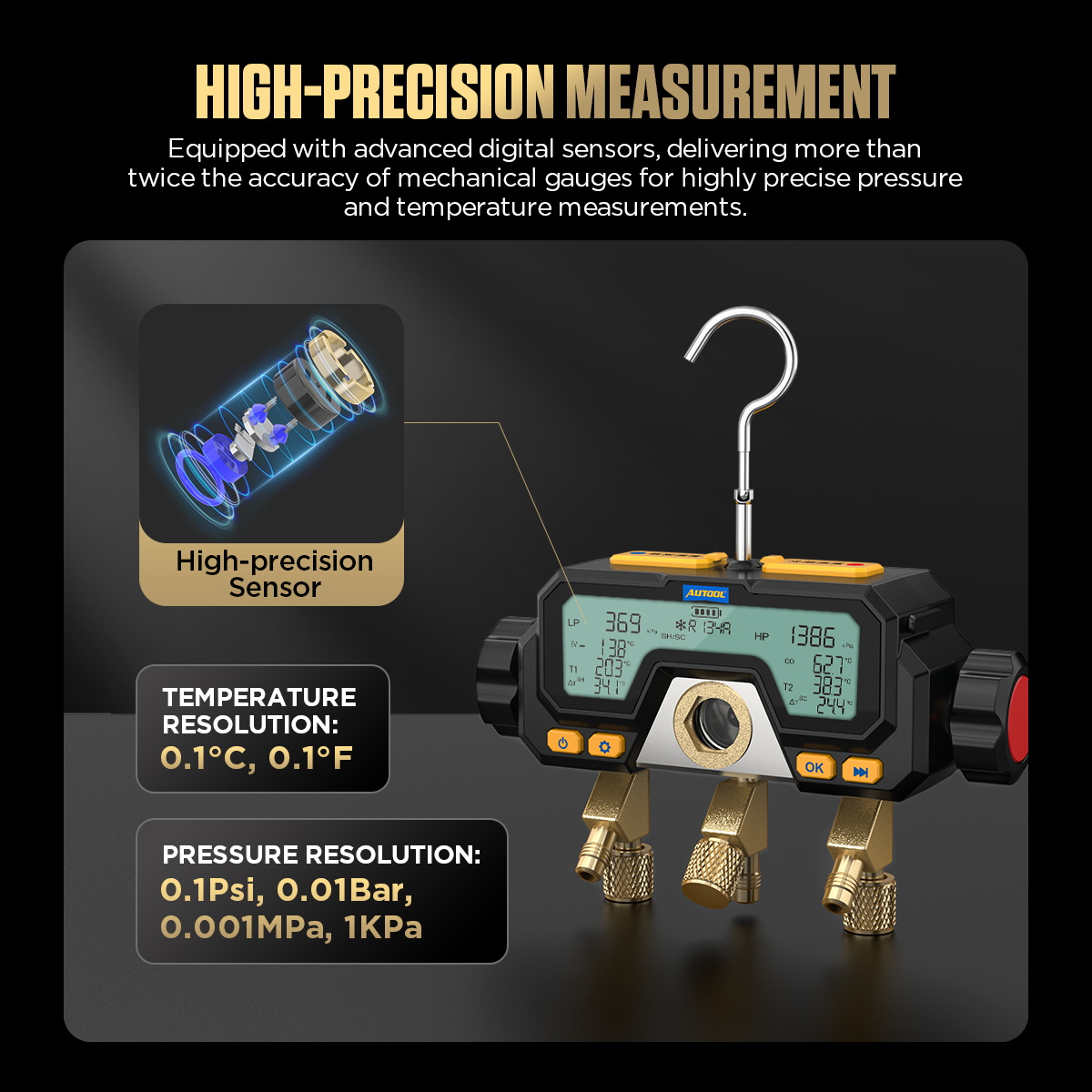

• High-Precision Measurement: The AUTOOL LM70 uses advanced digital sensors with high measurement accuracy, a resolution of up to 0.1 Psi, and an error margin of ≤0.5% FS. Within the specified measurement range, it can sensitively detect subtle pressure fluctuations in the refrigerant system, providing reliable data for installation, maintenance, and debugging of air conditioning systems.

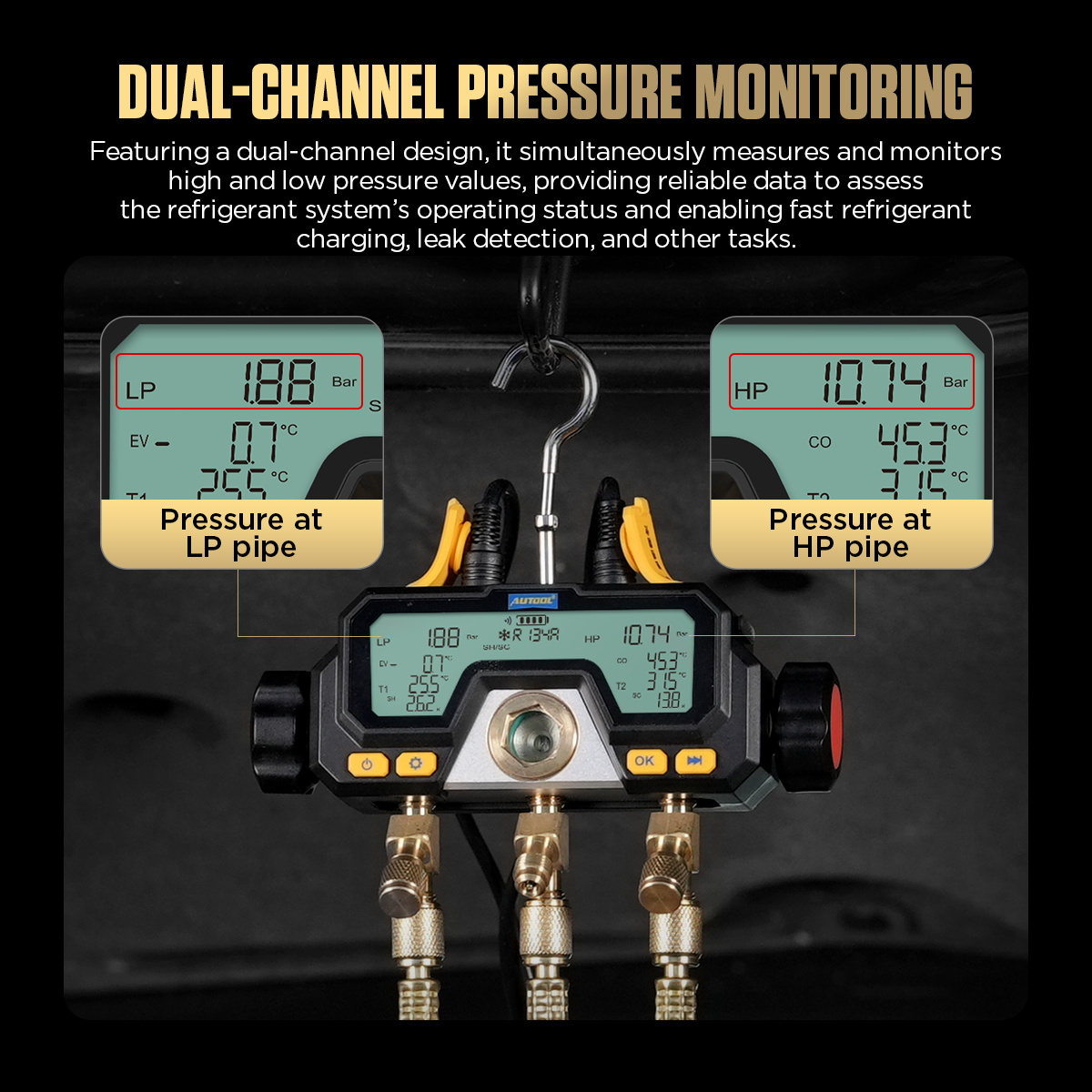

• Dual-Channel Real-Time Pressure Monitoring: The AUTOOL LM70 features a dual-channel valve set design that allows simultaneous observation of pressure changes on both sides without repeatedly switching measurement ports. This enables quick diagnosis of system blockages, refrigerant shortages or excesses, expansion valve failures, and other issues, improving work efficiency.

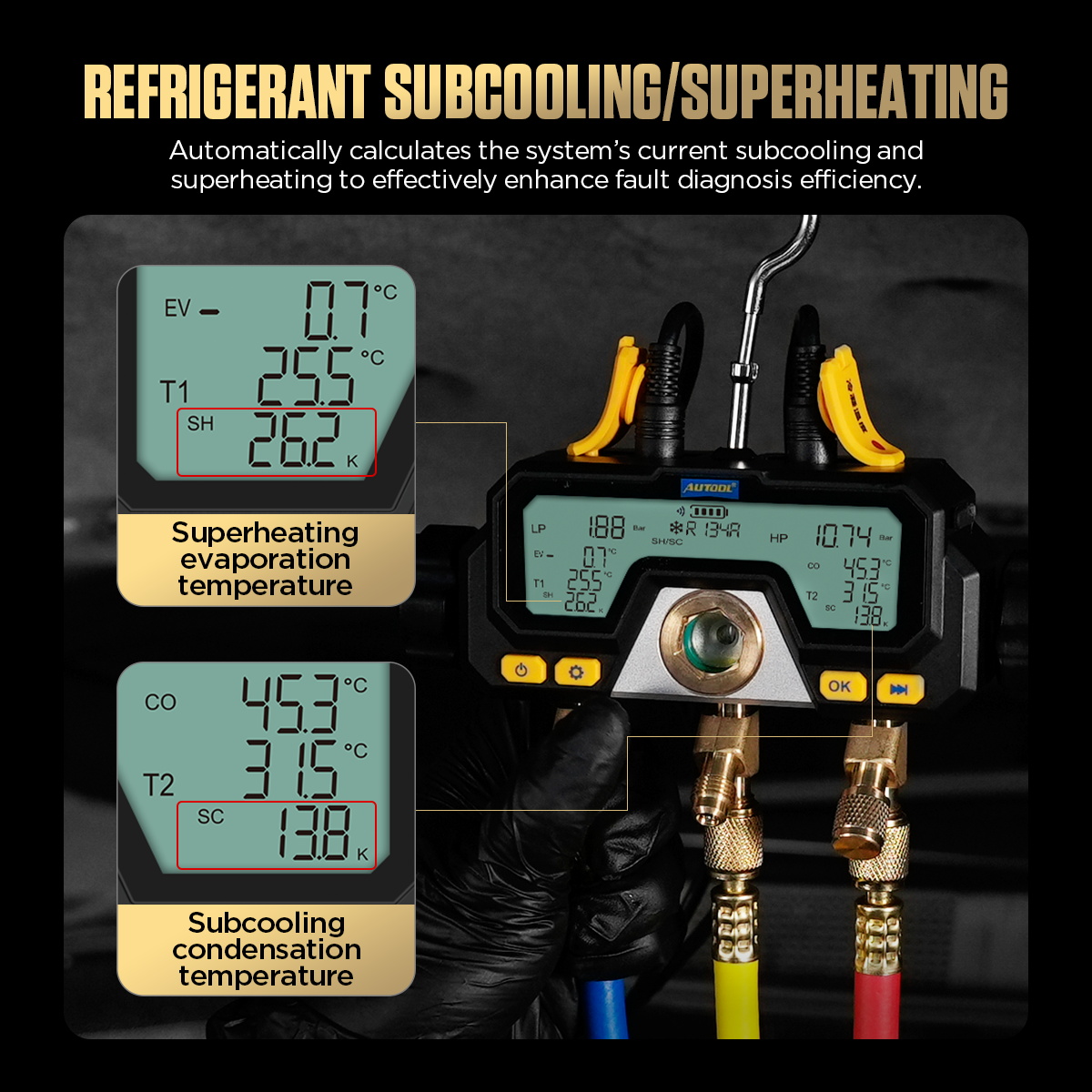

• Refrigerant Subcooling/Superheating:  The AUTOOL LM70 can automatically calculate the system’s subcooling and superheating based on the refrigerant’sevaporation/condensation temperature and the corresponding pipe conditions. This allows even novice technicians to easily grasp key operating parameters of the refrigeration system.

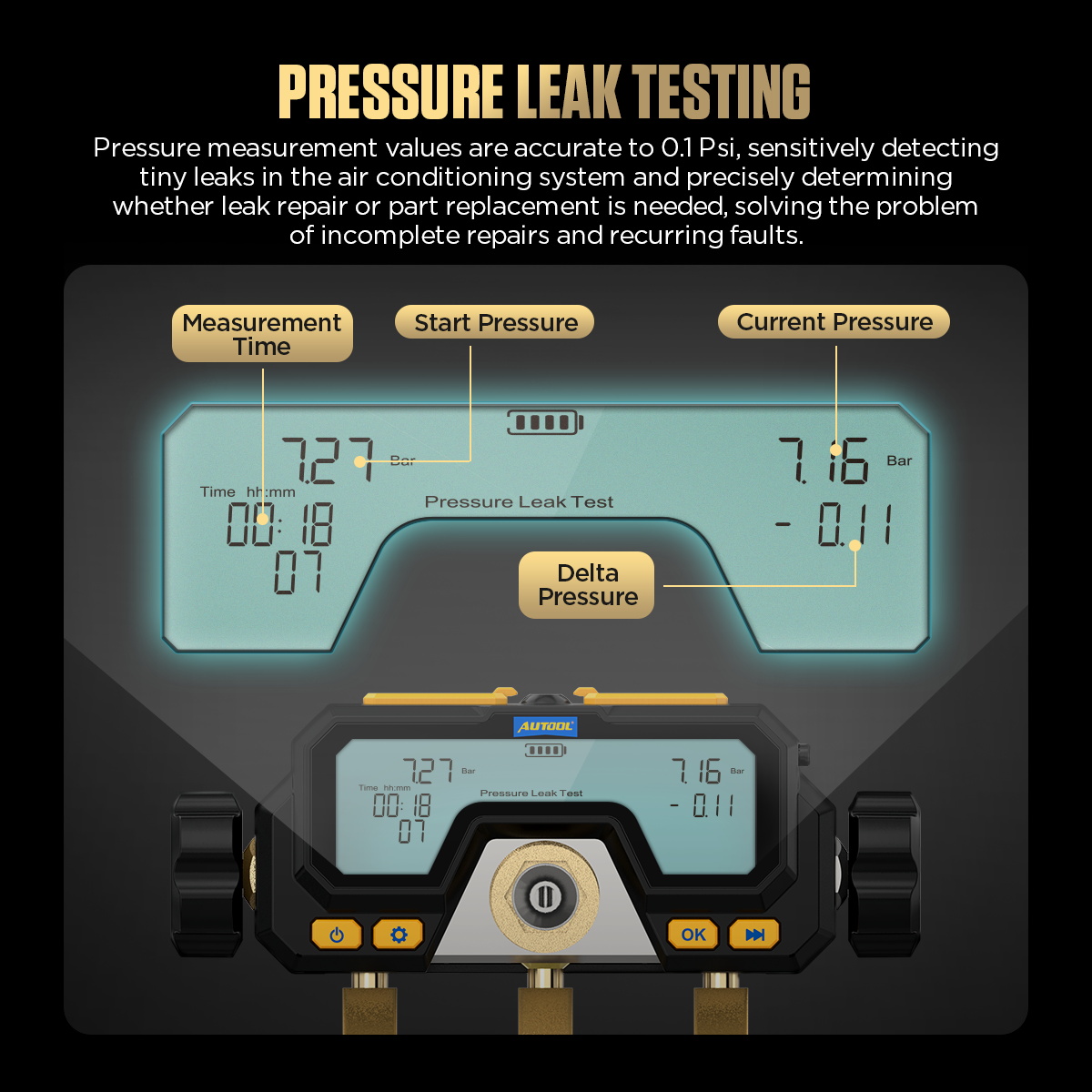

• Pressure Leak Test: The AUTOOL LM70 measures pressure leak values with an accuracy of up to 0.1 Psi, sensitively detecting minor leaks in the refrigeration system. This enables precise determination of whether leak repair or part replacement is necessary, avoiding unnecessary disassembly.

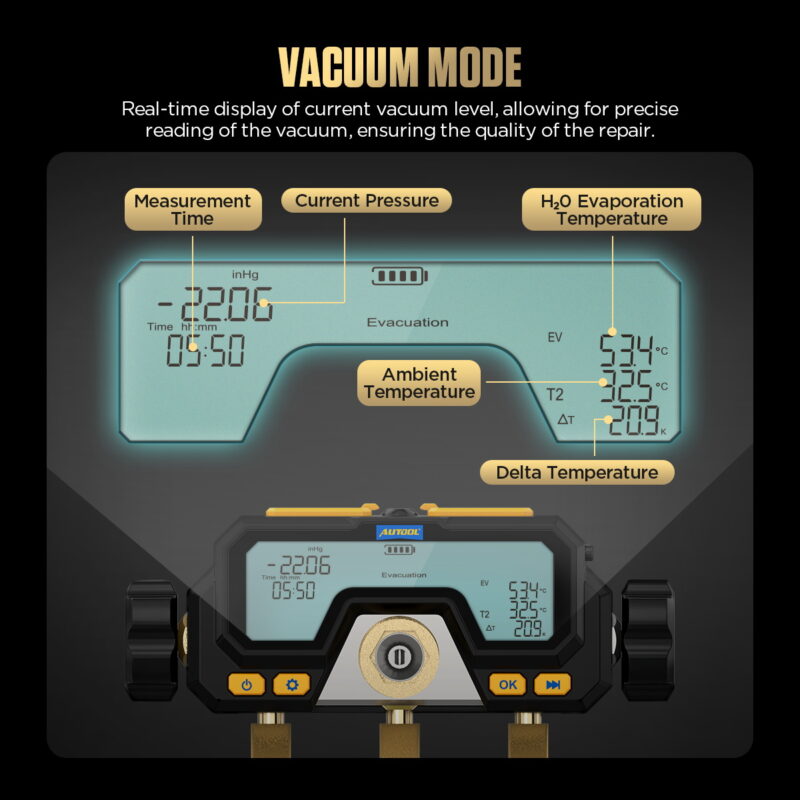

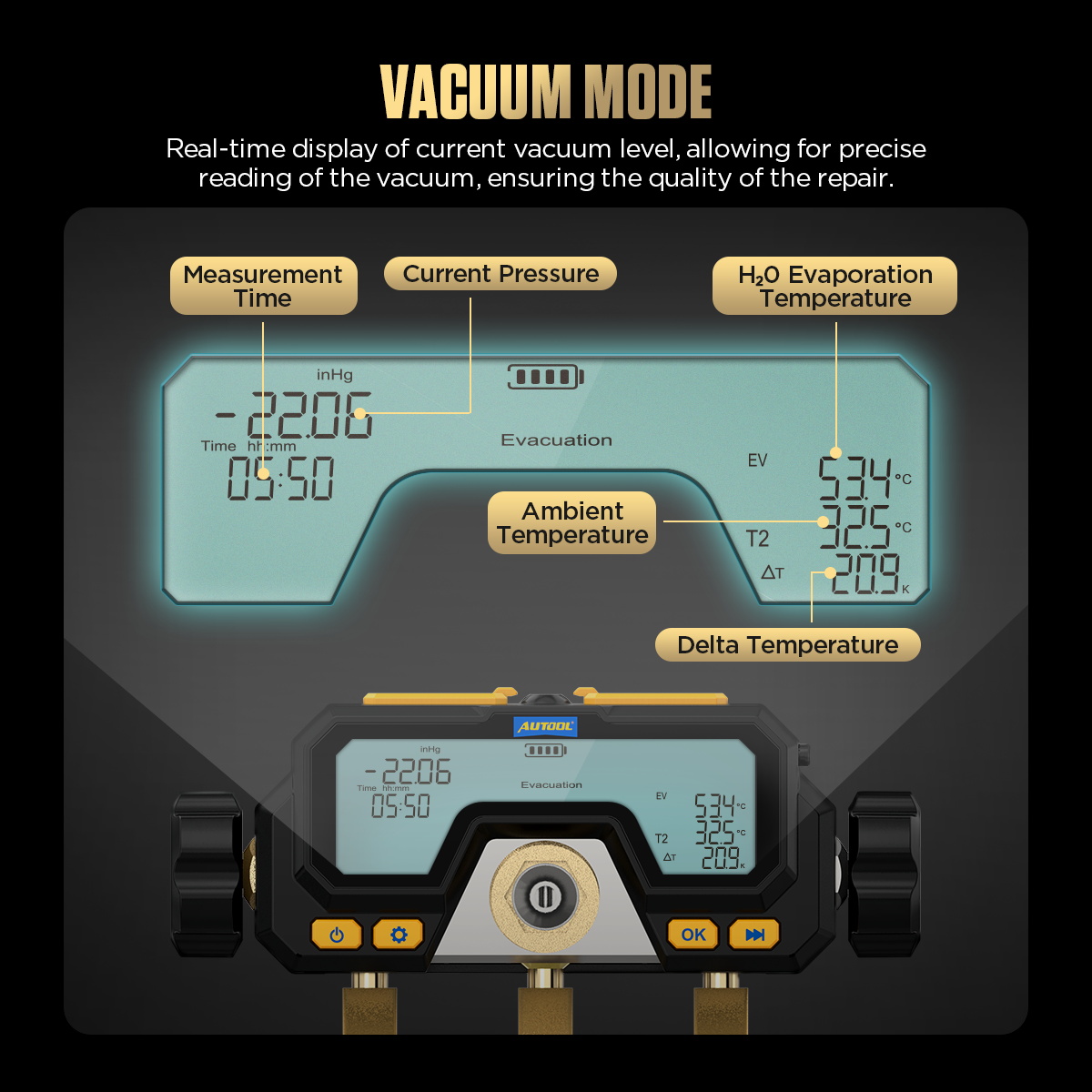

• Vacuum Mode: The AUTOOL LM70 features a vacuum measurement range of -1010 to 0 mBar, allowing real-time display of vacuum levels during the vacuuming process. This enables clear monitoring of the removal progress and effectiveness of non-condensable gases and moisture from the refrigeration system, effectively preventing risks such as pipe corrosion and ice blockages caused by moisture residue, ensuring the system remains in optimal vacuum condition.

Comprehensive functionality

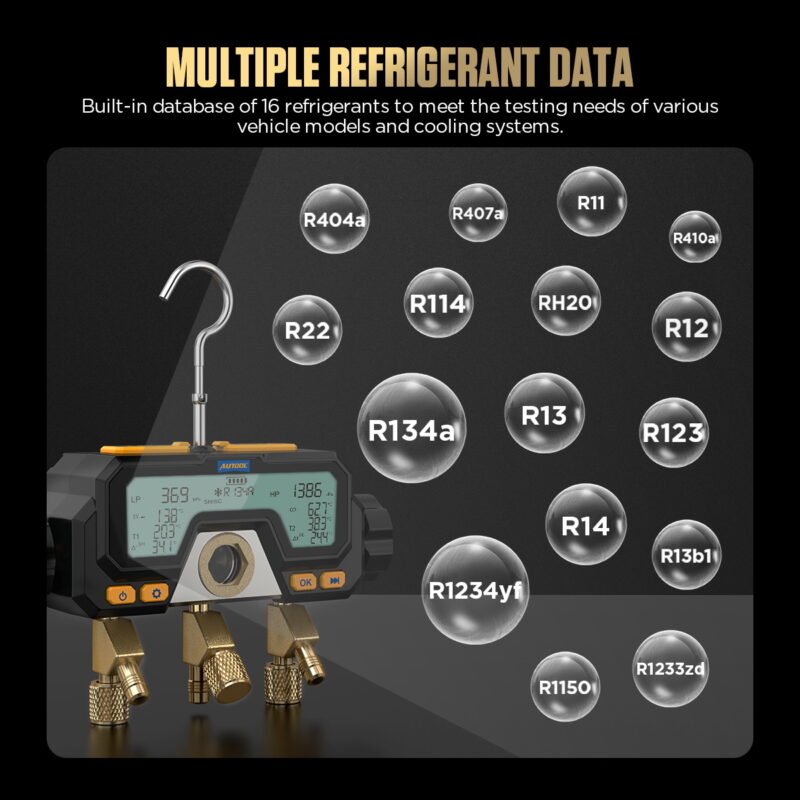

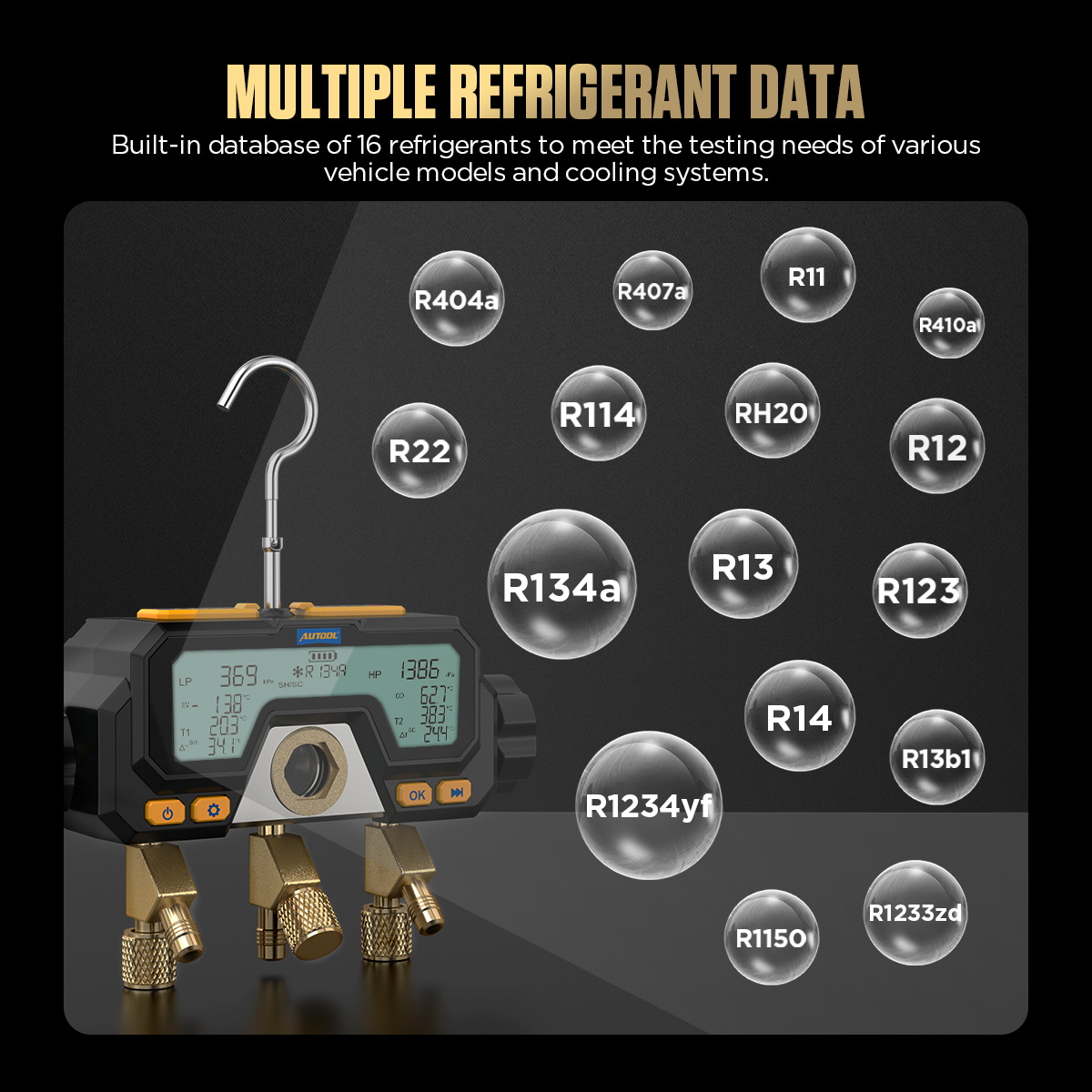

• Multiple Refrigerant Data: The AUTOOL LM70 has a wide application range, with built-in data for 16 mainstream refrigerants including R134a and R1234yf, flexibly adapting to the maintenance needs of various air conditioning systems.

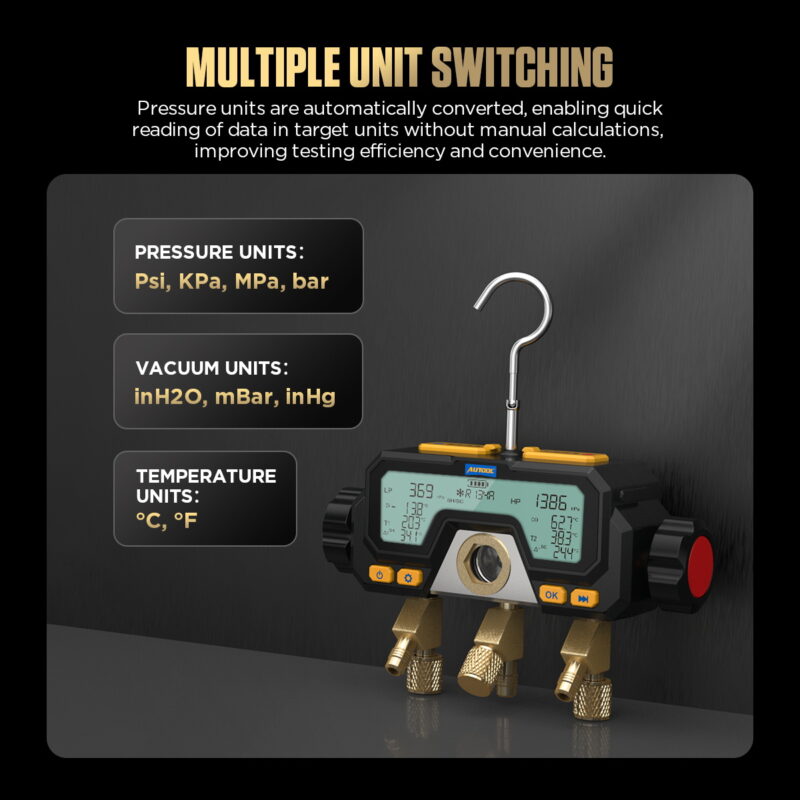

• Multiple Unit Conversion: The AUTOOL LM70 supports switching between various units, eliminating the need for manual calculations. Simply switch to the desired unit to read values accurately, significantly reducing operation time and enhancing testing efficiency and convenience.

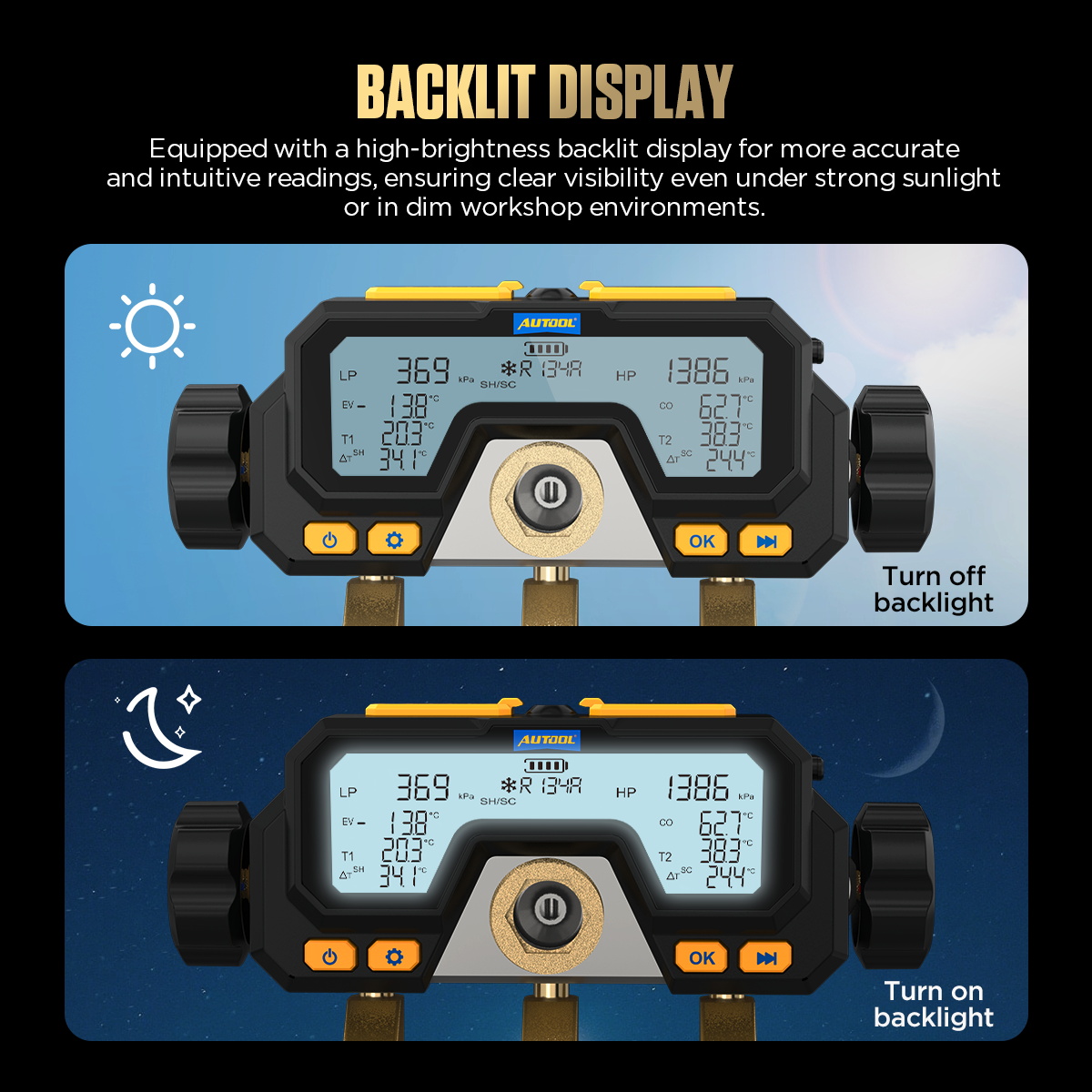

• Backlit Display: he AUTOOL LM70 is equipped with a high-brightness backlit screen that provides clear and precise value display. It ensures parameters are easily readable even under harsh lighting conditions such as strong sunlight outdoors or dim workshop environments.

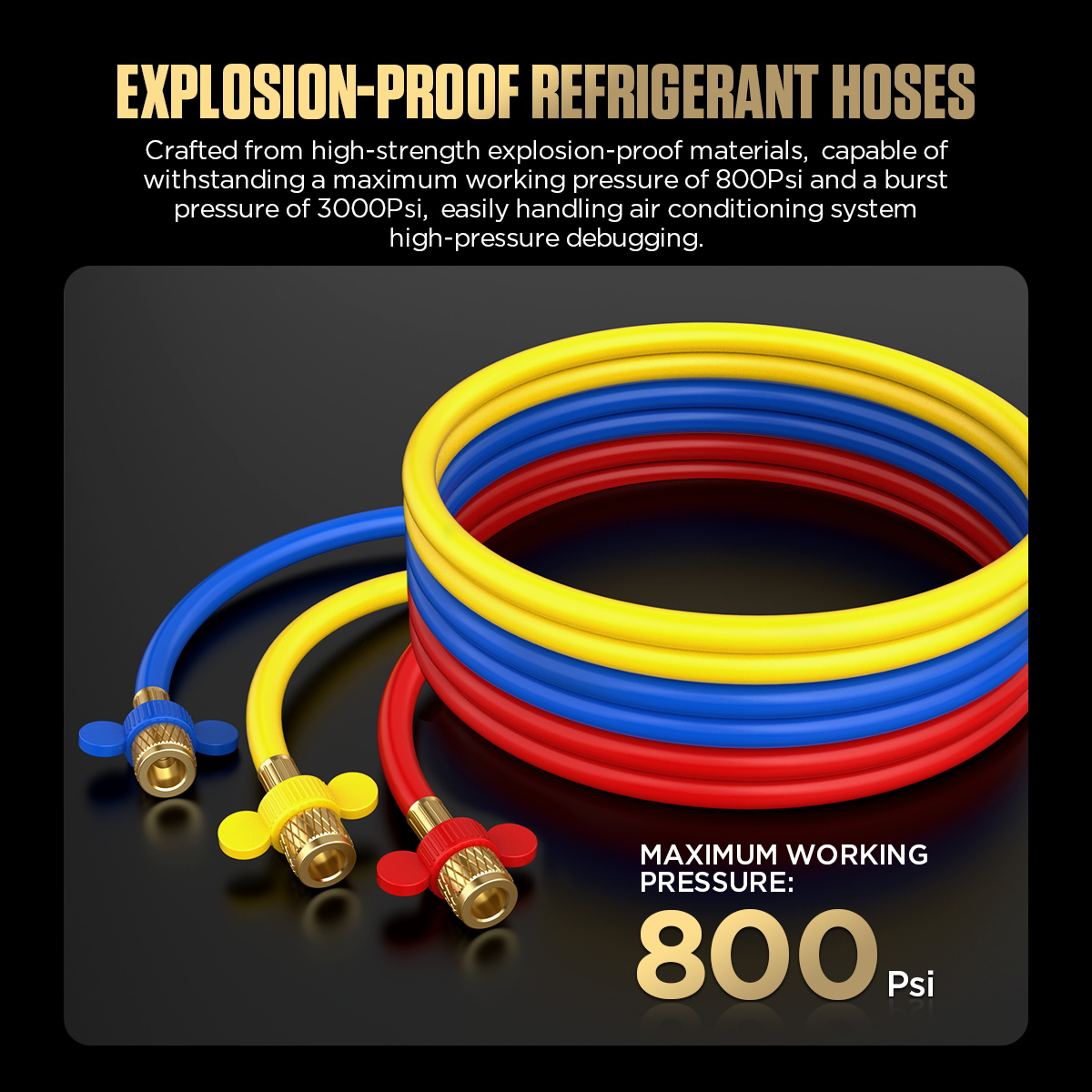

• Explosion-Proof Three-Color Refrigerant Filling Hoses: The AUTOOL LM70’s three-color hoses are made of high-strength, explosion-proof materials, capable of withstanding working pressures up to 800 Psi and burst pressures up to 3000 Psi, easily meeting the high-pressure testing demands of various air conditioning systems.
• Versatile Applications:The AUTOOL LM70 features multiple functions and design highlights, including automatic calculation of evaporation and condensation temperatures, making it widely applicable to automotive air conditioning systems, home air conditioners, and various other refrigeration equipment.
• Three-Year Warranty, Lifetime Maintenance:  For damage caused by non-human factors, AUTOOL promises to resend parts for free within 3 years. If you have any problems, please contact us, and we will respond within 24 hours!

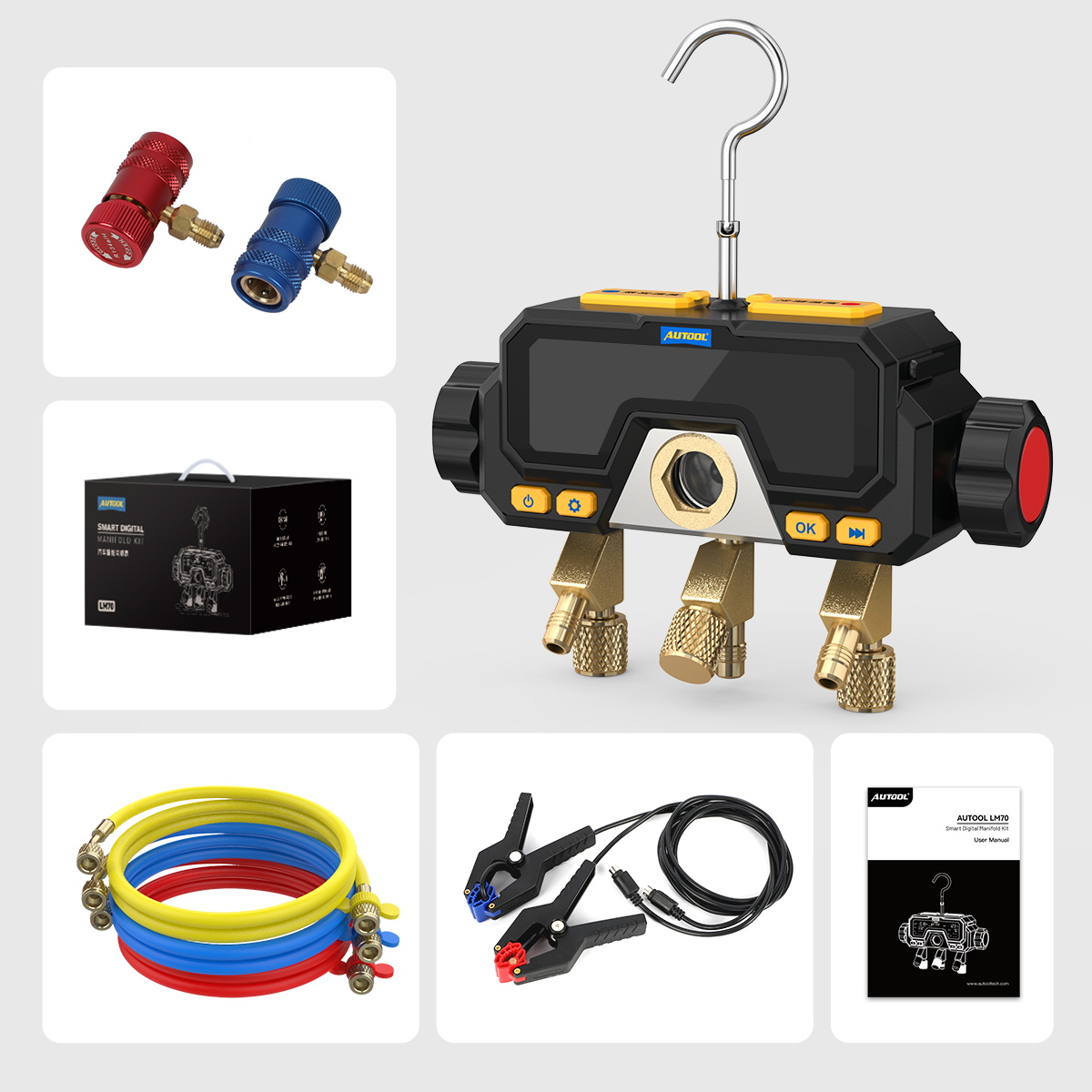

Packing List:
