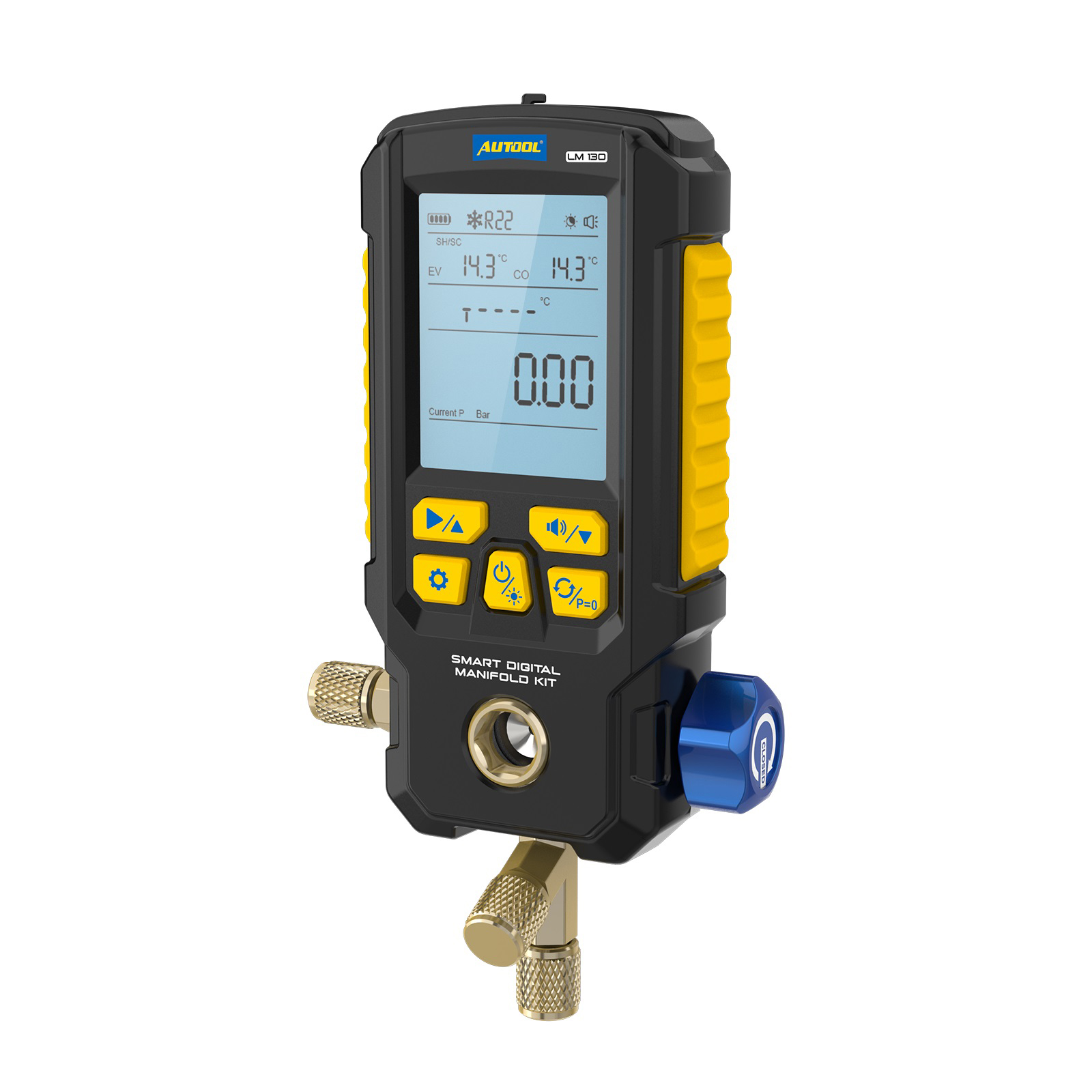

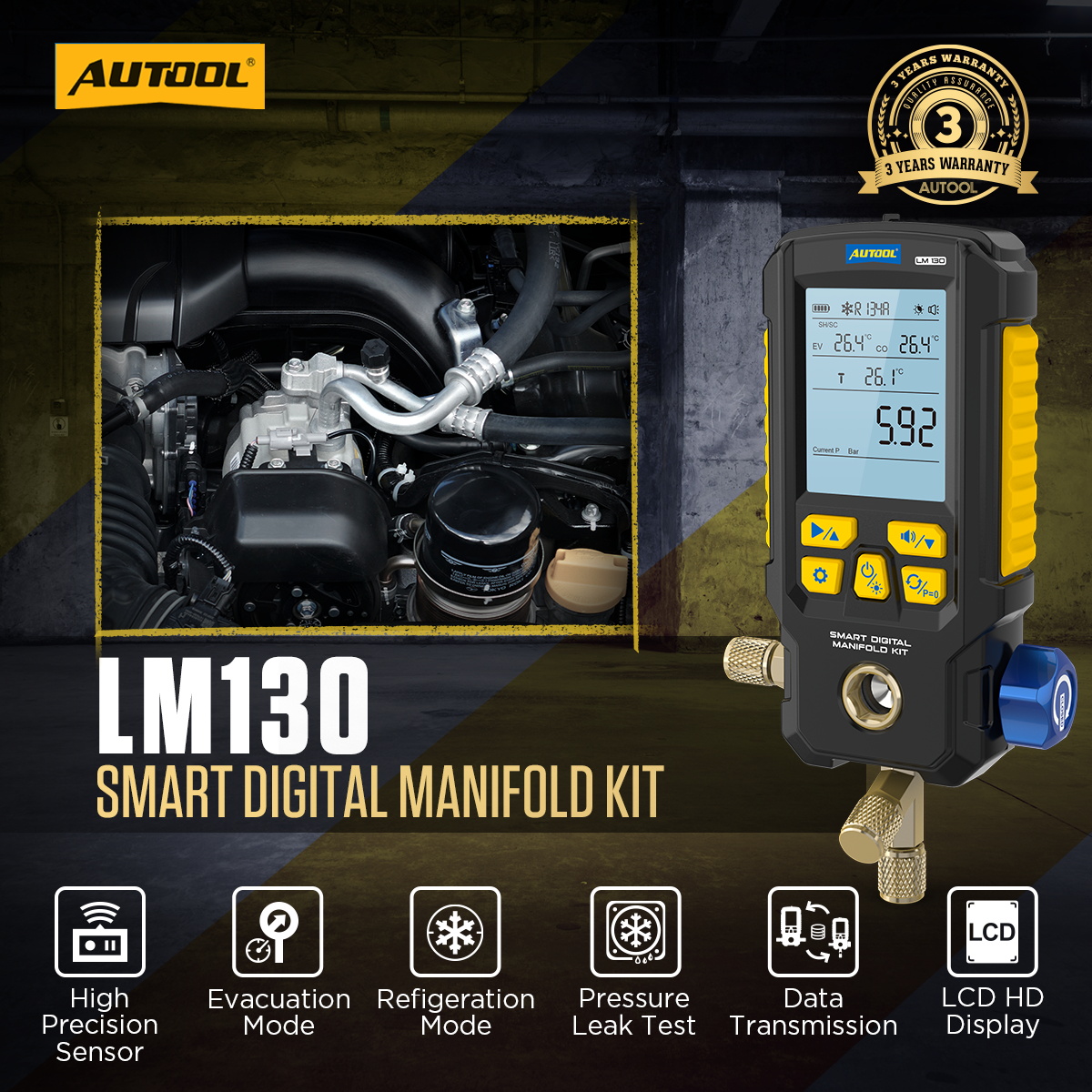

AUTOOL LM130 Smart Digital Manifold Kit

The AUTOOL LM130 digital manifold gauges is made of high-strength engineering plastic with flexible, non-slip silicone, making it sturdy, durable, and comfortable to hold. This digital hvac gauges Equipped with a high-precision sensor and built-in temperature compensation, it achieves a measurement accuracy of ±0.5%. The 2.8-inch backlit display and visible fluid window ensure clear visibility of data and filling status. With advanced intelligence, it integrates a microprocessor and communication interface, allowing connection to the LM100 for data transmission and high-precision measurement. Supporting seven refrigerant types, it provides real-time monitoring of refrigerant system pressure, temperature, and other parameters. The explosion-proof refrigerant hose uses multi-layer leak-proof materials to guarantee leak-free refrigerant filling. Additional features include a foldable hook design, brass valve body, and auto-sleep function, providing lightweight and convenient use while ensuring durability, wear resistance, and extended working time.It’s the best digital refrigerant gauges.

⚠️Warm Tips

The device measures gauge pressure with a range of -101 kPa to 6 MPa (-0.1 bar to 60 bar), and an absolute limit of 10 MPa (100 bar). The standard hose’s maximum working pressure is 600 PSI (approximately 4.13 MPa, 41.3 bar), with a limit of 3000 PSI (approximately 20.68 MPa, 206.8 bar).

Before testing, please confirm the rated pressure of the equipment to be tested. Do not use the instrument if the pressure exceeds its rated range. Additionally, for the DY517A, if the charging hose does not meet the pressure requirements, a suitable replacement hose may be used for testing.

Do not use or store this instrument in environments with high temperature, high humidity, flammable or explosive conditions, or strong electromagnetic fields.

Do not modify the internal circuitry of the instrument to avoid damage or potential hazards.

Wear appropriate protective equipment during testing to ensure user safety.

Use the instrument in a well-ventilated environment to avoid inhaling toxic gases.

✅Why choose the AUTOOL LM130?？

• Intuitive Display: Features a visible filling window so users can quickly check the filling status at a glance.
• Safe and Durable: Equipped with an explosion-proof refrigerant hose made of multi-layer leak-proof material to ensure leak-free filling.
• Accurate Measurement: Built-in high-precision sensor with accuracy up to ±0.5%.
• Versatile Options: Supports 7 types of refrigerants and multiple unit conversions to meet diverse measurement needs.

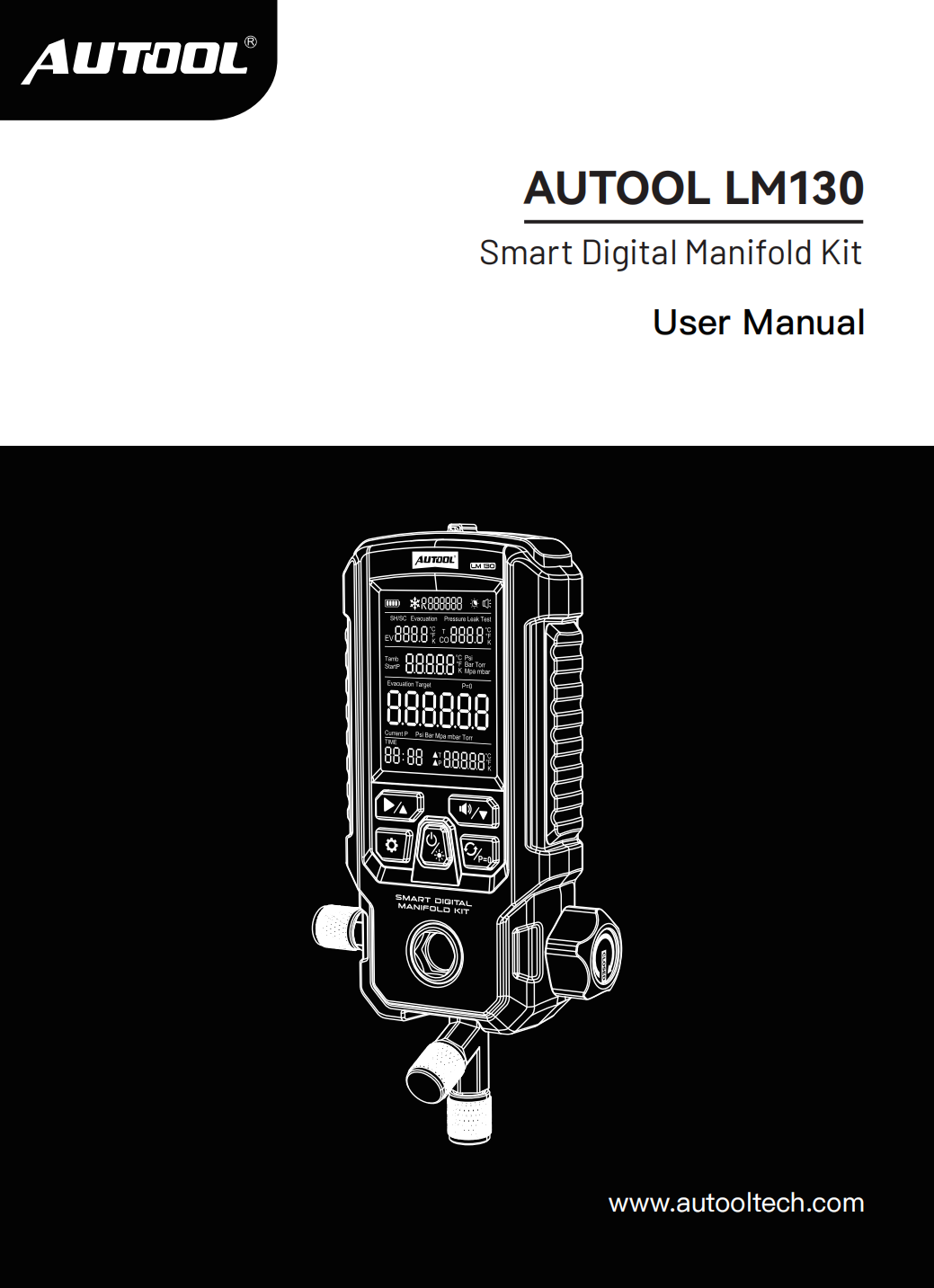

📔AUTOOL LM130 Smart Digital Vaccum Gauger Manual

Download

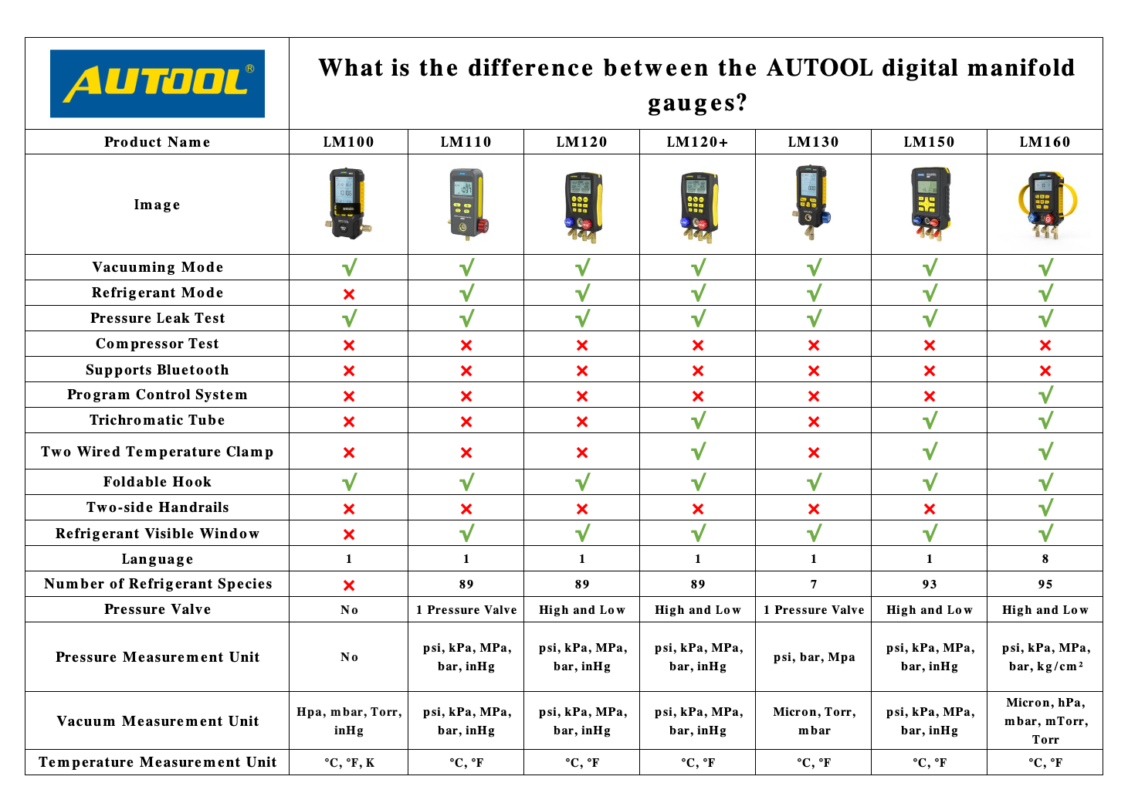

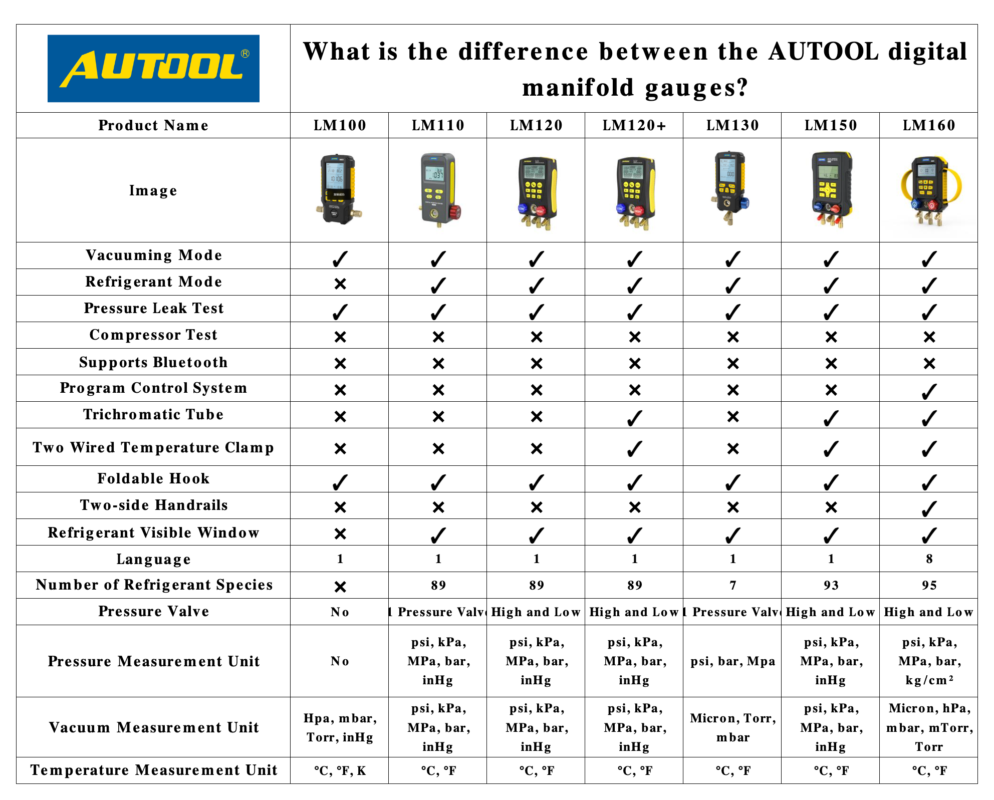

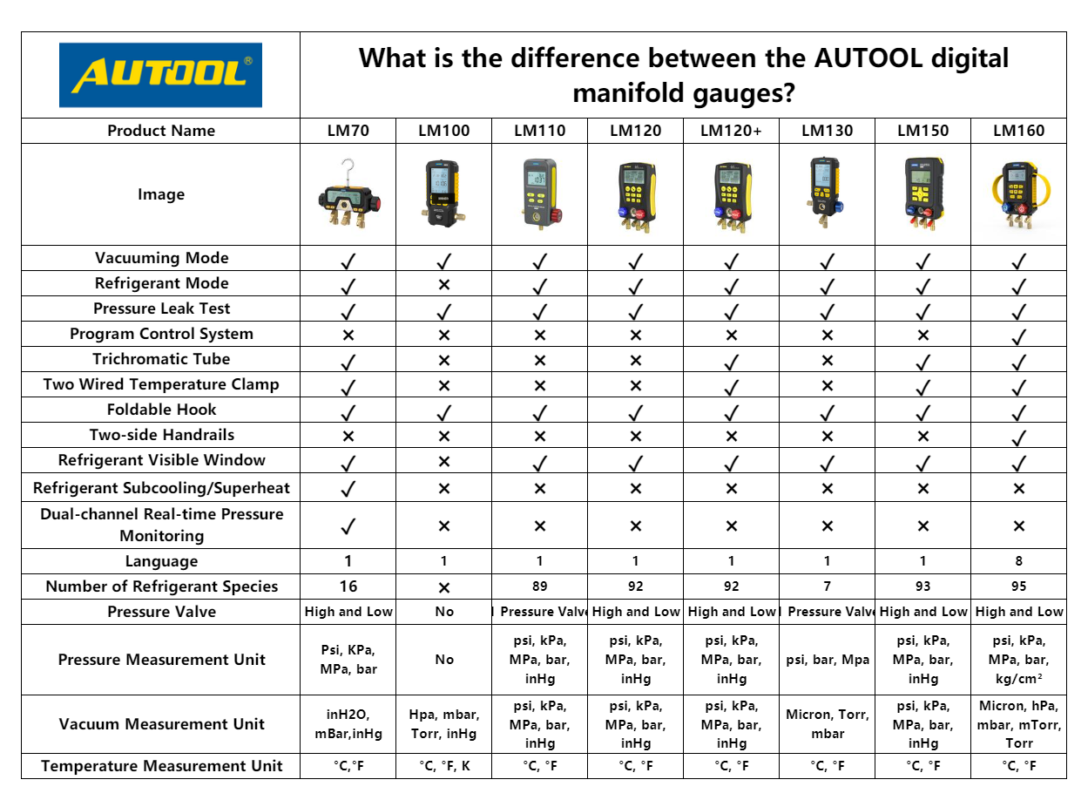

What is the difference between the AUTOOL digital manifold gauges?

AUTOOL digital manifold gauges Quick Search

HOT

+

This product has multiple variants. The options may be chosen on the product page Quick View

AUTOOL LM120+ Refrigerant Gauges Digital Hvac Gauges

54 reviews

$149.00

+

This product has multiple variants. The options may be chosen on the product page Quick View

AUTOOL LM150 Digital Manifold Gauges Digital AC Gauges

4 reviews

$159.00

+

This product has multiple variants. The options may be chosen on the product page Quick View

AUTOOL LM160 Refrigerant Leak Detector Digital Manifold Gauges

3 reviews

$209.00

+

This product has multiple variants. The options may be chosen on the product page Quick View

AUTOOL LM120 AC Manifold Gauge Refrigerant Identifier

23 reviews

$98.00

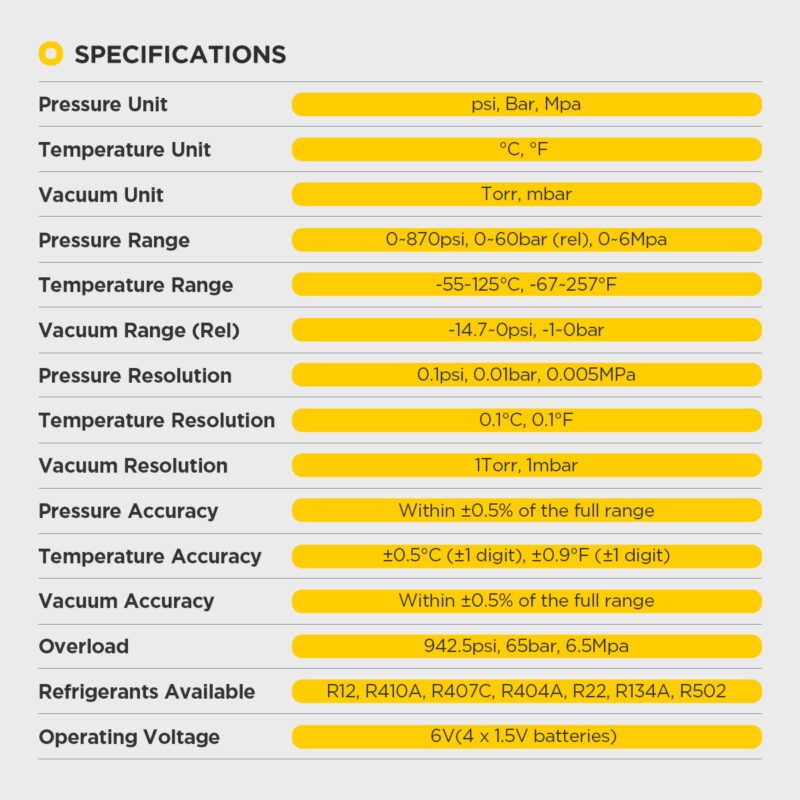

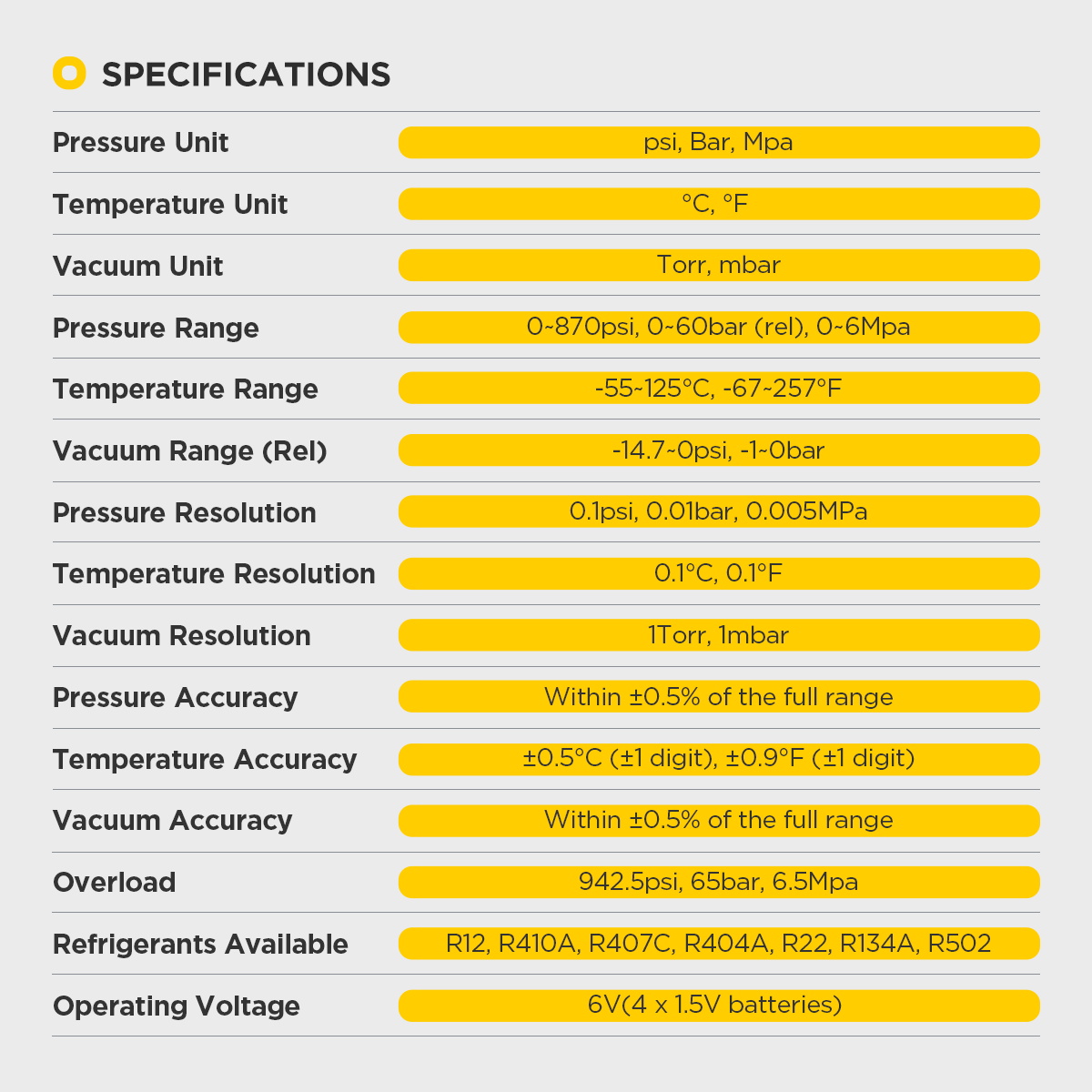

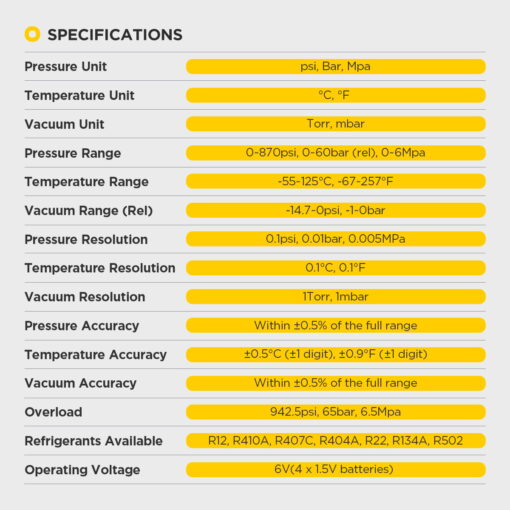

AUTOOL LM130 Smart Digital Manifold Kit Features:

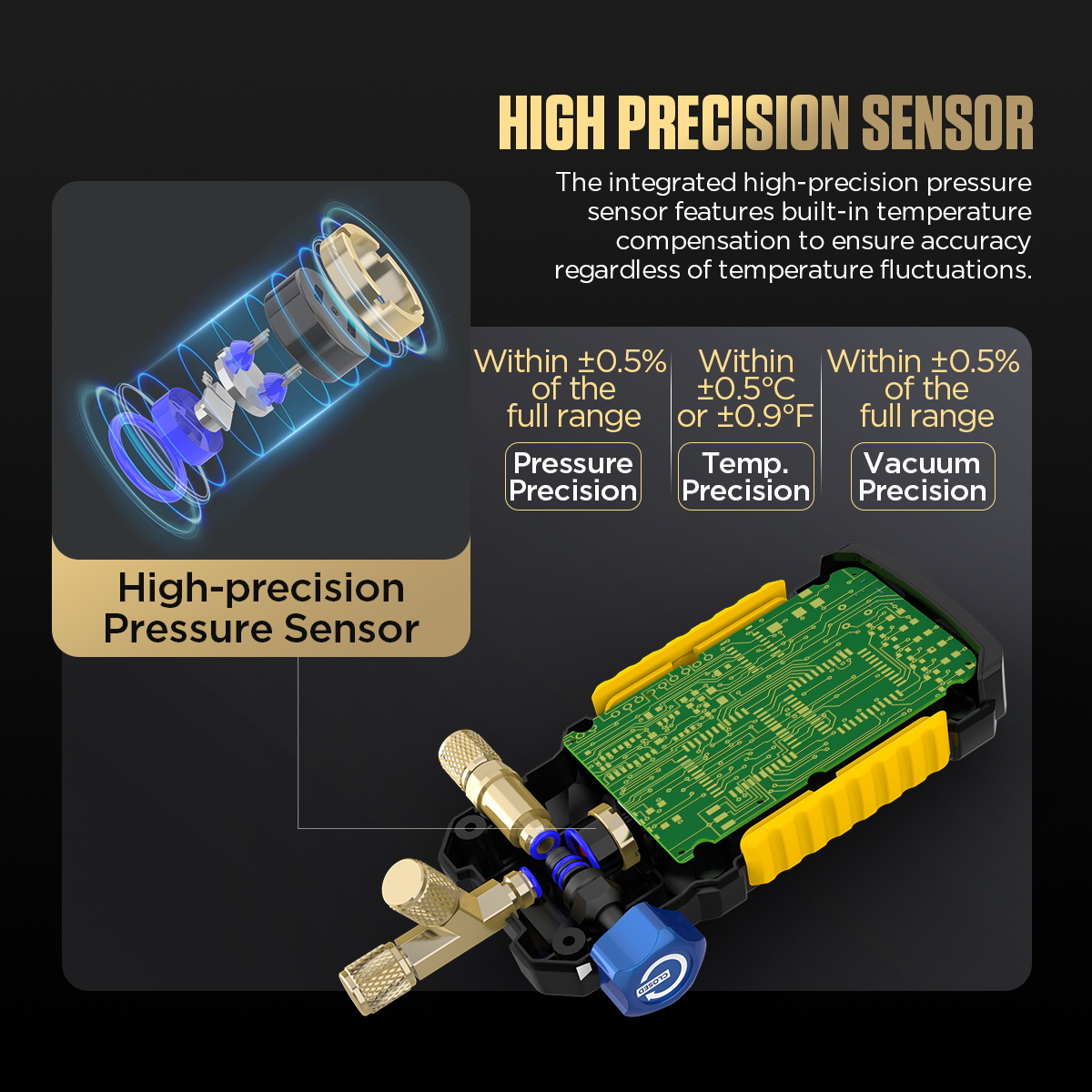

• High-Precision Sensor: Utilizes advanced sensor technology with built-in temperature compensation, achieving measurement accuracy up to ±0.5%.
  Pressure Resolution: 0.1 psi, 0.01 bar, 0.005 MPa
  Vacuum Resolution: 1 micron, 1 Torr, 1 mbar
  Temperature Resolution: 0.1°C, 0.1°F
  Vacuum resolution: 0.1 hPa, 0.1 mbar, 0.1 Torr, 0.01 inHg
  Temperature resolution: 0.1℉, 0.1℃, 1K

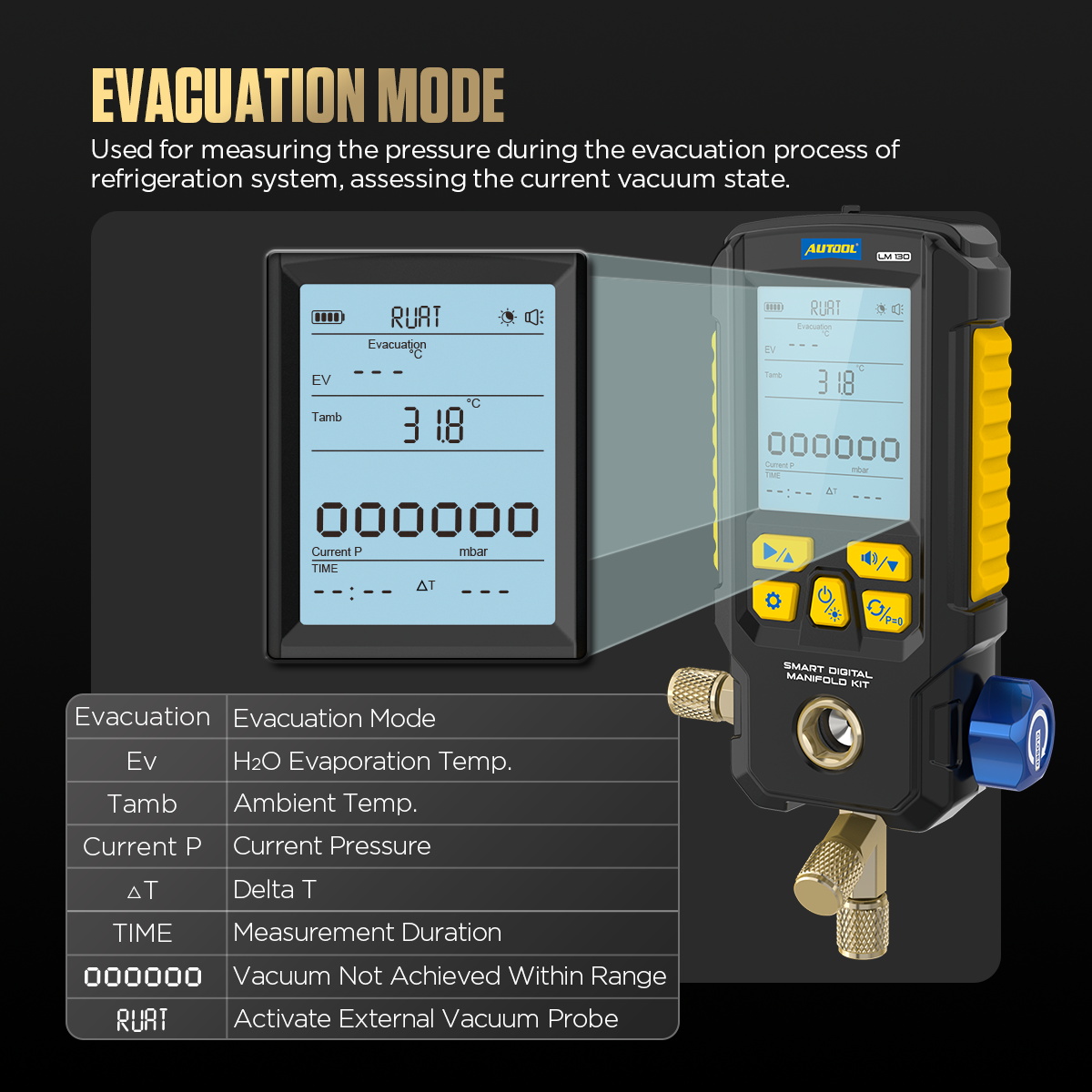

• Vacuum Mode:   Quickly evacuates air and moisture while continuously monitoring vacuum changes, accurately assessing the current vacuum status of the refrigeration system.
  Vacuum Range: -14.70 psi, -10 bar

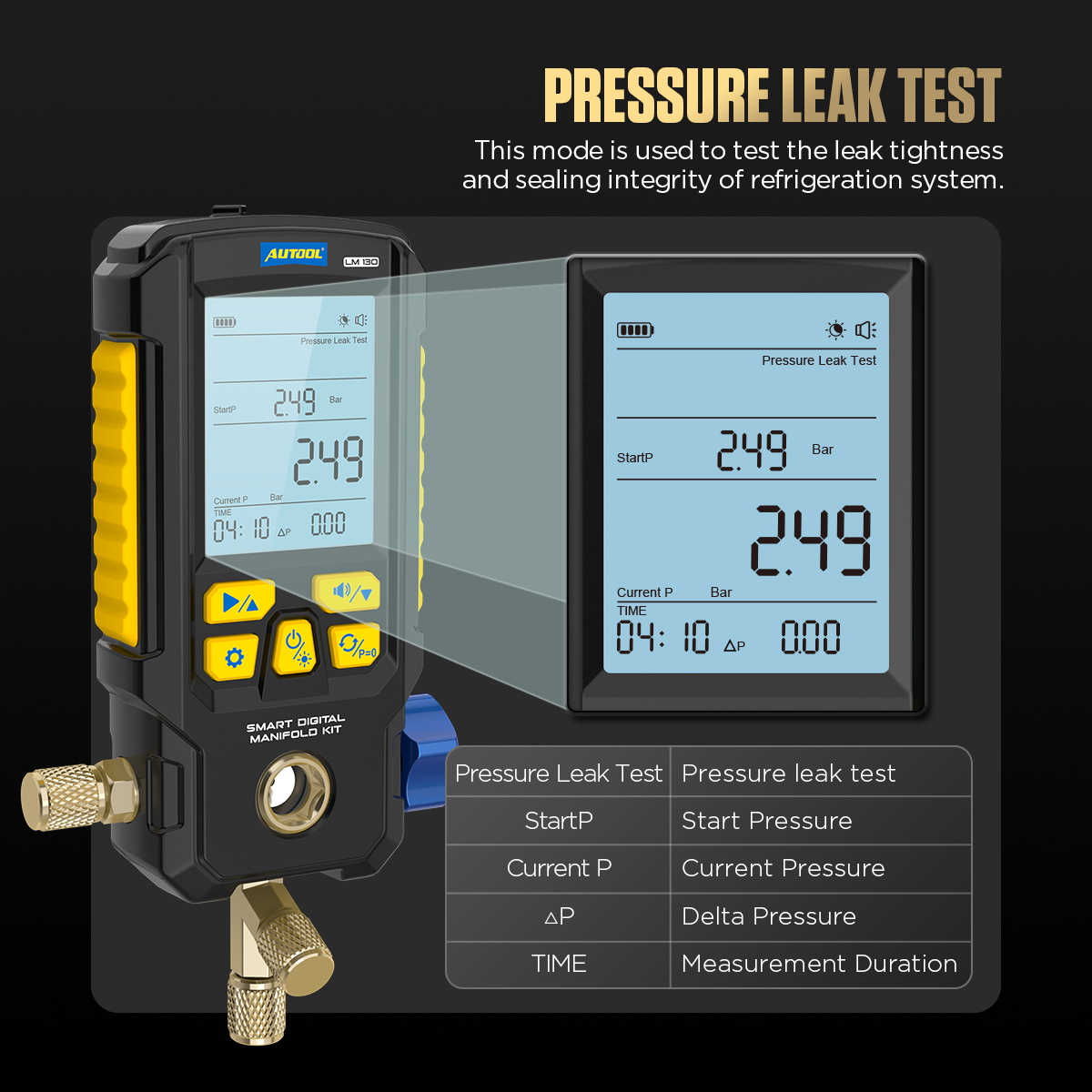

• Pressure Retention Test Mode: Even the smallest leaks can be detected, enabling precise inspection of the refrigeration system’s sealing condition.

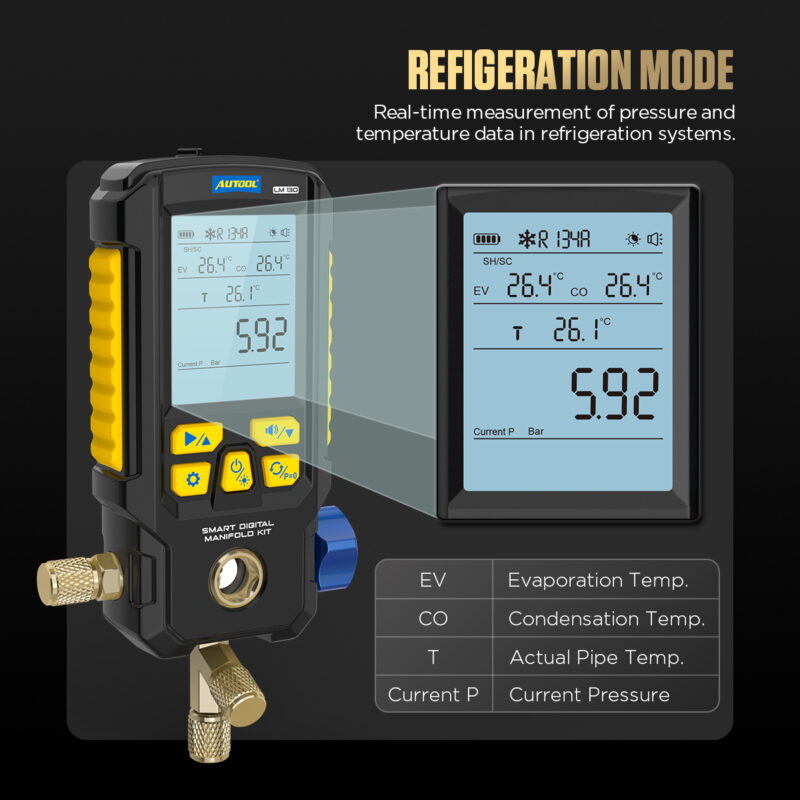

• Refrigerant Detection Mode: Includes seven built-in refrigerant options: R134A, R12, R410A, R407A, R404A, R22, R502. Provides real-time measurement of pressure, temperature, and other data in the refrigeration system.

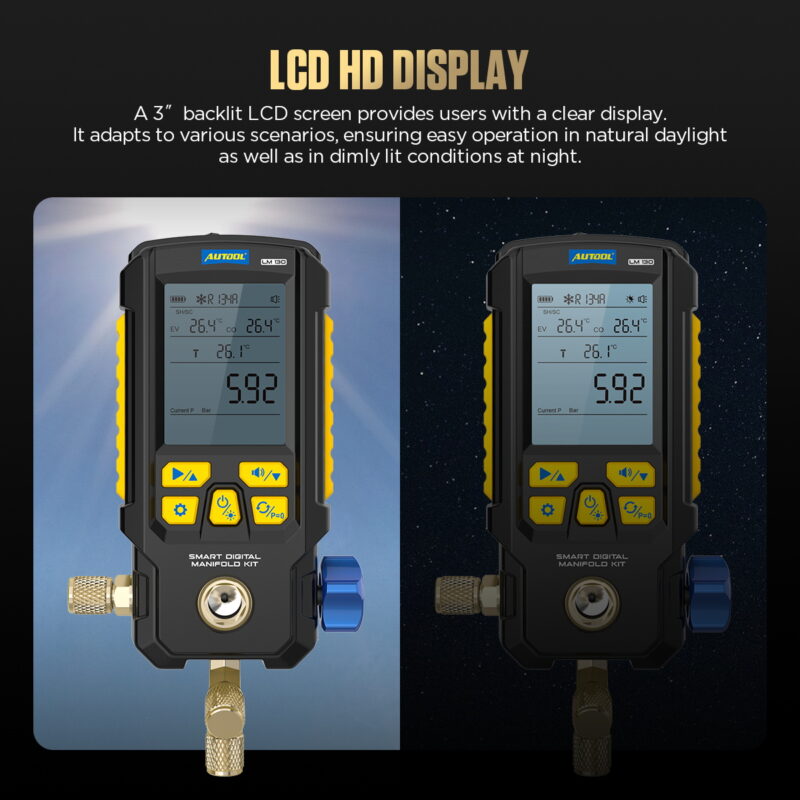

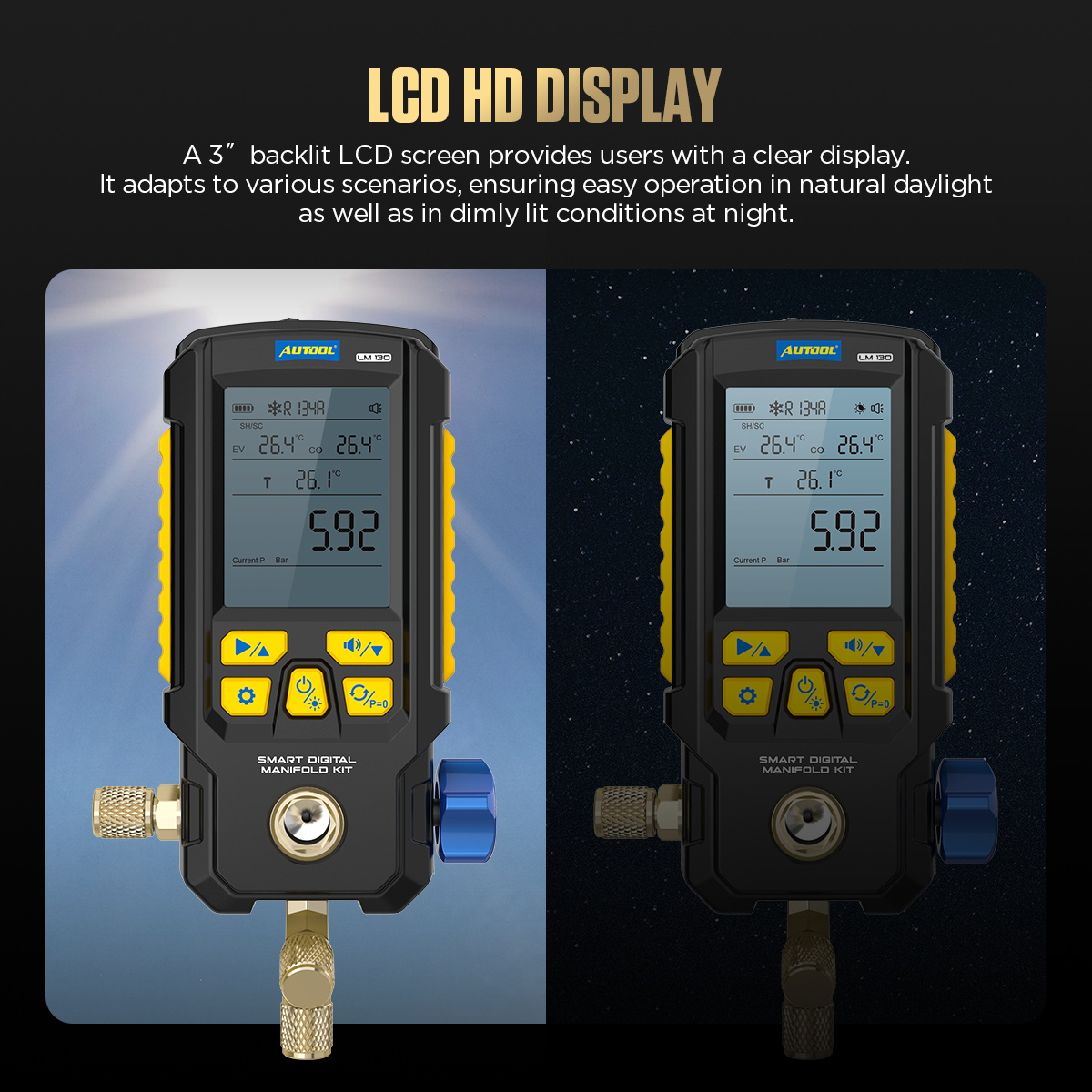

• 2.8-Inch Display Screen: High-definition backlit display ensures clear visibility in both dim and bright environments. With a 0.5-second response time, users can observe data quickly, clearly, and intuitively.
• Advanced Intelligence: quipped with an integrated microprocessor and communication interface, allowing data transfer with the LM100 for high-precision measurements.
• Explosion-Proof Refrigerant Hose: Made from multi-layer, leak-resistant nylon material. The imported hose is explosion-proof, pressure-resistant, highly flexible, and safe to use. It offers excellent durability and ensures leak-free refrigerant filling.

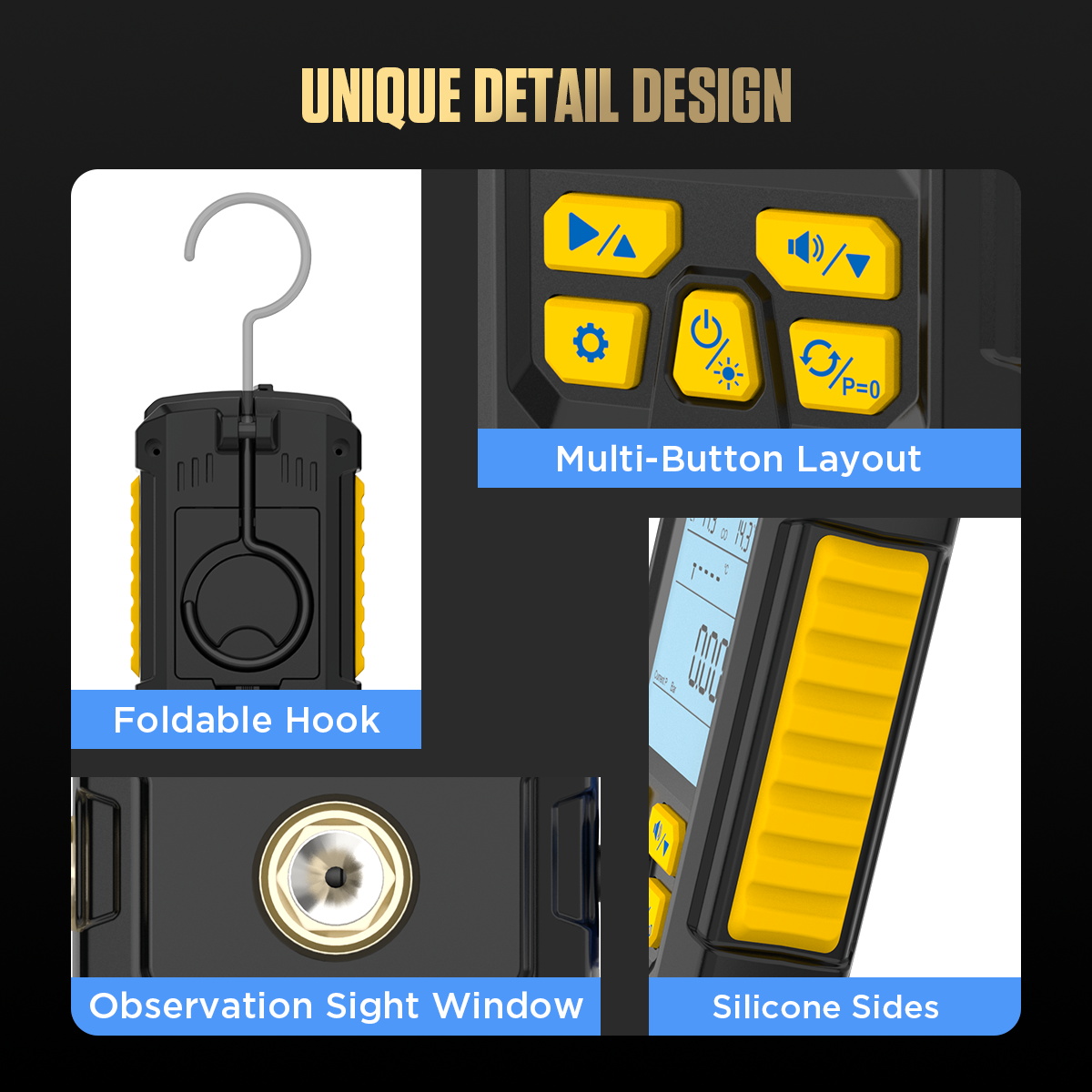

• Visible Refrigerant Filling Window: Allows users to visually monitor the refrigerant filling status in real time.
• Auto Sleep Function: Automatically powers off after 20 minutes of inactivity to reduce energy consumption.
• Multiple Unit Switching: Automatically converts and supports flexible switching between various units, making it suitable for different industries and regions.
  Pressure Units: psi, bar, MPa
  Vacuum Units: micron, Torr, mbar
  Temperature Units: °C, °F
• Three-Year Warranty, Lifetime Maintenance:  For damage caused by non-human factors, AUTOOL promises to resend parts for free within 3 years. If you have any problems, please contact us, and we will respond within 24 hours!

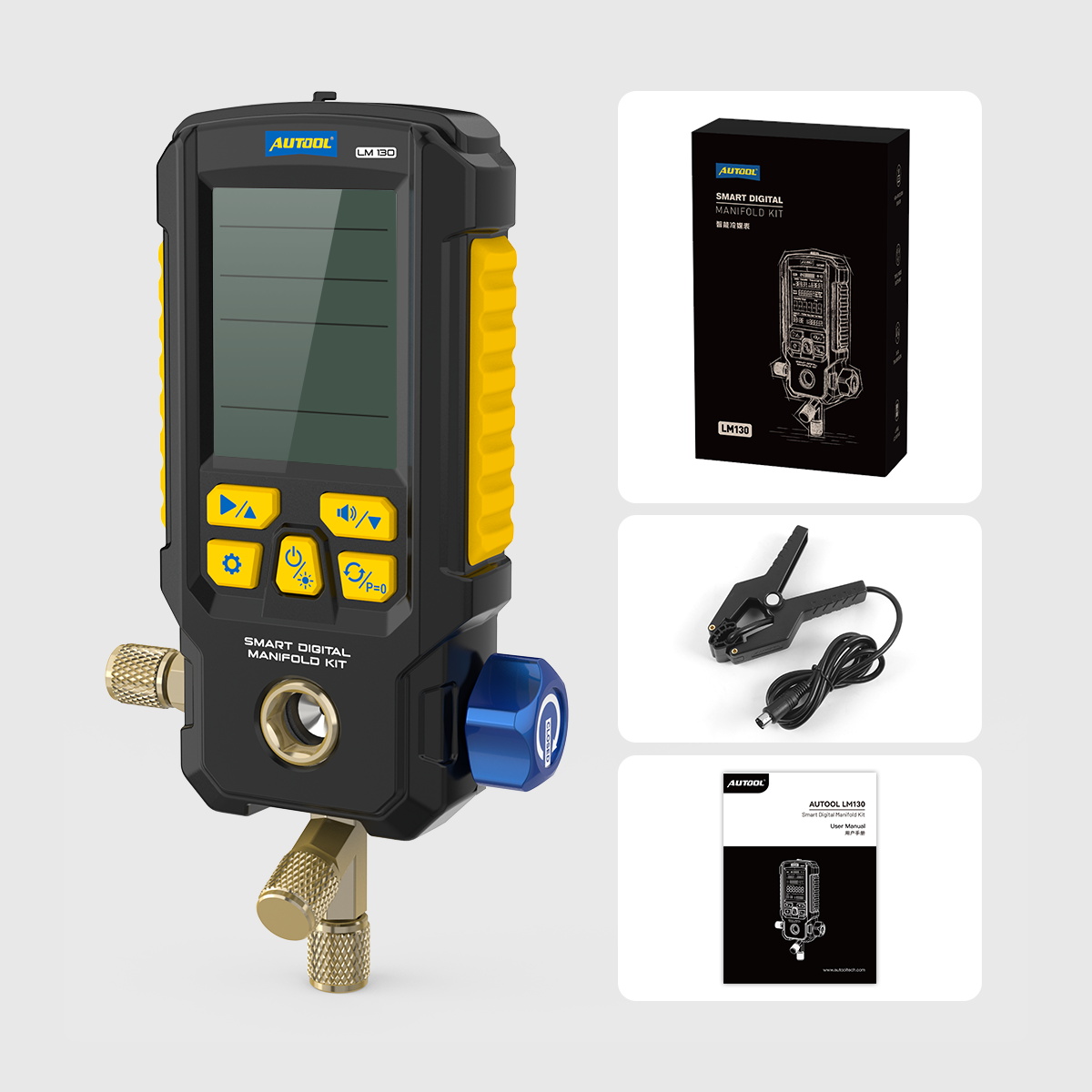

Packing List:
