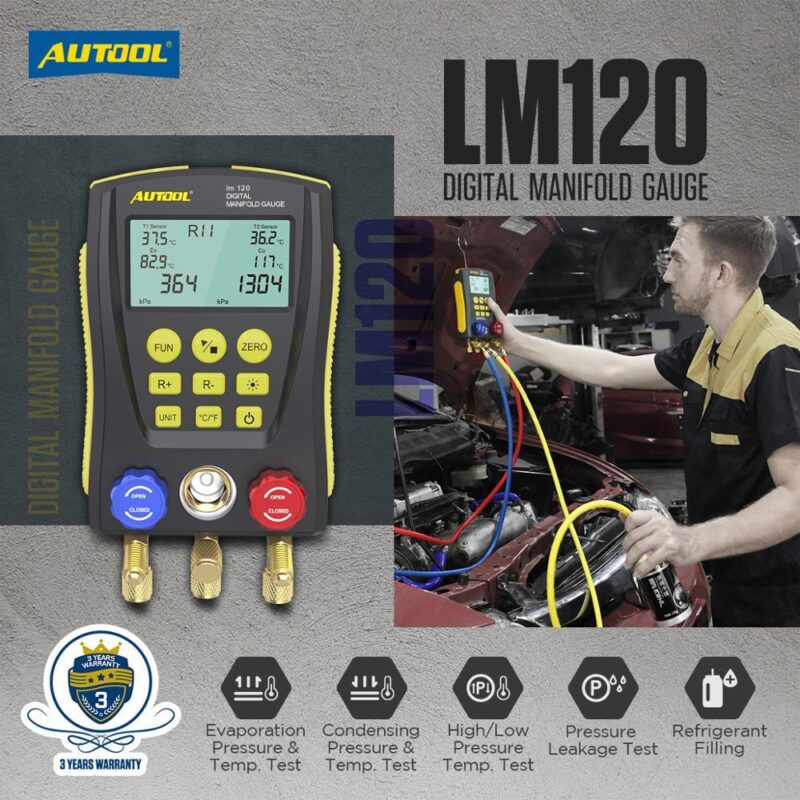

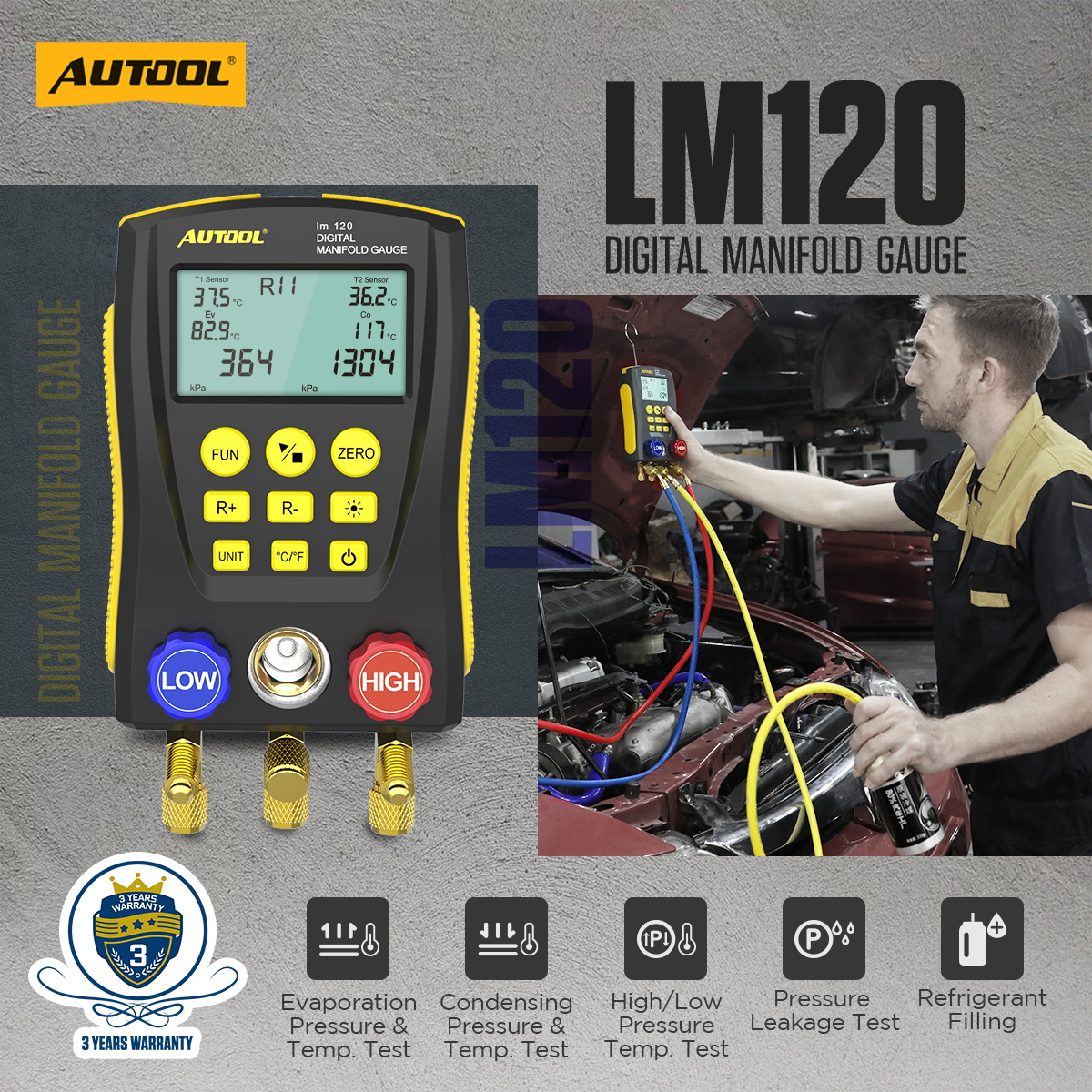

AUTOOL LM120 AC Manifold Gauge Refrigerant Identifier
$98.00
- Multiple test modes: This hvac manifold gauges measures dual pressure and temperature, vacuum, and features leak detection, multi-unit pressure conversion, and Celsius/Fahrenheit conversion.
- Built-in database: With a 32-bit processor and 89 refrigerant databases, it calculates subcooling and superheating temperatures and provides real-time data.
- Three-year warranty: Contact us anytime with issues, and we’ll deal within 24 hours!
AUTOOL LM120 AC Manifold Gauge uses high-strength engineering plastics and a flexible non-slip silicone design, the whole machine is solid and comfortable to hold.Equipped with a 32-bit processor and high-precision data acquisition for stable readings. The large LCD with backlight ensures clear visibility and easy operation. A long-life valve switch and 1/4-inch interface enhance durability and versatility. This is a professional hvac manifold gauges,and best digital hvac gauges.
🗣️You may want to know.
⚠️Warm Tips
- The digital hvac manifold gauges measures gauge pressure, with a range of -101 kPa to 6 MPa (-0.1 bar to 60 bar) and a limit of 10 MPa (100 bar). The standard hose’s max operating pressure is 600 PSI (about 4.13 MPa, 41.3 bar), with a limit of 3000 PSI (about 20.68 MPa, 206.8 bar).
- Please confirm the rated pressure of the tested equipment before testing. Do not use if it exceeds the instrument’s range. Also, for DY517A, if the packed…
hoses does not match the pressure requirement, you can use suitable replacements for testing. - Do not use and store the instrument in high temperature, high humidity, flammable, explosive and strong electromagnetic fields.
- Please do not change the instrument internal circuit, to avoid any damage of the instrument or danger occurring.
- Please wear qualified protective equipment to protect user during testing.
- Please use the instrument in a well-ventilated environment to prevent inhalation of toxic gases.
What is the Difference Between the AUTOOL AC Manifold Gauge?
AUTOOL AC Manifold Gauge Quick Search

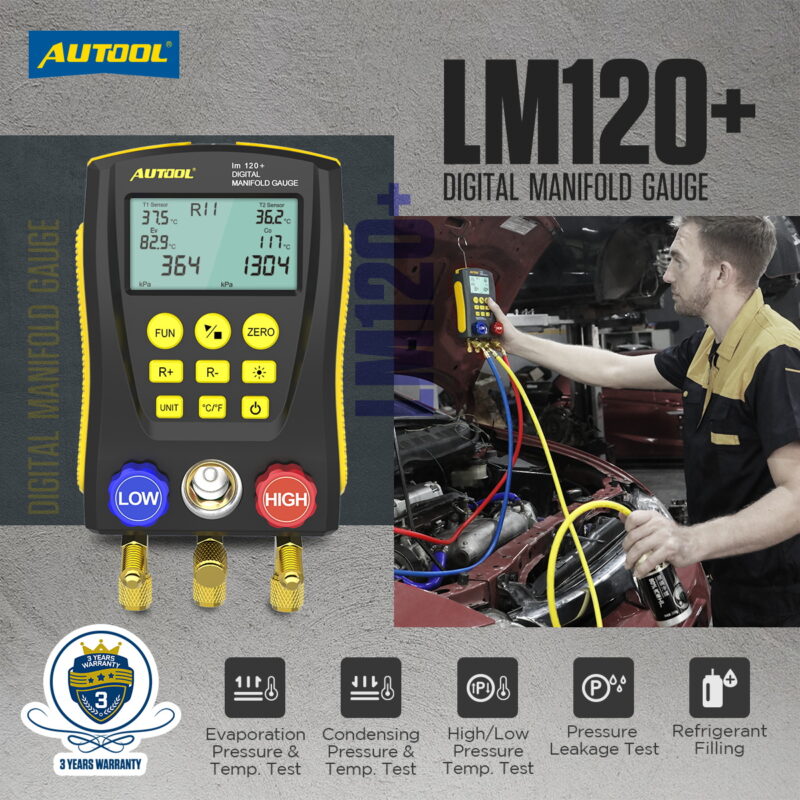

AUTOOL LM120 AC Manifold Gauge Features
- Wide Applicability: The LM120 Manifold Gauge is designed for installing, testing, and maintaining refrigeration systems, such as air conditioners and cold storage. There are quite a lot of usage scenarios, so it can be the BEST digital hvac gauges.

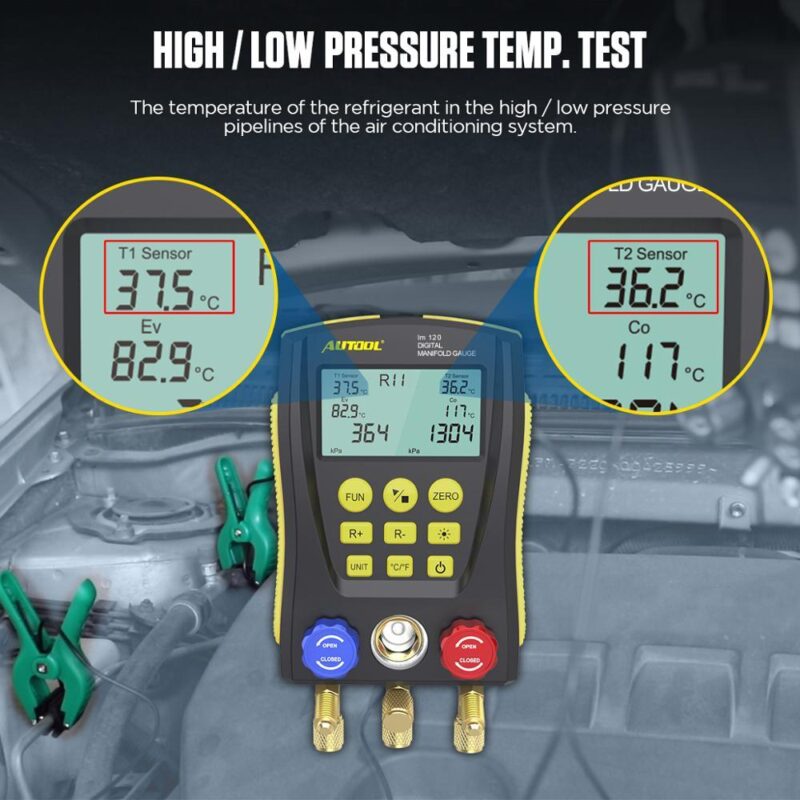

- Multiple Test Modes: It measures dual pressures and temperatures, vacuum levels, and includes leak detection, multi-unit pressure conversion, and Celsius/Fahrenheit temperature conversion.
- Intelligent Digital Display: The large LCD display with backlighting presents data clearly and allows easy operation via buttons, enhancing maintenance efficiency.

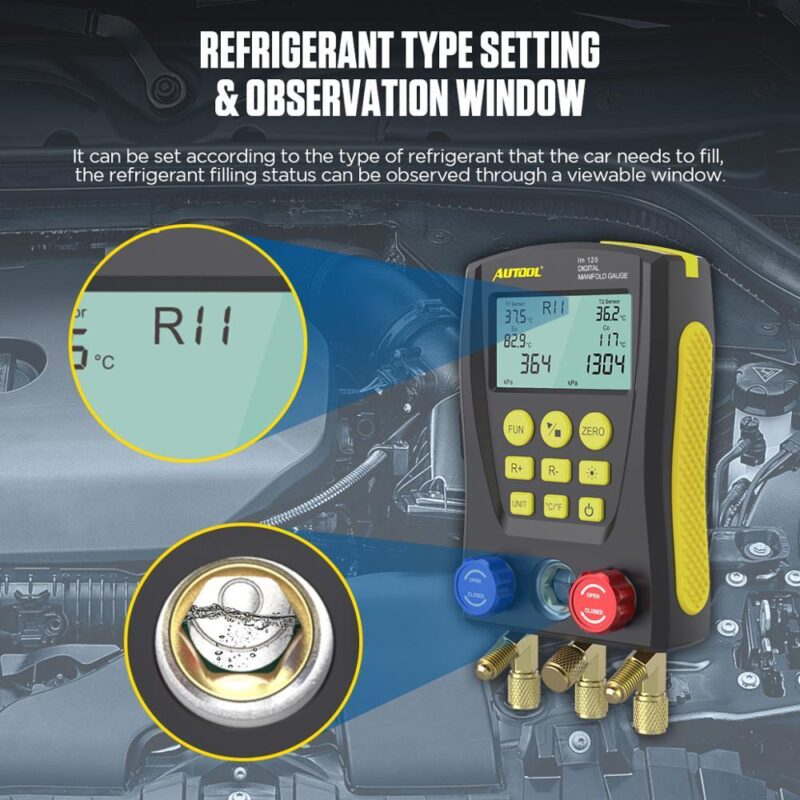

- Built-in Database: LM120 Manifold Gauge with a 32-bit processor and 89 refrigerant databases, it calculates supercooling and superheating temperatures, offering real-time operation data.
- Industrial-Grade Design: Features durable valve switches and a standard 1/4 inch interface for long-lasting performance and versatility.
- Excellent Material: Constructed from high-strength plastic with a non-slip design, it offers durability and an ergonomic grip, enhancing lifespan.
- 3-Year Warranty: For damage caused by non-human factors, we promise to reissue parts free of charge within 3 years.

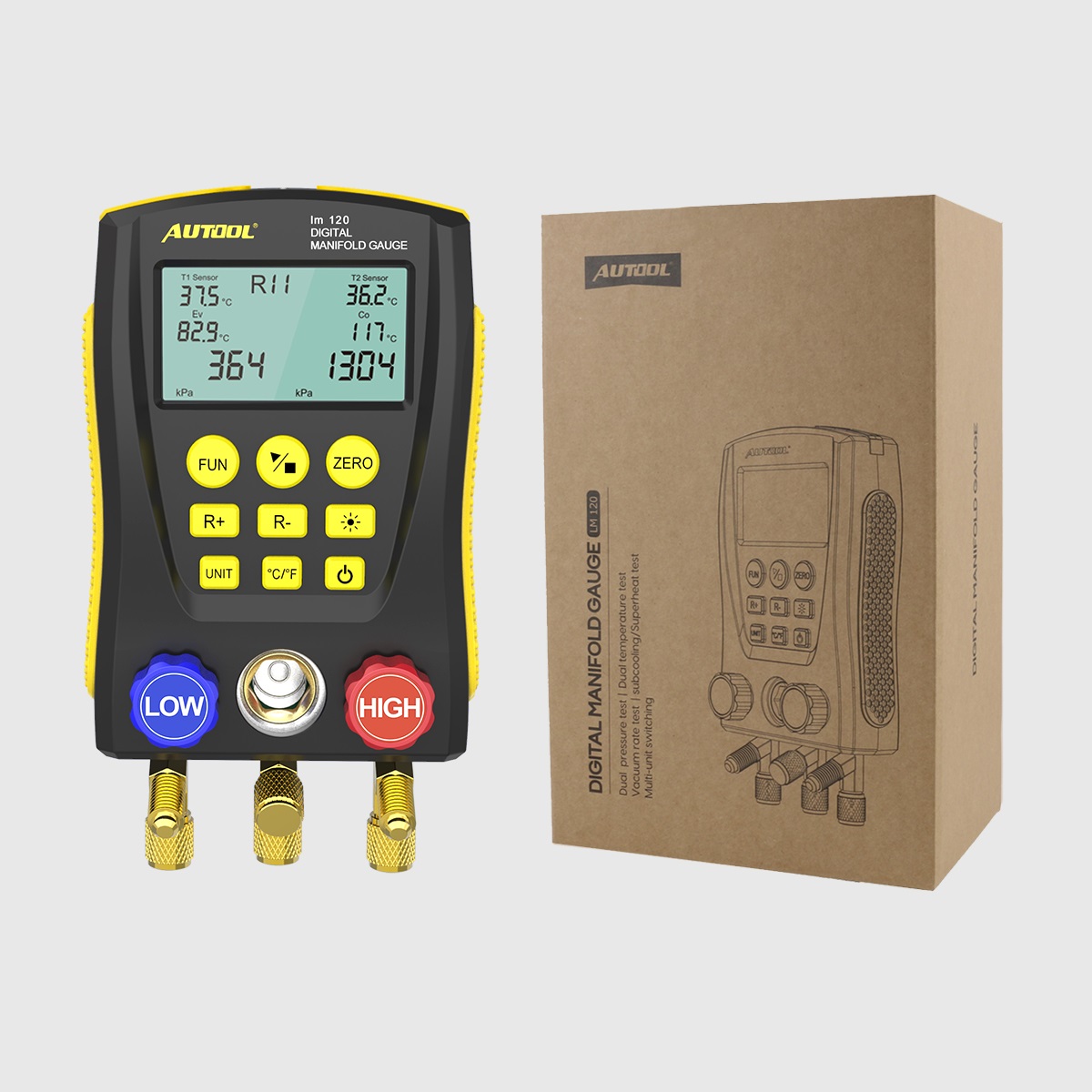

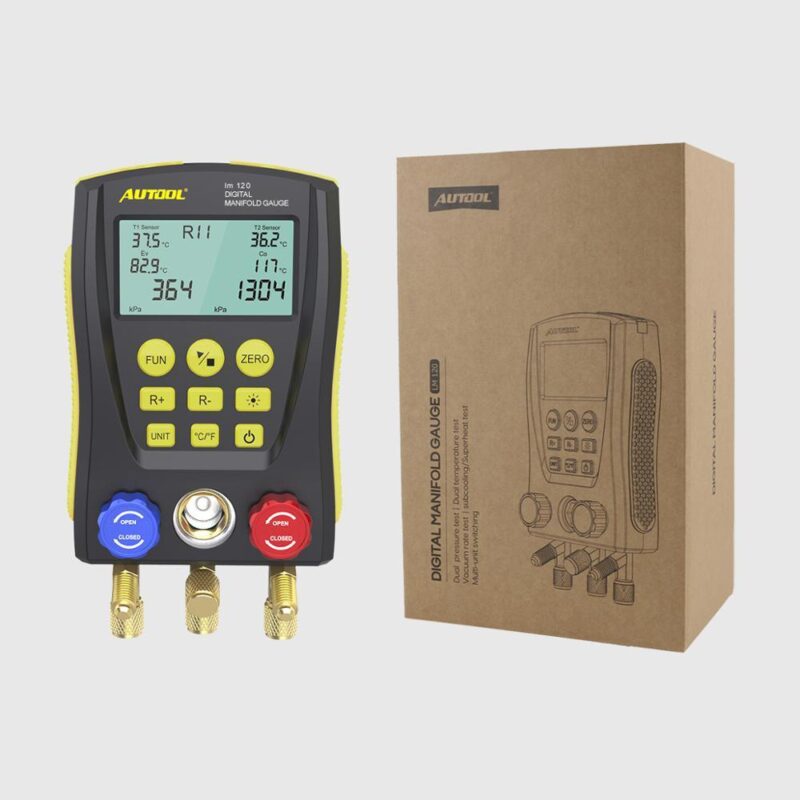

Packing List
SPECIFICATIONS
- Brand Name: AUTOOL
- Origin: CN(Origin)
- Function1:
- Function3: <span class=”property-desc line-limit-length” style=”color: #151515;” title=”digital manifold cooling”>digital manifold cooling
- Pressure test: gauge pressure
- Pressure test unit: Kpa; Mpa; bar; inHg; PSI.
- Pressure test resolution: 1 Kpa
- Pressure overload limit: 10000 Kpa (10 Mpa; 100 bar;)
- Vacuum test: relative vacuum
- Vacuum test unit: Kpa; Mpa; bar; inHg; PSI.
- Vacuum test resolution: 1 Kpa
- Built-in 89 kinds of refrigerant NIST: According to American NIST standard
- Power Supply: 4 X 1.5V (SIZE.AA / LR6) Battery not include

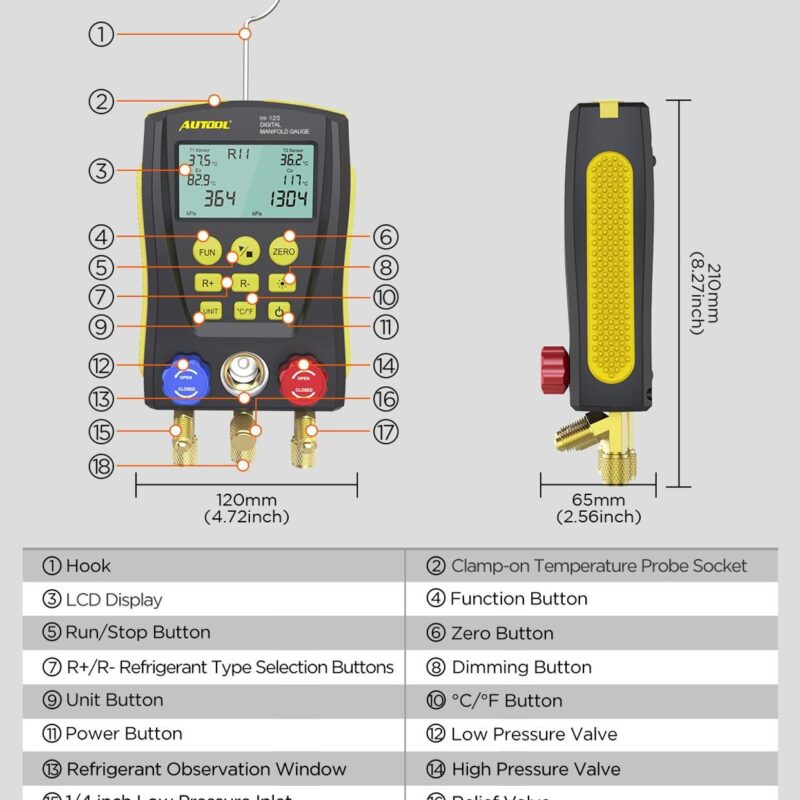

- Size: 170*110*50mm
- Weight: 1950g
- Note: le=”Clips and tubes are not included”&amp;amp;gt;Clips and tubes are not included
21 reviews for AUTOOL LM120 AC Manifold Gauge Refrigerant Identifier
| 5 star | 100% | |
| 4 star | 0% | |
| 3 star | 0% | |
| 2 star | 0% | |
| 1 star | 0% |
1-5 of 21 reviews
Add a review
AUTOOL LM120 AC Manifold Gauge Refrigerant Identifier
Your review
* Review is required
Name
* Name is required
Email
* Email is required
Add photos or video to your review
[jgm-review-widget]
Home
Shopping Guide
Product
Wheel Aligner Machine
Smoke Leak Detector
Fuel Injector Tester
Brake Fluid Exchanger
Dry lce Blasting Machine
Walnut Sand De-Carbon Cleaner
Refrigerant Recovery Machine
Articulating Borescope
Transmission Fluid Exchanger
Spark Plug Tester
Battery System Tester
Engine Pressure Tester
Diagnostic Multimeter
Key Frequency Tester
Maintenance Environment Tester
Pneumatic Oil Drainer & Extractor
Oil Analysis Tester
Circuit Tester
OBD Diagnostic Tool
Digital Manifold Gauge
Inverter Programming Power Supply
EV Charging
Used Car Diagnostic Tester
Cooling System Tester and Filler
Workshop Tool Storage Series
EV Battery Pack Air Tightness Tester
Wheel Alignment Machines
ACCESSORIES&OTHER
News
Help Center
Custom Solutions (OEM & ODM)
Track My Order
Online Support

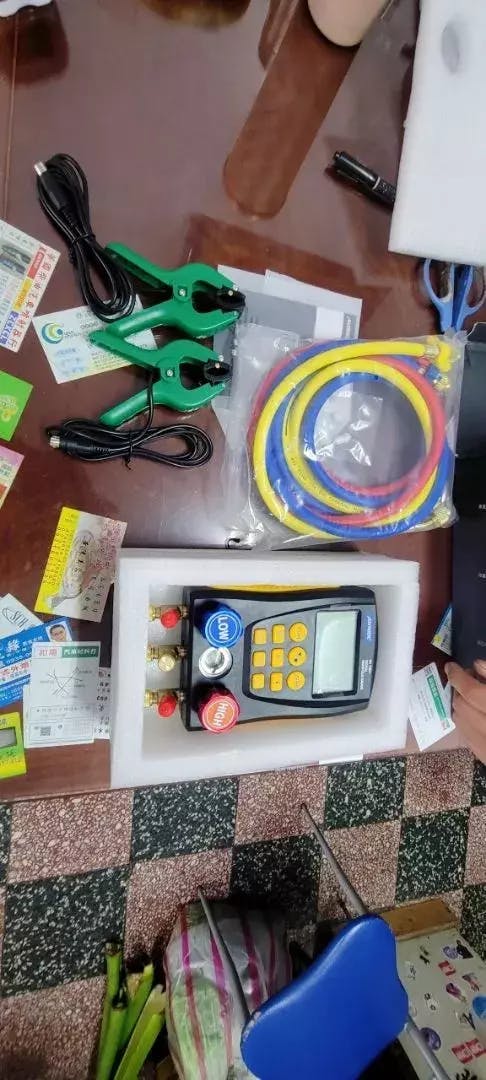

excellent gauges love it does multiple things at the same time.
