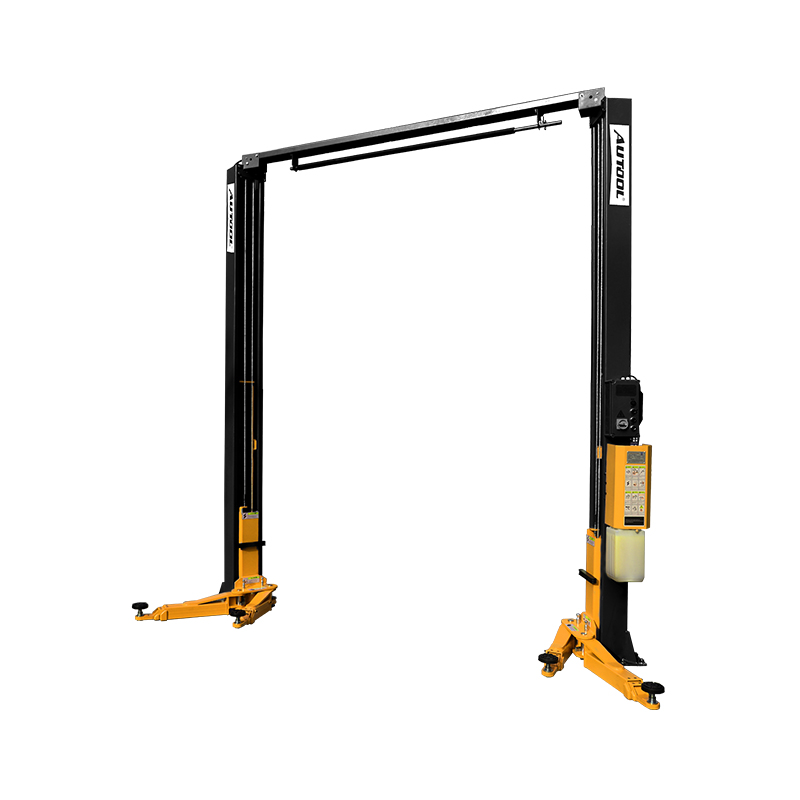

AUTOOL ATL-4.5DA Asymmetric Structure Electric Unlocking Gantry Car Lift two post vehicle lift

AUTOOL ATL-4.5DA Asymmetric Structure Electric Unlocking Gantry Car Lift Two Post Vehicle Lift

The AUTOOL ATL-4.5DA  Asymmetric Structure Two Post Vehicle Lift is a highly efficient lifting solution specifically designed for professional automotive repair scenarios. It integrates advanced control technology, featuring an electronic control system, dual-side unlocking safety mechanisms, and multi-level safety protection design to ensure safe and reliable operation. This lift utilizes high-quality components, such as CNC-machined (broom-polished) cylinder assemblies, a sandblasted and high-temperature coated body, and wear-resistant bearings, guaranteeing excellent concentricity, surface finish, and an exceptionally long service life. Its asymmetric structure facilitates quick vehicle loading and unloading, making it ideal for busy auto repair shops and workshops.

AUTOOL ATL-4.5DA Asymmetric Structure Two Post Vehicle Lift Features

• Reinforced Carriage Structure: Boasting a 1.95m-long high-strength carriage, with 50% increases in both length and self-weight compared to standard lifts, delivering exceptional stability.
• Direct-Drive Hydraulic System: Eliminates chains entirely, avoiding the risks of chain breakage or derailment for safer operation.
• Stable Hook-Type Safety Lock: Prevents slippage caused by slider wear, enhancing overall lifting security.
• Single-Side Unlocking Mechanism: Enables synchronous control of both side steering columns with one-sided operation, reducing workload and avoiding vehicle tilting risks when one column is unlocked while the other remains locked.
• Enhanced Second & Third Support Arms: 20% stronger than those of standard lifts, specially designed for sports cars with ultra-low chassis.Standard Three-Stage Screw Pads & Height Adjustment Sleeves: Provide flexible height adjustment to fit various vehicle models.
• Solid Steel Plates: Constructed with solid steel materials for superior load-bearing capacity and durability.
• 16mm Thickened Steel Plates: Utilizes 16mm thickened steel plates to further reinforce structural strength.
• High-Precision Support Arms: Features high-precision support arms for accurate and stable vehicle positioning.
• Secure Ratchet Fit: The safety ratchets are tightly fitted, ensuring reliable locking during lifting operations.

Packing List

Main and auxiliary units

• Dimensions: 383*44*72cm
• Weight: 647 kg

Pump station

• Dimensions: 75*23*33cm
• Weight: 19 kg

Accessories box

• Dimensions: 40*40*25cm
• Weight: 14 kg
