Which Vacuum Pressure Gauge Is The Best To Buy?

Posted on by Winnie
08
Jun

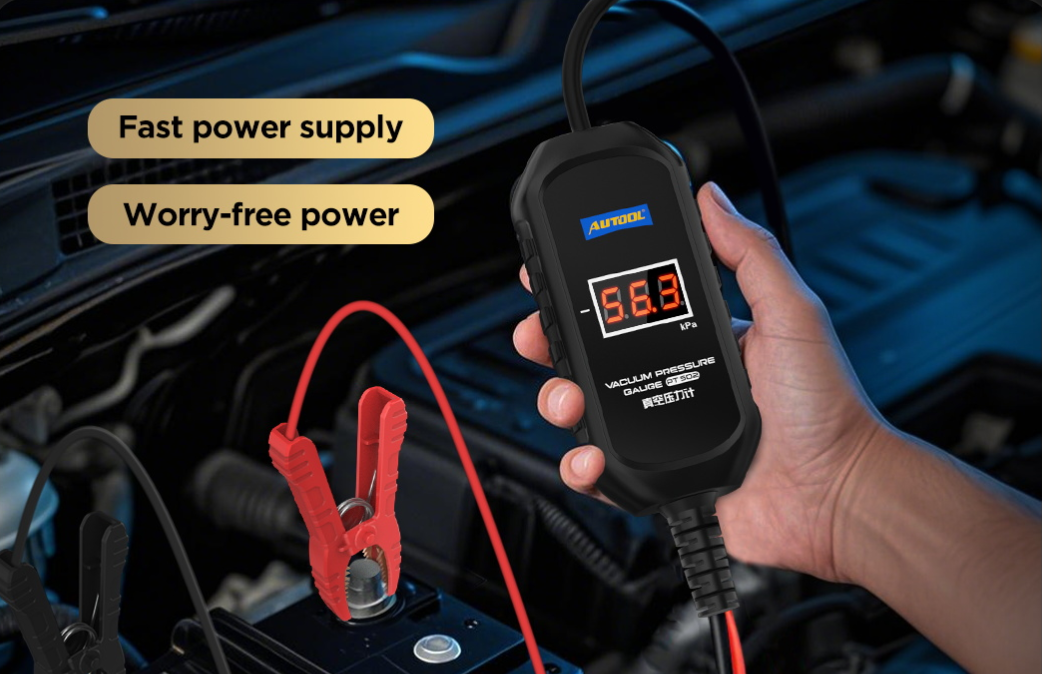

Did you know? With a digital vacuum pressure gauge, you can quickly assess the health of an engine! An engine essentially functions as a large air pump. As the pistons move up and down, they create low-pressure zones within the intake manifold and cylinders, drawing in air to enable combustion. This vacuum created during the intake process is critical to the engine’s normal operation. If the system develops a leak or poor sealing, it can lead to a series of issues such as rough idling, increased fuel consumption, and reduced brake booster performance. At times like these, a high-precision car vacuum pressure gauge can help technicians swiftly pinpoint the source of the problem, significantly improving repair efficiency. In this article, we’ll take a deep dive into the AUTOOL PT502—AUTOOL’s latest automotive vacuum gauge—and show you how it can help you accurately and efficiently monitor your engine’s vacuum status.

How a Vacuum Pressure Gauge Works

AUTOOL PT502 digital vacuum gauges use a built-in high-precision pressure sensor to monitor the negative pressure (vacuum) status within the vehicle system in real time. When the engine is running, components such as the intake manifold, EGR valve, and crankcase ventilation system generate a certain level of vacuum pressure. The vacuum test gauge can be connected to the vacuum ports of these systems via its sensor, allowing it to detect and quantify changes in vacuum pressure accurately.

The sensor converts the detected pressure into an electrical signal, which is then processed and analyzed by the built-in digital processing chip. The current vacuum pressure reading is clearly displayed on the digital screen in units of KPa. The AUTOOL PT502 features a measurement range from -101 KPa to 0 KPa, with an accuracy of up to ±1% FS, fully covering the testing needs of most common automotive vacuum systems.

The automotive digital vacuum gauge has an intelligent temperature compensation system that adjusts its sensor output as the ambient temperature changes. This ensures that measurement data remains accurate even in high or low temperature conditions. This feature is especially useful in variable working environments such as workshops or outdoor settings.

Why Choose the AUTOOL PT502 Over a Traditional Vacuum Gauge?

Traditional vacuum gauges are mostly mechanical with pointer-type structures. While they are low-cost and simple in design, they have clear limitations in terms of accuracy, response speed, durability, and versatility. In contrast, the digital AUTOOL PT502 vacuum gauge offers significant upgrades across multiple aspects, making it a more ideal choice for today’s professional automotive technicians.

  • Higher Accuracy, Lower Error
    With a precision electronic sensor and ±1 % FS accuracy, the PT502 delivers faster, more reliable readings than any spring-style gauge.

  • Digital Display for Clear Readings
    The backlit screen shows real-time vacuum values—no more peering into a dark engine bay or guessing pointer positions.

  • Intelligent Temperature Compensation
    Automatic correction for ambient temperatures from –10 °C to 60 °C keeps your data accurate whether you’re indoors or out.

  • Multi-System Compatibility
    Beyond intake manifold tests, the PT502 works on EGR valves, PCV systems, turbo wastegates, HVAC dampers, and more—one tool for all your vacuum diagnostics.

  • Enhanced Power Protection
    Powered directly from any 12 V vehicle battery, the PT502 features reverse-polarity protection. Hook it up backwards by mistake, and it still survives.

Portable Vacuum Gauge Application Scenarios

The AUTOOL PT502 vacuum test gauge is specially designed for diagnosing automotive vacuum systems and is suitable for a variety of daily workshop maintenance situations. Here are six typical applications:

Application Symptoms How the PT502 Helps
Intake Manifold Leak Detection Rough idle, misfires, poor acceleration Verifies manifold vacuum levels, pinpoints leaks
Brake Booster System Inspection Hard brake pedal, increased stopping distance Tests booster pump and check-valve vacuum
EGR Valve Function Check Emissions warnings, engine light activation Confirms vacuum activation threshold
PCV (Crankcase Ventilation) System Test Oil leaks, abnormal fuel consumption Detects blocked hoses or PCV valve failure
Turbocharger Control Line Leak Diagnosis Loss of boost, reduced power Checks wastegate/throttle control vacuum
HVAC (Climate Control) Vacuum Check Slow or unresponsive vent flaps Measures vacuum supply to damper controls

Why is the AUTOOL PT502 the Preferred Tool for Vacuum System Diagnostics?

The AUTOOL PT502 vacuum test gauge integrates multiple advanced technologies, including high-precision electronic sensors, digital display, and intelligent temperature compensation. It not only overcomes the common limitations of traditional mechanical vacuum gauges in terms of accuracy, readability, and adaptability but also offers stronger system compatibility and reliability. As a result, it has become an indispensable diagnostic tool in modern automotive repair.

Whether you’re checking for intake manifold leaks, evaluating brake booster performance, or diagnosing vacuum issues in the EGR, PCV, turbo, or HVAC systems, the PT502 delivers accurate, stable, and fast pressure readings. It helps technicians quickly pinpoint problems and improve repair efficiency.

If you’re looking for a reliable, versatile, and easy-to-use digital car vacuum pressure gauge, the AUTOOL PT502 is your ideal choice. If you have any questions or would like to learn more about automotive vacuum gauges, feel free to contact our online customer service.
