AUTOOL BT380 12V Car Battery Tester & Car Battery Charged Tool Automotive Battery Tester Analyzer Vehicle Power Bank CCA2400
BT380 is an instrument that supports both testing and recharging of vehicle batteries. It adopts the most advanced conductance measurement technology, which can easily, quickly and accurately test the vehicle starting system, vehicle charging system and vehicle battery as well as recharge the 12V vehicle battery.
How to use?
1.It is necessary to connect the 220V power supply when charging the battery. When you test the battery, just use battery clip to connect vehicle batteries;
2.When using the battery test function,choose the battery type and the battery parameter;
3.When using the cranking test function, cranking the vehicle and wait a moment for the result;
4.When using the charging function,increase the speed to 2500 and hold for 5s, and press OK then wait a moment for the result;
5.Select the multi-languages function,this device supports 8 languages.
BT380 includes Japanese, English, Russian, German, Spanish, Polish, Portuguese, Korean version.Other languages can also be customized according to user needs.
AUTOOL BT380 Car Battery Tester Features:
Input voltage: 100VAC-240VAC;
Charging voltage: 14.70V;
Maximum charging current: 3A;
Power requirements: No built-in battery is required. Lights up when connected during the test;

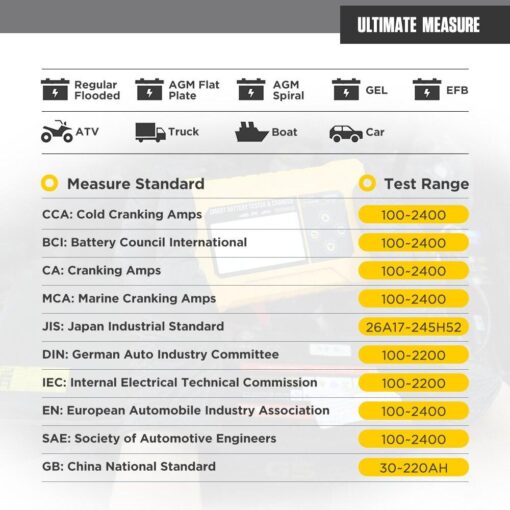

Testing: CCA100〜2400 , BCI100-2400,CA100-2400,MCA100-2400,JIS26A17-245H52,DIN100-2200,IEC100-2200,EN100-2400,SAE100-2400;
AH, range: 30-220AH;
Operating temperature: -20°C-50°C;
Note: CCA100-2400,30-220Ah, this is the highest CCA in the market.
1pc * BT380 Main Unit;
1pc * Battery Clamp Cable;
1pc * User Manual.
Please do an inspection according to the following methods before you turn on the device. Method 1: Please check whether the negative terminal and the positive terminal are connected correctly, then ensure the battery and the tester are in good contact. Method 2: please check whether the voltage of your battery is within our device measurable range.
We suggest you having a product inspection according to the following methods firstly. Method 1: Please check whether the power clip accurately connect the right position of the battery terminal; Method 2 : please use other battery testing devices to test your battery and compare results to see whether it is within the error range; Method 3: please perform function calibration on AUTOOL battery tester, but currently only BT460 and BT760 have this function.
BT360 can support 24V battery testing in series, but you need to divide it into two 12V batteries for testing firstly.
We are sorry that AUTOOL battery testers can’t test deep cycle batteries. As for solar cells, it’s suggested to provide us with specific battery parameters, then we will get back to you soon.
AUTOOL battery tester can’t test lithium iron batteries.
AUTOOL battery tester can test Start/Stop batteries as long as battery parameters are within measurable range. If you are not sure yours, we’d like to help you to confirm after you provide us the battery parameters.
AUTOOL battery testers can test most of motorcycle batteries, but it also depends on specific situations. You need to check weather your battery is within the measurable range. We recommend BT460 battery tester for you, which has a wider testing range.
You don’t need to set the language every time after the first set. If you wanna switch to another language, it’s convenient to operate.
BT380 adopts the intelligent charging mode, which will adjust the charging capacity according to the change of the battery power, and it will stop charging automatically after full charge.
AUTOOL battery testers can test tractor batteries, but it’s suggested to provide specific battery parameters for reference first.
