Name: AUTOOL Automotive Inspection Camera Borescope Camera
Brand: AUTOOL
SKU: MMT577-1
Availability: InStock

The AUTOOL SVB Automotive Inspection Camera is a key product recently launched for the global automotive aftermarket. This design specializes in inspecting hard-to-reach, narrow, and curved spaces, including automotive evaporators, combustion chambers, and catalytic sensor areas. The product features a Four-way or two-way (360°/210°) bidirectional rotation and detection function, along with a unique high-temperature alarm function. Users can insert the ultra-thin probe into tight spaces and view video and images on the screen, meeting the diverse inspection needs of various scenarios.

Working Principle

The AUTOOL Automotive Articulating Borescope utilizes optical and electronic imaging technologies. The front of the device is equipped with a miniature camera and an LED light source, which illuminates the target area and captures images. The camera transmits the image signal via fiber optics, cables, or wirelessly to a display device. After decoding, the signal is shown in real-time on the screen. Some models support functions such as image magnification, image inversion, and video/photo recording. The flexible probe is bendable, making it suitable for accessing complex, narrow structures. The automotive borescope is widely used for engine wear detection, pipeline blockage inspection, and hidden wiring observation, making it an essential tool for efficient and non-destructive testing.

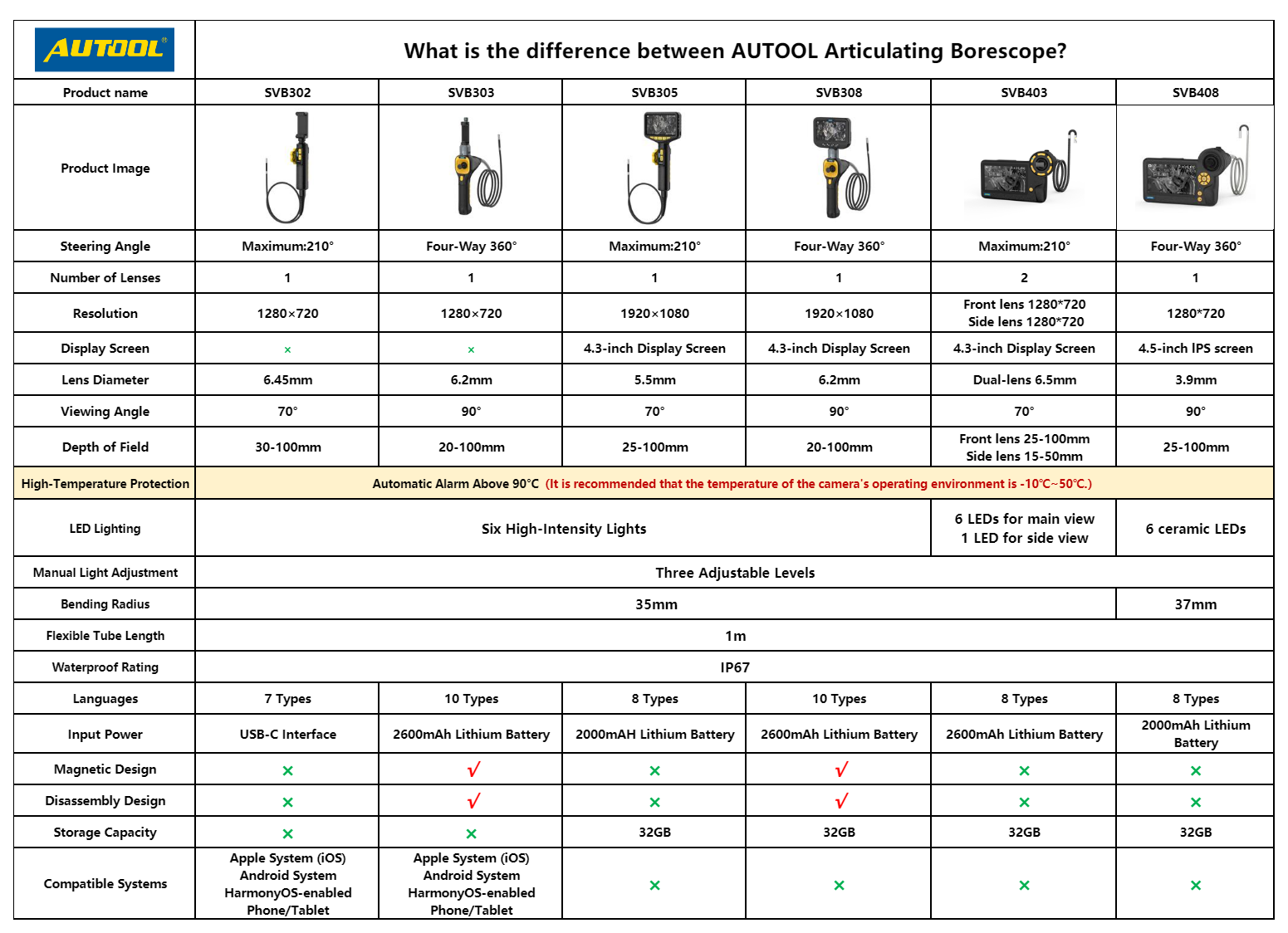

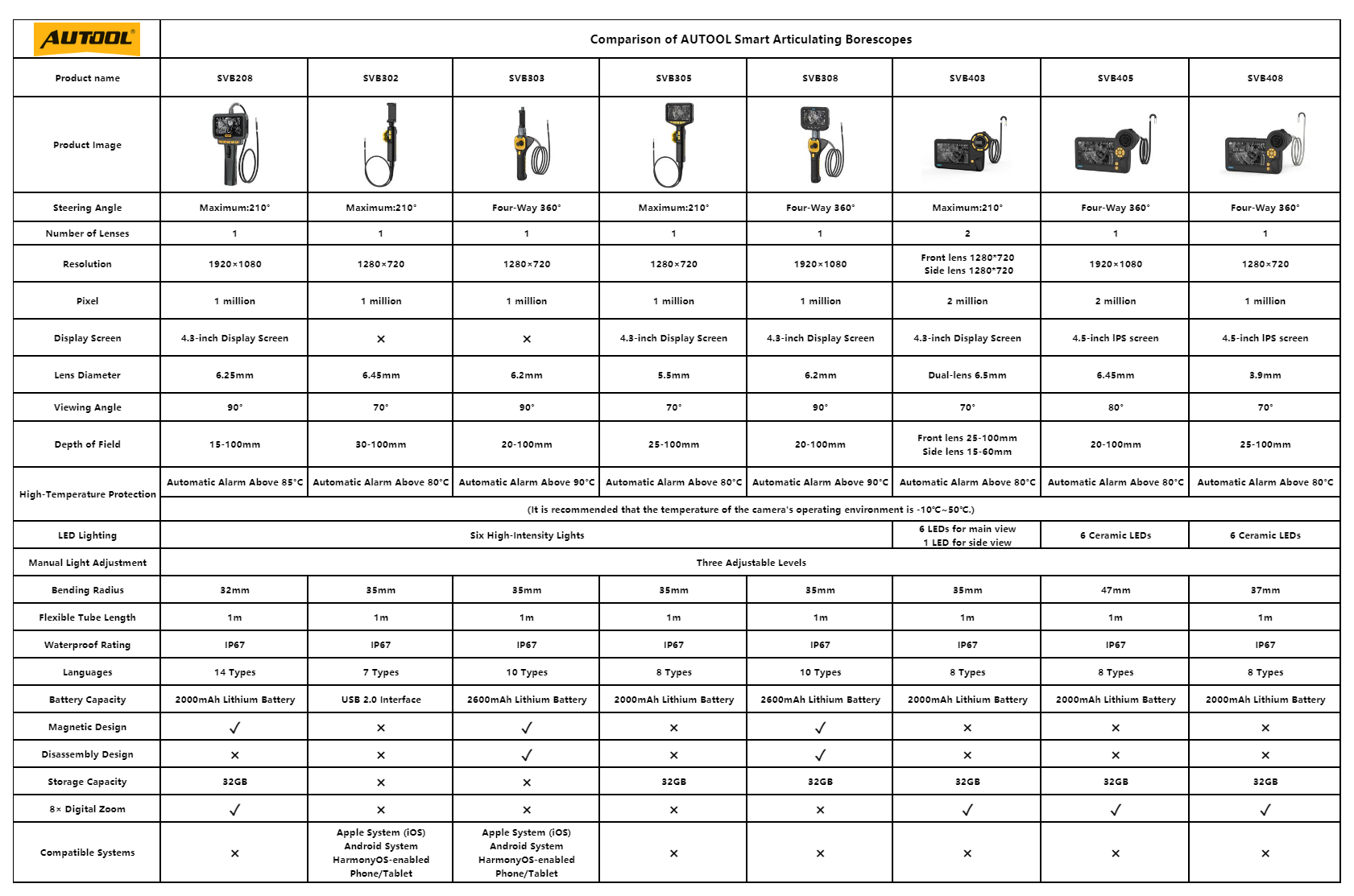

AUTOOL Automotive Inspection Camera Comparison

How to Choose SVB Series Products?

I need one with a screen.

We recommend the SVB305/308/403.
These come in handheld and landscape versions.

I need one that connects to my phone.

We recommend the SVB302/303.
The SVB302 supports 210° bidirectional probe rotation.
The SVB303 supports 360° quad-directional probe rotation.

I want a camera that can rotate.

SVB302/305/403 supports bidirectional 210° rotation.
SVB303/308 supports four-way 360° rotation.

Can the device take photos and record videos?

It supports one-click photo and video recording, with the ability to review footage repeatedly. It comes with a 32GB memory card and a high-capacity battery, offering up to 3 hours of continuous use.

Can the photos and videos be downloaded?

Yes, we provide an app and memory card for exporting work examples at any time.

How do I download and use the app?

The manual includes a QR code. Scan it with your phone to download the app, then connect the phone using the original data cable and follow the on-screen instructions.

⚠️ Must Read Before Use

The automotive inspection camera lens is not resistant to high temperatures. For optimal use, wait until the engine has completely cooled down, which usually takes 1 to 2 hours. Avoid placing the hose in environments above 75°C to prevent damage.
The flexible hose is removable for easy replacement. Simply unscrew the screw on the AUTOOL logo to replace it.
To protect the endoscope, avoid using it immediately after the car has stopped or when the engine is still hot. Engine temperatures can range from 80°C to 100°C or higher, which can damage the camera. If damaged by high temperatures, you will need to pay 45 USD for a replacement.

🔔 Warm Tips

Do not allow any liquid (e.g., motor oil) to penetrate the screen, as it will cause damage. If this occurs, you will need to purchase a replacement screen at your own expense. To purchase, click the link below>>

AUTOOL Automotive Inspection Camera Functions

The functions of different models vary slightly. For details, please refer to the individual links for CT series products.

Function

Rotatable Lens: This adjustable endoscope features a joystick control design and is equipped with a 210°/360° rotating lens, allowing flexible access to narrow, curved spaces.
Detachable Design: The hose and display screen are detachable for easy storage and portability.
Equipped With A 1080P HD Camera And 6 LED Lights: Provides accurate and detailed feedback through high-resolution imaging. Ensures clear visibility even in low-light or dark environments.
Detailed Design: Large-sized display screen, built-in storage card, supports JPG image and AVI video recording functions. The powerful magnetic base facilitates storage after use.
IP67 Waterproof: The endoscope camera meets the IP67 waterproof rating, offering waterproof and oil-resistant performance, suitable for humid pipeline environments.
High-Capacity Lithium Battery: Built-in high-capacity lithium battery supports extended use and supports Type-C charging. Additionally, the battery is removable, allowing for easy replacement when needed.
High-Temperature Protection: The device automatically shuts down when the on-site temperature exceeds 90°C, protecting the snake-shaped camera from prolonged high-temperature exposure.
Multi-Language Support: Supports English, French, Spanish, Russian, Traditional Chinese, Korean, Italian, German, Simplified Chinese, and Japanese.
3-Year Warranty: We guarantee free replacement parts for any damage caused by non-human factors within 3 years.
