AUTOOL XC503 Export Mode Car 3D Wheel Alignment Machine Equipment Wheel Aligner

AUTOOL XC503 3D wheel aligner adopts advanced 3D imaging positioning technology and body-based measurement technology, real-time and high-precision detection of wheel alignment data, which is more accurate and stable in general; Professional wheel alignment measurement technology, fast and simple operation; No station space is required, and it is not limited by the lifting platform and space to meet the needs of various use sites; It has strong database support with continuous updating; It is adapt to tire stores, repair garages, automobile 4S stores, etc., with stronger applicability and wider coverage.

Warm Tips

• The 3D four-wheel aligner uses AC mains power 1PH AC220V±10% 50Hz or 1PH AC110V±10% 60Hz. Regularly check whether the power connection line is in reliable contact and whether it is damaged. If the power supply voltage is unstable, please equip yourself with an AC voltage stabilizer.
• After vehicle maintenance is completed, all loose bolts and components need to be checked and tightened as required to ensure safety.
• The 3D wheel aligner uses computer vision technology to identify the target mounted on the wheel through a high-resolution camera. Therefore, when the instrument is working, avoid blocking the light path between the target and the camera for a long time.
• The 3D wheel aligner cannot be installed on a vibrating object or an inclined plane, and it should be protected from direct sunlight and moisture.
• The target of the 3D four-wheel aligner is a key component for testing. Its structure must not be damaged during use and storage, and the surface of the target must be kept clean. If stains occur, please wipe them with a soft cloth dipped in an appropriate amount of neutral detergent or absolute alcohol.
• The wires in the 3D wheel aligner column and the camera beam are tightly connected. After initial installation, do not touch the wires at will.
• The camera has been accurately calibrated before leaving the factory. Users are prohibited from opening or adjusting the camera at will, whether during or after use!
• It is prohibited to dismantle columns, beams, and targets without the authorization of the manufacturer to avoid damage to components, affect detection, and increase the difficulty and cost of maintenance. Our company will not provide a warranty for damage caused by unauthorized disassembly.
• When installing the wheel clamp, you should choose the installation method flexibly and correctly according to the actual situation of the rim; use even force when tightening, and gently pull the wheel clamp after tightening to confirm whether the wheel clamp is firmly installed.
• The camera of the 3D wheel aligner is a key optical component for inspection. Keep the filter surface clean; if stains appear, please wipe them gently with lens paper.
• When using each knob, you must use even force and tighten it appropriately. Do not use excessive force to avoid damaging the locking mechanism or causing other damage.
• After use, please cut off all power sources promptly.
• Do not operate the wheel alignment system in a flammable or explosive environment.
• Operators must provide appropriate fire protection measures at the measuring platform. In particular, you must not push the
• If any flammable or self-combustible materials (such as cloths stained with oil or flammable solvents) are stored in the vehicle, keep the equipment away from sources of fire.

AUTOOL XC503/XC505 User Manual Download>>

AUTOOL 3D Wheel Aligner Machine Quick Search

• AUTOOL XC503 3D Wheel Aligner Machine >>
• AUTOOL XC505 3D Wheel Aligner Machine>>
• AUTOOL XC508 3D Wheel Aligner Machine >>

AUTOOL XC503 3D Wheel Alignment Machine Features

• High Precision Technology: The AUTOOL XC503 3D Wheel Alignment Machine adopts high-precision technology to accurately receive data and signals, eliminating the inconvenience of cable dragging, charging, battery replacement, and signal failure.
• Dual Indication of Sound and Light: The AUTOOL XC503 3D Wheel Alignment Machine guides measurements through voice synchronization throughout the operation process, with an LED intelligent display. Operators can accurately complete alignment operations without needing to constantly look at the computer screen. The user can adjust the cart back and forth or left and right according to the camera indicator light, optimizing working efficiency.

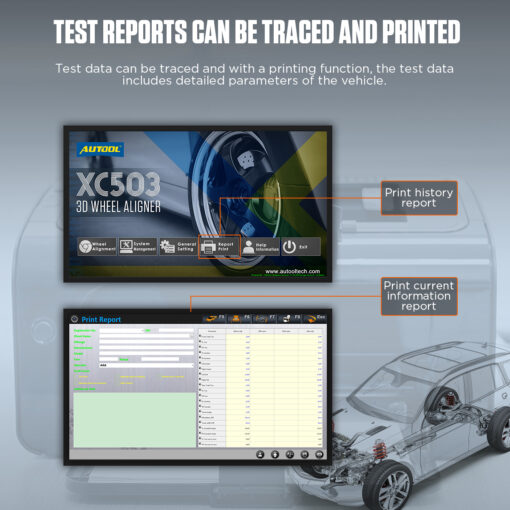

• Traceability and Printing of Test Data: The AUTOOL XC503 3D Wheel Alignment Machine provides traceable test data, including detailed vehicle parameters. Additionally, the aligner has a printing function, allowing for the printing of historical data, saving reports, and printing current information reports.
• Cost Savings: The AUTOOL XC503 3D Wheel Alignment Machine has a simpler system structure and fewer parts, resulting in a lower failure rate. After installation, the instrument only needs to be calibrated once, with a simple calibration process, without the need for periodic repeated calibration. The alignment technology requires no maintenance, greatly reducing usage costs.
• Multiple Languages: The AUTOOL XC503 3D Wheel Alignment Machine supports multiple language settings, including Chinese, English, Spanish, Russian, Arabic, Thai, Portuguese, and other national languages. There is no limit to language settings, making it more convenient to use.
• Expert Mode: The AUTOOL adopts an advanced aligner software system and built-in expert mode, making operation simple and fast, significantly saving valuable time. It can save more than 30% of the time compared to ordinary locators.
• Fixed Column: The AUTOOL XC503 3D Wheel Alignment Machine features a stable column design, ensuring a safer overall structure and a more fashionable appearance.
• Three-Year Warranty, Lifetime Maintenance:  For damage caused by non-human factors, AUTOOL promises to resend parts for free within 3 years. For any needs, you are warmly welcome to contact us and we will get back to you ASAP within 24 hours. Online Support>>
