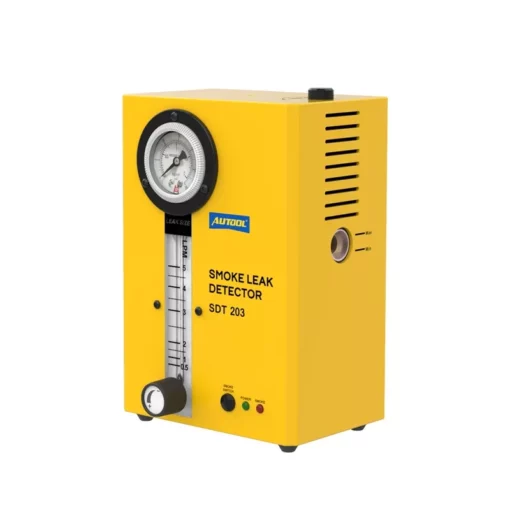

AUTOOL SDT203 Smoke Detector Machine For EVAP System
$139.00 – $179.00
For more discount and online support please click here.
- China can ship to all countries, Germany only to EU countries, the United States and Russia only to their own countries.
- Tax-free and fast free shipping from overseas warehouses in USA, EU, Russia for most products.
- Parcels shipped from China generally require the customer to pay shipping and customs duties.

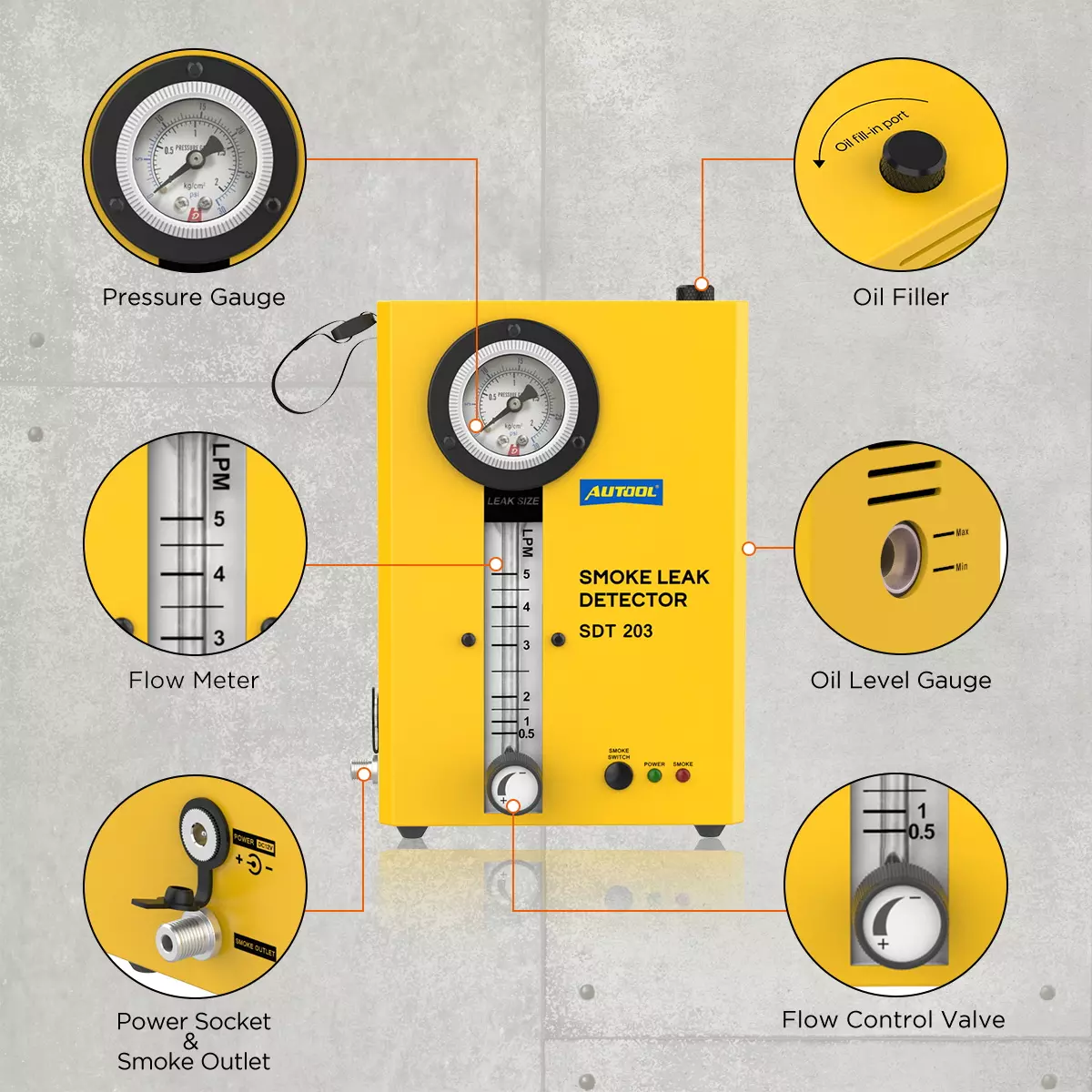

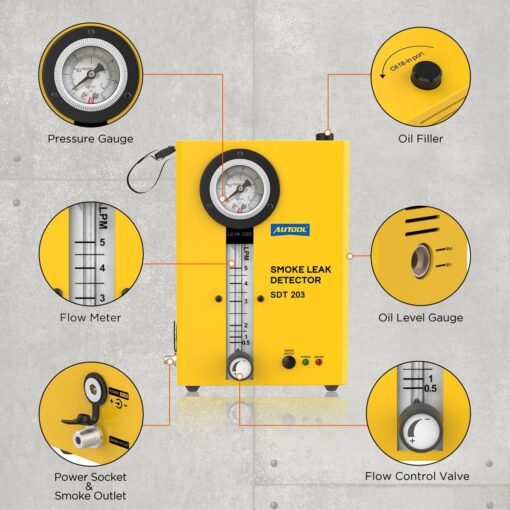

AUTOOL SDT203 Smoke Leak Detector is designed to detect leaks in vehicle air and fuel lines, with a built-in air pump and pressure gauge, flow meter, liquid level window, and other functions.
AUTOOL SDT203 is suitable for use on all cars, motorcycles, snowmobiles, off-road vehicles, beach cars, light trucks, and speedboats. beach cars, light trucks, and speedboats. It can greatly improve your efficiency when diagnosing vehicle faults. It is fast and easy to carry with the hook design.
Warm Tips
- Please note that the SDT series requires the connection of a 12V battery.
- When you use this AUTOOL SDT203 Car Smoke Leak Detector for the first time, fill it with 10-15ml oil. Please be careful NOT to beyond this range.
- Before use, gently turn the knob to open the airflow regulator valve.
- The testing liquid: both liquid paraffin and baby oil are OK.
- Fresh oil can be filled with only when the smoke gets thin, and it can’t be filled over 15ml each time.
- Before filling fresh oil, please pour out the left oil in the detector & replace the detector oil regularly.
- During the process of leak detection, please keep away from smoke-sensitive parts.
- Do not run the detector for over 8 minutes continuously. It needs interval rest.
- The detector has an intelligent protector, if it exceeds the working limit, such as over 75 ℃, it will automatically turn off the power. In this case, please operate it later.
- The round part of this detector has temperature, please be careful to avoid burns.
AUTOOL SDT203 User Manual Download>>
Autool Smoke Detector Machine Quick Search
- AUTOOL SDT50 Smoke Detector Machine>>
- AUTOOL SDT60 Smoke Detector Machine>>
- AUTOOL SDT101 Smoke Detector Machine >>
- AUTOOL SDT103 Smoke Detector Machine >>
- AUTOOL SDT106 Smoke Detector Machine >>
- AUTOOL SDT202 Smoke Detector Machine >>
- AUTOOL SDT203 Smoke Detector Machine >>
- AUTOOL SDT205 Smoke Detector Machine >>
- AUTOOL SDT205S Smoke Detector Machine >>
- AUTOOL SDT206(Modified Version) Smoke Detector Machine >>
- AUTOOL SDT208 Smoke Detector Machine >>
AUTOOL SDT203 Smoke Detector Machine Features
- Fast smoke output: smoke output within ten seconds, greatly improving your efficiency in the test.

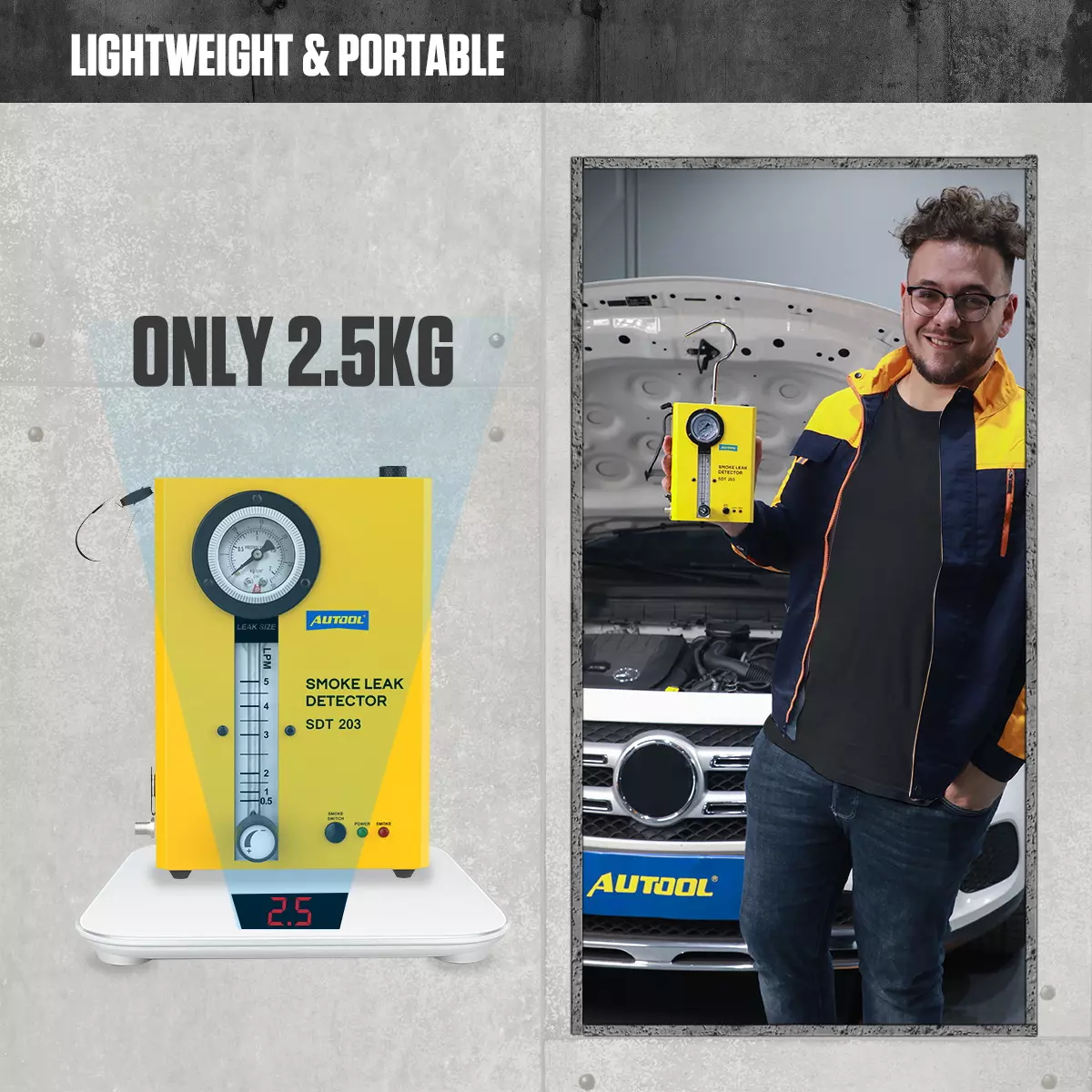

- Compact and Portable Design: Most smoke leak detectors on the market are too large to be easily transported and stored, Autool has designed this smoke leak detector to be small, lightweight, and portable. With a hook and loop design, a cone adapter, and an airbag adapter to fit most air inlets, this is an indispensable tool.

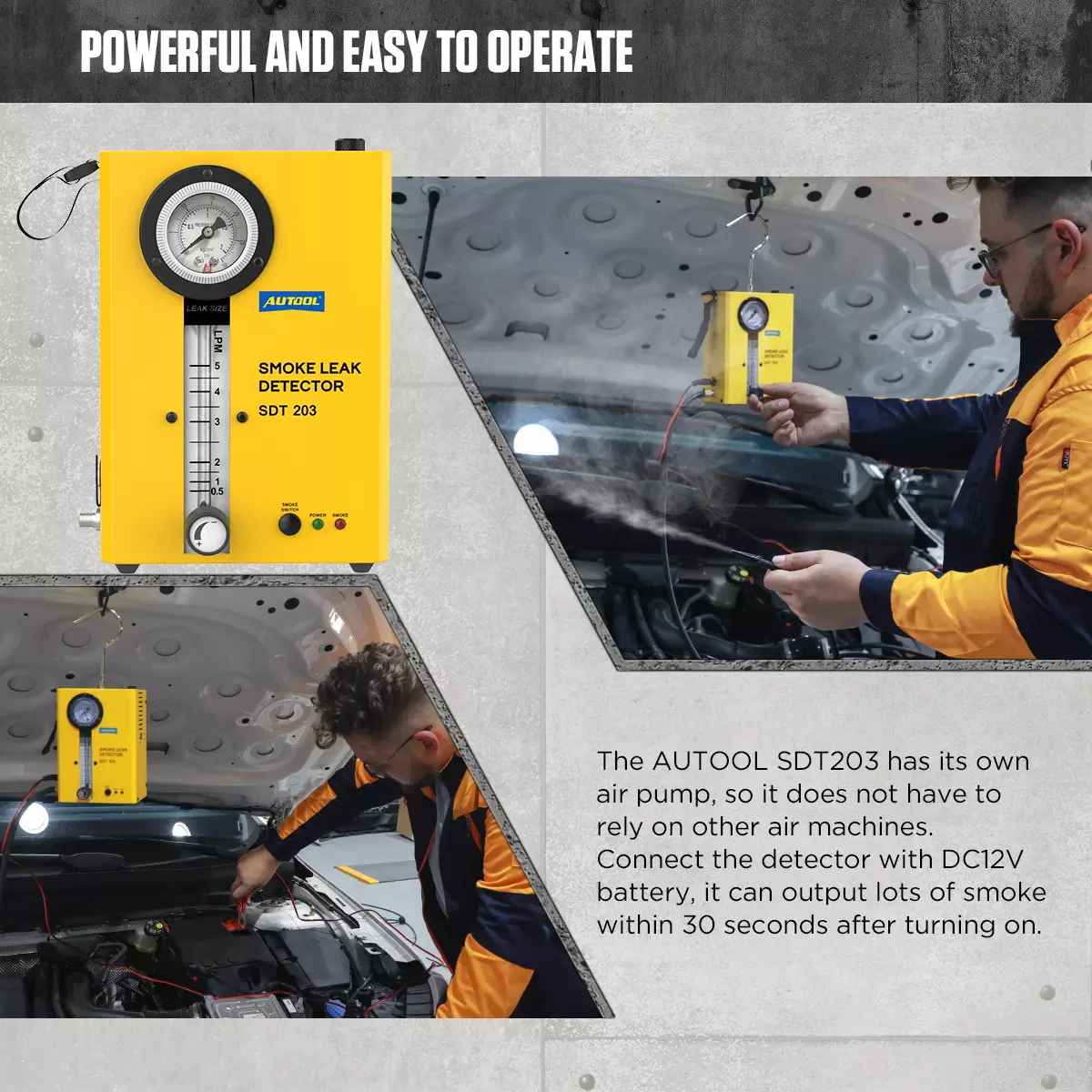

- Built-in Air Pump: Customers do not need to purchase additional air pumps, we use high-quality materials, after many tests, please rest assured to use. You can save more time and money
- External Pressure Gauge: You can observe the barometer to more accurately determine whether the car pipeline is leaking. If the barometer index keeps increasing, there is no problem with your car’s pipeline. If the barometer index keeps decreasing, your car’s pipeline leaks need to be repaired, and there is a barometer test. Leakage is faster and more accurate
- External Flow Meter: You can easily control the air pressure because the air pressure of each pipe in the car is different. If the air pressure is too high, the pipe will be damaged, and if the air pressure is too low, the leak will not be detected. Therefore, the flow meter is very important to protect your detection system more effectively. Make testing safer

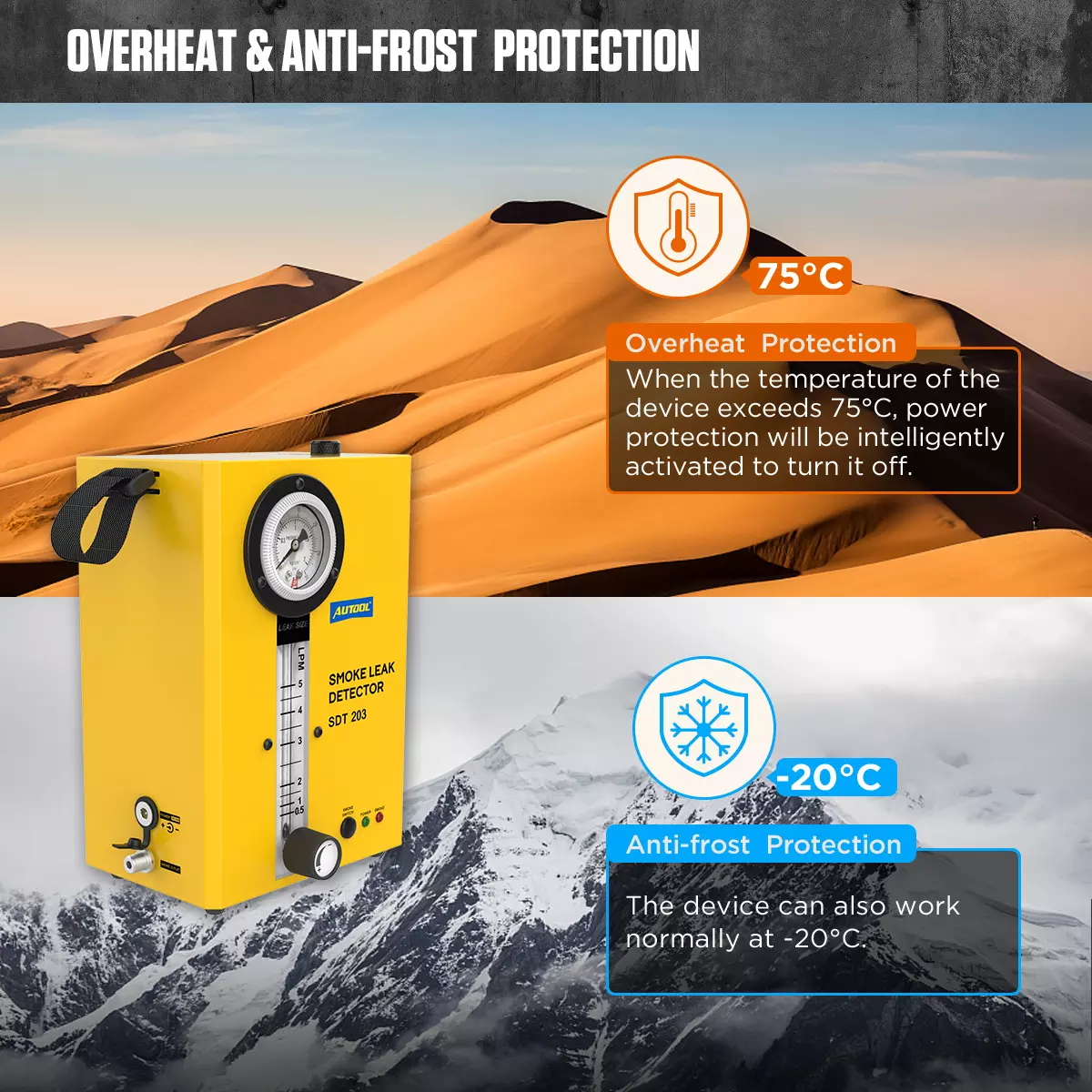

- Overheat and anti-freeze protection: The Autool SDT203 Smoke Detector Machine is equipped with the latest intelligent protection devices. When the temperature exceeds 75℃ the protection device will only activate and shut down the power supply to protect the operator and the equipment. Not only is it protected against high temperatures, but it is also suitable for low-temperature operation.
- Wide Range of Applications: The AUTOOL SDT203 Smoke Leak Detector is suitable for detecting leaks in automobiles, motorcycles, snowmobiles, ATVs, ATVs, light trucks, and speed boats, suitable for all models(only for 12v DC).
- 3-Year Warranty: For damage caused by non-human factors, we promise to reissue parts free of charge within 3 years.

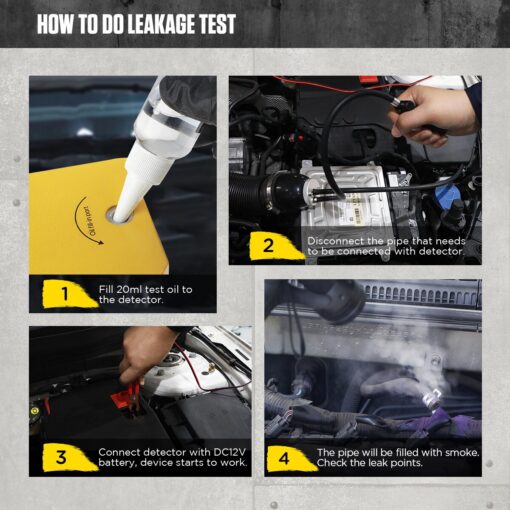

How To Use The AUTOOL SDT203 Smoke Detector Machine?
- Step 1: Fill 10-15ml baby oil into the detector for the first time. Open the engine cover, and hang the detector in the cover.
- Step 2: Disconnect the pipe that needs to be connected to the detector.
- Step 3: Connect the detector with the DC12V battery, turn on the power switch, and the detector starts to work.
- Step 4: In about 30 seconds, the pipe will be filled with smoke. Check the leak points. Please use a headlamp if necessary.

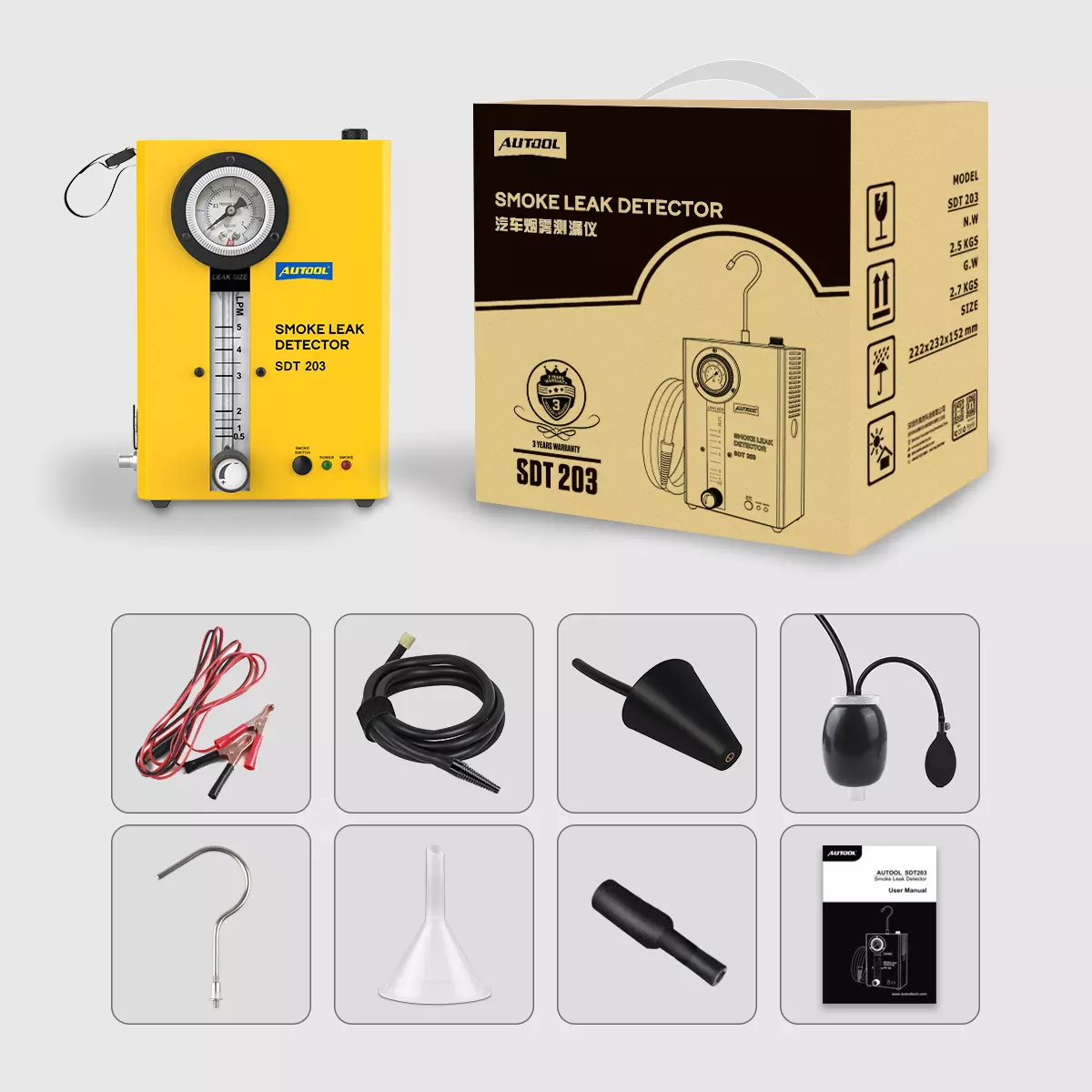

Packing List:
- 1pc * AUTOOL SDT203 Car Smoke Leak Detector main unit
- 1pc * Power Cord Clamp
- 1pc * Smoke Hose
- 1pc * Standard Cone Adapter
- 1pc * Universal Airbag
- 1pc * Hard Rubber Hose Plug
- 1pc * Hook
- 1pc * Funnel
- 1pc * User Manual
FQA
If you can’t find a professional test oil, you can buy liquid paraffin or baby oil at your local store as test oil.
It’s suggested to add 10-20ml testing oil for the first trial. Please drain some testing oil out if you add too much accidentally. You can reuse the extra next time.
Since the auto A/C system is not an ordinary pipeline system, the output pressure generated by the air-conditioning compressor is 1.7-3.0Mpa, while our smoke leak detectors can only generate 0.1 Mpa output pressure. So the smoke leak detector cannot directly test the auto A/C system for leaks. You can use our machine to perform segment-assisted testing for air-conditioning pipelines.
First, press the air pump into the air-conditioning pipeline to increase the system pressure, and then spray the smoke along the air-conditioning pipeline. At the same time, carefully observe whether the smoke is blown up by the airflow. If there is, it means that the location is a leak point, you can repair later.
AUTOOL smoke leak detectors can test leaks in the EVAP system. We have equipped professional fuel EVAP testing tools in the package, you can choose proper tools to test.
In the AUTOOL smoke leak detector series, SDT101, SDT103 are specially designed for automotive EVAP systems with 3.2Kpa output pressure; SDT106 and SDT202 are designed for beginners with 12 psi output pressure. SDT203, SDT205, SDT205S are standard versions with 15 psi output pressure; SDT206, SDTMASTER are high-end versions with 15 psi output pressure. SDT208 supports up to 35Psi.
Our products are made of different materials with different functions, so the prices are also different. You can visit our official websites for details if you are interested.
All AUTOOL smoke leak detectors adopt 12V car battery power, which is safe to operate and easy to get power. You can use our device safely without worrying about security issues.
The pressure of most AUTOOL smoke leak detectors cannot be adjusted except SDT MASTER.
Considering some automobile pipelines cannot carry too much pressure, our technicians set the pressure to a safe value of 0.1MPA before products leave the factory in order to protect the automobile pipeline system, which can meet your common maintenance and testing needs.
Different models of AUTOOL smoke leak detectors have different accessories. Generally our package will include 6-75mm hard rubber kits, cone adapter, airbag adapter, EVAP testing tools, smoke hose, adapters, power cable, test Oil Bottle, user Manual, warranty, certificate of qualification etc.
We promise up to three years warranty after your purchase. Today we sell 200,000+ machines online and offline in 160+ countries and regions. You can rest assured to purchase our smoke leak detectors since we have stable quality and reliable after-sales service.

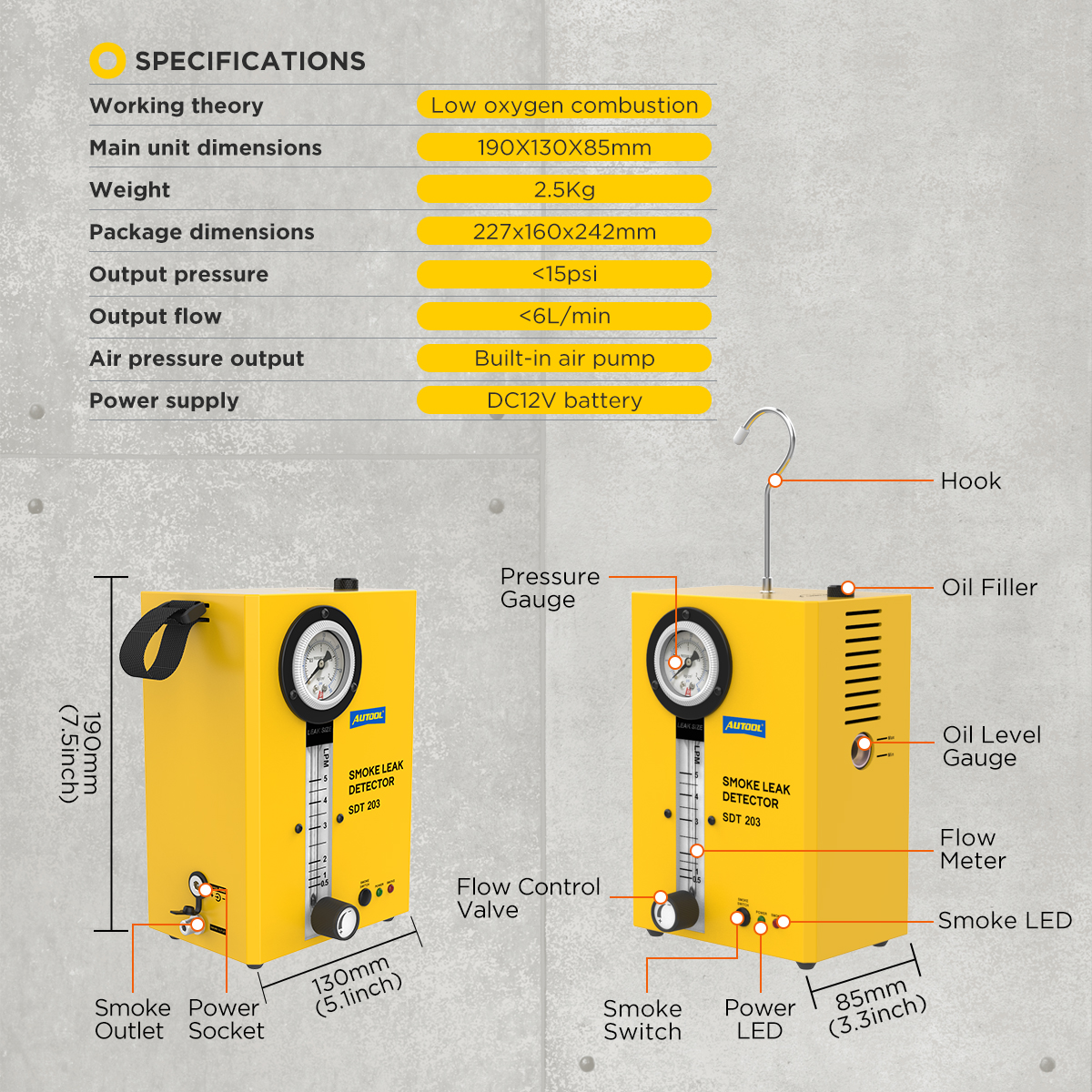

SPECIFICATIONS
- Brand Name: AUTOOL
- Origin: CN(Origin)
- Material: Metal & Plastic
- Wegit: 2.5KG
- Size: 25*20*30cm

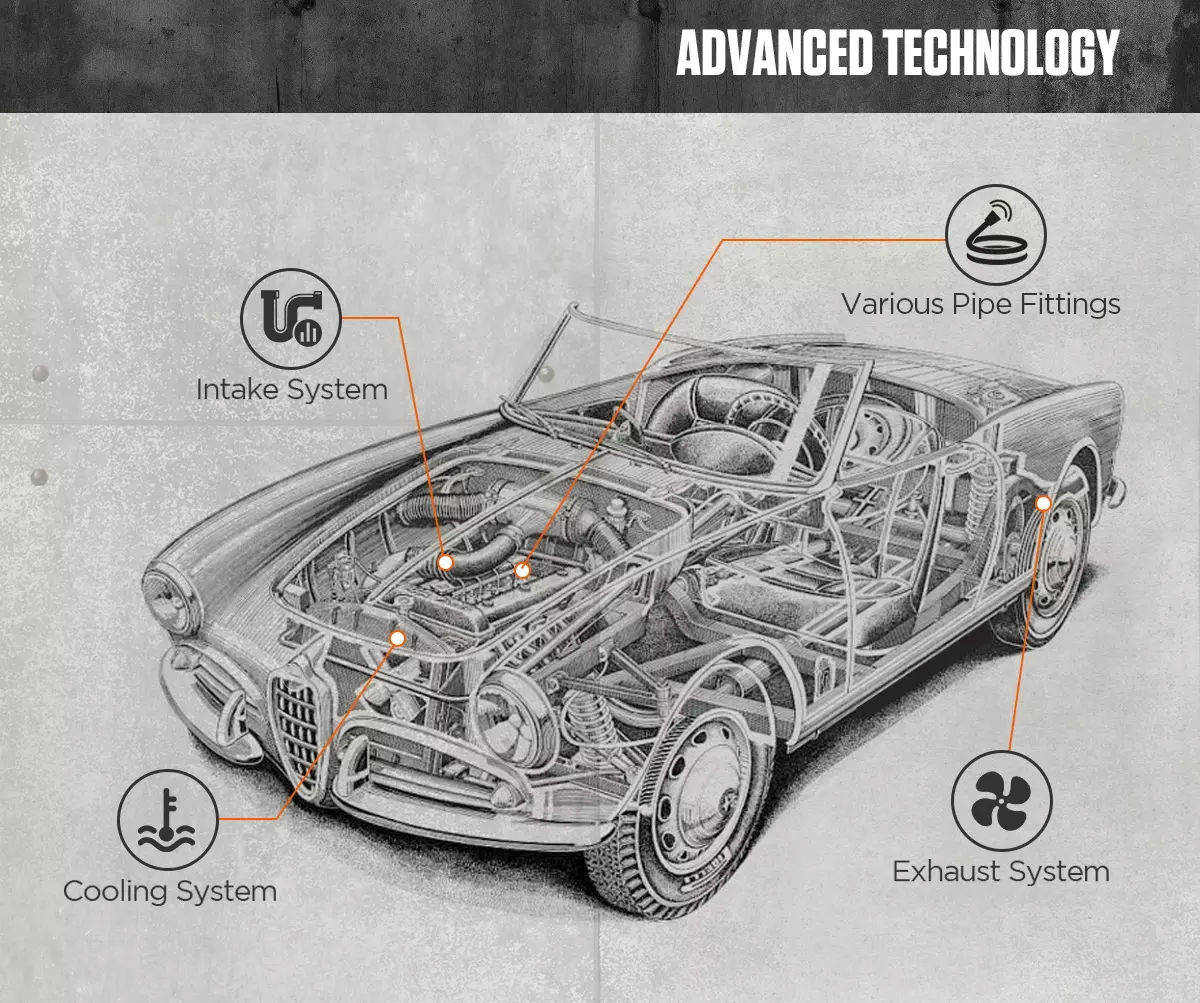

- Features: automotive air intake, fuel, cooling, and EVAP system.
- Item Type: EVAP system detector
- Oil: Baby oil or olive oil
- Function: For pipeline leak detection
