EV Battery Pack Air Tightness Tester

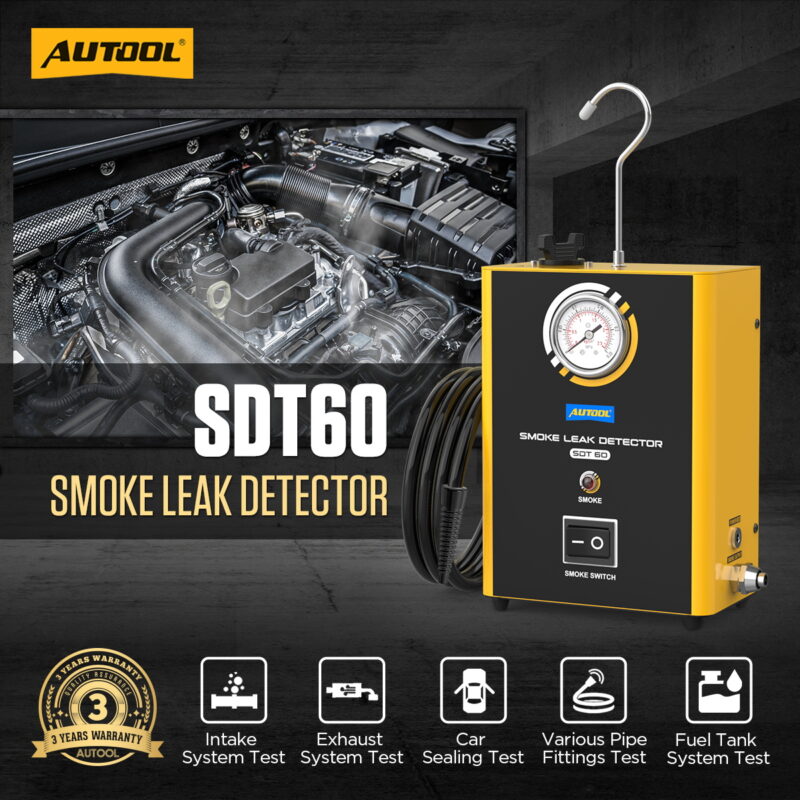

Automotive Smoke Leak Detector for EVAP Smoke Tests SDT60
$99.00
- Built-in air pump: AUTOOL SDT60 automotive smoke leak detector No need for a separate air supply!
- Equipped with a pressure gauge: You can quickly determine the degree of leakage of the pipeline by observing the pressure change.
- Service and quality: provide a three years warranty. Online Support>>
For wholesale prices and more discounts click here.
The AUTOOL SDT60 Automotive Smoke Leak Detector is your go-to tool for detecting leaks in automotive systems.
Compact, portable and efficient, this lightweight EVAP fog machine offers unrivaled convenience and accuracy. Weighing only 1.5kg, the SDT60 automotive smoke detector has a built-in air pump, requires only 12V power to operate and comes with a pressure gauge to quickly detect leaks, allowing you to quickly diagnose car engine faults in a variety of situations.
🗣️You may want to know.
⚠️Warm Tips
- Please note that the SDT series requires the connection of a 12V battery.
- When you use this AUTOOL SDT60 Car Smoke Leak Detector for the first time, fill it with 10-15ml oil. Please be careful NOT to beyond this range.
- Before use, gently turn the knob to open the airflow regulator valve.
- The testing liquid: both liquid paraffin and baby oil are OK.
- Fill new baby oil, recommended to fill about 10ml
- Before filling fresh oil, please pour out the left oil in the detector & replace the detector oil regularly.
- During the process of leak detection, please keep away from smoke-sensitive parts.
- Do not run the detector for over 8 minutes continuously. It needs interval rest.
- The detector has an intelligent protector, if it exceeds the working limit, such as over 75 ℃, it will automatically turn off the power. In this case, please operate it later.
- The round part of this detector has temperature, please be careful to avoid burns.
- Please note that the SDT60 needs to be connected to a 12V battery for use.
What is the Difference Between the AUTOOL New Smoke Leaks Detectors?
AUTOOL Automotive smoke tester Quick Search
-24%
HOT
$259.00 – $289.00
-14%
HOT
Original price was: $499.00.$429.00Current price is: $429.00.
AUTOOL SDT60 Auto Smoke Leak Detector Features
- Compact and lightweight: Weighing just 1.5kg, the SDT60 is extremely portable and easy to use in any environment, from the home garage to the professional workshop. The lack of storage space and reliable quality ensures you can diagnose in tight spaces and even on the go, making it an essential tool for efficient automotive maintenance.
- High-temperature protection: when the temperature reaches 75℃, intelligent power off to protect the machine.
- Low-temperature protection: The smoke detector machine can still work even if the temperature reaches -20℃.
- Built-in air pump: The SDT60 has a built-in air pump, eliminating the need for an external air source. This integrated design simplifies the setup process and ensures that you can start diagnosing immediately without additional equipment.
- Efficient Power Usage: Powered by a standard 12V power supply, the SDT60 can be easily connected to a car battery for operation, making it versatile and easy to use. Whether you’re in the shop or out in the field, the SDT60 is ready for action.
- Equipped with a pressure gauge: The user can quickly determine the degree of leakage of the pipeline by the change of the pressure gauge on the machine.
- Rapid Smoke Generation: Press the SDT60 Smoke Detector Machine switch for rapid smoke generation.
- Wide Range of Applications: The AUTOOL SDT60 Smoke Leak Detector is suitable for detecting leaks in automobiles, motorcycles, snowmobiles, ATVs, light trucks, and speed boats, suitable for all models(only for 12v DC).
- 3-Year Warranty: For damage caused by non-human factors, we promise to reissue parts free of charge within 3 years.
How To Use The AUTOOL SDT60 Automotive Smoke Machine?
- Step 1: Fill 10-15ml baby oil into the detector for the first time. Open the engine cover, and hang the detector in the cover.
- Step 2: Disconnect the pipe that needs to be connected to the detector.
- Step 3: Connect the detector with the DC12V battery, turn on the power switch, and the detector starts to work.
- Step 4: The pipe fills with smoke within 30 seconds, check for leaks. Check the leak points. Please use a headlamp if necessary.
Packing List
Specification
| Working theory | Low oxygen combustion |
| Power supply | DC 12V battery |
| Air pressure output | Built-in air pump |
| Rated output pressure | <10psi |
| Rated output flow | <5L/min |
| Rated power | 50W |
| Product weight | 1.6kg |
| Gross weight | 2.7kg |
Delivery
Customer Reviews
Based on 14 reviews
100%
(14)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
J
Outstanding little unit. Puts out under half a psi so it won't rupture the fuel tank. This was my first experience with a smoke machine. Used to cure small evap leak code on Mercedes ML350. It had a little crack on the seam of the gas neck. In a month, I'd not have found it without smoke. Thanks so much guys. Great job. It even shut itself off once (overheat protection) and reset after a little while.
J
The product is on the cover, the wait is not long, the product is shipped from China, the equipment is complete as advertised, the only thing missing is the oil, so I haven't tried
B
I'm the biggest fan of autool! autool has great quality products! I love the design and service of the autool brand and will be a frequent buyer!
M
Great product! I used it as soon as I opened it
A
All as described, excellent smoke generator. Works perfectly. Thanks to the seller for fast shipping and product! Just don't pour a lot of oil. 10-15ml the better.
