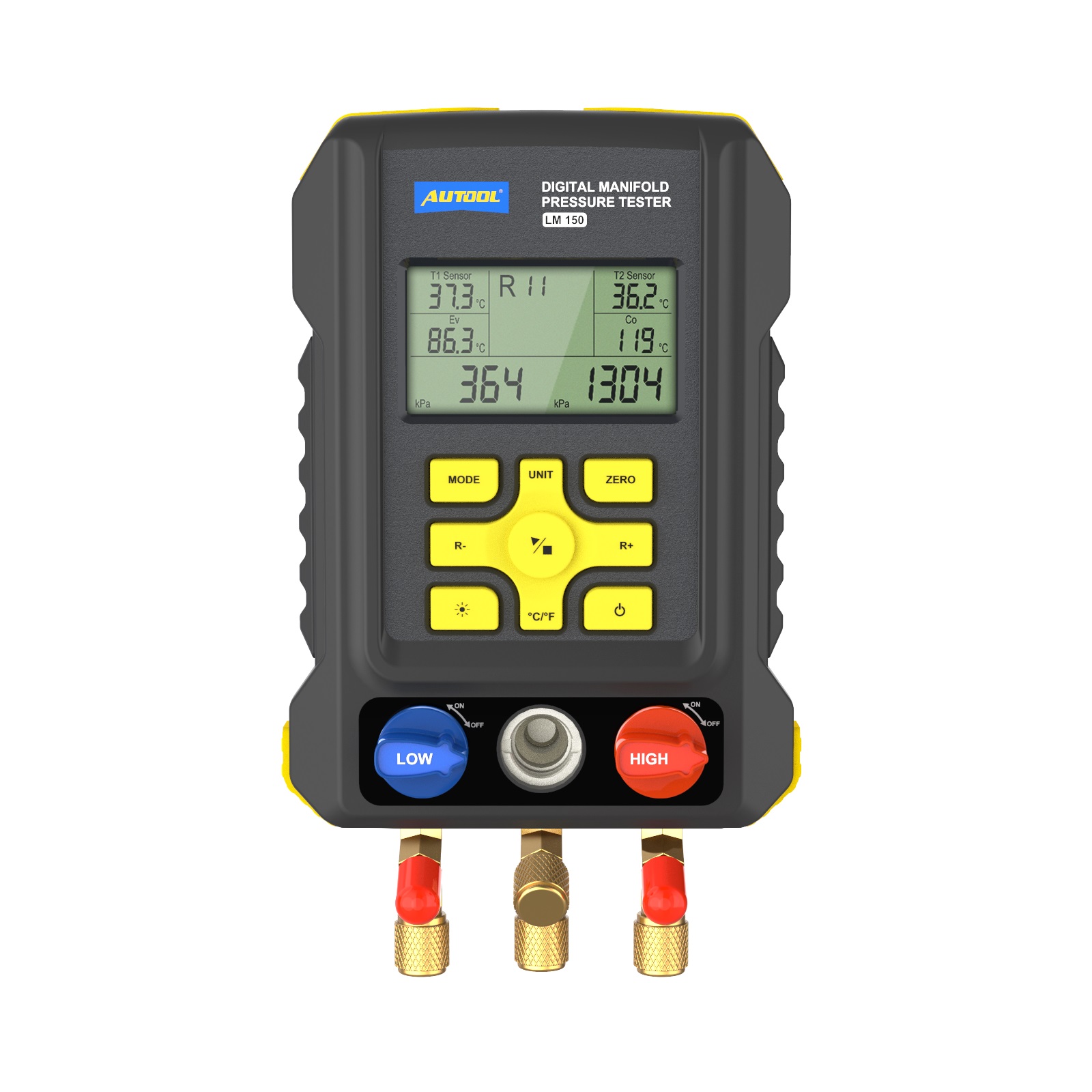

AUTOOL LM150 Refrigerant Digital Manifold Gauge Meter is an auxiliary instrument for the installation, testing, and maintenance of refrigeration equipment such as air conditioners and cold storage. It features dual pressure tests, dual temperature tests, digital readouts, multi-unit switching, multi-mode functionality, a built-in refrigerant database, and more. The instrument is designed with high-strength engineering plastics and flexible anti-slip silicone, making the whole machine sturdy and comfortable to hold. Built-in 32-bit digital processing unit and high-precision data acquisition unit, with high data and good stability. The large LCD screen supports LCD backlight, the data display is clear and easy to read, and it is light and easy to operate. The long-life valve switch and 1/4-inch standard interface design ensure the durability and versatility of the instrument.
This instrument can measure dual pressure (gauge pressure) and dual temperature measurement at the same time. It has automatic multi-unit pressure conversion and automatic temperature Celsius/Fahrenheit conversion to conveniently meet different needs. It has a built-in 93 kinds of refrigerant pressure-evaporation temperature database, and calculates the degree of subcooling and superheating at the same time, making it easy to directly read the operation process data. In addition, it also tests the percentage of vacuum measurement; pressure leakage measurement, leakage time, and speed recording. Get the job done with this versatile, accurate, and easy-to-operate digital manifold.
Warm Tips

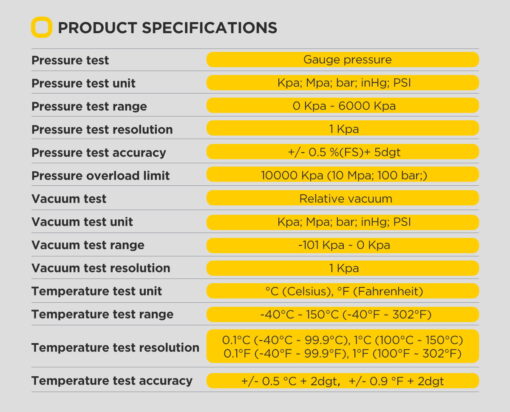

- Pressure measured with a digital manifold pressure tester is gauge pressure.
- The pressure test range is -101Kpa to 6 Mpa (-0.1 bar to 60 bar).
- The ultimate pressure is 10 MPa (100 bar).
- The maximum working pressure of a standard hose is 600 PSI (approximately 4.13Mpa, 41.3 bar). The ultimate pressure is 3000 PSI (about 20.68Mpa, 206.8bar).
- Please check the rated pressure value of the device under test before testing. Do not use if it is beyond the measuring range of the device. If the packaged hose does not meet your pressure requirements, suitable alternatives can be tested.
- Do not use or store the device in areas with high temperature, high humidity, flammable, explosive, or strong electromagnetic fields.
- To avoid equipment damage or hazard, do not modify the equipment’s internal circuitry.
- Wear approved protective equipment to protect the user during testing.
- Please use it in a well-ventilated environment to prevent inhalation of toxic gases.
AUTOOL LM150 Refrigerant Digital Manifold Gauge Meter Features
-
Various Units Available: AUTOOL LM150 Refrigerant Digital Manifold Gauge Meter is equipped with automatic pressure multi-unit conversion, such as temperature Celsius / Fahrenheit conversion.
- 3.5-inch HD Display: The AUTOOL LM150 Refrigerant Digital Manifold Gauge Meter has a backlit screen design, so it can be used even in dark environments. The display divides the test results with lines, making the data more intuitive and clear at a glance.
- V-shaped Ball Valve Opening Design: The AUTOOL LM150 Refrigerant Digital Manifold Gauge Meter features a V-shaped opening design that allows easy control of the valve opening and closing. Therefore, compared with ordinary knob valve refrigerant meters, this device is easier to control, simpler to use, and more durable.
- High-quality Materials: The AUTOOL LM150 Refrigerant Digital Manifold Gauge Meter has a sturdy shell with an IP54 protection rating and a flexible anti-slip silicone design that allows users to have a comfortable holding experience during operation.
- Clip-on Probe: The two wired temperature clamp probes included in the AUTOOL LM150 Refrigerant Digital Manifold Gauge Meter kit enable real-time evaporation and condensation measurements.
- Function Display: HP line temperature measurement, LP line temperature measurement, HP line pressure measurement, LP line pressure measurement, Evaporation temperature measurement, Condensing temperature measurement, 93 types of refrigerants available, Refrigerant system evacuation, Vacuum pressure measurement, Vacuum percentage measurement, Leakage pressure measurement, Leakage time record, Temperature unit switch, and Pressure unit switch.
- Three-Year Warranty, Lifetime Maintenance: For damage caused by non-human factors, AUTOOL promises to resend parts for free within 3 years. For any needs, you are warmly welcome to contact us and we will get back to you ASAP within 24 hours. Online Support>>

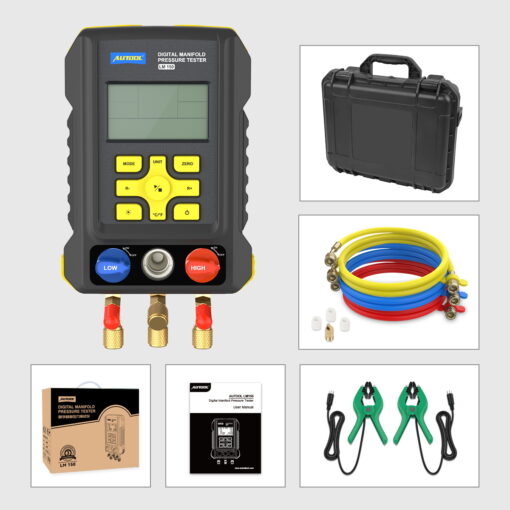

Packing List:
1 x Refrigeration Digital Manifold Gauge
1 x User Manual (in English)
2 x Temperature Clip
3 x Test Pipe
1 x Suitcase
