AUTOOL EM315 2-in-1 Car Starter 12/24V Quick Charge Hidden Lever Auto Battery Charger with LCD Display and Crossover Cable

Product Overview
EM 315(Charging/jump start)Dual function machine:
1)This device supports charging of 12V and 24V lead-acid batteries.Before charging the 12V battery, the function switch should be set to “12V”.Before charging the 24V battery, the function switch should be set to “24V”.
2)This device supports charging of 12V and 24V lead-acid batteries.Before starting the vehicle, press/set the function button to the “Start” button.Positive (+) and negative (-) power poles share charging and starting functions.
Product Features
EM 315 (Charging, Starting)
– Charging Feature
1. Compared with ordinary charger, the charger is smaller, lighter and the power is larger;
2. Charging time and power are twice as fast as traditional machines, and it is the most advanced electronic charger in China;
3. The charging current can be adjusted within the range of 6-60A and is not affected by changes in the input AC voltage;
4. The machine adopts smart temperature control, fan cooling and automatic shutdown protection in over-heat.
– Starting Feature
1. It is mainly used to solve the breakdowns after the failure of starting a car, due to loss of power, aging and ultra-low temperature environment;
2. The design of the car jump start power supply is safe;
3. Convenient, reliable, no need to charge, ultra-low temperature start.
4. Long service life and maintenance-free, to solve the problem that the car engine can not start normally.

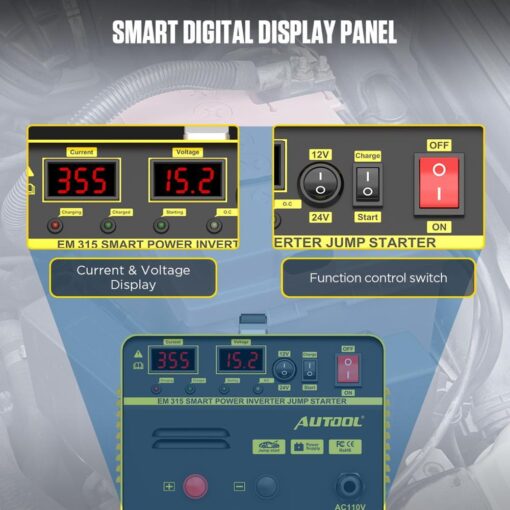

EM 315 (Charging / Starting ) Panel Functions:
Note: Please pay attention for different purpose of use.

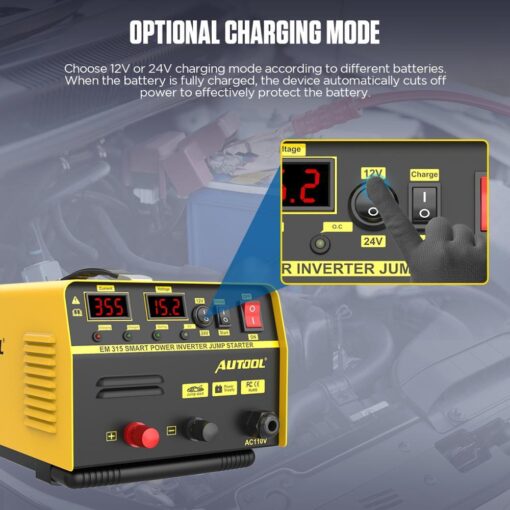

1)For battery charging: Press the button “Charge/ Start”to “Charge”. Before charging 12V batteries, the function switch should be set to “12V”. Before charging 24V batteries, the function switch should be set to “24V”.
2)For starting the vehicle, press the button “Charge/ Start”to “Start” to function.
3)O.C. means the over-current protection indicator.
Operation
Charging Mode
1) For battery charging, press the button “Charge/ Start”to “Charge”, after that the charging starts.
2) Connect the positive clamp (+) to the battery positive (+) pole, connect the negative clamp (-) to the battery negative (-) pole.
3) The charging value of charging depends on the type of rechargeable battery, generally it’s about 10% of its maximum current.
4) The charging time depends on the type of battery; in addition, as the charging time grow more, the charging current will decline to some extent.
5) This unit can be charged with one or more batteries at the same time. When you charge the vehicle, the original battery clamps should be removed.
Note:
Turn off the power before removing the battery clamp.
Fireworks or flame are strictly prohibited at the operation site as flammable gas will be generated during charging.
Be careful to avoid rain, snow or moisture, as it will erode.
The positive(+) and negative(-) poles must be distinguished while using.
The machine should be protected from vibration or collision while using.
Do not charge the battery that has ice on it.
Clean the rechargeable battery before charging to prevent short circuits and detect the initial voltage.
Starting Mode
1) When starting the vehicle, press the “Charge/Start” button to the “Start” function.
2)When starting a high-powered engine, it is best to charge the car battery for about 15 minutes before starting.
3) When starting a diesel engine, the spark plug should be preheated before starting.
4) When connecting the wire clips, connect the negative terminal first, then the positive terminal.

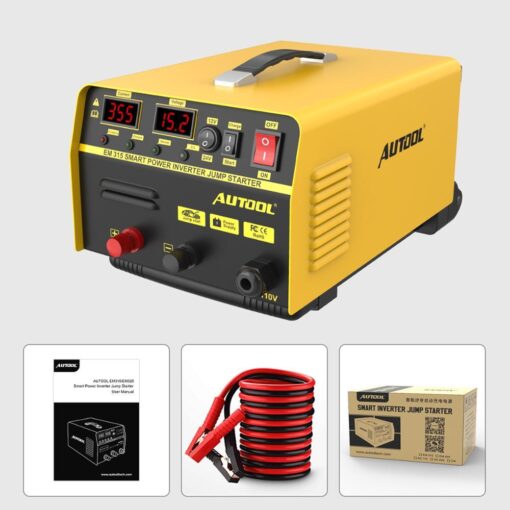

7.Packing list
