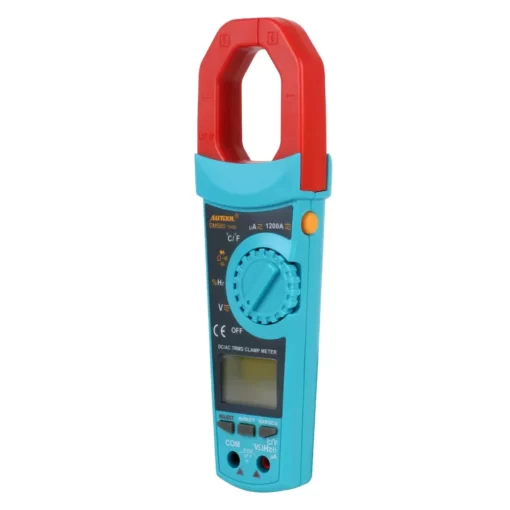

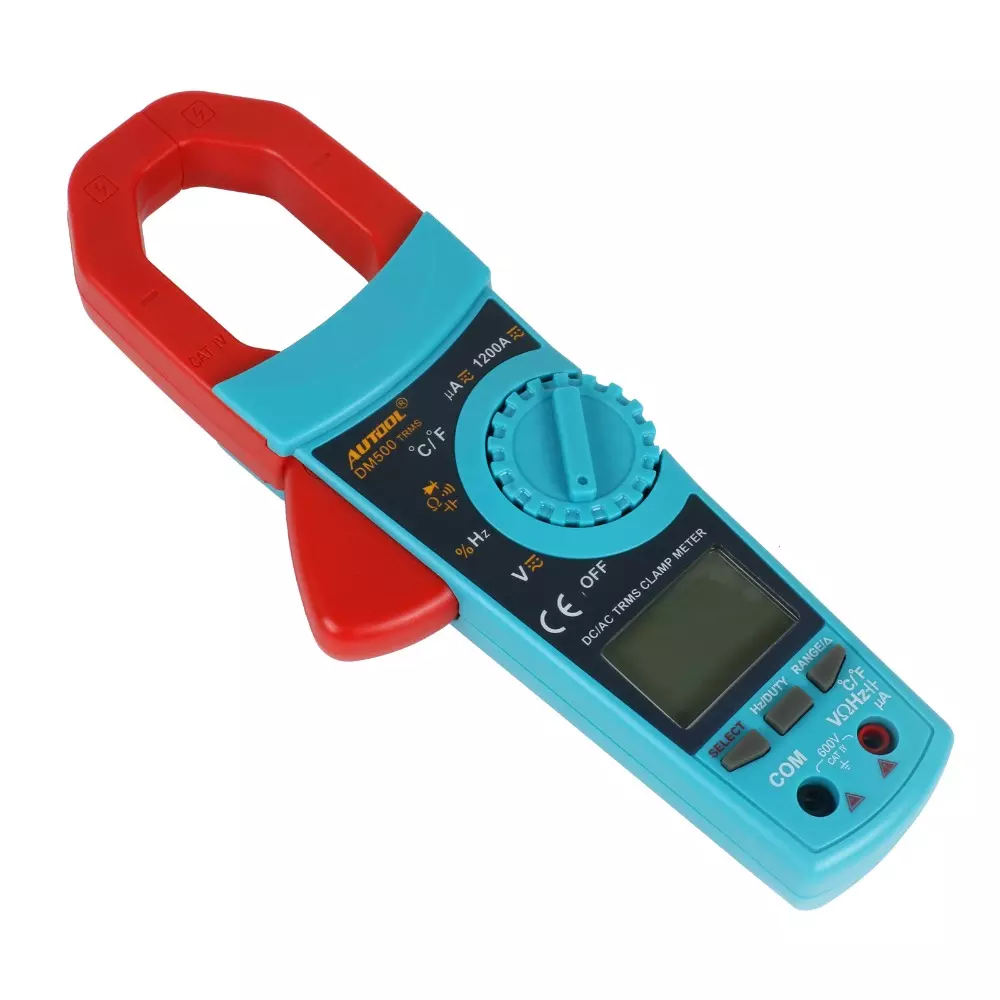

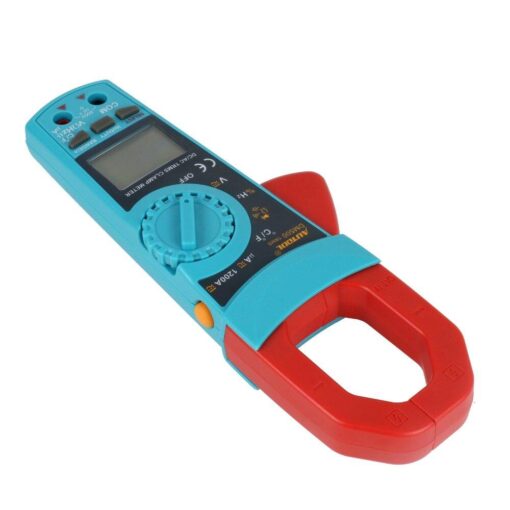

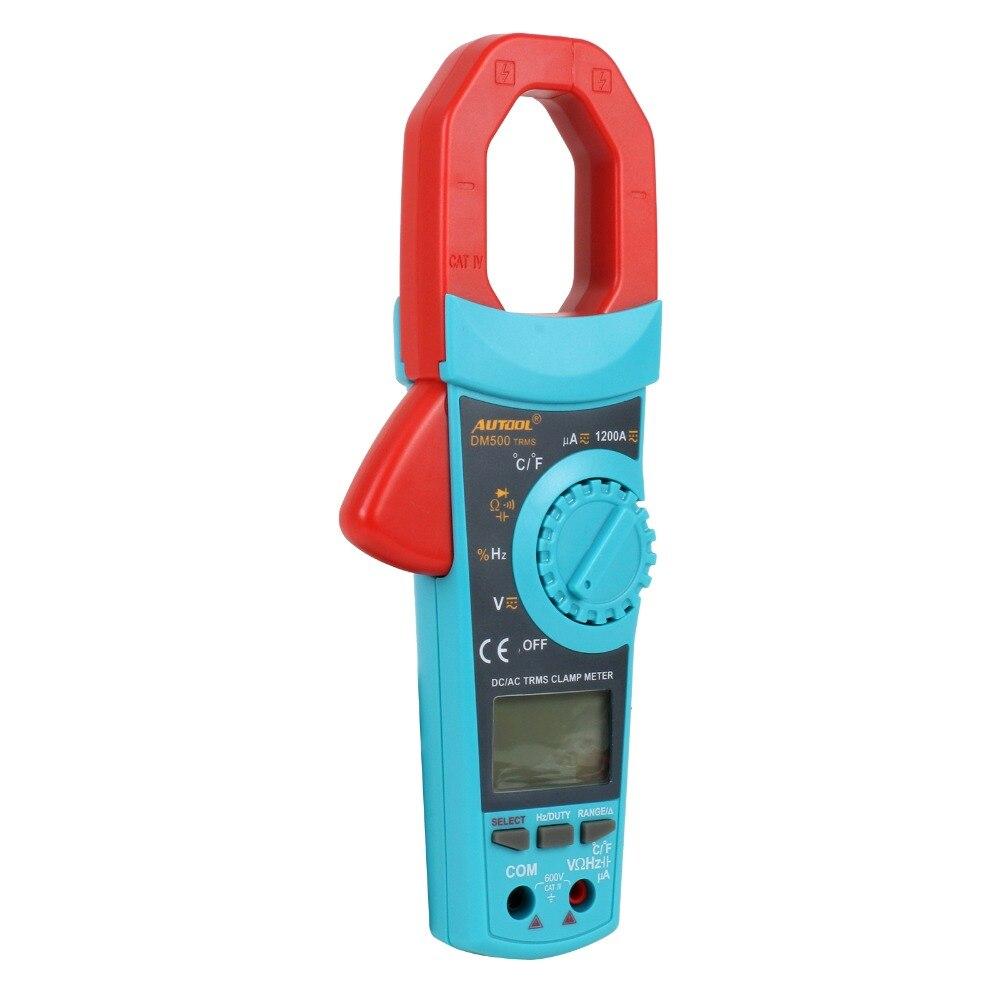

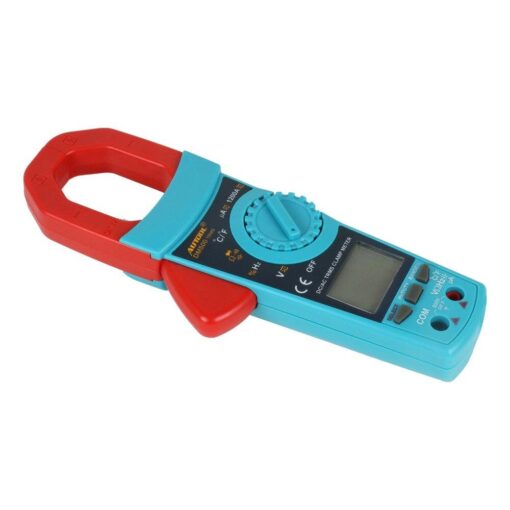

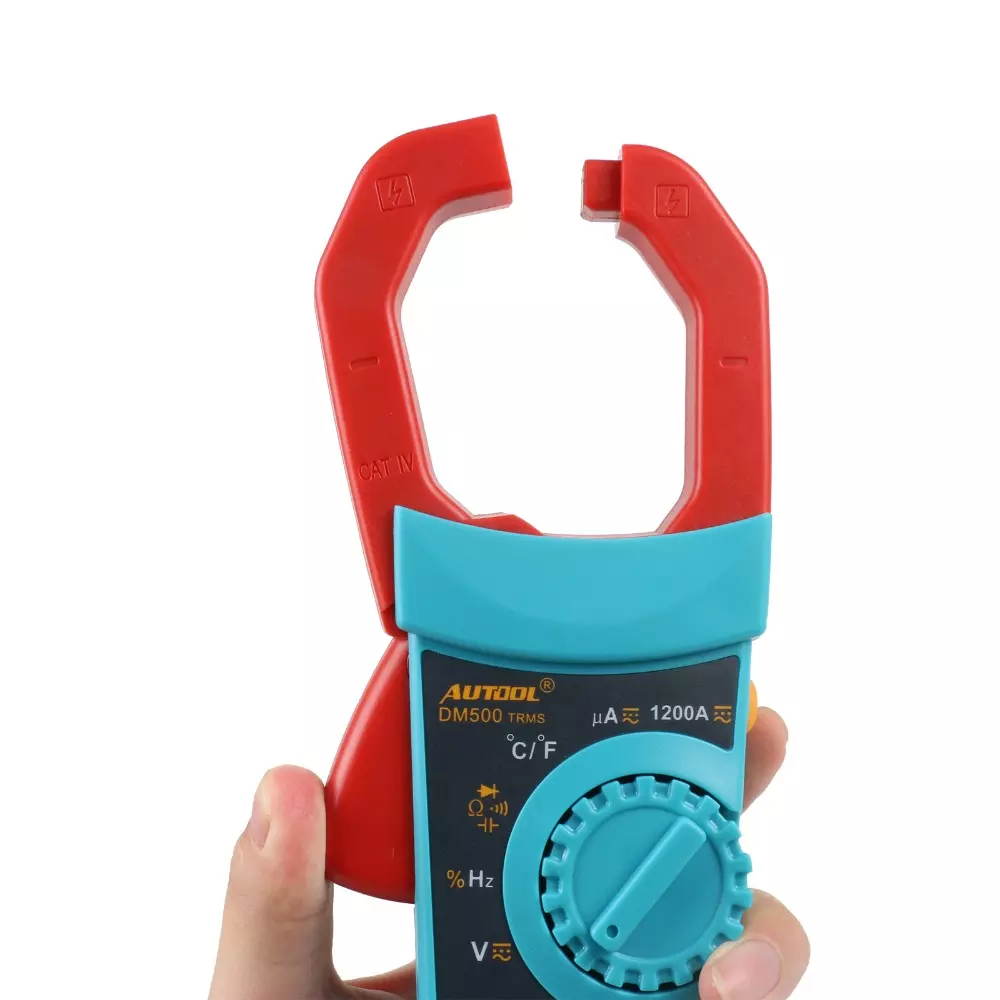

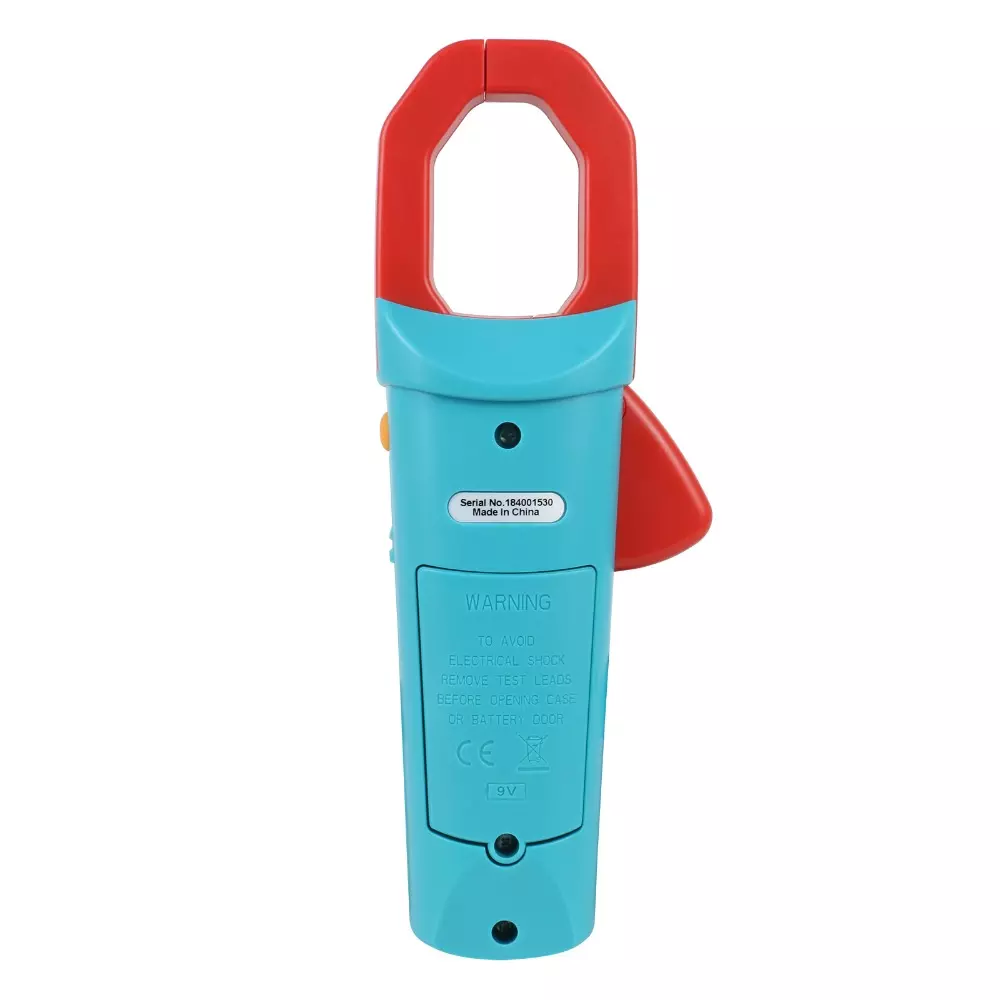

AUTOOL DM500 Car Multimeter Circuit Digital Diagnostic Tool Pocket Size Clamp

Features:

Auto/manual ranges

True RMS measurement

550V protection in resistance and capacitance ranges

Large LCD display，MAX display 6000 counts

Sample rate: 3 times per second

backlight

Data hold

Polarity identification

Low voltage indication

1200A high current measurement，low current measurement

Auto power off

Main measurements：AC/DC Voltage, AC/DC Current, Resistance，Capacitance，
Diode and Continuity Testing，Temperature, Frequency and duty cycle.

* Frequency：1Hz to 10MHz

* Temperature：-20℃ to 1000℃（-4℉ to 1832℉）

* Capacitance :10pF to 6000uF

* AC volts: 0.1mV to 750V

* DC volts：0.1mV to 1000V

* AC current: 0.1uA to 1200A

* DC current:0.1uA to 1200A

* Resistance:0.1Ω to 60MΩ

* Duty cycle:1% to 99%
Specifications:

(1)frequency:5/50/500/5k/50k/500k/5M/10M (±0.1+3)

(2)Temperature:﹤400℃ ±（1.0%+5）,≥400℃±（1.5%+15）

﹤752℉ ±（1.0%+5）,≥752℉±（1.5%+15）

(3)capacitance：10nF（±5.0+20）,100nF/1uF/10uF/100uF（±2.0%+5）,1000uF/10000uF（±5.0%+5）

(4)DC volt:600mV(±1.0%+10), 6V/60V/600V/1000V(±0.5%+3)

(5)AC volt:600mV(±3.0%+3), 6V/60V/600V/750V(±1.0%+3）

(6)ACA/DCA:600uA/6000uA(±0.8%+10)，60A/600A/1200A(±2%+30)

(7)Resistance: 600Ω(±0.5%+3),6K/60K/600K/6M(±0.5%+2),60MΩ(±1.5%+3)

(8)Duty cycle:1% to 99%(±1%)

(9) Measurement mode: Double-integral style A/D transform

(10)Over range indication: OL

(11) Working environment: 0~40℃, relative humidity < 80%

(12) Supply power: 3V (1.5V AA batteries * 2 Pcs)

(13) Dimension: 2807045mm

(14) Weight: 510g
