AUTOOL CS605 ALL System Car OBDII Diagnostic Tools Auto Scan Tool Engine ABS Code Reader Oil EPB SAS ABS Bleeding Throttle Reset

AUTOOL CS605 ALL System Car OBDII Diagnostic Tools Auto Scan Tool Engine ABS Code Reader Oil EPB SAS ABS Bleeding Throttle Reset

AUTOOL diagnostic scan tool can work on more than 90 US, Asian and European makes and models. But its compatibility varies across the vehicle systems or functions as below: Service Functions and Special Functions is NOT universally compatible with all vehicles! Please send VIN number(s) of the vehicle(s) to us to check compatibility for any service function or special function before purchase. It’s strictly vehicle specific when it comes to service functions or special functions including but not limited to what we mentioned here inside the description.

AUTOOL  CS603/605/606 User Manual Download>>

Why choose AUTOOL CS605 ?

1. AUTOOL CS605 provides an economical solution for professional automotive technicians and DIY fans to find out the failure of the car in PCM (Drive System), Chassis system, BCM (Body System) and Electrical System including Engine, Transmission, Transfer case, Electrical Machine Electronics, Fuel Pump, Gear, Accumulator Management Electronics, Steering, Integrated Chassis Management, Tyre Pressure Control, Active Cruise Control, Braking System, Suspension, TPMS, SRS Airbag, Camera, Audio Radio, Gateway, Cluster Dashboard, Rain Sensors, Charging Interface Module, Parking Assistance, Power Control Unit, Touch box, Light, Battery Charging System, Head up Display, Wipe Control System, Roof, Seat & Door Motor system, Immobilizer, ABS ESP system, Air Condition. Electric Windows, Telephone, Centralized control system for engine and power transmission, Chassis integrated control and safety system, intelligent body electronic system, Communication and information / entertainment system etc.
2. AUTOOL CS605 supports OE level car makes covering Europe, America and Asia with the latest 2021 models
3. AUTOOL CS605 supports complete OBDII functions including Reading Codes, Erasing Codes, Data Stream, I/M Readiness Status, Read Live Data Stream, View Freeze Frame Data, O2 Sensor Test, On-Board Monitor Test, Read Vehicle Information, Active Test
4. AUTOOL CS605 provides lifetime free updates; you can get new car models in the future 2022 and after
5. AUTOOL CS605 supports multiple languages including but not limited in English, Portuguese, Hungarian, Russian, Polish, Dutch, Italian, Spanish, French, German,Turkish, Simplified Chinese, Traditional Chinese.
6. AUTOOL CS605 is menu driven, simple operation and easy to carry.
7. AUTOSCAN / AUTOVIN function enables easy and quick access for vehicle diagnosis with VIN information
8. Live data stream in graphic makes a direct and intuitive vehicle diagnosis for some sensors and actuators

AUTOOL CS605 Car OBD2 Diagnostic Tool Feature :

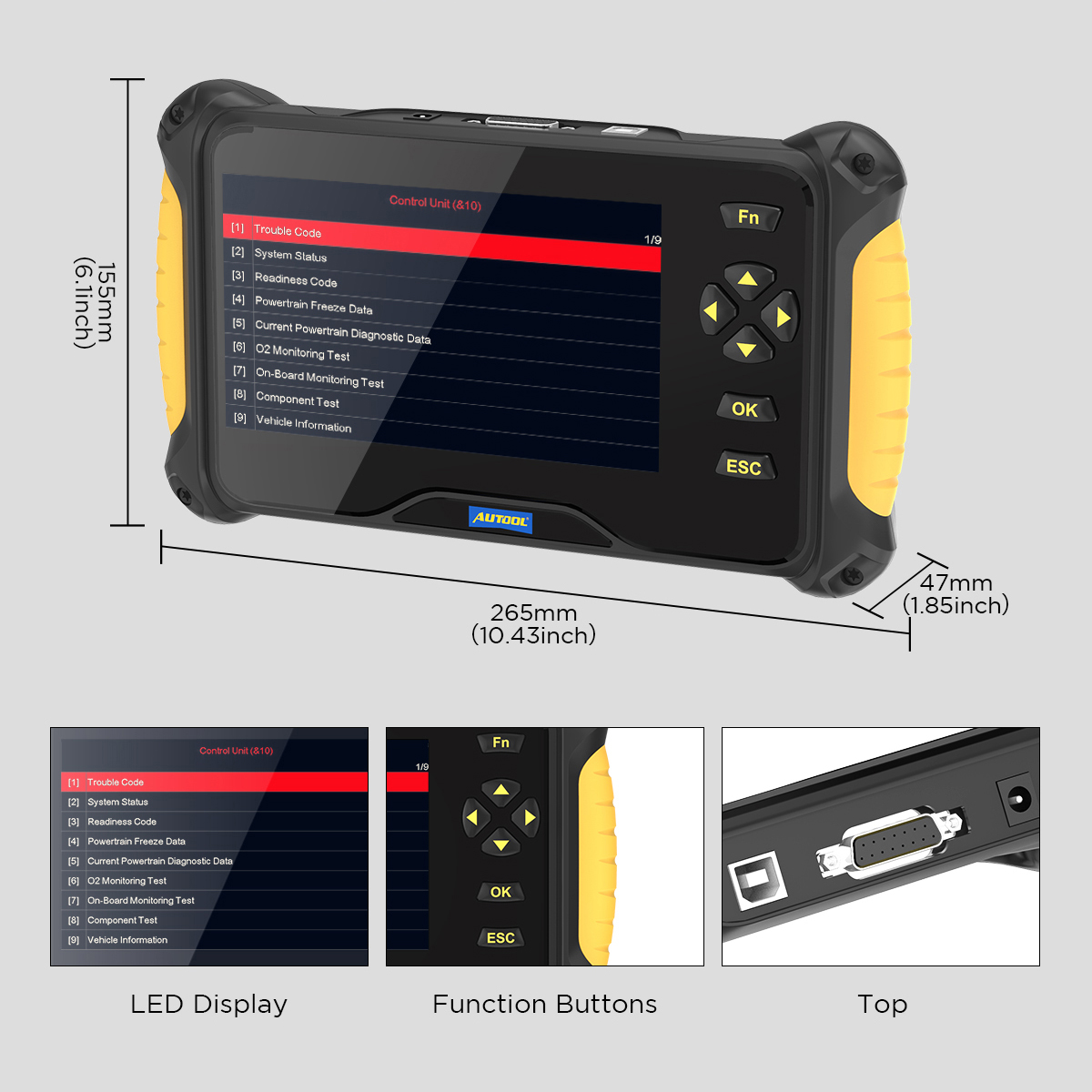

• Large 7 inch TFT color display;
• Ergonomic and fashionable design with the rugged rubber grip;
• OBDII functions available;
• AUTOSCAN / AUTOVIN (Automatically identification vehicle males);
• Specific module programming base on different car makes;
• One click online upgrade,screenshot display,live data recording;
• All Diagnostic Systems for PCM (Drive System), Chassis system, BCM (Body System) and Electrical System;
• 5 Special Service Resets for oil Reset, EPB Reset, SAS Calibration, ABS Bleeding, and Throttle Learn;
• Support 3-way can bus and 2-way K-line / L-line to realize multi-protocol high-speed concurrent communication ;
• WIFI or USB connection enables the software update flexible.The USB 2.0 Type-c interface with reinforced design can be plugged in and out stably for latest software update.The communication interface supports USB / RJ45 / WLAN and other interfaces, which is flexible and easy to use.

Q & A:

WILL THERE BE TARIFFS?

The tariff policy varies from country to country, and some countries do not have tariffs while others do. We can help you fill in a lower declaration value, resulting in fewer customs duties, if you want. You can contact us by email shop@autooltech.com or note the declared value you would like us to fill in when purchasing.

HOW MUCH DOES SHIPPING COST?

AUTOOL CS605 is shipped free of charge to all countries globally from China, so there are no shipping costs.

IS IT TRUE THAT THERE IS A THREE-YEAR WARRANTY? HOW DO YOU DO IT?

All AUTOOL products are guaranteed for three years. Within three years, if there is a problem with the quality of the product, AUTOOL can replace the damaged parts for free.

HOW LONG DOES IT TAKE TO RECEIVE THE PRODUCT?

You can receive the package of AUTOOL CS605 in about 2 weeks.

AUTOOL CS605 ALL System Diagnosis :

PCM (Drive System)
The auto diagnostic scanner can help detect the Engine, Transmission, Transfer case, Electrical Machine Electronics, Fuel Pump, Gear, and more… including the engine ignition, fuel injection, air and fuel ratio, and exhaust emission conditions in Engine system to enhance vehicle performance, save energy and reduce exhaust emission.

Chassis System
The diagnostic tool can help detect the Accumulator Management Electronics, Steering, Integrated Chassis Management, Tyre Pressure Control, Active Cruise Control, Braking System, Suspension, TPMS and more… including diagnosing an ABS problem should always start with a visual inspection of all brake components, next you will need to retrieve ABS codes to tell you where the problem is, and this is what this scanner does for you

BCM (Body System)
The diagnostic tool can help detect the SRS Airbag, Camera, Audio Radio, Gateway, Cluster Dashboard, Rain Sensors, Charging Interface Module, Parking Assistance, Power Control Unit, Touch box, Light, Battery Charging System, Head up Display, Wipe Control System, Roof, Seat & Door Motor system, Immobilizer, ABS ESP system, Air Condition. Electric Windows, Telephone, and more… including SRS, safety restraint system, is made up of impact sensors, a control module, and the airbags themselves, and this diagnostic device can detect every electronic parameter to check its health status.

Electrical System
The diagnostic tool can help detect the Centralized control system for engine and power transmission, Chassis integrated control and safety system, intelligent body electronic system, Communication and information / entertainment system.

AUTOOL CS605 Five Special Service Resets :

EPB RESET (Electronic Park Brake Reset)
EPB Service allows you to perform the service and maintenance of brake systems, including deactivation and activation of the brake control system, bleeding brake fluid, opening and closing brake pads, and setting brakes after disc or pad replacement on multiple brands of vehicles where electronic brake systems are fitted. Some tests display a command to the operator.

OIL RESET (Oil Service Light Reset)
Oil Light Reset allows you to reset the service lamps on the instrument cluster. The Service Indicator System is designed to alert the driver when the vehicle is due for a service.

SAS CALIBRATION (Steering Angle Sensor Reset)
To reset the steering angle, firstly find out the relative zero point position for the car to drive in straight line. Taking this position as reference, the ECU can calculate the accurate angle for left and right steering. After replacing the steering angle position sensor, replacing steering mechanical parts (such as steering gearbox, steering column, end tie rod, steering knuckle), performing four-wheel alignment, or recovering car body, you must reset the steering angle.

ABS BLEEDING (Anti-Brake System Bleeding)
This function allows you to perform various bi-directional tests to check the operating conditions of Anti-lock Braking System (ABS).

1. When the ABS contains air, the ABS bleeding function must be performed to bleed the brake system to restore ABS brake sensitivity.
2. If the ABS computer, ABS pump, brake master cylinder, brake cylinder, brake line, or brake fluid is replaced, the ABS bleeding function must be performed to bleed the ABS.

THROTTLE LEARN (Electronic Throttle Sensor Reset)
This function enables you to make initial settings to throttle actuators and returns the “learned” values stored on ECU to the default state.
Doing so can accurately control the actions of regulating throttle (or idle engine) to adjust the amount of air intake.

AUTOOL CS605 Special Function Support Car List

OIL RESET (Oil Service Light Reset) – Total 40 Car Makes
AMFORD, EUROFORD, MERCEDES, BMW, CHRYSLER, CITROEN, DAEWOO, ALFA, FIAT, LANCIA, GM, ACURA, HONDA, HYUNDAI, INFINITI, ISUZU, JAGUAR, LANDROVER, MAZDA, MINI, MITSUBISHI, NISSAN, OPEL, VAUXHALL, PEUGEOT, DACIA, RENAULT, SUBARU, SUZUKI, LEXUS, SCION, TOYOTA, VOLVO, AUDI, BENTLEY, BUGATTI, LAMBORGHINI, SEAT, SKODA, VW

EPB RESET (Electronic Park Brake Reset) – Total 35 Car Makes
AMFORD, EUROFORD, MERCEDES, BMW, CHRYSLER, CITROEN, DAEWOO, ALFA, FIAT, LANCIA, GM, ACURA, HONDA, HYUNDAI, JAGUAR, LANDROVER, MAZDA, MG, MINI, OPEL, VAUXHALL, PEUGEOT, RENAULT, ROEWE, LEXUS, SCION, TOYOTA, VOLVO, AUDI, BENTLEY, BUGATTI, LAMBORGHINI, SEAT, SKODA, VW

SAS CALIBRATION (Steering Angle Sensor Reset) – Total 40 Car Makes
AMFORD, EUROFORD, MERCEDES, BMW, CHRYSLER, CITROEN, DAEWOO, DAIHATSU, ALFA, FIAT, LANCIA, GM, ACURA, HONDA, HYUNDAI, INFINITI, JAGUAR, LANDROVER, MAZDA, MG, MINI, MITSUBISHI, NISSAN, OPEL, VAUXHALL, PEUGEOT, DACIA, RENAULT, ROEWE, LEXUS, SCION, TOYOTA, VOLVO, AUDI, BENTLEY, BUGATTI, LAMBORGHINI, SEAT, SKODA, VW

ABS BLEEDING (Anti-Brake System Bleeding)
AMFORD, EUROFORD, MERCEDES, BMW, CHRYSLER, FIAT, LANCIA, GM, ACURA, HONDA, HYUNDAI, INFINITI, JAGUAR, LANDROVER, MAZDA, MG, MINI, MITSUBISHI, NISSAN, OPEL, VAUXHALL, RENAULT, ROEWE, SUBARU, LEXUS, SCION, TOYOTA, VOLVO, AUDI, BENTLEY, BUGATTI, LAMBORGHINI, SEAT, SKODA, VW

THROTTLE LEARN (Electronic Throttle Sensor Reset)
AMFORD, EUROFORD, BMW, CHRYSLER, CITROEN, DAEWOO, ALFA, FIAT, LANCIA, GM, ACURA, HONDA, HYUNDAI, INFINITI, JAGUAR, LANDROVER, MAZDA, MG, MINI, MITSUBISHI, NISSAN, OPEL, VAUXHALL, PEUGEOT, DACIA, RENAULT, ROEWE, SUZUKI, LEXUS, SCION, TOYOTA, VOLVO, AUDI, BENTLEY, BUGATTI, LAMBORGHINI, SEAT, SKODA, VW

AUTOOL CS605 Diagnostic Scan Tool Includes All OBDII Code Reader

1.Read Codes
Present some diagnostic trouble codes after scanning the vehicle.

2.Clear Codes
Clear the fault codes after doing the repair according to the prompt of the scanner.

3.Data Stream
Reads and displays live ECU/PCM data stream, plotting functions graphically and stores freeze frame data.

4.Read Live Data Stream
Show the information of continuous data stream from a vehicle in live graphic (waveform) display.

5.I/M Readiness
Shows whether the various emissions-related systems on the vehicle are operating properly and are ready for the inspection and maintenance testing.

6.View Freeze Frame Data
Check the certain vehicle conditions which are recorded by the on-board computer at the time the emission-related fault occurs. Reads and displays live ECU/PCM data stream, plotting functions graphically and stores freeze frame data.

7.On-Board Monitor Test
Check the certain vehicle conditions which are recorded by the on-board computer at the time the emission-related fault occurs. Retrieves and displays test results emission-related powertrain components and systems.

8.O2 Sensor Test
If your engine has unexpectedly started to run poorly, and O2 Sensor Test should be performed. When testing the O2 sensors, the engine will idle normally and with reasonable stability. This must be achieved by loading the original base map or a known good base map and clearing all learned conditions. After reloading the base map and clearing all learned conditions, if the engine does not idle reasonably well, the probability is VERY HIGH that there is a mechanical or electrical issue on the motorcycle causing the problem.

9.Read Vehicle Information
Display the information such as VIN (Vehicle Identification Number), CID (Calibration ID) and CVN (Calibration verification number), etc.

10.Active Test
Certain vehicle components can be actuated by commands sent from the auto diagnostic scanner to test their operability

AUTOOL CS605 All System Diagnostic Tool Support Car Brand (Some models up to 2020/2021)

Asian car makes (from 2005-2021)
ACURA, DAEWOO, DAIHATSU, HONDA, HYUNDAI, INFINITI, ISUZU, ISUZUTHAILAND, KIA, LEXUS, MAHINDRA, MARUTI, MAZDA, MITSUBISHI, NISSAN, PERODUA, PEUGEOT, SAMSUNG, SCION, SSANGYONG, SUBARU, SUZUKI, TATA, TOYOTA,

Europe car makes (from 2004-2021)
ABARTH, ALFA, ASTONMARTIN, AUDI, BENTLEY, BENZ, BMW, BUGATTI, CITROEN, DACIA, EURFORD, FERRARI, FIAT, GAZ, JAGUAR, LAMBORGHINI, LANCIA, LANDROVER, MASERATI, MAYBACH, MERCEDES-BENZ, MINI, OPEL, PAZ, PORSCHE, PROTON, RENAULT, ROLLSROYCE, SAAB, SEAT, SKODA, SMART, SPRINTER, UAZ, VAUXHALL, VAZ,VOLVO, VW, ZAZ,

America car makes (from 1996-/2021)
BUICK, CADILLAC, CHEVROLET, CHRYSLER, DODGE, FORD, GM, GMC, HUMMER, JEEP, TROLLER,

China domestic car makes (from 1996-/2021)
Cheery, Geely, BYD, GWM, ROEWE, MG,

Australian car makes (from 1996-/2021)
AUSFORD, HOLDEN,

South of America car makes (from 1996-/2021)
FIATSA, GMSA,

OBDII (from 1996-/2021)
OBDII

How to update AUTOOL CS605 online ?

AUTOOL CS605 provides two ways software update: via WIFI connection mode and via USB connection mode.

Via WIFI connection mode :
1.Searching WIFI signal after selecting WIFI icon
2.The system will list all HOTSPOT on site
3.Input the password if necessary
4.Connect the Server according to the screen instruction
5.Select the car makes of the diagnostic software package according to the demands

Via USB connection mode :
1.Go to the AUTOOL official website www.autooltech.com
2.Download AUTOOL Update Client to your PC according to the instructions. Make sure the update client has been installed in your PC (Windows 7/8/10 only)
3.Connect the PC to AUTOOL CS605 main unit with the USB cable
4.Input the necessary information during the first registration
5.Select the car makes and click Download according to the demands
6.Wait several minutes, update will be done, enjoy new software

Package includes :

• 1pc * AUTOOL CS605 main unit
• 1pc * USB Cable
• 1pc * Diagnostic Cable
• 1pc * Carrying bag
• 1pc * Carton Box
• 1pc * User’s manual
