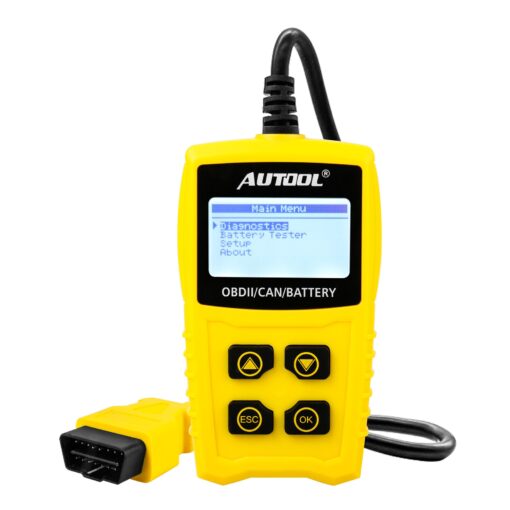

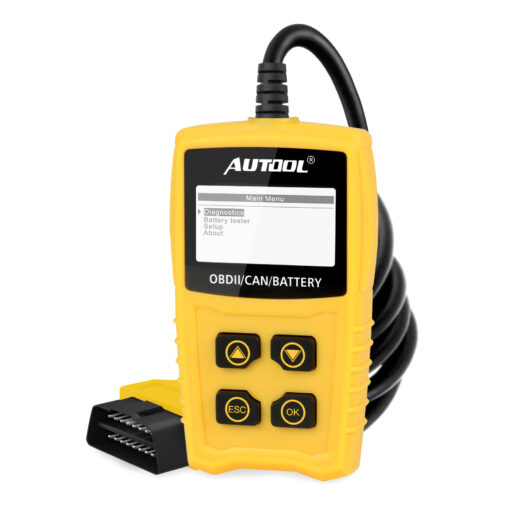

AUTOOL CS330 12V Car Smart Diagnostic Code Reader for OBDII/EOBD/CAN I/M Readiness Automotive DTC Retrieves Generic Scanner
AUTOOL CS330 OBDII / CAN code scanner supports all 10 modes of OBDII test for a complete diagnosis.
Featuring the newly added battery test and black & white LCD display, the AUTOOL CS330 is truly the ultimate in power and affordability, allowing users to do their jobs faster.
AUTOOL CS330 is a easy use DIY scanner for car owners.
* Read codes
* Clear codes
* Read Live data
* View freeze frame data
* I/M readiness
* Retrieves vehicle information
* Battery life
* Battery voltage
* Battery test result
Language: English, Spanish, French, German, Italian, Russian
How to use this scanner :
Step 1: Connect with vehicle ECU – OBD port
Step 2: Choose “Code Read”to read the fault code
Step 3: Choose “Code Clear” to clear fault code, and turn off MIL
Step 4: Back to main menu, and confirm if the fault code is cleared
OBD2 Scanner Supported Car List (Very Important)
CS330 Supports 12V Diesel , Gasoline Car. Do NOT Support Hybrid, Electrical Car
Compatible with Standard OBD2 Cars since 2001:
For Chrysler, for US Ford, for GM, for Dodge, for Jeep, for Buick
Compatible with Standard OBD2 Cars since 2004:
(If you car is Opel in 2004, 2005, 2006, please ask us first)
for SAAB, for Opel, for Audi, for Seat, for Bentley, for Skoda, for Mercedes Benz, for Land Rover, for BMW, for Volvo, for VW, for Ford, for Jaguar, for Vauxhall, for Fiat, for Alfa Romeo, for Acura, for Daewoo, for Daihatsu
for Citroen, for Peugeot after 2006, for Renault after 2010
Not Compatible with Renault Clio 2 / Renault Megane / Dacia Logan / Renault Logan
Asian (Japanese/Korean) vehicles
Compatible with Standard OBD2 Cars since 2005:
(if your car is 2004 2005 2006 released , please confirm with us first)
for Toyota, for KIA, for Isuzu, for Honda, for Lexus , for Mazda, for Nissan, for Subaru, for Suzuki, for Mitsubishi, for Hyundai, for Dacia
Compatible with Standard OBD2 Cars since2008:
for BYD, for Chery, for Geely, for Great Wall, for Karry
Even though it is compatible with most cars, but different regions support the vehicle OBD2 protocol at different times, or some car is in special design, so it may be not compatible with some cars which do not support OBD2 protocol. Especially Japanese and Korean car brands.
Please Leave us message in below format, we will reply you within 8 hours.
for example : xx, 2005, 2.0cc, Diesel
Not Support Russian Cars, VAZ,UAZ,LADA
Not Support Trucks, Pickups, Vans
For Ssangyong Actyon from 2009 to 2017 years.
For Ssangyong Korando 2.0 TD Diesel , from 2013 to 2017 years.
For Ssangyong Kyron 2.0 Diesel , from 2010 to 2017 years.
For Ssangyong Rexton 2011 to 2017 years
|Display||black & white LCD display (320 x 240 dpi)|
|Operating Temperature||0 to 60°C (32 to 140 °F)|
|Storage Temperature||-20 to 70°C (-4 to 158 °F)|
|External Power||8.0 to 18.0 V power provided via vehicle battery|

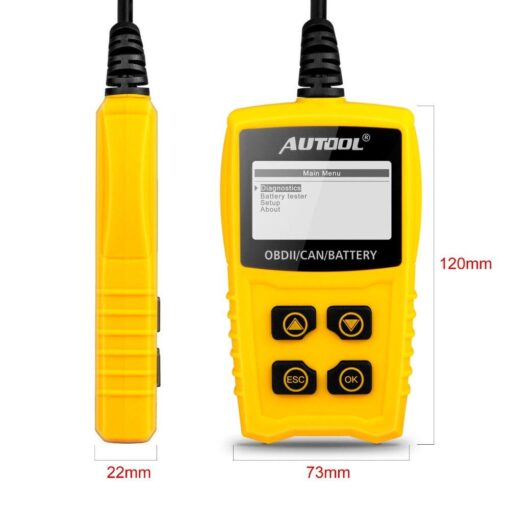

|LengthWidthHeight||123 mm (4.85”)73.35 mm (2.90”)21.8 mm (0.85”)|

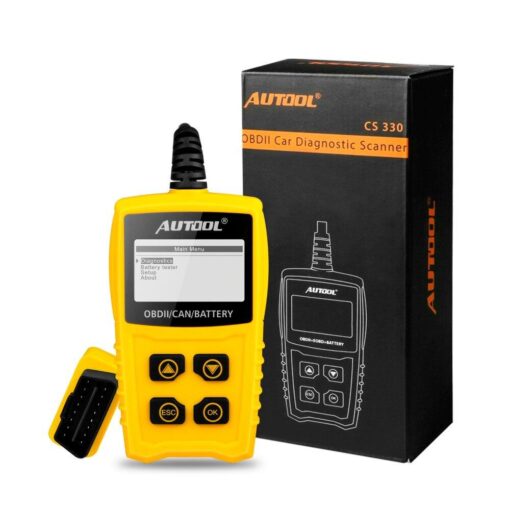

Package Include :
1 x AUTOOL CS330 code reader with OBDII Cable
I am from Russia. What should I do if this item stops working ?
We promise 3-Year Free Maintenance. For items within 2KG, we will offer the freight back to your country; for items over 2KG, we will afford 50% of freight back. Meanwhile, we offer return in 7 days without reasons.
I see that CS330 can do battery test. What are the functions it supports?
Same as other code reader, CS330 can read and locate engine code to help maintenance.Battery test is to test the battery voltage before power on. Before engine on, battery voltage is 12.2-12.8V.If the battery voltage is under 12V, please check if the battery has problem.
