AUTOOL BT660 6-30V Battery Tester with Printer Power System Diagnostic for 12V Car
$85.00
- Freight will be calculated at Checkout.
- Shipping & Return Policy. Read details »
- Tax-free and fast free shipping from overseas warehouses in USA, EU, Russia for most products.
- Parcels shipped from China generally require the customer to pay shipping and customs duties.
- Please feel free to contact us by email with any questions:
shop@autooltech.com
-Some products' manual can be downloaded here.
- China can ship to all countries, Germany only to EU countries, the United States and Russia only to their own countries.
Description：

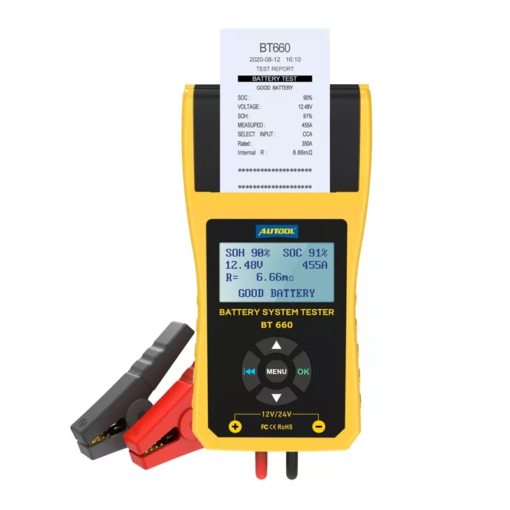

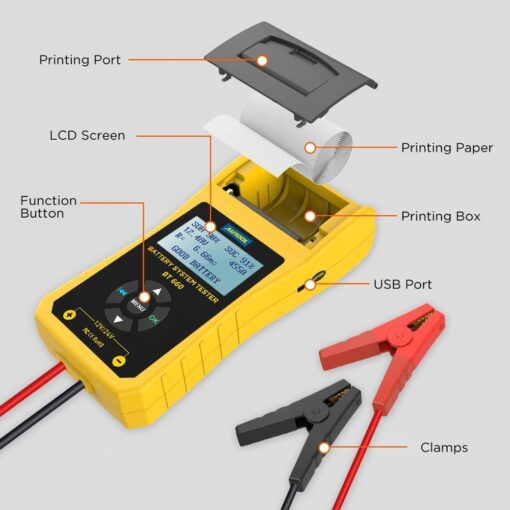

AUTOOL BT660 Car Battery Load Tester with Printer is used for lead-acid starting battery, regular flooded, AGM flat plate, AGM Spiral, GEL and EFB. Applying the advanced conductance testing technology and built-in thermal printer, BT660 can give you accurate testing results and print it in seconds.
AUTOOL BT660 6-32V Car Battery Load Tester Features：
[BATTERY & CRANKING & CHARGING TEST]: AUTOOL BT660 Car Battery Load Tester tests battery, cranking & charging directly for in-car or out of car battery, quickly and accurately measure the actual cold cranking amps capability of the vehicle starting battery, healthy status of the battery itself, and common fault for auto repair.

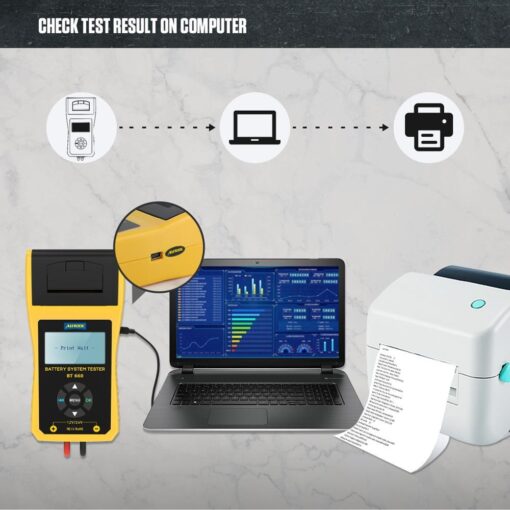

[BUILT-IN PRINTER & DATA DOWNLOAD]：Quick and accurate test result in LCD display just millseconds, with printer you are allowed to review the result date and print the result report. Plus when it connects to a PC via a USB port, you can save data for easy reference next time.
[BATTERY TROUBLE SHOOTING]：Test standards include most battery standards in the world, CCA IEC EN DIN JIS and OTHER SPECIES. Super wide range pro tester rated from 100 to 3000 CCA. Compatible with cars, motorcycles, trucks, RVs, ATVs, SUVs, boats, yachts, mowers and even golf carts. With Polarity Reverse Protection, both the battery and device won’t be damaged.
[MULTI-LANGUAGE SUPPORT]: 10 Languages are available. Available in English, Spanish, German, French, Russian, Chinese, Dutch, Japanese, Polish and Italian. Other languages can be customized.
[3-YEAR WARRANTY] For damage caused by non-human factors, we promise to resend parts for free within 3 years. For any needs, you are warmly welcomed to contact us and we will get back to you ASAP within 24 hours.
Version 1：
Chinese, English, Japanese, Russian, Dutch
Version 2：
English, Spanish, French, German, Italian, Polish
Three Functions Test Operation Steps of AUTOOL BT660 Car Battery Load Tester with Printer
Step 1. Connect the 12V/24V battery, red clips to positive pole and black clips to negative pole.
Step 2. Battery Test: Firstly select the type of battery to be tested, then the test criteria and the test range, and then you have the results within few seconds.
Step 3. Cranking Test: After selecting the cranking test function, follow the prompts to start the engine. Test completed.
Step 4. Charging Test: After entering the charging test function, follow the prompt to increase the speed to 2500 RPM for 5 seconds, then press OK. Test completed.

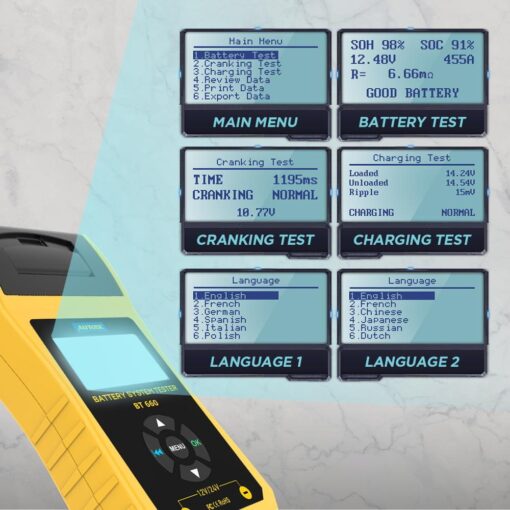

Details Display：
Find every single test results about your car battery quickly here, clearly and accurately.

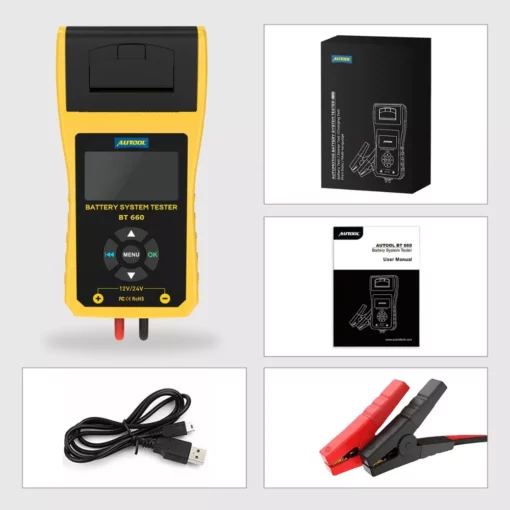

Packing List：
1pc * AUTOOL BT660 Car Battery Load Tester
2pcs * Full copper core kelvin clip
1pc * Manual
1pc * USB Cable
FQA
Please do an inspection according to the following methods before you turn on the device. Method 1: Please check whether the negative terminal and the positive terminal are connected correctly, then ensure the battery and the tester are in good contact. Method 2: please check whether the voltage of your battery is within our device measurable range.
We suggest you having a product inspection according to the following methods firstly. Method 1: Please check whether the power clip accurately connect the right position of the battery terminal; Method 2 : please use other battery testing devices to test your battery and compare results to see whether it is within the error range; Method 3: please perform function calibration on AUTOOL battery tester, but currently only BT460 and BT760 have this function.
BT360 can support 24V battery testing in series, but you need to divide it into two 12V batteries for testing firstly.
We are sorry that AUTOOL battery testers can’t test deep cycle batteries. As for solar cells, it’s suggested to provide us with specific battery parameters, then we will get back to you soon.
AUTOOL battery tester can’t test lithium iron batteries.
AUTOOL battery tester can test Start/Stop batteries as long as battery parameters are within measurable range. If you are not sure yours, we’d like to help you to confirm after you provide us the battery parameters.
AUTOOL battery testers can test most of motorcycle batteries, but it also depends on specific situations. You need to check weather your battery is within the measurable range. We recommend BT460 battery tester for you, which has a wider testing range.
You don’t need to set the language every time after the first set. If you wanna switch to another language, it’s convenient to operate.
BT380 adopts the intelligent charging mode, which will adjust the charging capacity according to the change of the battery power, and it will stop charging automatically after full charge.
AUTOOL battery testers can test tractor batteries, but it’s suggested to provide specific battery parameters for reference first.
SPECIFICATIONS
- Brand Name: AUTOOL
- Origin: CN(Origin)
- Item Weight: 700g
- Special Features: Battery tester with Printer
- Other Part Number: bt660

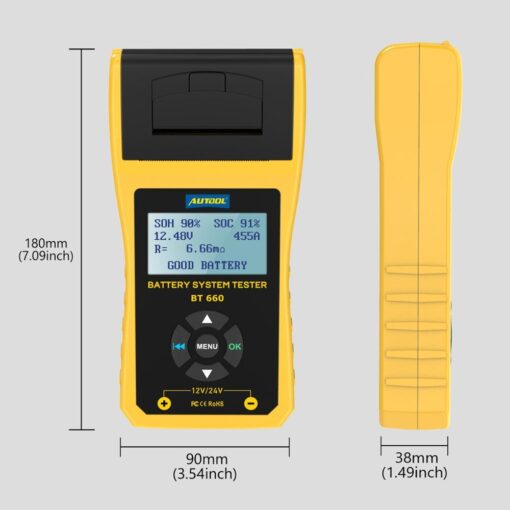

- Item Width: 15cm
- Manufacturer Part Number: BT660
- Country/Region of Manufacture: China
- Placement on Vehicle: NO
- Item Height: 5cm
- Item Length: 25cm
- Material Type: Plastic & Metal
- Interchange Part Number: BT660
